Haier HSU-12LEA13-M User manual

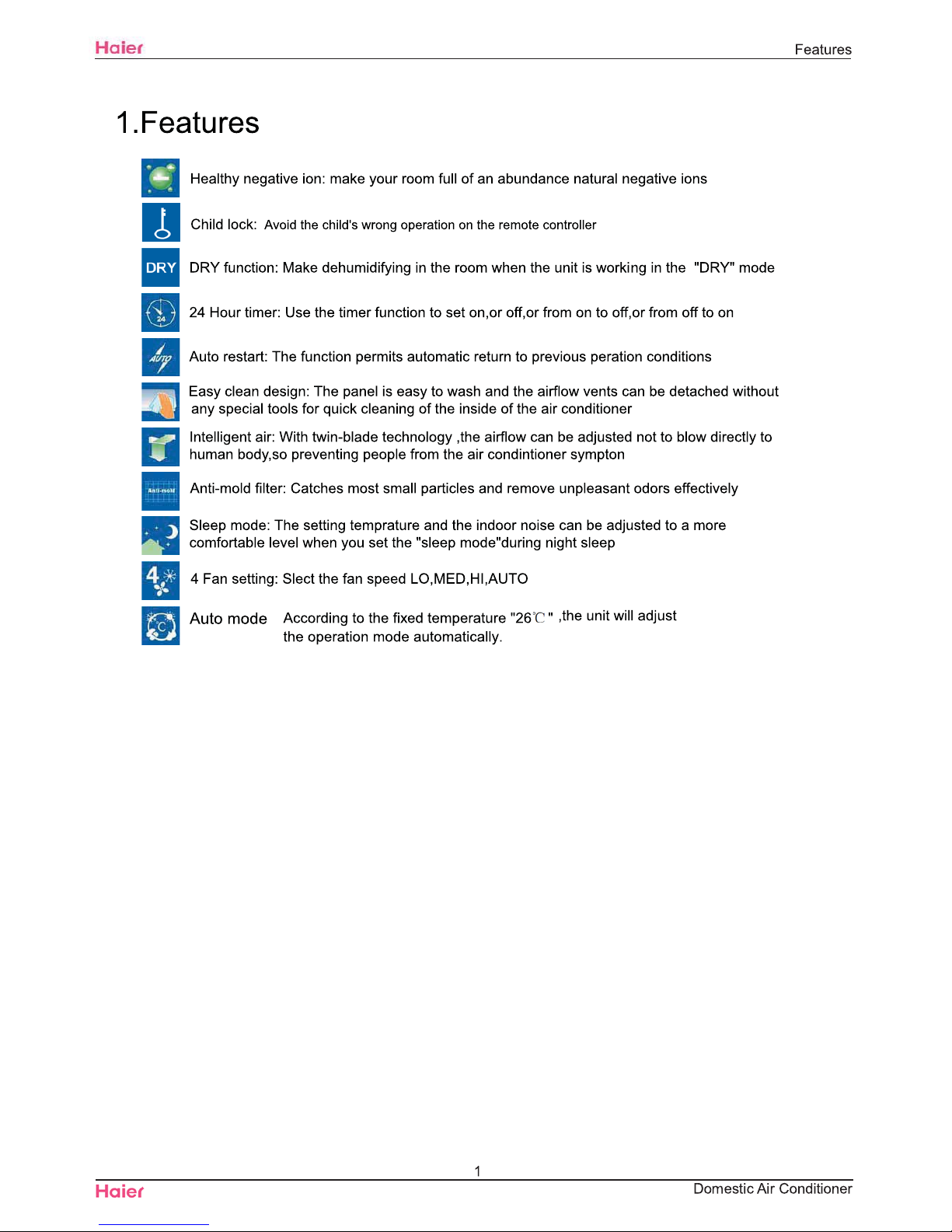

$&69
0RGHO1R+68/($05(&+,
+68/($05(&+,
'HVFULSWLRQRIFRGLQJUXOHVRIXQLWPRGHO
+68/($05(&+,
+68/($05(&+,
FKRLFH
+68/($05(&+,
Warning
Do not repair the electrical components with wet hands. Working on the equipment with wet hands can
cause an electrical shock.
Do not clean the air conditioner by splashing water. Washing the unit with water can cause an electrical
shock.
Be sure to provide the grounding when repairing the equipment in a humid or wet place, to avoid electrical
shocks.
Be sure to turn off the power switch and unplug the power cable when cleaning the equipment. The
internal fan rotates at a high speed, and cause injury.
Do not tilt the unit when removing it. The water inside the unit can spill and wet the furniture and floor.
Be sure to check that the refrigerating cycle section has cooled down sufficiently before conducting repair
work. Working on the unit when the refrigerating cycle section is hot can cause burns.
Use the welder in a well-ventilated place. Using the welder in an enclosed room can cause oxygen
deficiency.
2.1.2 Cautions Regarding Products after Repair
Warning
Be sure to use parts listed in the service parts list of the applicable model and appropriate tools to
conduct repair work. Never attempt to modify the equipment. The use of inappropriate parts or tools can
cause an electrical shock, excessive heat generation or fire.
When relocating the equipment, make sure that the new installation site has sufficient strength to
withstand the weight of the equipment.
If the installation site does not have sufficient strength and if the installation work is not conducted
securely, the equipment can fall and cause injury.
Be sure to install the product correctly by using the provided standard installation frame.
Incorrect use of the installation frame and improper installation can cause the equipment to fall, resulting
in injury.
For
integral
units only
Be sure to install the product securely in the installation frame mounted on a window frame.
If the unit is not securely mounted, it can fall and cause injury.
For
integral
units only
,QWURGXFWLRQ
3
'RPHVWLF$LU&RQGLWLRQHU
+68/($05(&+,
Warning
Be sure to use an exclusive power circuit for the equipment, and follow the technical standards related to
the electrical equipment, the internal wiring regulations and the instruction manual for installation when
conducting electrical work.
Insufficient power circuit capacity and improper electrical work can cause an electrical shock or fire.
Be sure to use the specified cable to connect between the indoor and outdoor units. Make the
connections securely and route the cable properly so that there is no force pulling the cable at the
connection terminals.
Improper connections can cause excessive heat generation or fire.
When connecting the cable between the indoor and outdoor units, make sure that the terminal cover does
not lift off or dismount because of the cable.
If the cover is not mounted properly, the terminal connection section can cause an electrical shock,
excessive heat generation or fire.
Do not damage or modify the power cable.
Damaged or modified power cable can cause an electrical shock or fire. Placing heavy items on the
power cable, and heating or pulling the power cable can damage the cable.
Do not mix air or gas other than the specified refrigerant (R-410A / R22) in the refrigerant system.
If air enters the refrigerating system, an excessively high pressure results, causing equipment damage
and injury.
If the refrigerant gas leaks, be sure to locate the leak and repair it before charging the refrigerant. After
charging refrigerant, make sure that there is no refrigerant leak.
If the leak cannot be located and the repair work must be stopped, be sure to perform pump-down and
close the service valve, to prevent the refrigerant gas from leaking into the room. The refrigerant gas itself
is harmless, but it can generate toxic gases when it contacts flames, such as fan and other heaters,
stoves and ranges.
When replacing the coin battery in the remote controller, be sure to disposed of the old battery to prevent
children from swallowing it.
If a child swallows the coin battery, see a doctor immediately.
Caution
Installation of a leakage breaker is necessary in some cases depending on the conditions of the
installation site, to prevent electrical shocks.
Do not install the equipment in a place where there is a possibility of combustible gas leaks.
If a combustible gas leaks and remains around the unit, it can cause a fire.
Be sure to install the packing and seal on the installation frame properly. If the packing and seal are not
installed properly, water can enter the room and wet the furniture and floor.
For
integral
units only
,QWURGXFWLRQ
4
'RPHVWLF$LU&RQGLWLRQHU
+68/($05(&+,
2.1.3 Inspection after Repair
Warning
Check to make sure that the power cable plug is not dirty or loose, then insert the plug into a power outlet
all the way.
If the plug has dust or loose connection, it can cause an electrical shock or fire.
If the power cable and lead wires have scratches or deteriorated, be sure to replace them.
Damaged cable and wires can cause an electrical shock, excessive heat generation or fire.
Warning
Do not use a joined power cable or extension cable, or share the same power outlet with other electrical
appliances, since it can cause an electrical shock, excessive heat generation or fire.
Caution
Check to see if the parts and wires are mounted and connected properly, and if the connections at the
soldered or crimped terminals are secure. Improper installation and connections can cause excessive
heat generation, fire or an electrical shock.
If the installation platform or frame has corroded, replace it. Corroded installation platform or frame can
cause the unit to fall, resulting in injury.
Check the grounding, and repair it if the equipment is not properly grounded. Improper grounding can
cause an electrical shock.
Be sure to measure the insulation resistance after the repair, and make sure that the resistance is 1 M
ohm or higher.
Faulty insulation can cause an electrical shock.
Be sure to check the drainage of the indoor unit after the repair.
Faulty drainage can cause the water to enter the room and wet the furniture and floor.
,QWURGXFWLRQ
5
'RPHVWLF$LU&RQGLWLRQHU
+68/($05(&+,
2.1.4 Using Icons
Icons are used to attract the attention of the reader to specific information. The meaning of each icon is described in
the table below:
2.1.5 Using Icons List
Icon Type of Information Description
Note: Note
A “note” provides information that is not indispensable, but may
nevertheless be valuable to the reader, such as tips and tricks.
Caution Caution
A “caution” is used when there is danger that the reader, through
incorrect manipulation, may damage equipment, loose data, get an
unexpected result or has to restart (part of) a procedure.
Warning Warning A “warning” is used when there is danger of personal injury.
Reference
A “reference” guides the reader to other places in this binder or in
this manual, where he/she will find additional information on a
specific topic.
,QWURGXFWLRQ
6
'RPHVWLF$LU&RQGLWLRQHU
+68/($05(&+,

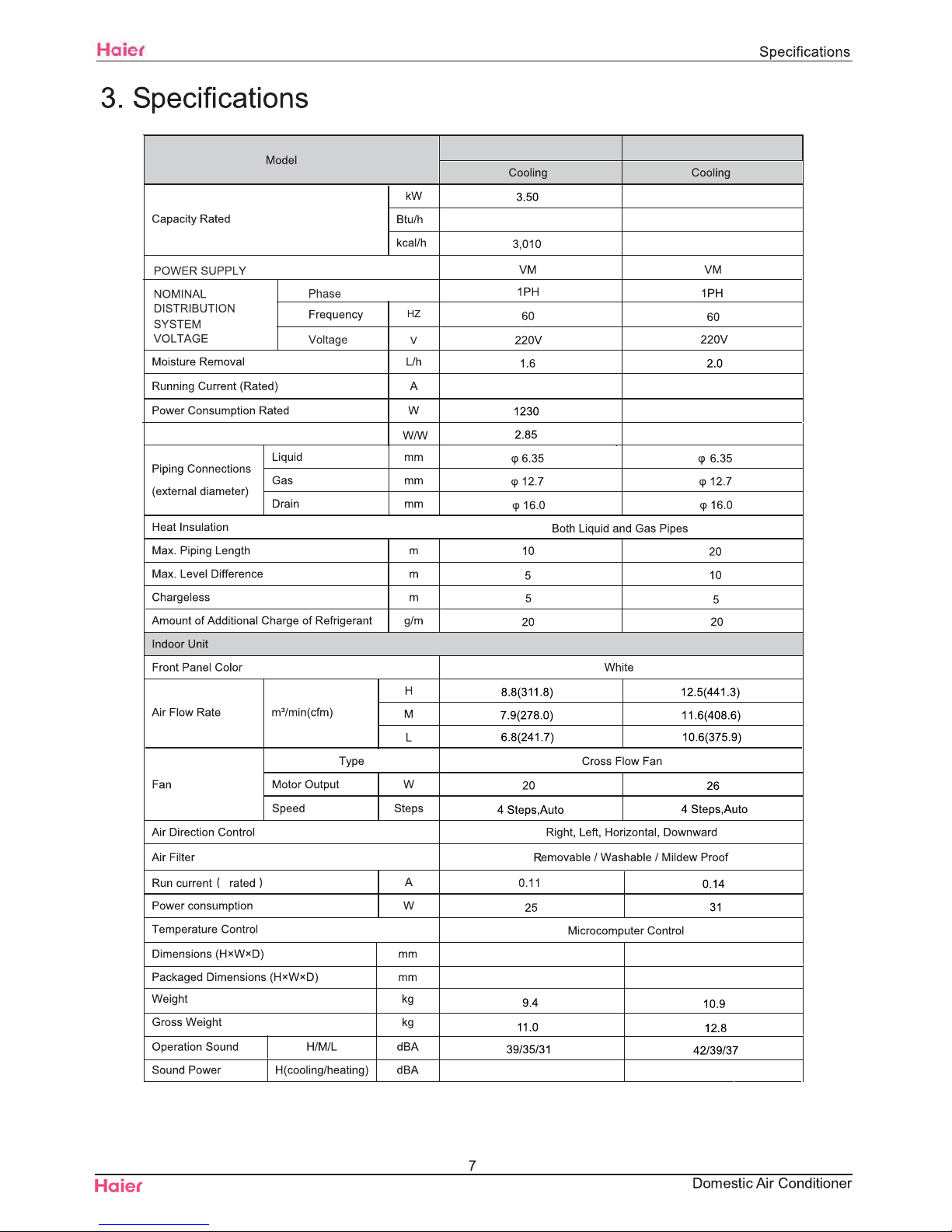

+68/($05(&+,

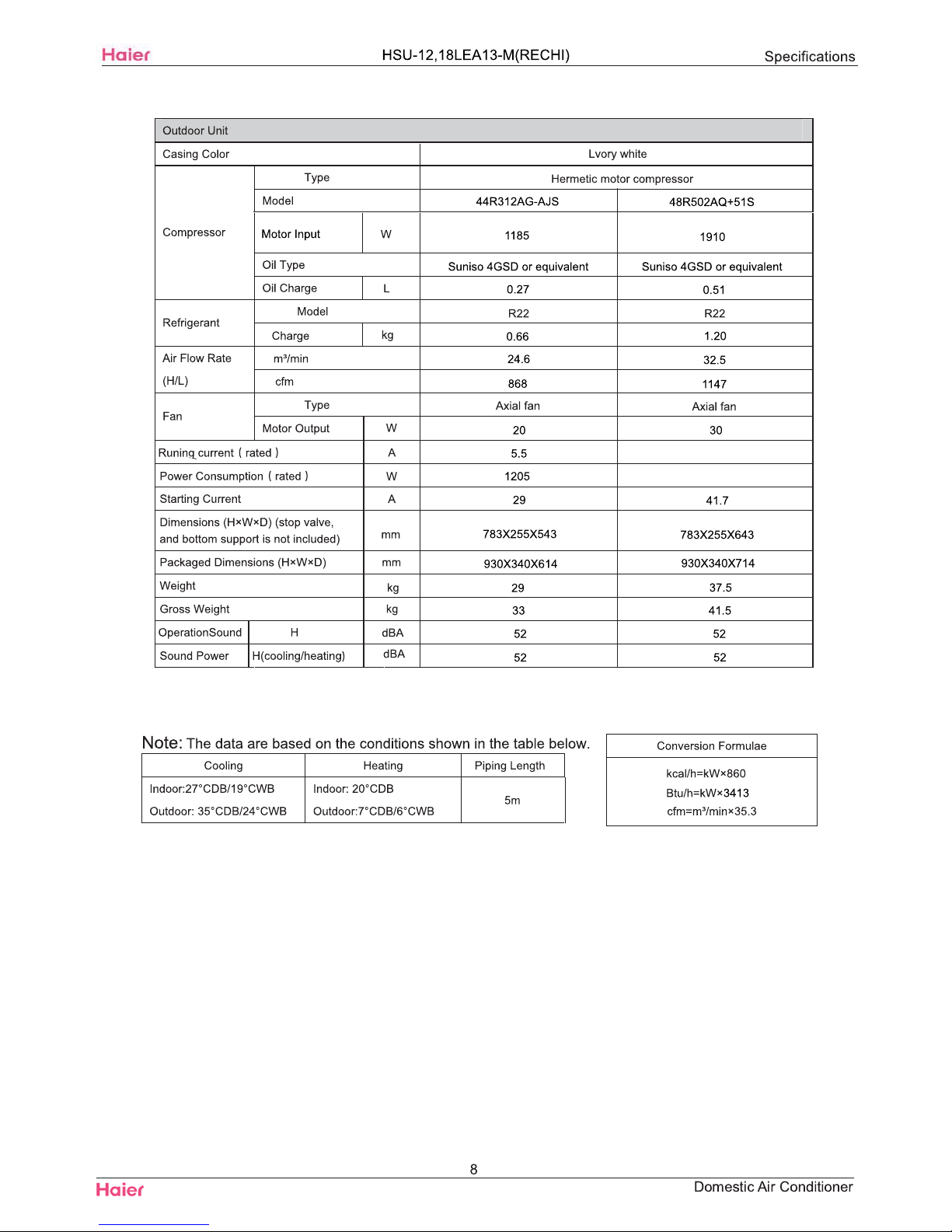

+68/($05(&+, +68/($05(&+,
;;
;; ;;
;;
((55DWHG
3ULQWHG&LUFXLW%RDUG&RQQHFWRU:LULQJ'LDJUDP
,QGRRUXQLW
&RQQHFWRUV,QGRRU3&%
&1FRQQHFWRUIRUWUDQVIRUPHU
&1FRQQHFWRUIRUSRZHUOLQH
&1FRQQHFWRUIRUWUDQVIRUPHU
&1´FRQQHFWRUIRUXSDQGGRZQVWHSPRWRU
&1FRQQHFWRUIRUDPELHQWWHPSVHQVRUDQGSLSLQJWHPSVHQVRU
&1FRQQHFWRUIRUUHFHLYHUGLVSOD\
&1FRQQHFWRUIRU$&IDQIHHGEDFNPRWRU
&1FRQQHFWRUIRU$&IDQPRWRU
&1 &1 &1´
&1
&1
&1
&1
&1
+68/($05(&+,
+68/($05(&+,
+LJKWHPSHUDWXUHH[SLUDWLRQSURWHFWLRQ
+LJKWHPSHUDWXUHH[SLUDWLRQSUHYHQWLRQ:KHQWKHWHPSRIFRLOSLSHLVDERYHćFRPSUHVVRUDQGRXWOHWDLU
VWRSUXQQLQJVHFRQGVODWHUDQGLQOHWDLUUXQVDVWKHWHPSVHQVRULVRII:KHQFRPSUHVVRUVWDQGVE\IRU
PLQXWHDQGWKHWHPSRIFRLOSLSHLVEHORZćWKHXQLWFDQEHVWDUWHGDJDLQ
7LPHUIXQFWLRQ

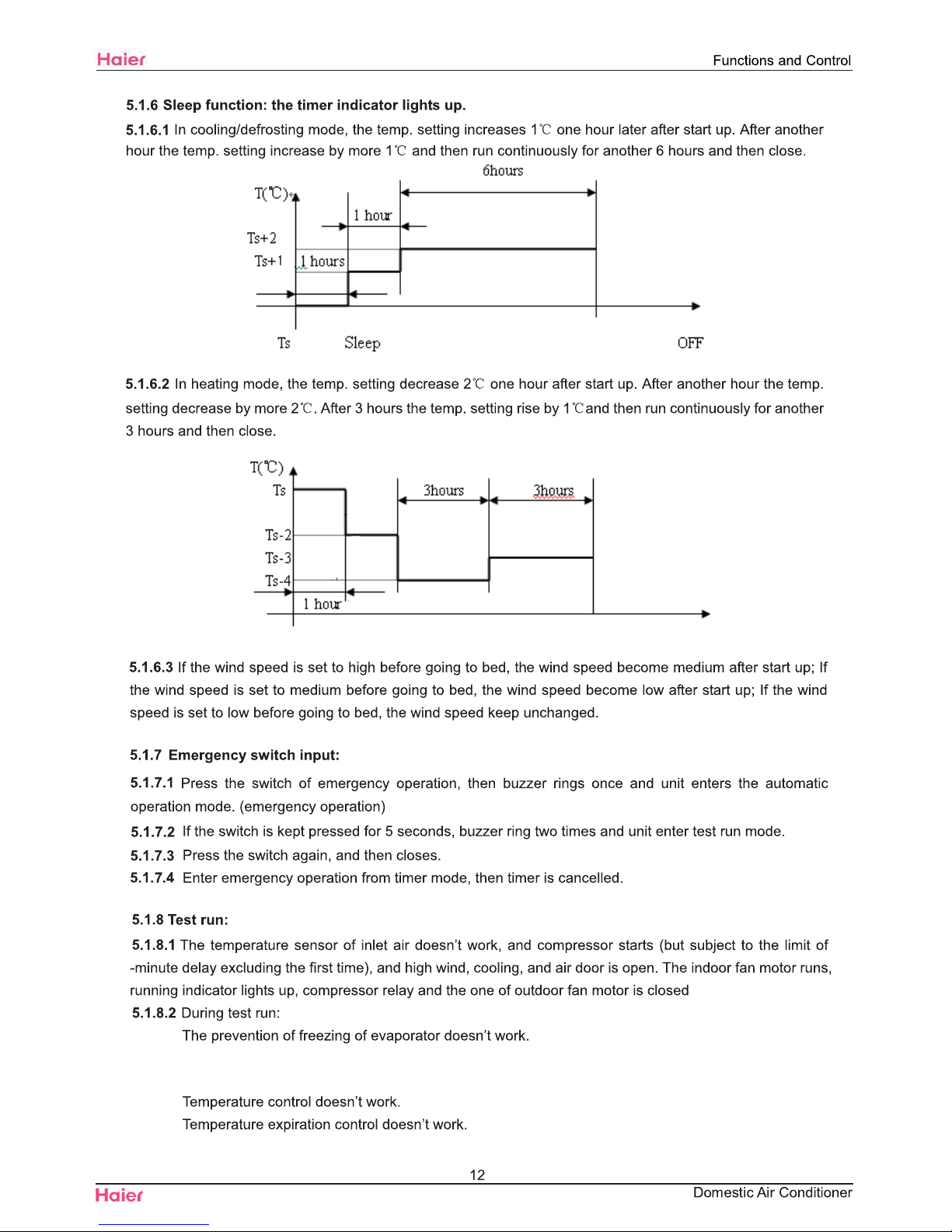

+68/($05(&+,
&XUUHQWFURVVFRQWUROGRHVQ¶WZRUN
7KHFRQWURORIFXUUHQWFURVVSHDNH[SLUDWLRQGRHVQ¶WZRUN
+68/($05(&+,
+68/($05(&+,

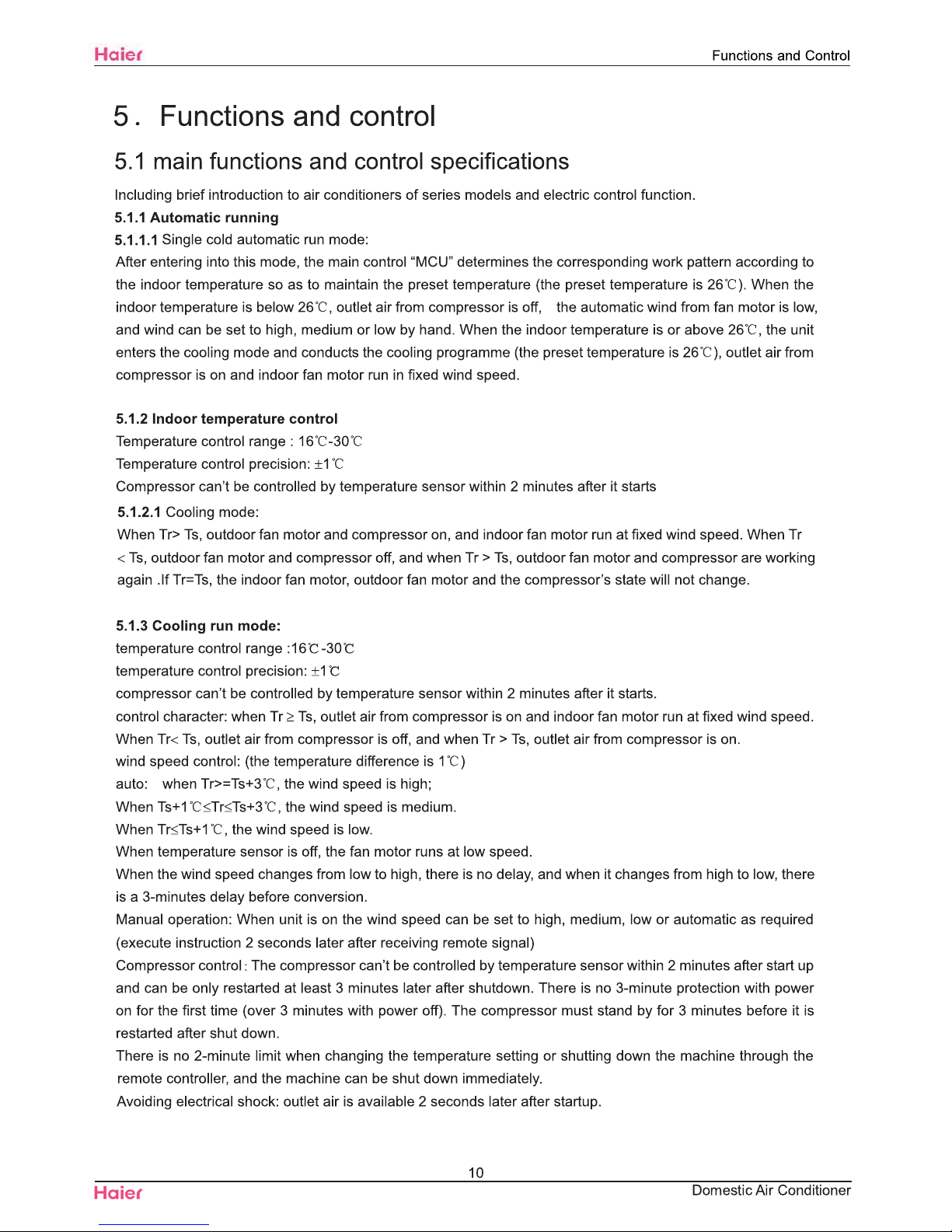

)XQFWLRQV DQG &RQWURO
'RPHVWLF$LU&RQGLWLRQHU
+68/($05(&+,
)XQFWLRQV DQG &RQWURO
'RPHVWLF$LU&RQGLWLRQHU
+68/($05(&+,
74 3.4150 3.1072 2.8237 -2.82 2.60
75 3.2993 2.9987 2.7222 -2.87 2.64
76 3.1881 2.8946 2.6249 -2.92 2.68
77 3.0812 2.7946 2.5316 -2.97 2.73
78 2.9785 2.6986 2.4420 -3.02 2.77
79 2.8796 2.6063 2.3560 -3.07 2.81
80 2.7845 2.5176 2.2735 -3.12 2.86
81 2.6931 2.4324 2.1943 -3.17 2.90
82 2.6050 2.3505 2.1182 -3.22 2.94
83 2.5203 2.2717 2.0451 -3.28 2.99
84 2.4388 2.1960 1.9749 -3.33 3.03
85 2.3602 2.1231 1.9075 -3.38 3.07
86 2.2846 2.0530 1.8426 -3.43 3.12
87 2.2118 1.9856 1.7803 -3.48 3.16
88 2.1416 1.9207 1.7204 -3.54 3.20
89 2.0740 1.8582 1.6628 -3.59 3.25
90 2.0089 1.7981 1.6074 -3.64 3.29
91 1.9461 1.7402 1.5541 -3.70 3.34
92 1.8856 1.6844 1.5028 -3.75 3.38
93 1.8272 1.6307 1.4535 -3.80 3.43
94 1.7709 1.5789 1.4060 -3.86 3.47
95 1.7166 1.5291 1.3603 -3.91 3.52
96 1.6643 1.4810 1.3163 -3.97 3.56
97 1.6138 1.4347 1.2739 -4.02 3.61
98 1.5650 1.3900 1.2331 -4.08 3.66
99 1.5180 1.3470 1.1937 -4.13 3.70
100 1.4726 1.3054 1.1559 -4.19 3.75
101 1.4287 1.2654 1.1194 -4.24 3.80
102 1.3864 1.2268 1.0842 -4.30 3.84
103 1.3455 1.1895 1.0503 -4.36 3.89
104 1.3060 1.1535 1.0176 -4.42 3.94
105 1.2679 1.1188 0.9860 -4.47 3.98
106 1.2310 1.0853 0.9556 -4.53 4.03
107 1.1954 1.0529 0.9263 -4.59 4.08
108 1.1610 1.0217 0.8980 -4.65 4.13
109 1.1277 0.9915 0.8707 -4.70 4.17
110 1.0955 0.9624 0.8443 -4.76 4.22
111 1.0644 0.9342 0.8189 -4.82 4.27
112 1.0344 0.9070 0.7943 -4.88 4.32
113 1.0053 0.8807 0.7706 -4.94 4.37
114 0.9771 0.8553 0.7478 -5.00 4.41
115 0.9499 0.8307 0.7256 -5.06 4.46
116 0.9235 0.8070 0.7043 -5.12 4.51
117 0.8980 0.7840 0.6837 -5.18 4.56
118 0.8734 0.7618 0.6637 -5.24 4.61
)XQFWLRQV DQG &RQWURO
16
'RPHVWLF$LU&RQGLWLRQHU
+68/($05(&+,
119 0.8495 0.7404 0.6445 -5.30 4.66
120 0.8263 0.7196 0.6258 -5.36 4.71
Pipe Sensor
R25 =10Kȍ±3%ć
B25 /50 =3700K±3%ćć
Temp.((ć)) Max.(Kȍ) Normal(Kȍ) Min.(Kȍ)Tolerance(ć)
-30 165.2170 147.9497 132.3678 -1.94 1.75
-29 155.5754 139.5600 125.0806 -1.93 1.74
-28 146.5609 131.7022 118.2434 -1.91 1.73
-27 138.1285 124.3392 111.8256 -1.89 1.71
-26 130.2371 117.4366 105.7989 -1.87 1.70
-25 122.8484 110.9627 100.1367 -1.85 1.69
-24 115.9272 104.8882 94.8149 -1.83 1.67
-23 109.4410 99.1858 89.8106 -1.81 1.66
-22 103.3598 93.8305 85.1031 -1.80 1.64
-21 97.6556 88.7989 80.6728 -1.78 1.63
-20 92.3028 84.0695 76.5017 -1.76 1.62
-19 87.2775 79.6222 72.5729 -1.74 1.60
-18 82.5577 75.4384 68.8710 -1.72 1.59
-17 78.1230 71.5010 65.3815 -1.70 1.57
-16 73.9543 67.7939 62.0907 -1.68 1.55
-15 70.0342 64.3023 58.9863 -1.66 1.54
-14 66.3463 61.0123 56.0565 -1.64 1.52
-13 62.8755 57.9110 53.2905 -1.62 1.51
-12 59.6076 54.9866 50.6781 -1.60 1.49
-11 56.5296 52.2278 48.2099 -1.58 1.47
-10 53.6294 49.6244 45.8771 -1.56 1.46
-9 50.8956 47.1666 43.6714 -1.54 1.44
-8 48.3178 44.8454 41.5851 -1.51 1.42
-7 45.8860 42.6525 39.6112 -1.49 1.40
-6 43.5912 40.5800 37.7429 -1.47 1.39
-5 41.4249 38.6207 35.9739 -1.45 1.37
-4 39.3792 36.7676 34.2983 -1.43 1.35
-3 37.4465 35.0144 32.7108 -1.41 1.33
-2 35.6202 33.3552 31.2062 -1.38 1.31
-1 33.8936 31.7844 29.7796 -1.36 1.29
0 32.2608 30.2968 28.4267 -1.34 1.28
1 30.7162 28.8875 27.1431 -1.32 1.26
2 29.2545 27.5519 25.9250 -1.29 1.24
3 27.8708 26.2858 24.7686 -1.27 1.22
4 26.5605 25.0851 23.6704 -1.25 1.20
5 25.3193 23.9462 22.6273 -1.23 1.18
6 24.1432 22.8656 21.6361 -1.20 1.16
7 23.0284 21.8398 20.6939 -1.18 1.14
)XQFWLRQV DQG &RQWURO
17
'RPHVWLF$LU&RQGLWLRQHU
+68/($05(&+,
)XQFWLRQV DQG &RQWURO
'RPHVWLF$LU&RQGLWLRQHU
+68/($05(&+,
