Haier HCC2230AGS User manual

24” and 30” Gas Cooktops
Tables de cuisson à gaz de 24” et 30”
Supercies de cocción a gas de 24” y 30”
Installation Instructions
Instructions d’installation
Instrucciones de instalación
HCC2230AGS
HCC3230AGS
ON
MIN
OFF
ON
MIN
OFF
ON
MIN
OFF
ON
MIN
OFF

Installation Instructions
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE THESE INSTRUCTIONS FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Advance Preparation
•For proper operation of a gas appliance, the air necessary for the combustion of the gas must be
able to flow into the room naturally. The air must flow into the room directly through openings in the
outside walls. These openings must have an unobstructed cross-section not less than 2m3/hfor each
kw of power (see total power in kw on the appliance).
• This opening must be constructed so that it will not be obstructed from inside or outside, or
constructed close to the floor. The opening is recommended to be on the side opposite to that on
which the flue gases are discharged.
• Avoid placing cabinetry directly above
cooktop when possible. If cabinetry is used
above cooking surface, use cabinets no more
than 13″ deep (see Figure 6).
• Working areas adjacent to the cooktop
should have 18″ minimum clearance between
countertop and cabinet bottom.
Make sure the wall coverings, countertop and
cabinets around the cooktop can withstand
heat (up to 200º F) generated by the cooktop.
• Maintain 30″ minimum clearance between
cooktop surface and cabinets installed above
the cooktop.
•If range hood is installed above cooktop,
maintain a 30” minimum clearance between
cooktop and bottom of range hood. The range
hood must be connected directly to flues or to
the outside.
Figure 6

• A range hood with minimum 350 CFM that projects at least 5” beyond front of cabinets can reduce
risk of burns caused by reaching over heated surface units.
Provide an Adequate Gas and Electrical Supply
•Installation must comply with local codes. In the absence of local codes, the gas cooktop must
comply with the National Fuel Gas Code ANSI Z223.1—latest edition in the United States, or in
Canada CAN/CGA B149.1, and CAN/CGA B149.2, and the National Electrical Code ANSI/NFPA No.
70—latest edition in United States, or in Canada CSA Standard C22.1, Canadian Electrical Code,
Part 1, and local code requirements.

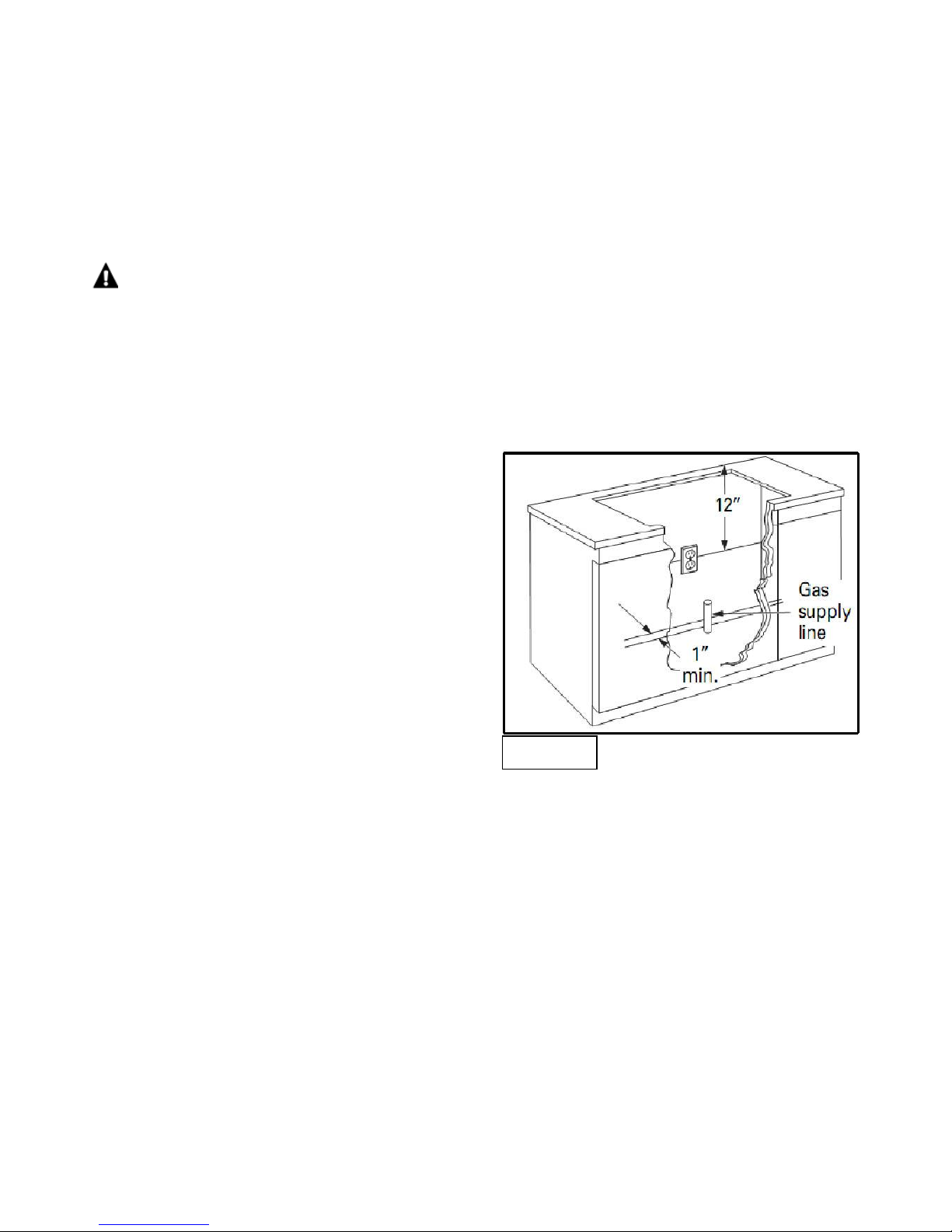

• Gas supply should be located near the
opening for this cooktop and be a minimum of
1” from the back wall (see Figure 7). This
cooktop is set for natural gas and is designed
to operate at 5” water column pressure. The
regulator is required to provide a minimum of
6” water column to a maximum of 14” water
column to the cooktop regulator.
• The electric spark ignition feature for this model requires a 120V electrical power supply and should
be located 12” below the countertop and within reach of the cooktop’s four-foot power cord.
Figure 7

Tools and Materials Needed
MATERIALS YOU WILL NEED:
Joint Sealant Pipe Fittings Shut-Off Valve
CSA-Approved Flexible ½” or ¾” Gas Line
TOOLS YOU WILL NEED:
Pencil Phillips-Head Screwdriver
Ruler Safety Glasses
Saber Saw Pipe Wrench 1/8” Drill Bit & Electric or Hand Drill
Cutting the Countertop
1) Use a 24” or deeper base cabinet.
Figure 8

2) Cut the opening in the countertop. To ensure accuracy it is best to make a template (see Figure 9) for
the opening. Make sure the sides are parallel also rear and front cuts are exactly perpendicular to the
sides. Observe all minimum clearances.
3) Before inserting the cooktop into the
opening in the countertop, remove the
grates and burner caps, turn the
cooktop upside down and place the
special foam gasket around the bottom
edge of the cooktop (see Figure 10). It
is important to fix this gasket evenly,
without gaps or overlapping, to prevent
liquid seeping underneath the cooktop.
4) After the foam gasket has been affixed,
place the cooktop into the countertop
(see Figure 11).
Figure 9
Figure 10
Figure 11

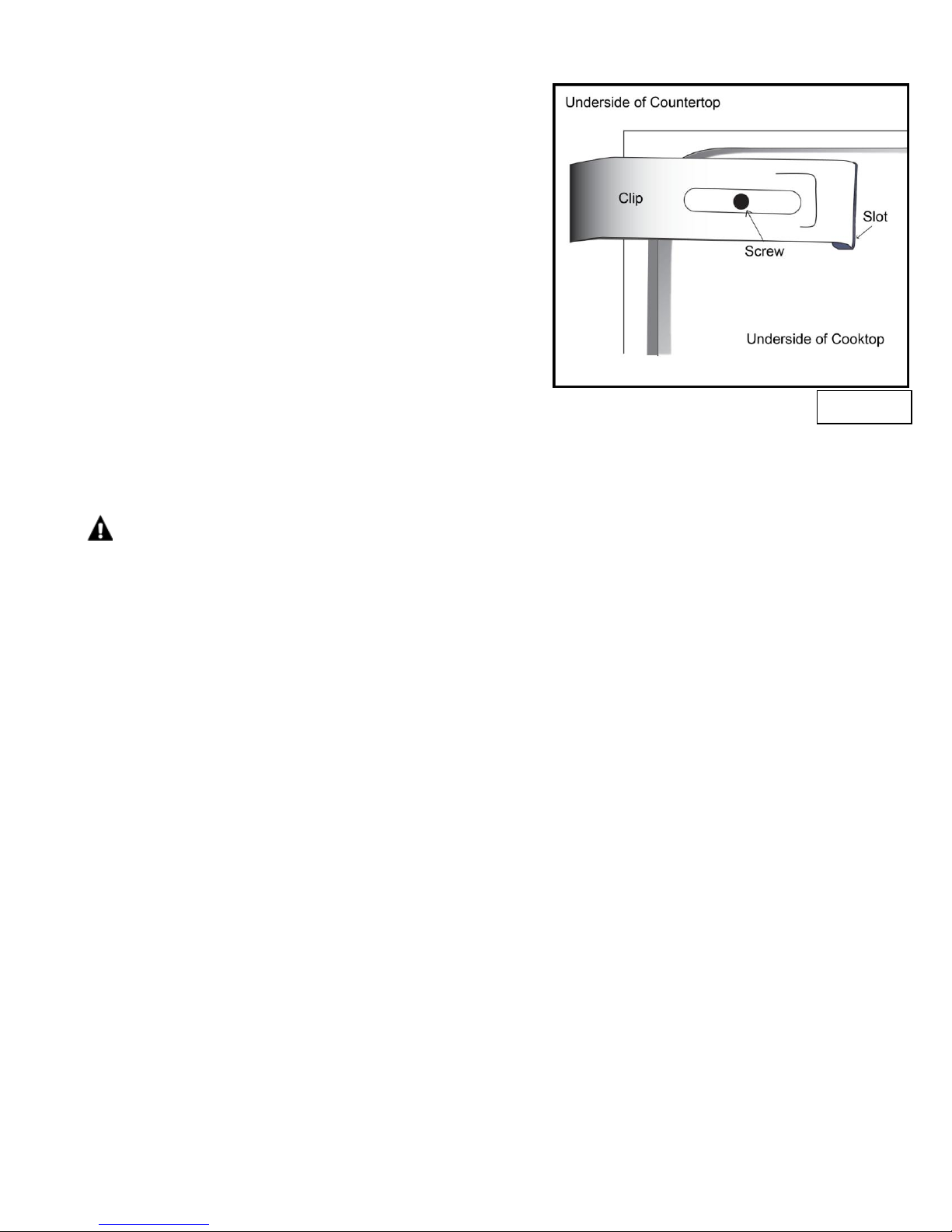

5) Secure cooktop from underneath with
the supplied clips and screws (see
Figure 12).
Installing the Pressure Regulator
WARNING: Never reuse old flexible connectors. The use of old flexible connectors can cause
gas leakage and personal injury. Always use new flexible connectors when installing a gas appliance.
To reduce the possibility of gas leakage, apply Teflon tape or a thread compound approved for use
with LP or Natural gases to all threaded connections.
• This cooktop is set for natural gas and is designed to operate at 5” water column pressure. The
gas supply is required to provide a minimum of 6” to a maximum of 14” water column pressure to the
cooktop regulator.
• If the cooktop is converted for liquid pretroleum (LP) gas, the LP gas supply is required to provide
a minimum of10” to a maximum of 14” water column to the cooktop regulator.
• The pressure regulator must be connected in series with the manifold of the cooktop and must
remain in series with the supply line regardless the type of gas being used.
Figure 12

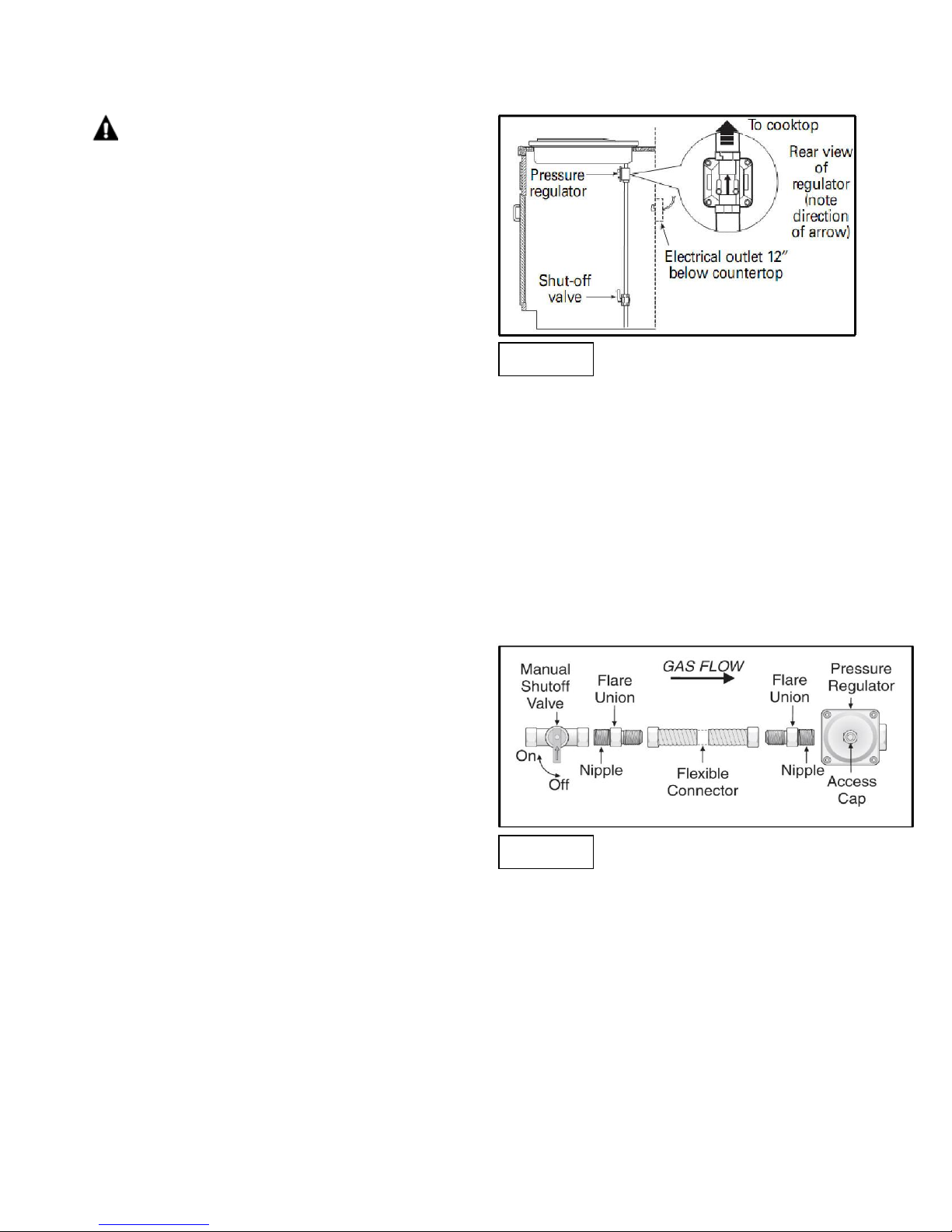

•The gas supply line must be equipped
with an approved manual shut-off valve. In
an easily accessible location in the same
room as the cooktop. Do not block access
to the shutoff valve. Be sure you know how
and where to shut off the gas supply to the
cooktop. Install the electrical outlet 12”
below the countertop (see Figure 13).
1) The gas inlet is located on the bottom of the cooktop at the rear and 8 ½” from the right hand
edge of the cooktop. Make gas connection through rear wall, or on cabinet floor at rear. Install
the house gas supply at least 1” from the back wall.
2) When installing, fit a safety tap at the end of the pipeline. The appliance leaves the factory tested
and set for natural gas. Make sure that the type of gas to be supplied to the appliance is the
same as that shown on the label affixed to the underside of the cooktop.

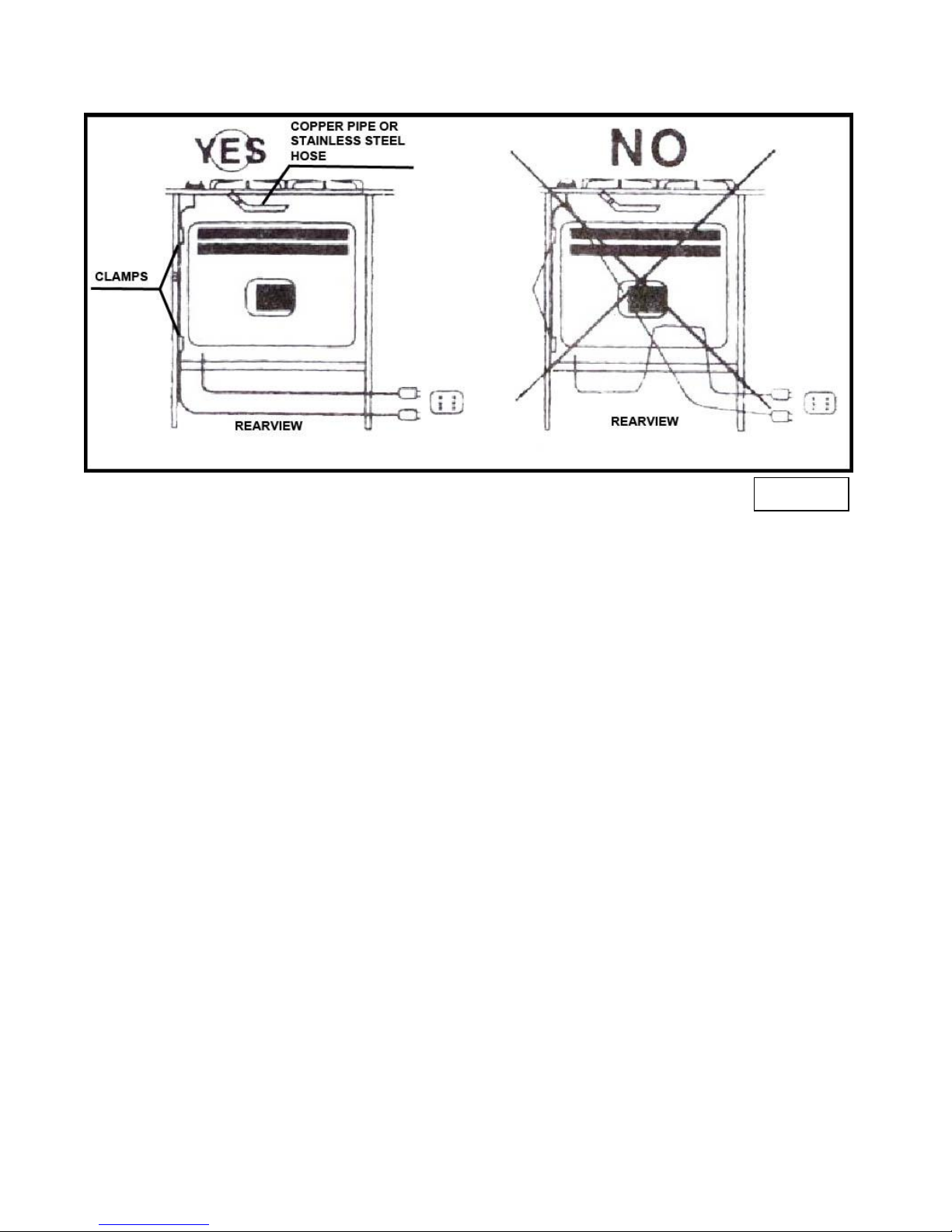

3) Make the connection to the gas system
using a rigid ½”or ¾”metal pipe and
regulation unions, or with a stainless steel
hose complying with the local standard. If
metal hoses are used, take care that they
do not come into contact with mobile parts
and are not crushed. This must also be
checked if the cooktop is to be combined
with an oven.
4) The gas intake connection of the appliance
has a “male thread.” When making the
connection, take care not to apply stresses
of any kind to the appliance. Over-
tightening may crack the regulator resulting
in a gas leak and possible fire or explosion
(see Figure 14).
5) Once regulator is in place, open the shutoff valve in the gas supply line. Wait a few minutes for
gas to move through the gas line.
Figure 14
Figure 13

6) After connecting the cooktop to the gas supply, make sure all burners knobs are in the OFF
position and check the system for leaks with a manometer. If a manometer is not available, turn
on the gas supply and use a liquid leak detector (or soap and water) at all joints and connections
to check for leaks.
•Warning - Do not use a flame to check for leaks from gas connections. Checking for leaks with
a flame may result in a fire or explosion.
•Tighten all connections if necessary to prevent gas leakage in the cooktop or supply line.
•Check alignment of control knob valves after connecting the cooktop to the gas supply to be
sure the cooktop manifold pipe has not moved. A misalignment could cause the valve stems to rub
on the control panel, resulting in a gas leak at the valve.
•Disconnect this cooktop and its individual manual shutoff valve from the gas supply piping
system during any pressure testing of that system at test pressures greater than 1/2 psig (3.5 kPa or
14" water column).
•Isolate the cooktop from the gas supply piping system by closing its individual manual
shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or
less than 1/2 psig (3.5 kPa or 14" water column).
Electrical Connection
Before making the connection, make sure that:
1) The safety circuit-breaker and the electrical system are able to with stand the load of the
appliance.
2) The power supply system has a ground connection in good working order in accordance with the
regulations in force.
3) The electrical socket is easily accessible with the appliance installed. In all cases, the power
supply lead must be positioned so that it does not reach a temperature 50oC above the room
temperature at any point.
4) If installed above a built-in oven, the cooktop cable must not touch the oven below (see Figure 15).

Assembling the Burners
The electrode of the electronic ignition system is positioned above the surface of the burner base. Do
not remove a burner cap or touch the electrode of a burner while another is turned on. Damage or
electrical shock may occur.

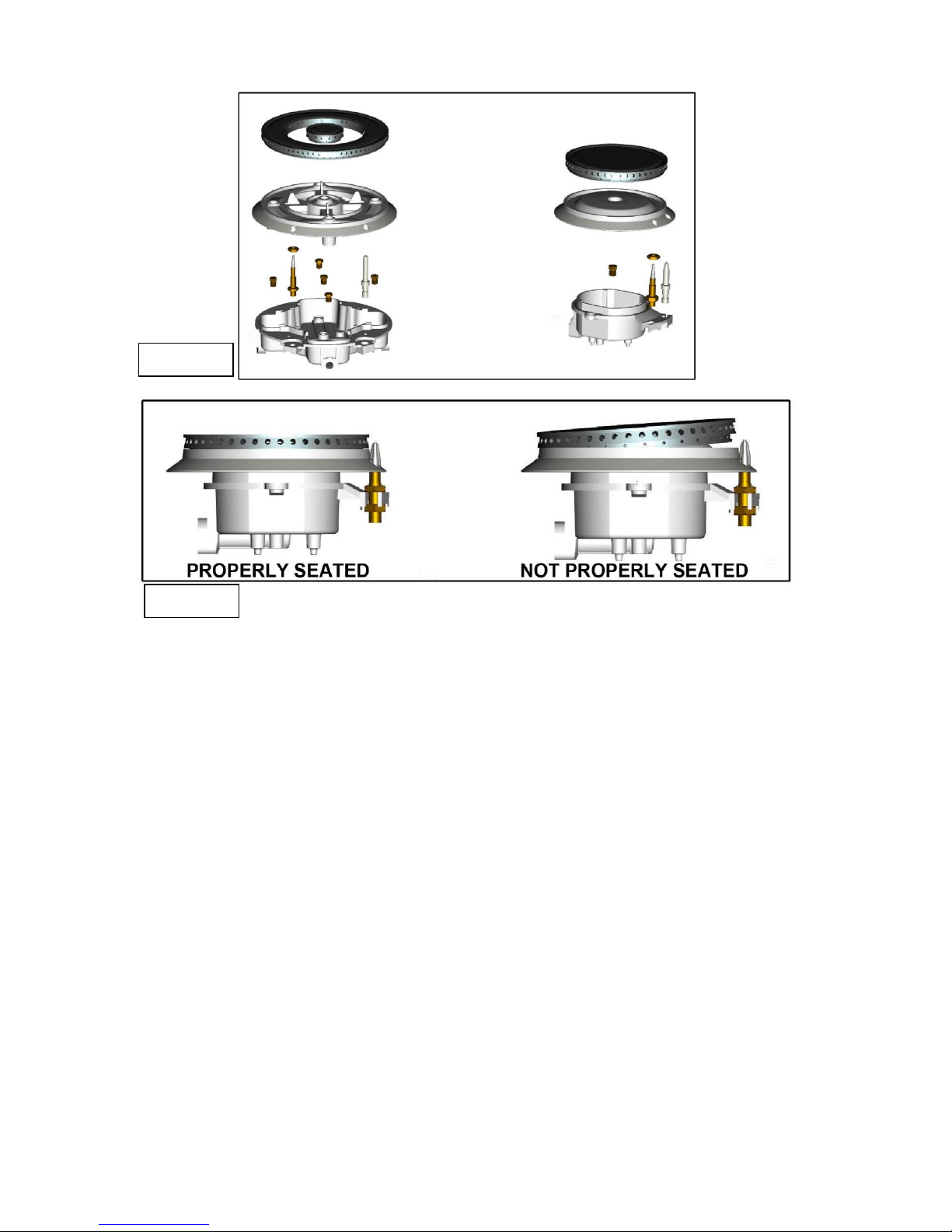

1. Place burner heads over the burner base. Make sure the hole in the burner head is properly
aligned with the electrode in the burner base (see Figure 16).
2. Place the burner caps on the burner heads. Make sure that the burner caps are properly seated
on the burner head (see Figure 17).
Figure 15

3. Operation of the electric igniters should be tested after the cooktop and supply line have been
carefully checked for leaks and the cooktop has been connected to the electrical power. To check
igniters, push and turn a burner valve to the LITE position. All spark igniters will make a series of
sparks (ticking sounds), but only the burner turned to LITE will light.
LP/Propane Gas Conversion
This appliance can be used with Natural Gas or LP/Propane gas. It is shipped from the factory for
use with natural gas. A kit for converting to LP gas is supplied with your cooktop. The kit is marked
"FOR LP/PROPANE GAS CONVERSION".
When the cooktop is converted for liquid pretroleum (LP) gas, the LP gas supply is required to
provide a minimum of 10” to a maximum of 14” water column to the cooktop regulator.
Figure 16
Figure 17

The conversion must be performed by a qualified service technician in accordance with
the kit instructions and all local codes and requirements. Failure to follow instructions could
result in serious injury or property damage. The qualified agency performing this work
assumes responsibility for the conversion.
BURNER TYPE
MAX
MIN
Natural Gas
LPG
OUTPUT
OUTPUT
Kw
Kw
Nozzle
Cons
Nozzle
Cons
mm
M3/h
mm
g/h
Auxiliary Burner
1
0.3
1 x 1.10
0.1
1 x 0.70
73
Semi-Rapid Burners
2
0.55
1 x 1.20
0.19
1 x 0.80
124
Rapid Burner 3 0.8 1 x 1.45 0.29 1 x 0.91 182
Triple Ring Burner
4.5
1.5
5 x Φ0.99
0.43
5 x Φ0.56
327
WARNING
Failure to make the appropriate conversion can result in serious personal injury and property
damage.

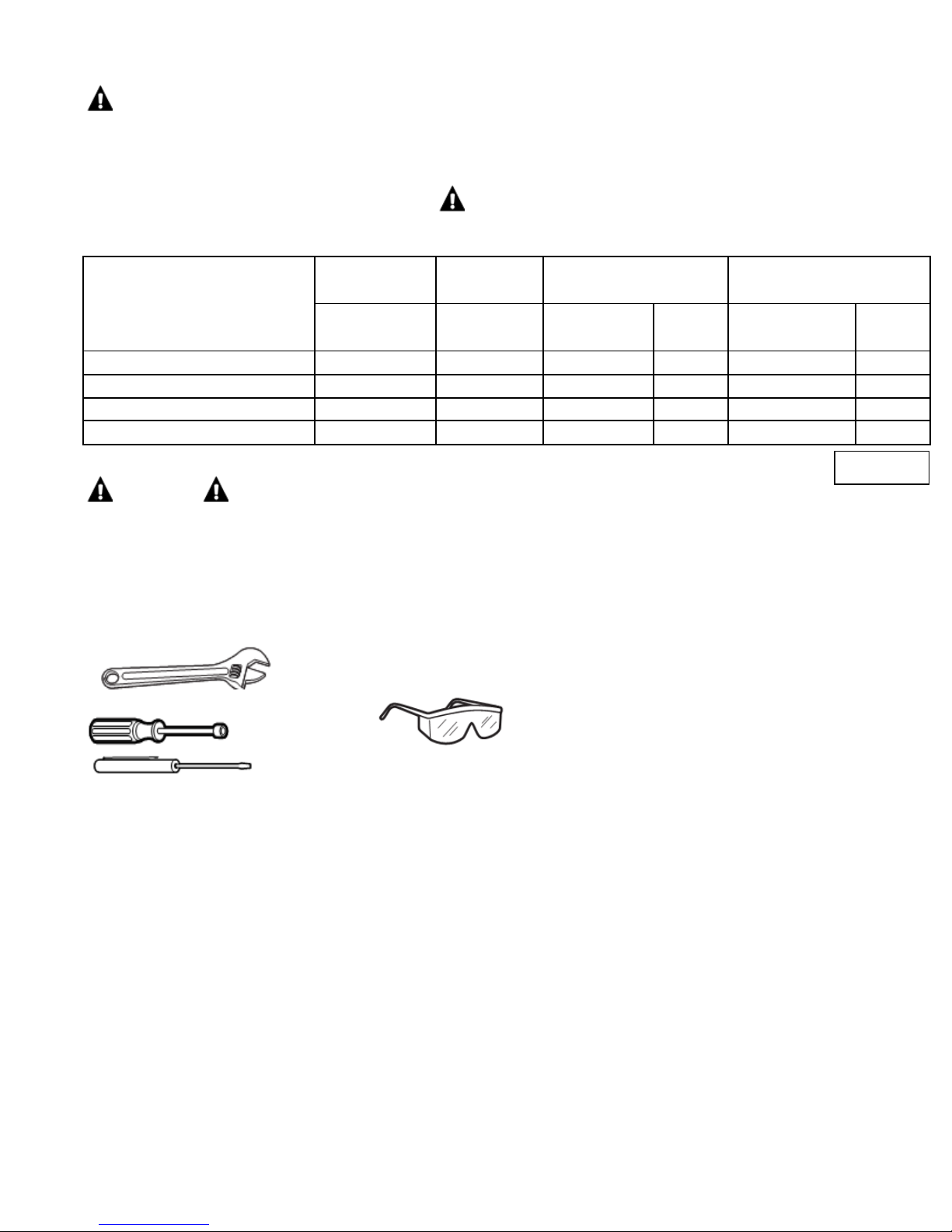

TOOLS YOU WILL NEED FOR CONVERSION
Wrench
7mm Nut Driver Safety Glasses
Small Flat-head Screwdriver (2 to 2.4 mm or 3/32tip size, 60 mm long)
A. ADJUST THE REGULATOR
a) Disconnect all electrical power, at the main circuit breaker or fuse box.
b) Shut off the gas supply to the cooktop by closing the manual shut-off valve.
c) Adjust the pressure regulator by doing the following:
Figure 18

1) Unscrew the regulator cap with the wrench (see Figure 19).

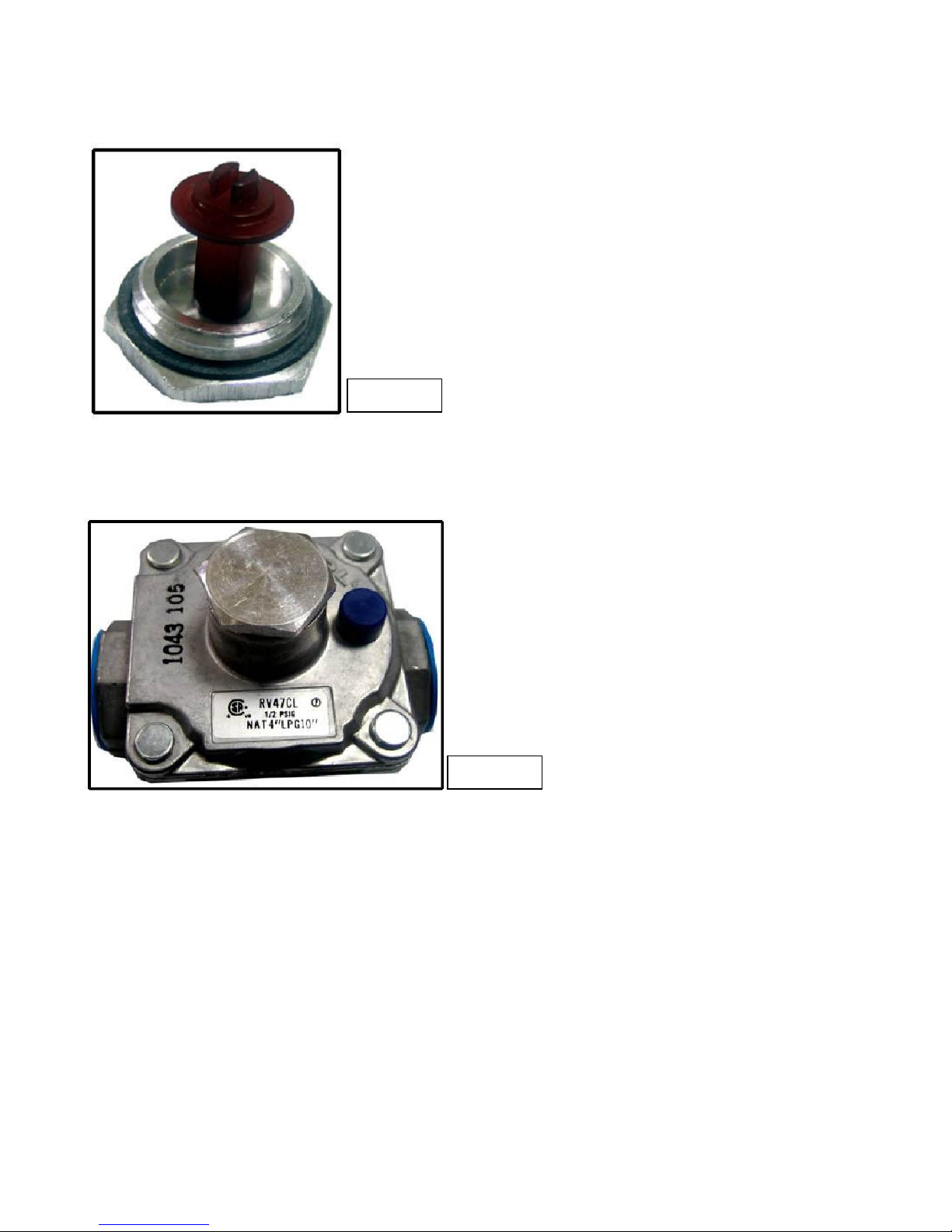

2) This is how the retainer pin looks for Natural Gas usage (see Figure 20).
3) Remove the retainer pin (see Figure 21).
Figure 19
Figure 20
Figure 21

4) Reverse the retainer pin and put back into the regulator cap. This is how the regulator pin looks
for LP gas usage (see Figure 22).
5) Screw the regulator cap back into the regulator and re-attach the regulator to the nipple and flare
union (see Figures 14 and 23).
B. CHANGE BURNER NOZZLES
INSTALLATION TIP: First remove all nozzles and then start replacing them. This will help to prevent
the possibility that some may not be replaced.
1) Remove the burner grates, burner caps and burner heads.
2) Using a 7mm nut driver, remove the burner nozzles.
Figure 22
Figure 23

IMPORTANT: Carefully read and observe each nozzle label for correct location (see Figure 18).
3) Install the proper nozzles in the exact locations as noted in the illustrations above (see Figure
24).
4) Replace the burner bases, heads, caps and top grates. Make sure burner caps are properly
seated on the burner head (see Figure 17).
C. ADJUST BURNER FLAMES
1) Turn all burners on highest setting and check the flames. They should be blue in color and may
have some yellow tipping at the ends of the flame when using LP gas. Foreign particles in the
gas line may cause an orange flame at first, but this will soon disappear.
2) Turn the cooktop burner knob to “LO” while observing the flame.
3) Adjustments must be made with two other burners in operation on a medium setting. This
prevents the upper row of flames from being set too low, resulting in the flame being
extinguished when other burners are turned on.
Figure 24
TRIPLE RING BURNER
5 NOZZLES
AUXILARY BURNER
SEMI-RAPID BURNER
RAPID BURNER
1 NOZZLE EACH
NOZZLES

-To adjust the flame, remove the knobs, insert a screwdriver through the access hole in valve
shaft as shown (see Figure 25). Make the adjustment by slowly turning the screw until flame
appearance is correct.
-If the flames are too small or fluttered, open the valve more than the original setting.
-If the flames are too large, close the valve more than the original setting.
D. TESTING FLAME STABILITY
Test 1——Turn the knob from “HI” to “LO” quickly. If the upper row of flames goes out at this setting,
increase the flame size and test again.
Test 2——With the burner on “LO”, open and close the cabinet door under the cooktop. If the flame
is extinguished by the air currents created by the door movement, increase the flame height and test
again.
E. FLAME RE-CHECK
After the adjustment is made, turn all burners off. Ignite each burner individually. Observe the flame
at the “HI” position. Rotate the knob to the lowest setting and be sure that the flame size decreases
as the knob is rotated counter-clockwise.
Once the conversion has been completed and has passed testing, fill out the conversion
sticker and include your name, organization and the date conversion is made. Apply the
sticker near the cooktop gas inlet opening to alert others in the future that this appliance has
been converted. If converting back to Natural Gas, please remove the sticker so others know
that the appliance is set to use its original gas.
Figure 25

IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact the
“Haier Customer Satisfaction Center” at
1-877-337-3639.
DATED PROOF OF PURCHASE, MODEL #, AND SERIAL #
REQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas Réexpédier ce Produit au Magasin
Pour tout problème concernant ce produit, veuillez contacter
le service des consommateurs “Haier Customer Satisfaction Center” au
1-877-337-3639.
UNE PREUVE D’ACHAT DATEE EST REQUISE POUR BENEFICIER DE LA GARANTIE.
IMPORTANTE
No regrese este producto a la tienda
Si tiene algún problema con este producto, por favor contacte el
“Centro de Servicio al Consumidor de Haier” al
1-877-337-3639 (Válido solo en E.U.A).
NECESITA UNA PRUEBA DE DE COMPRA FECHADA, NÚMERO DE MODELO
Y DE SERIE PARA EL SERVICIO DE LA GARANTÍA
Made in China
Fabriqué en Chine
Hecho en China
Haier America
Wayne, NJ 07470
HCC2230AGS
HCC3230AGS
Issued: March 2015 Printed in China Part # 00XXXXXXXXX
