Haier HCC2230AGS User manual

24” and 30” Gas Cooktops
Tables de cuisson à gaz de 24” et 30”
Supercies de cocción a gas de 24” y 30”
User Manual
Guide de l’utilisateur
Manual del usuario
HCC2230AGS
HCC3230AGS
ON
MIN
OFF
ON
MIN
OFF
ON
MIN
OFF
ON
MIN
OFF

1
TABLE OF CONTENTS
COOKTOP SAFETY INSTRUCTIONS....................................................................2
MODELS AND PART IDENTIFICATION................................................................. 8
Models............................................................................................................................ 8
GAS COOKTOP OPERATION ...............................................................................9
Gas Control Knob Setting ............................................................................................. 9
COOKWARE ...................................................................................................... 13
Cookware Characteristics ..........................................................................................13
CLEANING THE COOKTOP................................................................................ 15
Cooktop Part / Material Suggested Cleaners ............................................................16
TROUBLESHOOTING........................................................................................ 18
LIMITED WARRANTY ........................................................................................ 19
RECORD KEEPING
Thank you for purchasing this Haier
product. This user manual will help you
get the best performance from your
new cooktop.
For future reference, record the
model and serial number located on
underside of the cooktop, and the date
of purchase.
Staple your proof of purchase to this
manual to aid in obtaining warranty
service if needed.
___________________________________
Model number
___________________________________
Serial number
___________________________________
Date of purchase

2
COOKTOP SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and
on your appliance. Always read and obey all safety messages.
DANGER
WARNING
CAUTION
This is the safety alert symbol.
This symbol alerts you to potential hazards that can
kill or hurt you and others. All safety messages will
follow the safety alert symbol and either the word
“DANGER,” “WARNING” or “CAUTION.”
These words mean:
An imminently hazardous situation. You
could be killed or seriously injured if you
don’t immediately follow instructions.
A potentially hazardous situation
which, if not avoided, could result in
death or serious bodily injury.
A potentially hazardous situation
which, if not avoided, may result in
moderate or minor injury.
All safety messages will tell you what the potential hazard is, tell you
how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.

3
WARNING
Fire Hazard
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or
death.
- Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
WARNING
The California Safe Drinking Water and Toxic Enforcement Act requires
the Governor of California to publish a list of substances known to the
State of California to cause cancer, birth defects, or other reproductive
harm, and requires businesses to warn of potential exposure to such
substances.
This product contains a chemical known to the State of California to
cause cancer, birth defects, or other reproductive harm. This appliance
can cause low-level exposure to some of the substances listed,
including benzene, formaldehyde, carbon monoxide, toluene, and soot.

4
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: To reduce the risk of re, electrical shock, injury to persons,
or damage when using the cooktop, follow basic precautions, including
the following:
• This appliance is intended for
normal family household use
only.
• Be sure your appliance
is properly installed and
grounded by a qualied
technician. Have the installer
show you where the gas shut-
o valve is located.
• Do not repair or replace any
part of the appliance unless
specically recommended
in this manual. All other
servicing should be referred
to a qualied technician.
• For proper lighting and
performance of the burners,
keep the igniters clean and
dry.
• In the event that a burner
goes out and gas escapes,
open a window or a door.
Wait at least 5 minutes before
using the cooktop.
• Do not obstruct the ow of
combustion and ventilation
air.
• Do not use aluminium foil to
line any part of the cooktop.
• If the cooktop is near a
window, be certain that
curtains or any other window
covering do not blow over or
near the burners.
• Never use this appliance as
a space heater to heat or
warm the room. Doing so may
result in carbon monoxide
poisoning.
To reduce the risk of injury to
persons, in the event of a grease
re, observe the following:
• Flaming grease outside of
utensil can be extinguished
with baking soda or, if
available, a multipurpose
dry chemical or foam type
extinguisher.
• Never pick up a aming pan.
Smother or use dry chemical
or foam type extinguishers.
• Wipe up spill over
immediately.
• Do not allow aluminum foil,
plastic, paper or cloth to
come in contact with a hot
surface.
• Always have a working smoke
detector near the kitchen.
For Units with Ventilating
Hoods:
• When ambé cooking under
the vent hood, turn on the
fan.
• Clean Ventilating Hoods
Frequently - Grease should
not be allowed to accumulate
on hood or lter.

5
IMPORTANT SAFETY
INSTRUCTIONS
Do Not Leave Children Alone
• Children or pets should not
be left alone or unattended in
area where appliance is in use.
They should never be allowed
to sit or stand on any part of
the appliance.
• Do not store items of interest
to children in cabinets above a
cooktop or on the blackguard
of a cooktop; children
climbing on the cooktop to
reach items could be seriously
injured.
When using the cooktop
• Do not touch the burner
grates or the immediate
surrounding area. Surface
areas may become hot
enough to cause burns.
• Do not allow pans to boil dry.
• Never leave the cooktop
unattended when in use.
Boilovers cause smoking,
and greasy spillovers may
ignite. A spill on a burner can
smother all or part of the
ame or hinder spark ignition.
If a boilover occurs, turn o
burner and check operation. If
burner is operating normally,
turn it back on.
• During cooking, set the
burner control so that the
ame heats only the bottom
of the pan and does not
extend beyond the bottom of
the pan.
• Take care that drafts like
those from fans or forced air
vents do not blow ammable
material toward the ames or
push the ames so that they
extend beyond the edges of
the pan.
Utensil Handles Should Be
Turned Inward and Not Extend
Over Adjacent Surface Units
• To reduce the risk of burns,
ignition of ammable
materials, and spillage due to
unintentional contact with the
utensil, the handle of a utensil
should be positioned so that
it is turned inward, and does
not extend over adjacent
surface units.
Use Only Dry Pot holders
• Moist or damp pot holders
on hot surfaces may result in
burns from steam. Do not use
a towel or other bulky cloth.
Wear Proper Apparel
• Loose-tting or hanging
garments should never
be worn while using the
appliance.
• Never let clothing, pot
holders, or other ammable
materials come in contact
with hot burners or hot burner
grates.
Storage in or on Appliance
• Flammable materials should
not be stored near surface
units.
Do Not Use Water on Grease
Fires
• Smother re or ame or use
dry chemical or foam-type
extinguisher.

6
IMPORTANT SAFETY
INSTRUCTIONS
Use Proper Pan Size and Type
• Use only certain types
of glass, heatproof
glass ceramic, ceramic,
earthenware, or other glazed
utensils that are suitable for
cooktop use.
When Cleaning the Cooktop:
• Make sure all controls are
o and all surfaces are cool
before cleaning any part of
the cooktop.
• Some cleaners can produce
noxious fumes if applied to a
hot surface.
READ AND SAVE THESE
INSTRUCTIONS
WARNINGS FOR GAS AND ELECTRIC INSTALLATION
WARNING
Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
Failure to do so can result in death, fire or electrical shock.
In case of Propane gas installation
• The cooktop is ready for use with natural gas. It may be converted for
use with propane gas using the propane conversion kit supplied with the
cooktop.
• Be sure the unit being installed is correct for the type of gas being used.
• Refer to the rating plate located on the underside burner box (see
installation instruction).
• When connecting the unit to propane gas, make certain the propane
tank is equipped with its own high pressure regulator.
• In addition, the pressure regulator supplied with the cooktop must be
installed on the gas inlet pipe going to the cooktop.

7
WARNING
Electrical Shock Hazard
Always disconnect the electrical plug from the wall receptacle before
servicing this unit.
Plug into a grounded 3 prong outlet.
Do not remove the ground prong from the power cord plug.
Do not use an adapter.
Do not use an extension cord.
Failure to do so can result in death, fire or electrical shock.
In case of electrical failure
• If for any reason a gas control knob is turned ON and there is no electric
power to operate the electronic igniter of the cooktop, turn OFF all gas
control knobs and wait 5 minutes for the gas to dissipate before lighting
the burner manually.
• To light the burner manually, carefully hold a lighted match to the burner
ports and push and turn the gas control knob to HI until it lights and then
turn the knob to desired setting.

8
MODELS AND PART IDENTIFICATION
MODELS
24” 30”
1 32 4
1 4
3
2
A
ON
MIN
OFF
ON
MIN
OFF
ON
MIN
OFF
ON
MIN
OFF
32
1 4 5
A
3 4
1 2 5
1. Left Front (Max. 15,300 Btu/h
burner & control knob)
2. Left Rear (Max. 6,800 Btu/h
burner & control knob)
3. Right Rear (Max. 5,800 Btu/h
burner & control knob)
4. Right Front (Max. 3,400 Btu/h
burner & control knob)
1. Left (Max. 13,000 Btu/h burner &
control knob)
2. Center Front (Max. 3,400 Btu/h burner
& control knob)
3. Center Rear (Max. 5,800 Btu/h burner
& control knob)
4. Right Rear (Max. 5,800 Btu/h burner &
control knob)
5. Right Front (Max. 10,250 Btu/h burner
& control knob)

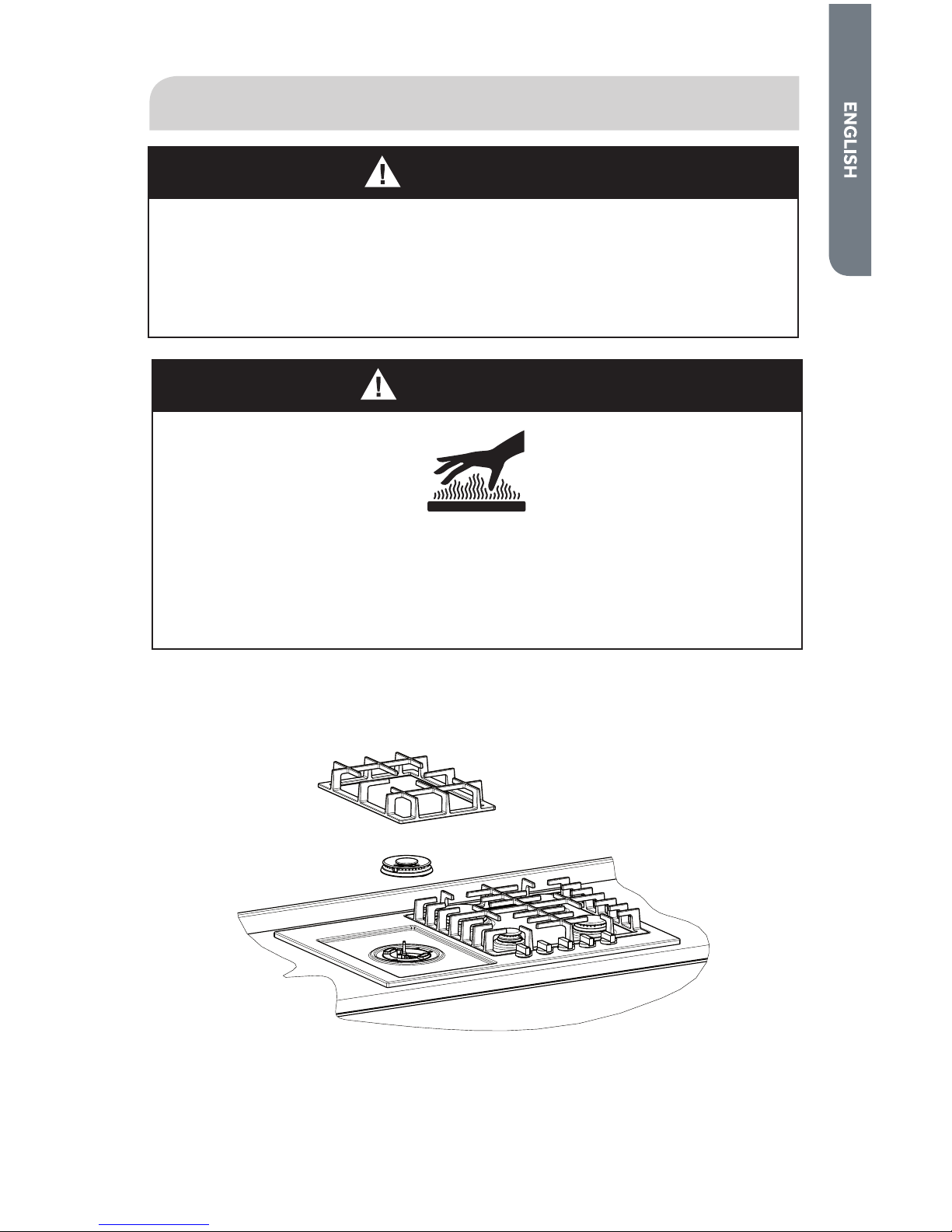

B
C
a Grates
b Burner Cup
c Burners Gas Spreader

9
Appliance installed over 2,000 feet (610mt) De-rate eect
Cooktop Nominal
values
Btu/h from
0 to 2,000
(610)
Elevation
from 2,000
(610)
to 4,000
(1220)
Elevation
from 4,000
(1220)
to 6,000
(1829)
Elevation
from 6,000
(1829)
to 8,000
(2438)
Elevation
from 8,000
(2438)
to 10,000
(3048)
24” 4
burners
40,300 37,076 34,109 31,381 28,870
30” 5
burners
49,300 45,264 41,643 38,311 35,246
(De-rate 4% per 1000 feet)
GAS COOKTOP OPERATION
WARNING
Fire Hazard
Do not operate a burner using empty cookware or without cookware on
the grate.
Do not touch the burner when the igniters are clicking (sparking).
Do not let the burner flame extend beyond the edge of the pan.
Turn off all controls when done cooking.
Failure to do so can result in death or fire.
GAS CONTROL KNOB SETTING
ELECTRIC GAS IGNITION
The gas burner uses an electric ignition device located near each burner that by
means of spark igniters ensure its surface lights automatically.

10
The electronic ignition, lights the surface burners when the control knobs are turned
at any valve rotation that admits sucient gas ow to support a ame.
If any burner ame goes out due to a draft or other reason, the gas valve will shut o
the gas supply. To re-ignite the burner, turn the gas valve to the ignition setting and
push down the knob to ignite the burner.
NOTE: This is a safety feature.
To set:
Push and turn knob counterclockwise, all (4 or 5) spark plugs will generate a clicking
sound (spark), however only the burner with the control knob turned from HI _ LO
will produce a ame and reignite automatically if the ame goes out.
GAS BURNERS
The gas burners design of these cooktop models, allow a pleasing option for cooking
where size, power and simmering are a primary concern.
This gas burner is designed for a wide range of pan
sizes. The use of this burner is very simple; just
push and turn the knob counterclockwise and
set to the desired position from HI to LO heat
level (see chart guide when setting heat level). Its
ignition device is automatic re-ignition.
ON
MIN
OFF

11
BURNER USE SUGGESTIONS
• Use the right front, right rear or left rear burners for simmering, or for cooking
smaller quantities of food requiring small cookware.
• Use the left front POWER burner for bringing liquids to a rapid boil, cooking large
quantities of food, or for deep-fat frying requiring large cookware.
The Burner Flames
Turn each burner on. Flames should be blue in color with no trace of yellow. The
burner ames should not utter or blow away from the burner. The inner cone of the
ame should be between ” and ” long.
SUPER SEALED SURFACE BURNERS
IMPORTANT: Do not obstruct the ow of combustion and ventilation air around the
burner grate edges.
Burner cap and gas spreader
Always keep the burner cap and gas spreader in place when using a surface burner.
A clean burner cap and spreader will help prevent poor ignition and uneven ames.
Always clean the part after a spillover and routinely remove and clean according to
the “General Cleaning” section.
Burner base and injector
Gas must ow freely throughout the injector orice to light properly. Keep this area
free of soil and do not allow spills, food, cleaning agents or any other material to
enter the injector orice opening. Protect it during cleaning.
1/2” to 3/4”
COOKTOP BURNER
Be sure when lighting the burner:
• Gas spreader pin is properly aligned with burner base slot.
• Cap pin is properly aligned with gas spreader slot.
Burner ports
Check burner ames occasionally. A good ame is blue in color, not yellow.
Keep this area free of soil and do not allow spills, food, cleaning agents or any other
material to enter the burner ports.

12
To clean gas burner:
CAUTION
Toxic Fume Hazard
Do not clean the cooktop while it is still hot. Some cleaners produce
noxious fumes when applied to a hot surface.
Failure to do so can result in moderate or minor bolily injury.
WARNING
Burn Hazard
Before cleaning, make sure all controls are off and the cooktop is cool.
Failure to do so can result in serious bodily injury.
1. Remove the burner cap from the burner base and clean according to cleaning
section.
2. Remove the burner spreader. Clean the gas tube
opening and burner port according to cleaning
section.
3. Clean the burner base with a damp cloth (keep
the gas injector area free of cleaning agents and
any other material from entering the injector
orice).
4. Replace the burner spreader and cap, making sure
the alignment pins are properly aligned with the
slots.
5. Turn on the burner. If the burner does not light,
check cap and spreader alignment. If the burner
still does not light, do not service the gas burner
yourself. Contact a qualied repair technician.

13
COOKWARE
IMPORTANT: Never leave empty cookware on a hot surface cooking area, element
or surface burner. Ideal cookware should have a at bottom, straight sides, a
well tting lid and the material should be of medium-to-heavy thickness. Rough
nishes may scratch the cooktop. Aluminum and copper may be used as a core or
base in cookware. However, when used as a base it can leave permanent marks
on the cooktop or grates. Cookware material is a factor in how quickly and evenly
heat is transferred, which aects cooking results. A nonstick nish has the same
characteristics as its base material.
For example, aluminum cookware with a non-stick nish will take on the properties
of aluminum.
Use the following chart as a guide for cookware material characteristics.
COOKWARE CHARACTERISTICS
Aluminum: Heats quickly and evenly. Suitable for all types of cooking. Medium or
heavy thickness is best for most cooking tasks.
Cast Iron: Heats slowly and evenly. Good for browning and frying. Maintains
heat for slow cooking.
Ceramic or Ceramic glass: Follow manufacturer’s instructions. Heats slowly, but
unevenly. Ideal results on low to medium heat settings.
Copper: Heats very quickly and evenly.
Earthenware: Follow manufacturer’s instructions. Use on low heat settings.
Porcelain enamel on steel or cast Iron: See stainless steel or cast iron.
Stainless steel: Heats quickly, but unevenly. A core or base of aluminum or copper
on stainless steel provides even heating.

14

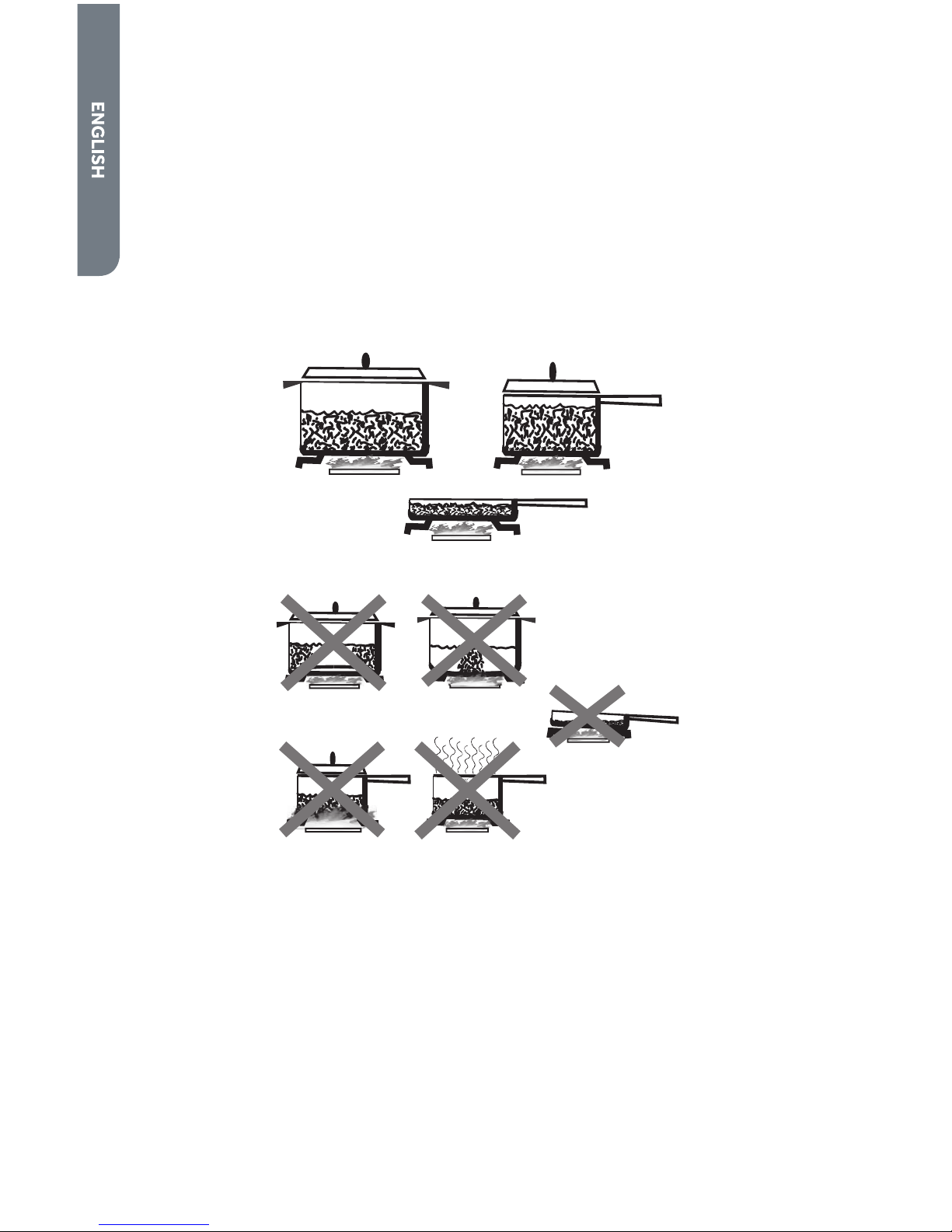

MATCH PAN DIAMETER TO FLAME SIZE
The ame should be the same size as the bottom of the pan or smaller. Do not use
small pans with high ame settings as the ames can lick up the sides of the pan.
Oversize pans that span two burners are placed front to rear, not side to side.
Use Balanced Pans
Pans must sit level on the cooktop grate without rocking. Center the pan over the
burner.
Use a Lid That Fits Properly
A well-tting lid helps shorten the cooking time. Flat, heavy bottom pans provide
even heat and stability.
BALANCED PAN
UNBALANCED PAN
CONVEX
(ROUNDED)
CONCAVE
(HOLLOW)
FLAME TOO LARGE
FOR PAN SIZE
USE LIDS THAT
FIT PROPERLY
Canners and pressure cookers must meet the same requirements as described
above. After bringing contents to a boil, use lowest heat setting possible to maintain
a boil or pressure (for pressure canners/cookers).

15
CLEANING THE COOKTOP
CAUTION
Toxic Fume Hazard
Do not clean the cooktop while it is still hot. Some cleaners produce
noxious fumes when applied to a hot surface.
Failure to do so can result in moderate or minor bolily injury.
WARNING
Burn Hazard
Before cleaning make sure the burners are turned off and the grates are
cool.
Failure to do so can result in serious bodily injury.
The entire cooktop can be safely cleaned by wiping it with a soapy sponge, and
then rinsing and drying. If stubborn soil remains, follow the recommended cleaning
methods below.
• Always use the mildest cleaner that will do the job. Use clean, soft cloths,
sponges or paper towels.
• Rub stainless steel nishes in the direction of the grain. Wipe area dry to avoid
water marks.
• Do not clean removable cooktop parts in any self-cleaning oven.

16
• After cleaning, place all parts in their proper positions before using cooktop.
The cleaners recommended below and on the following page indicate cleaner
types and do not constitute an endorsement of a particular brand. Use all products
according to package directions.
COOKTOP PART / MATERIAL SUGGESTED CLEANERS
Parts and
Materials Suggested Cleaners Suggestions/Reminders
Burner
Base
(Cast
Aluminum)
• Damp cloth • Keep the gas injector area free
of cleaning agents and any other
material from entering the
injector orice.
Gas
Spreader
(Cast
Aluminum)
• Detergent and hot
water; rinse and dry.
• Sti nylon bristle
toothbrush to clean port
openings.
• Abrasive cleansers:
Revere ware®metal
polish. Following
package directions Use
Brillo®or S.O.S.®pads.
Rinse and dry.
• Rub lightly, in a circular motion.
• Aluminum cleaners may dull the
surface.
• To clean port opening, use a
tooth brush or straightened
paper clip.
Burner cap
and grate
(Porcelain
enamel on
cast iron)
• Non abrasive cleaners:
Hot water and
detergent, Fantastic,
Formula 409. Rinse and
dry immediately.
• Mild abrasive cleaners:
Bon Ami®and Soft
Scrub®.
• Abrasive cleaners for
stubborn stains: soap-
lled steel wool pad.
• The grates are heavy; use
care when lifting. Place on a
protected surface.
• Blisters/crazing/chips are
common due to the extreme
temperatures on grate ngers
and rapid temperature changes.
• Acidic and sugar-laden spills
deteriorate the enamel. Remove
soil immediately.
• Abrasive cleaners, used too
vigorously or too often, can
eventually mar the enamel.
Exterior
nish
(Porcelain
enamel)
• Hot sudsy water: rinse
and dry thoroughly.
• Non abrasive cleansers:
Ammonia, Fantastic®,
Formula 409®.
• Mild abrasive cleansers:
Bon Ami®, Ajax®,
Comet®.
• Liquid cleaners: Kleen
King®, Soft Scrub®.
• Acidic and sugar-laden spills
deteriorate the porcelain
enamel. Remove soil
immediately.
• Do not use wet sponge or towel
on hot porcelain.
• Always apply minimal pressure
with abrasive cleaners.

17
Parts and
Materials Suggested Cleaners Suggestions/Reminders
Control
knobs
(Metal)
• Hot sudsy water: rinse
and dry immediately.
• If necessary, remove
knobs (lift straight up).
• Do not soak knobs.
• Do not use abrasive scrubbers or
cleansers.
• Do not force knobs onto valve
shaft.
• Pull knobs straight away from
control panel to remove.
• When replacing knobs, make
sure knobs are in the OFF
position.
• Do not remove seats under
knobs.
Exterior
nish
(Stainless
Steel)
• Nonabrasive cleaners:
Hot water and
detergent. Fantastic®,
Formula 409®. Rinse and
dry immediately.
• Cleaner polish: Stainless
Steel Magic®to protect
the nish from staining
and pitting; enhances
appearance.
• Hard water spots:
Household white
vinegar.
• Mild Abrasive Cleaners:
Kleen King®stainless
steel liquid cleaner,
Cameo®aluminum &
stainless steel cleaner,
Bon Ami®.
• Heat discoloration: Bar
Keepers Friend®.
• Stainless steel resists most food
stains and pit marks provided
the surface is kept clean and
protected.
• Never allow food stains or salt to
remain on stainless steel for any
length of time.
• Rub lightly in the direction of
polish lines.
• Chlorine or chlorine compounds
in some cleaners are corrosive to
stainless steel.
• Check ingredients on label
before using.
• Always apply minimal pressure
with abrasive cleaners especially
on graphics.
Igniters
(Ceramic) • Carefully wipe with a
cotton swab dampened
with water, ammonia or
Formula 409®.
• Gently scrape soil o
with a toothpick.
• Avoid excess water on the
igniter. A damp igniter will
prevent burner from lighting.
• Remove any lint that may remain
after cleaning.

18
TROUBLESHOOTING
Try the solutions suggested here rst in order to avoid the cost of an unnecessary
service call.
IGNITION WILL NOT OPERATE
• Is the power supply cord unplugged?
Plug into a grounded 3 prong outlet.
• Has a household fuse been blown or has the circuit breaker been tripped?
Replace the fuse or reset the circuit.
SURFACE BURNERS WILL NOT OPERATE
• Is this the rst time the surface burners have been used? Turn on any one of
the surface burner knobs to release air from the gas lines.
• Is the control knob set correctly? Push in knob before turning to a setting.
• Are the burner ports clogged? See “Super Sealed Surface Burners” section.
SURFACE BURNER FLAMES ARE UNEVEN YELLOW AND/OR
NOISY
• Are the burner ports clogged? See “Super Sealed Surface Burners” section.
• Are the burner caps positioned properly? See “Super Sealed Surface Burners”
section.
• Is propane gas being used? The appliance may have been converted improperly.
Contact a service technician.
SURFACE BURNER MAKES POPPING NOISES
• Is the burner wet? Let it dry.
• Is the cap and gas spreader positioned correctly? Make sure the alignment pins
are properly aligned see “Super Sealed Surface Burners” section.
EXCESSIVE HEAT AROUND COOKWARE ON COOKTOP
• Is the cookware the proper size? Use cookware about the same size as the
surface cooking area, element or surface burner. Cookware should not extend
more than 1” (2.5 cm) outside the cooking area.
COOKTOP COOKING RESULTS NOT WHAT EXPECTED
• Is the proper cookware being used? See “Cookware” section.
• Is the control knob set to the proper heat level? See “Setting the Control
Knobs” section.
FOR MORE HELP, VISIT HAIER.COM OR CALL THE CONSUMER
HELP LINE AT 1‑877‑377‑3639.
