Haier HCI604TPB3 User manual

Induction Cooktop
Instruction Manual / Installation Manual
MODEL
HCI302TB3
HCI604TB3
HCI604TG3
HCI604TPB3
HCI604FTB3
HCI905FTB3
NZ AU

Safety and Warnings
Your safety is important to us. Please read this
information before using your cooktop.
INSTALLATION
WARNING: Electrical Shock Hazard
•Disconnect the appliance from the mains electricity supply before carrying out
any work or maintenance on it.
•Connection to a good earth wiring system is essential and mandatory.
•Alterations to the domestic wiring system must only be made by a qualified
electrician.
•Failure to follow this advice may result in electrical shock or death.
WARNING:Cut Hazard
•Take care - panel edges are sharp.
•Failure to use caution could result in injury or cuts.
Important Safety Instructions
•Read these instructions carefully before installing or using this appliance.
•No combustible material or products should be placed on this appliance at any
time.
•Please make this information available to the person responsible for installing
the appliance as it could reduce your installation costs.
•In order to avoid a hazard, this appliance must be installed according to these
instructions for installation.
•This appliance is to be properly installed and earthed only by a suitably qualified
person.
•This appliance should be connected to a circuit which incorporates an isolating
switch providing full disconnection from the power supply.
•Failure to install the appliance correctly could invalidate any warranty or liability
claims.

OPERATION AND MAINTENANCE
WARNING:Electrical Shock Hazard
•Do not cook on a broken or cracked cooktop. If the cooktop surface should break
or crack, switch the appliance off immediately at the mains power supply (wall
switch) and contact a qualified technician.
•Switch the cooktop off at the wall before cleaning or maintenance.
•Failure to follow this advice may result in electrical shock or death.
WARNING:Health Hazard
•This appliance complies with electromagnetic safety standards.
•However, persons with cardiac pacemakers or other electrical implants (such as
insulin pumps) must consult with their doctor or implant manufacturer before
using this appliance to make sure that their implants will not be affected by the
electromagnetic field.
• Failure to follow this advice may result in death.
WARNING:Hot Surface Hazard
•During use, accessible parts of this appliance will become hot enough to cause
burns.
•Do not let your body, clothing or any item other than suitable cookware contact
the ceramic glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on
the hob surface since they can get hot
• Keep children away.
•Handles of saucepans may be hot to touch.Check saucepan handles do not
overhang other cooking zones that are on. Keep handles out of reach of
children.
•Failure to follow this advice could result in burns and scalds.
WARNING:Cut Hazard
•The razor-sharp blade of a cooktop scraper is exposed when the safety cover is
retracted. Use with extreme care and always store safely and out of reach of
children.
•Failure to use caution could result in injury or cuts.

Important Safety Instructions
•Never leave the appliance unattended when in use. Boilover causes smoking and
greasy spillovers that may ignite.
•Never use your appliance as a work or storage surface.
•Never leave any objects or utensils on the appliance.
•Never use your appliance for warming or heating the room.
•After use, always turn off the cooking zones and the cooktop as described in this
manual (i.e. by using the touch controls).
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance.
Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in
use.
• Children or persons with a disability or lack of experience and knowledge,which
limits their ability to use the appliance should have a responsible and competent
person to instruct them in its use. The instructor should be satisfied that they
can use the appliance without danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be done by a qualified
technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Ceramic glass
surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your
cooktop, as these can scratch the Ceramic glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.

•Children should be supervised to ensure that they do not play with the appliance.
•Cleaning and user maintenance shall not be made by children without
supervision.
•The appliance is not intended to be operated by means of an external timer or
separate remote-control system.
CAUTION: The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.

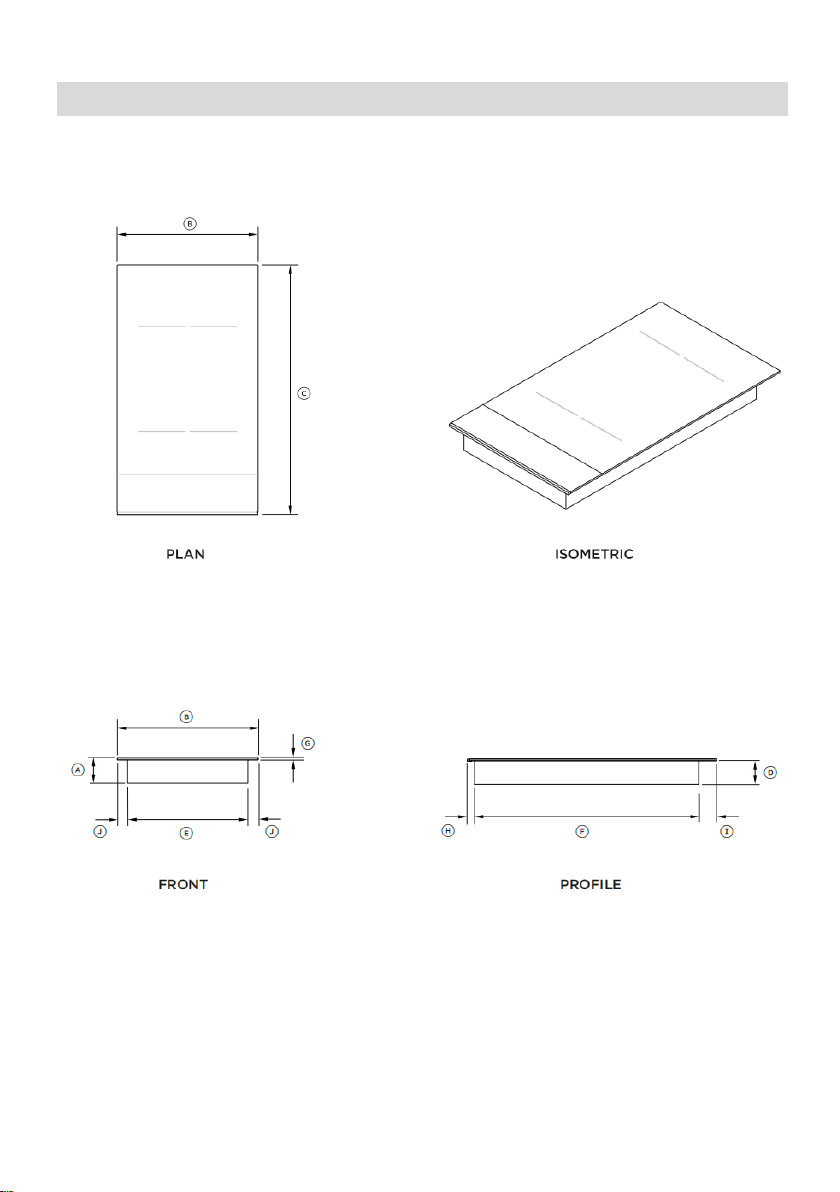

Product Dimensions
HCI302TB3

HCI302TB3
PRODUCT DIMENSIONS
HCI302TB3
mm
A Overall height of cooktop
60
B Overall width of cooktop
288
C Overall depth of cooktop
520
D Height of chassis
56
E Width of chassis
261
F Depth of chassis
493
G Height of cooktop glass
4
H Depth of front overhang of cooktop glass
13.5
I Depth of rear overhang of cooktop glass
13.5
J Depth of side overhang of cooktop glass
13.5

HCI604TB3/HCI604TG3/HCI604TPB3

HCI604TB3/HCI604TG3/HCI604TPB3
PRODUCT DIMENSIONS
HCI604TB3/HCI604TG3/HCI604TPB3
mm
A Overall height of cooktop
60
B Overall width of cooktop
590
C Overall depth of cooktop
520
D Height of chassis
56
E Width of chassis
557
F Depth of chassis
487
G Height of cooktop glass
4
H Depth of front overhang of cooktop glass
16.5
I Depth of rear overhang of cooktop glass
16.5
J Depth of side overhang of cooktop glass
16.5

HCI604FTB3

HCI604FTB3
PRODUCT DIMENSIONS
HCI604FTB3
mm
A Overall height of cooktop
60
B Overall width of cooktop
590
C Overall depth of cooktop
520
D Height of chassis
56
E Width of chassis
557
F Depth of chassis
487
G Height of cooktop glass
4
H Depth of front overhang of cooktop glass
16.5
I Depth of rear overhang of cooktop glass
16.5
J Depth of side overhang of cooktop glass
16.5

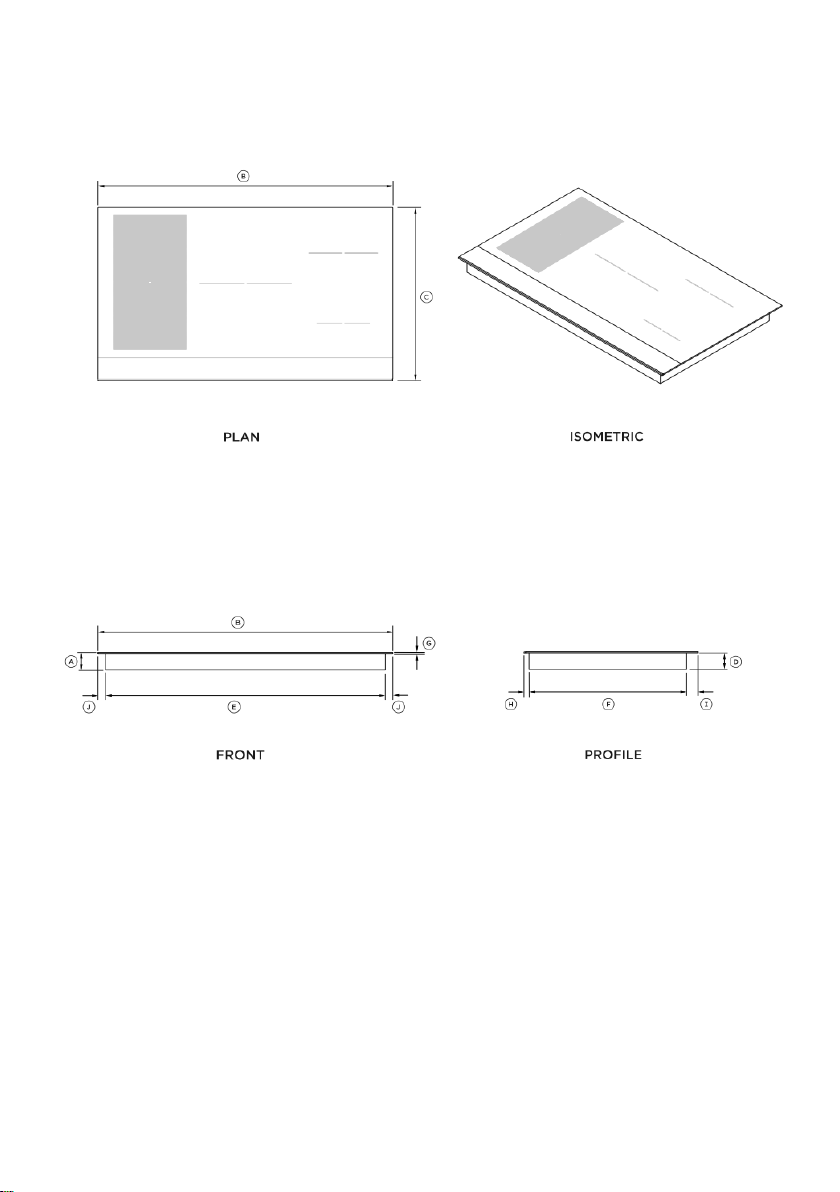

HCI905FTB3

HCI905FTB3
PRODUCT DIMENSIONS
HCI905FTB3
mm
A Overall height of cooktop
60
B Overall width of cooktop
900
C Overall depth of cooktop
520
D Height of chassis
56
E Width of chassis
861
F Depth of chassis
481
G Height of cooktop glass
4
H Depth of front overhang of cooktop glass
19.5
I Depth of rear overhang of cooktop glass
19.5
J Depth of side overhang of cooktop glass
19.5

Installation
Cutout Dimensions
Cut out the benchtop according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm clearance shall be
maintained around the hole.
Be sure the thickness of the work surface is at least 18mm. As shown below:
Note: 60cm models will fit into existing benchtop cut outs which may be A =
560mm & B = 490mm per tolerance above.
Model
L
(mm)
W
(mm)
H
(mm)
D
(mm)
A
(mm)
B
(mm)
X
(mm)
HCI302TB3
288
520
60
56
268+5
500+5
47min
HCI604TB3
590
520
60
56
562(-2 +3)
492(-2 +3)
50 min
HCI604TG3
590
520
60
56
562(-2 +3)
492(-2 +3)
50 min
HCI604TPB3
590
520
60
56
562(-2 +3)
492(-2 +3)
50 min
HCI604FTB3
590
520
60
56
562(-2 +3)
492(-2 +3)
50 min
HCI905FTB3
900
520
60
56
870+5
490+5
50 min

Clearance Dimensions
Under all circumstances, make sure the cooktop is well ventilated and the air inlet
and outlet are not blocked. Ensure the cooktop is in a good work state. As shown
below
Note: The distance between the hotplate and the range hood above the cooking
surface should be at least 600mm(A).
A(mm)
B(mm)
C(mm)
D
E(mm)
600 min
50 min
20 min
Air intake
Air exit 5 min

Before you install the cooktop
• The cooktop must be installed by qualified personnel or technicians.
• The benchtop is square and level, and no structural members interfere with
space requirements
• The work surface is made of a heat-resistant material
•The cooktop will not be installed directly above a dishwasher, fridge, freezer,
washing machine or clothes dryer, as the humidity may damage the cooktop.
• If the cooktop is installed above an oven, the oven has a built-in cooling fan
• The installation will comply with all clearance requirements and applicable
standards and regulations
• A suitable isolating switch providing full disconnection from the mains power
supply is incorporated in the permanent wiring, mounted and positioned to
comply with the local wiring rules and regulations.
The isolating switch must be of an approved type and provide a 3 mm air gap
contact separation in all poles (or in all active [phase] conductors if the local
wiring rules allow for this variation of the requirements)
• You consult local building authorities and by-laws if in doubt regarding
installation
• You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the
wall surfaces surrounding the hob.
•To avoid any damage, the foam seal and adhesive must be resistant to
heat.

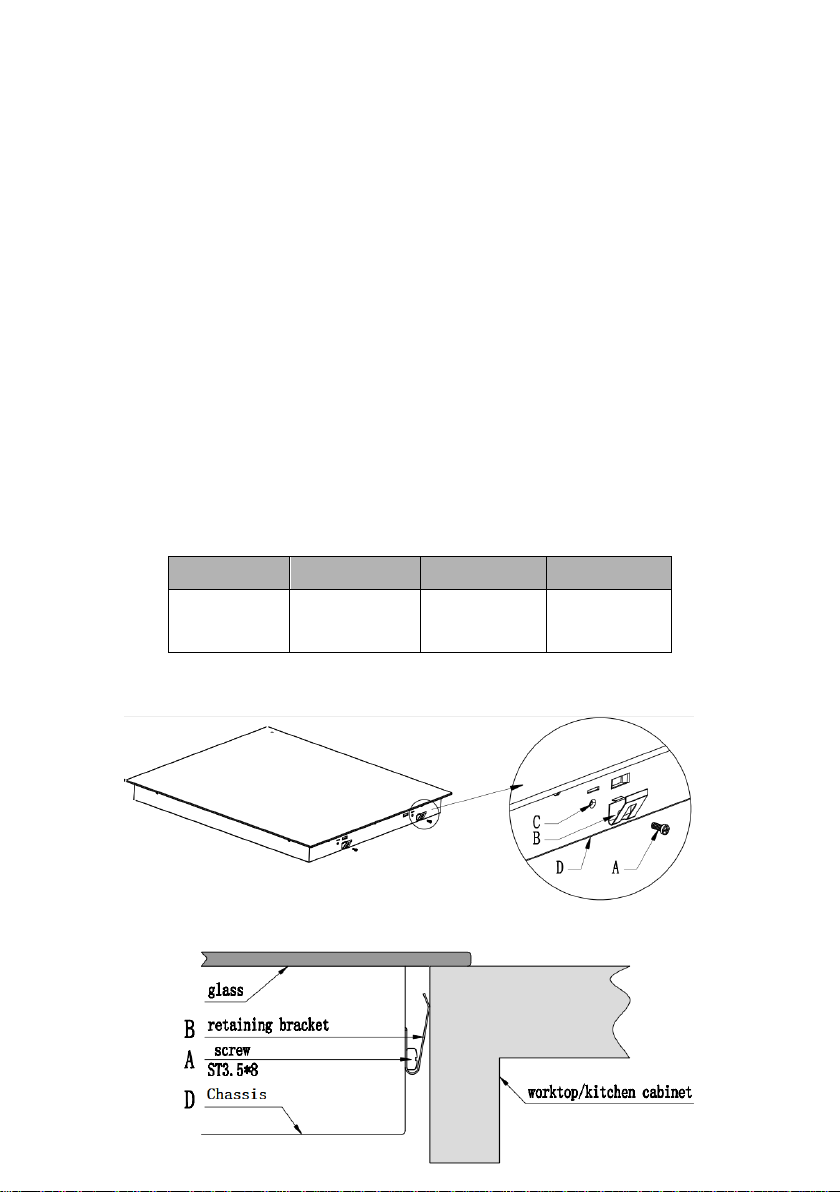

Fastening the cooktop to the bench
1. Place the cooktop on a soft and stable surface, you can use the packaging.
2. Mount the supplied brackets (B) and tighten the screws (A) onto the cooktop, as
shown in below image.
3. Before installing the cooktop into the cutout, follow the steps on the next page
to connect the cooktop to the mains power supply.
4. After connecting the cooktop to mains power, flip the cooktop and place it into
the cutout.
CAUTION: While pressing the unit into the cutout, please pay attention to use the
top surface of glass rather than the edges to avoid your fingers getting trapped
in between the glass and the benchtop.
Notes:
1. Foam seal is already applied on the perimeter of glass bottom surface, it's not
part of the packaging, please do not remove.
2. Minimum benchtop thickness required is 18 mm for the retaining bracket to
function properly.
A
B
C
D
Screw
Retaining
bracket
Screw hole
Chassis

Connecting the cooktop to the mains power supply
IMPORTANT!
●This cooktop must be connected to the mains power supply only by a
suitably qualified person.
●This cooktop must be earthed.
●Before connecting the cooktop to the mains power supply, check that:
●The domestic wiring system is suitable for the power drawn by the
cooktop
●The voltage corresponds to the value given on the rating plate
●The power supply cable sections can withstand the load specified on the
rating plate.
●To connect the cooktop to the mains power supply, do not use adapters,
reducers, or branching devices, as they can cause overheating and fire.
●The power supply cable must not be kinked and should not be touching
the underside of the cooktop which could get hot during operation.
●If the cable is damaged or needs replacing, this should be done by an
after-sales technician using the proper tools, so as to avoid any
accidents.
●If the appliance is being connected directly to the mains supply, an
omnipolar circuit breaker must be installed with a minimum gap of
3mm between the contacts.
●The installer must ensure that the correct electrical connection has been
made and that it complies with safety regulations.
●The cable must be checked regularly and only replaced by a properly
qualified person.
●The power supply should be connected in compliance with the relevant
standard, or a single-pole circuit breaker. The method of connection is
shown below.

IMPORTANT!
Check with an electrician whether the domestic wiring system is
suitable without alterations. Any alterations must only be made by a
qualified electrician.
Single phase connection Two phase connection
Model: HCI604TB3/HCI604TG3/HCI604TPB3/HCI604FTB3/HCI905FTB3
Model: HCI302TB3

When you have installed the cooktop
•The power supply cable is not accessible through cupboard doors or drawers
•There is adequate flow of fresh air from outside the cabinetry to the base of the
cooktop
•If the hob is installed above a drawer or cupboard space, a thermal protection
barrier is installed below the base of the hob
•The isolating switch is easily accessible by the customer
