Haier GDZ10-0677 User manual

Automatic Electric Dryer
User Manual and Instructions
Model˖GDZ10-0677
Ultra Plus Capacity
Start
Pause
Power
On/Off
Normal
Heavy Duty
Whites
Bulky
Press Free
Delicate
Touch Up
Bulky
Auto
Dry
Cycles
Timed Dry
Rack Dry
Timed
Dry
Cycles
Less
Time
More
Time
Wrinkle
Saver
Sensor
Dry
Level
TempSignal
High
Medium
No Heat
Low
Louder
Softer
Off
Dry
Cool Down
Cycle Completed
Wrinkle Saver
RemainingTime
ExtendTumble
Very
Normal
Damp

English
IMPORTANT SAFETY
INSTRUCTIONS
WARNING - To reduce the risk of fire, electric shock, or
injury to persons when using your appliance, follow the
basic precautions, including the following:
1. Read all of the instructions before using this appliance.
2. Don’t dry articles that have been previously cleaned in, washed in,
soaked in, or spotted with gasoline, dry clean solvents or other
flammable explosive sub stains as they give off vapors which could
ignite or explode.
3. Do not allow children to play on or in the appliance. Close
supervision of children is necessary when the appliance is used
near children.
4. Before the appliance is removed from service or discarded, remove
the door to the drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to
water and/or to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any
servicing unless specifically recommended in the user-repair
instructions that you understand and have skills to carry out.
9. Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturers of the fabric softener or product.
10. Do not use heat to dry articles or products to eliminate static unless
recommended by the manufacturers of the fabric softener or product.
11. Clean lint screen before or after each load.
12. Keep area around the exhaust opening and adjacent surrounding
areas free from the accumulation of lint, dust and dirt.
13. Keep the dryer area clear and free from items that would obstruct
the flow of combustion and ventilation air through the louvered panel
located on the rear of the dryer.
14. The interior of the appliance and the exhaust duct should be cleaned
periodically by qualified service personnel.
1

English
2
Thank you for using our Haier
product. This easy-to-use manual
will guide you in getting the best
use of your dryer.
Remember to record the model and
serial number. They are on a label
in back of the dryer.
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
You will need it to obtain warranty service.
15. Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oil may contribute to a chemical reaction
than could cause a load to catch fire.
16. If material has been used with any flammable liquids or solids, it
should not used in the dryer until all terraces of flammable liquids
and its fumes have been removed.
17. This dryer must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in
the installations sections.
18. Proper grounding must be ensured to reduce the risk of electric shock
and force. Check with a qualified electrician or service personnel if
you are in doubt as to whether the dryer is properly grounded.
19. Use the dryer only for its intended purpose: drying clothes.
20. Always disconnect dryer from electrical supply before attempting any
service. Disconnect power cord by grasping the plug, not the cord.
21. Replace worn power cord and/or loose plugs.
22. To reduce the risk of electric shock or fire, do not use extension cords
or adapters to connect dryer electrical power source.
SAVE THESE
INSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old dryer,
take off the door so that children may not get trapped inside.

3
English
PAGE
IMPORTANT SAFETY INSTRUCTIONS....................................... 1-2
INSTALLATION INSTRUCTIONS.............................................. 4-11
Tools and Materials Required ............................................................ 4
Electrical Requirements ..................................................................... 5
Unpacking Your Dryer ..................................................................... 5
Exhaust System Requirements .............................................................6
Location of Your Dryer ......................................................................8
Manufactured (Mobile) Home Instruction ............................................9
Electrical Installation .......................................................................10
Power Cord Connections ............................................................... 11
Replacement Parts .......................................................................... 11
OPERATING INSTRUCTIONS ............................................... 12-21
Understanding the Control Panel...................................................... 12
Preparations before Drying ............................................................. 14
Load clothes into Dryer ................................................................... 15
Auto Dry ...................................................................................... 15
Timed Dry 18
Other Features .............................................................................. 19
Normal Operating Sounds.............................................................. 20
Tips .............................................................................................. 20
CARE AND CLEANING GUIDE.......................................................20
TROUBLESHOOTING.................................................................. 21
SPECIFICATIONSR ......................................................................21
TABLE OF CONTENTS
.....................................................................................
Rack Dry 18
.......................................................................................

4
WAR Risk of Fire:
1. Clothes dryer installation must be performed by a
qualified installer.
2. Install the clothes dryer according to the manufacturer’s
instructions and local codes.
3. To reduce the risk of severe injury or death, follow all installation
instructions.
SAVE THESE INSTRUCTIONS
Tools and materials required
• Phillips-Head and flathead screwdrivers
• Channel-lock adjustable pilers
• 1/2-inch open-end wrench
• Carpenter’s level
• Measuring tape (12ft. min.)
• Duct tape
• Rigid or flexible metal 4 inch (102cm) duct
• Vent hood
INSTALLATION INSTRUCTIONS
English
NING
4. Do not install a clothes dryer with flexible plastic venting materials.
If flexible metal (foil type) duct is installed, it must be of a specific
type identified by the appliance manufacturer as suitable for use
with clothes dryers. Flexible venting materials are known to collapse,
be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.

5
Unpacking Your Dryer
English
1. Remove all packaging material. This includes the foam base and all adhesive
tape holding the dryer accessories inside and outside.
2. Inspect and remove any remains of packaging, tape or printed materials
before using the dryer.

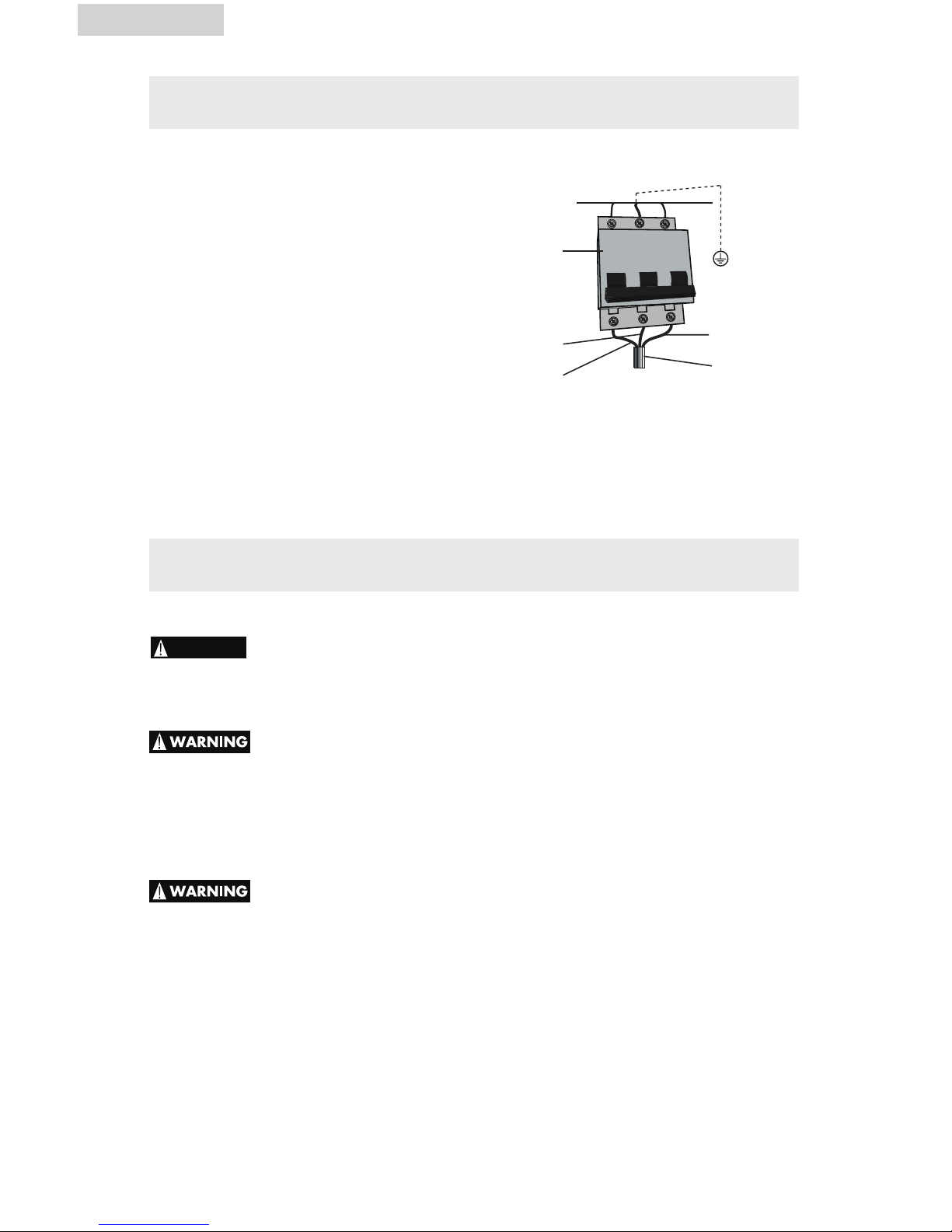

Individual 30 Amp branch circuit fused with 30 Amp time-delay fuses or circuit
breakers. Use seperately fused circuits for washers and dryers, and DO NOT
operate a washer and dryer on the same circuit.
Power Supply
220 Volt, 1 Phase, 50Hz, AC
ELECTRICAL REQUIREMENTS
Circuit

The following are specific requirements for
proper and safe operation of your dryer. Failure
to follow these instructions can create excessive
drying times and fire hazards.

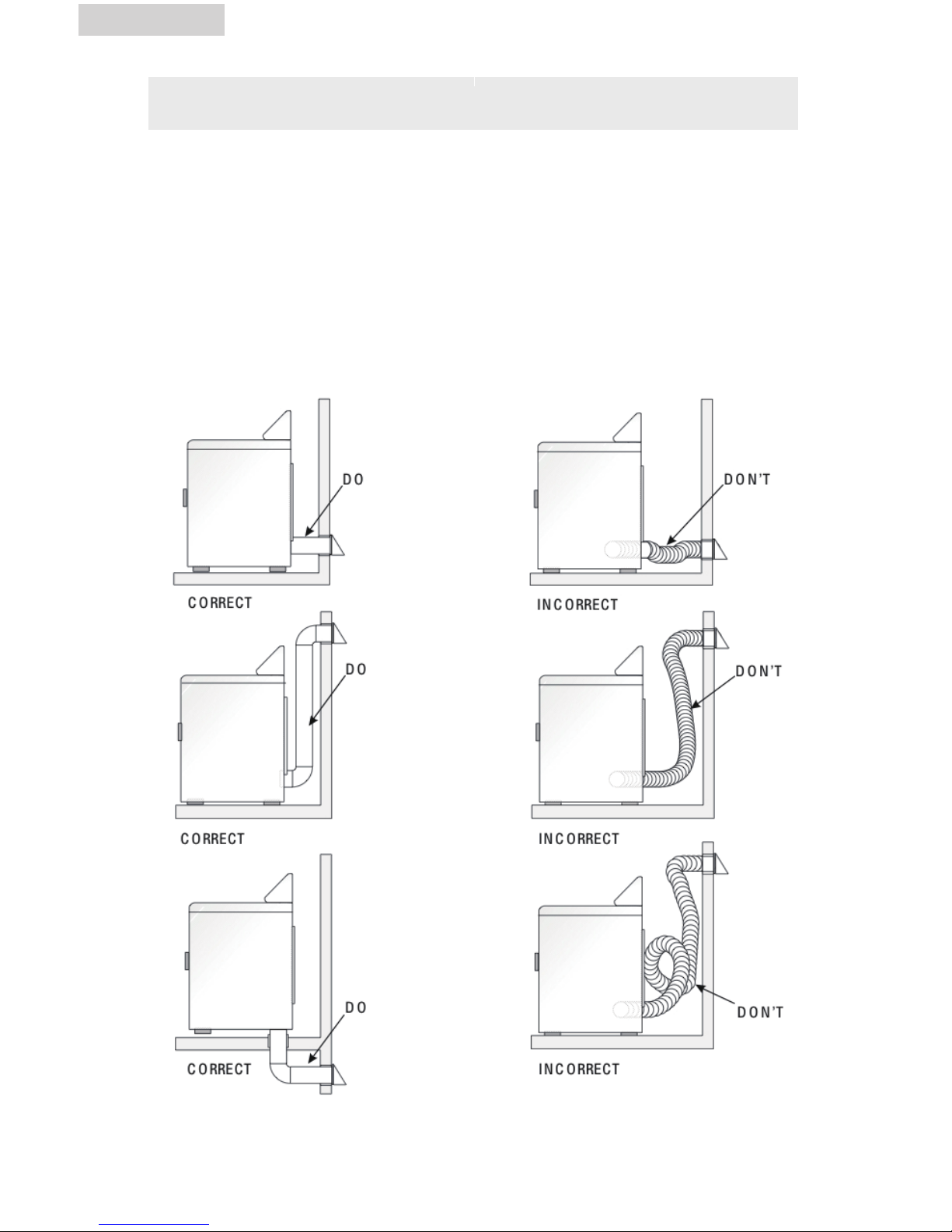

1. Do not use plastic flexible duct to exhaust the dryer. Excessive lint can build up
inside exhaust system and create a fire hazard and restrict air flow. Restricted
air flow will increase drying time. If your present system is made up of plastic
duct or metal foil duct, replace it with a rigid or flexible metal duct. Ensure
present duct is free of any lint prior to installing dryer duct.
2. The dryer must not be exhausted into any gas vent, chimney, wall, ceiling
The dryer exhaust system MUST be exhausted to the outdoors.
If the dryer is not exhausted outdoors, some
the laundry area. An accumulation of lint in any area of the home can
create a health and fire hazard.
3. Exceeding the length of duct pipe or number of elbows allowed in the
“Maximum Length” chart can cause an accumulation of lint in the exhaust
system. Plugging the system could create a fire hazard, as well as increase
drying times.
4. Do not screen the exhaust ends of the vent system. Lint can become caught in
the screen, increasing drying time. Use an approved vent hood to terminate the
duct outdoors, and seal all joints with duct tape.
5. All male duct pipe fittings must be installed downstream with the flow of air.
6. Exhaust duct must not be connected or secured with scews or other fastening
devices which extend into the interior of the duct.
7. Do not allow combustible material (clothing, draperies/curtains, paper, etc.) to
come in contact with exhaust system.
Explosion hazard:
Do not install the dryer where gasoline or other flammables are kept or
stored. If the dryer is installed in a garage, it must be a minimum of 18
inches (45.7cm) above the floor. Failure to do so can result in death,
explosion, fire or burns.
Exhaust Requirements:
Use only 4 inch (10.2cm) diameter (minimum) rigid or flexible metal duct and
approved vent hood which has a swing-out damper hat open when the dryer is
in operation. When the dryer stops, the dampers automatically close to prevent
drafts and the entrance of insects and rodents. To avoid restricting the outlet,
WARNING
EXHAUST SYSTEM REQUIREMENTS
English
6
attic, crawl or any concealed space of a building.
fine lint will be expelled into

1. Only rigid metal duct work should be used.
2. Venting vertically through a roof may expose the exhaust system to down
drafts causing an increase in vent restriction.
3. Running the exhaust system through an uninsulated area may cause
condensation and faster accumulation of lint.
4. Compression of crimping of the exhaust system will cause an increase in
vent restriction.
The exhaust system should be inspected and cleaned a minimum of every 12
months with normal usage. The more the dryer is used the more often you
should check the exhaust system and vent hood for proper operation.
English
7

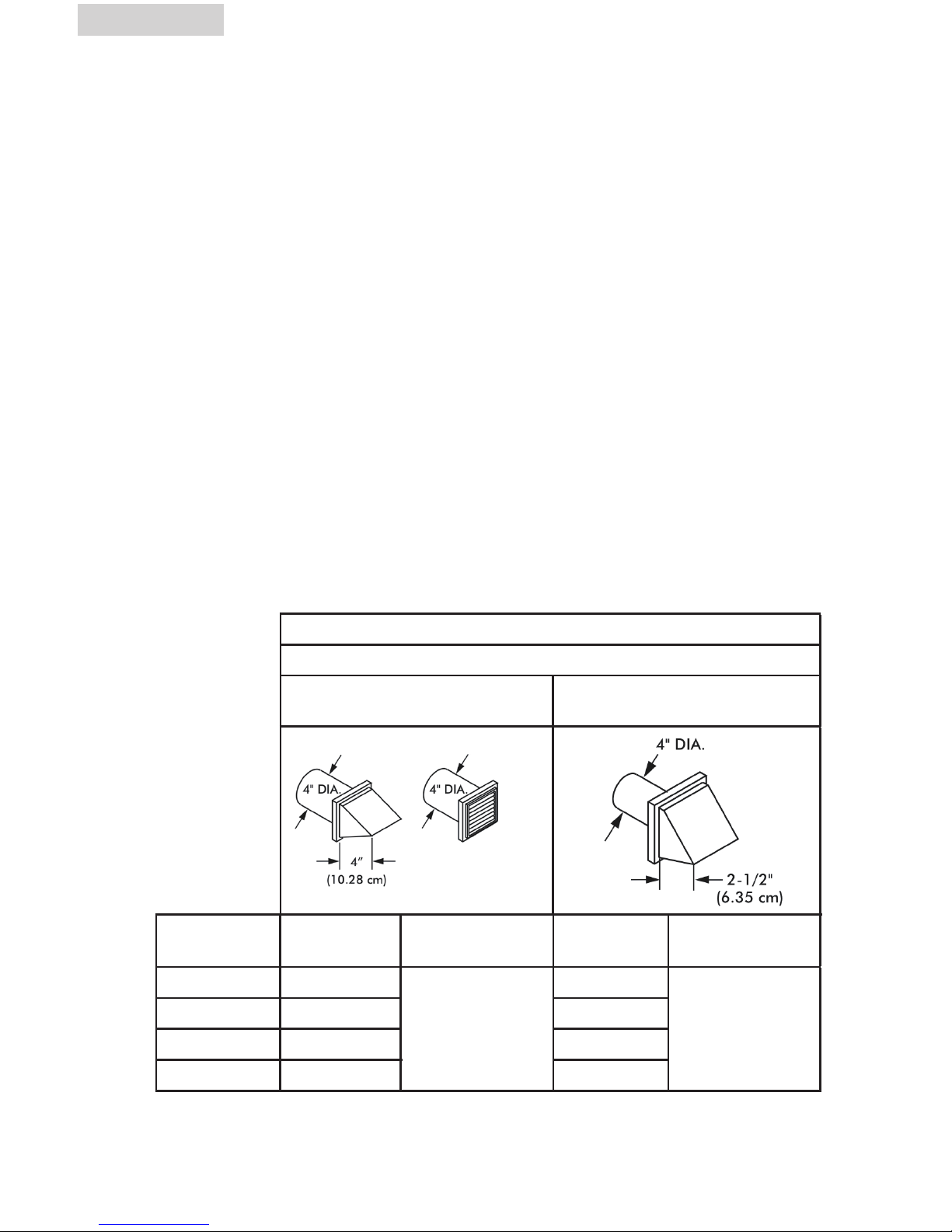

RECOMMENDED MAXIMUM
Exhaust Hood Types
Recommended Use only for short
run installations
No. of 90º
elbows Rigid Metal Flexible Metal Rigid Metal Flexible Metal
0 90 ft. Flexible metal 60 ft.
1 60 ft. 45 ft.
2 45 ft. 35 ft.
3 35 ft. 25 ft.
The exhaust duct shall be 4 inch (102 mm) in diameter.
5.
maintain a minimum of 12 inches (30.5cm) clearance between the vent hood
and the ground or any other obstruction. The vent flap should be able to move
freely, although vertical orientation of the exhaust system is acceptable. Certain
extenuating circumstances could affect the performance of the dryer:
metal shoud only
length to be 7.5ft.
wall.Maximum
the dryer and the
be used between
Flexible metal
metal shoud only
length to be 7.5ft.
wall.Maximum
the dryer and the
be used between

English
8

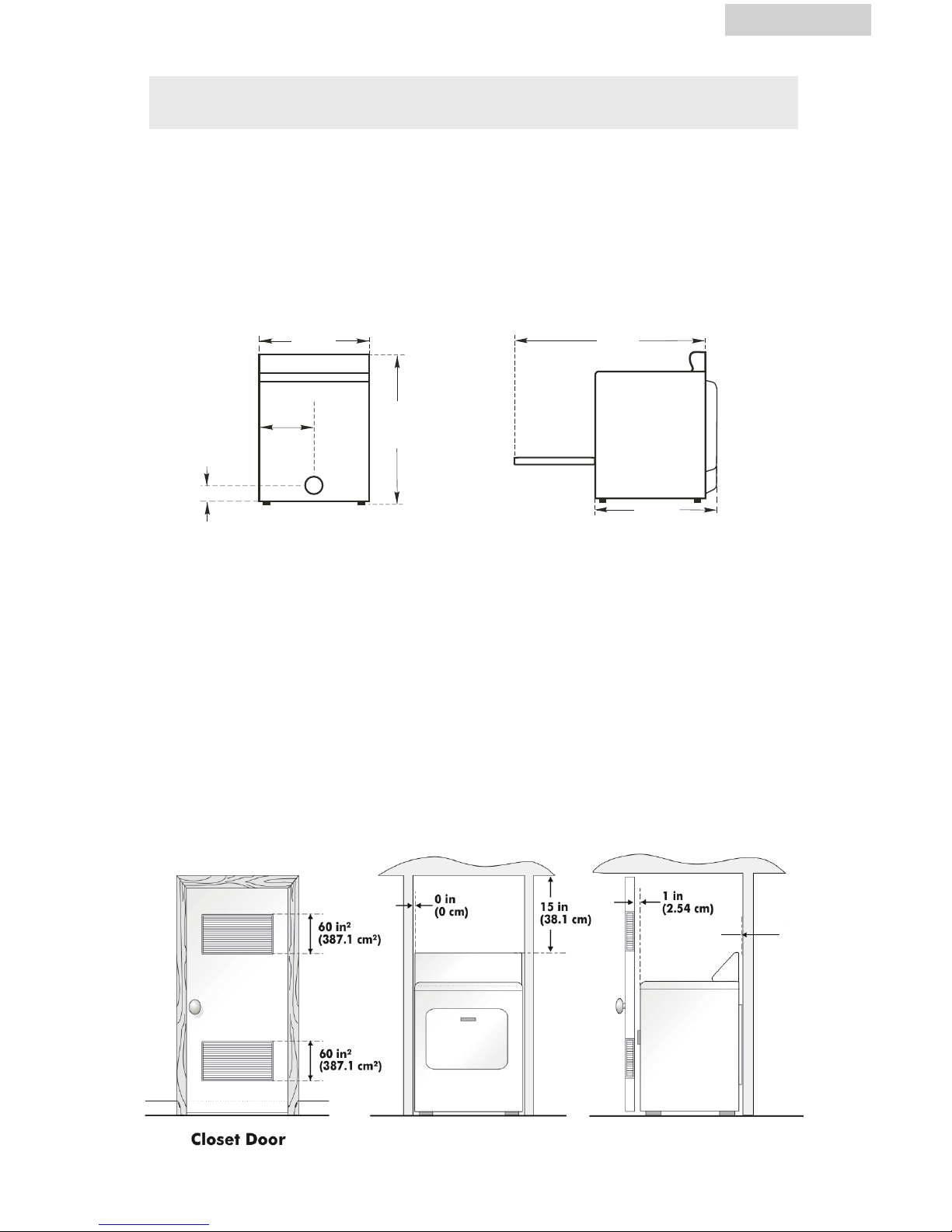

Do Not Install Your Dryer:
1. In an area exposed to dripping water or outside weather conditions.
2. In an area where it will come in contact with curtains, thick carpet, or anything
that will obstruct the flow of combustion and ventilation air.
3. On carpet, floor must be solid with a maximum slope of 1inch (2.54 cm). Any
floor unevenness should be corrected with leveling legs located on the bottom
of the dryer.
Installation in Alcove or Closet:
1. DO NOT install your dryer in a closet with a solid door.
2. A dryer installed in a bedroom, bathroom, alcove or closet MUST be
exhausted outdoors.
3. No other fuel burning appliance shall be installed in the same closet .
4. Refer to the images on this page to ensure the installation provides the
minimum amount of clearance required for ventilation.
5. When installing the dryer in a closet with a door, a minimum of 120 square
inches (774.2 square cm) of ventilation in the door is required. Openings must
be equally divided at the top and bottom of the door and airflow must be
unobstructed. A louvered door with equivalent air openings for the length of
the door is acceptable.
LOCATION OF YOUR DRYER
0 in
(0 cm)
Door Open 90°
43 1/4”
˄109.7cm˅
˄34.3cm˅
13 1/2”
27”
(68.6cm) (122cm)
48”
30 3/8”
(77.7cm)
3 3/8”(8.4cm)

English
9
1. Dryer MUST be exhausted outside (outdoors, not beneath the manufactured
home) using metal ducting that will not support combustion. Metal ducting must
be 4 inch (10.16 cm) in diameter with no obstructions. Rigid metal duct
is preferred.
2. If dryer is exhausted through the floor and area beneath the manufactured
home is enclosed, the exhaust system MUST terminate outside the enclosure
with the termination securely fastened to the mobile home structure.
3. Refer to previous sections for other important venting requirements.
4. Installation must conform to current Manufactured Home Construction & Safety
Standard
MANUFACTURED (MOBILE) HOME INSTALLATION

English
10
The following are specific requirements for proper
and safe electrical installation of your dryer.
Failure to follow these instructions can create
electrical shock and/or fire hazard.
WARNING
1. This appliance must be properly grounded. Electrical shock can result if the
dryer is not properly grounded. Follow the instructions in this manual for
proper grounding.
2. Do not use an extension cord with this dryer. Some extension cords are not
designed to withstand the amounts of electrical current this dryer utilizes and
can melt, creating electric shock and/or fire hazard. Locate the dryer within
reach of the receptacle for the length power cord to be purchased, allowing
some slack in the cord. Refer to the electrical requirements in this manual for
the proper power cord to be purchased.
3. A UL approved strain relief must be installed onto power cord. If the strain
relief is not attached, the cord can be pulled out of the dryer and can be cut
by any movement of the cord, resulting in electrical shock.
4. Do not use an aluminum wire receptacle with copper-wired power cord and
plug (or vice versa ). A chemical reaction occurs between copper and
aluminum and can cause electrical shorts. The proper wiring and receptacle
is a copper-wired power cord with a copper-wired receptacle.
Improper connection of the equipment grounding conductor can
result in a risk of electrical shock. Check with a licensed
electrician if you are in doubt as to whether the appliance is
properly grounded.
ELECTRICAL INSTALLATION

English
11
REPLACEMENT PARTS
CAUTION Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation. Check
unit for proper operation after servicing.
Discard or destroy the carton and plastic bags after the dryer is
unpacked. Children should not be allowed to use them to play with.
Cartons covered in rugs, bedspreads or plastic sheets can become
an airtight chamber and cause suffocation leading to death. Make
all packing materials inaccessible to children.
The instructions in this manual and all other literature included with
this dryer can not cover every possible condition and situation that
may occur. Good safe practice and caution must be applied when
installing, operating, and maintaining any appliance. If you are in
doubt after installing, call a certified electrician to install and wire
the dryer.
POWER CORD CONNECTIONS
Power Cord
Brown
Kelly Blue
Air Switch L G N
Make sure appliance is wired or plugged
For your safety, connect the Power cord with a qualified electrician or service.
into a grounded outlet.
Do not use an adaptor.
Do not use an extension cord.
Do not take down and replace the
power cord .
Check with a qualified electrician or
service person if you are in doubt as to
whether the appliance is properly
grounded.

E
n
g
lis
h
12

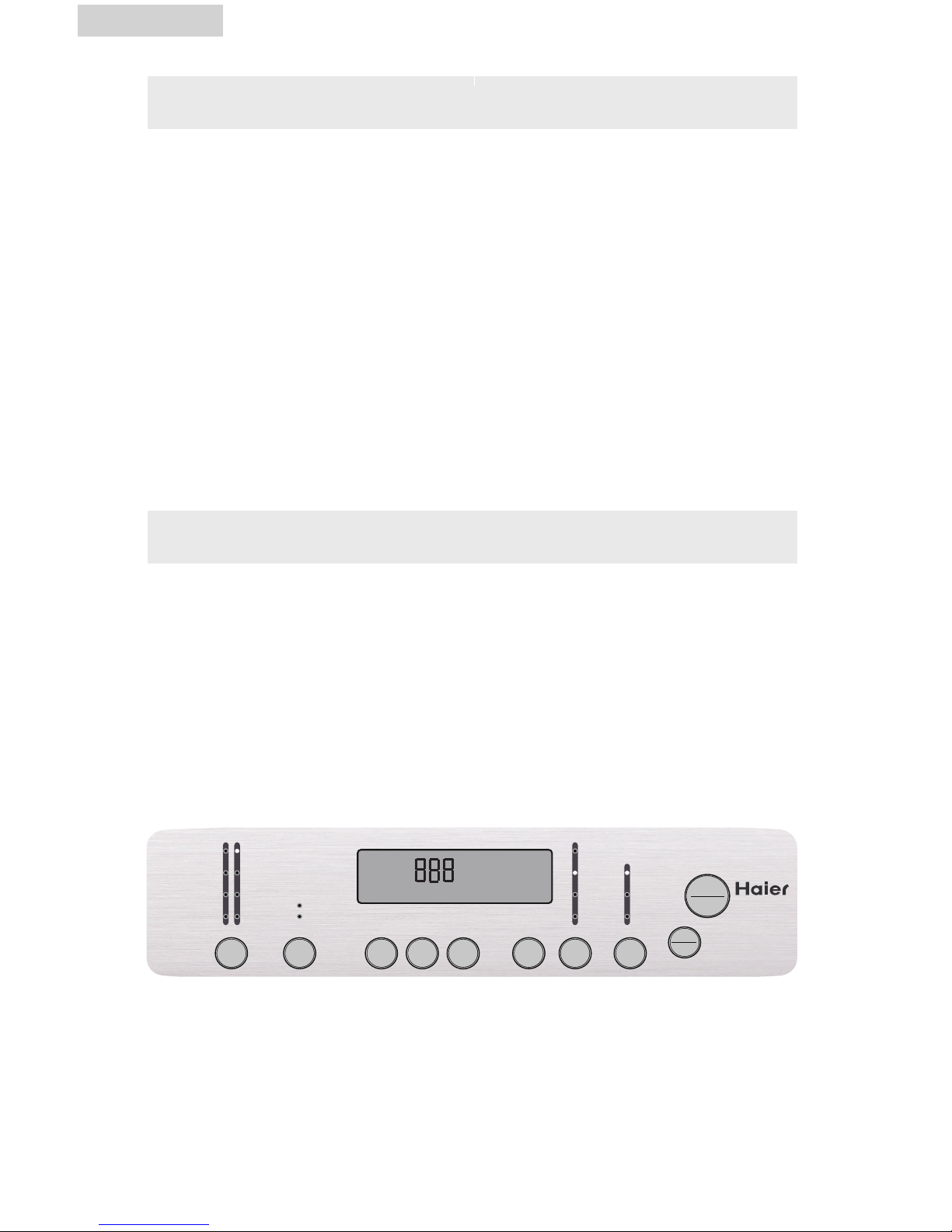

Understanding the Control Panel
S
tart
/
Pause
B
utton
:
(
2
)
•
Wh
en t
h
e
d
ryer Power on,Press t
h
e
b
utto
n
t
o
st
ar
t
t
h
e
dryer
process. Press this
r
b
utton
once
a
ga
i
n
t
o
pa
u
se
the
a
ct
i
v
i
ty
d
uring
the
d
ry
c
yc
l
e.
Power
/
On
/
Of
f
B
utton
:
(
1
)
•
P
res
s
t
h
e
b
utto
n
to
t
urn
d
ryer On/O
ff.
S
igna
l
B
utton:
(
3
)
•
S
e
l
ects
b
uzzing
v
o
l
um
e
or
t
urns
off
the
b
uzzer.
Y
ou
can
ch
oos
e
l
ou
d
er,
s
o
f
ter,
o
r
o
ff
.
T
em
p
B
utton
:
(
4
)
•
Used
to
se
t
d
r
y
ing
t
em
p
erature.
T
h
e
r
e
a
r
e
4
av
ailabl
e
d
r
y
ing
t
em
p
eratures:
H
ig
h
,
M
e
d
ium,
L
ow,
a
n
d
N
o
H
eat .
S
ensor
D
ry
L
eve
l
B
utton:
(
5
)
•
U
se
d
t
o
s
e
t
d
rying
l
eve
l
of
a
u
t
o-programs.
If
no
a
u
t
o-program
i
s
s
e
l
ecte
d
,
p
ressing
t
h
e
bu
tt
o
n
w
ill
cause
t
h
e
c
him
e
to
sou
n
d.
T
h
e
r
e
a
r
e
3
se
l
ec
ti
o
n
s:
V
ERY
,
N
ORMAL
,
DA
M
P
.
W
rinkl
e
S
aver
B
utton
:
(
6
)
•
T
hi
s
c
on
v
enient
fea
t
u
r
e
h
el
p
s
k
ee
p
w
rinkles
f
r
o
m
s
ettin
g
w
hen
y
ou
ca
nn
o
t
u
n
l
oa
d
the
d
ryer
at
the
e
n
d
of
a
c
yc
l
e.
The
d
ryer
w
i
ll
st
op
a
n
d
th
en
t
um
bl
e
f
or
a
b
rie
f
p
erio
d
e
v
er
y
f
ew
mi
nutes.
P
ress
the
w
rin
kl
e
sa
v
er
b
utton
t
o
ch
oos
e
the
n
um
b
er
of
h
ours
r
equire
d
,
f
rom
1
t
o
9
.
S
top
the
s
ett
i
ng
at
an
y
ti
m
e
b
y
p
ressing
t
h
e
w
rinkle
s
a
v
er
bu
tt
o
n
o
r
op
ening
t
h
e
d
r
y
er
doo
r
.
•
If
no
t
s
et
,
t
h
e
w
rinkl
e
s
a
v
er
i
n
d
i
ca
t
o
r
is
o
ff
a
n
d
r
emainin
g
t
im
e
i
n
d
i
ca
t
o
r
is
o
n
.
•
T
h
e
LED
d
is
p
la
y
i
n
d
i
ca
t
es
t
h
e
r
emainin
g
t
im
e.
If
s
ettin
g
“Wrinkle Saver” in
s
tan
db
y status,t
h
e LED
d
isp
l
ay in
d
icates 1
h
r.
OPERATING INSTRUCTIONS
Normal
Heavy Duty
Whites
Bulky
Press Free
Delicate
Touch Up
Custom
Auto
Timed Dry
Rack Dry
High
Medium
Low
No Heat
Louder
Softer
Off
Start
Pause
On/Off
DRY
COOL DOWN
CYCLE COMPLETED
WRINKLE SAVER
REMIANING TIME
EXTENDED TUMBLE
VERY
NORMAL
DAMP
Dry
Cycles
Timed
Dry
Cycles
Less
Time
More
Time
Wrinkle
Saver
Sensor
Dry
Level
Temp Signal
2
1
3
45
11
6
7
10
8
9
Ultra Plus Capacity
Power

Normal, Heavy Duty, Whites, Bulky, Press-Free, Delicate, Touch-up,and Custom.
Status lights: (10)
• Status lights note which part of the cycle the machine is in.
Digital display: (11)
• Indicates the remaining time (min) during cycle operation. Also indicates
remaining wrinkle saver time (hr).
Note: If door is opened during a cycle, the display will flash and alarm
will sound.
Function Indicator Light:
• The function “display light” indicates selected feature is “ON” or the cycle is
about to begin.
• During the dry cycle, “flashing light” indicates current running program.
• Rapidly flashing light indicates that the dryer is not operating properly.
English
13
More Time & Less Time: (7)
• Used to set time from 0 to 120 minutes when Timed Dry or Rack Dry
cycle is selected.
Timed-Dry Cycles: (8)
• The “Timed-Dry Cycles” button will let you select your desired dry mode.
Timed Dry: You can set status of “Temp”, “Signal” and dry time.
Rack Dry: This program is used to dry articles like sport shoes utilizing the
Auto-Dry Cycles: (9)
• “Auto-Dry cycles” button will let you select your desired dry cycles. For your
convenience, there are seven fabric care dry cycles:
Heavy Duty Heavy weight material such as jeans or bath towels.
Normal Normal drying
Whites For clothes such as linens and sheets.
Bulky Drying bulky clothing, such as bed sheets,sleeping bags,coats.
Press Free For wrinkle-free, permanent press, and knits.
Delicate Drying small quantity clothes and delicate fabric.
Touch Up Used for wrinkle-removal.
Custom The drying program defined by user and stored.
dying rack.

English
14
• Sort clothes of the same kind (cotton, synthetics, woolen) to dry.
• Dark and light colored clothes should be separately dried. Fabrics prone to
losing lint and those prone to adhering lint shall be separately dried. Clothes
prone to falling lint should be turned inside out before putting into the dryer.
• Make sure buttons and ornaments on the clothes are high temperature
resistant and won’t damage drum surface. Before loading, the clothes should
have their zippers zipped up, buttons and hooks done up and belts tied so as to
avoid entanglement or other obstacles.
• If possible, turn out the clothes pockets for uniform drying.
• Check if clothes remain soiled. If so, wash them again, otherwise soils may be
permanently set.
• Small articles should be placed in a mesh bag before loading and drying, to
avoid entanglement and ensure easy removal.
• Make sure the power socket is reliably grounded. The grounding terminal should
not be connected to gas or tap water pipelines.
• Make sure exhaust duct has been properly connected.
• Make sure lint filter is clean and properly installed. If lint filter is not in place,
tumbling items could enter the exhaust system and cause damage to the dryer.
Note: Applies to Auto Dry cycle and Timed Dry cycle.
• For Rack Dry cycle:
a.Open the dryer door,make sure the drum is empty.
b.Remove the lint filter.(Fig.1)
c.Assemble the drying rack with its rear end slightly downward inclined(Fig).
d. After the Cycles,remove the dryer rack and insert the lint filter.
PREPARATIONS BEFORE DRYING
Drying
Rack
Whisk
Leaf
Lint
Filter
Fig.1 Fig.2

English
15
• The appropriate load should be 1/3 ~ 1/2 of the drum volume. Do not
overload, as space is needed to allow clothes free rotation for uniform and
wrinkle-proof drying.
• When drying big articles, only 2-3 pieces should be loaded at a time and
supplemented with small and medium-sized articles.
• For delicate clothes or less load, two towels may be added to get better
drying and wrinkle-proof effects.
• Do not excessively dry clothes to avoid wrinkles, shrinkage, roughness,
electro-static charge accumulation, and/or more lint.
Rack Dry cycle
• This program is designed specially for articles like sport shoes. During drying,
please make sure the articles are placed on the rack with no risk of
entangling the baffles while the drum is rotating.
Note: If drying rack is not in place, rolling inner tumbler could collide with
drying rack and causes damage to the dryer and drying rack.
1. Press the “Power/On/Off” button to power on.
LOAD CLOTHES INTO DRYER
AUTO DRY CYCLE
•
operating status (Normal).
• If the “Start/Pause” button is not pressed in 5 min after powering on, it
automatically returns to off status.
• The dryer returns to off status immediately upon end of each cycle. Pressing
OFF will stop all operations.
• The default status is “Normal” with the following options.
The dryer will beep once and will change from off status to the initial
Note: Your dryer is equipped with an electronic moisture sensor which
continuously senses the moisture in the dryer load during the drying cycle. The
dryer will stop when the moisture in the clothes has reached your selected dry
level. This helps to avoids clothes from over drying and prevents damage to
clothes. The control panel will display “SEN” during the final sensing period and
once the estimated dry time is determined it will be displayed.
Normal
Heavy Duty
Whites
Bulky
Press Free
Delicate
Touch Up
Custom
Auto
Timed Dry
Rack Dry
High
Medium
Low
No Heat
Louder
Softer
Off
Start
Pause
On/Off
DRY
COOL DOWN
CYCLE COMPLETED
WRINKLE SAVER
REMIANING TIME
EXTENDED TUMBLE
VERY
NORMAL
DAMP
Dry
Cycles
Timed
Dry
Cycles
Less
Time
More
Time
Wrinkle
Saver
Sensor
Dry
Level
Temp Signal
Ultra Plus Capacity
Power

16
English
2. Press “Auto-Dry Cycles” button to select a suitable full automatic cycle.
• The Normal program will be automatically selected after powering on. If
another full automatic program is desired, press “Auto-Dry Cycles” button until
corresponding indicator turns on.
3. Press “Sensor Dry Level” button to select a suitable drying level.
• After powering on, the clothes dryer automatically sets dryness at “very”, which
means a longer drying time. If other drying level is desired, press “Sensor Dry
Level” button to select.
4. Press “Temp” button to set a suitable drying temperature.
• After switching on, the dryer sets the corresponding temperature adapting to
different cycles selected. If other drying temperature is wanted, press “Temp”
button to enable such a selection. There are 4 available drying temperatures:
High, Medium, Low, and No Heat.
Press Free
Delicate
Touch Up
Custom
Heavy Duty
Normal
Whites
Bulky
Auto-Dry Cycles
Cycle Signal Louder
Wrinkle Care Off
Cycles Normal
LED display Indicates current program remaining time. Initial display time is 60 minutes.
This is subject to change depending on the moisture level in the load.
Temp Medium
Sensor Dry Level Very
Timed/Cycles Auto-program
5. Press “Signal” button, and the signal or chime will sound upon end of a cycle.
• After switching on, the dryer automatically sets signal at “Softer”. The user may
select: “Louder”, “Softer” or “Off”.
6. Press the “Wrinkle Saver” button to select a suitable reserved drying program.
• This convenient feature helps keep wrinkles from setting when you cannot unload
the dryer at the end of a cycle. The dryer will stop and then tumble for a brief
period every few minutes. Press the wrinkle saver button to choose the number of
hours you want, from 1 to 9. Stop the dryer at any time by pressing the wrinkle
saver button or opening the dryer door.
• If not set, the wrinkle saver feature will be off and remaining time indicator will be
displayed.

• Wrinkle saver 1- 9 hours
• Sensor Dry Levels: VERY, NORMAL,DAMP
• Temp Levels: High, Medium, Low, No Heat
• Signal: Louder, Softer, Off
Autodry Cycle Remain Time Sensor
Dry Level Temp Signal
Start/
Pause
Normal 60 very Medium High
Heavy Duty 60 very Medium High
Whites 58 very High High
Bulky 72 very High High
Press Free 58 very Medium High
Delicate 50 Very Low High
Touch Up 25 Very Low High
0-180
minutes
Custom Timed
Dry 30 N/A High High
Pass for Rack
Dry 60 N/A Air Dry High
English
17
• To store your desired settings for future use, the “Custom” function can be used.
• The dryer can memorize programs defined by user and display the previous
program upon next application of this function.
Use details are as follows (Features may vary per model purchased)
After powering on, press “Auto-Dry Cycles” until ”Custom” status, then set
“Timed-Dry Cycles” to Timed Dry or Rack Dry and set status of other buttons.
Press “Start/Pause” button or after half a minute, the program defined by user will be
stored and will be directly displayed upon next use.
Note: The“Sensor Dry Level” button will be inactive during use of “Custom” function
and “Touch Up” cycle.
Custom Cycle
• You can use the “Touch Up” cycle to remove wrinkles from clean clothes
packed tightly in a suitcase or closet.
Touch Up Cycle
• The LED display indicates remaining time of a cycle. If setting “Wrinkle Saver” in
standby status, the LED display indicates 1 hr.
7. Press “Start/Pause” button
• When starting the machine, first close the door and then press this button.
• If pause is needed during machine operation, press this button. Pressing again will
resume operation.

18
1. Press the “Power/On/Off” button to power on.
2. Press “Timed-Dry Cycles” button and select “Timed Dry” cycle.
• After powering on, press “Timed-Dry Cycle” button to select “Timed Dry” program.
3. Press “More Time” and “Less Time” buttons to set a suitable time.
• After setting “Timed-Dry Cycle” to “Timed Dry,” you can press these two buttons
to increase or decrease drying time as you desire.
4-6. Press buttons “Temp,” “Cycle Signal,” and “Wrinkle Saver” to define your desired
program.
TIMED DRY CYCLE
English
RACK DRY CYCLE
1. Press the “Power/On/Off” button to power on.
2. Press “Timed-Dry Cycles” button and select “Rack Dry” cycle.
• After powering on, press “Timed-Dry Cycle” button to select “Rack Dry”
program.
3. Press “More Time” And “Less Time” buttons to set a suitable time.
• After setting “Timed-Dry Cycle” to “Rack Dry”, you can press these two
buttons to increase or decrease drying time as you desire.
4. Press buttons “Temp” or “Signal” to define your desired program.
Notes:For “Rack Dry” program, use of buttons “Temp,” “Signal,” “Wrinkle Saver,” and
“Touch up” is the same as for auto-programs. “Sensor Dry Level” is inactive, and
a beep will sound if pressed.
5. Press “Start/Pause” button.
Note: For “Timed Dry” program, use of buttons “Temp,” “Cycle Signal,” and “Wrinkle
Saver” is the same as for auto-programs. “Sensor Dryness Level” is inactive, and a
beep will sound if pressed.
7. Press “Start/Pause” button.
Normal
Heavy Duty
Whites
Bulky
Press Free
Delicate
Touch Up
Custom
Auto
Timed Dry
Rack Dry
High
Medium
Low
No Heat
Louder
Softer
Off
Start
Pause
On/Off
DRY
COOL DOWN
CYCLE COMPLETED
WRINKLE SAVER
REMIANING TIME
EXTENDED TUMBLE
VERY
NORMAL
DAMP
Dry
Cycles
Timed
Dry
Cycles
Less
Time
More
Time
Wrinkle
Saver
Sensor
Dry
Level
Temp Signal
Ultra Plus Capacity
Power
Normal
Heavy Duty
Whites
Bulky
Press Free
Delicate
Touch Up
Custom
Auto
Timed Dry
Rack Dry
High
Medium
Low
No Heat
Louder
Softer
Off
Start
Pause
On/Off
DRY
COOL DOWN
CYCLE COMPLETED
WRINKLE SAVER
REMIANING TIME
EXTENDED TUMBLE
VERY
NORMAL
DAMP
Dry
Cycles
Timed
Dry
Cycles
Less
Time
More
Time
Wrinkle
Saver
Sensor
Dry
Level
Temp Signal
Ultra Plus Capacity
Power

19
English
Other Features
Your dryer also has the following features for your convenience:
Lint Filter:
• All dryers come with a lint filter that needs to be cleaned before or after every
use (read “Care and Cleaning Guide” Section).
Leveling Legs:
• Your dryer has four leveling legs which are located in the front and rear corners
of your dryer. After installing your dryer in its final position, you can level your
dryer.
• Leveling legs can be adjusted by turning them clockwise to raise your dryer or
by turning them counterclockwise to lower your dryer.
