Haier RTC1700RBSS User manual

User Manual
RTC1700RBSS
Manual del Usuario Modelo
RTC1700RBSS
Quality •Innovation •Style
CONVECTION / ROTISSERIE OVEN
LA CONVECCIÓN / HORNO DE
ROTISSERIE

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions
should always be followed, including the following:
1. Read all instructions carefully.
2. Do not touch hot surfaces. Use handles or knobs.
3. Close supervision is necessary when any appliance is used by or
near children.
4. To protect against electric shock, do not immerse cord, plug, or any
parts of the oven in water or other liquids.
5. Do not let the cord hang over edge of the table or counter, or touch
hot surfaces.
6. Do not operate an appliance with a damaged cord or plug or after
the appliance malfunctions, or has been damaged in any manner.
Return the appliance to the nearest Authorized Service Center for
examination, repair or adjustment.
7. The use of accessory attachments not recommended by the manu
facturer may cause hazard or injury.
8. Do not place on or near a hot gas or electric burner,or in a heated
oven or in a microwave oven.
9. When operating the oven, keep at least four inches of space on all
sides of the oven to allow for adequate air circulation.
10. Unplug the unit from the outlet when not in use and before cleaning.
Allow to cool before putting on or taking off parts, and before
cleaning.
11. To disconnect, turn the control to OFF, then remove the plug. Always
hold the plug,but never pull the cord.
12. Extreme caution must be used when moving an appliance containing
hot oil or other hot liquids.
13. Do not cover the CRUMB TRAYor any part of the oven with metal
foil. This may cause overheating of the oven.
14. Use extreme caution when removing tray or disposing of hot grease
or other hot liquids.
15. Do not clean with metal scouring pads. Pieces can break off the
pad and touch electrical parts, creating a risk of electric shock.
1
English

2
Staple your receipt to your manual.
You will need it to obtain warranty service.
16. Oversized foods or metal utensils must not be inserted in the oven as
they may create a fire or risk of electric shock.
17. A fire may occur if the oven is covered or touching flammable
material including curtains, draperies, walls and the like when in
operation. Do not store any item on the oven during operation.
18. Extreme caution should be exercised when using containers
constructed of other than metal or glass.
19. Do not place any of the following materials in the oven: cardboard,
plastic, paper, or anything similar.
20. Do not store any materials other than the manufacturer’s
recommended accessories in this oven when not in use.
21. This appliance has a tempered safety glass door. The glass is
stronger than ordinary glass and more resistant to breakage.
Tempered glass can break, but the pieces will not have sharp edges.
Avoid scratching door surface or nicking edges. If the door has a
scratch or nick, contact our toll-free consumer relations line before
using the oven.
22. Do not use outdoors.
23. Do not use appliance for other than its intended use.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
English

TABLE OF CONTENTS
PAGE
Important Safeguards ................................................................1-2
Power Cord ......................................................................................3
Parts and Accessories..................................................................4-5
Before Using Your Oven ................................................................5
Using Your Oven ..........................................................................5-7
Time Control ............................................................................................5
Temperature Control ............................................................................6
Function Control ..................................................................................6
Roasting ..............................................................................................7
Rotissreie ............................................................................................7
Cleaning and Maintenance ............................................................8
Trouble Shooting ............................................................................8
Limited Warranty ............................................................................9
English
3
Power Cord
This unit has a short power supply cord to reduce the risk resulting from becoming
entangled in or tripping over a long cord. An extension cord may be used if you
are careful in its use:
1. The electrical rating of the extension cord should be at least as great as the
electrical rating of the appliance.
2. An extension cord with the power cord must be arranged so that it will not
drape over the countertop or tabletop where they can be pulled on by children or
tripped over accidentally.
Polarized Plug
Your oven is equipped with a polarized plug (one blade is wider than the other).
To reduce the risk of electric shock, this plug must fit into a polarized outlet only
one way. If plug does not fully fit into the outlet, reverse the plug. If it still does
not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• If the electric circuit is overloaded with other appliances, your appliance may not
operate properly. It should be operated on a separate electric circuit from other
appliances.

English
4
PARTS AND ACCESSORIES
1. Handle
2. Glass door
3. Indicator Light
4. Thermostat Control
5. Function Control
6. Timer Control
7. Wire Rack
8. Drip/Baking Pan
9. Hand Grip
10. Rotisserie Spit Forks
11. Rotisserie Spit
12. Crumb Tray (not shown)
1
2
3
7 8 9
Please take time to familiarize yourself with the control, parts & accessories
before using the oven. This will save time later.
10
11
4
5
6
12

5
English
BEFORE USING FOR THE FIRST TIME
Before using your oven for the first time, be sure to do the
following:
• Wash the handle, handgrip, wire rack, drip pan, rotisserie spit and forks with
warm soapy water.Rinse thoroughly.
• Use a damp cloth with a small amount of dish detergent to lightly wipe the inner
walls of the oven. Do not use a spray or abrasive polishing agent. Do not touch
the electric heating elements and do not soak the inside of the oven with water.
• Place the wire rack, drip pan, rotisserie spit and forks inside the oven and close
the oven door. Do not place the handgrip inside the oven.
• Preheat the oven at the highest temperature for 5 minutes. Afterwards, preheat-
ing will not be necessary.
• Turn off the oven. Open the door to let out any smoke residue inside the oven.
Let the wire rack, drip pan, rotisserie and forks to cool before handling.
USING YOUR OVEN
Wire Rack
This rack supports food during broiling, roasting and baking.
Drip/Baking Pan
Use this as a baking tray, broiling pan, or as a cookie sheet. It can also be used
to catch drips from food baking or roasting on the wire rack.
Handgrip
Use this to remove food cooked on the rotisserie spit.
Rotisserie Spit and Forks
Use these for roasting larger items such as chicken or large pieces of meat, etc.
First, insert the rotisserie spit into the food. Place the left and right fork onto the
spit, then fork the food to be cooked. Insert the forks at different angles to hold
the food more firmly. Install the fixing screws to fix the rotisserie spit and forks
into place.
Caution! During the baking process, be sure that no metallic
accessory comes into contact with the heating elements.

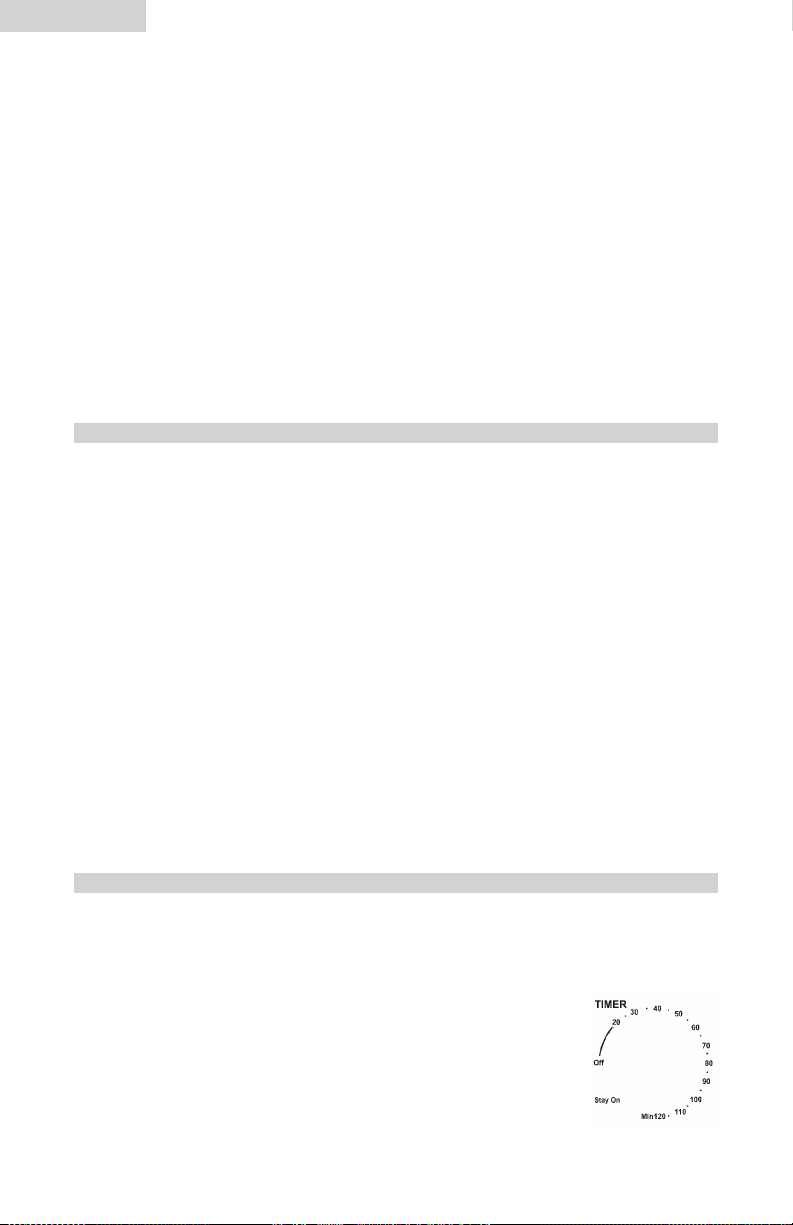

Timer Control
•The range of the timer is 0-120 minutes. When turned to the
“Off”position, the power will be shut off and the oven will
stop operating.The timer can be adjusted to the required
setting in accordance with the temperature setting. When you
adjust the knob to “Stay On”, the oven will continue to work
until the knob is turned to the “Off”position manually.

English
6
•If the baking time is less than 20 minutes, first turn the timer clockwise past the
20 minute mark and then turn it back to the desired time. If a longer baking
time is required, turn the timer directly to the desired time.
• During the baking process, the timer can be turned to a new position in order
to reset the time.
• When the set time is reached, a chime will be heard and the heating elements
will shut off automatically.

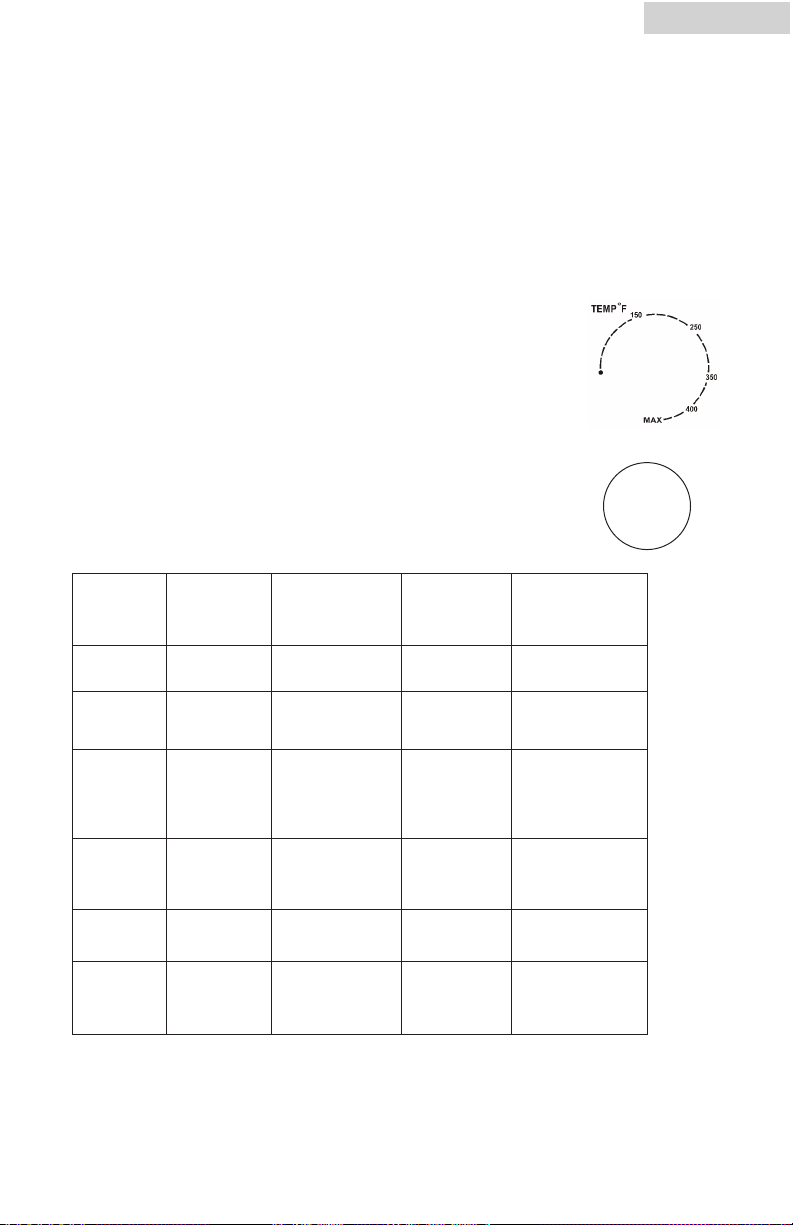

Temperature Control
The thermostat knob controls the temperature inside the oven.
You can set the temperature according to the size and quantity
of the food. Turn the knob clockwise to the desired temperature.
Function Control
The Function knob offers six choices. Look for the symbols
around the knob.
Function Tempera-ture
Setting
Operation Food Accessory
Setup
Defrost N/A Fan Motor (ON)
Heater (OFF)
Defrosted Food Drip Pan
Wire Rack
Slow cook 250º~300º Lower Heater
Fan Motor (ON)
Heating Food,
Meat, Soup
Wire Rack
Bake 325º~425º Upper Heater
(Half- Power)
Lower Heater
Fan motor (ON)
Bread, Cakes,
Pies and Cookies
Wire rack
Drip/Baking Pan
Roast/Pizza 400º~450º Upper Heater
Lower Heater
(ON)
Steak, Bread,
Pizza, Pork Chop
Wire Rack
Drip Pan
Broil 450º Upper Heater (ON) Meat and Fish Wire Rack
Drip Pan
Rotisserie 400º~450º Upper Heater
Rotisserie Motor
(ON)
Chicken, Pork,
Beef, Meat
Drip pan Handgrip
Rotisserie Spit and
Forks
FUNCTION
Slow Cook Bake
Roast
Pizza
Broil
Defrost
Rotisserie

7
English
Rotisserie
•Trim any loose hangings on the poultry or meat before placing on the
rotisserie. Wings and legs on poultry should be tied together with wet string or
butchers twine to prevent them from touching the heating elements as it rotates.
They should be secured close to the body. Cut off any excess string.
• Then insert the rotisserie spit into the food. Loosen the screws on the forks and
place one onto the spit on either side of the food. Center the food on the spit,
insert the forks at different angles to hold the food more firmly.Tighten the fixing
screws to fix the rotisserie forks into place.
• Insert the pointed end of the spit into the hole on the right inner wall of the oven
and lower the left side into the cradle on the left inner wall of the oven.
•Place the drip pan at the lowest level.
•Set the temperature to the desired level.
• Set the required cooking time.
Roasting
•Place the wire rack on the highest shelf position. If there is insufficient space,
move the rack down to the next level.
• Place the drip pan one level below the wire rack to catch drips. The tray and
the rack should be set at different levels to allow heat to circulate properly.
•Set the temperature to the desired level.
•Set the cooking time.
• When a glass-roasting pan is used, the heat will be reflected and a longer
cooking time will be required.
• Always use a potholder or oven mitt when removing hot food from the oven.

English
8
1. The oven does not become hot after being turned on.
• Make sure that the cooking time has been set.
• Make sure that the temperature dial has been set.
2. There is a metallic sound when the oven is in use.
• Shut the unit off. Do not attempt to disassemble the oven. Send it to an
authorized service agent right away for an examination of the fan.
3. Food is often overcooked or burned, even when cooked according to the
recipe.
•Have an authorized service agent check the temperature dial.
• Check that the fan motor is operating normally.
Note: If the power supply cord is damaged, it must be replaced by the
manufacturer, an authorized service agent or a similarly
qualified person in order to avoid a hazard.
TROUBLESHOOTING
First, remove the plug of the power cord from the wall outlet.
• After the oven cools, use a damp cloth or sponge to clean the unit. Do not
soak the inside of the oven or wash it under running water, as this will cause
serious damage to the appliance.
• Do not use sharp or hard kitchen utensils on the oven since this could damage
the surface of the appliance.
• Covering the food to be cooked with aluminum foil before cooking will make
cleanup easier.
• The wire rack, drip pan, rotisserie spit and forks can be removed and washed
with running water or in a dishwasher.
• To replace the oven light, make sure that the oven is completely shut off and
has completely cooled. Loosen the screw on the light bulb cover on the upper
rear corner of the right interior wall. Remove the cover. Turn the bulb counter-
clockwise to remove. Replace the new bulb in the socket and turn the bulb
clockwise to tighten. Replace the light bulb cover and tighten the screw.
• If the oven has not been used for a long time, be sure to remove dust and
moisture before operating.
CLEANING AND MAINTENANCE

LIMITED WARRANTY
Full One Year
This warranty covers all defects in
workmanship or materials for a period
of 12 months from the date of
purchase, provided you are able to
present a valid proof-of-purchase (the
original receipt)
Exceptions: Commercial or Rental Use
Warranty is 90 days from date of
original purchase.
This warranty covers appliances within
the Continental United States, Puerto
Rico and Canada.
What is not covered by this
warranty:
Damage from other than normal use
or improper installation.
Damage from misuse, abuse, accident,
alteration, lack of proper care and
maintenance.
Failure caused by build-up of food
matter or water deposits.
Product, whose rating label has been
removed or altered.
Product serviced by other than
authorized service center.
Replacement or repair of household
fuses, circuit breakers or wiring.
Labor, shipping charges and
replacement of defective parts beyond
the initial 12-month period.
Do not return this product to the store.
If you need assistance with this
product, please contact "Haier
Customer Satisfaction Service at
1-877-337-3639 between 9:00 AM
and 5:00 PM (EST) Monday to Friday.
Before calling, please have the
following information available:
Model number of your appliance. The
name and address of the store you
purchased the unit from and the date
of purchase. A clear description of the
problem.
Haier will repair or replace any part
free of charge including labor that fails
due to a defect in materials or
workmanship, or replace with a
comparable model.
THIS LIMITED WARRANTY IS
GIVEN IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR,
INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
The remedy provided in this warranty is
exclusive and is granted in lieu of all
other remedies.
This warranty does not cover incidental
or consequential damages, so the
abovelimitations may not apply to you.
Some states do not allow limitations on
how long an implied warranty lasts, so
the above limitations may not apply to
you.
This warranty gives you specific legal
rights, and you may have other rights,
which vary, from state to state.
Haier America
New York, NY 10018
9
English

115V,60 Hz
Made in China
Hecho en China
Haier America
New York, NY 10018
Printed in China
Issued: February - 06
IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact the "Haier Customer Satisfaction
Center" at 1-877-337-3639.
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE
IMPORTANTE
No regrese este producto a la tienda
Si tiene algún problema con este producto, por favor contacte el "Centro de Servicio al
Consumidor de Haier" al 1-877-337-3639 (Válido solo en E.U.A).
NECESITA UNA PRUEBA DE COMPRA FECHADA PARA EL SERVICIO DE LA GARANTIA
