Haier HWO60S4 User manual

Built-in oven
HWO60S4 single models
NZ AU
USER GUIDE

1
CONTENTS
Safety and warnings 2
Oven, clock and timer controls
Models with analogue 120’ timer 4
Models with six-button clock 5
Models with touch control clock 6
First use 8
Using your oven 9
Oven functions 10
Cooking chart 11
Using the electronic timer - models with six button clock 12
Automatic cooking - models with six button clock 13
Using the electronic timer - models with touch control clock 14
Automatic cooking - models with touch control clock 16
Care and cleaning 18
Troubleshooting 25
Warranty and service 26
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject
to change at any time. For current details about model and specification availability in
your country, please go to our website listed on the back cover or contact your local
Haier dealer.

2
SAFETY AND WARNINGS
Your built-in oven has been carefully designed to operate safely during normal cooking
procedures. Please keep the following guidelines in mind when you are using your
oven:
WARNING!
Electrical Shock Hazard
Disconnect the oven from the power supply before any cleaning or
maintenance.
Failure to follow this advice may result in electrical shock.
WARNING!
Cut Hazard
Take care - some edges are sharp.
Failure to follow this advice may result in electrical shock.
!
!
WARNING!
Hot Surface Hazard
Accessible parts may become hot when in use.
To avoid burns and scalds, keep children away.
Use oven mitts or other protection when handling hot surfaces such as
oven shelves or dishes.
Use care when opening the oven door. Let hot air or steam escape before
removing or replacing food.
Do not touch heating elements or interior surfaces of the oven. Heating
elements may be hot even though they are dark in colour. Interior surfaces
of an oven become hot enough to cause burns. During and after use, do
not touch, or let clothing or other flammable materials contact heating
elements or interior surfaces of the oven until they have had sufficient
time to cool.
Other surfaces of the appliance may become hot enough to cause burns -
among these surfaces are the oven vent, the surface near the oven vent,
and the oven door.
Failure to follow this advice could result in burns and scalds.
!

3
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical shock, injury to persons, or damage when using the
oven, follow the important safety instructions listed below:
●Read all the instructions before using the oven. Use the oven only for its intended
purpose as described in these instructions.
●Proper installation: be sure your appliance is properly installed and earthed by a
qualified technician.
●Isolating switch: make sure this oven is connected to a circuit which incorporates an
isolating switch providing full disconnection from the power supply.
●Household appliances are not intended to be played with by children.
●Do not leave children alone. Children should not be left alone or unattended in the
area where the appliance is in use. They should never be allowed to sit or stand on
any part of the appliance.
●Children or persons with a disability which limits their ability to use the appliance,
should have a responsible person to instruct them in its use. The instructor should
be satisfied that they can use the appliance without danger to themselves or their
surroundings.
●During use the appliance becomes hot. Care should be taken to avoid touching
heating elements inside the oven. Accessible parts may become hot during use. To
avoid burns young children should be kept away.
●Do not use your appliance for warming or heating the room.
●Do not place heavy objects on the oven door.
●Wear proper apparel. Do not wear loose fitting or hanging garments when using the
appliance. They could ignite or melt if they touch an element or hot surface and you
could be burned.
●User servicing: do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be referred to a qualified
technician.
●Do not use water on grease fires. Smother the fire or flame or use a dry chemical or
foam type extinguisher.
●Use only dry oven mitts or potholders. Moist or damp potholders on hot surfaces
could result in burns from steam. Do not let potholders touch hot areas or heating
elements. Do not use a towel or a bulky cloth for a potholder. It could catch fire.
●Do not heat unopened food containers. They can build up pressure that may cause the
container to burst and result in injury.
●Safe food handling: leave food in the oven for as short a time as possible before and
after cooking. This is to avoid contamination by organisms which may cause food
poisoning. Take particular care during warm weather.
●Always keep oven vents unobstructed.
●Do not operate your appliance by means of an external timer or separate remote-
control system.
●If the power supply cable is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified person in order to avoid a hazard.
●Under unfavourable electrical supply conditions, the appliance may cause temporary
voltage drops.

4
MODELS WITH ANALOGUE 120’ TIMER
OVEN CONTROLS AND USING THE ANALOGUE 120’ TIMER
Temperature knob Function knob
Analogue 120’ timer
Temperature
indicator light Function indicator light

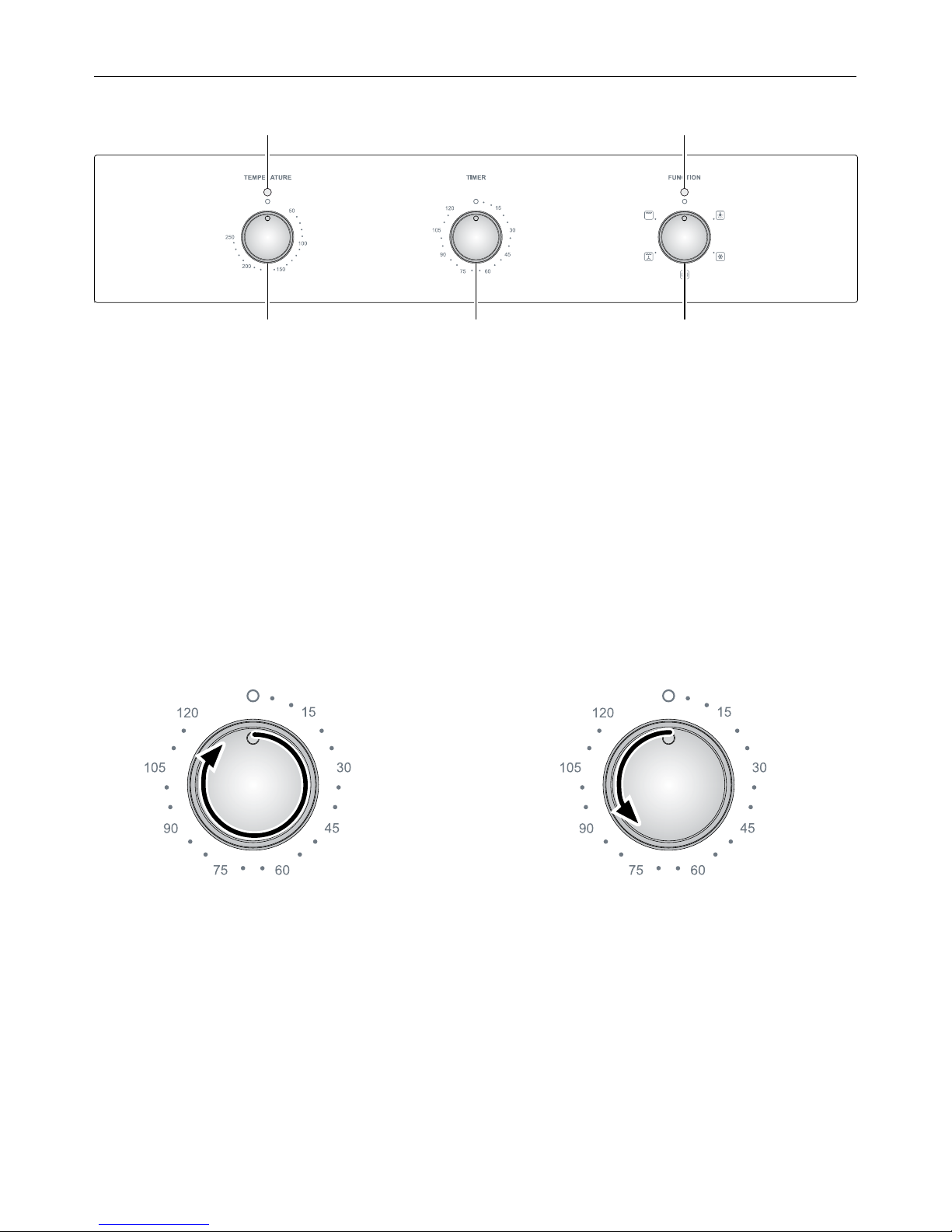

Fig. 1 Control panel – Four-function models with analogue 120’ timer
Fig. 2 Setting the analogue 120’ timer
Using the analogue 120’ timer
You can use the analogue 120’ timer at any time, even when the oven is not in use.
IMPORTANT!
The timer does NOT turn the oven off.
To set the timer
1Turn the timer knob clockwise all the way
around to the 0 mark
(120-minute countdown).
When the timer is set
●The timer will immediately start counting down: you will see the knob slowly rotating
anti-clockwise towards the O mark.
●To cancel the setting, turn the knob anti-clockwise back to the O mark.
When the set time is up
The timer will ring.
2To set the timer to less than 120
minutes, turn the knob anti-clockwise
to the required length of time.

5
MODELS WITH SIX-BUTTON CLOCK
OVEN CONTROLS AND SETTING THE CLOCK

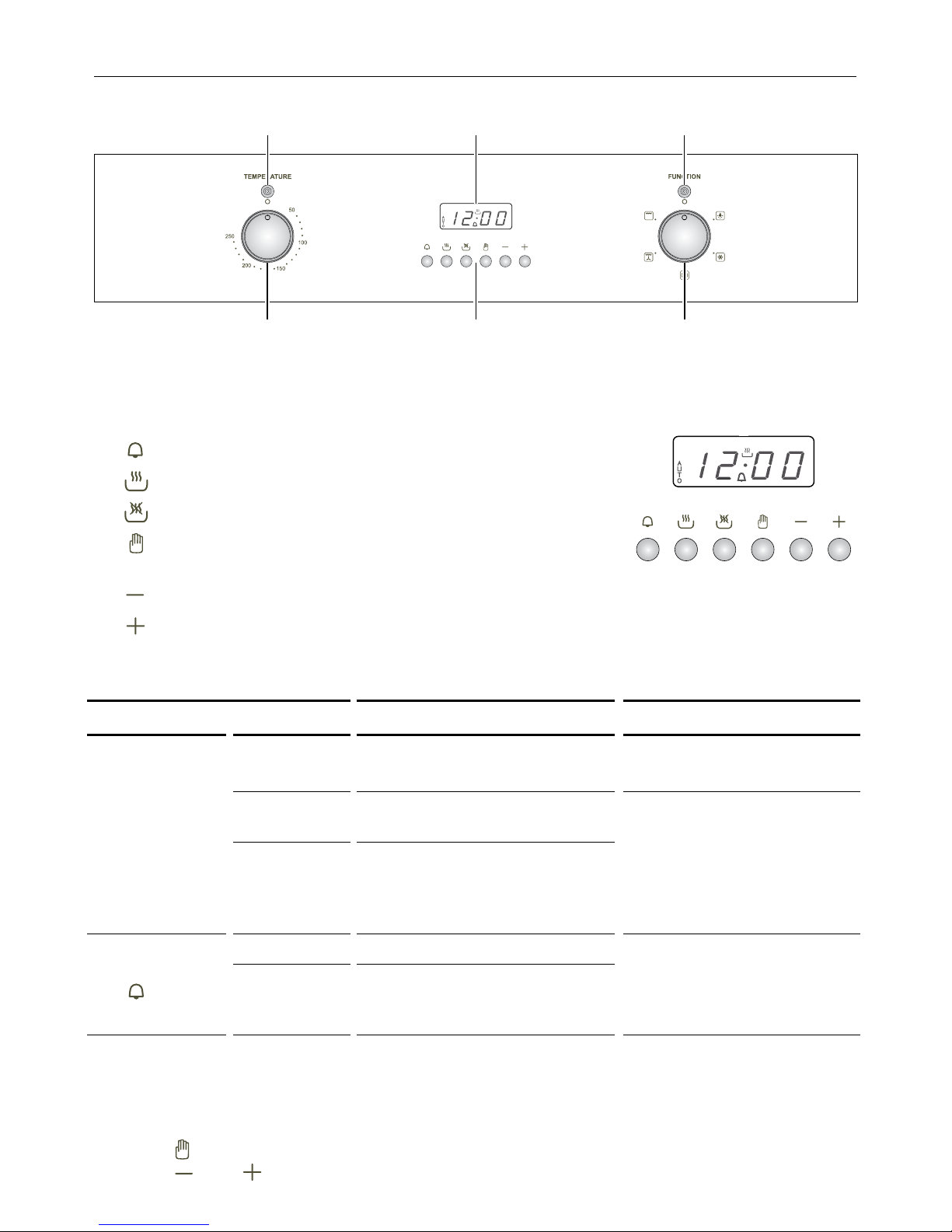

Fig. 4 Clock display and
control buttons
Control buttons
Temperature knob Function knob
Clock display
Temperature
indicator light Function indicator light
Fig. 3 Control panel – Four-function models with six button clock
Buttons
sets the timer
sets the cooking time for automatic cooking
sets the stop time for automatic cooking
sets the clock, returns oven to manual mode,
cancels automatic cooking
decreases time and beep volume
increases time
Illuminated symbols
To set the clock
When the power to the oven is turned on or restored after a power failure, 0.00 and
‘AUTO’ will flash in the display.
1Press .
2Press and until you have the correct time of day.
IF THE DISPLAY SHOWS IT MEANS THAT FOR MORE INFORMATION
A
U
T
O
Flashing
with
0.00
The clock needs to be set. See instructions below.
Steadily lit The oven is set for automatic
cooking.
See section ‘Automatic
cooking’
Flashing
and
Beeping
Automatic cooking has
finished or has been set
incorrectly (the stop time is
before the time of day).
Steadily lit The timer is set. See section ‘Using the
electronic timer’
Flashing
and
Beeping
The set time is up.

6
MODELS WITH TOUCH CONTROL CLOCK
OVEN CONTROLS AND SETTING THE CLOCK
Temperature knob Touch controls Function knob
Temperature
indicator light Clock Display Function indicator light
Fig. 5 Control panel – Four-function models with touch control clock
Cooking indicator
Automatic
Cooking indicator
Timer indicator
- control + control
Mode control

7
MODELS WITH TOUCH CONTROL CLOCK
OVEN CONTROLS AND SETTING THE CLOCK
Touch controls

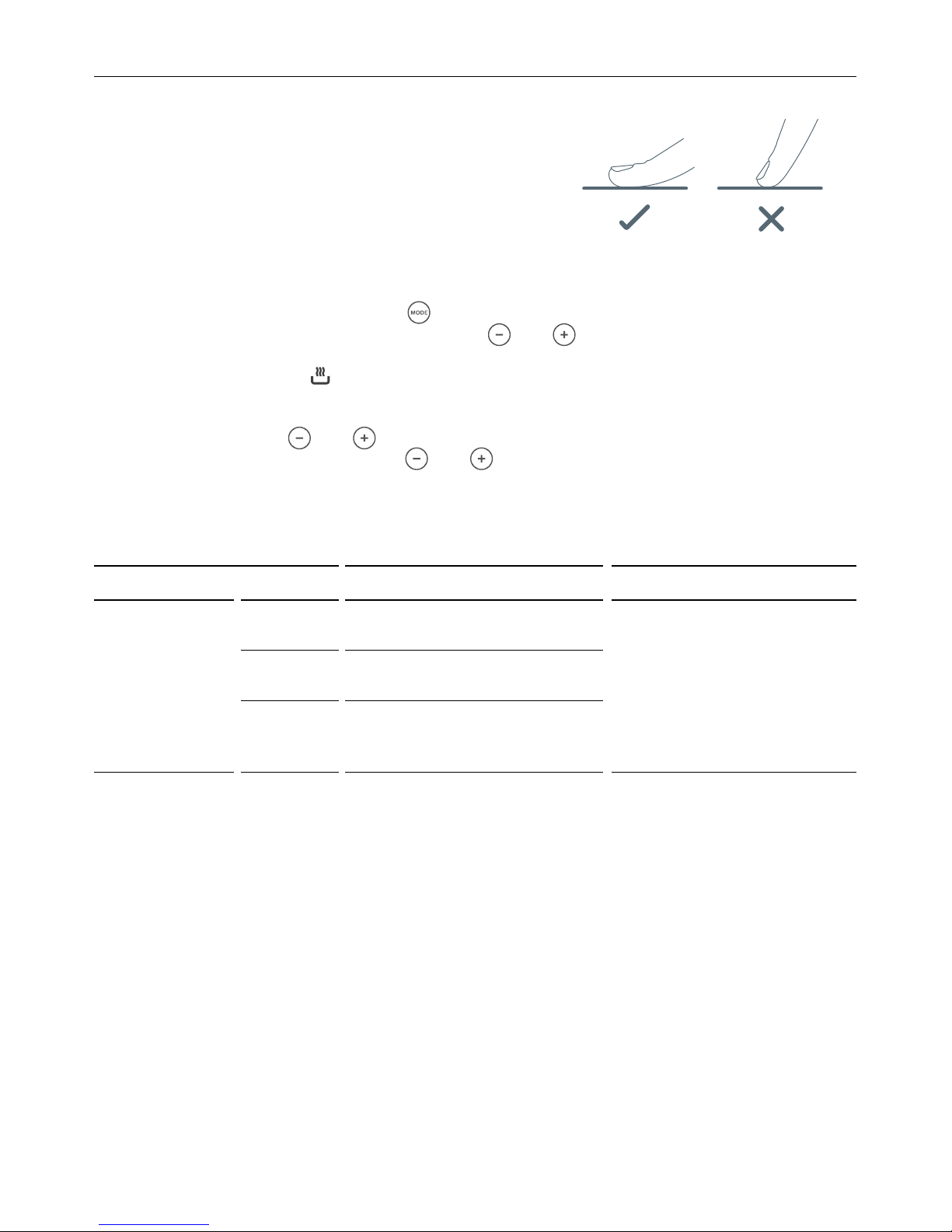

The controls are operated by touch - you do not
need to apply pressure. Use the ball of your finger
rather than the tip for best results
To set the clock
●When the power to the oven is first turned on, or there has been a power failure, 0.00
and ‘AUTO’ will show in the display.
●The oven will not work until the clock has been set.
1Touch and hold the mode control for 3 seconds.
2Set the correct time of day by touching the and controls.
3After 8 seconds the oven will beep confirming the time is set.
4The cooking indicator will show in the display.
To change the time
1Touch and hold the and controls together for 3 seconds.
2Set the new time by touching the and controls.
3After 8 seconds the oven will beep, confirming the new time is set.
IMPORTANT!
Changing the time will delete any automatic functions that have been set.
IF THE DISPLAY SHOWS IT MEANS THAT FOR MORE INFORMATION
A
U
T
O
Flashing The oven is ready to be set
for cooking with auto-off.
See section ‘Cooking with
auto-off’
Steadily
lit
The oven is set for cooking
with auto-off.
Flashing
and
Beeping
Cooking with auto-off has
finished.

8
FIRST USE

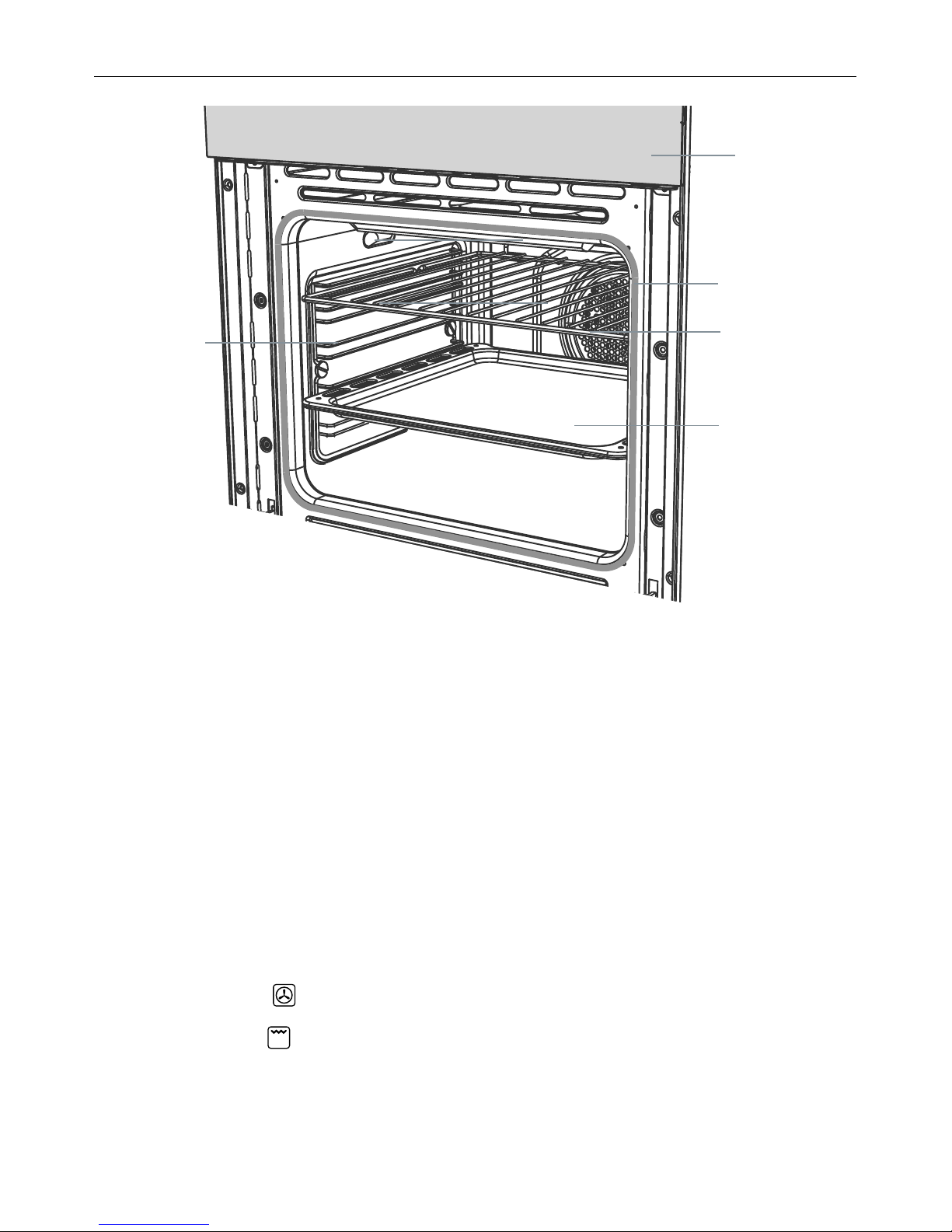

Fig. 6 Oven parts
2
3
4
5
1
1Control panel and knobs
2Side rack
3Grill tray
4Flat oven shelf
5Rubber seal
Not illustrated:
●Grill rack
Before using your new oven for cooking or baking, please:
1Read this user guide, taking special note of the ‘Safety and warnings’ section.
2Remove all accessories and packaging. Make sure you peel any protective film off the
surfaces. Discard the film immediately, keeping it out of reach of children.
3Models with six button or touch control electronic clock only: set the clock. The oven
will not work until this has been done.
●see ‘Oven controls and setting the clock’ for instructions.
4Slide in the shelf and grill tray as shown in ‘Using your oven’.
5Condition the oven. Heat it on maximum temperature for the times below:
30 minutes using Fan Forced
15 minutes using Grill
●There will be a distinctive smell during the conditioning. This is normal, but make sure
your kitchen is well ventilated.
6Once cooled, wipe out the oven with a damp cloth and mild detergent, and dry
thoroughly.

9
USING YOUR OVEN
1Slide in the shelf, making sure that:
●it is between the two wires of a shelf position
●the stop notches point down
●the guard rail is at the back.
●Note: the grill tray should be positioned between
the two wires of a shelf position and orientated
as shown.
2Select a function.
●The oven light will come on.
●the function indicator light will also come on.
3Set the temperature.
●The temperature indicator light will come on.
●It will go out when the oven has reached the set
temperature.
During cooking
●The temperature indicator light may come on and go out
again as the oven maintains the temperature.
●A cooling fan may automatically come on at
different times and blow out warm air below
the control panel.
It may continue to run even after the oven has
been turned off. This is normal.
●Set the temperature back to off (O) before
changing functions.
When you have finished cooking
Turn both the function and temperature
knobs to the off (O) position.
Fig. 8 Turning the function knob
Fig. 9 Turning the temperature knob
Fig. 7 Positioning the shelf and grill tray
Shelf positions Guard rail Stop notch
Stop notch
1
2
3
4
6
5

10
OVEN LAMP
Only the oven light comes on. It remains on in all the cooking functions.
DEFROST
Only the oven fan comes on. Use with the temperature set to off (O). The fan circulates
air around the oven, speeding up the defrosting process by approximately 30%. Note:
this function is not for cooking food.
FAN FORCED
Great for multi-shelf cooking. The consistent temperature ensures baking is well
risen. Cookies are crisp on the outside and chewy in the middle, meat and poultry are
deliciously browned and sizzling while remaining juicy and tender.
FAN GRILL
Use with the oven door closed and the temperature set no higher than 220°C. Ideal for
roasting tender cuts of meat and poultry. Use the lower shelf positions for larger items
eg a whole chicken.
GRILL
Use with the oven door closed and the temperature set no higher than 225°C. For best
results, use the shelf position 4 when you want quick browning (eg toast).
OVEN FUNCTIONS
IMPORTANT!
Safe food handling: leave food in the oven for as short a time as possible before and
after cooking or defrosting. This is to avoid contamination by organisms which may
cause food poisoning. Take particular care during warmer weather.

11
COOKING CHART
Please note:
●The settings in the following chart are guidelines only. Follow the instructions in your
recipe or on packaging and be prepared to adjust the oven settings and baking times to
achieve the best possible results for you.
●Shelf positions are counted from the oven floor up (1 is the lowest, 4 or 6 the highest).
●Arrange oven shelf before you turn the oven on, then preheat the oven to the required
temperature (until the temperature indicator light goes out).
●The oven is ideal for multi-shelf baking or larger items.
●Settings in bold indicate the recommended oven function.
●The shelf positions recommended below use the flat oven shelf.
FOOD
FAN FORCED
Shelf position Temperature
(OC)
Time
(mins)
Small cakes single shelf 2 150-170 13-17
multi shelf 1 150-170 15-20
Scones single shelf 2 210-230 8-12
multi shelf 1 210-230 10-14
Sponge two small (20 cm),
staggered on shelf
2 170-190 25-35
one large (26 cm) 2 175 30-40
Light fruit
cake
2 155-165 80-100
Rich fruit
cake
exact baking time
will depend on size
2 130-150 3-6
hours
Apple pie 1 185 35-45
Custard tart not recommended

12
MODELS WITH SIX-BUTTON CLOCK
USING THE ELECTRONIC TIMER
You can use the timer at any time, even when
the oven is not in use.
IMPORTANT!
The timer does NOT turn the oven off.
To set the timer
1Press . 0.00 will show and the symbol
will start flashing.
2Press and to set the time you want
(up to 23 hours and 59 minutes, in 1-minute steps).
●After a few seconds, the clock will show the
time of day with the symbol steadily lit.
●The timer is now counting down.
To check the remaining time
Press .
To cancel the timer
1Press .
2Press until the time is reset to 0:00
●After a few seconds, the clock will show the time of day.
When the set time is up
●The timer will beep and the symbol will flash. Press to stop the beeping and turn
the timer off.
●After a few seconds, the clock will show the time of day.
To adjust the beep volume
Press to hear the next volume level. The last one selected will be stored.
Fig. 10 Clock display and
control buttons

13

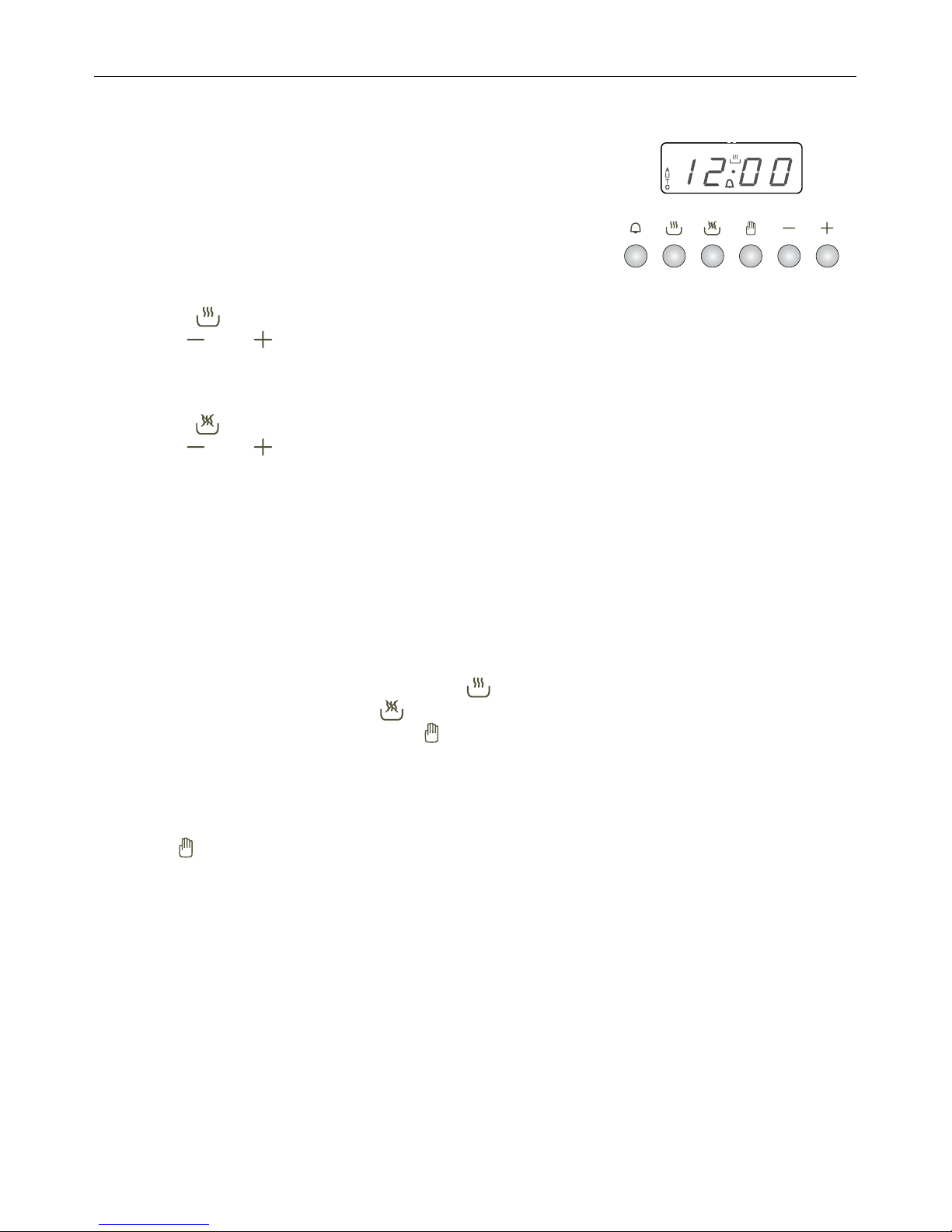

Fig. 11 Clock display and
control buttons
To set the oven for automatic cooking
1Set the oven:
●Check the clock shows the correct time (eg 12:07).
●Select the function and set the temperature.
The oven will turn on.
2Set the cooking time:
●Decide how long the food will take to cook,
allowing time for preheating if necessary
(eg 40 minutes).
●Press .
●Use and to set the cooking time.
AUTO will show in the display.
3Set the stop time:
●Decide when you want your food to be ready by (eg 13:30).
●Press .
●Use and to set the stop time.
You can turn the oven on manually and set it to turn off automatically by setting the
stop time (step 3 above).
When automatic cooking is set
●If there is time before cooking starts, the oven will turn off and the current time of day
and AUTO will show in the clock display, indicating that the oven is set for automatic
cooking. Note: the cooling fan may stay on.
●The oven will automatically turn on at the required time (eg 12:50) and turn off at the
set stop time (eg 13:30).
●To see the remaining cooking time, press .
●To see the set stop time, press .
●To cancel automatic cooking, press and turn the function and temperature knobs to
O (off).
When the stop time is reached
●The oven will turn off, the timer will beep and AUTO will flash.
1Press to stop the beeping and return the oven to manual mode.
2Turn the function and temperature knobs to O (off).
MODELS WITH SIX-BUTTON CLOCK
AUTOMATIC COOKING

14
MODELS WITH TOUCH CONTROL CLOCK
USING THE ELECTRONIC TIMER
IMPORTANT!
The timer does not turn the oven off.
●You may use the timer at any time, even when you are not cooking.
●The timer may be set for up to 23 hours and 59 minutes.
To set the timer
1Touch and hold the mode control for 3 seconds.
●The timer indicator will flash continously.
2Set the time by touching the and controls.
●After 8 seconds the oven will tone confirming the timer is set.
●The timer indicator will glow steadily.
●The display will return to time of day.
To check the time remaining
1Touch and hold the mode control for 3 seconds.
●The display will show the time remaining.
●If the time remaining is greater than one minute, it will show in hours and minutes.
●If the time remaining is less than one minute it will show in seconds.
●After 8 seconds the display will return to the time of day.
To change or cancel the timer
1Touch and hold the mode control for 3 seconds.
●The time remaining will be displayed.
2Set the new time by touching the and controls.
3After 8 seconds the oven will beep to indicate the new time is set.
4To cancel, set the new time to O.
When the time is up
●The timer will beep.
●The timer indicator will flash continously.
1Touch and hold the mode control for 3 seconds.
●The beeping will stop.
●The timer indicator light will go out.
OR
1Touch the and controls to stop the beep and then touch and hold the mode
control for 3 seconds to turn off the timer indicator .
2Turn off the oven (function and temperature knobs) to O (off) if cooking is completed.

15
MODELS WITH TOUCH CONTROL CLOCK
USING THE ELECTRONIC TIMER
To change the Timer Volume
You may choose from three volume levels.
To select a volume
1Touch and hold the and controls together for 3 seconds.
2Touch the Mode control .
●the display will show the current volume (ton1, ton2 or ton3)
3Touch the control.
●the oven will beep at the level displayed
4Repeat until you have chosen a volume
5After 8 seconds the oven will beep confirming the new volume setting and the display
will return to the time of day.

16
MODELS WITH TOUCH CONTROL CLOCK
AUTOMATIC COOKING
To set the oven for automatic cooking
1Set the oven
●Check the clock shows the correct time (eg 11:10).
●Select the function and set the temperature. The oven will turn on.
2Set the cooking (duration) time
●Decide how long the food will take to cook, allowing time for preheating if necessary
(eg 40 minutes)
●Touch and hold the mode control for 3 seconds, then
●Touch the mode control again. dur will show in the display
●Touch the and controls to set the cooking time. ‘AUTO’
and the cooking indicator will flash
●After 8 seconds the time will be set and the ‘AUTO’ indicator remains on.
3Set the End time
●Decide when you want your food to be ready (eg 12.40)
●Touch and hold the mode control for 3 seconds, then
●Touch the mode control twice. The display will show End.
●Note: while dur is being displayed you can change to End by touching the mode
control once.
●Use the and controls to set the time of day you wish to turn the oven off.
The ‘AUTO’ indicator and the cooking indicator will flash.
●After 8 seconds the time will be set and the ‘AUTO’ indicator remains on.
You can turn the oven on manually and just set it to turn off automatically by setting the
end time.
4When automatic cooking is set
●If there is time before cooking starts, the oven will turn off and the current time of
day and ‘AUTO’ will show in the clock display, indicating that the oven is set for
automatic cooking. Note: the cooling fan may stay on.
●The oven will automatically turn on at the required time (eg 12:00) and turn off at the
set end time (eg 12:40).
When the oven starts the ‘AUTO’ and the cooking indicator will show in the
display.
5To see the remaining cooking time
●Touch and hold the mode control for 3 seconds.
●Touch the mode control again to see the cooking time, or touch the mode
control twice to see the end time.

17
MODELS WITH TOUCH CONTROL CLOCK
AUTOMATIC COOKING
6When the stop time is reached
●The oven will turn off, the timer will beep and ‘AUTO’ will flash.
●Touch any control to stop the timer beeping.
●Touch and hold the mode control for 3 seconds to return the oven to manual
mode. The cooking indicator will glow steadily.
●Turn the temperature and function knobs to O (off).
To Cancel Auto-off
●Touch and hold the and controls together for 3 seconds.
●Turn the oven temperature and function knobs to O (off).
IMPORTANT!
If you have a power interruption, it will cause any automatic cooking functions to be
cancelled.
Turn off the oven manually.

18
CARE AND CLEANING
IMPORTANT!
●Always disconnect the oven from the power supply before any cleaning or
maintenance.
●Electronic clock models: When you turn the power back on after cleaning, you will
have to set the clock.
●Do not use abrasive cleaners, cloths or pads to clean any part of your oven. Some
nylon scourers may also scratch. Check the label.
●See the following pages for instructions on removing and refitting different parts of
the oven for cleaning.
●Before cleaning, make sure the oven is a safe temperature to touch.
●Do not use a steam cleaner.
WHAT? HOW? IMPORTANT!
General
advice
●Wipe out the oven after every
use.
●Wipe up spills as soon as the
oven is a safe temperature to
touch.
●Avoid leaving alkaline or
acidic substances (such as
lemon juice, vinegar or salty
spills) on the oven surfaces.
●Do not use cleaning products
with a chlorine or acidic base.
Stainless
steel
surfaces
1Wipe the soiling off with a
cloth using a mild household
detergent or stainless steel
cleaner.
2Wipe the surface dry.
3Use a suitable stainless steel
polish.
Immediately wipe off any caustic
cleaners if they are spilled onto
the oven door handle or the
knobs.
External
glass
surfaces
Wipe with a damp cloth or use a
glass cleaner.
Do not use harsh abrasive
cleaners or sharp metal scrapers
since they scratch the surface and
may result in the glass shattering.
Oven cavity
(enamel)
1Remove everything from the
oven: shelf and tray and the side
racks.
2Remove the oven door (see
instructions on following pages).
3Wipe the inside of the oven
using a household detergents or
an ammonia-based cleaner.
4Wipe clean with a damp cloth
and allow to dry completely.
●If using ‘off the shelf’ oven
cleaners, always follow the
manufacturer’s instructions.
Side racks,
oven shelf,
tray
●Clean these using a solution of
detergent and hot water. They
are also dishwasher safe.
●If badly soiled, soak in a solution
of hot water and biological
clothes washing powder to
make cleaning easier.
