Haier P42A1-AK User manual

MODEL: P42A1-AK
PLASMA TELEVISION
OWNER`S MANUAL
Please READ thismanual carefully before
operating your TV,and retain itfor future
reference.

Congratulations onyour purchase,and welcometo the family !
Dear Haierproduct owner:

DISPLAY
POWER
MUTE STILL
I/II
PIC.SIZE
TV/AV
S-VIDEO
DVD/DTV PC/DVI
OK
Q.VIEW
CH+
CH-
VOL- VOL+
MENU
PSM
12 3
456
789
-/-- 0
ZOOM/MOVE
USB
PIP SWAP SCAN
CH.EDIT
SHUTTLE
SLEEP
H.LOCK TIME.SKIP
ZOOM
RETURN
HELPENTER
CONTENT
BEFORE OPERATING
Warning.................................................................................................................1
Important Safety Instructions................................................................................2
Buttons and interface location............................................................................. 4
Remote controller.................................................................................................6
Remote controller key function.............................................................................7
Effective range of remote controller......................................................................8
External equipment connections..........................................................................9
BASIC OPERATING
Switching on/off the TV set................................................................................ 13
Select input modes ........................................................................................... 14
Searching channel............................................................................................ 15
Watching TV program........................................................................................17
Picture control functions.................................................................................. .20
Sound control functions.....................................................................................22
Time functions....................................................................................................25
Function menu...................................................................................................27
Adjust menu.......................................................................................................28
Lock setup .........................................................................................................31
OTHERS
Others functions................................................................................................34
Specifications and functions..............................................................................36
......................................................................................................37
Troubleshooting.................................................................................................38
Maintenance

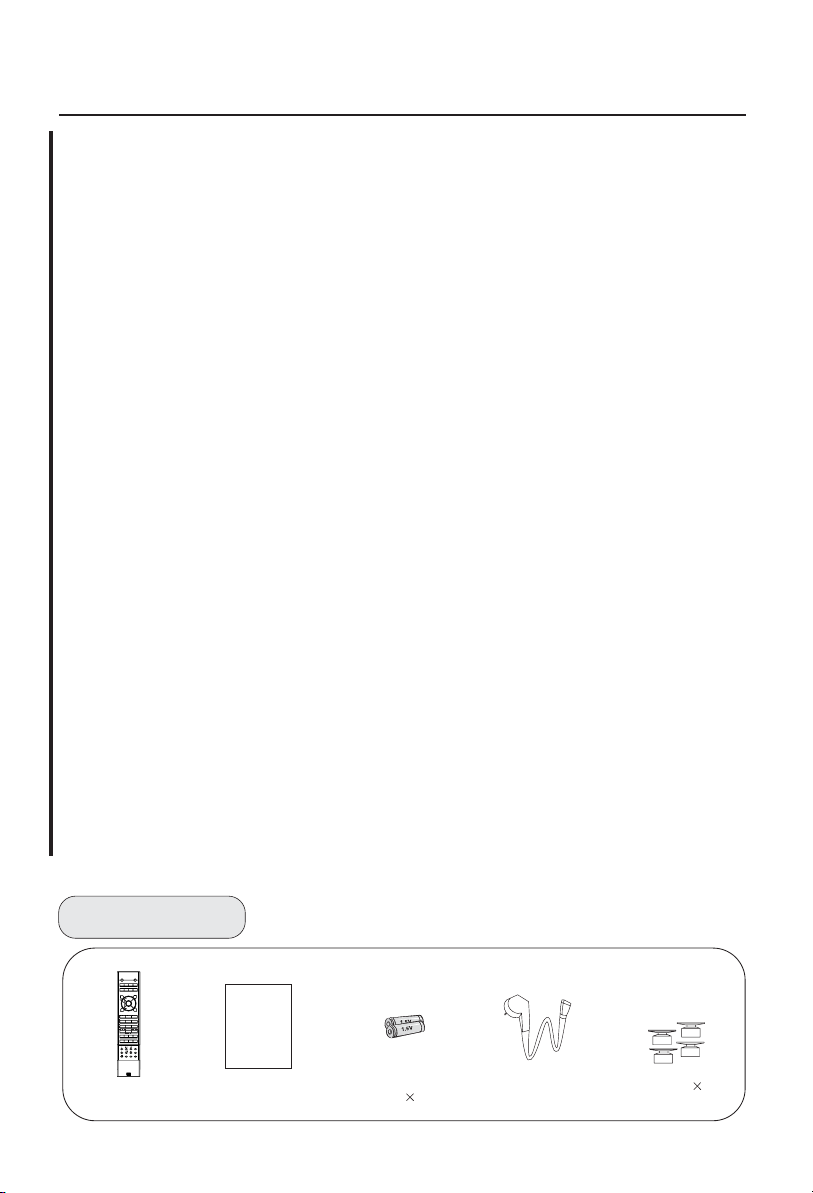

Remote controller User’s manual Alkaline battery
(AAA) 2 Power cable Bracket 4

*To avoid electric hazards, it is strongly suggested that the back cover not be opened, as
there is no any accessory inside the casing.
*If necessary, please contact authorized after-sales services.
*A lighting flash mark in a triangle: Apotentially hazardous situation, which, if not avoided,
could result in serious injury by high voltage.
*An exclamation mark in a triangle: Major part or accessory of which technical specifications
must be followed if it is to be replaced.
:
To avoid fire or electric hazards, never place your television receiver in an area
with heavy moisture. Attention should be paid to avoid accidental scratches or
impacts onto the PDP screen.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Please read this manual carefully before using your television and keep this
manual in a good place for future reference.
Information of screen displays and figures in the User's Manual may vary due
to technical innovations.
Unauthorized disassembly of this product is prohibited.
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
1

The product should be tightly fixed to avoid
drop damages and even fire.
To avoid fire hazards, do not use this
product under direct sunlight or closely
to heat sources.
Do not locate the product close to water
or oil, which may cause fire hazards.
Unplug the power supply and antenna of
the product when there is a rainstorm,
especially
Thunderstorm.
Do not use damaged or worn electric plugs
and keep electric cord away from heat sources
to avoid electric shocks or fire hazards.
Do not connect excessive sockets in parallel
or share the same socket by multiple plugs
to avoid fire hazards.
The product must be placed on a solid and
stable surface to avoid collapse.
Unauthorized disassembly of the television
is prohibited to avoid electric shocks or fire
hazards. Contact
authorized after-sales
service if technical
service is needed.
Keep the product away from a transformer
or heat source to avoid fire hazards.
Disconnect the product from power supply
and contact authorized after-sales service
if abnormal sound is heard in the product.
2

button
MENU button
Volume decrease
Volume increase
Channel number increase and decrease
EXIT button
Power
- This is a simplified representation of front panel.
- Here shown may be somewhat different from your TV.
4
Indicator
Remote receiving window
MENU VOL
SOURCE CH EXIT
underside
12 3 4 56

Connect the monitor output
connector from a PC to the
appropriate input port.
Connect cable or
antenna signals to
the TV, either directly
or through your
cable box.
Connect a component
video/audiodevice to
these jacks.
Connect audio/video or
S-Video out from an
audio/video or S-Video
device to these jacks.
for linking DVI or
other appliance audio
frequency output terminals.
Connect ordinary video/audio
or other appliance
audio input terminals.
Connect the
monitor
output connector
from a PC to
the jack
5
AUDIO
AV IN
AV OUT
AUDIO AUDIO
DVI IN
COMPONENT IN
AUDIO
VGA IN
ANT IN
DVI
VGA S-VIDEO Pr/Cr Pb/Cb Y LR VIDEO L- -R
AUDIO VIDEO LR
for linking PC or
other appliance audio
frequency output
terminals.
SWITCH
AC-INPUT
Power Cord Socket
This TV operates on
AC power.
The voltage is I
ndicated on
the specifications
page.
Never attempt to
operate the
TV on DC power

1.Slide open thecover of thebattery compartment onthe back ofthe remote controller.
2.Load two 7#(AAA)alkaline batteries in the compartment. (plus and minus poles to
respective mark)
3.Replace the coverof the batterycompartment.
Make sure that there is no obstacle
between the remote controller and
television set.
As strong light may interfere the
signals, change your position to
operate the remote controller if
the television cannot be turned
on or off as you expect.
Keep the remote controller away from
heat source or humid area to ensure
effective performance of the remote
controller.
Make sure that two AAA alkaline
batteries are loaded. The batteries must
be of the same type. The batteries must
be located properly. The batteries are not
rechargeable.
6
3
2
1

DISPLAY
POWER
MUTE STILL
I/II
PIC.SIZE
TV/AV
S-VIDEO
DVD/DTV PC/DVI
OK
Q.VIEW
CH+
CH-
VOL- VOL+
MENU
PSM
12 3
456
78 9
-/-- 0
ZOOM/MOVE
USB
PIP SWAP SCAN
CH.EDIT
SHUTTLE
SLEEP
H.LOCK
TIME.SKIP
ZOOM
RETURN
HELPENTER
TV/VIDEO
MUTE
Switches the sound on or off.
NUMBER buttons
Picture still
S-Video mode
selectS-Video.
VOLUME UP/DOWN
Increases/decreases
the sound level.
POWER
Turns your TV or any other
programmed equipment on
or off, depending on mode.
USB system buttons
(no available)
PC/DVI mode
Select PC/DVI mode.
DVD mode
Select DVD mode
Q.VIEW
eturn to the last channel
viewed.
MENU
Brings up the main menu
to the screen.
CHANNEL UP/DOWN
Selects available channels
found with Auto search.
CHANNEL select
is not available
OK button
Information display
Display of current channel
signals, program and systems
Picture mode option
Normal, Soft,
Bright, Personal
Sound mode option
, Personal,
Standard, Music
Theater
Program edit
(no available)
Sleep button
Nicam select button
Time skip button
(no available)
H.clock button
Shuttle button
(no available)
Scan
scan program
7
PIC. SIZE button
picture scale
PIP mode buttons
(no available)
: no available

DISPLAY
POWER
MUTE STILL
I/II
PIC.SIZE
TV/AV
S-VIDEO
DVD/DTV PC/DVI
OK
Q.VIEW
CH+
CH-
VOL- VOL+
MENU
PSM
12 3
456
78 9
-/-- 0
ZOOM/MOVE
USB
PIP SWAP SCAN
CH.EDIT
SHUTTLE
SLEEP
H.LOCK TIME.SKIP
ZOOM
RETURN
HELPENTER
8
Ensure the remotecontroller is pointed toward the remote
controller window on the display.
No obstacle should be placed between the remote controller and
the remote controller window.
The effective receiving scope for the signal is 8 meters to the front
0
of the remote controller window, and 45 to the left or right side and
0
20 above or below the control window.
Use of remote controller:
1. To ensure a normal operation, the remote controller should not be
dropped or damaged in any way.
It should alsobe kept dry and away from all heat sources.
2. Battery replacementis necessary when the remote controller acts
inconsistently or stops operating the display.
Effective range

ANT IN
Note
* It isrecommended that you'd better use 75
* Don't bindantenna cable and electric wire together.
coaxial cable toremove
the disturbance causedby airwave.
outdoor
antenna
300 twin-lead cable
Antenna adapter
75 coaxial cable
Plug
(additional purchase)
Antenna input
75 standard
coaxial type
- Antenna or Cable Service without a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Toimprove picture qualityin a poorsignal area,
purchase
and install asignal amplifier.
If the antennaneeds to besplit for twoTv`s, install a
2-WaySignal Splitter in the connections.
If the antennais not installedproperly, contactyour
dealer for assistance.
9

Power source
TO USE AC POWER SOURCE
Use the ACpolarized line cordprovided for
operation on AC. Insert theAC cord pluginto
a standard polarizedAC outlet.
NOTES:
Never connect theAC line cordplug to other
than the specifiedvoltage. Use the
attached power cordonly.
If the polarizedAC cord doesnot fit intoa non-
polarized AC outlet, do notattempt to fileor cut
the blade. It is the user`s responsibility to have
an electrician replacethe obsolete outlet.
If you causea static dischargewhen touching
the unit andthe unit failsto function, simply
unplug the unitfrom the ACoutlet and plugit
back in. The unit shouldreturn to normaloperation.
Polarized AC Cord Plug
AC Outlet
Wider Hole
and Blade
You can connect a set of headphones to your set if you wish to watch a
TV programme without disturbing the other people in the room.
Connecting Headphones
External Equipment Connections
Note
Prolonged use of headphones ata high volume
may damage yourhearing.
You willnot receive soundfrom the speakers
when you connectheadphones to thesystem.
Plug a set of headphones into the 3.5mm
mini-jack socket on the rear panel of the set.
ANT IN
SWITCH
AC-INPUT

Tuning menu
AUDIO
ADJUST
FUNCTION
TIMER
MENU
TUNING
Tuning Pro gram
Auto S earc h
Pro gram Table
Cou ntry Eng land
Program Table
STILL
SLEEP P IP
TV/AV
P.STD S.S TD
H.LOCK
CH.LIST EXIT
SCAN
SWAP
TIMER ZOOM
ABC@ DEF
JKL%
GHI$ MNO
ST UVPO R& WXYZ
*#()
MUTE
DISP LAY
CH+
CH-
VOL- VOL+ MENU
1Press MENU button and CH+/- button, the icon to
TUNING menu.
2Press VOL+/- buttons to
enter submenu, and press
CH+/- button to select
"Program Table", press
VOL+ button to enter.
Or press CH.LIST button
on remote controller.
3Press CH+/- button to
select the edited channel,
and press button
corresponding to edit.
(Red button: delete channel;
Green button: copy channel;
Yellow button: Name channel;
Blue button: Swap)
Program Table
Red: Del; Green: copy; Yellow:Name; Blue: Swap
001
002
003
004
005
006
007
008
009
010
delete name
Copy channel
Name channel
Press CH+/- to select thechannel, and press the green button
on the remotecontroller, then press CH+/-button to select
the channel tocopy, press again the green button then press
MENU button to ensure.
Swap channel
Press CH+/- to select thechannel, and press the red button
on the remotecontroller to delete, then press MENU button
to delect name.
Press CH+/- to select thechannel, and press the yellow button
on the remotecontroller, and press theyellow button todisplay
the digital andletter list,press Vol+/-or CH+/- toselect the
desired digital orletter, press the yellowbutton to exitlist,
then press MENU button to ensure.
Press CH+/- to select thechannel, and press the blue button
on the remotecontroller, then press CH+/-button to select
the channel toswap, then press again the blue button to
ensure.

Manual search
If excessive channelsignals of unwanted programs
are received in local area, manual search function is
recommended.
1Press CH+/- buttons or the NUMBER 0-9 button to
choose desired searching frequency.
(regard channel 18 as example).
2After calling up the
TUNING menu, press
CH+/- button
to select
item.
"Tuning
Program"
3Press CH+/- to select
Manual Search item,
Press VOL+ button to
enter the desired
frequency and press
the digital button to
adjust.
4 Press the Menu button on the television or the remote
controller to return to preset menu.
AUDIO
ADJUST
FUNCTION
TIMER
MENU
TUNING
Tuning Program
Auto Search
Program Table
Country England
Tuning menu
AUDIO
ADJUST
FUNCTION
TIMER
MENU
TUNING
Tuning P rogra m
Prog ram Number
Edit Nam e
Color Sys tem
Soun d Sy stem
Manual S earc h
Fine Tuning
Skip Off
18
C 28
AUTO
D/K
STILL
SLEEP P IP
TV/AV
P.STD S.S TD
H.LOCK
CH.LIST EXIT
SCAN
SWAP
TIMER ZOOM
ABC@ DEF
JKL%
GHI$ MNO
ST UVPO R& WXYZ
*#()
MUTE
DISP LAY
CH+
CH-
VOL- VOL+ MENU
62.25 MHz

STILL
SLEEP P IP
TV/AV
P.STD S.S TD
H.LOCK
CH.LIST EXIT
SCAN
SWAP
TIMER ZOOM
ABC@ DEF
JKL%
GHI$ MNO
ST UVPO R& WXYZ
*#()
MUTE
DISP LAY
CH+
CH-
VOL- VOL+ MENU
Fine Tuning
If the picture and/or sound are poor, try using the FINE
TUNING feature. Do not use this feature unless reception
is poor.
1Press CH+/- buttons or
NUMBER 0-9 button to
choose desired channels
2Press MENU button
and CH+/- button, till the
TUNING menu shown on
the right display on the
screen.
3buttons
to enter submenu, and
press CH+/-button
to select Tuning Program
item, and then press
VOL+ to next submenu,
and press CH+/-button
again to make the
icon to Fine Tuning.
Press VOL+
4 Press VOL-/+ buttons
all through to carry out fine
tune, till the best picture and sound are obtained, then
loosen the button.
18
c 28
AUTO
BG
AUDIO
ADJUS T
FUNCTION
TIMER
MENU
TUNING
Tuning Pr ogram
Auto Sear ch
Prog ram Table
Coun try Engla nd
AUDIO
ADJUST
FUNCTION
TIMER
MENU
TUNING
Tuning P rogra m
Prog ram Number
Edit Nam e
Color Sys tem
Soun d Sy stem
Manual S earc h
Fine Tuning
Skip Off
18
C 28
AUTO
D/K
Tuning menu
62.25 MHz

You can watch TV program in a presetting channel.
How to select the desired program
1Using "Program number" buttons
.
Press digit button to select the program.
If 2-digit or 3-digit programs are selected , press
digit buttons you needed continuously within 3
seconds
If selected channel program is set at Lock on mode
and no password has been entered after initiation of
the television, the screen will indicate require password
entry. If wrong password is entered, channel selection
will fail and previous program will still stay on the screen.
The program locking password can be modified in the
preset menu and previous password will be required.
2Using the CH+/- buttons.
Press the CH+ button to select a channelnumber in
number increasing direction.
Press the CH- button to select a channelnumber in
number decreasing direction.
(Note : If Skip is ON on one channel, press CH+/- button,
the channel will not appear.)
How to select the desired sound
Press the VOL-/+ buttons on the remote controller or
the front of the TV set to adjust the volume level.
The range is 0~100. When the volume buttons are
pressed the volume level isdisplayed automatically
on the TV screen.
Tuning menu
Volume
STILL
SLEEP P IP
TV/AV
P.STD S.S TD
H.LOCK
CH.LIST EXIT
SCAN
SWAP
TIMER ZOOM
ABC@ DEF
JKL%
GHI$ MNO
ST UVPO R& WXYZ
*#()
MUTE
DISP LAY
CH+
CH-
VOL- VOL+ MENU

If the colour of some channel is abnormal
Usually this shouldbe set inthe auto position.However if
the colour displayed on the screen are incorrect, you can
manually select thecorrect colour system.
Press the CH+/- buttons to select ound System", thenpress
the VOL-/+ buttons to select the correct sound system. In
general, youcan set itas"D/K .
"S
"
Press VOL+/-button to select in turn.D/K, I, B/G,M, L and L
If sound is abnormal
If picture color is abnormal
Press the CH+/- buttons to select Color System", then press
the VOL-/+ buttons to select the correct color system. In
general, youcan set itas"AUTO
Press VOL+/-button to selectAUTO, NTSC, SECAM, PAL60
andNTSC443in turn.
"
".
PAL,
Press the MENU CH+/-and
VOL+/- button, till the Tuning
Program menu shown on the
right will displayon the screen. AUDIO
ADJUST
FUNCTION
TIMER
MENU
TUNING
Tuning P rogram
Program Number
Ed it Nam e
Color S ystem
So un d S ys tem
Manu al Se ar ch
Fine Tuning
Skip Off
18
C 28
AUTO
D/K
Tuning menu
If current program is to be named, press VOL-/+
button to select position you want to change and
press digits to change, press MENU button to ensure it.
Edit Name
STILL
SLEEP P IP
TV/AV
P.STD S.S TD
H.LOCK
CH.LIST EXIT
SCAN
SWAP
TIMER ZOOM
ABC@ DEF
JKL%
GHI$ MNO
ST UVPO R& WXYZ
*#()
MUTE
DISP LAY
CH+
CH-
VOL- VOL+ MENU

3. press VOL-/+ button to set Skip ON.
And press menu exit.
After the programs are presetting, you can skip some
programs so that to select your favorite channels only.
1. Press CH+/- button or
Direct-digit Choosing
button to select a
channel directly (take
channel 18 for example).
If you want to recover the skipped channel
1. Use Direct-digit Choosing button to select the number
of the channel to be recovered.
2. Do the above steps again.
3. Press VOL+/- button to set Skip OFF.
Skip
AUDIO
ADJUST
FUNCTION
TIMER
MENU
TUNING
Tuning P rogra m
Prog ram Number
Edit Nam e
Color Sys tem
Soun d Sy stem
Manual S earc h
Fine Tuning
Skip Off
18
C 28
AUTO
D/K
2.
Press MENU CH+/-
and VOL+/- button,
till the Tuning Program
menu shown on the
right will display on the
screen.
Tuning menu
Program swap
1Suppose the channel number you
used just now is 8 and the channel
number you areusing is 18(as shown in
the figure).
If you want to return to the last
watched program channel8, you can
simply press the swap button.
If you want to return to channel 18,
press the button again. Through this
function, you can easily change
between the channel you are using
and the channelyou used lasttime.
2
3
STILL
SLEEP P IP
TV/AV
P.STD S.S TD
H.LOCK
CH.LIST EXIT
SCAN
SWAP
TIMER ZOOM
ABC@ DEF
JKL%
GHI$ MNO
ST UVPO R& WXYZ
*#()
MUTE
DISP LAY
CH+
CH-
VOL- VOL+ MENU
Swap function enablesquick swap tothe last watchedprogram.

Picture menu
How to customize your own picture status
Brightness
Contrast
Sharpness
Saturation
Hue(only in NTSCmode)
Dark
Weak
Soft
Shallow color
More purple
Bright
Strong
Sharp
Deep color
More green
How to select picture modes
You can quickly select the desired picture mode from
three preset modesand one customized mode.
Press the P.STD button to call up
Video mode menu, and press
CH+/-button to select the
desired picture quality. Four kinds
of picture modes (i.e.,
"Soft", "Bright", ) can
be selected in turn.
"Normal",
"Personal" ,
1Press the MEUN button
and CH+/- button , till the
menu shown on
the right display on the
screen. Press VOL+/- to
enter.
2Press the CH+/- buttons
to select the item to
adjusted, then press the
VOL-/+ buttons to obtain
the desired effect.
Personal
Soft
Bright
Normal
A spare settingthat can beadjusted to personal status
Designed for roomsthat have goodall round lighting
Designed for nighttime low lightviewing
Designed for roomswith high ambientlighting such
as daytime sport;
Note: 1. thehue item isavailable only in
NTSC system.
2.the video mode, the saturation,
the hue and the sharpness items are no
available in VGAand DVI mode.
NOTE these items are adjustable only when the "video mode "is
set as "personal ".
Press VOL- Press VOL+
Video Mode
Bright
Normal
Soft
Personal
AUDIO
ADJUST
TUNING
FUNCTION
TIMER
MENU
Video Mode Persona l
Contras t
Brightne ss
Saturati on
Hue
Sharpne ss
Noise R eduction
Auto
50
50
0
0
0
STILL
SLEEP P IP
TV/AV
P.STD S.S TD
H.LOCK
CH.LIST EXIT
SCAN
SWAP
TIMER ZOOM
ABC@ DEF
JKL%
GHI$ MNO
ST UVPO R& WXYZ
*#()
MUTE
DISP LAY
CH+
CH-
VOL- VOL+ MENU
