Haier P42V6-A8K User manual

Please READ thismanual carefully before
operating your TV, and retainit for future
reference.
PLASMA TV
OWNER`S MANUAL
MODEL: P42V6-A8K

Safety ofoperators has beentaken intoconsideration at thedesign and
manufacture phase, but inappropriate operation may cause electric
shock or fire. To prevent the product from being damaged, the following
rules should be observed for the installation, use and maintenance of th
product. Read the following safety instruction before starting the
operation.
The User Manual uses the following symbols to ensure a safe operation
and preventany damageto operatorsor properties:
Warning
This symbol indicatesthat high voltageis present inside. It is
dangerous to make any kind of contact withany inside partof
this product.
WARNING : To reduce the risk of electric shock do not remove
cover or back. No user-serviceable parts insiderefer service
to qualified service personnel.
RISK ELECTRIC SHOOK
DO NOT OPEN
WARNING
This symbol indicatesthat there areimportant operating and
maintenance instructions inthe literature accompanyingthe
appliance.
Congratulations on your purchase, and welcome to the family !
Dear Haier product owner:
Thank you for your confidence in Haier. You`ve selected one of the
best-built, best-backed products available today. We`lldo everything
in our power to keep you happy with your purchase for many years to
come.
As a member of the Haier family, you`re entitled toprotection by
one of the most comprehensive warranties and outstanding service
networks in the industry.
thanks for investing in a Haier product.

1. Retain these Instructions ---the safety and operating instructions should be retained for
Future reference.
2. Heed Warnings ---All warning on the appliance and in the operating instructions should be
followed.
3.Cleaning --- Unplug from the wall outlet before cleaning. Do not use liquid cleaners or
Aerosol cleaners. Use only dry cloth for cleaning.
4. Attachments ---do not use attachments
not recommended by the manufacturer as they may cause Hazards.
5. Water and moisture -- do not place this product near water, for example, near a bathtub,
wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
6. Accessories ---do not place this unit on an unstable cart, stand, tripod, bracket, or table. Use
only with a cart, stand, tripod, bracket, or table recommend by the manufacture, or sold with
the unit.
7. Ventilation ---Slots and openings in the cabinets and the back or bottom are provided for
Ventilation and to ensure reliable operation of the product and to protect it from overheating,
and these openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug, or other similar surface. This product
should not be placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer`s instructions have been adhered to.
8. Power Source ---this unit should be operated only from the type of power source indicated on
the rating label. If you are not sure of the type of power supply to your home, consult your
Appliance dealer or local power company.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet. To prevent electric shock, ensure the
Grounding pin on the AC cord power plug is securely connected.
10. Power cord protection ---Power supply cords should be routed so that they are not likely to
Be walked on or pinched by items placed upon or against them. Pay particular attention to
cords or plugs, convenience receptacle, and the point where they exit from the appliance.
11. Lighting precaution ---for added protection for this product during a lighting storm or when
it is left unattended for long period of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the product due to lighting and
power line surges.
12. Never push objects of any kind into this product through openings as they may touch
dangerous voltage point or short out parts that could result in a fire or electric shock. Avoid
spilling liquid of any kind on the product.
13. Servicing ---do not attempt to service the product by yourself, as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing to
authorized service personnel.
14.Damage Requiring Service ---Unplug this unit from the wall outlet and refer servicing to
Grounding or polarization ---
Important safeguards for you and your new product
Your product has been manufactured and tested with your safety in mind. However, improper
use can result in electrical shock or fire hazards. To avoid defeating the safeguards that have
been built into your new product, please read and observe the following safety points when
installing and using your new product, and save them for future reference.
Important Safety Instructions

qualified service personnel under the Following conditions:
a. When the power supply cord or plug is damaged or frayed.
b. If liquid has been spilled, or objects have been fallen into the unit.
c. If the unit has been exposed to rain or water.
D. If the unit does not operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions, as improper adjustment of
other controls may result in damage and will often require extensive work by a qualified
technician to restore the unit to its normal operation.
E. If the unit has been dropped or damaged in any way.
F. When the unit exhibits a distinct change in performance; this indicates a need for service.
15.Heat --- The product should be situated away heat source such as radiators, heat registers,
stoves, or other products (Including amplifiers) that product heat.
16.Overloading ---Do not overload wall outlets and extension cord as this can result in a risk of
Fire or Electric shock.

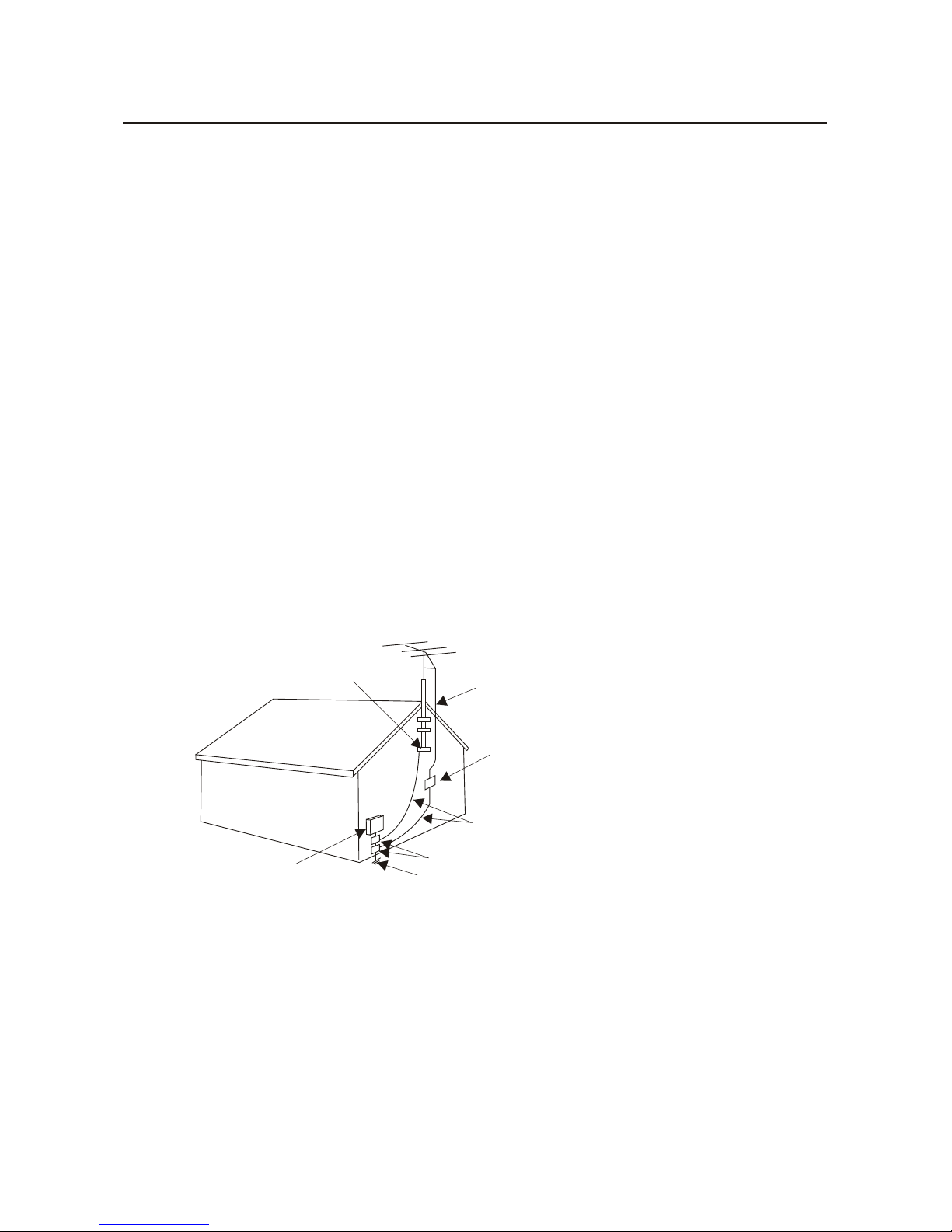

17. Outdoor antenna grounding---If an outside antenna or cable system is connected to
the unit, be sure the antenna or cable system is grounded to provide some protection
against voltage surges and built-up static charges, Section 810 of the National Electrical
Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
Note: The PDP ManufacturingProcess: a few minute colored dots maybe
present on the PDP screen
The PDP (PlasmaDisplay Panel), which is the display device of this
product is composed of 0.9to 2.2 millioncells. A fewcell defects will
normally occur inthe PDP manufacturingprocess. Several tiny, minute
colored dots visible on thescreen should be acceptable. This also occurs in
other PDP manufacturers' products. The tiny dotsappearing does notmean
that this PDPis defective. Thusa few celldefects are not sufficient causefor
the PDP tobe exchanged orreturned. Our production technology minimizes
these cell defectsduring the manufacture and operation of this product.
Important Safety Instructions
ANTENNA LEAD IN WIRE
GROUND CLAMP
ELECTRIC SERVICE EQUIPMENT
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 250, PART H)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)

Table of Contents
Buttons and interface location
.............. ....2
........................................4

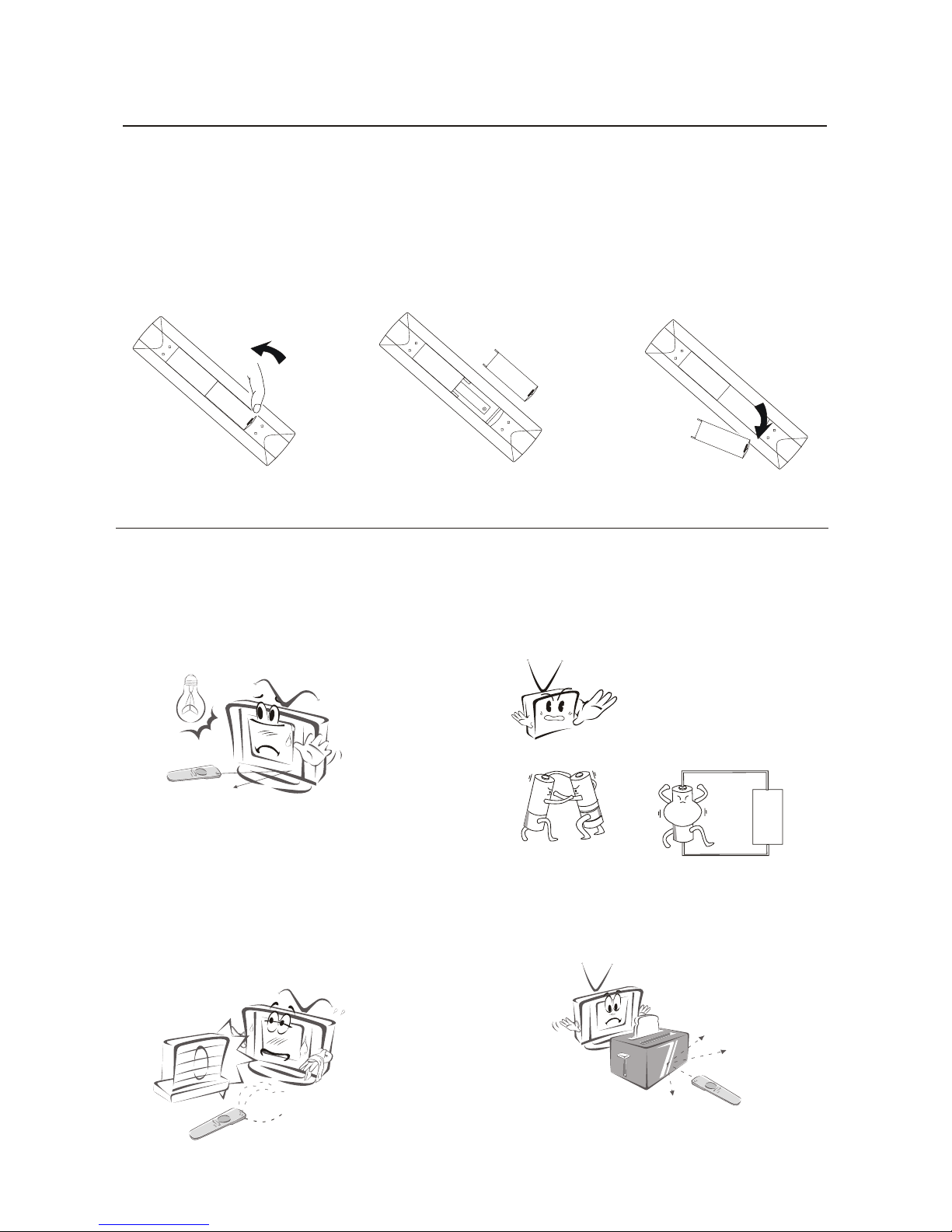

InsertingBatteries .......................................4
Precautions
Function introduction

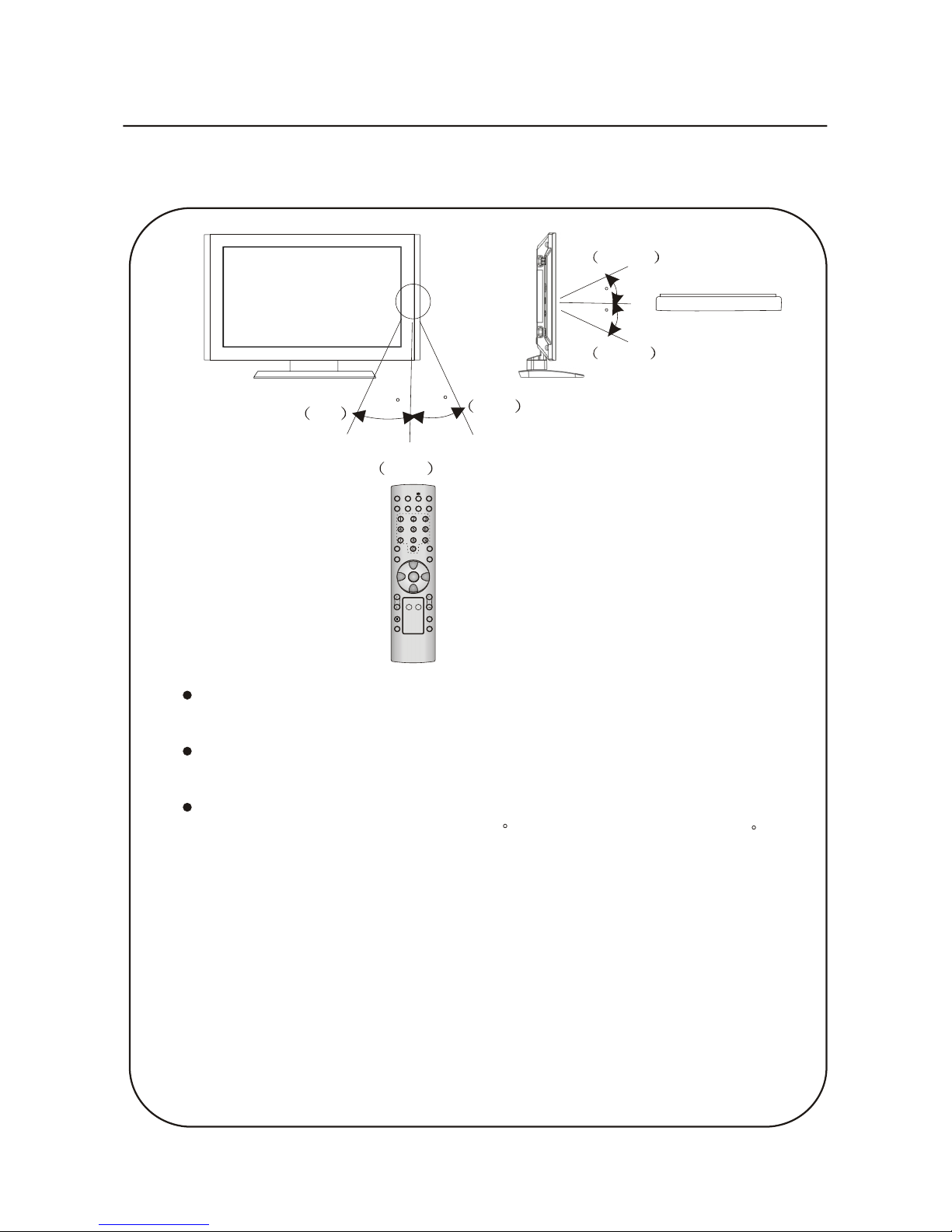

Effectiverange

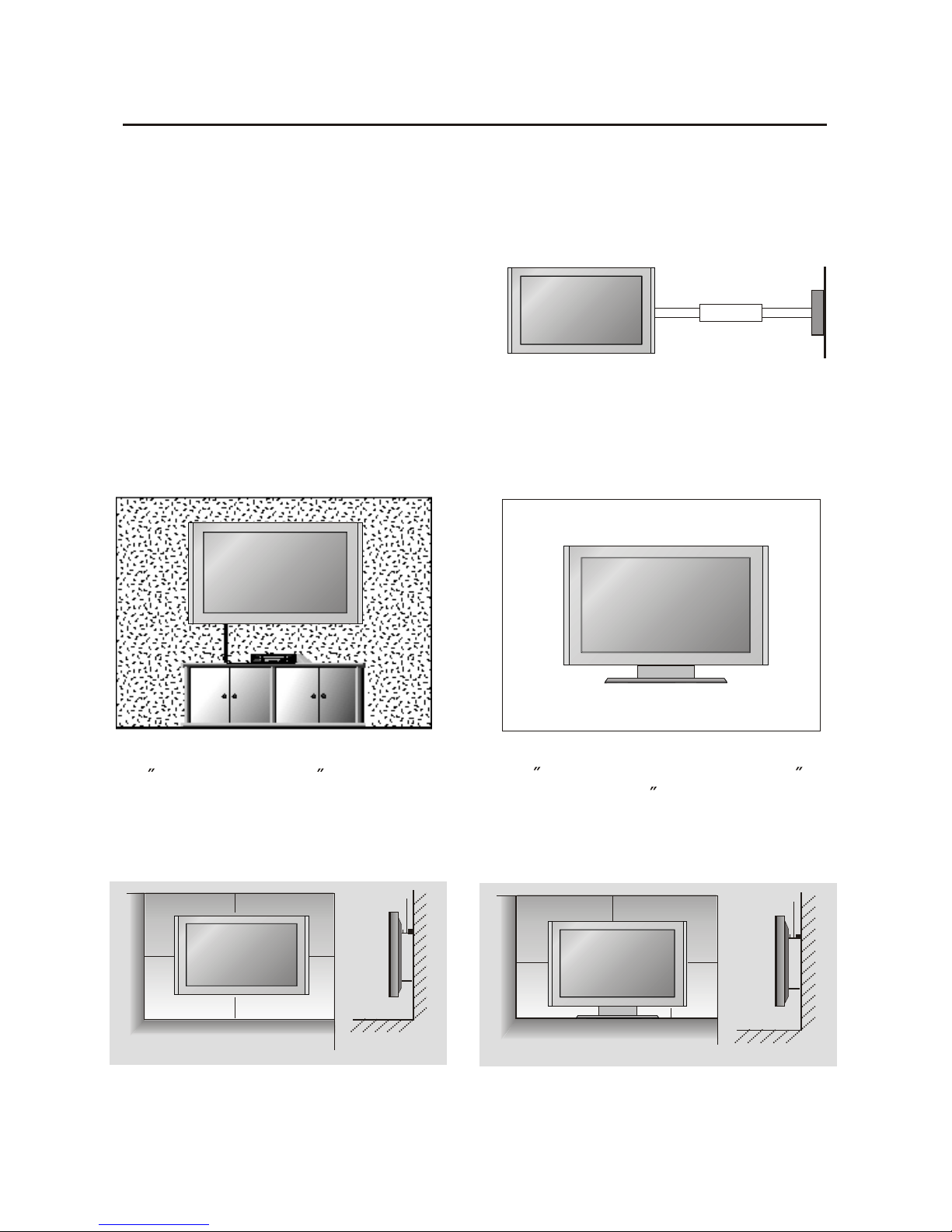

Installation
External Equipment Connections
AntennaConnection

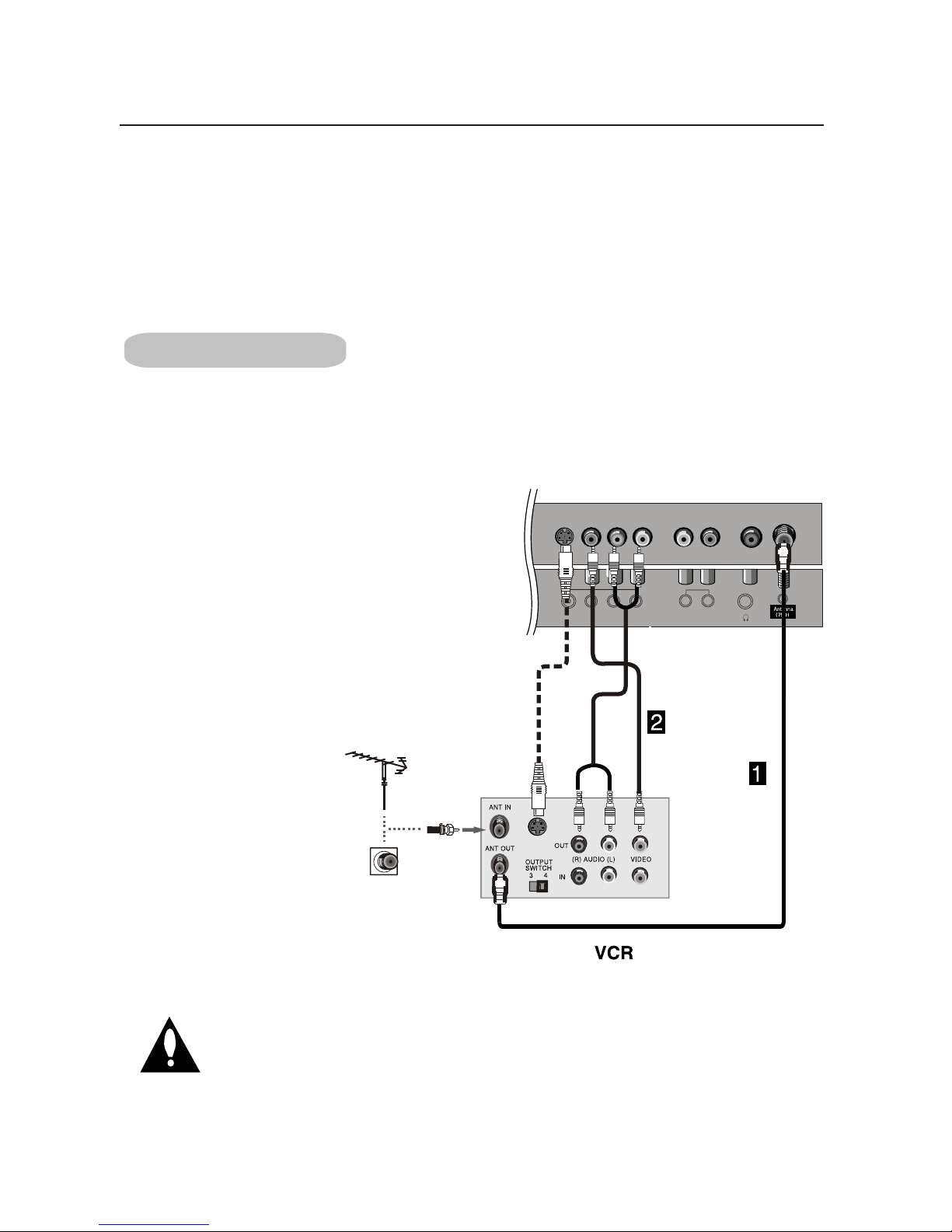

VCRconnection
Cable TV connection

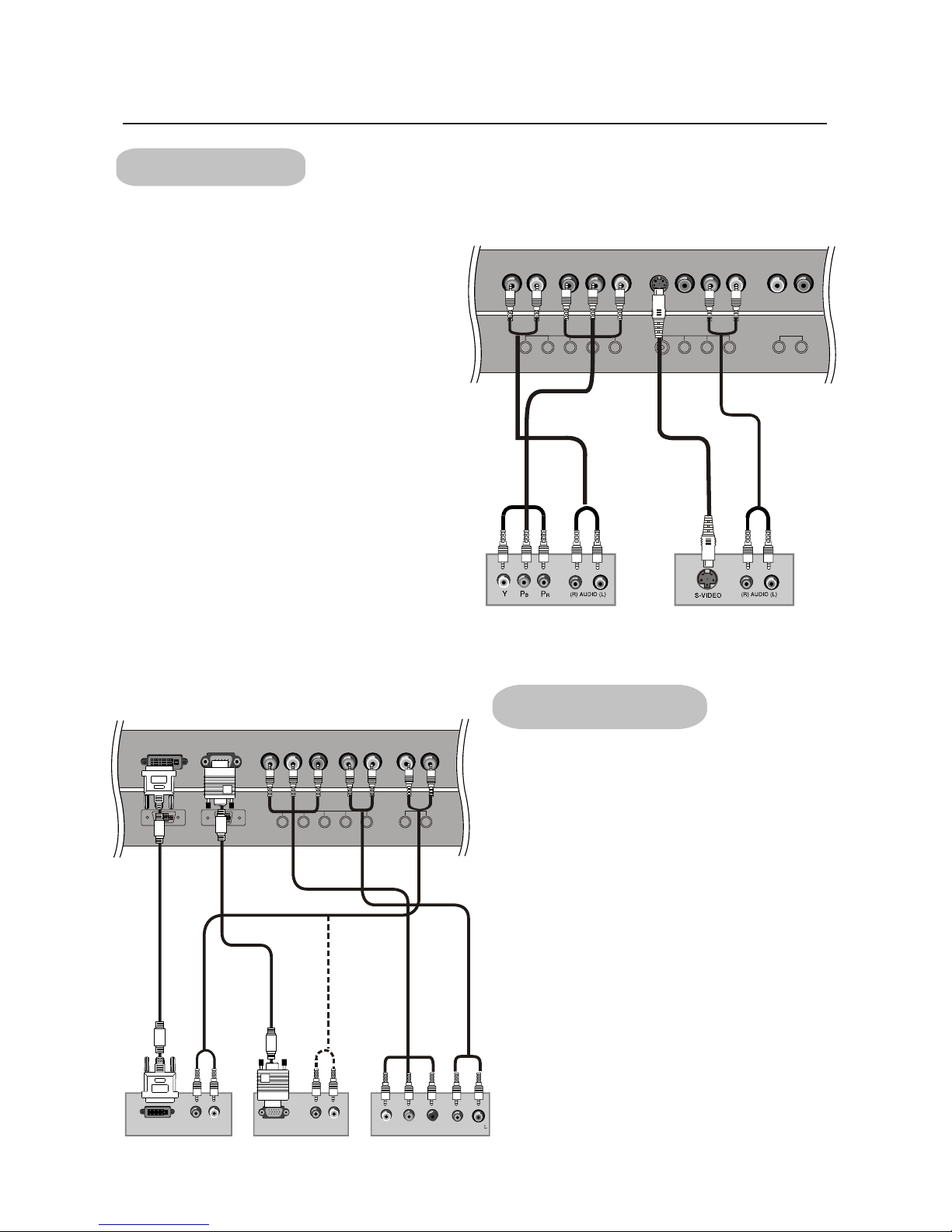

External A/V source connection
DVDconnection
PC
Sideconnection
Power source
Setup your TV
Switching ON/OFF the TV set
Choose the menu language
Choose the signal type
To enter Tuning menu
Tuning menu
Automatic program search
Channelsearch
To change password .............................18
....................2
..................
.....................................3
...............................................4
.................................5
..........................................6
..................................................7
...............8
.................................8
.......................................9
...............................10
................10
......................................11
DTV connection .......................................11
connection ........................................12
......................................13
..........................................13
............................................14
.....................14
...................14
...........................15
..............................15
............................................16
.....................16
......................................17
Front panel control

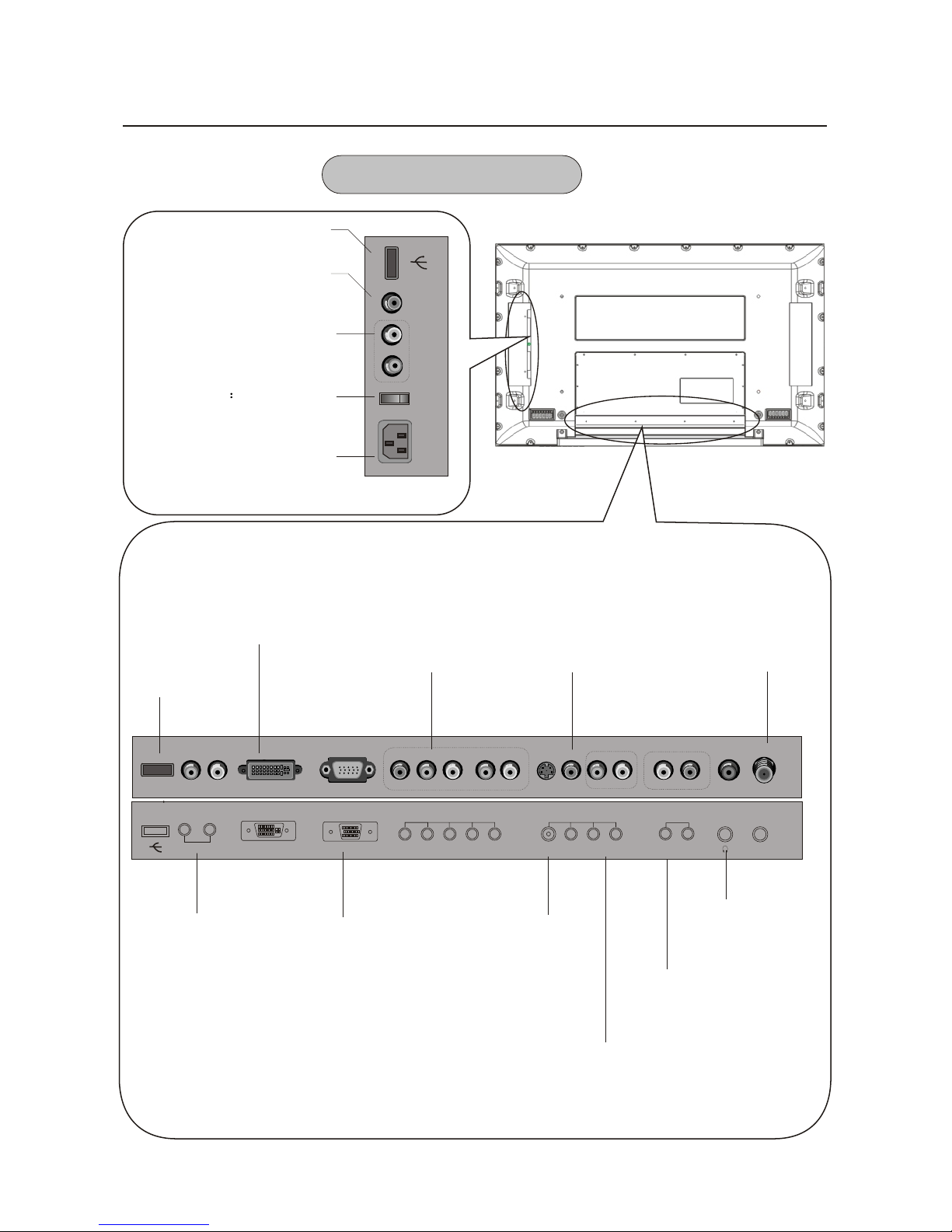

Rear panel control
Remote controller
Accessories
Remote controller
P42V6-A8K
User's manual
User's manual battery(AA) 2 Power cable Bracket 4
To exchange program..............................18
program Edit function...............................19
Fine Tune..................................................20
Watching TV Program
To select the desired program.................21
To select the desired sound.....................21
Picture menu
AAAWindows ..........................................24
...............................21
.............................................22
..........................22
To customize your own picture status .....22
DNR( Digital Noise Reduction) ..................23
ColorTemperature ..................................23
To change picture aspect ratio ...............24
To choose sound modes.........................25
To customize your own picture status.......25
To set surround.........................................26
How to eliminate sound...........................26
Timer menu ................................................27
clock and on/ off timer setting................27
To set remind time and program ............28
Set menu ...................................................29
Picture position menu .................................31
Other functions ...........................................33
Stream media broadcast system ...............34
...........................................43
Maintenance..............................................44
..........................................45
To select picture modes
Sound menu .............................................25
Specifications
Troubleshooting
DISPLAY
-/--/--- USB
CH+
FAV. POWER
Q.VIEW SLEEP
PSM
TV/AV MUTE
CH-
VOL- VOL+MENU
UP LEFT
PREV. NEXT DOWN RIGHT
PAUSE ENTER
SWAP EXIT
Haier warranty
Warranty
1

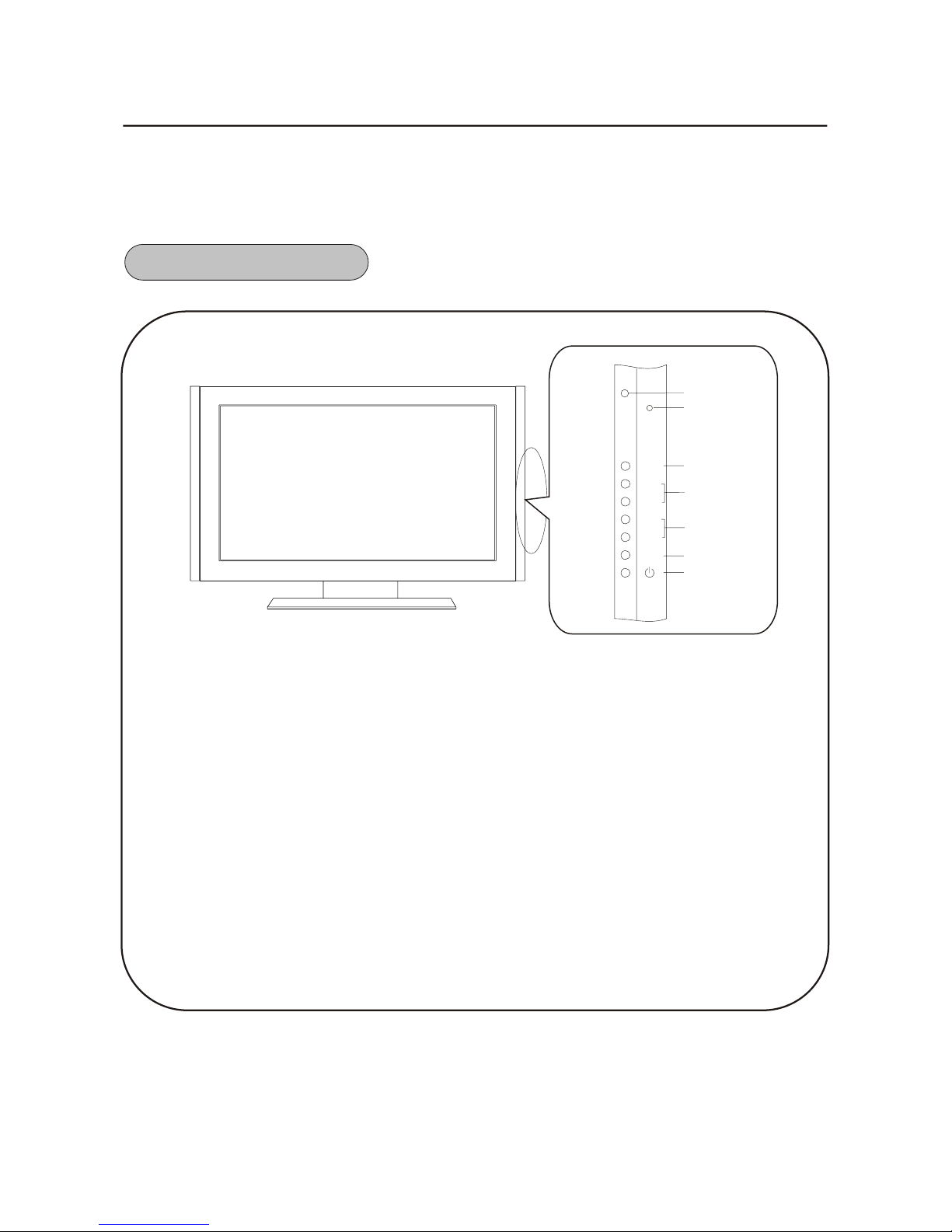

Front panel Control
Buttons and functions
- This is a simplified representation of front panel.
- Here shown may be somewhat different from your TV.
Buttons and interface location
1.Remote control signal receive window
2.Remote indicator: in red when standby mode
3.MENU: menu display
4.VOL+/VOL-: volume increase and decrease,
menu reset and entry
5.CH+/CH- : program plus and minus, menu options
6.TV/AV: input source select
7.POWER : DC ON/OFF
1
2
3
4
5
6
7
MENU
VOL-
VOL+
CH-
CH+
TV/AV
2

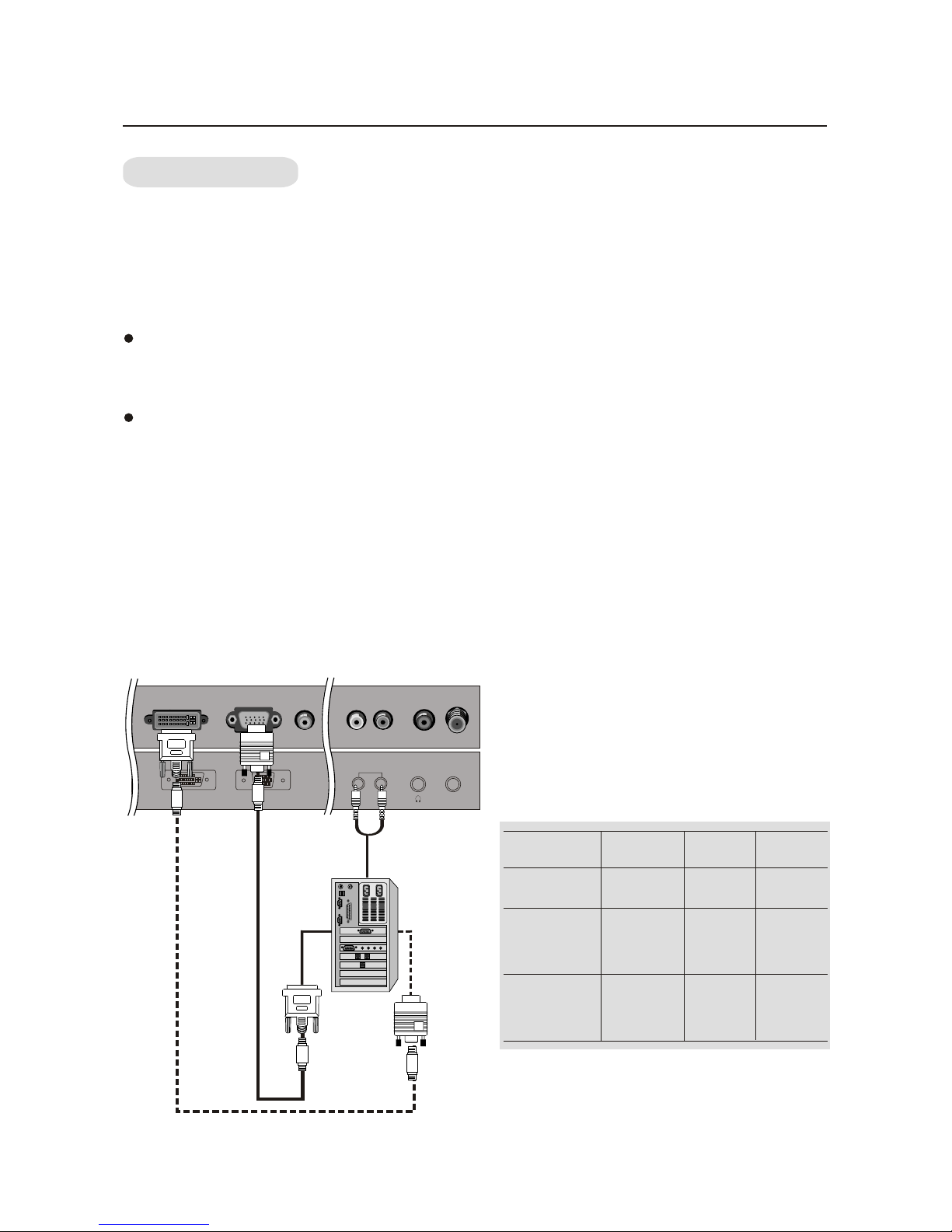

DVI Input
Connect the monitor output
connector from a PC to the
appropriate input port.
Antenna Input
Connect cable or
antenna signals to
the TV, either directly
or through your
cable box.
Audio Input
Connect audio output
from an external
device to these jacks.
External Speaker
(8 ohm Output)
Connect to optional
external speaker(s).
DVD/DTV Input
(Component )
Connect a component
video/audiodevice to
these jacks.
S-Video Input
Connect S-Video
out from an S-VIDEO
device to the S-VIDEO
input.
Rear panel Control
Audio frequency input
for linking DVI, PC or
other appliance audio
frequency output terminals.
Video2 input terminal
Connect ordinary
video input terminals.
PC VIDEO Input
Connect the monitor
output connector from
a PC to the jack
YUVLR VLRLR
ANT.
DVI IN D-SUB IN YUV IN AUDIO IN
S-VIDEO
IN
VIDEO IN AUDIO IN AUDIO IN
LR
AUDIO OUT
VIDEO
L
AUDIO
R
POWER
Earphone
Earphone audio
output terminal.
Power Cord Socket
This TV operates on AC power.
The voltage is indicated on
the specifications page.
Never attempt to operate the
TV on DC power
Switch power on/off
USB2 Socket
AUDIO2 Input
connect to hear
stereo sound froman
external device.
VIDEO2 Input
Connects the videosignal
from a videodevice.
Buttons and interface location
USB1 Socket
3

Remote controller
Precautions
3.Replace the cover of the
battery compartment.
Make sure that there is no obstacle between the
remote controller and television set.
As strong light may interfere the
signals, change your position to
operate the remote controller if
the television cannot be turned
on or off as you expect.
Keep the remote controller away from heat
source or humid area to ensure effective
performance of the remote controller.
Make sure that two AA alkaline batteries are
loaded. The batteries must be of the same
type. The batteries must be located properly.
The batteries are not rechargeable.
1.Slide open the cover
of the battery
compartment on the
back of the remote
controller.
2.Load two AA alkaline batteries
in the compartment.
(plus
and minus poles to respective
mark)
paying
attention to the polarity diagram
in the battery compartment.
Inserting Batteries
4

- The remote controller cannot be operated unless the batteries are properly loaded.
Remote controller
DISPLAY
CH+
CH-
VOL- VOL+ MENU
SSM
PSM
TV/AV MUTE
FAV.
-/--/---
USB
Q.VIEW SLEEP
POWER
UP LEFT
PREV. NEXT DOWN
PAUSE ENTER
SWAP EXIT
I/II (NICAM)
Information Display
Display of currentchannel
signals, program and
systems
Power ON/Standby
Digital program select
USB signal swap
(USB mode ON/OFF)
Sleep
Displaying sleep time,
adjustable by every press
Q. View
(Quickly view)
To former program
PSM
Picture mode option
(standard/soft/user/bright)
SSM
Sound mode option
(standard/news/user/music)
TV/AV swap
(TV/AV1/AV2/S-video
/YUV/D-SUB/DVI/USB)
Mute
switch the sound on/off
MENU
main menu entry, menu exit
or return tonext higher level
menu.
USB system button
EXIT
return to former menu
Left/right
UP/DOWN
Prev.
(Previous page) Next (Next page)
PAUSE ENTER button
play
SWAP
Function introduction
- When usingthe remote control, aim it at the remotecontrol sensor onthe TV.
Number buttons
Press to select channels
directly on theTV.
VOL -, VOL +
Press to increase or decrease
the volume.
CH+ and CH-
Press CH+/- to change
channels.
FAV. Button
to switch toyour
favorite channels.
5
RIGHT

above
below
20
20
left right
front 8m
45 45
Ensure the remote controller is pointed toward the remote controller
windows on the display.
No obstacles should be placed between the remote controller and
the remote controller window.
The effective receiving scope for the signal is 8 meters to the front of
the remote controller windows, and 45 to the left or right side and 20
above or below the control windows.
Use of remote controller:
1. To ensure a normal operation, the remote controller should not be
dropped or damaged in any way .
It should also be kept dry and away from all heat sources.
2. Battery replacement is necessary when the remote controller acts
inconsistently or stops operating the plasma display.
Remote controller
RIGHT
DISPLAY
CH+
CH-
VOL- VOL+ MENU
SSM
PSM
TV/AV MUTE
FAV.
-/--/---
USB
Q.VIEW SLEEP
POWER
UP LEFT
PREV. NEXT DOWN
PAUSE ENTER
SWAP EXIT
6
Effective range

4 inches
2.36 inches
4 inches 4 inches
2 inches
4 inches
4 inches
4 inches 4 inches
2 inches
GROUNDING
Ensure that you connect the earth ground wire to
prevent possible electric shock. If grounding
methods are not possible, have a qualified
electrician install a separate circuit breaker. Do
not try to ground the unit by connecting it to
telephone wires, lightening rods, or gas pipes.
Wall Mount: Horizontal installation
For proper ventilation, allow a clearance
of 4 on each side and 2 from the wall.
Detailed installation instructionsare
available from yourdealer, see the
optional Wall Mounting Bracket Installation.
Desktop PedestalInstallation
For proper ventilation, allow a clearance
of 4 on each side and the top, 2.36 on
the bottom, and 2 from the wall.
Detailed installation instructionsare
included in theoptional Desktop Stand
Installation.
- The TV can be installed in various ways such as on a wall, or on a desktop etc.
- The TV is designed to be mounted horizontally.
Installation
Short-circuit
Breaker
Power
Supply
7

External Equipment Connections
Note
* It isrecommended that you'd better use 75
* Don't bindantenna cable and electric wire together.
coaxial cable toremove the
disturbance caused byairwave.
outdoor
antenna
300 twin-lead cable
Antenna adapter
75 coaxial cable
Plug
(additional purchase)
Antenna input
75 standard coaxial type
- Antenna orCable Service without a Cable BoxConnections.
- For optimum picture quality, adjust antenna direction if needed.
To improve picture quality ina poor signalarea,
purchase and installa signal amplifier.
If the antennaneeds to besplit for two Tv`s,
install a 2-WaySignal Splitter in the connections.
If the antennais not installedproperly, contact
your dealer forassistance.
""
Single-family Dwellings /Houses
(Connect to walljack for outdoorantenna)
Multi-family Dwellings/Apartments
(Connect to wallantenna socket)
Antenna Connection
8

VLRLR
S-VIDEO
IN
VIDEO IN AUDIO IN AUDIO IN
- To avoid picture noise (interference), leave an adequate distance between the VCR
And TV.
VCR connection
NOTE: All cables shown are not included with the TV.
Do not connectto both Videoand S-Video at the sametime. In the event
that you connectboth Video andthe S-Video cables, only the S-Video will
work. So you shouldnot connect toS-Video if you want touse Video.
1. Connect the audioand video cables
from the VCR'soutput jacks tothe TV`s
input jacks, as shown in the figure.
When connecting theTV to VCR,
match the jackcolors (Video =yellow,
Audio Left = white, and Audio Right = red).
If you connectan S-VIDEO output from VCR
to the S-VIDEO input,the picture qualityis
improved; compared toconnecting a
regular VCR tothe Video input.
2. Insert a videotape into theVCR and
press PLAY on the VCR. (Refer to the VCR
owner`s manual.)
3. Select theinput source
by the TV/AV button
on the remotecontrol.
S-VIDEO
External Equipment Connections
Choose Your Connection
There are several ways to connect your television, depending on the
components you want to connect and the quality of the signal you want to
achieve. The following are examples of some ways to connect your TV.
Choose the connection which is best for you.
9

- After subscribingto a cableTV service from a local provideryou can watchcable TV
programming. The TV cannot display TVprogramming unless aTV tuner deviceor cable
TV converter boxis connected tothe TV.
- For further information regardingcable TV service,contact your localcable TV service
provider(s).
1. Connect theaudio and videocables from
the Cable Box'soutput jacks tothe TV`s input
jacks, as shown in the figure.
When connecting theTV to aCable Box,
match the jackcolors (Video =yellow, Audio
Left = white, and Audio Right =red).
2. Select theinput source byusing the TV/AV
button on theremote control. (If connected
to
3. Select yourdesired channel withthe
remote control forcable box.
VIDEO IN andAUDIO IN, press TV/AV to
select AV1 input source).
VLRLR
S-VIDEO
IN
VIDEO IN AUDIO IN AUDIO IN
Cable Box
How to connect
Connect the audioand video cables
from the externalequipment's output
jacks to theTV`s input jacks, as shown
in the figure. When connectingthe TV
to external equipment, match the
jack colors (Video= yellow, Audio
Left = white, and Audio Right = red).
How to use
1. Select theinput source byusing
the TV/AV button on theremote
control. (If connected to
2. Operate thecorresponding
external equipment.Refer to external
equipment operating guide.
VIDEO IN
and AUDIO IN, press TV/AV to select
AV1 input source).
VLRLR
S-VIDEO
IN
VIDEO IN AUDIO IN AUDIO IN
Video Game Set
Camcorder
Cable TV connection
External Equipment Connections
External A/V Source connection
10

How toconnect
1. Connect theDVD video outputs(Y,Pb/Cb,
Pr/Cr) to the YUV IN jacks on the TV and
connect the DVDaudio outputs tothe AUDIO
IN jacks on the TV, as shownin the figure.
2. If yourDVD only hasan S-Videooutput jack,
connect this to the S-VIDEO input on the TV
and Connect the DVD audio outputs to the
AUDIO IN jacks on the TV, as shown in the
figure.
NOTE: If your DVD player does not have
component video output, use S-Video.
How touse
1. Turn on the DVD player, insert a DVD.
2. Use the TV/AV button on the remote
control to selectS-VIDEO mode.
3.Press Play button on external equipment
for program play.
4. Refer to the DVD player's manual for
operating instructions.
-To watch digitally broadcast programs,
purchase and connect a digital set-top
box.
How toconnect
Use the TV`s YUV IN and AUDIO IN jacks,
RGB or DVI port for video connections,
depending on your set-top box
connections available. Then, make the
corresponding audio connections.
How touse
1. Turnon the digitalset-top box.(Refer to
the owner`s manual for the digital set-
top box.)
2. Use TV/AV on the remote control to
select YUV mode.
3.Press Play button on external
equipment for programplay.
DTV connection
DVD connection
External Equipment Connections
YUVLR VLRLR
YUV IN AUDIO IN
S-VIDEO
IN
VIDEO IN AUDIO IN AUDIO IN
DVD
or
DVI IN D-SUB IN YUV IN
YUVLR
AUDIO IN
LR
AUDIO IN
DVI-DTV OUTPUT R AUDEO L
Digital Set-top Box
or or
RGB-DTV OUTPUT RAUDEO L YPbPr R AUDEO
11

How to connect
1. To get thebest picture quality, adjust the PC
graphics card to (P42V6-A8K>800
2. Use the TV`s D-SUB or DVI (Digital Visual
Interface) INPUT port for video connections,
depending on your PC connector.
If the graphic card onthe PC does not output
analog and digital RGB simultaneously,
connect only one of eitherD-SU r DVI IN to
display the PC on theTV.
If the graphic card on the PC does output
analog and digital RGB simultaneously, set the
TV to eithe DVI; (the other modeis set
to Plug and Play automaticallyby the TV.)
3. Then, make the corresponding audio
connection. If using a sound card, adjust the
PC sound as required.
How to use
1. Turn on thePC and the TV.
2. Turn on the display by pressing the POWER
button on the TV's remotecontrol.
3. Use TV/AV onthe remote control to select
x600),60Hz.
IN
B IN o
r D-SUB or
D-
External Equipment Connections
PC connection
Resolution
Line
frequency
(Khz)
VGA SVGA XGA
640*480 800*600 1024*768
Mode
Resolution
Note: All abovelisted are subjectto VESA
Criteria.
Frame
frequency
(Hz)
31.5KHz 37.9KHz 48.4KHz
60Hz 60Hz 60Hz
SUB or DVI source.
4. Check the image onyour TV. There may
be noise associated with the resolution,
vertical pattern, contrast or brightness in
PC mode. If noise is present, change the
PC mode to another resolution, change
the refresh rate to another rate or adjust
the brightness and contrast on the menu
until the picture is clear. If the refresh rateof
the PC graphic card cannot be changed,
change the PC graphic cardor consult the
manufacturer of the PC graphiccard.
NOTES:
1Use a DVI cable.
2Avoid keeping a fixed image on theTV's
screen for a long period of time. The fixed
image may become permanently
imprinted on the screen.
3The synchronization input form for
Horizontal and Vertical frequencies is
separate.
LR
ANT.
DVI IN D-SUB IN AUDIO IN
12

How to connection
Camera, Camcorder, Game
1Connect your camera, camcorder or
game as shown.
2Connect to VIDEO and AUDIO L for mono
equipment. For stereo equipment also
connect AUDIO R.
How to use
press TV/AV to select Av2 input source.
External Equipment Connections
VIDEO
L
AUDIO
R
POWER
Power source
TO USE AC POWER SOURCE
Use the ACpolarized line cordprovided for
operation on AC. Insert the AC cord plug into
a standard 220V50Hz polarized ACoutlet.
NOTES:
Never connect theAC line cordplug to other
than the specifiedvoltage (220V 50Hz).Use the
attached power cordonly.
If the polarizedAC cord doesnot fit intoa non-
polarized AC outlet, do not attempt to file or cut
the blade. It is the user`s responsibility to have
an electrician replacethe obsolete outlet.
If you causea static dischargewhen touching
the unit andthe unit failsto function, simply
unplug the unitfrom the ACoutlet and plugit
back in. The unit shouldreturn to normaloperation.
Polarized ACCord Plug.
Side connections
13
Polarized AC Cord Plug
AC Outlet
Wider Hole
and Blade

2. Indicator
1. Remote receiving window
Setup your TV
Switching ON/OFF the TV set
1Please press down the power switch to
switch on AC power supply and the power
indicator will light .
2If the indicator is lighting in red, press
power button on the remote Controller
again.
3If you want to exchange to standing by
status, please press down power button on
the remotecontroller.
4If you want to fully switch off the power
supply for the TV set, please press down the
power switchbutton onthe TVset.
1
2
3
4
5
6
7
MENU
VOL-
VOL+
CH-
CH+
TV/AV
RIGHT
DISPLAY
CH+
CH-
VOL- VOL+ MENU
SSM
PSM
TV/AV MUTE
FAV.
-/--/---
USB
Q.VIEW SLEEP
POWER
UP LEFT
PREV. NEXT DOWN
PAUSE EN TER
SWAP EXIT
Choose the Menu Language
When you start using your set for the first time,
you must select the language which willbe
used for displaying menus and indications.
1Press the MENU and CH+/-button to select
the Set menu.
2Press VOL+ to enter.
3Press CH+/-button to select Language.
4Select a particular language by pressing
VOL+/- button repeatedly.
You can choose one of 2 languages.
(Chinese or English)
5When you are satisfied with your choice,
press the MENU button to return to normal
viewing.
-There are several options you might need to set up in order for your TV to work
properly. Read the instructions that follow.
-In the manual, the OSD (on screen display)may be different from your TV`s, because
it is justan example tohelp your withthe TV operation.
14

Please Enter Password
2.AV1 3.AV2 4.SVideo 5.YUV 6.D-SUB 7.DVI 8.USB1.TV
1.Press TV/AV button on television or remote
controller to selectthe desired mode.
the menu appears on the screen forseveral seconds.
2.Press digit button 1 to swap to TV input terminal.
3. The initial passwordis 0000, andpress digit
0 quartic toenter Tuning menu.
To enter Tuning Menu
Before searching TV program, you need to enter your
password operating.
1.Press MENU button and CH+/- button to call up
the Tuning menu. (as follow)
Exchange
Prog. Edit
Search
Auto Search
Change Password
Tuning Enter
A
B
C
2.Press VOL+ button, the password appears onthe
screen.
RIGHT
DISPLAY
CH+
CH-
VOL- VOL+ MENU
SSM
PSM
TV/AV MUTE
FAV.
-/--/---
USB
Q.VIEW SLEEP
POWER
UP LEFT
PREV. NEXT DOWN
PAUSE ENTER
SWAP EXIT
In order for your TV to search for channels, you need
to make sure your signal type is set correctly.
Choose the Signal Type
Setup your TV
15

This TV set has three methods to set channels, which are respectively Auto search,
manual search fine tune.
In this section, how to use the remote control to set channel is explained. You can
also use buttons on the TV set to set channel.
A password is required to gain access to Tuning menu.
1After calling up the tuning menu, press CH+/- button
on preset menu to select
automatic scan.
2Press the VOL+ button to ensure automatic search
with higher level.
Press the VOL- button to ensure automatic search with
lower level.
After the s arch has finished,e All channels now
playing program will be automatically preset in
order.
Tuning menu

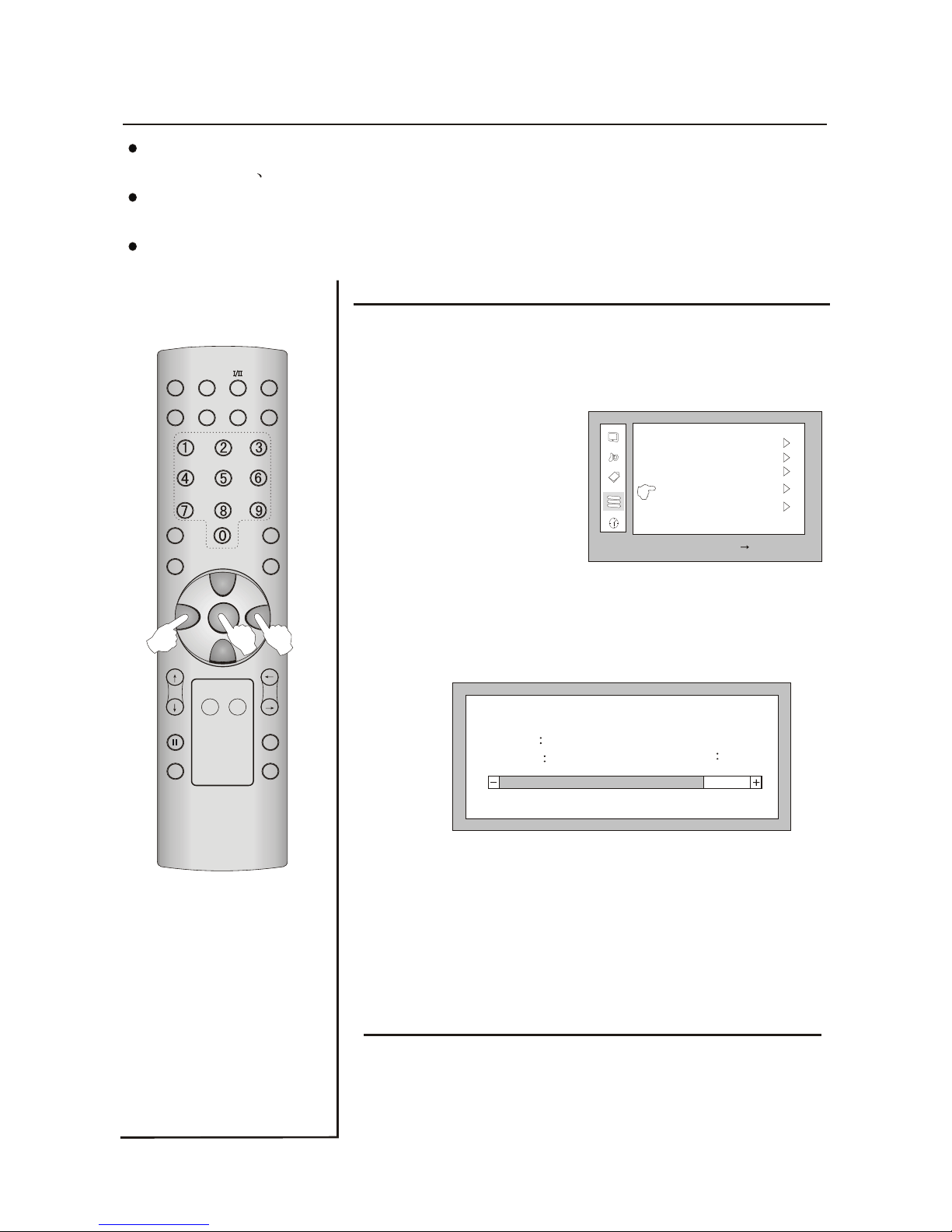

Automatic program search
Exchange
Prog. Edit
Search
Auto Search
Change Password
Tuning Enter
A
B
C
<MENU>
Auto Search
BAND VHF-L
FREQ. 188.16 MHz Prog. 18
Cancel
Menu memory
If menu parameter is modified, the set picture
status, sound status and preset program will be
remembers automatically after exiting menu.
RIGHT
DISPLAY
CH+
CH-
VOL- VOL+ MENU
SSM
PSM
TV/AV MUTE
FAV.
-/--/---
USB
Q.VIEW SLEEP
POWER
UP LEFT
PREV. NEXT DOWN
PAUSE ENTER
SWAP EXIT
Note:
the tuning menu will be
only operated in normal
TV input source, and it
don`t work in the other
input source.
To search for all channels viewable through your
antenna or cable TV system:
3If to stop searching, Press menu button to cancel.
16
