To users:
Thank you for using our LCD-TV.
Before connecting the LCD-TV and turning the power on, please
read thisbook carefully.
CONTENT
Safety Notice Items...................................................................................
Front Panel Controls..................................................................................
Connection Options...................................................................................
Remote Control Key Functions...................................................................
Remote Control ..................................................................................
Installing Batteries..................................................................................
Connection Instructions.............................................................................
Grounding..............................................................................................
External equipment Connections..............................................................
Antenna Connection.............................................................................
VGA Input............................................................................................
YPbPr Input..........................................................................................
S-VIDEO Input....................................................................................
SCART Input.......................................................................................
HDMI Input..........................................................................................
Basic Operating Instructions.......................................................................
Turn on the LCD-TV.................................................................................
Audio Control..........................................................................................
Mute......................................................................................................
Select the TV Channel You Want...............................................................
Picture Mode...........................................................................................
Menu Operations.......................................................................................
Picture Menu Options...............................................................................
Picture Menu Options Continued...............................................................
Audio Menu Options................................................................................
Audio Menu Options Continued................................................................
Function Menu Options.............................................................................
Function Menu Options Continued.............................................................
Adjust Menu Options................................................................................
Tuning Menu Options..............................................................................
Tuning Menu Options Continued..............................................................
TELE TEXT...............................................................................................
Troubleshooting Guide...............................................................................
Specifications...........................................................................................
1
2
3
4
5
5
6
6
6
6
7
7
8
9
9
10
10
10
10
11
11
12
12
13
13
14
15
16
17
18
19
20
22
23
Note: HDMI instructionin this manualis just forthe special modelswhich have theterminal.
(HDMI terminal isonly available insome models, pleasesee the real)

Safety NoticeItems
as required whenyou are installing,using and cleaningthis machine.Toinsure
your safety and extend thelife-span of LCD-TV, please readthe following items
carefully beforeusing:
Please read and understand all theinstructions beforeoperation;
Please keep the bookfor later use;
Please comply with thewarning instructionson themachine and in thisbook
strictly;
Please complywith theinstructions provided;
Please do not use additional devices that are not recommended by
manufacturer:
Before operation,please makesure that the operating voltage of your unit is
normal;
Do not placethe unit onunstable, dusty andhumid places;
Never put theunit in direct sunlight or nearheat sources;
Allow enough space for proper ventilation;
Please keep water awayfrom theLCD-TV.If watercomes incontact withthe
LCD-TV,disconnect thepower cord from thepower source,then wipethe set
with adry soft cloth;
Personnel
1

2
L22A11W, L2211W-A

COMPONENT Input
Connect a component
video/audio
device to thesejacks
PC Input
Connect to theVGA
15PIN analog output
connector of thePC
display card forPC
display purpose
S-VideoInput
Connect S-Videoout
from an S-Video device
to the jacks.
Antenna Input
Connect cableor
antenna signals to
the TV, either direc-
tly or through your
cable box.

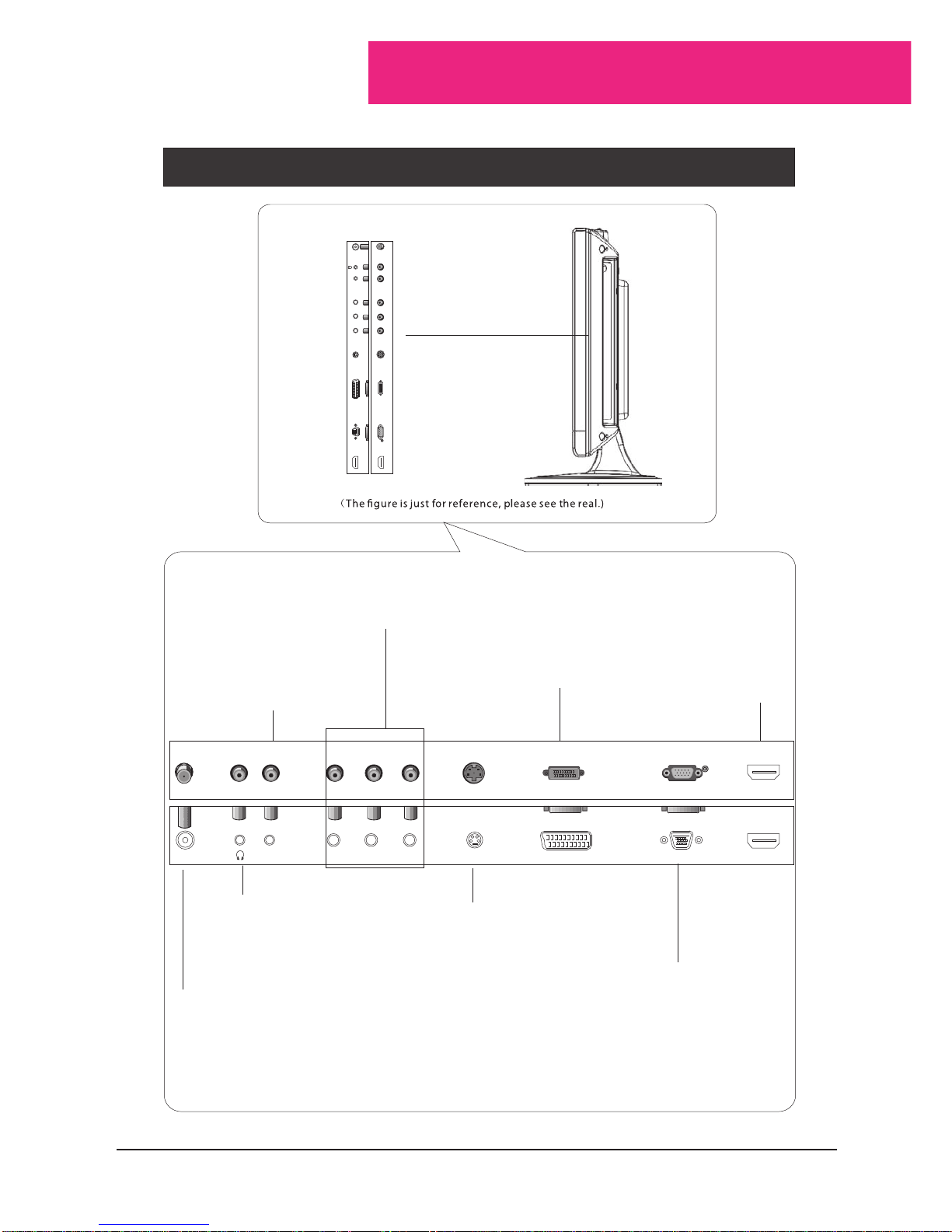

Connection Options
Earphone port
COMPONENT/
SVIDEO /VGA
Audio Input
Connect thePCoutput
connector from aPCto
the audio input port
SCART
Connect to the DVD/
VCR/broadcasting
receiver or other
equipment
ANT IN Y
Pr S-VIDEO TV SCART VGA IN
AUDIOIN Pb HDMI
HDMI
Connect to HDMI
output of other
equipment
ANTIN Y
Pr S-VIDEO TV SCART VGAIN
AUDIO IN Pb HDMI
3

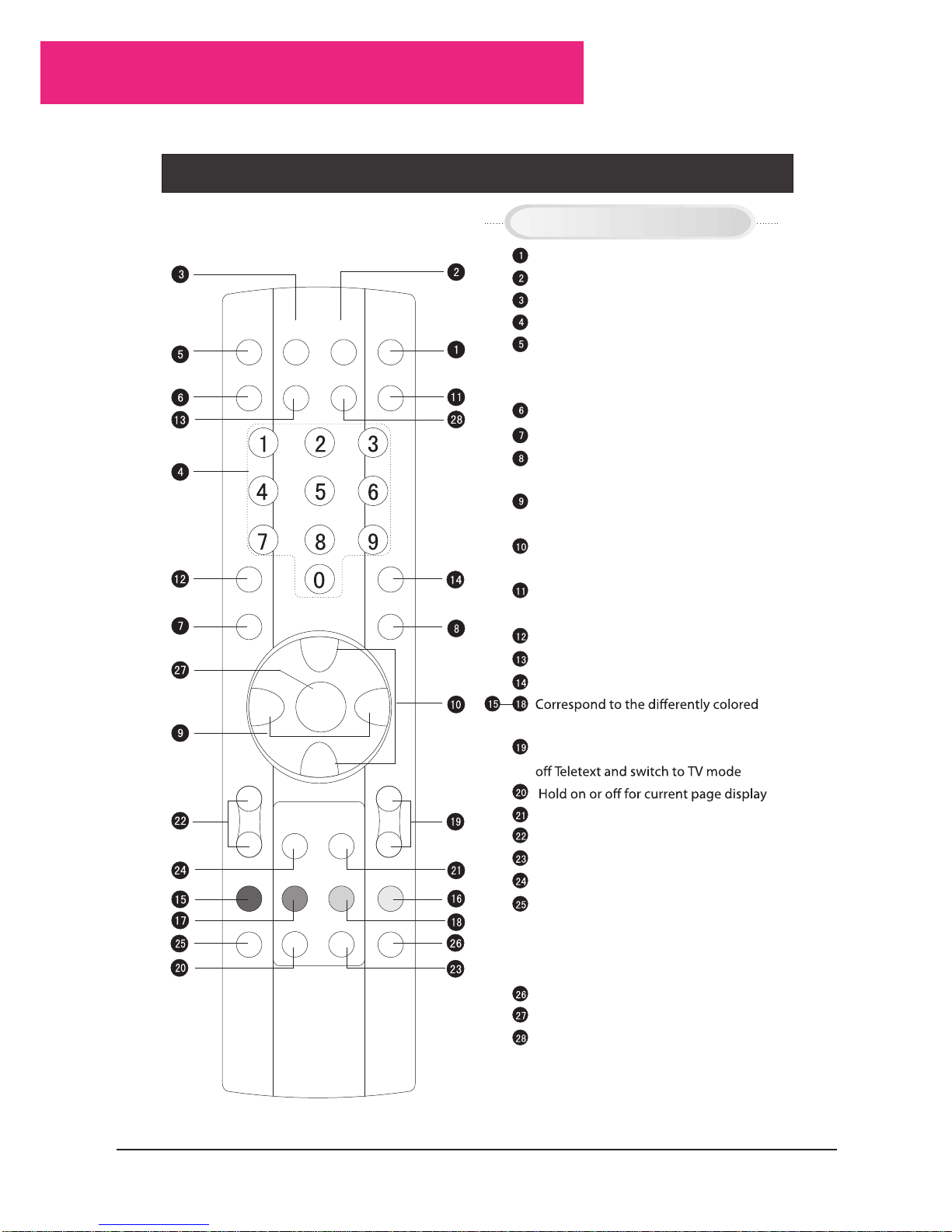

Remote Control Key Functions
When using the remotecontrol, aim it
towards the remotesensor on theTV
Stand By
MUTE
Display current input signal information
TV channel number select
Set time to change the TV into the
standby status after a period of preset
time.
NICAM/A2 Stereo select
EXIT
Quick TV channel switch(return to the
last channel)
Volume down/up Left/right orientation to
adjust the item in the OSD
TV channel up/down or select the item
of the menu
Select PC/COMPONENT/HDMI/TV/SCART/
SVIDEO
Select picture mode
PC system select
Select sound mode
subjects
Switch to the Teletext with text mode/turn
Switch to the Teletext with mix mode
Request index page
Change display size
Sub coded page access
While in normal TV mode only, pressing
the button TIME will display the teletext
time in the top right corner for a few
seconds.(only available in teletext mode)
Reveal or hidden the hidden words
Press to select the main menu
Auto adjust (PC mode)
Buttons on the remote control
P+
P-
V- V+
SLEEP DISPLAY MUTE POWER
NICAM PC AUTOAD TV/AV
PSM
OK Q.VIEW
MENU
INDEX TEXT
TIME HOLD SIZE REVEAL
SUBCODE MIX
SSM
4

Remote Control
Installing Batteries
3
2
1
1.Slide open thecover of thebattery compartment onthe back ofthe remote
control.
2.Load two 5#alkaline batteries inthe compartment. (plusand minus polesto
respective mark)
3.Replace the coverof the batterycompartment.
Precautions
Make surethat thereis no
obstacle between theremote
controller and televisionset.
As strong light mayinterfere the
signals, change yourposition to
operate theremote controller if
the television cannot beturned
Keep theremote controller
away from heat sourceor
humid area toensure
the remotecontroller.
Make surethat two 5# 1.5Valkaline
batteries areloaded. Thebatteries
must beof thesame type.The batteries
must belocated properly. Thebatteries
are not rechargeable.
5

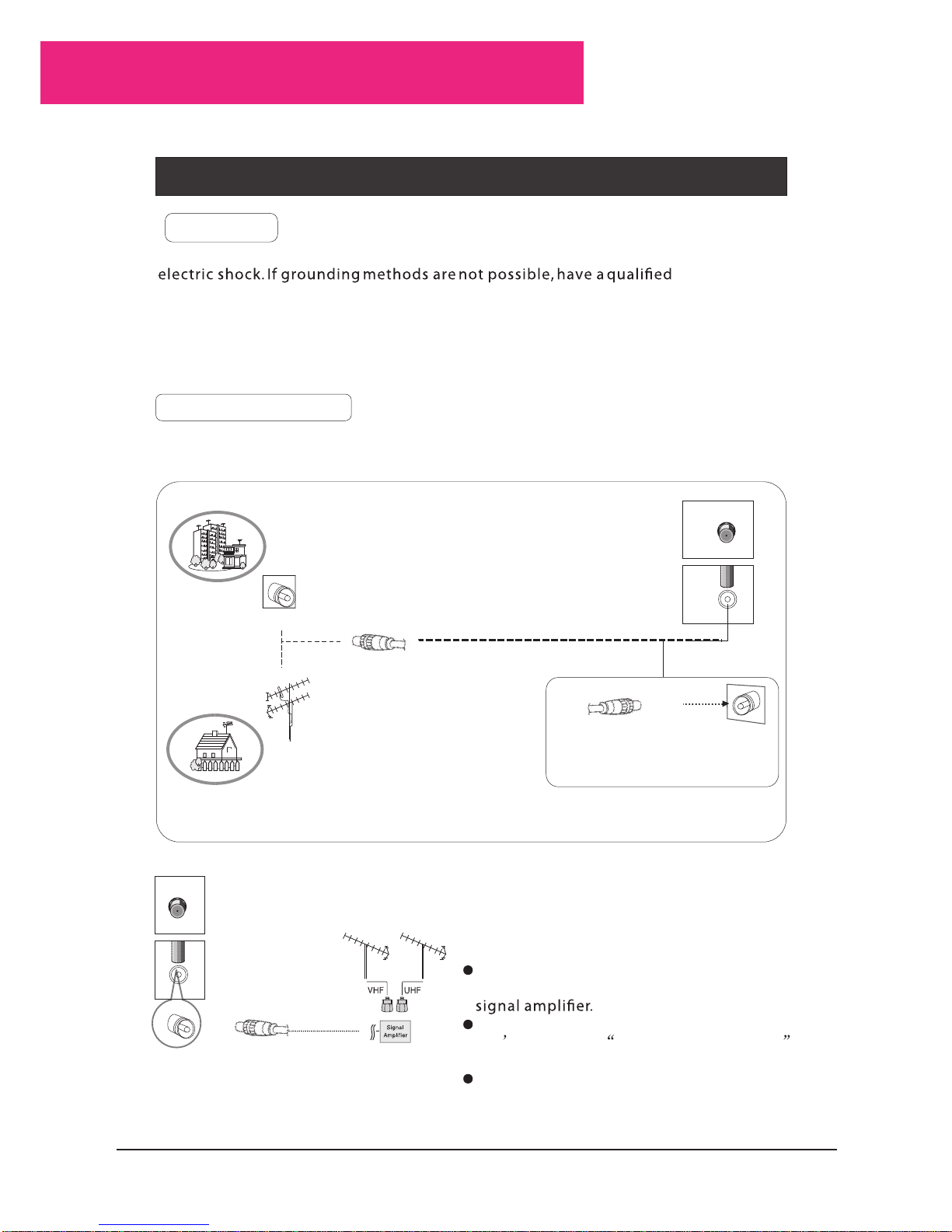

Connection Instructions
Ensure that you connect the grounding / earth wire to prevent possible
electrician install aseparatecircuit breaker. Donot try to ground the
unit by connectingit to telephone wires, lighteningrods, or gaspipes.
Grounding
External EquipmentConnections
Antenna Connection
- Antenna or Cable Servicewith aCable BoxConnections
- For optimum picturequality,adjust antennadirection if needed.
Multi-family Dwellings/Apartments
(Connect to wallantenna socket)
wall antenna
socket
VHFantenna
UHF antenna
outdoor
antenna
Single-family Dwellings /Houses
(Connect to walljack for outdoorantenna)
Be careful not to bend thebronze
wire when connectingthe antenna.
To improvepicture qualityin apoor
signal area,purchase and install a
If theantenna needsto besplit for two
TV s, install a 2-Way SignalSplitter
in the connections.
If theantenna isnot installed properly,
contact your dealer for assistance.
RFcoaxial wire(75 ohm) ANT IN
ANT IN
Note:All cables shownare just forexample.
6

Connection Instructions

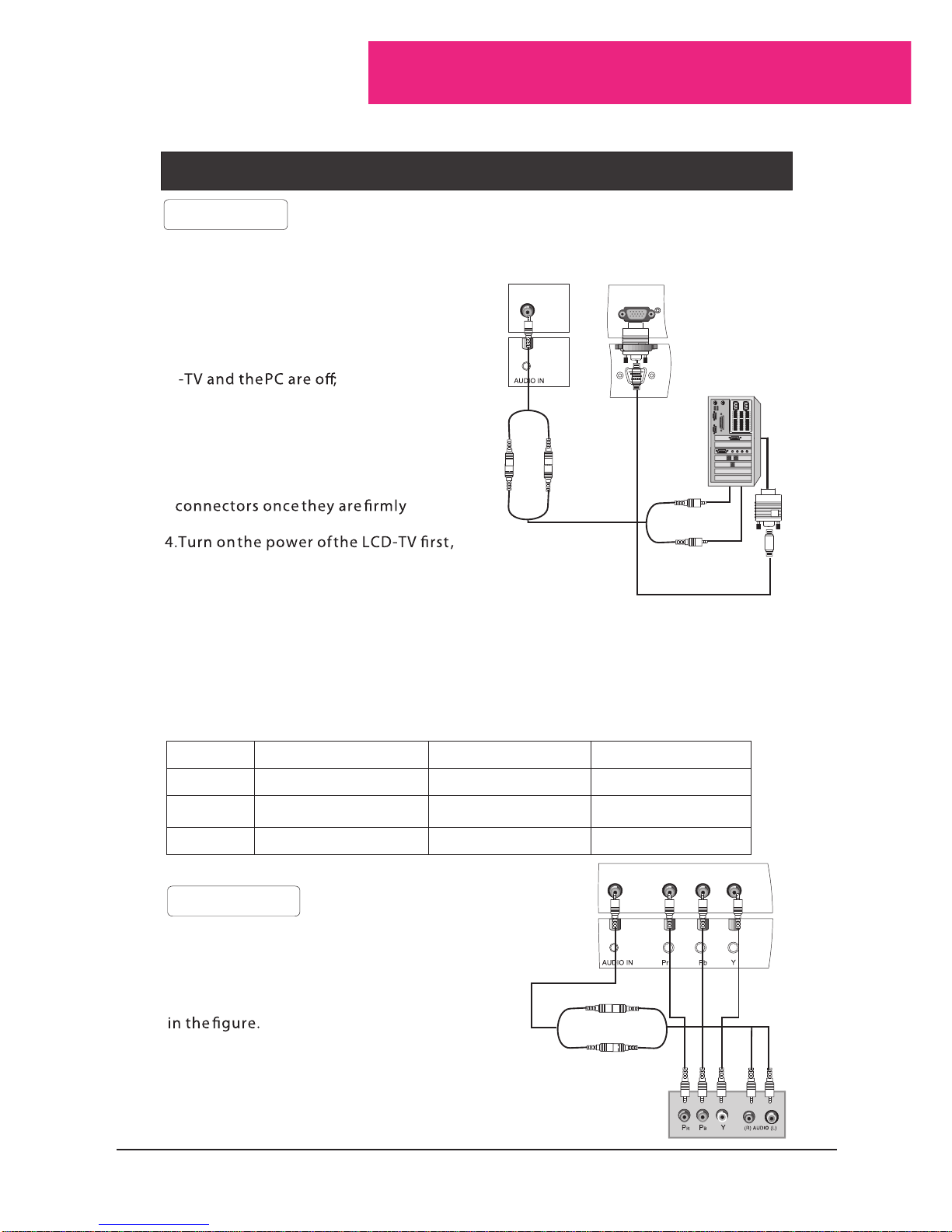

Youcan use yourLCD-TVasamonitor for yourpersonal computer usinga VGA
cable (not supplied).
VGA Input
Connection anduse steps:
1.Read the userguide supplied with
your computer and ensurethat it has
aVGAconnector;
2.Make surethat thepower of the LCD
3.Connect aDtype 15-pin VGAinterface
cable (not supplied ) to the VGAvideo
interface connector on thePC. Then
connect theother end to thePCvideo
interface connector on theback of the
LCD-TV.Tighten the screwson the VGA
connected;
and then turn on the power of thePC;
5.Press theTV/AVbutton to set thevideo
input modeof theLCD-TV to PC;
6.Check theimage onyour TV. Theremay benoise associated with theresolution,
vertical pattern,contrast or brightness in PC mode.If noiseis present,change
the PCmode to another resolution,change therefresh rateto another rate or
adjust thebrightness and contrast on the menu until thepicture isclear.If the
refresh rateof thePCgraphiccard can not bechanged,change thePCgraphic
card or consult themanufacturer of the PCgraphic card.
VGA IN
Frame frequency (Hz)Line frequency (Khz)
VGA
SVGA
XGA
640*480 31.5KHz 60Hz
800*600 37.9KHz 60Hz
1024*768 48.4KHz 60Hz
Resolution
Mode Resolution
Note: Allabove listed aresubject to VESACriteria.
YPbPr Input
How toconnect
Connect theDVD video outputs (Y, PB,PR)
to theCOMPONENT(Y, Pb,Pr) INjacks on
the TVand connect theDVD audio outputs
to theAUDIOIN jackson theTV,as shown
NOTE: If your DVD player doesnot have
component video output,use S-Video.
How touse
1. Turn on the DVDplayer,insert aDVD.
2. Usethe TV/AV button on theremote control toselect
7

Connection Instructions

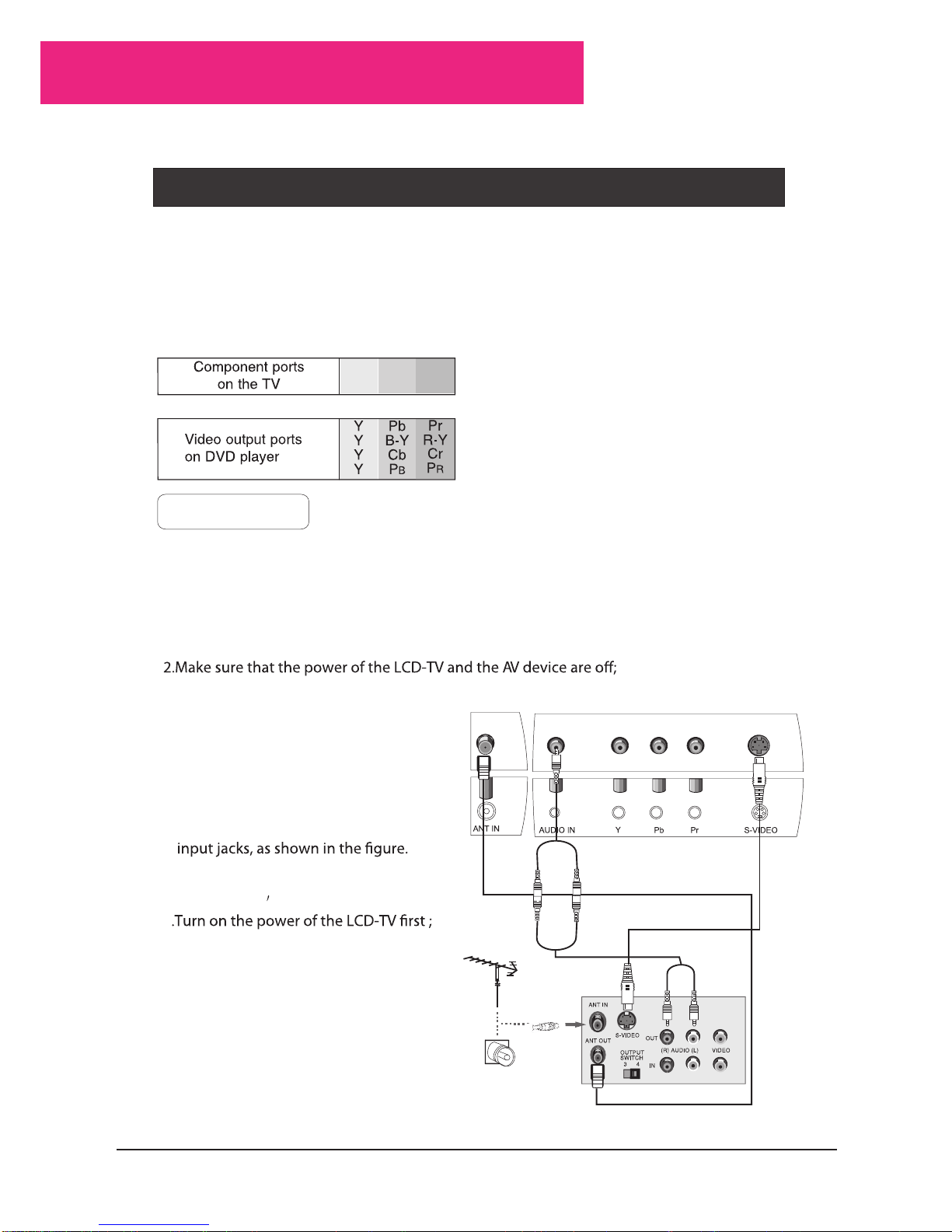

S-VIDEO Input
Connection and use steps:
1.Read the user guide supplied with your AV devices and ensure that it has
S-Video connectors;
and then turn on the power of the AV
device;
4.Press the TV/AV button to set the video
input mode of the LCD-TV to SVIDEO
mode .
Connection Option 1
Set VCR output switch to 3 or 4 and then
tune TV to the same channel number.
Connection Option 2
1. Connect the audio and Svideo cables
from the VCR's output jacks to the TV
2. Insert a video tape into the VCR and
press PLAY on the VCR. (Refer to the
VCR owners manual.)
3
- To avoid picture noise(interference), leavean adequatedistance between the
VCRandTV
.
VCR
1
2
COMPONENT (If connected to SVIDEO,select the SVexternal
input source.)
3. Refer tothe DVD player'smanual for operatinginstructions.
Component Inputports
To get better picturequality,connect aDVD player to thecomponent
input portsas shown below.
YPb Pr
8

Connection Instructions

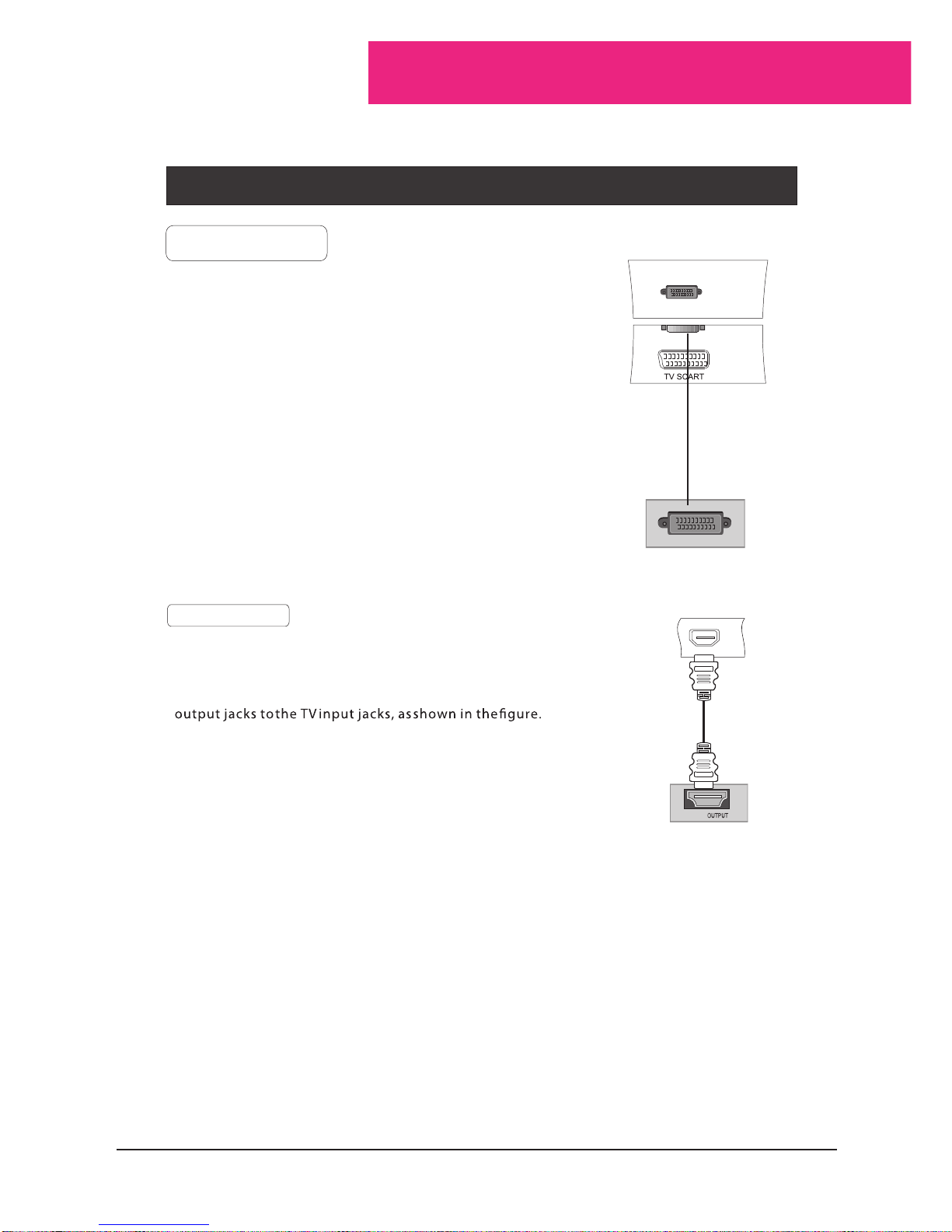

SCART Input
1.Link the scart terminal of someother equipment,
such asDVD, to the TVSCART input terminal
of thetelevision.
2.Press TV/AV to select SCARTmode.
3. PressPlay button on external equipment for
program play.
HDMI
HDMI
HDMIInput
How toconnect
Connect the cablesfrom the externalequipment's
How touse
1. Select theinput source byusing the TV/AV
button on theremote control.
2. Operate thecorresponding external equipment.
Refer to externalequipment operating guide.
SCART
External equipment
Note: Theaudio cable includedwith theTV should beused when connectedwith PC/
COMPONENT/SVIDEO.
One side connectedwith theAUDIO IN terminalon theTV and theother side withright and
left track connectedwith the correspondingterminals of otherequipment.
9

Basic OperatingInstructions
Turnon theLCD-TV
When the POWER button on the remotecontrol ispressed
and theLCD-TV isturned on,the indicator light onthe front of
the LCD-TV changesfrom red togreen. When theLCD-TV is
standby modeand theindicator light turns red.
Note:
The displayof theinput modewill disappear in about 8
seconds.
Youcan also turn onthe TVfrom standbymode bypressing
the digits(1-9) orP+/- .
Each time you press the TV/AV button, PC, COMPONENT,HDMI,TV ,SCART,
SVIDEO, will appear on the screen .
Note:
The displayof theinput modewill disappear in about 8seconds.
Audio Control
1.Press the V+ buttonto increasethe volume.Anumber will appear on
screen indicating the volumelevel.
2.Press the V- button to decrease thevolume.Anumber will appear on
screen indicating the volumelevel.
Mute
1.Press the MUTE button to mute thesound temporarily.Amute icon
appears on the screen.
2.Press the MUTE button again or V+/V- to restorethe sound.
The muteicon disappears.
P+
P-
V- V+
SLEEP DISPLAY MUTE POWER
NICAM PC AUTOAD TV/AV
PSM .SSM
OK Q.VIEW
MENU
INDEX TEXT
TIME HOLD SIZE REVEAL
SUBCODE MIX
AUTO SEARCH
UNITED KINGDOM
NO
Press V+/- to adjust among countries list on the screen
according to the country you are in, P+/- to select the option and MENU to confirm.
YES or AUTO SEARCH
NO YES
OTHER
10

Basic OperatingInstructions
Select theTV ChannelYouWant
You can use the number keys on the remote control to directly select TV
channels.
The LCD-TVcan store up to 100 channels, and you can press the keys on the
remote control or on the panel to makeaselection.
Picture Mode
Press PSM button on the remotecontrol for menu display.For desired modeas
follows:
PERSONAL STANDARD MILD FRESH
1.Press therelevant keyon theremote control if you want to choose anychannel
from 0to 9. for example:if you want to choose channel 8, just press thekey
number 0and 8.
Tochoose channels from0 to 9)
2.If youwant tochoose achannel biggerthan 9,please enterthe twodigitsofthe
channel number you want to watch within 3 seconds. for example: select
channel 16
11

Menu Operations
Picture Menu Options
1. Press MENU button to display the main menu, and V+/V-to select the
main menu .
2. Press P+/P- to scroll through the options
3. Press V+/V- buttons to make changes to the parameters
4. Press the OK button to exit the menu
because it is just an example to help you with the TV operation.
Picture quality can be adjusted for any input separately .
The picture quality on the screen can be adjusted as follows:
1. Press MENU button andV+/V- until the following menu appears
on the screen.
2. Press P+/P- button to enter the picture menu and to go up and down to
select the desired option .
PC MENU
TV/SVIDEO/SCART MENU
BRIGHTNESS
CONTRAST
SHARPNESS
COLOUR
NOISE REDUCE
HUE
BRIGHTNESS
CONTRAST
SHARPNESS
COLOUR TEMP.
30
30
30
2
COLD
50
50
2
50
OFF Only available in NTSC system
50
BRIGHTNESS
CONTRAST
SHARPNESS
COLOUR
H.POSITION
V.POSITION 30
30
30
2
30
HDMI/COMPONENT MENU
0
0
12

Menu Operations
3.Press V+/V- button to increase and decrease thelevel to adjust the
selected option toyour preference .
4. Repeat step 2and step 3 until desired picturequality hasbeen achieved .
Function:
BRIGHTNESS:Adjust the brightness ofthe picture . By increasing the level,it
will add more light to dark parts of the pictureand bydecreasing thelevel ,it will
add moredark to light partsof thepicture.
CONTRAST :Adjust the contrast of thepicture .The imagebecomes higher as
the number increase.
SHARPNESS:Adjust the amount of thedetail enhancement , theimage
sharpness risesas thenumber increases(By increasing the level,it will show
cleaner and clearerimages and bydecreasing the level,it will makepicture
smoother).
COLOUR: Press V+/V- to adjust the colour
NOISEREDUCE:Adjust the qualityof the pictureby selecting OFF,LOW,MID,HIGH.
HUE:Adjust the toneof the picture. Appearand be adjustedonly under NTSC
mode
COLOURTEMP. :Press to select thecolour temperaturefrom WARM/NORMAL/
COLD .
H.POSITION :Picture horizontal adjust
V.POSITION: Picture verticalposition adjust .
Picture MenuOptions continued
Audio MenuOptions
Sound can beadjusted for anyinput as follows:
1. Press MENU and V+/V- button until the following menu appearson
the screen
VOLUME
BALANCE
BASS
TREBLE
AUDIO MODE
AVL
AUDIO 50
50
50
50
VOICE
OFF
13

Menu Operations
Audio MenuOptions continued
Youcan adjust sound options to thelevels you prefer.
2. Press P+/P- button to enterthe audio menuand to goup and downto
select thedesired option .
3.Press V+/V- button to increase and decrease thelevel to adjust the
selected option toyour preference .
4. Repeat step2and step3until desiredsound quality hasbeen achieved ..
Function :
VOLUME:Adjust the volumeof yourTV
BALANCE: Adjust the balanceof theaudio output from left to right . When
indication valueof balanceincreases toward 100 ,sound of the left speaker
becomes weaker . When indication valueof balancedecreases toward 0,
sound of the right speaker becomeweaker .
BASS:Adjust the bassof thesound .Can onlybe adjust under PERSONALmode .
TREBLE:Adjust thetreble of thesound .Canonly be adjustunder PERSONAL
mode .
AUDIO MODE:Press V+/V- to select among PERSONAL,VOICE, MUSICand
THEATRE.
the samevolume of all thechannels .
14

Menu Operations
Function MenuOptions
Menu LanguageSelection :
The menus canbe shown onthe screen inthe selected language.First select
your language.
1.
2. Press P+/P- button to select LANGUAGE.
3. Press V+/V- button to select your desired language.
From thispoint on,the on-screen menus will be shown in thelanguage of your
choice.
Press MENU and V+/V- button until the following menu appearson thescreen
INPUT SOURCE TV
LANGUAGE ENGLISH
TXT LANGUAGE PAN EUROPEAN
TXT EAST/WEST EAST
BLUESCREEN ON
DISPLAYMODE 4:3
RESET
CHILD LOCK
FUNCTION
1. Press MENU button and V+/V- until the followingmenu appears
on thescreen.
2. Press P+/P- button to enterthe function menuand to goup and downto
select thedesired option .
3.Press V+/V- button to increase and decrease thelevel to adjust the
selected option toyour preference .
4. Repeat step 2and step 3 until desired picturequality hasbeen achieved .
Functions:
1. INPUTSOURCE:Display current mode. Thereare
to display.
2. TXTLANGUAGE: To switch theteletext languages.
3. TXTEAST/WEST: To select EASTor WEST
TV,PC,SVIDEO,
SCART ,COMPONENT, HDMI
Only available forthe special
series
INPUT SOURCE TV
LANGUAGE ENGLISH
TXT LANGUAGE PAN EUROPEAN
TXT EAST/WEST EAST
BLUESCREEN ON
DISPLAYMODE 4:3
RESET
CHILD LOCK
FUNCTION
Only available forthe special
series
15

Menu Operations
Function MenuOptions Continued
4.DISPLAYMODE: To select thedisplay mode between4:3 and FULLSCREEN
5.BLUESCREEN:To set On, thescreen will be inblue screen after 3seconds
if thereis no signal.
6. RESET:Press V+ to reset some settingsto thefactory default .
7. CHILD LOCK:Press V+ to enter it and the following appears on the screen:
If password is correctlyentered, theCHILD LOCKmenu will be entered.If the
password is not correctly entered, youwill be requiredto reenter the password
(The initial password is0000. )
PASSWORD:
- - - -
PASSWORD
CHILD LOCK OFF
CHILD LOCK
PASSWORD:The password can be changed.Press P+/- to select PASSWORD
and V+ to enter. Thescreen will display NEWPW: ----,then enter the new
password and thescreen display CONFIRMPW: ----,if thesame password
is entered correctly twice,the old password will be changed.
CHILD LOCK: Press P+/- button to select it. Press V+/-
If lockon modeis set,child lock is inactivated automatically.In such case, buttons
on thetelevision isuseless and only buttonson remotecontrol can be used,if child
lock button(button on thetelevision) ispressed, thescreen will display
CHILD LOCK. The child lock modecan beresumed byentering lock set menu,
set child lock on .
16

Menu Operations
Adjust MenuOptions
1. Press MENU and V+/V- button until the following menu appearson the
screen
ADJUST
AUTO SYNC.
PHASE
CLOCK
H. POSITION
V.POSITION
Note: This menuonly appears inPC mode .
2. Press P+/P- button to enterthe adjust menuand to goup and downto
select thedesired option
3.Press V+/V- button to increase and decrease thelevel to adjust the
selected option toyour preference ..
4. Repeat step 2and step 3 until desired qualityhas been achieved .
Functions:
AUTO SYNC:Isopted for adjustment of picture locationfrequency and phase
parameters .
50
50
50
50
PHASE:Removes any horizontal distortion and clearsor sharpnessthe displayed
characters .
CLOCK:Adjust theTFT-LCD tomatch the PCinput source
H.POSITION :Picture horizontal adjust
V.POSITION: Picture verticalposition adjust .
17
