Haier HTR21S34 User manual

14
1
27 HTR21S34

1
EnglishEnglish
Before Operation
Warning and cautions.................................................................................2
Installation................................................................................................. 4
................................................................................ 4
The remote control.................................................................................. 4
MENU functions
Video set up............................................................................................5
Audio set up............................................................................................5
Timer set up............................................................................................6
Function
Channel
Calendar
...............................................................................11
Antenna Connection
Troubleshooting guide
set up.......................................................................................6
set up.......................................................................................7
.................................................................................................9
V-CHIP set up..........................................................................................9
Others
Warranty ................................................................................................ 12
Specifications ...........................................................................................
13
Table Of ContentsTable Of Contents
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT HIGH VOLTAGE IS PRESENT INSIDE. IT IS
DANGEROUS TO MARK ANY KIND OF CONTACT WITH ANY INSIDE PART
OF THIS PRODUCT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS INTHE LITERATUREACCOMPANYING
THE APPLIANCE.
This important note is located on the rear of the cabinet.
Note to CATV system installer: This reminder is provided to call CATV system
installer s attention to section 820-40 of the NEC which provided guidelines
for proper grounding and, in particular, specifies that the cable ground shall
be connected to the grounding system of the building, as close to the point of
cable entry as practical.
Warning: To reduce the risk of fire or electric shock, do not expose this appliance to
rain or moisture.
Warning: To reduce the risk of fire or electric shock, do not expose this appliance to
rain or moisture.

English
2
EnglishEnglish
IMPORTANT SAFETY INSTRUCTIONSIMPORTANT SAFETY INSTRUCTIONS
Read all of the instructions before using thisappliance. When usingthis appliance, always exercise
basic safety precautions,including the following:
1) Save theseinstructions- The safety and operation instructions should be retainedfor future
reference.
2) All warningson the appliance and in theoperating instructions shouldbe followed.
3) Cleaning- Unplug TV from the wall outletbefore cleaning. Do not use liquid cleaners oraerosol
cleaners.
Use only adamp cloth for cleaning.
Exceptions: Some productsare designed for uninterrupted service, eg. Cable TV converters.
Unplugging such accessoriesmay result in loss of authorizationcodes. In suchcases, please follow
instructions for unpluggingsuch devices as provided by theaccessories manufacturer.
4)Attachments-Do not use attachments not recommendedby the TV manufacturer as theymay cause
hazards.
5) Waterand moisture-Do not place this TV near water, for example,near a bathtub, wash bowl,
kitchen sink, orlaundry tub, in a wet basement,or near aswimming pool.
6)Accessories - Donot place this TV on anunstable cart, stand,tripod, bracket or table. The TVmay
fall causing seriousinjury to someone, and serious damageto the appliance.Use only with a cart,
stand, tripod, bracket,or table recommended by the manufacturer`s,or sold with the TV. Any
mounting of theappliance should follow the manufacturer`s instructionsand should usea
mounting accessory recommendedby the manufacturer. An appliance and cart combinationshould
be moved withcare. Quick stops, excessive force, anduneven surface maycause the appliance and
cart combination tooverturn.
7) Ventilation- Slots and openings in thecabinet and the back or bottom are provided forventilation
and to preventoverheating. These openings must notbe locked in an built ininstallation such asa
bookcase or rack unless proper ventilationis provided or the manufacturer instructionshave been
adhered to.
8)Power sources- This TV should be operatedonly from the type of power sources indicated onthe
electrical nameplate. Ifyou are not sure of thetype of thepower supply to your home, consultyour
appliance dealer orlocal power company. For TV`s intended to operate from batterypower or other
source, refer tothe operation instructions.
9)Grounding or polarization- This TV is equipped witha polarized alternatingcurrent line plug (a
plug having oneblade wider than the other is).This plug willfit into the power outlet onlyone way.
This is safetyfeature. If you are unable toinsert the plugfully into the outlet, try reversingthe plug. If
the plug shouldstill fail to fit, contact yourelectrician to replaceyour outlet. Don`t defeat the safety
purpose of thepolarized plug.
10)Power cordprotection - Power supply cordsshould be routed so that theyare not likelyto be
walked on orpinched by items placed upon oragainst them, payingparticular attention to cords or
plugs, convenience receptacle,and the point where they exitfrom the appliance.
11) Out antennagrounding - If an outside
antenna or cablesystem is grounded so as to
provide some protectionagainst voltage surges
and built upstatic charges. Article 810 of the
National Electrical Code,ANSI/NEPA NO.70,
provided information withrespect to proper
grounding of themast and supporting structure,
grounding of thelead in wire to antenna
discharge unit, sizeof grounding conductors,
location of antennadischarge unit, connection
to grounding electrodes,and requirement for
the grounding electrode.(Fig. A)

35
3
EnglishEnglish
12)Lighting precaution -For added protection for thisTV receiver during a lighting stormor when it
is left unattendedfor long periodof time, unplug it fromthe wall outlet and disconnect the
antenna or cablesystem. This will prevent damage to the TVdue to lightingand power linesurges.
13)Object and liquidentry - Never pushobjects of any kind into thisTV through openingsas they
may touch dangerousvoltage point orshort out parts that could resultin a fireor electric shock.
Avoid spilling liquid of anykind on theTV.

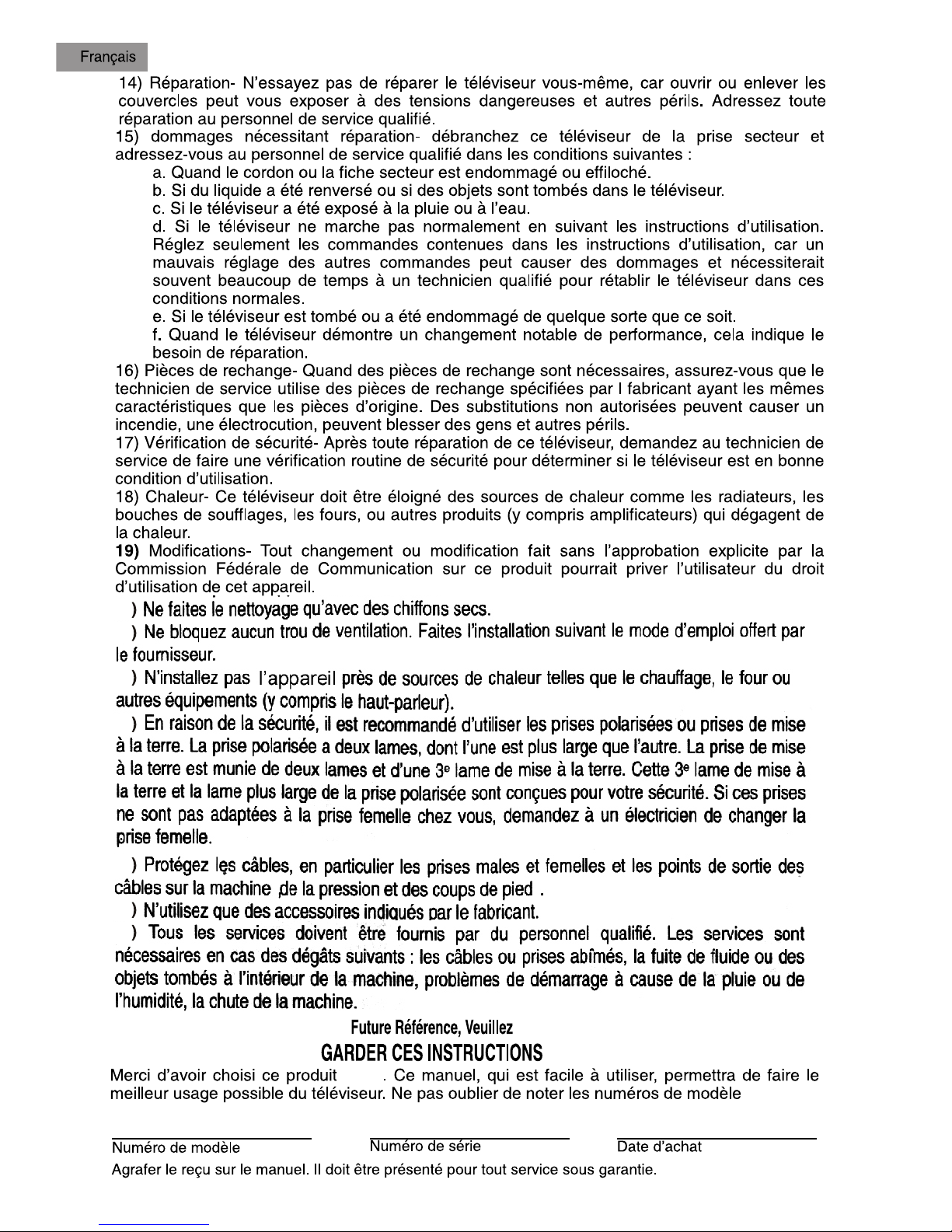

14)Servicing - Do not attempt toservice the TV by yourself, as openingor removing covers may
expose you todangerous voltage orother hazards. Refer all servicing to qualified service
personnel.
15)Damage Requiring Service - Unplug this TV fromthe wall outletand refer servicing to qualified
service personnel under the following conditions:
a. When the power supplycord or plugis damaged orfrayed.
b. Ifliquid has beenspilled, or objects have falleninto the TV.
c. Ifthe TV has been exposed torain or water.
d. If the TV doesnot operate normallyby following theoperation instructions. Adjust only those
controls that arecovered by theoperation instructions, as improper adjustmentof other control
may result indamage and willoften require extensive work by aqualified technician torestore the
TV to itsnormal operation.
e. Ifthe TV has been dropped ordamaged in anyway.
f. When the TVexhibits a distinctchange in performance; this indicates aneed for service.
16) Replacement parts - Whenreplacement parts a required, be sure the service technician uses
replacement parts specifiedby the manufacturerthat have thesame characteristics asthe original part.
Unauthorized substitutions mayresult in fire, electric shock, injury to personsor other hazards.
17) Safety check- Upon completionof any service of repairs tothis TV, ask theservice technician to
perform routine safety checks to determinethat the TVis in proper operation condition.
18) Heat -This TV productshould be situated away from heatsources such asradiators, heat
registers, stoves,or other products(Including amplifiers) thatproduce heat.
19) Modifications -Any changes ormodifications not expressly approved by theFederal
Comunications.
20)Clean only witha dry cloth.
21)Do not blockany ventilation openings. Install inaccordance with the manufacturer's instructions.
22)Do not installnear any hearsources such as radiators, heatregisters, stoves, or otherapparatus
(including amplifiers) thatproduce heat.
23)Do not defeatthe safety purposesof the polarized or grounding typeplug. A polarized plug has
two blades withone wider thanthe other. A grounding type plug hastwo blades anda third
grounding prong. The wide bladeor the thirdprong is providedfor your safety. When the provided
plug does not fit into your outlet, consultan electrician forreplacement of theobsolete outlet.
24)Protect the power cord frombeing walked on or pinched particularly at plugs, convenience
receptacles, andthe point wherethey exit from the apparatus.
25)Only use theattachments/accessories specified bythe manufacturer.
26)Refer all servicing to qualified service personnel. Servicing isrequired when the apparatus has
been damaged inany way, such aspower supply cord or plug isdamaged, liquid has been spilled
or objects havefallen into theapparatus, the apparatus has beenexposed to rain or moisture,does
not operate normally, or hasbeen dropped.
Model number Serial number Date of purchase
Staple your receipt to your manual. You will need it to obtain warranty service.
For Future Reference Please
SAVE THESE INSTRUCTIONS
Haier

1. Menu: Access/Exit Main M (Menu)
2. TV/AV:TV/AV selection
3. VOL-: Decrease sound
4. VOL+: Increase sound
5.CH-: Select next lower channel
6.CH+: Select next higher channel
7.Power: Power on/off
8. Power Indicator
9.Sensor Windows
1
2
9
8
HaierHaier
3
4
5
6
7
4
EnglishEnglish
Remote Control FunctionsRemote Control Functions
1. : Power on/off
2. MENU: Access/Exit Main M
3. CH+/-: Select next higher or lower channel
4. VOL+/-: Increase or decrease sound
5. CHANNEL NUMBER BUTTON: Direct channel
tuning (TV channel 02-69, CATV channel 01-125.)
6. RECALL: Return to previous channel
7. -/--: Digit selector
8. TV/AV: Input selection
9. CCD CCD selection
10. MUTE: Press key to activate/deactivate sound
11. P.STD: Picture preference select button
12. DISPLAY: Display receiving channel
13.EXIT Exit TV menu
6
1
789
23
45
0
RECALL
TV/AV
CCD
EXIT
MUTE
P.STD
DISPLAY
-/--
MENU CH+
VOL- VOL+
CH-
1
2
3
4
5
67
89
13
10
11 12
Front Side AV inputs
12.ANT. IN: Antenna In
13.Audio/Video outputs
14.Audio2/Video2 inputs
VIDEO
AV2IN
OUT
12
13
14
AUDIO
AV 1IN
AUDIO
VIDEO
10
11
10.VIDEO:Video input
11.AUDIO:Audio input
Rear

5
5
EnglishEnglish
Menu Functions
Video Set Up:
Pressing MENU button once willbring the Video Set Up menuon the TV.
The following isshown on yourTV screen:
Follow the below procedure tomake changes
according to yourchoice:
1.Press the CH(+) and CH(-)button to go
up and downthe menu.
2.Press the VOL(+) and VOL(-)button to
increase and decreasethe level toyour
preference for eachitem.
3.When the desiredlevel is selectedpress
menu to goback and thenby pressing
menu again willbring you tomain menu
selection.
Adjustment of Picture Quality:
To adjust the picture qualityfrom the factory presetread the following:
Picture: By increasing the level, it willadjust white areas of picture andby decreasing thelevel ,
it will adjustblack areas ofpicture.
Brightness: By increasingthe level, it will add more light todark parts ofthe picture andby
decreasing the level,it will add more dark tolight parts ofthe picture.
Color: By increasingthe level, it will adjust the low and the high levelof the picture.
Sharpness: By increasingthe level, it will show cleaner and clearerimages and bydecreasing
the level, it will make picture smoother.
Hue: You can adjustthe tint of the picture bygoing into pictureset up menu. By decreasing the
level, it will give redtint to skin color and byincreasing the color it will givegreen tint to
skin color.
Color Temp : By pressingthe VOL(+/-) buttonsto select thethree setting A)Neutral, B)Warm,
C)Cool.
Picture 70
Color 50
Sharpness 40
Hue 0
Color Temp. Neutral
Brightness 32
Video
Information to user:Thistelevision receiver is equipped with close caption decoder and
parental blocking technologyas required by the FCC.
Audio Set Up:
By pressing MENUbutton ,and thenpressing VOL(-/+) button it will bringyou to Audio
Set Up display. Youwill see thefollowing menu onyour TV screen:
Follow the procedure below toadjust the
sound quality:
Press VOL (+) button toincrease and VOL (-)
button to decreasethe level toyour preference.
Audio
Volume 45

6
EnglishEnglish
Timer Set Up:
By pressing MENUbutton ,and then pressing VOL(-/+) button it will bringyou to Timer
Set Up display. Youwill see thefollowing menu on your TV screen:
Clock: Press CH( +/-) buttonsto scroll to Clock, then press VOL (-/+) buttons to set
the hour. After setting the hour pressCH( - )button to go to minute mode and
set by usingVOL(+/-) buttons.
Time-On: Press CH( +/-) buttonsto scroll to Clock, then press VOL (-/+) buttons to
set the hour. After settingthe hour press CH( - )button to goto minute mode
and set byusing VOL(+/-) buttons.
Ch. Select: This exclusive featureswitches you to your favorite channelat the
appropriate set time. Press VOL(+) and VOL(-)buttons to select the channel.
Time-Off : Press CH( +/-) buttons to scrollto Clock, then press VOL (-/+) buttons to
set the hour. After settingthe hour press CH( - )button to goto minute mode
and set byusing VOL(+/-) buttons.
Sleep Time: This feature allowsyou to turn off television inpre-selected minutes (180,
170,160, ........,10 and0).
Remind time: Press CH( +/-) buttons toscroll to Clock, then pressVOL (-/+) buttons
to set thehour. After setting the hour press CH(- ) buttonto go to minute mode
and set byusing VOL(+/-) buttons.
Ch. Switch: This feature letsyou store your favorite channel. Once you storethe
channel number inthis function, when the set time is up, it will switch over
to the setchannel. This feature is used with the Exchangefeature. Press
VOL(+) or VOL(-)button to select the channel.
Timer
Time-On 18:00
Ch. Select 1
Time-Off --:--
Sleep Time 0
Remind Time --:--
Ch. Switch 1
Clock 17:18
Follow the procedure below toselect one of
the above options:
1.Press the CH(+) and CH(-)button to go up
and down themenu.
2.Press VOL (+) button orVOL (-) button to
select your preference.
Function Set Up:
By pressing theMENU button, and then pressing VOL-/+ button will bringyou to
Function Set Up menu. You will see the following menu onyour screen:
Setup
Language English
Background on
VNR on
Fade on
AVL on
C. Caption off
Demo Mode
Black Stretch on
1.Press the CH(+) and CH(-)button to go up
and down themenu.
2.Press the VOL(+) and VOL(-)button to
increase and decreasethe level toyour
preference for eachitem.
Follow the procedure below toselect one of
the above options:

Language: UseVOL(+/-) to select the OSD ineither English, French or Spanish.
Background: Press the VOL (+/-)buttons to select between Background ONor Background
OFF. When theBackground ON function is chosen, a moving"NO SIGNAL"sign will
be displayed ifthere is noinput signal to the set.
Black Stretch: Press VOL (+/-) buttons to turnthe Black Stretchfeature on oroff. When the
Black Stretch functionis on thescreen automatically increases the contrast range.
VNR: Press VOL (+/-) buttonsto turn theVNR function onor off. VNR isa term for Video
Noise Reduction, a built-in device on theset that reducesvideo noise interference
so the vieweris assured aclear picture.
Fade: The FADE controlallows for thepicture tube to warm up andgently turn on,
which can helpprolong the lifeof the picture tube.
AVL: AutomaticVolume Limit control reduces effectof large volumechanges such aswhen the
ads come on. Press VOL(+) button orVOL(-) button toset it ON or OFF.
C.Caption: Press VOL (+/-) buttonsto select theClosed Caption options. Closed
Captioning helps thehearing impaired withthe broadcast program, as wellas helping
children learn howto read. A built indecoder displays theaudio portion of a program
as text onthe screen whenthis option isselected.
OFF: WhenOFF is displayedon TV meansC.Caption is turned off.
CC1: When CC1displayson TV meansC.Caption is turned on.
CC2 to CC4:For other modes of videorelated broadcast information.
T1: For program guide andother information displayedby broadcasters.
(This blocks alarge portion ofthe picture on your screen).
T2 to T4:For other modes of informationdisplayed by broadcasters.
(This blocks alarge portion ofthe picture on your screen).
Note: Select CC1 for fulltranslation of the primary language such asEnglish in your
area. Select CC2 for secondary languagetranslation such asSpanish or any other
language that maybe broadcast inyour area.
Demo mode: This will displaythe main functions of the TVset.
Channel set up:
By pressing MENUbutton ,and thenpressing VOL-/+ button it will bring youto
Channel Set Up. Youwill see thefollowing display on TV screen.
Channel
Antenna TV
Skip off
Current Ch. 2
Fine
Auto Program
Channel System Auto
Follow the procedure below toselect above
options:
1.Press the CH(+) and CH(-)button to go up
and down themenu.
2.Press VOL (+) button orVOL (-) button to
select your preference.
Channel System: Press the VOL(-/+) buttons to selectthe correct channelsystem.
In general, you can setit as "AUTO" AUTO,NTSC and NTSC443 will
display in turn
Antenna: Press VOL (+) buttonor VOL(-) button to select TVor CATV.
Channel Coverage byAntenna:
Antenna Type Channel Range
VHF 2-13
UHF 14-69
CATV 1-125
EnglishEnglish
7

Skip :Press VOL(+) button orVOL(-) button to add or deletethe channel fromthe
stored memory.
Current Ch. : Press VOL(+) button to go up andVOL (-) buttonto go downto set the
channel position. The display willshow the current playing channel.
Fine: If the picture and/orsound are poor, try using the FINE TUNE feature.
Do not usethis feature unless reception is poor. Press VOL (+/-) tostart the Fine
Tune function.
Auto Program: Press VOL (+) button or VOL (-) buttonto auto programin channels.
This search automaticallyadds only the active channels in your area tothe TV's
memory. It deletes any channelson which thereis no broadcast or a poorsignal.
Note: The Auto Search functionwill scan the channels on theselected antenna
input. If the TV isconnected to cable, please selectCable under Antenna.
Calendar:
Your TVhas been designed with a calendar. By pressing MENU button ,andthen
pressing VOL-/+ button it will bring youto Calendar. Youwill see the following
display on TVscreen.
Calendar
OCT
OCT
OCT
Follow the procedure below toadjust the Calendar :
1. +/- buttonsPress the CH to select theyear
item, the month item orthe date item.
2. Press the VOL-/+buttons to change
calendar setup (1901.1.1-2099.12.31).
3. Press EXIT button toexit the calendar mode.
V-CHIP SetUP:
Press the MENU Button onyour remote control to go toPassword menu,then input
the password (0000). It will bringParental Lock set updisplay on thescreen. You
will see thefollowing menu on your screen:
Parental Lock
Parental Lock off
TV Rating
MPAA Rating
Lock Menu
Change Password
Passsword
Password ----
This function enablesyou to blockcertain TV channels in accordance tothe V-CHIP
requirement established bythe FCC.
EnglishEnglish
8

OCT
OCT
OCT
To set the V-CHIPfunction:
Select the TVRating option. You will see the TV Rating menu on your TV screen:
1.Press CH(+/-) button to goup and down
the menu.
2. Press VOL(+/-) button togo into TV
Rating and Movie Rating menus.
3.Press MENU button to setthe Parent
lock ON andParent lock OFF.
When TV ratingis selected, you will see
the following ratingtable on yourTV screen.
Rating FV
TV-Y
TR-Y7
TV-G
TV-PG
TV-14
TV-MA
D L S V
U U U U
U U U U
U U U
U
U
U
U
U
U
>
U
When Movie ratingis selected, you will see the following ratingtable on yourTV screen.
MPAARating
G U
PG U
R U
NC-17 U
X U
PG-13 U
PARENT LOCK OFF means the lock functionis turned off. If the PARENT LOCK
is in "OFF"mode then V-CHIP function will not be activeto accept theV-CHIP
signal.
PARENT LOCK ON means the lock functionis turned on. If the lock is inthe "ON"
mode then V-CHIP function isactivated to accept the V-CHIPsignal.
Password
The "Default Password" preset by the manufacturer is"0000" . Ifyou want tochange
the preset passwordto your ownpassword, just choose any fourdigits that can be
easily remembered andset. Once you set passwordfor a particularchannel, that
channel will beblocked. This channel can onlybe accessed withthe password.
LOCK Menu
AV LOCK:When it is set ON,you can not usethe AV.
PROGRAM LOCK:Whenit is set ON,the current channel is locked,you can not see
the program ofthis channel.
EnglishEnglish
9
Note: You can press CH(+/-) buttons to go up and down the menu, then press VOL(+)
button to select "B" or "U" .
Note: You can press CH(+/-) buttons to go up and down the menu, then press VOL(+)
button to select "B" or "U" .
OCT
OCT
OCT
TV Rating

V-Chip Technology:
The "V-ChipTechnology" allow you to useU.S. and Canada Moviesand TV
Programs Guide ratings to blockcertain types ofTV programs and movies.
To understand clearly about TVprograms rating codes, read thefollowing list:
U.S. TV Program Ratings
NR: Not Rated-this means that programs arenot rated orrating does notapply.
TV-Y:For all children-this type of rated programsare designed for a very young audience,
including children fromages 2-6.
TV-Y7:Directedfor older children- this type of rated programsmay include comedic violence
of mild physical, or may frighten children underthe age of7.
TV-G:General Audience-this type of rated programscontains little or no violence,no strong
language, and little or nosexual dialogue andsituations.
TV-PG:ParentalGuidance Suggested-this type of ratedprograms may contain limited violence,
some suggestive sexualdialogue and situations, and rarelanguage.
TV-14:Parents strongly cautioned-this type of ratedprograms may containsexual content,
strong language andmore intense violence.
TV-MA:Mature audience only-this type of ratedprograms may containsexual violence,
explicit sexual contentand profane language.
FV: This type of ratedprograms contains Fantasy and cartoonviolence.
Violence: This type of ratedprograms contains violence.
S: This type of ratedprograms contains sex.
L: This type of ratedprograms contains offensivelanguage.
D: This type of ratedprograms contain dialoguewith sexual content.
To understand clearly about moviesrating codes,read the following list:
U.S. Movies Rating Chart
NR: This means movie isnot rated yet. It is pending government ratingapproval.
G:General Audience-this type of movierating means allages admitted tosee the movie.
PG-13:Parents StronglyCautioned - this type of movierating means somematerial
may not beappropriate for childrenunder13.
R:Restricted- This type of movierating means childrenunder 17 ofage requires to
be with parentor guardian.
NC-17:This type ofmovie rating meansno one 17 and under admitted.
X:This type of movie ratingmeans adults only.
To understand clearly about Canadianprograms rating codes, read thefollowing list:
Canadian English Rating Chart
E:Exempt - This type ofrated programs containnews, sports, documentaries, talk
shows, music videos, andvariety of other programs.
C:This type of rated programsare intended forchildren under age 8. There isno
offensive language, nudity or sexualcontent.
C8+:This type ofrated programs generallyconsidered acceptable for children 8
years and over. There is no profanity, nudity orsexual content.
G: This type of ratedprograms generally suitable for all audiences.
PG: ParentalGuidance Suggested -inthis type ofrated programs, some material
may not besuitable for children.
14+:In this typeof rated programs, some contentmay not be suitable for viewers
under the ageof 14.Parents are strongly cautionednot to havetheir children
view 14+ ratedprograms by pre-teens and earlyteens.
18:Adults Only-this type of ratedprograms are onlyfor adult viewersonly.
EnglishEnglish
10

11
EnglishEnglish

12
English
EnglishEnglish
Warranty Information

13
29.99 X 18.77 X 18.07(inch)
22
EnglishEnglish
47.41Lbs
UHF: 14-69 CATV: 1-125
VHF: 2-13
Included :Accessories AA
HTR21S34HTR21S34
11
3W
110-220V,50/60Hz

.....................................................................17
..................................................................17
............................................................................................18
............................................................................................18
............................................................................................19
.........................................................................24
..................................................................................................14
......................................................................................19
..... ......................................................................................20
......................................................................................................20
........................................................................................21
...........................
.................................................................................................. 25
...............................................................................................26
!!
!!
14

15

16
20
21
22
23
24
25
26
Haier

1
2
9
8
HaierHaier
3
4
5
6
7
17
EXIT
CCD:
-/--
CCD
6
1
789
23
45
0
RECALL
TV/AV
CCD
EXIT
MUTE
P.STD
DISPLAY
-/--
MENU CH+
VOL- VOL+
CH-
1
2
3
4
5
67
89
13
10
11 12
VIDEO
AV2IN
OUT
12
13
14
AUDIO
AV 1IN
AUDIO
VIDEO
10
11
11.
10.
13.
12.
14. 2 2

18

19
