Haier HW80-B14876 User manual

EN
User manual
Washing machine
HW80-B14876
HW100-B14876

Thank You EN
2
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
oce.
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
Risk of injury or suocation!
Disconnect the appliance from the mains supply. Cut o the mains cable and dispose
of it. Remove the door catch to prevent children and pets to get closed in the appliance.

EN Content
3
1-Safety information........................................................................................................................... 4
2-Product description......................................................................................................................... 7
3-Control panel .................................................................................................................................... 8
4-Programmes...................................................................................................................................12
5-Consumption..................................................................................................................................13
6-Daily use ...........................................................................................................................................14
7-Eco-friendly washing ....................................................................................................................19
8-Care and cleaning ..........................................................................................................................20
9-Troubleshooting .............................................................................................................................23
10-Installation.....................................................................................................................................26
11-Technical data...............................................................................................................................30
12-Customer service........................................................................................................................32

1-Safety information EN
4
Before switching on the appliance for the rst time read the follow-
ing safety hints!:
WARNING!
Before rst use
▶Make sure there is no transport damage.
▶Make sure all transport bolts are removed.
▶Remove all packaging and keep out of children´s reach.
▶Handle the appliance always with at least two persons because it
is heavy.
Daily use
▶This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
▶Keep away children under 3 years of age from the appliance un-
less they are constantly supervised.
▶Children shall not play with the appliance.
▶Do not let children or pets come close to the appliance when the
door is open.
▶Store washing agents out of reach of children.
▶Pull up zips, x loose threads and take care for small items to pre-
vent laundry from being entangled. If necessary, use an appropri-
ate bag or net.
▶Do not touch or use the appliance when barefoot or with wet or
damp hands or feet.
▶Do not cover or encase the appliance during operation or after-
wards to allow any moisture or dampness to evaporate.
▶Do not place heavy objects or sources of heat or damp on top of
the appliance.
▶Do not use or store flammable detergent or dry cleaning agent in
close vicinity to the appliance.
▶Do not use any flammable sprays in close vicinity to the appliance.
▶Do not wash any garments treated with solvents in the appliance
without having dried them previously in the air.

EN 1-Safety information
5
WARNING!
Daily use
▶Do not remove or insert the plug in the presence of flammable
gas
▶Do not hot wash foam rubber or sponge-like materials.
▶Do not wash any laundry which is polluted with flour.
▶Do not open detergent drawer during any wash cycle.
▶Do not touch the door during the washing process, it gets hot.
▶Do not open the door if the water level is visibly over the porthole.
▶Do not force the door to open. The door is tted with a self-lock
device and will open shortly after the washing procedure is ended.
▶Switch o the appliance after each wash programme and before
undertaking any routine maintenance and disconnect the appli-
ance from the electrical supply to save electricity and for safety.
▶Hold the plug, not the cable, when unplugging the appliance.
Maintenance / cleaning
▶Make sure children are supervised if they carry out cleaning and
maintenance.
▶Disconnect the appliance from the electrical supply before un-
dertaking any routine maintenance.
▶Keep the lower part of the porthole clean and open door and de-
tergent drawer if appliance is not in use to prevent odours.
▶Do not use water spray or steam to clean the appliance.
▶Replace a damaged supply cord only by the manufacturer, its ser-
vice agent or similarly qualied persons in order to avoid a hazard.
▶Do not try to repair the appliance by yourself. In case of repair
please contact our customer service.
Installation
▶The appliance should be placed in a well-ventilated place. Ensure
a location which allows opening the door fully.
▶Never install the appliance outdoors in a damp place, or in an area
which may be prone to water leaks such as under or near a sink
unit. In the event of a water leak cut power supply and allow the
machine to dry naturally.

1-Safety information EN
6
Intended use
This appliance is intended for washing machine-washable laun-
dry only. Anytime follow the instructions given on the label of each
garment label. It is designed exclusively for domestic use inside the
house. It is not intended for commercial or industrial use.
Changes or modications to the device are not allowed. Unintended
use may cause hazards and loss of of all warranty and liability claims.
WARNING!
Installation
▶Install or use the appliance only where the temperature is above
5 °C.
▶Do not place the appliance directly on a carpet, or close to a wall
or furniture.
▶Do not install the appliance in direct sunlight or in the near of heat
sources(e.g. stoves, heaters).
▶Make sure that the electrical information on the rating plate
agrees with the power supply. If it does not, contact an electri-
cian.
▶Do not use multi-plug adapters and extension cables.
▶Make sure only the delivered electric cable and hose set are used.
▶Make sure not to damage the electric cable and the plug. If dam-
aged have it replaced by an electrician.
▶Use a separate earthed socket for the power supply which is easy
accessible after installation. The appliance must be earthed.
Only for UK: The appliance’s power cable is tted with 3-cord
(grounding) plug that ts a standard 3-cord (grounded) socket.
Never cut o or dismount the third pin (grounding). After the ap-
pliance is installed, the plug should be accessible.
▶Make sure the hose joints and connections are rm and there is
no leakage.

EN 2-Product description
7

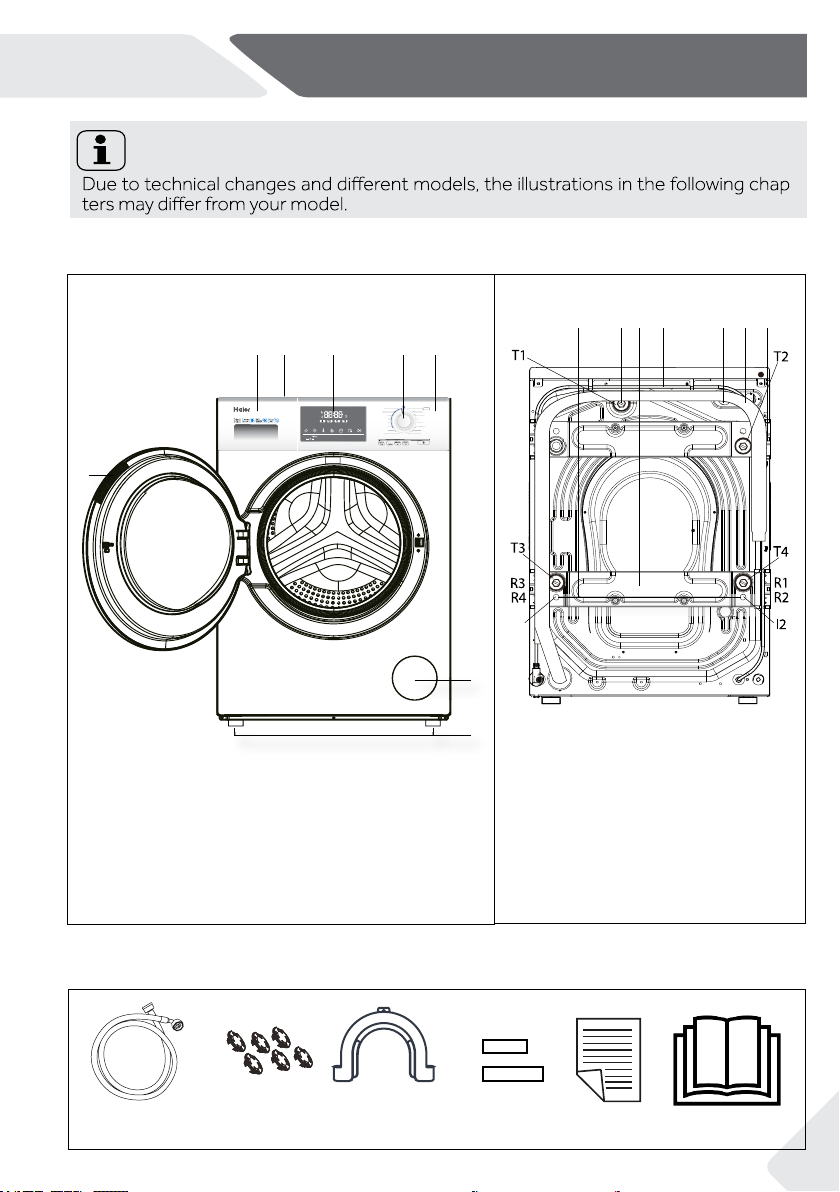

2.1 Picture of appliance
Front (Fig. 2-1): Rear side (Fig. 2-2):
2.2 Accessories
Check the accessories and literature in accordance with this list (Fig.:2-3):
Note:
-
2-3
Underwear
Sport
Anti-allergy
DailyWash
Synthetic
Mix
BabyCare Hygienic
SelfClean
Spin/Drain
Express15min
Duvet
Delicate
Wool
Temp. SpeedDelay Start/PauseExtra
Rinse
Cotton Cotton+ HW80-B14876
Steam
8kg
I1
R5
R9 R10 R6
R7
R8
1 Detergent /
Softener drawer
2 Work top
3 Display
4 Programme selector
5 Panel
6 Service flap
7 Adjustable feet
8 Door handle
1 Iron bar (I1 - I2)
2 Transportation bolts (T1-T4)
3 Rear wall reinforcement
(HW80:1 pcs;HW100:2 pcs)
4 Power cord
5 Water inlet vave
6 Drain hose
7 Rear wall reinforcement screws
(HW80:4 pcs ,R1-R4;HW100:10 p cs ,R1-R10)
2-1 2-2
Inlet hose-
assembly1) 6 Blanking
plugs
Drain hose
bracket User manual
Warranty
card
1
6
8
7
3 5
1 2 4 5 6 73
42
Noise reduc-
tion pads
2x
2x

3-Control panel EN
8
Underwear
Sport
Anti-allergy
Daily Wash
Synthetic
Mix
Baby Care Hygienic
Self Clean
Spin/Drain
Express15 min
Duvet
Delicate
Wool
Temp. SpeedDelay Start/PauseExtra
Rinse
Cotton Cotton+ HW120-B14876
Steam
3
Note : Acoustic signal
In following cases an acoustic signal sounds:
▶when pressing a button
▶when turning the programme selector
▶at the end of programme
▶in case of failures
The acoustic signal can be deselected if necessary ; see DAILY USE.

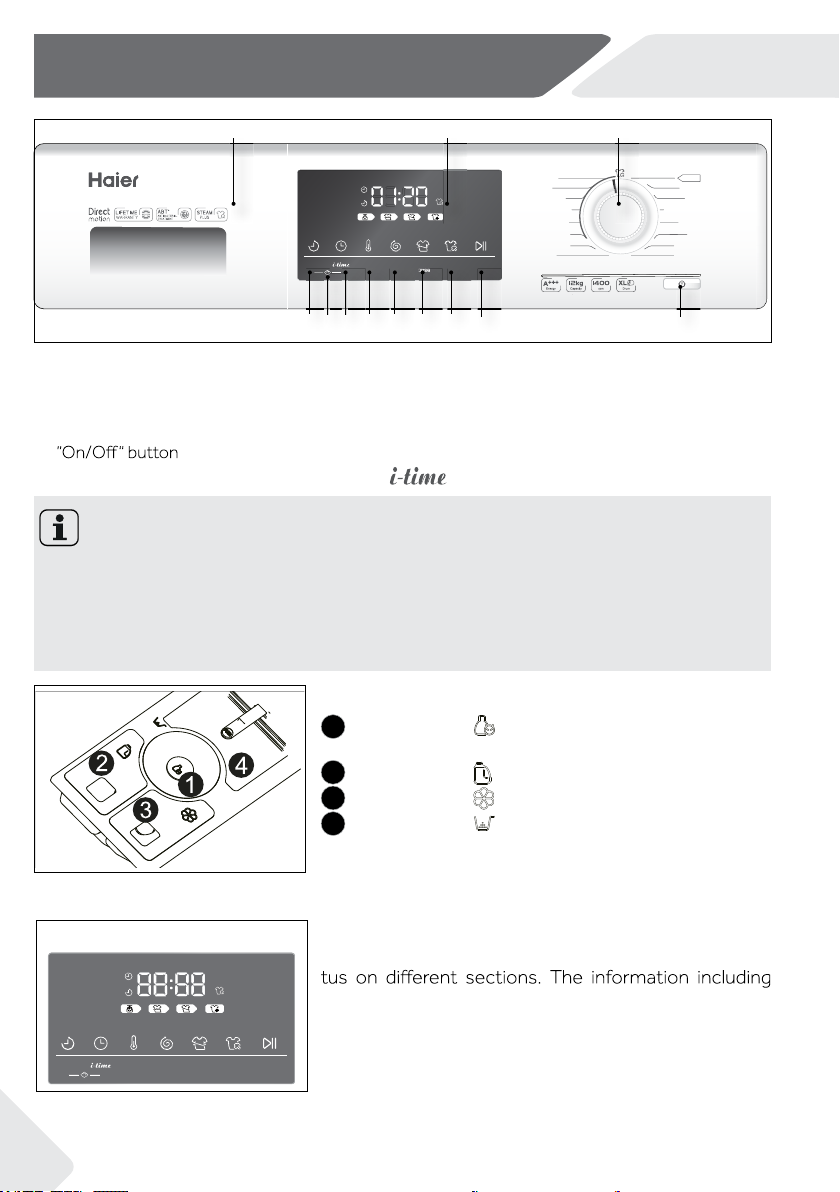

1 Detergent / Softener Drawer
2 Display
3 Programme selector
4
5 “Start/Pause“ button
6 Steam
7 Extra rinse
8 Speed
9 Temp.
10
Temp. SpeedDela Sy tart/PauseExtra
Rinse
Steam
3-2
11 Child lock
12 Delay
12 11 89 10 7 6 5
2 31
4
Function buttons
3.1 Detergent drawer
1Compartment : Bleaching agent for cotton/syn-
thetic programme.
2Compartment : Liquid detergent for programme
3Compartment : Softener, Conditioning agent etc.
4Compartment : Powder detergent for programme
Please refer to the information on detergent package
to obtain recommendation for using detergent in vari-
ous washing temperatures.

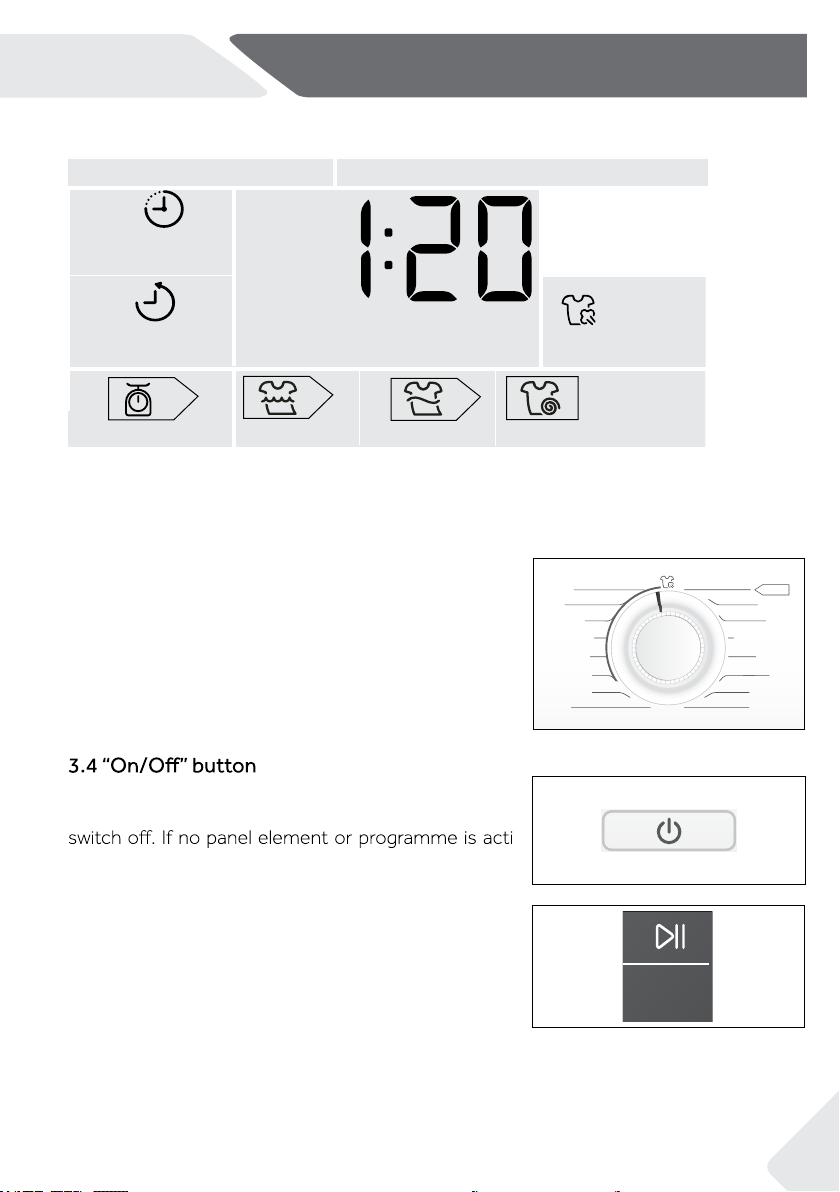

3.2 Display
If the appliance is on, display will light up the actual sta-
washing time, spin speed, temperature, etc will appear
(Fig. 3-2).
3-1

EN 3-Control panel
9
Programme status indication Programme cycle indication
Display for washing time, end time
delay as well as error codes and
service information.
Remaining opera-
tion time
Remaining delay
time
Rinse cycle
Wash cycle Spin/drainage cycle
Automatic weighing
Steam
Display symbols:
3.3 Program selector
By turning the knob (Fig. 3-3) one of 16 programmes
can be selected, its default settings will be displayed.
Press this button (Fig. 3-4) gently to switch on, the dis-
play is shining. Press it again for about 2 seconds to
-
vated after a while machine will shut down automatically
3.5 “Start/Pause“ button
Touch this button (Fig. 3-5) gently to start or interrupt
the currently displayed programme.
Underwear
Sport
Anti-allergy
Daily Wash
Synthetic
Mix
Baby Care Hygienic
Self Clean
Spin/Drain
Express15 min
Duvet
Delicate
Wool
Temp. SpeedDelay Start/PauseExtra
Rinse
Cotton Cotton+
HW120-B14876
Steam
3-3
3-4
Start/Pause
3-5

3-Control panel EN
10

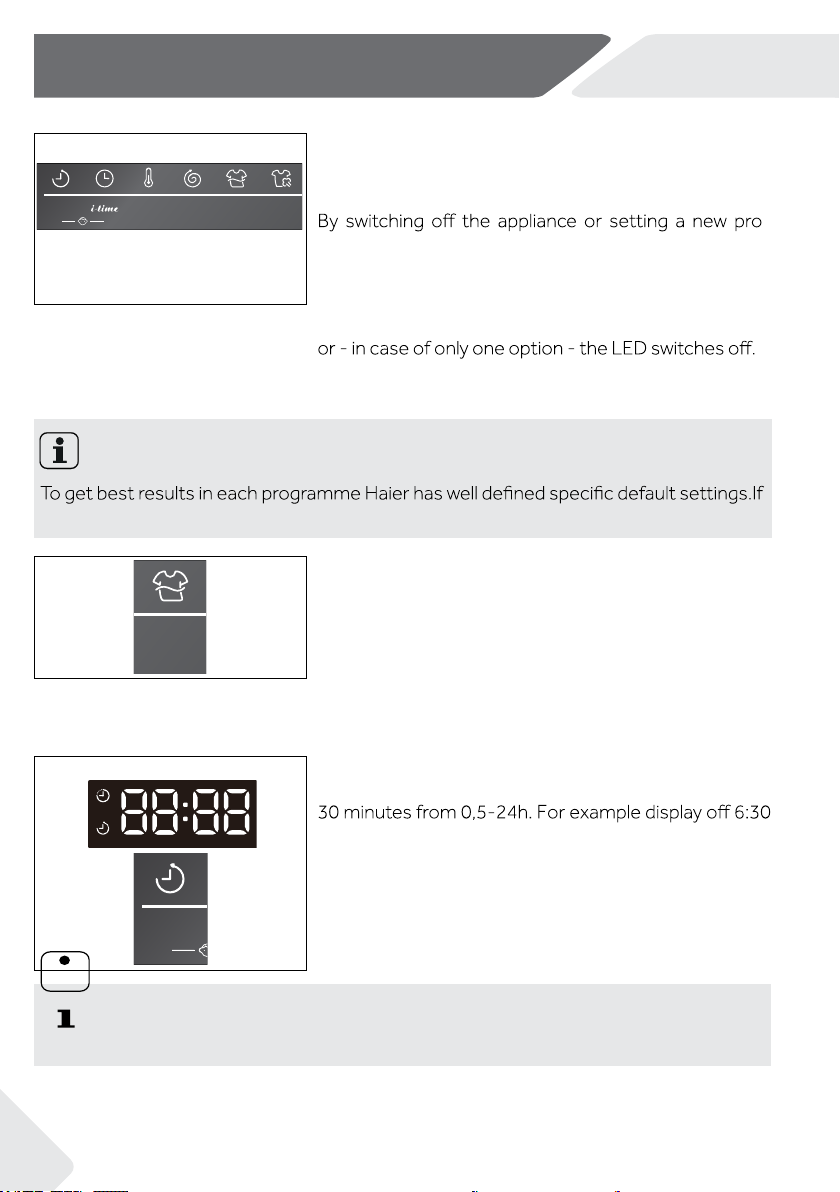

3.6 Function buttons
The function buttons (Fig. 3-6) enables additional op-
tions in the selected programme before program start.
The related indicators are displayed.
-
gram, all options are disabled.
If a button has multiple options, the desired option can
be selected by pressing the button sequentially.
To delete the setting or to cancel the setting process,
press the function button until the desired LED lights
Not all functions are available for all programmes (see
PROGRAMMES).
Note: Factory settings
there is no special requirement default settings are recommended.
3.6.1 Function button “Extra Rinse“
Press this button (Fig. 3-6-1) to rinse the laundry more
intense with fresh water. This is recommended for
people with sensitive skin.
By pressing the button several times one to three ad-
ditional cycles (display P1-P3)can be selected.
Different programme has different extra maximum
rinsing times.
3.6.2 Function “Delay”
Press this button (Fig. 3-6-2) to start the program with
a delay. End time delay could be increased in steps of
means end of programme cycle will be in 6 hours and
30 minutes. Touch “Start/Pause” button to activate the
time delay.
The time delay must be longer than the programme run
time. Otherwise the programme will start immediately.
For deactivating the time delay; rotate programme se-
lector.
Note: Liquid detergent
If using liquid detergent, it is not recommended to activate the end time delay.
Temp. SpeedDelay Extra
Rinse
Steam
3-6
Extra
Rinse
3-6-1
Delay
3-6-2

EN 3-Control panel
11
Steam
3.6.3 Function “ “
Press the “ ” button (Fig.3-6-3) can choose dif-
ferent washing time. This function does not apply to
“Delicate”,”Self Clean” and “Spin/Drain” programs.
3.6.4 Function “Steam“
Press this button (Fig.3-6-4), the steam program can
be selected. When this program is selected, the de-
fault temperature is the max temperature of this pro-
gram. You can select if you require this function when
programs “Cotton, Mix, Synthetic, Underwear, Baby Care,
Anti-allergy“ are used .When you select the program
“Steam“ the icon light up to warn you, the icon turns
the program, you can not change the temperature. If
you press the temperature button the program will be
canceled. Switch on the washing machine and select
this program. If the washing machine is working you
cannot select this program.
3.6.5 Function “Speed“
Press this button (Fig. 3-6-5) to change or deselect the
spin of the program If no value is illuminated the laundry
will not spun.
3.6.6 Function “Temp”
Press this button (Fig. 3-6-6) to change the washing
temperature of the programme.
3.6.7 Child lock
This option blocks all panel elements against activation.
After programme start press button “ ” and
”Delay” (Fig. 3-6-7 for 3 seconds simultaneously; child
lock symbol is displayed. For unlocking press again the
two buttons.
Temp.
Speed
3-6-3
3-6-4
3-6-5
3-6-6
Delay
3-6-7

4-Programmes EN
12
Max.
load
in kg
HW100/
HW80
Temperature Preset
Spin
speed
in rpm
Function
Delay Steam Extra Rinse i-time
in °C
Program Fibre typemax Preset
Cotton 10/8 902) 40 •º/•Cotton 1400 ••••
Mix 10/8 60 30 •º/•
Lightly soiled mixed
laundry of cotton and
synthetics.
1000 ••••
Synthetic 10/8 60 40 •º/•Synthetics or mixed
fabric 1200 ••••
Underwear 5/4 60 40 •º/•Cotton/Synthetic 1000 ••••
BabyCare 5/4 902) 40 •º/•Cotton/Synthetic 1000 ••••
Anti -all ergy
5/4 902) 60 •º/•Cotton/Synthetic 1000 ••••
Daily Wash 5/4 60 30 •º/•Cotton 1000 •/• •
Sport 2.5/2 40 30 •º/•Sports Wear 1000 •/• •
Cotton+ 10/8 902) 30 •º/•Cotton; standard pro-
gram for energy labelling 1000 •/• •
Delicate 1/1 30 30 •º/•Silk 600 •/•/
Duvet 2.5/2 40 40 •º/•Cotton fabrics 800 •/• •
Express
15min3) 1/1 40 * •º/•Cotton/Synthetic 1000 •/• •
Hygienic 5/4 902) 902) •º/•Cotton/Synthetic 1000 •/• •
Wool 1/1 40 * •º/•Wollen fabrics 800 •/• •
Self Clean 0 902) 902) º/ /
/
/- 600 ////
Spin/Drain 10/8 / / / / / All fabrics 1000 ////
1) Relating to dry laundry. *: Water is not heated up.
2) Choose 90 °C wash temperature only for special hygienic requirements.
3) Reduce detergent amount because programme duration is short.
1)
Detergent compartment for:
1
Bleaching agent
2
Liquid detergent
3
Softener, conditioning agent etc.
4
Powder detergent
•
Yes, º Optional, / No

EN 5-Consumption
13
Programme
Temper-
ature
in °C
HW100/
HW80
Max. load
in kg
HW100/HW80
Energy
in kWh
HW100/HW80
Water
in L
HW100/HW80
Washing time
in h:min
HW100/HW80
Spin drying
performance
HW100/HW80
Cotton+ *
40°C 5/4 0.50/0.46 46/37 4:08/3:27 B
60°C 5/4 0.56/0.56 46/37 4:12/3:30 B
60°C 10/8 0.50/0.54 59.5/53 4:12/3:30 B
* Standard programme for the Energy Labelling according to 2010/30 EU:
Cotton+ 60°C /40°C with max. spin speed setting
The standard 60°C and 40°C cotton programmes are suitable to clean normally soiled
cycle temperature.
Note: Auto Weight
The appliance is equipped with a loading recognition. At low loading, energy, water and
washing time will be reduced automatically in some programs. The display shows Auto.

6-Daily use EN
14
6.3 Preparing laundry
▶Sort out clothes according to fabric (cotton, syn-
thetics, wool or silk) and to how dirty they are (Fig.
6-3). Pay attention to the care labelling of wash-
ing labels.
▶Separate white clothes from coloured ones.
they fade or run.
▶Empty pockets (keys, coins, etc.) and remove
harder decorative objects (e.g. brooches).
▶
into a wash bag to care for this delicate laundry
(hand or dry cleaning would be better).
▶Close zippers, velco fastener and hooks, make
sure the buttons are sewn on tightly.
▶
hem, delicate underwear (Dessous) and small
items such as socks, belts, bras, etc. in a wash
bag.
▶Unfold large pieces of fabric such as bed sheets,
bedspreads etc.
▶Turn jeans and printed, decorated or color-inten-
sive textiles inside out; possibly wash separately.
6.1 Power supply
Connect the washing machine to a power supply
(220V to 240V~/50Hz; Fig. 6-1). Please refer also to
section Installtion.
6.2 Water connection
▶Before connecting check the cleanliness and clar-
ity of the water inlet.
▶Tun on the tap (Fig.6-2).
Note: Tightness
Before use check for leakage in the joints between the tap and the inlet hose by turning on
the tap.
CAUTION!
Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and
damage of clothes and appliance.
6-3
6-1 6-2

EN 6-Daily use
15
Care chart
Washing
Washable up to 95°C
normal process
Washable up to 60°C
normal process
Washable up to 60°C
mild process
Washable up to 40°C
normal process
Washable up to 40°C
mild process
Washable up to 40°C
very mild process
Washable up to 30°C
normal process
Washable up to 30°C
mild process
Washable up to 30°C
very mild process
Wash by hand
max. 40°C
Do not wash
Bleaching
Any bleaching allowed Only oxygen/
non -chlorine
Do not bleach
Drying
Tumble drying possible
normal temperature
Tumble drying possible
lower temperature
Do not tumble dry
Line drying Flat drying
Ironing
Iron at a maximum
temperature
up to 200 °C
Iron at a medial tem-
perature
up to 150°C
Iron at a low temper-
ature up to 110 °C;
without steam (steam
ironing may cause irre-
versible damage)
Do not iron
Professional Textile Care
Dry cleaning in tetra-
chloroethene
Dry cleaning in hy-
drocarbons
Do not dry clean
Professional wet clean Do not professional
wet clean
6.4 Loading the appliance
▶Put in the laundry piece by piece
▶Don‘t overload. Note the dierent maximum load according to programmes! Rule of
thumb for maximum load: Keep six inches between load and drum top.
▶Close the door carefully. Make sure that no pieces of laundry are pinched.

6-Daily use EN
16
6.5 Selecting detergent
▶
▶Use only machine wash approved detergent.
▶
▶Mind always detergent manufacturer recommendations.
.
▶Do not use dry cleaning agents such as trichloroethylene and similar products.
Choose the best detergent
Programme
Kind of detergent
Universal Colour Delicate Special Softener
Cotton L/P L/P - - o
Mix L/P L/P - - o
Synthetic L/P L/P L - o
Underwear L/P L/P - - o
Baby Care L/P L/P - - o
Anti-allergy - - - L o
Daily Wash L/P L/P L - o
Sport - - - L o
Cotton+ L/P L/P - - o
Delicate - - L - o
Duvet - - L L o
Express 15 min L/P L/P L - o
Hygienic L/P L/P L - o
Wool - - - L o
Self Clean L/P - - L o
Spin/Drain - - - - o
L = gel-/liquid detergent P = powder detergent O = optional _= no
If using liquid detergent, it is not recommended to activate the time delay.
We recomment by using:
▶Laundry powder: 20°C to 90°C* (best use:: 40-60°C)
▶Color detergent: 20°C to 60°C (best use: 30-60°C)
▶Wool/delicate detergent: 20°C to 30°C (= best use:)
* Choose 90 °C wash temperature only for special hygienic requirements.

EN 6-Daily use
17
6.7 Switch on the appliance
(Fig. 6-7).
6.6 Adding detergent
1. Slide out the detergent drawer.
2. Put the required chemicals into corresponding
compartments (Fig. 6-6),
3. Push back the drawer gently.
Note:
▶Remove detergent residues before next wash cycle from the detergent drawer.
▶Do not overuse detergent or softener.
▶Please follow the instruction on the detergent package.
▶
▶Concentrated liquid detergent should be diluted before adding.
▶Do not use liquid detergent if function “Delay“ is selected.
▶Carefully choose the programme settings according to the care symbols on all laun-
dry labels and according to the programme table.
6.8 Select a programme
To get the best washing results, select a programme
type.
Turn the programme knob (Fig. 6-8) to select the right
programme. The default settings are displayed.
6.9 Add individual selections
Select required options and settings (Fig. 6-9); refer to
Control Panel.
6-7
Note: Odour removal
amount of detergent in washing agent compartment (2) or special machine cleaner to
remove possibly corruptive residues.
6-6
Temp. SpeedDelay Extra
Rinse
Steam
6-9
Underwear
Sport
Anti-allergy
Daily Wash
Synthetic
Mix
Baby Care Hygienic
Self Clean
Spin/Drain
Express15 min
Duvet
Delicate
Wool
Cotton Cotton+
H
6-8

6-Daily use EN
18

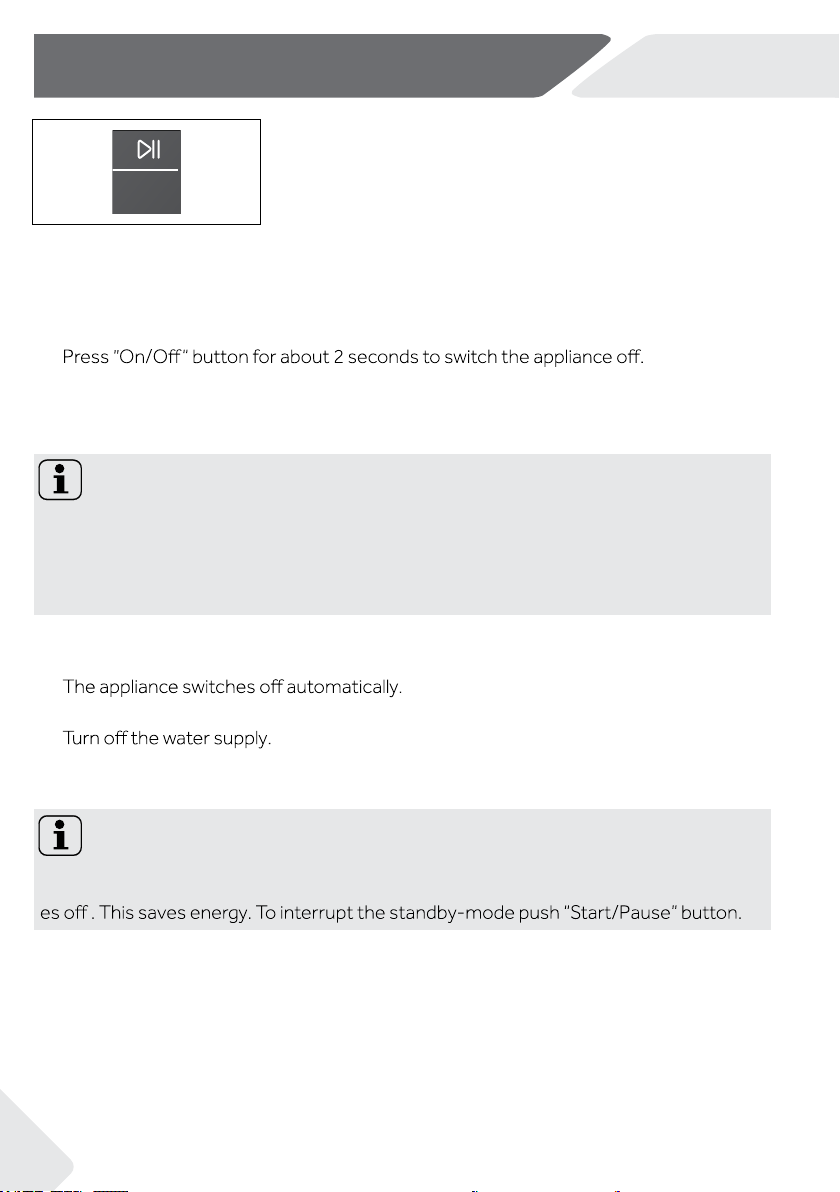

6.12 After washing
1. At programme cycle end END is displayed.
2.
3. Remove laundry as soon as possible to go easy on it and to prevent more wrinkling.
4.
5. Unplug the power cord.
6. Open the door to prevent formation of moisture and odours. Let it open while not used.
6.13 Activate or deactivate the buzzer
The acoustic signal can be deselected if necessary:
1. Switch on the appliance.
2. Select the Spin /Drain programme.
3. Press the “i-time “button and “Speed” button at the same time for about 3 seconds.
“bEEP OFF” will be displayed and the buzzer will be deactivated. For activating the buzzer
press these two buttons at the same time again. “bEEP ON” will be displayed.
6.11 Interrupt - cancel wash programme
To interrupt a running programme press gently “Start/Pause“. Press it again to resume
operation.
To cancel a running programme and all its individual settings:
1. Press “Start/Pause” button to interrupt the running programme.
Press this
2.
3. Run programme “Spin” to drain the water.
4. Select a new programme and start it.
Note: Door lock
▶For safety reasons the door is locked partially during the washing cycle. It is only pos-
sible to open the door at the end of the programme or after the programme was can-
celled correctly (see description above).
▶In case of high water level, high water temperature and during spinning it is not pos-
sible to open the door; Lock is displayed.
Note: Standby mode / energy-saving mode
The switched on appliance will go into standby mode if it will not be activated within 2
minutes before starting the programme or at the end of programme. The display switch-
6.10 Start wash programme
Press “Start/Pause“ button (Fig. 6-10) to start; appli-
ance operates according to present settings. Changes
are only possible by cancelling the programme.
Start/Pause
6-10
button gently to switch on.

EN 7-Eco-friendly washing
19
Environmentally responsible use
▶To achieve best use of energy, water, detergent and time you should use the recom-
mended maximum load size.
▶Do not overload (hand width clearance above laundry).
▶For slightly soiled laundry select the Quick Wash programme.
▶Apply exact dosages of each washing agent.
▶Choose the lowest adequate washing temperature - modern detergents are e-
ciently cleaning below 60°C.
▶Raise default settings only due to heavy staining.
▶Select max. spinning speed if a domestic dryer is used.

8-Care and cleaning EN
20

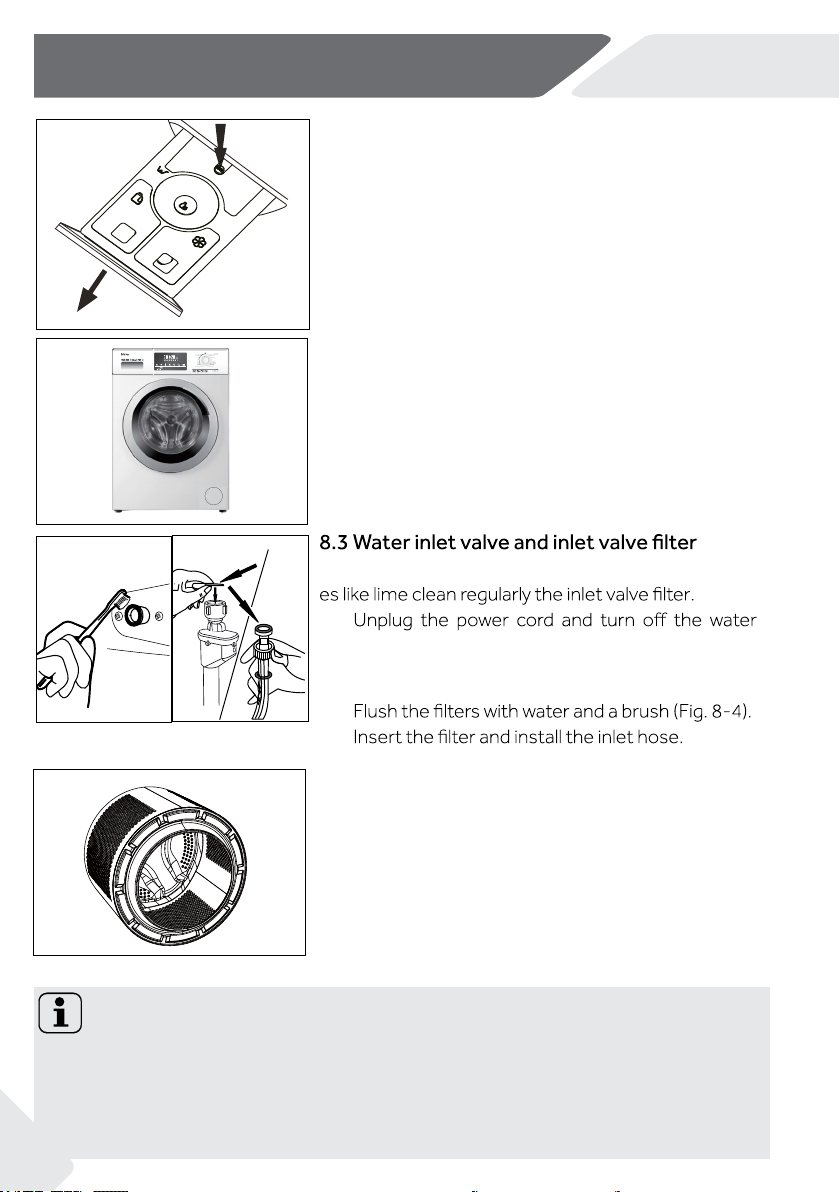

8.1 Cleaning the detergent drawer
Take always care there are no detergent residues.
Clean the drawer regularly (Fig. 8-1):
1. Pull out the drawer until it stops.
2. Press the release button and remove the drawer.
3. Flush the drawer with water until it is clean and
insert the drawer back in the appliance.
8.2 Cleaning the machine
▶Unplug the machine during cleaning and mainte-
nance.
▶Use a soft cloth with soap liquid to clean the ma-
chine case (Fig. 8-2) and rubber components.
▶Do not use organic chemicals or corrosive sol-
vents.
Note: Hygiene
For regular maintenance, we recommend running the program Self Clean within 100
cycles to avoid possible corrosive residues. Add a small amount of detergent to the de-
tergent compartment (2) - or use a special machine cleaner. If you run more than 100
cycles and do not use the Self Clean program, the Self Clean program light flashes
when the machine is in standby mode. It is recommended to run the Self Clean .
To prevent blockage of water supply by solid substanc-
▶
supply.
▶Unscrew the water inlet hose at the back (Fig.
8-3) of the appliance as well as on the tap.
▶
▶
8.4 Cleaning the drum
▶Remove accidentally washed metal parts such as
pins, coins, etc. from the drum (Fig. 8-5) because
they cause rust stains and damage.
▶Use a non-chloride cleaner for removing rust
stains. Observe the warning hints of the cleaning
agent manufacturer.
▶Do not use any hard objects or steel wool for clean-
ing.
8-1
8-5
8-3 8-4
HW70-BP12758
Wool
R
Under-wear
Sport
Anti-allergy
DailyWash
BabyCare
SelfClean
Spin/Drain
Express
15min
Duvet
Cotton
Synthetic
Mix
Cotton+
Delicate
Hygienic
capacity
7kg
°C
60
°C
40
Underwear
Sport
Anti-allergy
DailyWash
Synthetic
Mix
BabyCare Hygienic
SelfClean
Spin/Drain
Express15min
Duvet
Delicate
Wool
Temp. SpeedDela Sy tart/PauseExtra
Rinse
Cotton Cotton+ HW120-B14876
Steam
8-2
1
2
