Haier S110EHF User manual

Solar Water Heater User's Manual
Please read this manual before usage
Retain it for future reference
S75EHF
S85EHF
S110EHF
S125EHF
S150EHF
S75EHL
S85EHL
S110EHL
S125EHL
S150EHL

Ŀ¼
²úÆ·Ìصã 1
ÓÃÇ°ÐëÖª
°²×°ËµÃ÷
ÊÛºó·þÎñ
Parameters
Selection of installation location
Outline and installation dimensions
of the water heater
Assembling the bracket
Installing the water tank
Installing the electric heater
Securing the bracket
Installing the vacuum tubes
Schematic drawing of
the indoor pipeline and wiring
The operation method
FAQ
1
3
4
4
6
6
6
8
7
8
9
Precautions in pipeline installation 9
11
10
°²È«×¢ÒâÊÂÏî
Special tips
ʹÓÃ˵Ã÷
¼¼ÊõÊý¾Ý
5
11
Packing list
Connection method of water supply
pipeline in the houses where a solar
water heat coexists with another
type of water heater 10
Contents
Features
Technical data
Safety precautions
Before use
Installation instructions
Operation instructions
Electric parameter
Electricity schematic diagram
2
2
Pipelines thermal insulationnotice

²úÆ·Ìص㠼¼ÊõÊý¾Ý
²úÆ·Ìصã
1
1.SUS304 stainless steel water tank liner
The tank liner is made of SUS304 stainless steel. It is a food grade material featuring
high anti-corrosion ability and durability.
2.Effective and energy-saving heat insulation layer
Polyurethane foam material for solar water heater is adopted to ensure high heat
insulation ability and reduce heat loss to the maximum extent.
3.Al-Zn alloy coated tank shell
Al-Zn alloy coated steel plate has very strong anti-corrosion ability and excellent
weatherability. It is the most preferred outdoor protective material.
4.Tower type bracket
The bracket is made of carbon steel panel by shaping and plastic spraying. It has the
advantages of stable structure, beautiful appearance, anti-corrosion and so on.
¼¼Êõ²ÎÊý
Note: Allowableerror for aperturearea: 3%, for volume: 5%, for othersizes: 10%
Features Technical Data
Features
Parameters
Model
Size of
the
vacuum
tubes
Bracket
form
Quantity
of the
vacuum
tubes
Total
water
volume
(L)
Aperture
area
(m )
2
Volume
of
useable
water(L)
S150EHF 58X1800(mm) 19 2.53 204150 Flat roof, 45
S125EHF 58X1800(mm) 16 2.13 170125 Flat roof, 45
S110EHF 58X1800(mm) 14 1.86 150110 Flat roof, 45
S85EHF 47X1500(mm) 16 1.52 10885 Flat roof, 45
S75EHF 47X1500(mm) 14 1.33 96
75 Flat roof, 45
S75EHL 47X1500(mm) 14 1.33 96
75 Fastigium, 45
S85EHL 47X1500(mm) 16 1.52 10885 Fastigium, 45
S150EHL 58X1800(mm) 19 2.53 204150 Fastigium, 45
S110EHL 58X1800(mm) 14 1.86 150110 Fastigium, 45
S125EHL 58X1800(mm) 16 2.13 170125 Fastigium, 45

²úÆ·Ìص㠼¼ÊõÊý¾Ý
²úÆ·Ìصã
¼¼Êõ²ÎÊý
Features Technical Data
Electric parameter

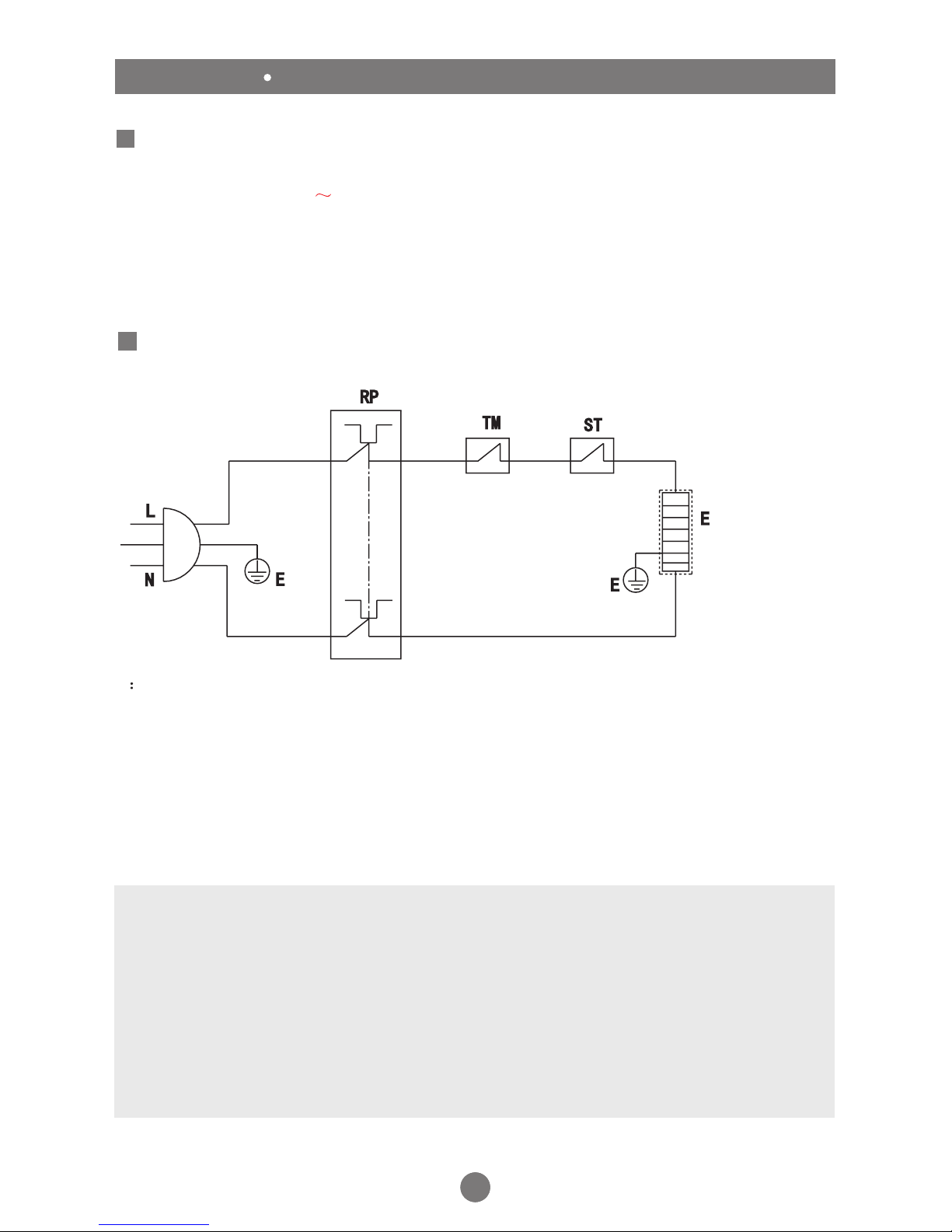

Electricity schematic diagram
22
warning:
1.Do not operate in charge when installment or maintenance;
2.Forbids below 10 years old child use alone ;
3.Before using the hot water, to stop the electric heating ;
4.
If the supply cord isdamaged, it mustbe replaced bya special cord
or assembly availablefromthe manufacturer orits service agent.
L live wrie(brown line)
N: neutral wrie (blue line)
RP: Leakage protector
TM: thermostat
ST: self-resetting thermal cut-out
EH: electric heater
E: earthing( )yellow green line
1.Power supply:220V 50Hz
2.Power:1500W
3.Leakage current:10mA/0.1S
4.Waterproof level:IPX4
H

°²È«×¢ÒâÊÂÏî
1.
2. Avoiding irradiation without water after installation, it can't be used immediately, it
should be sheltered.
3. When supplying water at the first time, it should be operated in the morning or
evening or the condition of short of light; avoid supplying water in strong sunshine,
in order to prevent vacuum tubes bombing.
4. If the water pressure isn't enough for water supply, please install an pressurize
equipment.
5. When the hot water is to be used, don't place the spray head face yourself until the
water temperature is suitable.
6. This product can supply the water depend on the fall of the tank and the water exit ,
an pressurize equipment is recommended while the water couldn't be supplied
normally due to the low fall.
7. Do not supply cold water more than once in a low solar irradiance day.
8. The energy is from solar, in the days that lack of solar such as rainy or snowy day,
the temperature of the water may can't reach your demand,
9. Make sure the evacuated tubes clean, hose off the dust and dirt on the tubes and
the reflector before the winter comes.
10. Do not startup the electric heater in the states of no water in the tank.
11.The evacuated tubes resist as low temperature as -70 when tubes is emptied.
The tank should remain filled up during continuously cloudy or snowing days in winter,
in addition every two days the cold water in the tank should be changed to prevent the
water in the tank from freezing which might damage the tubes.
When using the water heater with electric heating, ensure that electric heating and
electric tracing belt are closed.
If there isn't electric heating ,
it may not be used normally.
°²È«×¢ÒâÊÂÏî
23
Safety precautions
Safety precautions

4
Prior to installing and using the water heater, please read the following contents
carefully. Please retain this manual properly for future reference.
1.Upon unpacking, please check against the packing list in this manual.
2.Improper use of the water heater may cause serious burns. Be sure to take a
shower or wash after mixing the hot water with cold water.
3.To ensure normal use, never refit it or block the ventilation pipe and overflow pipe.
Otherwise the water tank will shrink due to negative pressure
Note: Installation of the water heater must be conducted by professional
personnel.
Before use Installation instructions
Special tips
Selection of installation location
1.In areas where lightning strikes frequently occur, the water heater shallbe installed
within the lightning proof range of the building.
2.The orientation range of the water heater: 10 degrees south by east to 15 degrees
south by west.
3.There should be no shading objects in the front of the installation location of the
water heater. If there is a shading object, the distance between it and the water
heater should be longer than L. L=H/tg(66.5 -a) (where H: height of the shading
object; a: local latitude)

°²×°ËµÃ÷
ÈÈË®Æ÷ÍâÐμ°°²×°³ß´ç
5
Model
Note: error of above dimensions: 10%
B
A
H
D
Outline dimeVnsions
(mm)
AH
Installation dimensions
(mm)
BD
1166
1306
1296
1456
1696
1166
1306
1296
1456
1696
1000
1140
1140
1300
1540
1000
1140
1140
1300
1540
1457
1457
1710
1710
1710
1457
1457
1710
1710
1710
1351
1351
1590
1590
1590
1418
1418
1645
1645
1645
Installation instructions
Outline and installation dimensions of the water heater
S75EHF
S85EHF
S110EHF
S125EHF
S150EHF
S75EHL
S85EHL
S110EHL
S125EHL
S150EHL

See the attached paper in the bracket packing case for assembly drawing and packing
list of the bracket.
Installation instructions
Assembling the bracket
Securing the bracket
1.Recommend you to secure the legs of the water heater on a foundation with
embedded irons. You can also make cement bricks, attach expansion bolts in the
cements and fix the heater legs on the expansion bolts.
2.Adjust the height of the bracket using the hard, waterproof spacers to ensure
levelness of the water tank as well as even the load of each leg.
Notes:
1.Ensure close contact of all legs of the water heater with the support plane. No legs
are allowed to hang in the air as this may cause deformation of the bracket and thus
damage the water heater.
2.In the areas where typhoon happens frequently, fix the water tank and bracket firmly
on the roof with wire rope.
3.The water heater must be installed stably and firmly. Otherwise serious damage or
injury may occur in bad weather.
Installing the water tank
1.Take the water tank from the packing case and remove the nuts and shims attached
to the bolts on both sides of the tank.
2.Insert the bolts on the bottom of the tank into the long holes in the tank support of
the bracket and attach the shims and nuts.
Notes:
1.To reduce scratching, remove the protective plastic film from the water tank after the
installation is finished. Never use sharp tools such as wallpaper knives to remove
the film.
2.The assembly of the water tank is realized by bolt connection and nut fixing. Tighten
all nuts after the assembly of whole water heater is finished.
3.When installing the water tank, please keep the center lines of the connection holes
of the vacuum tubes parallel with the oblique-pulling posts of the bracket.
6

7
Wind shroud
Corking up
position
D
Tail-holder
Tailstock
B
C
Tail-holder
Vacuum
Tailstock
Installation instructions
Installing the vacuum tubes
1.Before installing, the vacuum tubes should be protected from sunshine. Otherwise
you may be burned during installation.
2.Put the wind shroud on a vacuum tube (A).
3.Insert the vacuum tube with even force while rotating to turn it into the seal rings. The
direction of the resultant force should be consistent with the axis of the vacuum tube.
4.Put the tail-holder into the tailstock ( B) and then fasten the vacuum tube on the
tail-holder (C).
5.The insertion depth of the vacuum tube into the seal ring should be about 1cm. Push
the wind shroud onto the water tank to plug the joint (D).
6.When installing the vacuum tubes, one tube should be installed on each side of the
water tank first so that the water tank and bracket can be positioned as a whole.
Notes
1.Check if the seal rings in the tank holes are all ready, if the sealing planes are clean,
free of foreign bodies and breakage.
2.Put the wind shroud on the open end of the vacuum tube with the inclined plane
downward and to a position about 10cm to the tube end. Before installing, wet the
tube end with water to facilitate installation.
Wind
Vacuum
A
Seal ring

°²×°ËµÃ÷
8
Schematic drawing of the indoor pipeline and wiring
Installation instructions
Solar
water
heater
Tapwater
Hot water
Overflow
pipe
Electric heater wiring connection
1. Twists 4 bolts of the wiring cover, takes out the
wiring cover, and take down the insulating clamp .
2. Put the 3 1.0mm power line through the line
protection seal packing collar. According to electric
heater connection diagram, connect power line's
brown or the red to live line marking Lplace, the
yellow green line connect grounding marking place,
blue line connect to the neutral line marking Nplace.
Then with the insulating clamp to be fixed the power
line, fix up the cover with the screw .
Leakage protect plug connection
1. Twists 4 bolts of the leakage protect plug, takes out
the top cover
2. Twists 3 bolts of the power line posts, takes out the
spare 3 posts. presses separately with the specil
line ball pliers power line's 3 lines on the spare post,
then presses the post with the same color in the same
place and uses the bolt to fasten, if live line for red, then
the red line post should with brown post docking.
3. Wraps up the power line the active line buckle then put the
line buckle to the outlet line hole place. installs the top cover and fasten it with 4 bolts .
Electric heater wiring
connection diagram
Brown line
Blue line
Installing the electric heater
Leakage protect plug
connection diagram
2
Yellow
green line

1.Any form of modification of the installation structure of the water heater may cause
problems in use.
2.There are 5 ways for the heater pipeline to enter the house: flue, exhaust pipe,
penetrating hole, special pipeline well for solar water heater, embedded bushing. Of
which the first 3 are relatively popular. Before installing the pipeline, the installation
personnel will discuss the entering way and installation position of the pipeline with
you for your convenient use. During piping, the penetrating hole must have an adverse
slope and be sealed properly to prevent rain and odor from coming into the house.
3.The overflow pipe must be fastened firmly and its indoor opening must be kept
downward. The overflow water can be discharged directly into the sewer. The distance
between the opening of the overflow pipe and the sewer plane should not be more
than 15cm. Never hang the overflow pipe arbitrarily as splash of large amount of
overflow water will damage articles in your house.
4.Never install valve in the overflow pipeline to ensure rapid, accurate transfer of
Full-of-Water signal.
5.Check valves should be installed on the trunks of water supply and drain pipes that
are connected with the tap water pipe to prevent back flowing of water in the tank.
6.When several water heaters are combined, the installation plan should be validated
by a professional service person .
¹Ü·°²×°×¢ÒâÊÂÏî
Precautions in pipeline installation
Pipelines thermal insulation notice
1.Outdoor pipelines should be thermal insulated according to local climate, bad thermal
insulation may lead to heat loss.
2.The outlet used by electric tracing belt must ground reliably. The rated current of outlet
is less than 10A, ensure is connected to plug reliably.
3.Fixing electric tracing belt on cold and hot water pipes, in order to touch well, it should
be fixed with insulating tape per 500 mm.
4.Waterproof should be tied up on thermal insulating pipes, for example aluminum foil
cloth, glass fibre cloth, ethylene polyester waterproof film etc.
Note: in cold area, electric tracing belt should be fixed on outdoor pipelines. Otherwise
when the environmental temperature is lower than -5 , any innocent thermal insulation
will lead to the pipelines frozen, resulting in the pipelines damage.
°²×°ËµÃ÷
Installation instructions
9
4. After connected the line, you can debugging it according to the use notice
explanation on the plug .

°²×°ËµÃ÷ ʹÓÃ˵Ã÷
Connection method of water supply pipeline in the houses
where a solar water heat coexists with another type of water
heater
1.Before using hot water, valves K1, K2 and K3 must be in closed state;
2.To fill water, open valve K1. When water flows out from the overflow pipe, it indicates
the water tank is full. At this time, close valve K1.
3.To use hot water, open valve K2. Hot water will come out from the shower nozzle.
If it is too hot, open valve K3 to adjust the water temperature.
4.Close valves K2 and K3 after use.
Installation instructions Operation instructions
Solar water heater
Tothe tank of the
solar water heater
Another type
of
water heater
Tapwater
When a solarwater heat coexists
with another typeof water heater,
check valves mustbe installed on
both cold andhot water pipesto
avoid damage causedby reverse
water flow fromtank of another
heater, whichhas higher pressure,
to that ofthe solar heater.
The operation method:
10
Electric heater
Vent
Overflow
Overflow pipe
Water inlet
and outlet
Tap water
Check
valve
Plug

ÒÉÄѽâ´ð
Troubles
No outlet water
No water comes
from the overflow
pipe
Too low
temperature
of the hot water
Possible reasons
The water tank becomes empty
Disconnection or blockage of the
pipeline or joints
Broken vacuum tube(s)
Water supply is stopped or water
pressure is too low
Disconnection or break of the pipe
line or joints
The water supply valve is not
closed tightly or it is damaged
There is shading object in the front
of the vacuum tubes and they
cannot collect heat effectively
Too much dust on the vacuum
tubes
Solutions
Add water according to the time
required in the instruction manual
Repair the pipeline or remove
the blockage
Replace the broken tube(s)
Wait until the water supply
becomes normal
Repair or replace the pipeline
or joints
Close the valve tightly or replace
the damaged valve
Remove the shading object or
relocate the water heater
Clean the surface of the
vacuum tubes
ʹÓÃ˵Ã÷
11
Main components
Water tank
Water
tank
Vacuum tube
Left tank support
Right tank support
User's Manual
Quantity
Bracket
Tank
support
case
1
1111
16 19
Operation instructions
FAQ
Packing list
Leakage protect plug

Rev: 1
Specific number: 0040502052A
