Haifuan S100BMF User manual

HAIFUAN
S100BMF USER MANUAL

1
1. Product instruction
Item No.
HFAS100BMF / HFAS100BRM
Dimension
137*60*12MM / 5.39 X 2.36 X 0.47”
Material
ZincAlloy
Weight
1kgs / 2.2 pounds
1.1 Standard Single latch :
Backset is adjustable between 60mm(2-3/8”) and 70mm(2-3/4”)

2
1.2 Technical Specification
Card type
Mifare-1 Card(13.56Mhz Frequency)
Card inductive distance
3cm / 1.18”
Unlock method
Card, Code, Code + Card, Mechanical key
Code length
4-8 digits
User capacity
130 users
Power supply
4pcs AA batteries / CR2032 3V(remote control version)
Static current
≤30uA
Working current
≤200mA
Suitable Door Thickness
38-50mm / 1.5”-1.97”
Backup power terminal
9V(at the bottom of front plate)
Handle Orientation
Reversible
Initial Master code
123456
Initial Debug code
123(After installed, press “123”,then”#”to open door directly,
automatically become invalid after changing master code)
Auto Lock
Press “#”for 2 seconds to lock the door when you are outside.
2 Installation Instructions
Product Structure Map

3

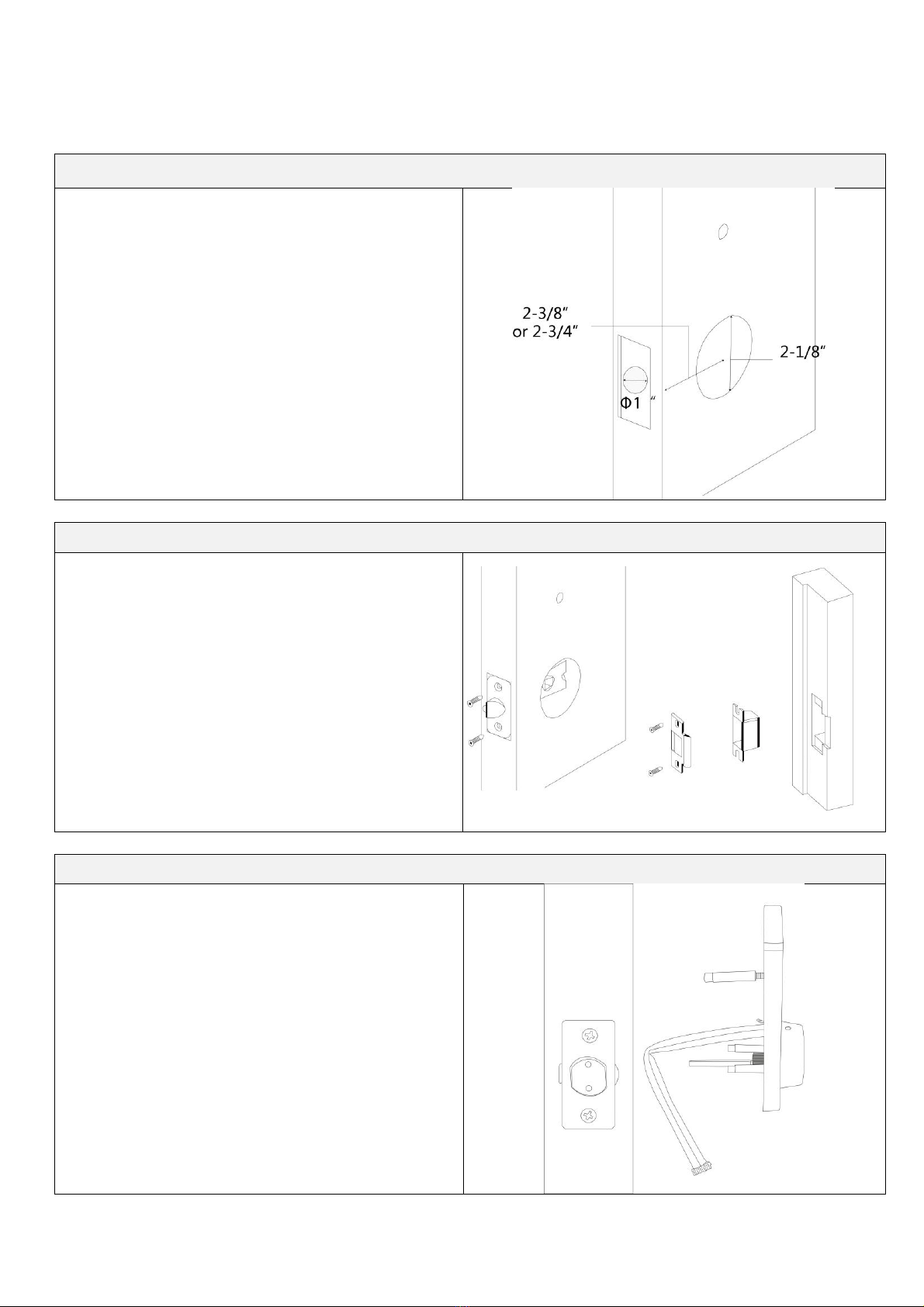

2.1 Drill Holes
2.1.1 Measure up approximately 36”from the door bottom.
Apply template to the door edge. Mark center of door edge
as indicated on template.
2.1.2 Mark center hole on door face through guide on
template for 2-3/8”(60mm) or 2-3/4”(70mm) basket.
2.1.3 Drill 2”or 2-1/8”hole through door face as marked for
lockset. It is recommended that holes be drilled from both
sides to prevent splitting.
2.1.4 Drill 31/32”or 1” hole in center of door edge for latch.
Check template for correct size for your latch application.
2.2 Install Latch And Strike Plate
2.2.1 Insert latch in the hole keeping it parallel to face of door.
Mark outline and remove latch.
2.2.2 Chisel 1/8”deep or until latch face is flush with door edge.
2.2.3 Insert latch with the beveled edge of the latch facing the
door frame and tighten screws.
2.2.4 Install strike plate on door jamb accordingly.
2.3 Install Front Plate
2.3.1 Fix one connecting screw tube on the front plate.
2.3.2 Place water proof rubber under the front plate.
2.3.3 Install front plate to door, pull the data line through door
hole.

4
2.4.Install Inner Back Plate
2.4.1 Install the inner back plate with three screws.
2.4.2 Pull the data line out.
2.5.Install Back Plate
2.5.1 Connect the data line to back plate.
2.5.2 Fix back plate with three screws
2.5.3 Install 4*AA alkaline batteries.
2.5.4 Put the battery case on.
2.6 Test the Lock
2.6.1 Test the lock and make adjustment if necessary.
2.6.2 If you buy the remote control version of S100, please note
that a CR2032 3V button cell is required for the remote
control.

5
3 Operating Instruction
3.1Reset the Master Code
Operating steps
Locks status
Remove all the batteries and remove the
back panel from door, put all the batteries
back and keep the data line connected
with the front panel.
none
Remove one battery then put it back
You will hear a beep
Turn the L/R switch to opposite position
and then turn it back (The L/R switch is at
the bottom of the plate)
You will hear four beeps if operation successful. Now the
master code has been reset to 123456. And initial code to
open the lock is 123.
Note: If you don’t hear a beep when put the battery back, then touch the front panel to let it work, now
remove one battery, then put the battery back, you will hear it now, and turn the L/R switch.
If you just get this lock and haven’t set any code, then skip this step. This operation will clear all the
users added before.
3.2 Change Master code, 4-8 digits (eg.:12345678) （11#）
Operating steps
Locks status
1
Input the initial master code: “123456”,then
press “#
You will hear two beeps.
2
Input “11” then “#”within 10 seconds(before
the indicator light extinguishes)
You will hear two beeps.
3
Input “New Master Code”(4-8digits) then “#”
You will hear two beeps.
4
Input “New Master Code”again, then “#”.
You will hear 4 beeps, indicator light extinguishes, New
Master Code set successful.
3.3.Add Normal User （01#）
3.3.1 Set user group before add normal user, user group consist of 3 digits, from 001 to 130, and each
number can only be used once. For example, if you want to set up 2 code users, 2 card users. You
need 4 groups, such as 001,002,003,004.
3.3.2 You can set up 130 Users in total, include Code User, Card User, Code&Card combination User.
3.4 Add Code User
Operating steps
Locks Status
1
Input the “Master Code” then “#”
You will hear two beeps.
2
Input “01” then “#”within 10 seconds(before the
indicator light extinguishes)
You will hear two beeps.
3
Input “user group number”such as “001”within
10 seconds(before the indicator light extinguishes)
then “#”(Group number can only be used once.
Next time if you want add another user, you need to
use another group, such as “002”,”003”….”130”)
You will hear two beeps.
4
Input “Code” then “#”within 10 seconds(before the
indicator light extinguishes)
You will hear two beeps.

6
5
Press “#” 2 times.
First “#” “beep” twice, Second ”#” “beep” 3
times, Code added successful.
6
After 15 seconds, or press”#”, Exit
Long time of ”beeps”, indicator light extinguish.
Open door operation
Operating steps
Locks status
1
Input “Code” then “#”
You will hear one beep, and indicator light keeps in blue, you can
also hear the sound of lock motor started, turn the handle to open
the door.
2
After 5 seconds
You will hear two beeps, red light flashes twice, back to locked
status, and the indicator light extinguishes.
3.5 Add the Card User.
Operating steps
Locks status
1
Input “Master Code” then “#”
You will hear two beeps.
2
Input “01” then “#”within 10 seconds(before the
indicator light extinguishes)
You will hear two beeps.
3
Input “group number”such as “002”within 10
seconds(before the indicator light extinguishes )
then “#” (Group number can only be used once, if
you already use 002, then input 003 or others that
is still valid)
You will hear two beeps.
4
Put the “Card” close to the card read area within 10
seconds before indicator light extinguishes (the
card read area is the place where number keys is )
then “#”
You will hear two beeps.
5
Press “#” 2 times.
First “#” “beep” twice, Second “#” “beep” 3
times, card added successful.
6
After 15 seconds, or press”#”, Exit
“beep” twice, red light flashes twice, back to
locked status, and the indicator light
extinguishes.
Open door operation
Operating steps
Locks status
1
Get the Card close to the card
read area.
You will hear one beep, and indicator light keeps in blue, you can
also hear the sound of lock motor started, turn the handle to open
the door.
2
After 5 seconds
“beep” twice, red light flashes twice, back to locked status, and the
indicator light extinguishes.

7
3.6. Add Code and Card Combination User
Operating steps
Locks status
1
Input the “Master Code” then “#”
You will hear two beeps.
2
Input “01” then “#”within 10 seconds(before the
indicator light extinguishes )
You will hear two beeps.
3
Input “group number”such as “003”within 10
seconds(before the indicator light extinguish ) then
“#” (Group number can only be used once, if you
already use 003, then input 004 or others that is
still valid)
You will hear two beeps.
4
Input “Code”within 10 seconds before indicator
light extinguishes then “#”
You will hear two beeps.
5
Put the “Card” close to the inductive place within
10 seconds before indicator light extinguishes, then
“#”
You will hear two beeps.
6
Press “#” 2 times.
First “#” “beep” twice, Second ”#” “beep” 3
times, card and code combination user added
successful.
7
After 15 seconds, or press”#”, Exit
“beep” twice, red light flashes twice, back to
locked status, and the indicator light
Note: You must set the code first, and then the card.
Under this Mode, You need to use the Card together with the Code to open the door.
Open door operation :
Operating steps
Locks status
1
Get the “Card”close to the
inductive place.
You will hear two beeps, front light flash blue, and keypad illuminate.
2
Input the “Code”then “#””
You will hear one beep, and indicator light keeps in blue, you can
also hear the sound of lock motor started, turn the handle to open
the door.
3
After 5 seconds
“beep” twice, red light flashes twice, back to locked status, and the
indicator light extinguishes.
4. Normal User Block, Re-start, and Delete
4.1.Normal User Block：（02#）
Operating steps
Locks status
1
Input the “Master Code” then “#”
You will hear two beeps.
2
Input “02”within 10 seconds(before the indicator
light extinguishes ) then “#”
You will hear two beeps.
3
Input “Group No.”within 10 seconds(before the
indicator light extinguish ) then “#”(Group No. which
you want to block), you can also input another
group no. and then press # if you want to block it at
the same time.
You will hear two beeps. Block up successful.

8
4
After 15 seconds, or press”#”, Exit
Long time of ”beeps” ,indicator light extinguish.
4.2. Normal User Re-start.（03#）
Operating steps
Locks status
1
Input the “Master Code” then “#”
You will hear two beeps.
2
Input “03” then “#”within 10 seconds(before the
indicator light extinguishes )
You will hear two beeps.
3
Input “Group No.”within 10 seconds(before the
indicator light extinguishes) then “#”(Group No.
which you want to re-start) you can also input
another group no. and then press # if you want to
block it at the same time.
You will hear two beeps. User re-start successful
4
After 15 seconds, or press”#”, Exit
Long time of ”beeps” , indicator light extinguish.
4.3 Normal User Delete：（44#）
Operating steps
Locks status
1
Input the “Master Code” then “#”
You will hear two beeps.
2
Input “44”within 10 seconds(before the indicator
light extinguishes) then “#”
You will hear two beeps.
3
Input “Group No.”within 10 seconds(before the
indicator light extinguishes) then “#”(Group No.
which you want to Delete) you can also input
another group no. and then press # if you want to
delete it at the same time.
You will hear two beeps. User Delete successful.
4
After 15 seconds, or press”#”, Exit
Long time of ”beeps” , indicator light extinguish.
Special note:
If there are some people around you while operating the lock, and you don’t want to let them know your
code. You can input some digits before your code to confuse them. For example, your code is “123456”,
you can input “5465445”+“123456”to open the lock.
The lock will be blocked for 5 minutes if you continue to input 3 wrong codes.
When the door is open, you can press “#”for 2 seconds to lock the door.
Program Code List
Code No.
Function
1
11
Modify Master Code
2
01
Add Normal User
3
02
Block up Normal User
4
03
Re-start Normal User
5
33
Add A Single Use Code
6
44
Delete Normal User

9
Video Instruction
Video content
link
1
Installation and operation for 200MF/TM
https://youtu.be/NYlfbNyv5-c
2
Program code and remote control for S200RM
https://youtu.be/0vlkxHAVBu0
