HAKO Minuteman Rush 100 Parts list manual

Parts and Instruction Manual

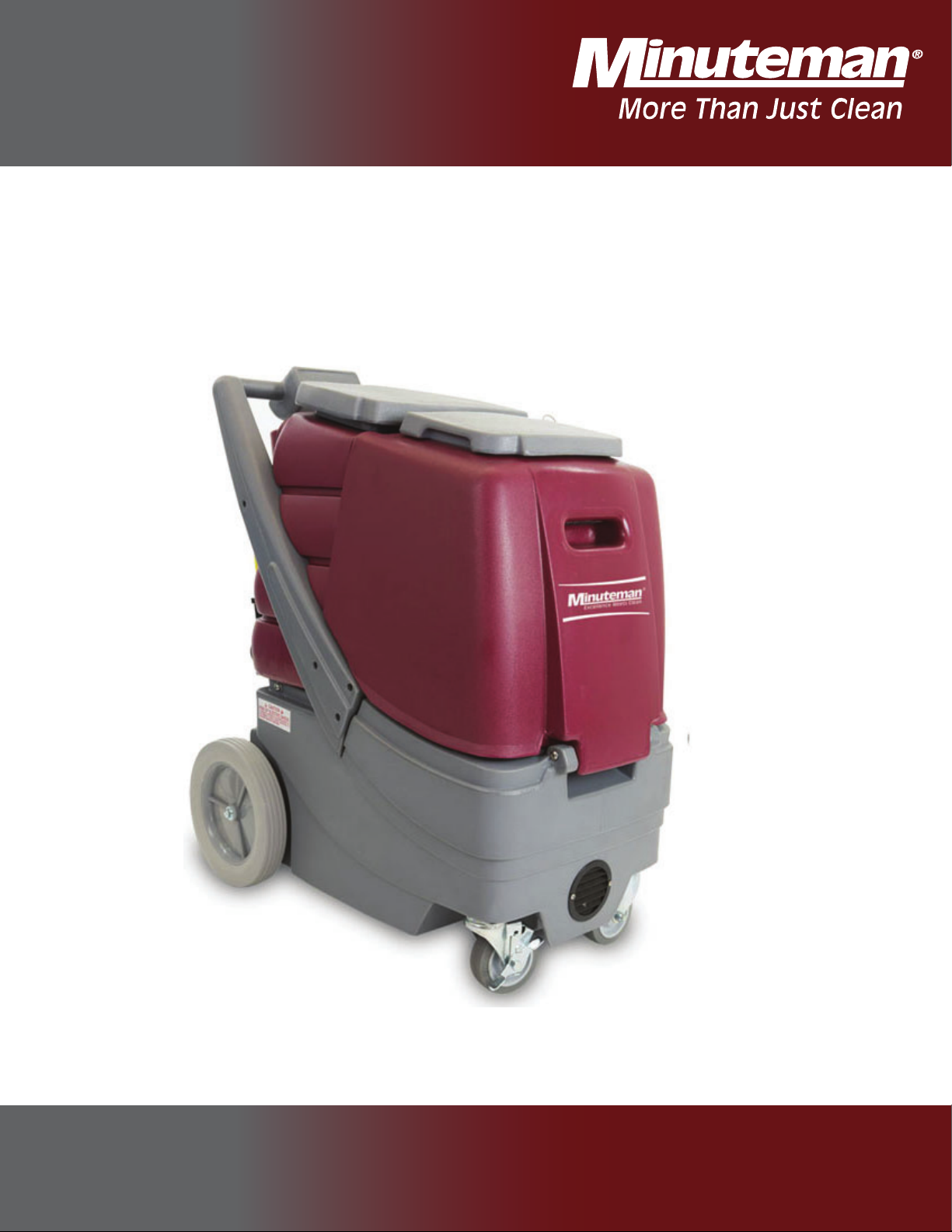

R100H Rush Carpet Extractor
Minuteman International, Inc.
A Member of the Hako Group
988756 Rev C 06/23

Page 2 R100H Rush Carpet Extractor 988756 Rev C 06/23
Model R100H (115V and 220V)
TECHNICAL SPECIFICATIONS
Models Rush 100,
^ŽůƵƟŽŶdĂŶŬ 12 gallon
ZĞĐŽǀĞƌLJdĂŶŬ 11 gallon
sĂĐƵƵŵDŽƚŽƌƐ Single 3-stage
^ŽůƵƟŽŶWƌĞƐ-
sure 100 psi
tĂƚĞƌ>ŝŌ 117”
dĂŶŬŽŶƐƚƌƵĐ-
ƟŽŶ Polyethylene
ĂƐĞƉůĂƚĞ ¼” aluminum
ZĞĂƌtŚĞĞůƐ 10” non-marking
ĂƐƚĞƌƐ 4” locking
WŽǁĞƌŽƌĚ ϱϬŌĚĞƚĂĐŚĂďůĞ
ŝŵĞŶƐŝŽŶƐ 35”H x 31”L x
18”W
tĞŝŐŚƚ ϵϬůďƐ
^ŚŝƉƉŝŶŐtĞŝŐŚƚ ϭϬϲůďƐ
^ŚŝƉƉŝŶŐŝŵĞŶ-
ƐŝŽŶƐ
ϯϲϱ,džϯϭϱ>dž
19”W
ůĞĐƚƌŝĐĂůƌĂǁ ϭϴϴĂŵƉƐ
,ĞĂƚĞƌ ĞƚĂĐŚĂďůĞʹ
1000 W
sĂĐƵƵŵ^ŽůƵ-
ƟŽŶ,ŽƐĞ 15’
ĂƌƉĞƚtĂŶĚ ^ŝŶŐůĞ:Ğƚʹ^ƚĂŝŶ-
less Steel

Page 3
R100H Rush Carpet Extractor 988756 Rev C 06/23
Table of Contents
TECHNICAL SPECIFICATIONS ........................................................................................................... 2
INSPECTION......................................................................................................................................... 4
SAFETY INSTRUCTIONS..................................................................................................................... 5
GROUNDING ........................................................................................................................................ 7
MAINTENANCE .................................................................................................................................... 8
MACHINE OVERVIEW........................................................................................................................ 10
ACCESSORY HEATER....................................................................................................................... 11
CLEANING CARPET .......................................................................................................................... 14
CLEANING UPHOLSTERY................................................................................................................. 15
UPPER ASSEMBLY............................................................................................................................ 16
UPPER ASSEMBLY BOM ................................................................................................................. 17

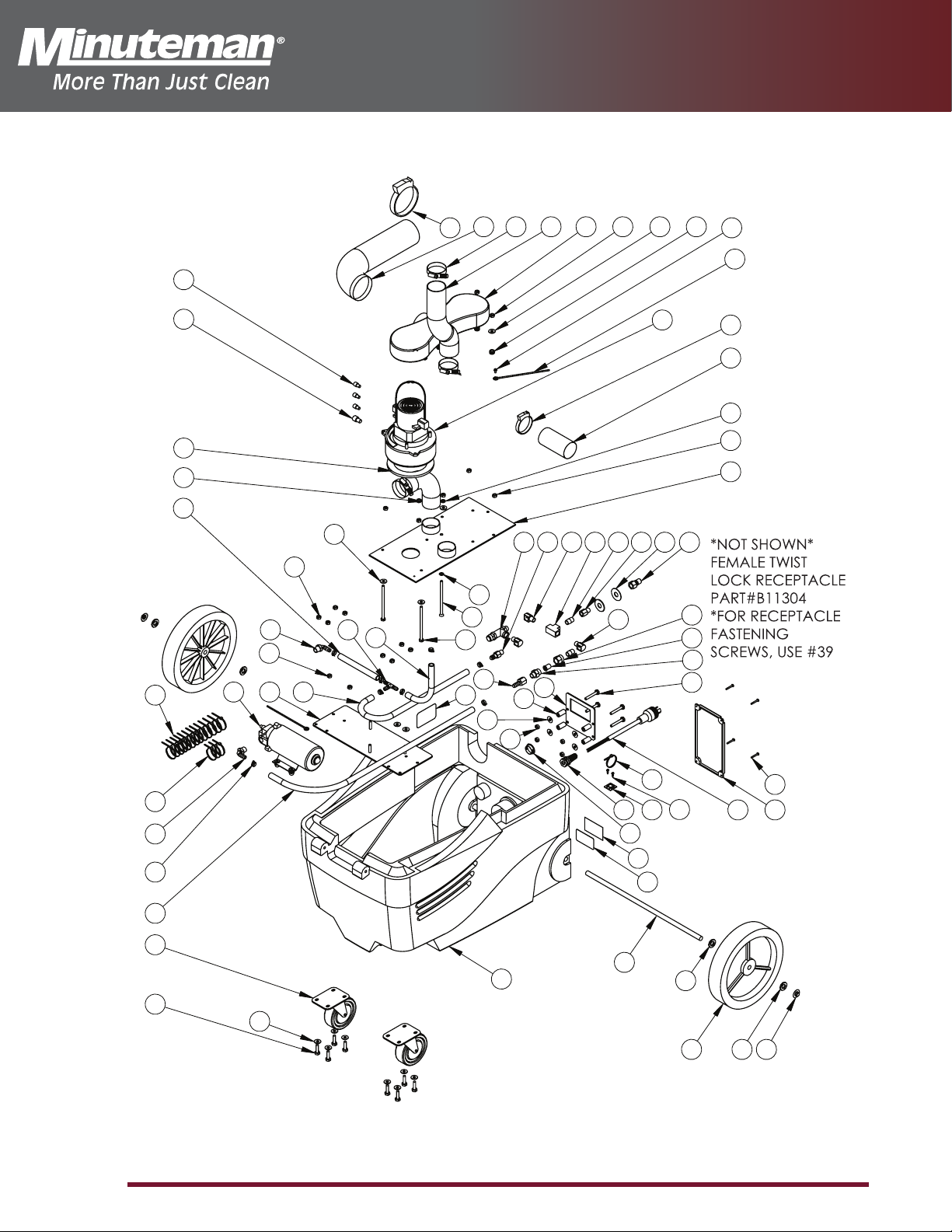

LOWER ASSEMBLY........................................................................................................................... 18
LOWER ASSEMBLY BOM ................................................................................................................ 19

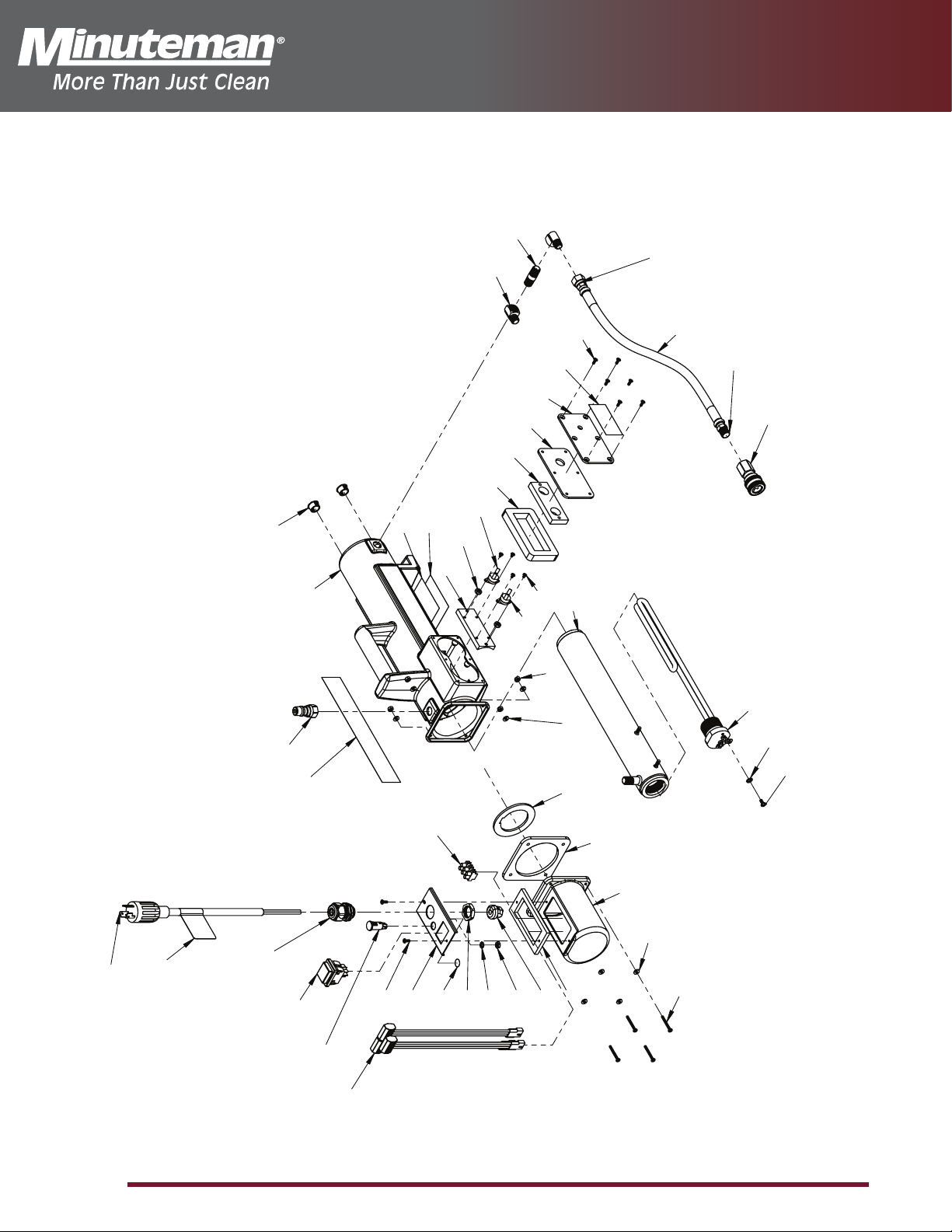

HEATER .............................................................................................................................................. 20
HEATER BOM .................................................................................................................................... 21
WIRING ............................................................................................................................................... 22
TROUBLESHOOTING ........................................................................................................................ 23

Page 4 R100H Rush Carpet Extractor 988756 Rev C 06/23
INSPECTION
UNPACKING YOUR NEW R100):When your package is delivered, check the carton
carefully for signs of rough handling. If your R100)is damaged, notify the carrier immediately and
request an inspection. Be sure to keep the carton, packing inserts, packing lists and carrier’s receipt
until the inspector has verified your claim.
MINUTEMAN’s liability ceases when the carrier picks up the shipment. However, our customer service
staff will be happy to furnish any information needed in connection with the claim and will attempt to
expedite a resolution.
PLEASE READ BEFORE OPERATING YOUR NEW R100):
Read the manual carefully and completely before at- tempting to operate the unit. This manual has
important information for the use and safe operation of the machine. Keep this manual handy at all
times.
This equipment has been engineered and manufactured to provide excellent performance and service. To
ensure that your equipment will continue to perform as intended:
tMaintain equipment regularly- following the suggested maintenance schedule provided.
tUse only original MINUTEMAN parts when servicing.
tOperate equipment with care.
If additional information is needed, please contact:
MINUTEMAN INTERNATIONAL 630- 627-6900
All information and specifications printed in the manual are current at the time of printing; however
because of MINUTEMAN’s policy of continual product development, we reserve the right to make
changes at any time without notice.

Page 5
R100H Rush Carpet Extractor 988756 Rev C 06/23
SAFETY INSTRUCTIONS
FAILURE TO COMPLY WITH THE FOLLOWING WARNINGS AND
INSTRUCTIONS WILL VOID THE WARRANTY.
WA R N I N G !
tThe machine was designed for use on carpet cleaning applications as per instructions and
recommendations written in this manual. Any deviation from its proper use or purpose and the
consequential damage that may occur is the sole responsibility of the end user.
tDisconnect the power cord from the outlet before servicing. Do not leave machine connected to an
electrical outlet when unattended.
tDo not immerse or use this machine in standing water. Such use may cause electric shock.
tWhen using an extension cord, use only a 3-prong conductor grounding cord-12 gauge wire or
heavier.
tTo avoid electric shock, do not expose the unit to rain or snow. Store it indoors in a heated location
only.
tDo not use the machine for dry vacuuming.
tUse defoamer at all times to prevent damage to the vacuum motor.
tDo not use water in excess of 130°F (54°C) in the solution tank
tTo prevent seal damage and chemical build-up to the pump system, run clean water through the
solution lines after each day’s use.
tUse only commercially available carpet cleaning solutions and defoamer intended for use with machines
of this type. Do not use dyes, bleaches, ammonia, or other additives.
tThe use of powdered cleaning solution, if not diluted properly, may result in damage to the pump.
Powdered chemical is not recommended. If powdered chemicals are used, premix in a separate
container before placing in the solution tank.
tAlways read and understand your chemical’s MSDS (Material Safety Data Sheet) before use.
tThis equipment is not designed to handle or use combustible/volatile substances such as gasoline or
kerosene, in, on, or near the machine. The use of such materials will cause extreme hazardous
condition.
tDo not expose machine to freezing temperatures.

Page 6 R100H Rush Carpet Extractor 988756 Rev C 06/23
tAll repairs must be done by an authorized MINUTEMAN repair station.
tDo not use replacement parts other than original MINUTEMAN parts.
tDo not allow your spray stream to remain in one fixed location as surface damage may occur.
tCheck that all spray nozzles are securely fastened. Loose nozzles could be ejected from equipment at
high speeds.
tThis is not a toy. Keep away from children.
tDo not pull by the power or use power cord as a handle. Always unplug by grabbing the plug and
pulling, do not unplug by pulling the power cord.
tInspect cord for damage. Do not use damaged cords. Connect only to properly grounded outlets.
tKeep hair, fingers, loose clothing, and body parts away from moving parts and openings.
tTurn off all controls before disconnecting machine
tUse caution with ejected liquid or chemicals. High pressures and temperatures could be hazardous to
nearby people or surroundings.
tDo not run the heater dry. always make sure you have water
tDo not expose heater to freezing temperatures.
tPrevent burns by wearing gloves or using a barrier to remove hot quick disconnects.
tNever leave heater or equipment unattended when connected or powered on.
tThe accessory heater was designed for use on R100H extractors for carpet, floor and upholstery
extraction applications. Any deviation from its proper use or purpose and the consequential damage
that may occur is the sole responsibility of the end user.
ELECTRICAL - 115 Volt
Model: R100H
This machine is designed to operate on a standard 15 amp, 120 volt, 60 Hz, AC circuit. Voltages below
105 volt AC or above 125 volts AC could cause serious damage to the motor.
ELECTRICAL -  Volt
Model: R100H 
This machine is designed to operate on a standard 15 amp, 20 volt, 60 Hz, AC circuit. Voltages below
105 volt AC or above 125 volts AC could cause serious damage to the motor.

Page 7
R100H Rush Carpet Extractor 988756 Rev C 06/23
GROUNDING
This piece of equipment must be grounded. Should an electrical malfunction occur, grounding
provides a path of least resistance for electrical current- reducing the risk of electric shock. This piece
of equipment is furnished with a cord that has a grounding conductor and grounding plug. The
grounded plug must only be plugged into an appropriate outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
WA R N I N G :
Connecting the equipment to an improperly grounded outlet can result in an increased risk of electric
shock. A qualified electrician should be consulted if you are unsure that the outlet is properly grounded.
Do not modify the plug provided with the equipment. If it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
3)
This appliance is designed for use on a 120-volt circuit. The grounding plug provided looks like the plug
illustrated in Figure 1. Replace the power cord if the grounding pin is damaged or broken.
Extension cords connected to this machine should be 12 gauge, three-wire cords with three-prong
plugs and outlets. DO NOT use extension cords more than 25 feet (7.6 m) long

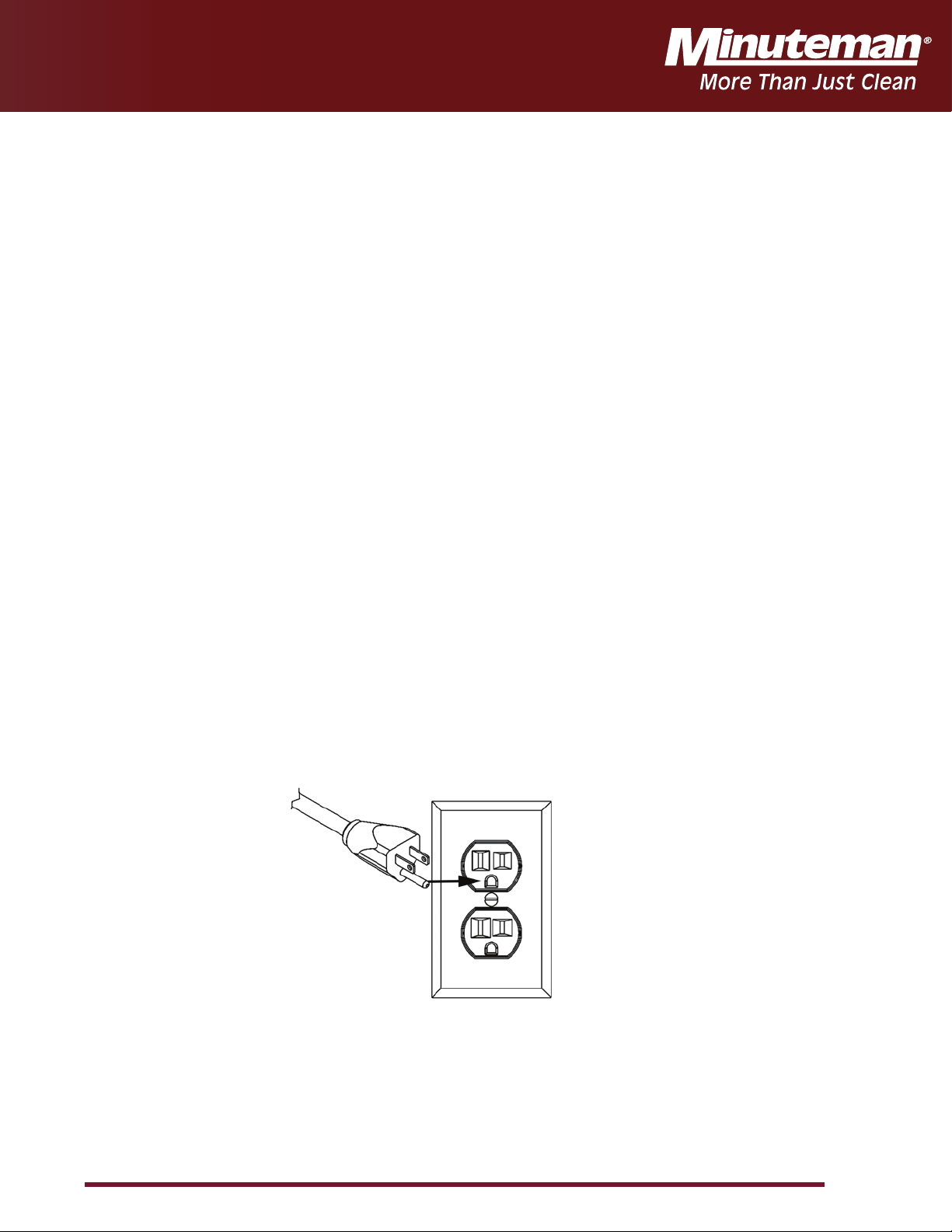

Figure 1
3)
This appliance is designed for use on a 20-volt circuit. The grounding plug provided looks like the plug
illustrated in Figure 1. Replace the power cord if the grounding pin is damaged or broken.

Page 8 R100H Rush Carpet Extractor 988756 Rev C 06/23
MAINTENANCE
This R100H has been engineered and built to require minimum maintenance. But like any machine, it
does require some care to keep it in optimum working condition. Careful attention to these maintenance
instructions will give you maximum operating performance and life expectancy of the machine.
CAUTION: Disconnect the power cord from the outlet before doing any clean up or maintenance
on the machine
tKeep the machine clean. Do not allow dust to accumulate on external surfaces or near any moving
parts.
tAfter every job, wipe down the surface of the machine with a clean damp cloth.
tInspect cord for damage. Do not use machine with a damaged cord.
PERIODIC MAINTENANCE
tUse only chemicals safe for extractors
tAdhere to the appropriate mix ratios for all chemicals
tFor optimal performance, it is suggested that the operator flush the system after every job or at the
end of the day.
tPump seals and valves may need to be replaced at the 1000 hour mark if a loss in pressure is noted
Daily:
1. Always keep the machine clean inside and out.
2. Pour 2 gallons of clean hot water in the solution tank. Turn the pump on and flush the entire system
through the wand nozzles for about a minute to pre- vent alkaline build-up.
3. Remove dirt and lint build-up inside the filter screen in the recovery tank. Lint should be cleaned off
so that air flow is not impeded.
4. Check the solution tank strainer in the solution tank. If lint has accumulated in the screen, remove
and rinse it in clear running water.
Weekly:
1. Check and clean solution filter
2. Check for obstructions in vacuum pathway
Quarterly:
1. Check pump, plumbing and fittings for leaLT
2. Check power cords and hoses for tears

Page 9
R100H Rush Carpet Extractor 988756 Rev C 06/23
CORD STORAGE:
While not in use, storage can be accomplished by winding cord around handle assy. Cord should be
completely unwound during operation.
CORD SAFETY
xDo not leave appliance when plugged in. Unplug from outlet when not in use and before
servicing
xDo not use with damaged cord or plug. If appliance is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water, return to service center for inspection and repair.
xDo not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp
edges or corners. Do not run this 3) over cord. Keep cord away from heated surfaces.
xDo not unplug by pulling cord. To unplug, grasp the plug, not the cord.
xDo not handle plug or appliance with wet hands.
xThis equipment should be stored indoors and not exposed to rain.

Page 10 R100H Rush Carpet Extractor 988756 Rev C 06/23
MACHINE OVERVIEW
1. Handle- Used to maneuver and position the
R100H.
Contains switch box (for switchbox, see #12).
2. Recovery tank and lid- Tank collects recovered
waste water. Lid allows access to recovery tank
and creates a seal to ensure suction.
3. Solution tank and lid- Tank used to store clean
water or solution for your job. Lid allows access
to the solution tank and prevents external
contamination of solution tank.
4. Non-marking front 4” locking casters and
rear 10” wheels.
5. Recovery/vacuum hose inlet barb- connect
your recovery vacuum hose to this barb.
6. Solution line Q.D.- Pressurized connection
for solution line.
7. Male twist lock pigtail- Connects to 50ft
power cord.
8. Female twist lock port for heater.
9. Cool air intake for vacuum.
10. Recovery tank dump valve- Pull up to open.
11. Heater mounting brackets.
12. Switch box- one switch marked “VACUUM”
and one switch marked “PUMP”. Switches
light up when powered on.
13. 1000Watt Heater.

Page 11
R100H Rush Carpet Extractor 988756 Rev C 06/23
1. INLET QUICK DISCONNECT AND HOSE-
Connects to machine’s outlet.
2. POWER SWITCH.
3. LAMP- Indicates when heat element is on and
working.
4. TWIST LOCK PIG-TAIL- This connects to the
fe- male twistlock plug on the rear of the R100H.
5. OUTLET QUICK DISCONNECT- Connects to
working solution line.
6. HANDLE- Used to hold and transport the heater
7. MOUNTING FEET- Used to engage the mount-
ing brackets on an R100H extractor and secure
the heater.
8. HIGH TEMP BREAKER ACCESS POINT-
Allows access to the breaker switch in the event
the unit has been run dry.
ACCESSORY HEATER

Page 12 R100H Rush Carpet Extractor 988756 Rev C 06/23
How to use an accessory heater:
1. Fill the solution tank of your R100H extractor with sufficient water or solution for the task at hand. Do
not use water over 130 degrees F.
2. Mount the Heater by lining up the two “legs” (#7 on page ) to the two mounting brackets on
therear of the machine (#11 on page )
3. Connect your heater’s inlet hose (#1 on page ) to the machine’s outlet quick disconnect (#6 on page ).
4. Connect your 25ft solution hose to PVUMFURVJDLEJTDPOOFDU#5 on page 

Page 13
R100H Rush Carpet Extractor 988756 Rev C 06/23
5. Connect the power cord on the heater to the female twistlock plug located on the rear of the R100H.
6. Connect your 50ft power cord to the twist lock pigtail on the back of the machine (#7 on page ).
Plug the cord into a 15amp circuit.
7. Connect your 25ft vacuum hose to the extractor’s vacuum inlet barb (#5 on page )
8. Connect your vacuum and solution line to a carpet wand or Upholstery attachment
9. Turn the pump switch to the “ON” position using the pump switch on the handle of your R100H.
DO NOT turn on your heater until after this step is completed. Pressing the solution valve trigger of your
attachment, spray water for 10-15 seconds until you have a steady flow. This ensures the heater is filled
with fluid
10. Turn heater on using the power switch (#2 on page ) and allow up to 3 minutes for the unit to heat up.
11. The heater is ready for use once the green lamp (#3 on page ) shuts off. Once you start cleaning, the
green lamp will turn on and off throughout your job as the thermostats automatically regulate the tem-
perature.

Page 14 R100H Rush Carpet Extractor 988756 Rev C 06/23
CLEANING CARPET
1. Using a dedicated dry vacuum, pre-vacuum the space to be cleaned to remove as much dirt as
possible. Do not use the extractor to dry vacuum as it does not have a dry filter.
2. Pre-spray the carpet
3. See steps 1-11 in section “Accessory Heater”
4. Make sure the drain valve (#10 on page 10) is closed by pushing the T-handle all the way in.
5. Always use de-foamer- Previously shampooed carpets usually have a heavy build-up of old shampoo
residue which can cause the vacuum system to ingest foam and result in damage to the vacuum
motor.
6. With the vacuum and pump switches in the “ON” position, slowly pull the tool towards you with the
solution valve trigger pressed. Make a dry pass for- ward and backward over the cleaned area to
recover residual dirt and solution.
7. Do not overwet carpet! Make overlapping passes to prevent streaking.
8. If the carpet is heavily soiled, squeeze solution valve trigger on the forward pass as well as
backwards, allowing cleaning solution a few seconds longer to work prior to vacuuming. Another
method is to raise the wand 8” above the carpet and pre-spray lightly prior to cleaning passes. On
extremely soiled carpets, we recommend using a pre-spray solution.
9. When you are close to running out of solution, turn off the pump and the heater. Attach the drain
elbow on the drain valve. Place a pail under the downspout and pull up the drain valve T-handle.
Dirty solution will pour out until the tank is empty. Close the drain valve. Use a clean bucket when
you refill the solution tank so you do not create contamination.
10. When the job is completed, turn the switches off, including the heater, and disconnect the vacuum
and solution hoses from the carpet tool and the machine. Drain the recovery tank through the drain
valve as before.

Page 15
R100H Rush Carpet Extractor 988756 Rev C 06/23
CLEANING UPHOLSTERY
Cleaning upholstery with success requires a good knowledge of the type of fabric to be worked on. Look
for the cleaning instruction label sewn on the underside of the furniture for the recommended method
of cleaning the fabric. If it calls for dry cleaning, do not attempt to clean with the wet extraction
method. Otherwise, damage to the fabric could occur. Extraction works perfectly on most synthetic
fabrics including synthetic velvets.
Before proceeding, test the fabric for colorfastness. Apply a small amount of ready-to-use cleaning
solution on the fabric in an inconspicuous spot. Wait for 2 to 3 minutes and rub the area with a white
terry cloth towel. If no color comes off the towel, the fabric should be safe to clean. If a little color
comes off, there is some risk of colors running when you clean. It may be possible to stabilize colors by
cleaning with an acidic rinse.
1. Using a dedicated dry vacuum, pre-vacuum the space to be cleaned to remove as much dirt as
possible. Do not use the extractor to dry vacuum as it does not have a dry filter.
2. See steps 1-11 in section “Accessory Heater”
3. Make sure the drain valve (#10 on page 10) is closed by pushing the T-handle all the way in.
4. Attach an upholstery tool to the hose set.
5. Always use de-foamer. Previously cleaned upholstery may have a heavy build-up of old shampoo
residue which can cause the vacuum system to ingest foam and result in damage to the vacuum
motor.
6. With the vacuum and pump switches in the “ON” position, slowly pull the tool backward with the
solution valve trigger pressed. Make a dry pass forward and backward over the cleaned area to
recover residual dirt and solution.
7. Clean using as little solution as possible. Do not overwet the upholstery! Make overlapping passes
to prevent streaking.
8. On heavily soiled areas like arm rests, pre-treat with a recommended pre-spray and /or hold the
upholstery tool a few inches above the fabric and press lever to spray on the solution before making
a pass.

Page 16 R100H Rush Carpet Extractor 988756 Rev C 06/23
UPPER ASSEMBLY
1
2
4
3
5
6
9
10
11 12 13 14 15
23
22
21
20
28
29
30
31
32
33
34
35
36 38
37
32
39
40
41
42
43
4445
47
48
7
8
19
27
49
16
25
7181
24
26
5-A
5-D 5-C
5-B
50
46
R100H
UPPER
8-8-16
*NOT
SHOWN*
FRONT
MINUTEMAN
DECAL
PART#H13699
51
52
53

Page 17
R100H Rush Carpet Extractor 988756 Rev C 06/23
UPPER ASSEMBLY BOM
BILL OF MATERIAL
ITEM PART NO. QTY DESCRIPTION ITEM PART NO. QTY DESCRIPTION
1 F11787-MM 1 SOLUTION TANK 26 C02315 2 LOCKWASHER, #10 INT. STR, SS
2 F11788-MM 1 RECOVERY TANK 27 C00264 1 NUT, 10-32
3 F11791-MM 1 LID, SOLUTION TANK 28 C11141 8 SCREW, ALLEN HEAD, 10-24 X
1.25 IN
4 E11124 1 GASKET, RECOVERY TANK 29 K00665-1 1 HOSE ADAPTER, 1.5IN, BLACK
5 12904A 1 STAND PIPE ASSEMBLY 30 E11128 2 GASKET, DRAIN VALVE
5-A K11965 1 ELBOW, 180 DEG. FLOAT
BALL
31 C00313 6 HEX BOLT, .25 X 20 X 0.75
5-B K00672 1 PVC PIPE, 1.5 X 12 IN, SCH 40
WHT
32 C00233 8 WASHER, FLAT, .25 IN
5-C 10989-2A 1 FLOAT BALL SCREEN 33 C02312 2 LOCKWASHER, .25 IN., INTER-
NAL STAR
5-D K00741 1 ADAPTER 34 D010283 1 PLATE, HEATER MOUNTING
6 F11785-MM 1 LID, RECOVERY TANK 35 F11804 1 HEATER MOUNT
7 C12039 2 WASHER, 1-4 X 1, SS 36 C00261 2 NUT, .25-20, HEX
8 C02322 2 1/4 X 20 BOLT 37 K00711 1 DRAIN VALVE, BLACK
9 B11769 1 EXTENSION CORD, 12-3
SJTW
38 K00710 1 ELBOW, DRAIN VALVE, BLACK
10 B12915 1 VELCRO STRAP 39 C00254 2 LOCK WASHER, 1-4IN SPLIT
11 H02548-2 1 LABEL, IMPORTANT, CORD 40 C02294 2 SCREW, 1/4 - 20 X 1.25
12 B00185-30 1 WIRES, 73 IN 41 K11185 1 ELBOW, 90, 1.5 IN, MT-MS, PVC
13 B00185-40 1 WIRES, 73 IN 42 K00672-1 1 PVC PIPE, 1.5 X 2.25 IN,
14 B010314 1 WIRE HARNESS 43 E11129 1 GASKET, BASE
15 F11786 1 HANDLE 44 A00060 1 3/8 BARB X 1/4MP, BRASS
16 B00177 2 TERMINAL LUG, FEMALE, QD,
0.25 X .032, 16-14 AWG, FULLY
45 A00052 1 .25 X .375 M-F 90 DEG
17 B00185-40 1 WIRE,14 GA BLACK, UL1015,
5 IN
46 C11244 1 WASHER, .56 X 1.5 X 0.05
18 C00295-1 2 #10 X .75IN PAN, BLACK SMS,
PHILLIPS
47 A00124 1 HEX NUT, .25 NPT BRASS
19 C00293 2 #8 X .5IN PAN, BLACK SMS,
PHILLIPS
48 D00373 1 INLET FILTER, .25 NPT
20 D03421 1 COVER, SWITCHPLATE, 49 C11143 2 SCREW, 1/4 - 20 X 1.5 IN, SS
21 B02211-1 2 SWITCH, ROCKER, GREEN
LIGHT
50 S11179 1 NON-SKID TAPE, 1 IN. ROLL
22 D010284 1 SWITCHPLATE 51 C00311 2 SCREW, 8-32 X 3/8
23 E010453 1 GASKET, SWITCH BRACKET 52 D13153 1 STAINLESS STEEL LANYARD
24 B00177-1 4 TERMINAL LUG, FEMALE, QD,
0.25 X 0.032
53 K00666 1 90 ELBOW, SCHD 40, 1.5"
25 B00185-30 1 WIRE,14 GA WHITE, UL1015,
5 IN

Page 18 R100H Rush Carpet Extractor 988756 Rev C 06/23
LOWER ASSEMBLY
23 4 6 7 8 9
11 12
13
15
16
12022242526272
22 28
34
8373
55
39
40
746454
46
50
7
51
52
54
56 57 58 59
62
54
6
17
7
63
64
65
66
32
33
42
41
7
15
31
60
61
23
53
36
1
14
19
18
29
43
44
55
6
35
30
5
10
R100H BASE
8-9-16
49
84

Page 19
R100H Rush Carpet Extractor 988756 Rev C 06/23
LOWER ASSEMBLY BOM
BILL OF MATERIAL
ITEM PART NO. QTY DESCRIPTION ITEM PART NO. QTY DESCRIPTION
1 J13152 1 DOUBLE GRIP HOSE CLAMP 34 A00061 1 3/8 BARB X 1/4FP, BRASS
2 J11863 1 HOSE, 3 IN 35 H02564-2 1 LABEL, CAUTION, MOTOR HOUS-
ING
3 J00639 3 SCREW CLAMP, 1.63 - 2.43IN. 36 C11165, 4 SCREW, #8 X 1 IN, PAN, BLACK
4 J00618 1 VACUUM HOSE, 2IN GREY, WIRE,
22 IN LG
37 F11790-MM 1 HEATER, TUNNEL COVER
5 F11178-BLK 1 INTERCOOLER, BLACK 38 B11779 1 STUB, 12-3 SJTW YELLOW
6 C00273 16 LOCKNUT, 1/4 X 20, NYLON, SS 39 C00293 4 #8 X .5IN PAN, BLACK SMS, PHIL-
LIPS
7 C00233 26 WASHER, FLAT, .25 IN 40 B00192 1 MOUNT, NYLON TIE
8 E00449 6 GROMMET 41 B11606 1 STRAIN RELIEF, PIGTAIL
9 C00284 2 SCREW, 10-32 X .375 42 K10510 1 PLUG, 1.25 IN, BLACK
10 B11150 2 GROUND WIRE 43 H03545 1 COVER, SERIAL # LABEL
11 G02517-1 1VACUUM MOTOR, 117 IN, 115V 44 H00565-5 1 LABEL, SERIAL NUMBER
G13554 VACUUM MOTOR, 124 IN, 220V 45 C02305 2 CAP NUT, .5IN PUSH-ON
12 J00657 1 HOSE CLAMP, 2 INSLDPRT 46 C00240 4 WASHER, SHOULDER, NYLON
13 J00618 1 VACUUM HOSE, 2 IN GREY, WIRE,
4 IN LG
47 G11767 2 WHEEL, 10 IN
14 C00254 1 LOCK WASHER, 1/4IN SPLIT 48 D11170 1 AXLE
15 C00261 10 NUT, .25-20, HEX 49 F11789-MM 1 BASE
16 D11134-1 1 VAC PLATE 50 C00314-1 8 HEX BOLT, 1/4 - 20 X 1IN
17 C11189 5 SCREW, 1/4 - 20 X 4.5 IN, 51 G03518-L 2 LOCKING CASTER, 4 IN
18 C11516 1 SCREW, 1/4 - 20 X 4.5 IN, 52 J00613B 1 SOLUTION HOSE, .375 IN, BLACK
19 C02312 1 LOCKWASHER, .25 IN.,
INTERNAL STAR
53 J11508 8 SCREW CLAMP #6, 7-16 TO 7- 8IN
20 G11314-1 1 PRESSURE REGULATOR, BRASS 54 A00054 2 ELBOW, 90, .375MP X .375B,
21 A00060 1 3-8 BARB X 1/4MP, BRASS 55 B00191 4 NYLON TIE, 11IN BLACK
22 A00052 3 .25 X .375 M-F 90 DEG 56 B00190 13 NYLON TIE, 4IN
23 A00161 1 TEE, .25 FP, BRASS 57 G13761 1PUMP, 100 PSI, 115V
24 A00111 2 NIPPLE, .25 IN G13665 PUMP, 170 PSI, 230V
25 A00121 1 FITTING, .25 MP X .25 FP, 58 D11194 1 PUMP PLATE
26 C11244 2 WASHER, .5 ID X 1.5 OD 59 J00613B 1 SOLUTION HOSE, .375 X 26 IN,
BLACK
27 A00104 1 QD, 1/4 M X 1/4 FP, BRASS 60 J11154 1 SOLUTION HOSE, .375 X 10 IN,
WIRE REINFORCED
28 A00097A 1 CAP, INLINE FILTER 61 A11243 1 TEE, .375B X .375B X .375B,
29 A00094E 1 CHECKVALVE, NO STRAINER 62 J11154 1 SOLUTION HOSE, .375 X 6 IN,
WIRE REINFORCED
30 A00094C 1 CHECK VALVE BODY 63 J00618 1 VACUUM HOSE, 2 IN GREY, WIRE,
7 IN LG
31 C02322 4 HEX BOLT,1/4 - 20 X 1.75 IN 64 E11169 2 GASKET, VAC MOTOR
32 D010379 1 HEATER MOUNTING PLATE 65 B00179-2 1 CLOSED END CNTR, 16-3
33 C11440 4 SPCR, HEATER MNTING PLATE 66 B00179-1 3 CLOSED END CNTR, 16-3

Page 20 R100H Rush Carpet Extractor 988756 Rev C 06/23
HEATER



 
























 

 

  











