Halma Ocean Insight FLAME-DA-CUV-UV-VIS User manual

225-00000-002-01-201508 1
Flame Direct Attach UV-VIS
Integrated Sampling System
Installation and Operation Instructions
Description
The Flame Integrated Sampling System (FLAME-DA-CUV-UV-VIS) is a snap-on, direct-attach
1 cm cuvette holder and UV/VIS light source (200-1100 nm) combination created specifically
for the Flame spectrometer models. The deuterium tungsten light source receives control
instructions via the accessory connector on the spectrometer.
The FLAME-DA-CUV-UV-VIS is a perfect general purpose tool for absorbance and
transmission spectroscopy. It includes a filter slit on the illumination side designed
for 12.5 mm (½”) optical filters (but may accept other sizes), useful for reducing stray light
and improving your results. The tungsten source can be dimmed to balance the spectral
response and improve the dynamic range of results in the UV. To use your spectrometer
with a fluorescence probe, simply disconnect the probe and attach the Flame Integrated
Sampling System and within minutes you have a miniature spectrophotometer.

FLAME-DA-CUV-UV-VIS Installation and Operation Instructions
2 225-00000-002-01-201508
The FLAME-DA-CUV-UV-VIS also contains a built-in cooling fan. Therefore, due to the
increased power requirements of the light source, the sampling system requires a separate
5-volt power supply (included with the system).
Parts Included
The FLAME-DA-CUV-UV-VIS Integrated Sampling System ships with the following
components:
FLAME-DA-CUV-UV-VIS miniature deuterium tungsten halogen light source
5-volt DC power supply
SMA Collimator for spectrometer SMA coupling
Installing the Sampling System
Do not attempt to connect the FLAME-DA-CUV-UV-VIS to the spectrometer without following
the installation instructions in this section. Furthermore, ensure that the spectrometer
operating software (OceanView) is installed on your computer and that the spectrometer is
obtaining data before connecting the FLAME-DA-CUV-UV-VIS.
WARNINGS
The light beam emitted from the FLAME-DA-CUV-UV-VIS
contains ultraviolet radiation and can cause eye damage.
Always use safety goggles when working with this
product.
DO NOT OPEN THE FLAME-DA-CUV-UV-VIS. The FLAME-
DA-CUV-UV-VIS has an internal high voltage power source.
Dangerous voltage levels are present, and there are no
user-serviceable parts.
The FLAME-DA-CUV-UV-VIS has an internal high voltage
power source. Thus, you should not adjust the unit while it
is connected to a power source.
Contact Ocean Optics for bulb replacement (FLAME-DA-
CUV-UV-VIS-B).
Do not use this instrument for any clinical or diagnostic
measurements.
Dropping the unit can cause permanent damage. Handle
with care.

FLAME-DA-CUV-UV-VIS Installation and Operation Instructions
225-00000-002-01-201508 3
Adjusting the Cuvette
►Procedure
1. Locate the ball plunger screws (accessed on the front face of the unit and through
the hole opposite the power jack on the side of the unit).
2. Use a small (0.100”) flathead screwdriver to loosen the ball plunger screws until the
end is visible in the holder.
3. Insert a cuvette into the cuvette holder.
4. Tighten the ball plunger screws until the cuvette is stationary in the cuvette holder.
Do not over-tighten.
5. Remove the cuvette from the cuvette holder.
Connecting to the Spectrometer
►Procedure
1. Remove the power from the spectrometer by disconnecting it from the PC or
detaching the USB cable.

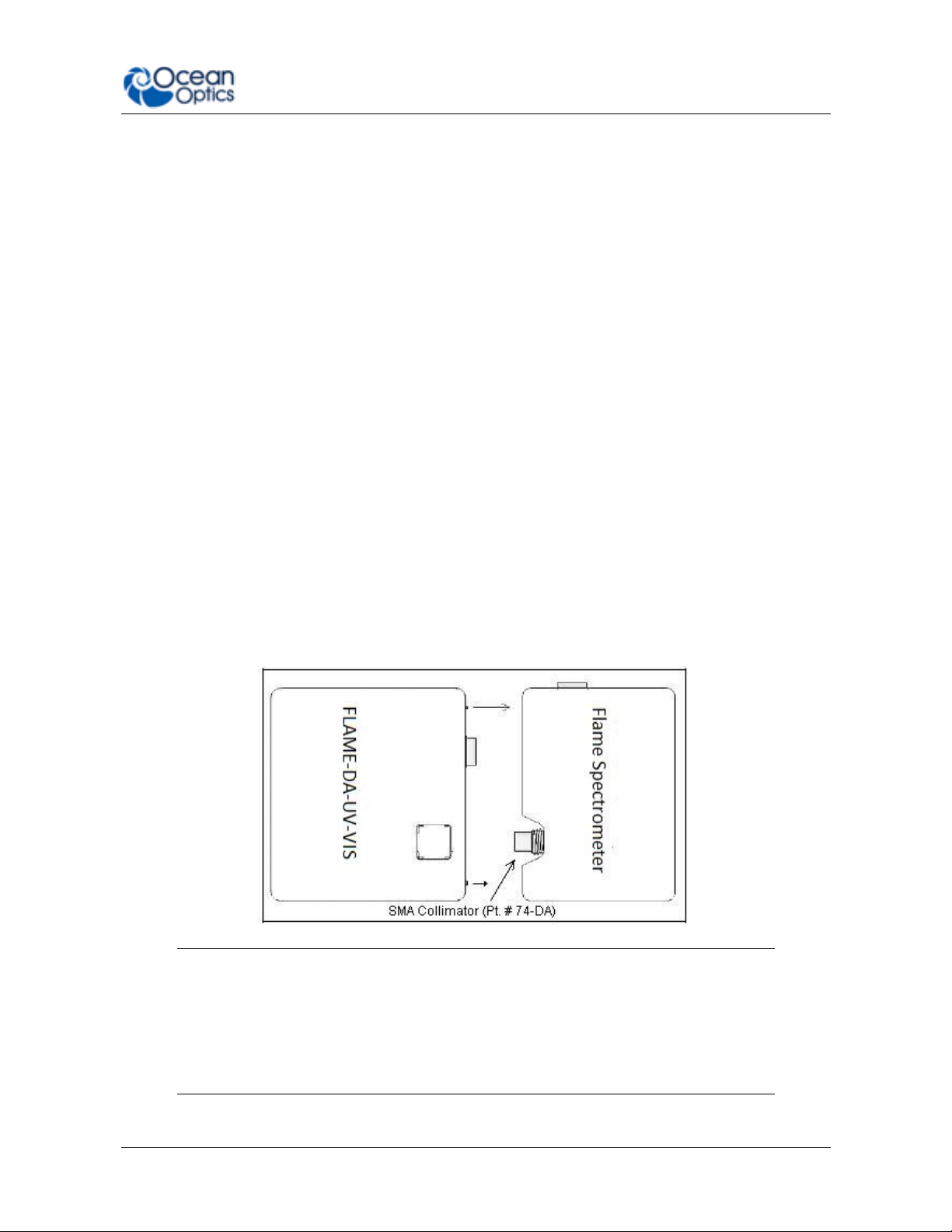

2. Attach the SMA Collimator to the SMA 905 connector of the spectrometer. This should
be connected so that the outer threaded half of the collimator is pointing towards the
spectrometer. The FLAME-DA-CUV-UV-VIS will not connect correctly if this piece is
not properly oriented (see diagram below).
Note
A 74-series lens is included and attaches to the spectrometer for normal
functionality. If the 74-series lens is reversed and attached to the UV-VIS
accessory instead, it can be used as a standalone light source with a SMA
connection.

FLAME-DA-CUV-UV-VIS Installation and Operation Instructions
4 225-00000-002-01-201508
3. Screw the FLAME-DA-CUV-UV-VIS to the front of the spectrometer using a standard
flathead screwdriver. The connection screws are accessed from the front of the
FLAME-DA-CUV-UV-VIS (the white lined holes on the front of the unit).
4. Connect the power supply to a standard power outlet, and then connect the 5-volt
power connector to the FLAME-DA-CUV-UV-VIS.
5. Connect the USB cable to the spectrometer and to the computer.

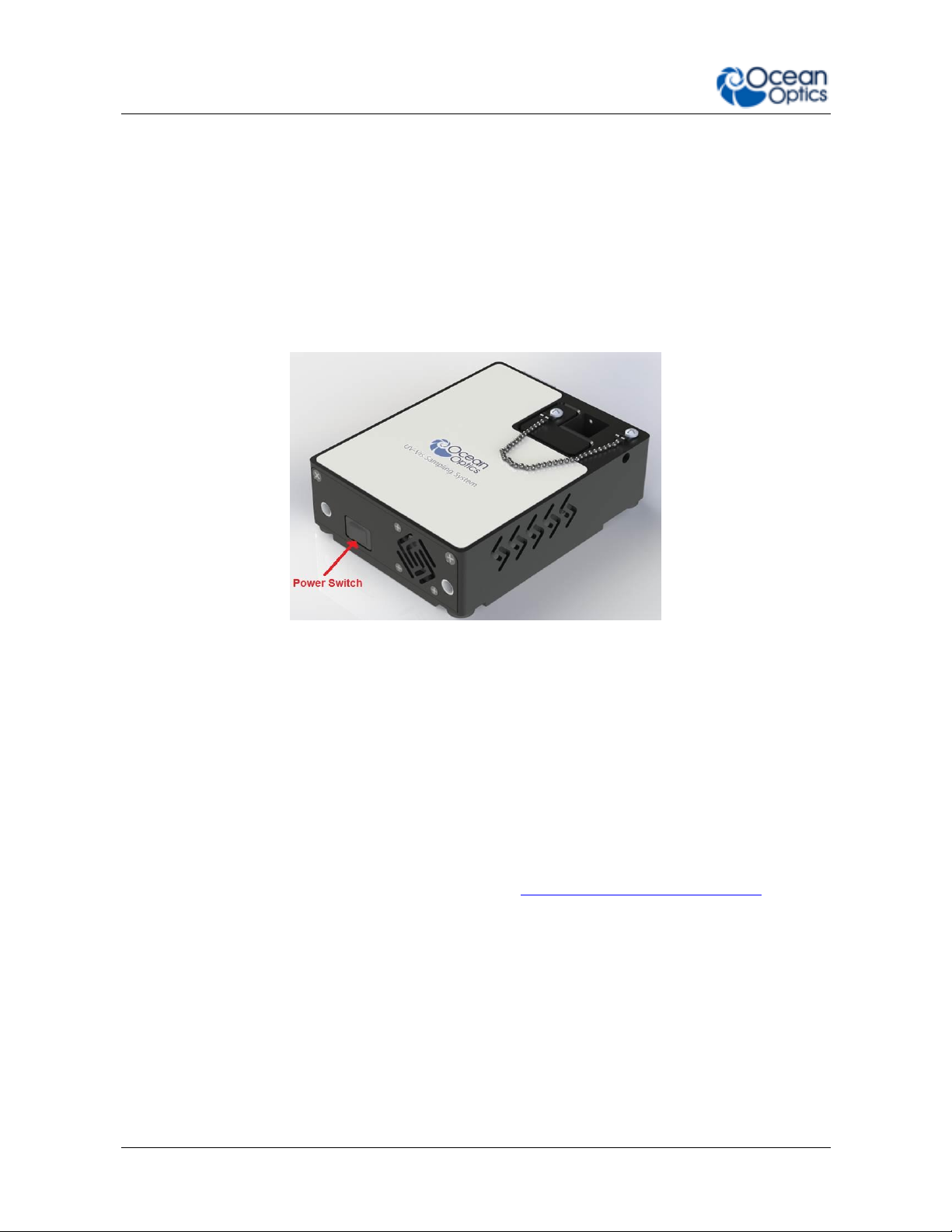

6. Flip the power switch to on to activate the unit; the fan should begin to spin.
Aligning with the Spectrometer
If your FLAME-DA-CUV-UV-VIS was preassembled with a spectrometer, it has been
specifically aligned with that particular spectrometer. If your FLAME-DA-CUV-UV-VIS was not
preassembled with a spectrometer, ensure that you align the sampling system with the
spectrometer.
►Procedure
1. Consult the calibration sheet that accompanied your spectrometer to verify the
spectrometer configuration, which is also stored in your spectrometer’s memory.
2. Install the SMA Collimator (see Step 2 of the Connecting to the Spectrometer section,
previous page).
3. Tighten the screws on the cuvette holder to fasten the cuvette in place (see the

FLAME-DA-CUV-UV-VIS Installation and Operation Instructions
225-00000-002-01-201508 5
Adjusting the Cuvette section).
Adjusting the VIS Light Source Brightness
You can adjust the brightness of the VIS (Tungsten) source manually using a screwdriver or by
sending the commands via the I2C bus.
Adjusting the VIS Light Source Manually
Use a 0.100” flathead screwdriver through the side of the unit to adjust the VIS source
brightness as shown in the figure below:
Clockwise turn = brighter
Counter clockwise turn = dimmer

FLAME-DA-CUV-UV-VIS Installation and Operation Instructions
6 225-00000-002-01-201508
Adjusting the VIS Light Source Using Commands
You can send the commands via I2C to adjust the brightness of the VIS light source. The I2C
address is 0x0C.
►Procedure
1. Send an initialize command: 3F 00 01
2. Send commands to adjust the brightness: 0x17 xx xx
Where xx xx = 00 00 to FF FF (varying from minimum to maximum brightness)
Using the Sampling System
►Procedure
1. Start the spectrometer operating software (OceanView).
2. Open the internal shutter on the FLAME-DA-CUV-UV-VIS. To do this,
For OceanView, check the Strobe/Lamp Enable check box on the Acquisition
Group window.

FLAME-DA-CUV-UV-VIS Installation and Operation Instructions
225-00000-002-01-201508 7
For SpectraSuite software, check the Strobe/Lamp Enable check box on the
Acquisition toolbar.
Specifications
Dimensions (L x W x H)
124.1 x 88.9 x 40.1 mm
Weight
350 g
Power Source
5 V DC external supply (included)
Wavelength Range (source)
200-1100 nm
Cuvette Path Length
1 cm
Cuvette Shape
Square
Light Source
Combined Deuterium and Tungsten-Halogen
Bulb Life (hours)
800 (deuterium); 2,000 (tungsten)
Time to Stabilized Output
~30 minutes

FLAME-DA-CUV-UV-VIS Installation and Operation Instructions
8 225-00000-002-01-201508
Product Upgrades, Repairs and Servicing
Occasionally, you may find that you need Ocean Optics to make a change or an upgrade to
your system. To facilitate these changes, you must first contact Customer Support and
obtain a Return Merchandise Authorization (RMA) number. Please contact Ocean Optics for
specific instructions when returning a product.
Repairs
Sometimes accidents happen! If you need to return your Ocean Optics product for repair,
here is what to do:
►Procedure
1. Contact us to speak to an Ocean Optics representative about the problem. If it is
determined that the product must be returned, the representative will issue an RMA
number.
2. Package your product, ideally in the original packaging, and return it to Ocean Optics,
along with the RMA number that you received.
Note
For RMA returns under warranty we will organize and pay for shipping both
ways. For accidental damage, you only pay to have the product delivered to
your closest Ocean Optics or OOI Distributor Office.
Upon careful examination, we’ll advise you with an estimate. When your
product is ready, it will be returned to you.
