Hamaton H46 User manual

VERSION
Reference: UM-365HaD-U
WEBSITE DATE OF PUBLICATION
Version no: JT2-07 www.hamaton-tpms.com
www.ateq-tpms.com
21/07/17

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 2/38
TABLE OF CONTENTS
HAMATON H46 TPMS TOOL 3
1. Specifications .......................................................................................................................................................3
2. Important Safety Instructions ..............................................................................................................................4
3. Caution .................................................................................................................................................................5
4. H46 Overview.......................................................................................................................................................6
5. Function Keys .......................................................................................................................................................7
6. Power On..............................................................................................................................................................8
7. Operating Instructions .........................................................................................................................................9
H46 USAGE .................................................................................................................................10
1. Check sensor ......................................................................................................................................................10
2. Service TPMS......................................................................................................................................................13
3. Program Blank Sensor ........................................................................................................................................17
SETTINGS.....................................................................................................................................22
1. Settings...............................................................................................................................................................22
RECENT SENSOR DATA ............................................................................................................28
1. Recent Sensor Data ............................................................................................................................................28
RKE TEST .....................................................................................................................................29
1. RKE Test..............................................................................................................................................................29
MISCELLANEOUS.......................................................................................................................31
1. Charge ................................................................................................................................................................31
2. Troubleshooting .................................................................................................................................................32
3. Tool Update........................................................................................................................................................32
4. Limited Hardware Warranty ..............................................................................................................................34
5. Safety Battery And Charge Information .............................................................................................................35
6. FCC Statements ..................................................................................................................................................36
7. CE Statements ....................................................................................................................................................37
8. Recycling ............................................................................................................................................................37
Index 38

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 3/38
USER GUIDE: H46 TPMS TOOL GUIDE
1. SPECIFICATIONS
Battery Type: Rechargeable Lithium-Polymer.
Battery Life: Approximately 300 activations per full charge.
Dimensions (Max. L,W,D): 8.6” x 5” x 1.5” (22.0 cm x 13.0 cm x 3.7 cm)
Case Material: High Impact ABS.
Response Frequency:
Main frequencies: 315 MHz and 433.92 MHz (supporting
most specific frequencies).
Low Battery Indication: LCD bar graph display.
Weight: 1.37 lb (0.62 kg)
Temperature: Operating: -4° F to 131° F (-20° C to +55° C).
Storage: -40°F to 140° F (-40° C to +60° C).
Operating Altitude: Up to 6560 ft (2000 m).
Product content:
H46 TPMS Tool.
USB cable.
RJ45 cable.
Optional accessories:
OBDII Module.

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 4/38
2. IMPORTANT SAFETY INSTRUCTIONS
Do not discard. Retain for future reference.
This device complies with:
- Part 15 of the FCC Rules (FCC ID: 2ABSJ-VT46)
- CE / CEM standards
- ROHS standards
Operation is subject to the following two conditions:
(1) This device will not cause harmful interference, and
(2) This device will accept any interference received, including interference that may cause
undesired or improper operation.
WARNING: This product emits electromagnetic and electronically generated
waves that may interfere with the safe operation of pacemakers.
Individuals that have pacemakers should never use this product.
Read the Warranty, Safety and Recycling information at the end of this user guide.
Powered by

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 5/38
3. CAUTION
PLEASE READ THESE INSTRUCTIONS BEFORE USE
Your Tire Pressure Monitoring (TPM) tool has been designed to be durable, safe, and reliable when
properly used.
All TPMS TOOLS are intended for use only by qualified and trained automotive technicians or in a
light industrial repair shop environment. Please read all instructions below before use. Always
follow these safety instructions. If you have any questions pertaining to the safe or reliable use of
this tool, please call your local dealer.
3.1. Read All Instructions
All warnings on the tool and in this manual should be adhered to. All operating instructions should
be followed.
3.2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3.3. Heed Warnings
Users and bystanders must wear safety goggles and must read instructions before use. Do not use
on live electrical circuits, due to risk of entanglement.
3.4. Cleaning
Clean with a soft dry cloth, or if necessary, a soft damp cloth. Do not use any harsh chemical
solvents such as acetone, thinner, brake cleaner, alcohol, etc as this may damage the plastic
surface.
3.5. Water & Moisture
Do not use this tool where contact or immersion in water is a possibility. Never spill liquid of any
kind onto the tool.
3.6. Storage
Do not use or store the tool in an area where it is exposed to direct sunlight or excessive moisture.
3.7. Usage
To reduce the risk of fire, do not operate the tool in the vicinity of open containers or flammable
liquids. Do not use if the potential for explosive gas or vapors exists. Keep the tool away from heat
generating sources. Do not operate the tool with the battery cover removed.

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 6/38
4. H46 OVERVIEW
4.1. Lights
Trigger light Result light
"Fail"
Result light
"Pass" Battery status
4.2. Connectors
RJ45 connector for OBD module
connection
USB connector for
battery charge and
firmware update.
Display screen
Keyboard
Antenna

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 7/38
5. FUNCTION KEYS
Power ON/OFF switch Test or trigger sensor.
Next, continue or confirm.
Cancel, previous step.
Navigate to select "up”.
Navigate to select “down”.
Navigate to select “left”. Navigate to select “right”.

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 8/38

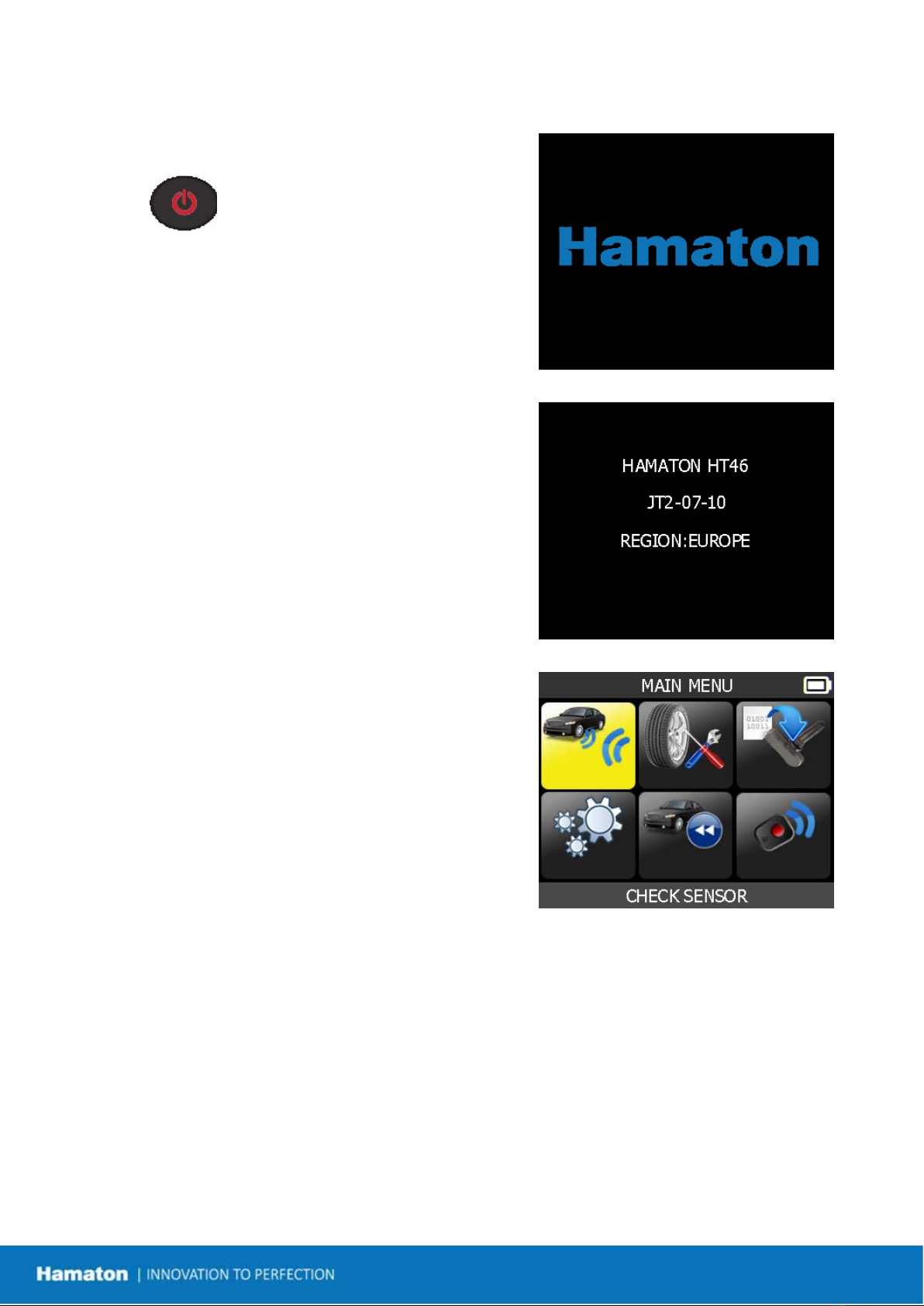

6. POWER ON
Press key to turn on the device.
The TPMS TOOL:
First displays the logo as Fig. 1.
Fig. 1
The software version and the work zone as Fig. 2.
Fig. 2
The MAIN MENU will then be displayed as Fig. 3.
Fig. 3

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 9/38
7. OPERATING INSTRUCTIONS
7.1. TPMS TOOL OVERVIEW
Read and diagnose sensors, OBDII ECU reset and transfer data to ECU.
Note: With most vehicles, if the vehicle is in “learn mode” the vehicle will also confirm that the TPM sensor
has communicated to the ECU with a series of horn beeps.
Service Procedure
Section 1.0: Read Sensor Test
Before servicing the tires/wheels, using your TPMS TOOL, trigger each
of the vehicle's sensors to make sure they are working properly.
This will eliminate the liability associated with replacing previously
damaged or defective sensors. This procedure will not change the
vehicle settings because the vehicle has yet to be put into
learn/retraining mode.
This procedure allows you to quickly identify damaged or defective sensors, because some vehicles do not
report a damaged or defective sensor condition on the instrument cluster for up to 20 minutes.
Note: If the sensors do not trigger, please refer to the Troubleshooting section of this Guide.
Perform tire/wheel service.
For vehicles that require retraining, please see Section 2.0
Section 2.0: Learning the TPM System
With the vehicle in learn mode, begin by triggering the driver's left front
(LF) wheel sensor. Many vehicles will provide an audible beep confirming
that the sensor ID has been learned by the vehicle's on-board computer.
The communication between the sensor and the on-board computer is also
confirmed on LCD display of the TOOL.
The same procedure should be followed on all wheel sensors, in a clockwise
rotation, until all the vehicle sensors have been retrained.
After triggering the driver's rear wheel sensor, some vehicles will beep twice,
indicating that the TPM system has been retrained.
1 Start LF
4 End LR
RF 2
RR 3
Fig. 4
For vehicles that do not require retraining, we recommend you trigger each wheel sensor, one final time, to make
sure they are working correctly prior to releasing the vehicle to the customer.

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 10/38
H46 USAGE
IMPORTANT:
Vehicle specific information in this manual is used as an example and may not represent specific
instructions each make and model may require. When performing various functions with the
tool, it is important to refer to the on-screen prompts and/or repair manual information.
8. CHECK SENSOR
= continue
= previous
8.1. Select Car Manufacturer
= continue
= previous
8.2. Select Car Model
= continue
= previous

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 11/38

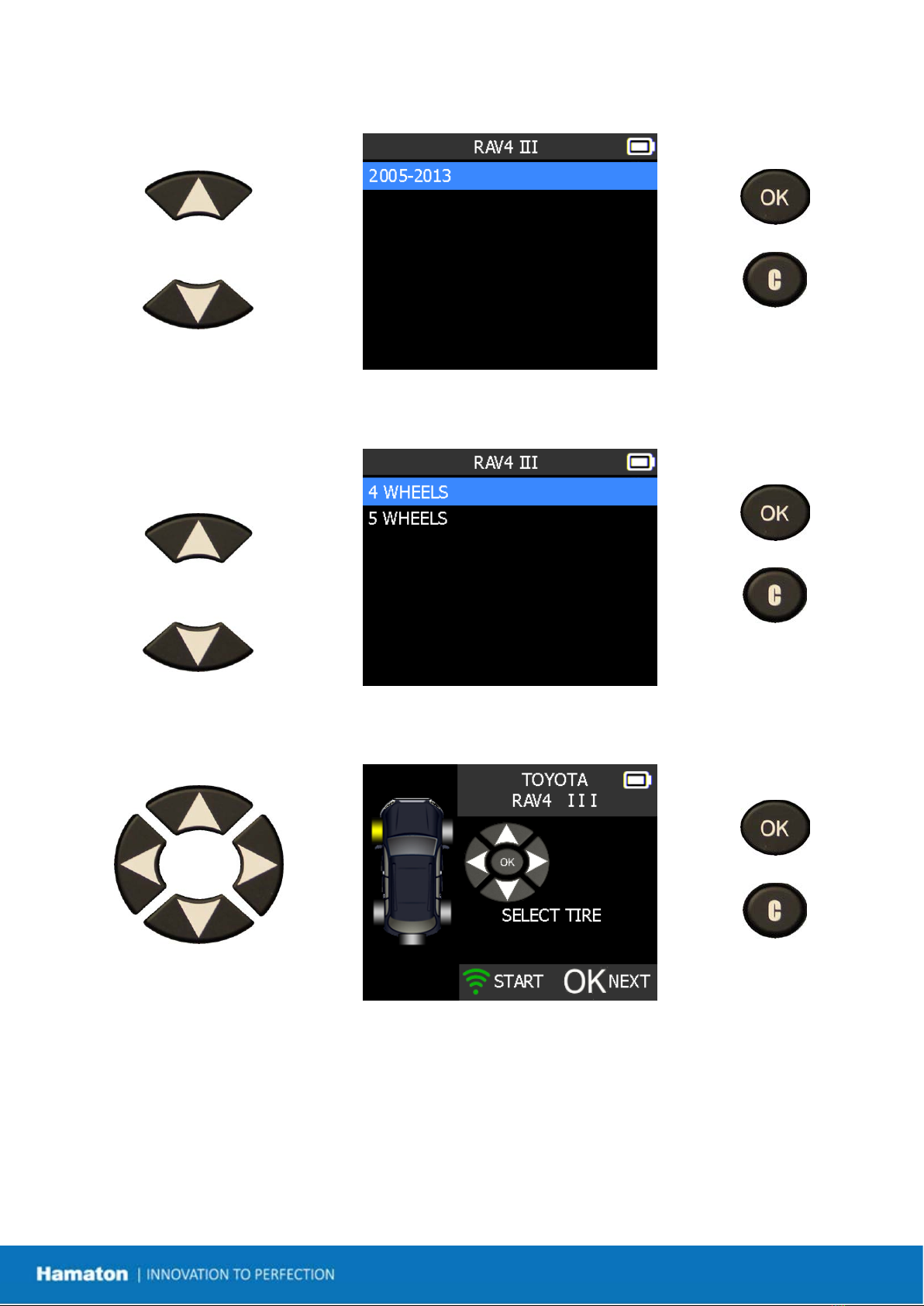

8.3. Select Year
= continue
= previous
8.4. Select Wheel Number
This option does not appear
for all vehicles.
= continue
= previous
8.5. Test Sensors (Trigger)
Select tire.
= continue
= previous

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 12/38

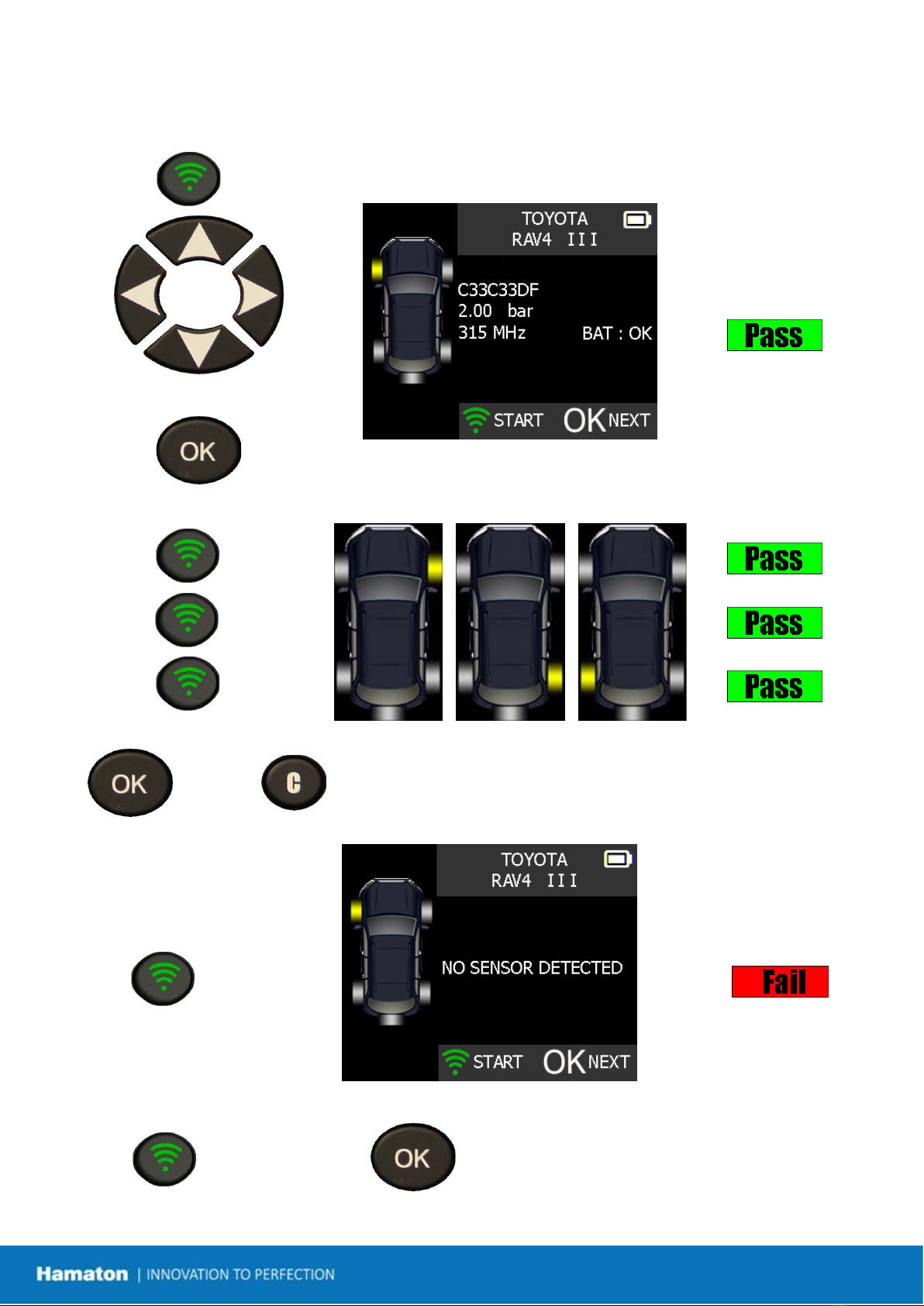

8.6. Test Results
LF
To select another tire or
to select next tire
The tool is triggering the sensor.
RF
RR
LR
Trigger all wheels.
= continue = previous and erase results
LF
The tool does not detect a sensor
Press to test again. Or press to move on to the next step.

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 13/38

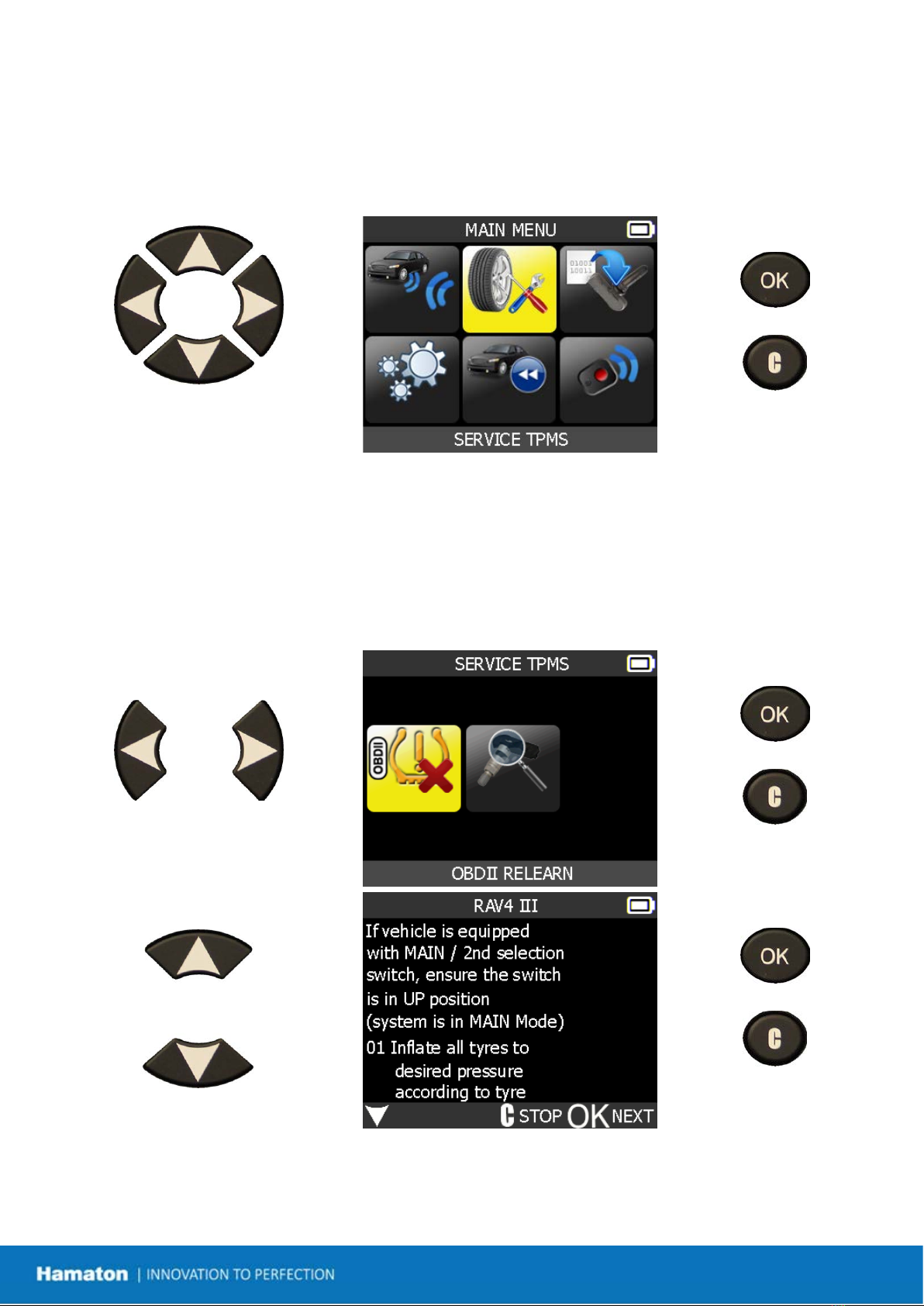

9. SERVICE TPMS
This menu has two functions, firstly to relearn sensor IDs to the ECU through the OBDII port and
secondly to read all sensor part numbers available by vehicle.
Select "SERVICE TPMS"
menu.
= continue
= previous
Select car manufacturer.
Select car model.
Select year.
9.1. OBDII Relearn
This menu to reprogram or relearn the ECU through the OBDII port.
Select OBDII
= continue
= previous
= continue
= previous
Select wheel number.
Proceed with "Sensor check" to trigger all the sensors.

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 14/38

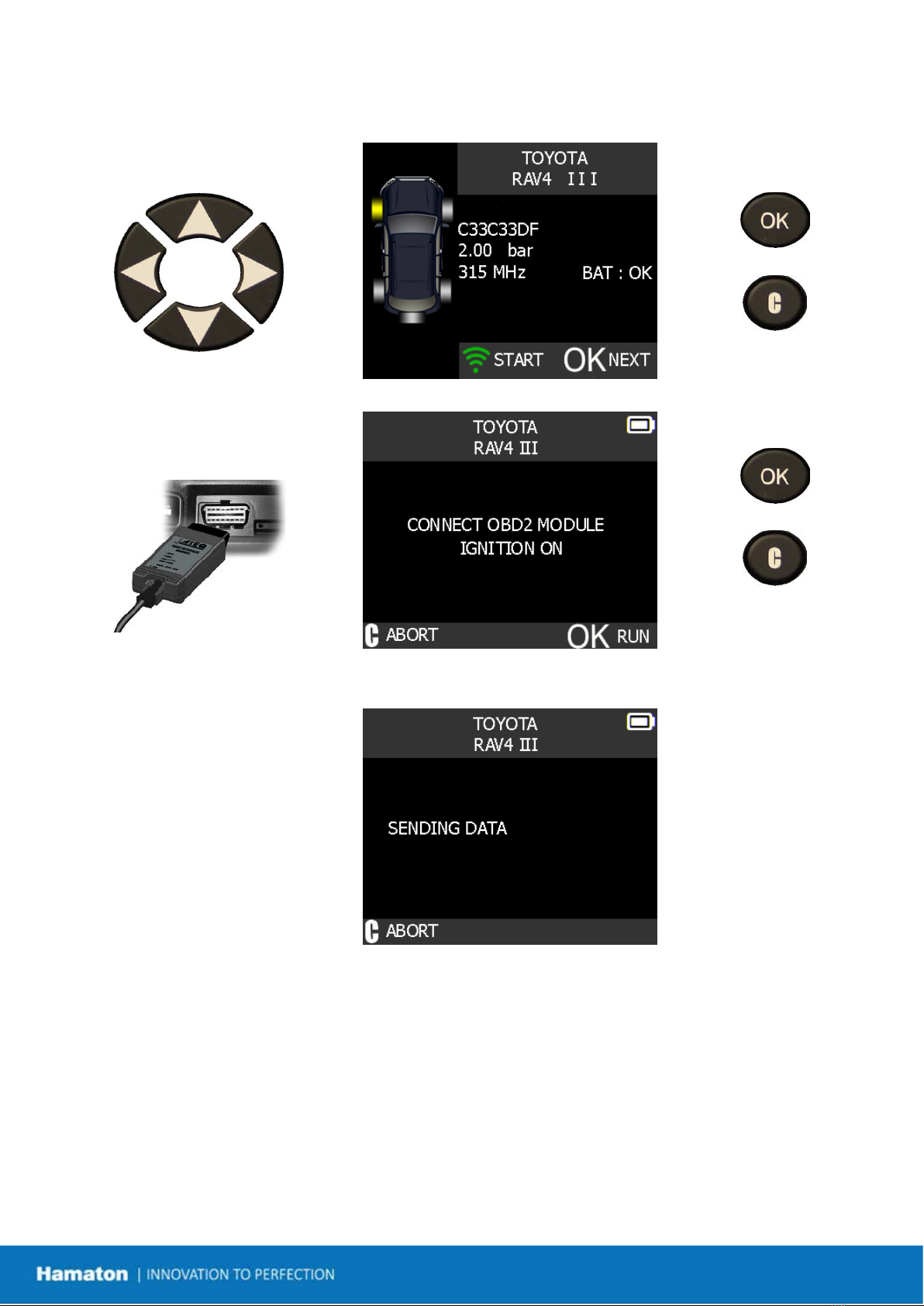

9.1.1. Reprogram ECU through OBDII port
The tool is triggering the sensor.
= continue
= previous
Plug OBDII module into the
OBDII port on vehicle.
= continue
= abort
Note: the following screen message is displayed when all the sensors are triggered and the OBDII
module is connected to the TPMS TOOL.
Wait a few seconds during
the data upload.
Note: this feature is not supported on all vehicles.

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 15/38
The data has been
successfully transferred to
the ECU.
The OBDII module can now
be unplugged from the ECU.
= abort

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 16/38
9.2. Part # Lookup
This spare parts database indicates the sensors available for each car.
= continue
= previous
= continue
= abort

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 17/38
10. PROGRAM BLANK SENSOR
This section explains how to recover a sensor ID in order to enter it in a blank sensor. If the "old"
sensor can be read, use the "COPY ORIGINAL SENSOR" menu to recover the ID. If it cannot be
read, use the "CREATE NEW SENSOR" menu to create a randomized ID.
Select "PROGRAM SENSOR"
menu.
= continue
= previous

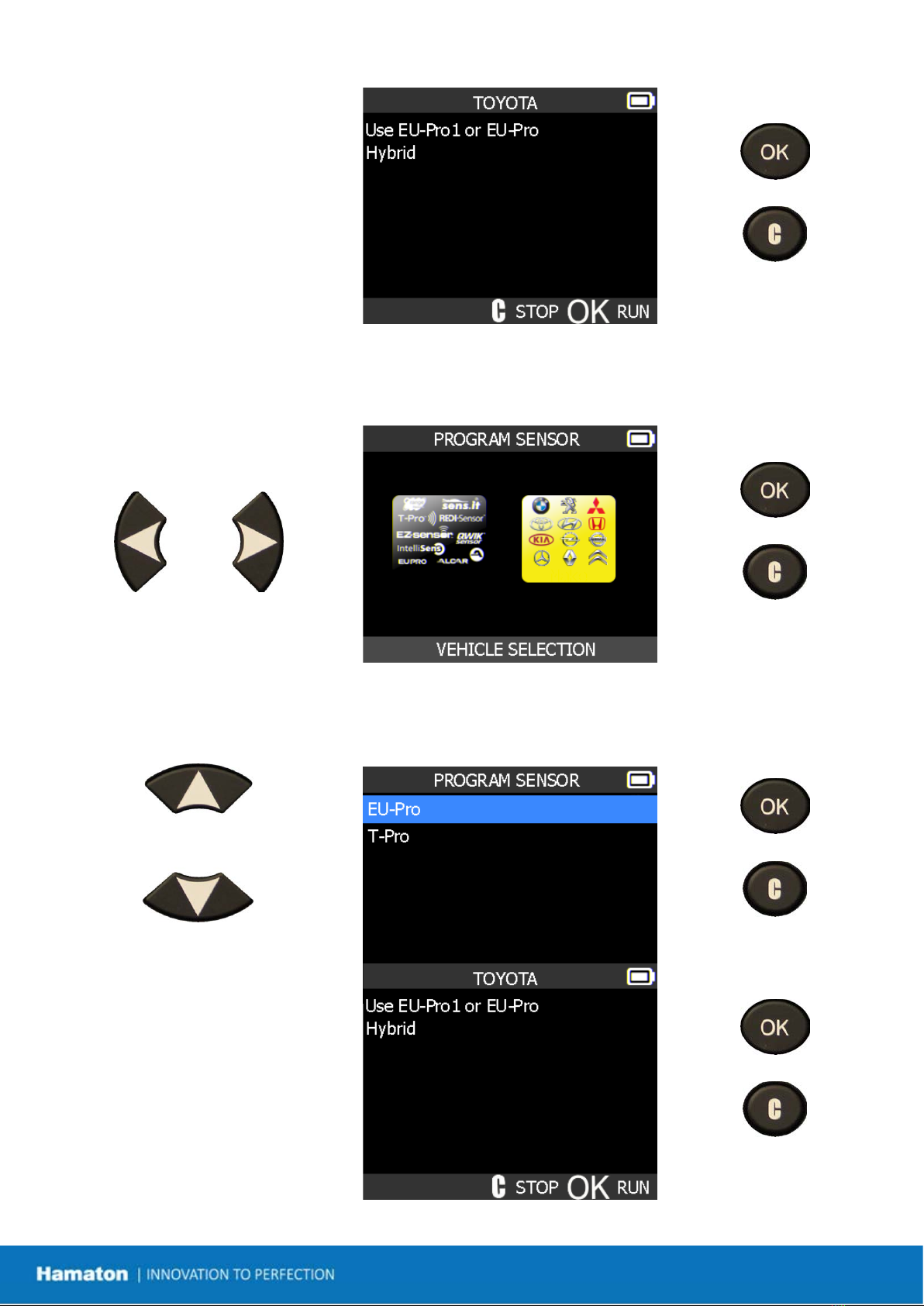

10.1. First Option: Sensor Selection
= continue
= previous
Select the sensor brand.
= continue
= previous
Select car manufacturer.
Select car model.
Select year.

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 18/38
The device displays the blank
sensor's reference from the
selected brand.
= continue
= previous
Note: this is an example; you may have to choose the right sensors.
10.2. Second Option: Vehicle Selection
= continue
= previous
Select car manufacturer.
Select car model.
Select year.
Select the sensor brand.
= continue
= previous
The device displays the blank
sensor reference from the
selected brand.
= continue
= previous

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 19/38
10.3. "Copy Original Sensor" Menu
= continue
= previous
to trigger the
original sensor
Wait a few seconds.
ID of the old sensor is
displayed.
= continue
= previous

UM-365HaD-U H46 TPMS TOOL User Guide
User Guide Hamaton H46 Page 20/38
Hold the new programmable
sensor near the device
antenna.
to upload data
to the blank
sensor.
Wait a few seconds.
Wait a few seconds.
The data has now been
successfully transferred to
the sensor.
= continue
