HAMPTON BAY AC386LED-WB User manual

Item #1005 228 113
USE AND CARE GUIDE
SAVONA TIFFANY 52 INCH CEILING FAN
Model #AC386LED-WB
THANK YOU
THANK YOU
HAMPTONBAY.COM
1-855-HD-HAMPTON
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to find
this fan and click the link of visual instruction in the product overview section.

Operation .....................................................................
Remote Control Operating Instructions ..................................
Reverse Switch Operating Instructions ..................................
Care and Cleaning ......................................................
Troubleshooting ..........................................................
Service Parts ...............................................................
16
16
17
17
18
19
Table of Contents
2
Table of Contents .........................................................
Safety Information ........................................................
Warranty ........................................................................
Pre-installation ..............................................................
Specifications ..........................................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Installation .....................................................................
Assembly .......................................................................
Hanging the Fan .....................................................................
Attaching the Fan Blades .......................................................
Installing the Light Kit ............................................................
2
3
4
4
4
4
5
6
7
8
10
14
15
READ AND SAVE THESE INSTRUCTIONS

Safety Information
3
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as flanges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of fire, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked
“FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the floor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. Suitable for use with solid-state speed control (MR181B-3
only).
11. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: AC386LED-WB
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Full Name: James Lai Title: Manager
Telephone Number: [phone] Fax: [phone]
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

SPECIFICATIONS
SPECIFICATIONS
TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Electrical
tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
52 in.
Low
Medium
High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
2.6 cu. ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
11.29 kgs
(24.84 lbs.)
12.96 kgs
(28.51 lbs.)
0.27
0.47
0.58
12.81
41.21
68.59
62
121
161
2029
4050
5385
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-855-HD-HAMPTON or visit www.hamptonbay.com.

Pre-Installation (continued)
HARDWARE INCLUDED
HARDWARE INCLUDED
NOTE: Hardware shown to actual size unless noted
otherwise in the table below.
5 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
AA
DD
BB
CC
AA
BB
CC
DD
EE
Plastic wire nut (not to scale)
Blade attachment screws with lock washer (not to scale)
9.5 Watt LED medium base bulb (not to scale)
1.5V AAA battery (not to scale)
Plastic wire nut (not to scale)
Part
Part
Description
Description
3
16
2
2
6
Quantity
Quantity
EE

PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6
Part
Part
H
I
J
K
L
M
Description
Description
Light kit
Glass shade
Blade
Blade support plate
Receiver
Remote control
Quantity
Quantity
1
1
5
5
1
1
Part
Part
A
B
C
D
E
F
G
Quantity
Quantity
1
1
1
1
1
1
1
Description
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball / downrod assembly (4 in.)
Extra downrod (6 in.)
Coupling cover
Fan motor assembly
L
K
J
M
A
B
D
F
G
H
I
C
E

To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (not included) as
shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.

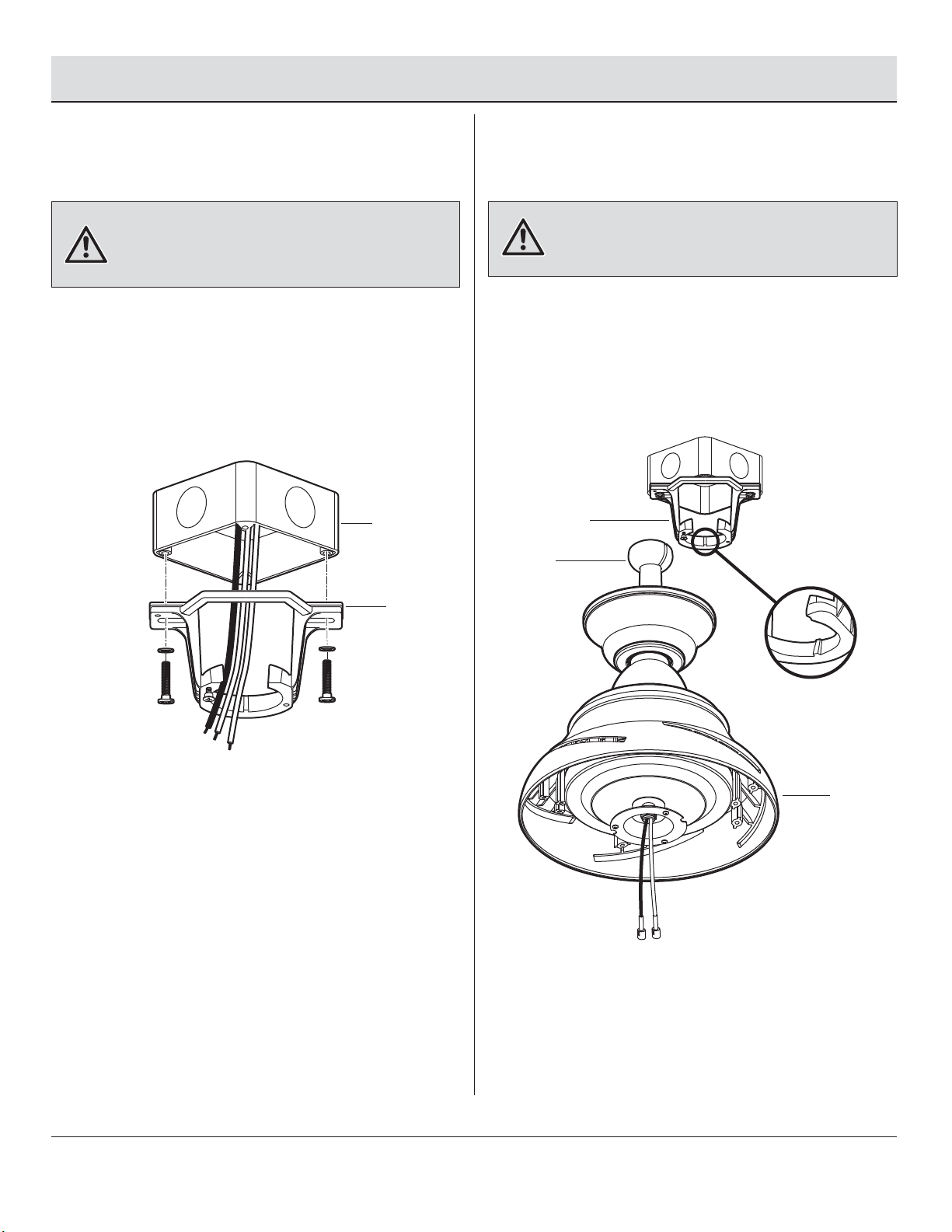

The illustrations below show three different ways to mount the
outlet box (not included).
Outlet Box
Outlet Box
Hanger Bar
Outlet Box
Recessed
Outlet
Box Ceiling
Mounting
Bracket
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (B) touches the hanger ball / downrod assembly
(D), turn the canopy (B) 180° before attaching the canopy (B)
to the mounting bracket (A).
7HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

8
□Remove the canopy bottom cover (C) from the canopy
(B) by turning the canopy bottom cover (C) counter-
clockwise.
□Remove the mounting bracket (A) from the canopy (B)
by removing the non-slotted canopy mounting screw
(FF) from the bottom of the canopy (B) and loosening
the slotted canopy mounting screw (FF) a half turn
from the screw head. Next, turn the canopy (B)
counterclockwise to remove the mounting bracket (A)
from the canopy (B).
FF
A
B
C
FF
1Preparing the canopy 2Changing the downrod (Optional)
Assembly
II
GG
HH
JJ
E
□Remove the hanger ball (GG) from the 4 in. downrod (HH)
by loosening the setscrew (II) at the top of the 4 in.
downrod (HH) which holds the hanger ball (GG) to the
downrod.
□Slide the hanger ball (GG) down the 4 in. downrod (HH)
and remove the cross pin (JJ).
□Insert the cross pin (JJ) in the holes at the top of the 6 in.
downrod (E) and slide the hanger ball (GG) up the 6 in.
downrod (E). Make sure the cross pin (JJ) is properly
seated in the grooves in the top of the hanger ball (GG).
□Tighten the setscrew (II) firmly.
NOTE: Your fan comes with a 4 in. downrod (HH) attached
to the hanger ball (GG). In addition you have been provided
with a 6 in. downrod (E) to use if desired. If you choose to use
the 6 in. downrod (E), perform the following steps.
NOTE: If a longer downrod is needed (not included), take
out the screw located in the hanger ball, lower the hanger
ball and remove the pin. Remove all three pieces from the
downrod, and assemble them onto the new longer downrod
before proceeding to step 3.

9HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
3Preparing the motor 4Assembling the fan
Assembly (continued)
□Remove the cotter pin (KK), and clevis pin (LL), and
loosen the two collar setscrews (MM) from the
motor collar.
G
KK
LL
MM
MM
□Route the wires exiting from the top of the fan motor
assembly (G) through the coupling cover (F) and the
canopy bottom cover (C). Ensure the slot openings are on
top.
□Route the wires through the canopy (B) and then through
the hanger ball / downrod assembly (D).
□Align the holes at the bottom of the hanger ball / downrod
assembly (D) with the holes in the collar on top of the fan
motor assembly (G).
□Carefully insert the clevis pin (LL) through the holes in the
collar and the hanger ball / downrod assembly (D). Be
careful not to jam the clevis pin (LL) against the wiring
inside the hanger ball / downrod assembly (D).
□Insert the cotter pin (KK) through the hole near the end of
the clevis pin (LL) until it snaps into the locked position.
□Tighten the two collar setscrews (MM) on top of the fan
motor assembly (G) firmly.
WARNING: Failure to properly install the cotter pin (KK)
could result in the fan loosening and possibly falling.
C
F
LL
MM
G
KK
D
B
MM

WARNING: The tab in the ring must rest in the groove of
the hanger ball / downrod assembly (D). Failure to properly
seat the tab in the groove could cause damage to the wiring.
5Installing the mounting bracket
to the electrical box
□Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□Install the mounting bracket (A) to the outlet box with
the screws and washers provided with the outlet box.
□Securely tighten the two mounting screws.
Hanging the fan from the mounting
bracket
6
Assembly — Hanging the Fan
A
WARNING: To reduce the risk of fire, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
□Carefully lift the fan motor assembly (G) up to the
mounting bracket (A) and seat the hanger ball /
downrod assembly (D) in the mounting bracket (A)
socket. Make sure the tab on the mounting bracket
(A) socket is properly seated in the groove in the
hanger ball / downrod assembly (D). This will help to
balance the ceiling fan.
G
D
A
Outlet
Box
10

Assembly — Hanging the Fan (continued)
7Preparing the receiver and
remote control
NOTE: The frequencies on your receiver and remote control
have been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and remote
control are set to the same frequency. The dip switches on
the remote control are located inside the battery
compartment.
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
remote control. Dispose of the used battery properly and keep
the battery out of the reach of children.
Setting the Code on the Remote:
□Remove the battery cover on the back of the remote
control (M) by pressing firmly on the arrow and sliding
the cover off.
□Slide the code switches to your choice of either up or
down. The factory setting is up.
□The switch marked O/D controls the dimming function
of the lights. If using non-dimmable bulbs, use a
ballpoint pen or small screwdriver to set the switch to
O to disable the dimming function. If using dimmable
bulbs, set the switch to D to enable the dimming
function.
□Install two AAA batteries (DD) (included).
□Replace the battery cover on the remote control (M).
Setting the Code on the Receiver:
□Slide the code switches on the receiver (L) to the same
positions as set on the remote control (M).
□After checking the switches, insert the receiver (L) into
the mounting bracket (A) with the flat side of the
receiver (L) facing the ceiling.
G
L
A
11 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
M
DD
L
3412
3412
DIP
DIPON

Outlet Box
AA
Black White
L
Ground
conductor
White
Blue Black
White
Blue
Black
AA
Green
Black
White
Assembly — Hanging the Fan (continued)
8Making the electrical connections
Follow the steps below to connect the fan to your
household wiring. Use the plastic wire nuts (AA) with your
fan. Secure the plastic wire nuts (AA) with electrical tape.
Make sure there are no loose strands or connections.
Motor to receiver electrical connections:
□Connect the black wire from the fan to the black wire
marked "TO MOTOR L" from the receiver (L).
□Connect the white wire from the fan to the white wire
marked "TO MOTOR N" from the receiver (L).
□Connect the blue wire from the fan to the blue
wire marked "For Light" from the receiver (L).
Receiver to house supply wires electrical connections:
□Connect the black (hot) wire from the ceiling to
the black wire marked "AC in L" from the receiver (L).
□Connect the white (neutral) wire from the
ceiling to the white wire marked "AC in N" from the
receiver (L).
□Connect the ground conductor of the 120V supply
(this may be a bare wire or a wire with green colored
insulation) to the green ground lead(s) of the fan.
□Secure each wire connection with a plastic wire nut
provided with the electrical hardware.
□After connecting the wires, spread them apart so that
the green and white wires are on one side of the
outlet box and the black and blue wires are on the
other side. Carefully tuck the wire connections up
into the outlet box.
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
CAUTION: Do not use with a wall light dimmer switch.
12
3412
DIP

9Installing the canopy
Assembly — Hanging the Fan (continued)
10
□Make sure connections are neatly tucked into the
ceiling outlet box.
□Slide the canopy (B) up to the mounting bracket (A)
and place the key hole on the canopy (B) over the
loose canopy mounting screw (FF) on the mounting
bracket (A). Turn the canopy (B) clockwise until the
canopy (B) locks in place at the narrow section of the
key holes.
□Align the circular hole on the canopy (B) with the
remaining hole on the mounting bracket (A). Secure
the canopy mounting screw (FF) previously removed
in the hole and tighten the two canopy mounting
screws (FF).
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball / downrod
assembly (D) before attaching the canopy (B) to the mounting
bracket (A) by turning the canopy until it drops into place.
NOTE: Adjust the canopy mounting screws (FF) as
necessary until the canopy (B) and canopy bottom cover (C)
are snug.
Attaching the canopy
bottom cover
□Attach the canopy bottom cover (C) to the canopy
mounting screw (FF) heads on the bottom of the
canopy (B) by inserting the screw heads into the key
slots in the canopy bottom cover (C) and rotating the
canopy bottom cover (C) clockwise.
B
FF
A
C
FF
B
FF
C
13 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

Assembly — Attaching the Fan Blades
WARNING: To reduce the risk of personal injury, do not
bend the blades (J) while installing, balancing the blades (J),
or cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades (J).

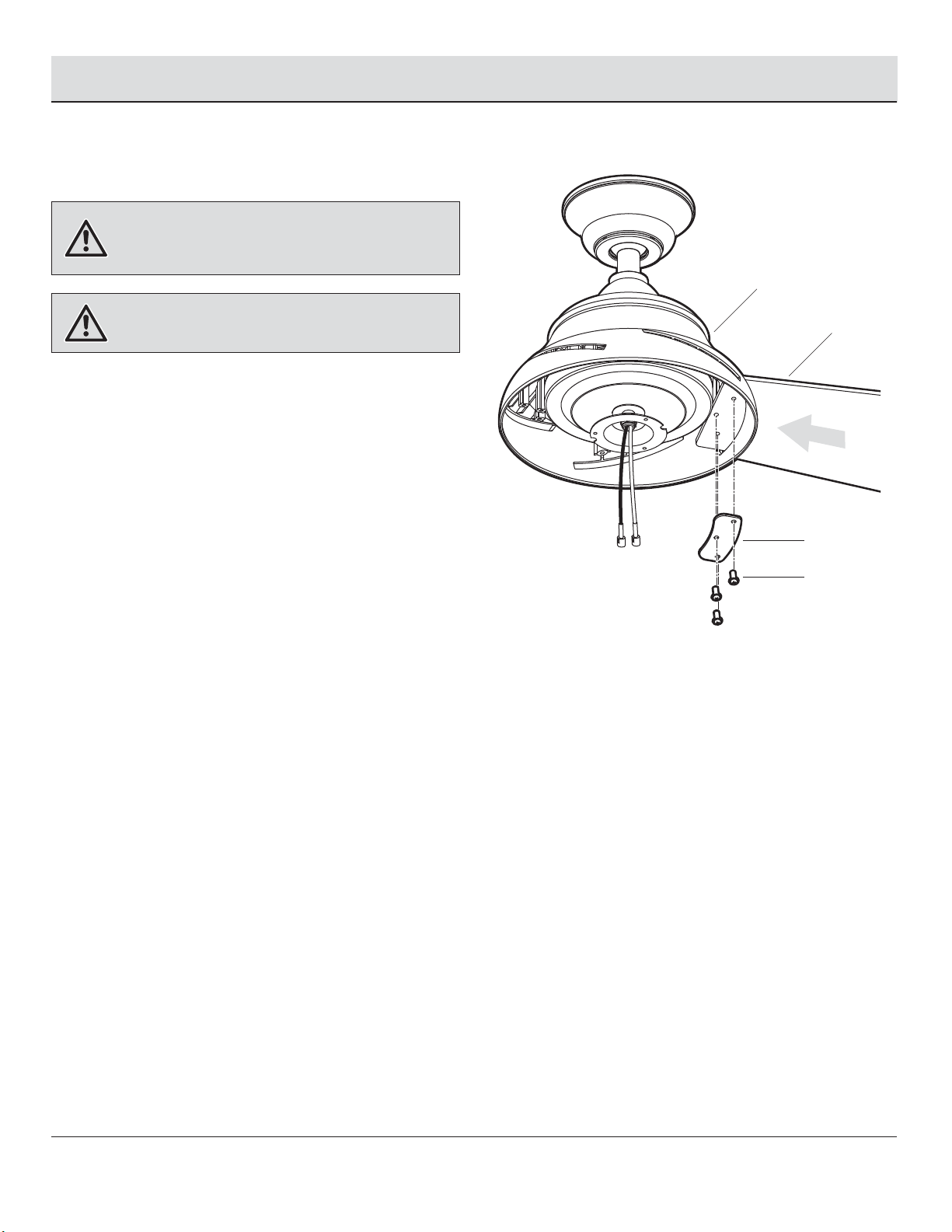

11 Attaching the fan blades
□Insert the blade (J) through the blade slot in the fan
motor assembly (G). Align the holes in blade (J) and
blade arm, place the blade support plate (K) on blade
(J), making sure the holes are also aligned and
secure with lock washers and screws (BB) provided.
□Repeat this procedure with the remaining blades (J).
G
BB
K
J
14

12
Assembly — Installing the Light Kit
Attaching the light kit to
the fan motor assembly
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
13 Installing the light bulbs
and glass shade
□Remove one of the three screws (NN) from the
mounting ring (OO) and keep it for future use. Loosen
the other two screws (NN). (Do not remove.)
□While holding the light kit (H) under your fan motor
assembly (G), locate two single white and blue wires
in the fan motor assembly (G) labeled "FOR LIGHT".
Make the polarized plug connections (PP):
- White to white
- Black to black
□Tuck connections neatly into the mounting ring (OO),
place the key holes on the light kit (H) over the two
screws previously loosened from the mounting ring
(OO), and turn the light kit (H) until it locks in place at
the narrow section of the key holes. Secure by
tightening the two screws (NN) previously loosened
and the one previously removed.
H
NN
G
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
□Remove the decorative nut (QQ) from the light kit (H).
□Install the 9.5W LED bulb (CC) (included).
□Raise the glass shade (I) up against the light kit (H)
and thread the decorative nut (QQ) on securely. Do not
overtighten.
PP
OO
H
I
QQ
CC
15 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

Operation
M
REMOTE CONTROL OPERATING INSTRUCTIONS
REMOTE CONTROL OPERATING INSTRUCTIONS
- Press and release the button to turn the fan on or off.
- Press and release 1 time - turns the fan on high speed.
- Press and release 2 times - turns the fan on medium speed.
- Press and release 3 times - turns the fan on low speed.
- Press and release 4 times - turns the fan off.
- Press and release the button to turn the light on or off.
If you are using dimmable bulbs and you have previously set O / D dip
switch in your remote to the “D” position, press and hold the
button to activate the dimmer function.
- Press and hold this button for 3 seconds to enable Comfort
BreezeTM; this will change your fan speed randomly, simulating a
relaxing breeze. To cancel this feature press or .
- While the fan is on press 1 time - turns on a 2 hour run timer.
- While the fan is on press 2 times - turns on a 4 hour run timer.
- While the fan is on press 3 times - turns on an 8 hour run timer.
INSTALLING THE REMOTE CONTROL HOLDER
INSTALLING THE REMOTE CONTROL HOLDER
□Attach the remote control holder (RR) with the two remote
control holder mounting screws (SS).
□Replace the remote control holder cover (TT) into the remote
control holder (RR). SS
TT
RR
16

Operation (continued)
Care and Cleaning
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
The reverse switch is located on the top of the motor housing.
Slide the switch to the left for warm weather operation. Slide the
switch to the right for cool weather operation.
Warm weather - (Counterclockwise Direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
17 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.

Troubleshooting
□Do not connect the fan with wall mounted variable speed control(s).
□Make sure the frequency switches are set correctly.
The fan wobbles.
The remote control is
not working.
Problem
Problem
Solution
Solution
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade to the motor hub are tight.
□Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the glassware is secured tightly.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to step 8
“Making the electrical connections” on page 12.
□Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and
measure from the center of the selected blade to the point on the ceiling. Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-855-HD-HAMPTON) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in., please call Customer Service (1-855-HD-HAMPTON) to order
complimentary replacements of your brackets.
18

Part
Part
A
B
C
D
E
F
G
H
I
J
K
L
M
Description
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball / downrod assembly (4 in.)
Extra downrod (6 in.)
Coupling cover
Fan motor assembly
Light kit
Glass shade
Blade
Blade support plate
Receiver
Remote control
Part
Part
AA
BB
CC
DD
EE
Description
Description
Plastic wire nut
Blade attachment screws with lock washer
9.5 Watt LED medium base bulb
1.5V AAA battery
Plastic wire nut
Service Parts
AA
DD
BB
CC
L
K
J
M
A
B
D
F
G
H
I
C
EE
19 HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
E

1-855-HD-HAMPTON
HAMPTONBAY.COM
Retain this manual for future use.
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Hampton Bay Customer Service
