HAMPTON BAY Chamblee User manual

52 in Ceiling Fan
Owner’s manual
Ventilador de Techo de 1,32 m
Manual del Propietario
Chamblee
Chamblee
538 852

Chamblee by Hampton Bay®

52 Chamblee
Ceiling Fan by Hampton Bay
Date Purchased
Store Purchased
ETL
Model No.
Serial No.
Vendor No.
UPC
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Y our Fan . . . . . . . . . . . . . . 2
Installing Y our Fan . . . . . . . . . . . . . . . 3
Installing the Light Kit. . . . . . . . . . . . . 8
Care of Y our Fan . . . . . . . . . . . . . . . . 10
Trouble shooting . . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . 11
Warranty Information . . . . . . . . . . . . 12
222875
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
845952000278
CF552B-CHA

Safety Rules - Read and Save These Instructions
WARNING
WARNING
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
WARNING: To reduce the risk of electrical shock or fire, do not
use this fan with any solid-state fan speed control device. It will
permanently damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the
screws provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 pounds. Use only
UL Listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7 feet clearance from
the trailing edge of the blades to the floor.
Avoid placing objects in path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades.
A dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
1.
2.
3.
4.
5.
6.
7.
8.
9.
After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box and
ungrounded conductor on the other side of the outlet box.
All set screws must be checked and retightened where necessary
before installation.
10.
11.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN
INSTALLING THE BRACKETS, BALANCING THE BLADES OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –
BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET
BOX.
1

2
10.
11.
CFL bulbs(2)
Glass shade (1)
1.
2. Mounting bracket (1)
3. Canopy (1)
4. Canopy cover (1)
5. Downrod assembly (1)
6. Coupling cover (1)
7. Fan motor assembly ( 1 )
8.
9.
Fan blades (5)
Blade holders ( 5 )
Light kit (1)
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-262-7511
12. Loose parts bag containing:
A . Blade attachment hardware
(16 screws and paper washers)
B. Blade holder hardware
screw with lock washer (1
C.
attachment
)
E. Wire nuts (3)
F. Extra plug (1)
Pull chain fob (2)
D. Balancing kit (1)
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
9
10
11
1
5
4
6
7
8
2
3
B
A
C D
E
12
F

Installing Your Fan
WARNING
Outlet Box
Outlet Box
Outlet Box
Figure 2
Figure 1
Ceiling
Mounting
Plate
Provide Strong
Support
Recessed
Outlet Box
Figure 3
Figure 4
Tools Required
Mounting Options
Phillips screwdriver, straight slot
screwdriver, step ladder and wire cutters.
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 35 lbs). Do
not use plastic outlet boxes.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OUTLET BOX MARKED ACCEPT-
AB L E F O R FA N S U P P O RT A N D U S E T H E
MOUNTING SCREWS PROVIDED WITH THE
OUTLET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE MAY
NOT BE ACCEPTABLE FOR FAN SUPPORT AND
MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Figures 1~3 are examples of different ways to
mount the outlet box.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at any Home Depot store).
3
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. The
maximum angle allowable is 18°. If the
canopy touches downrod, remove the
decorative canopy bottom cover and turn the
canopy 180° before attaching the canopy to
the mounting plate.

Figure 10
Registration
slot
Figure 9
Lead Wires
Ball/downrod
Assembly
Canopy
Lock Pin
Couping cover
Canopy cover
Hitch Pin
Tighten
Screws
Firmly
Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
1.
3.
Remove hanger ball
from downrod assembly by loosening set screw,
removing the cross pin, and sliding ball off rod.
(Figure 7)
4. Carefully feed fan wires up through the
downrod. (Figure 8) Thread the rod into the
coupling. Next, line up holes and replace lock
pin and hitch pin. Tighten set screws.
5. Slip coupling cover, canopy cover and
canopy onto downrod. (Figure 9) Carefully
reinstall hanger ball onto downrod, make sure
that cross pin is in correct position, set screws
are tighten and wires are not twisted.
Secure the mounting bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
(Figure 5)
2. Loosen the two set screws from the
motor assembly. (Figure 6)
Remove the hitch pin and lock pin from
the downrod assembly.
6. Now lift motor assembly into position and place
hanger ball into mounting bracket. Rotate until the
check groove
should not rotate
if this is done correctly.
drops into the registration slot and
seats firmly. (Figure 10) Downrod
Figure 6
Downrod
Supply
wires
Figure 8
Figure 5
Cross pin
Hanger
ball
Downrod
Figure 7
Outlet box
Mounting bracket
Hitch pin Lock pin
Set
screws
4

5
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
WHITE
BLUE
BLACK WHITE
Figure 11
Diagram indicates optional light kit wiring.
Making the Electrical
Connections
Remember
Follow the steps below to connect the fan to
your household wiring. Use the wire nuts
supplied with your fan. Secure the
connectors with electrical tape. Make sure
there are no loose strands or connections.
to shut off the power.
1. Connect the fan supply (black) wire and
light supply (blue) wire to the black ceiling
supply wire. (Figure 11)
2. Connect the neutral fan (white) wire t o
the w hite neutral wire from the ceiling .
(Figure 11)
3. Connect the fan ground wire (green) and
the mounting bracket ground wire (green) to
the ground wire . (Figure
11)
4. After connecting the wires, spread them
apart so that the green and white wires are
on one side of the outlet box and the black
and the blue wires are on the other side.
from the ceiling
LIGHT KITS ARE AVAILABLE AT YOU HAMPTON
BAY RETAILER. THE FAN IS ALREADY WIRED TO
SUPPORT THE LIGHT KIT OPTION.
5. Turn the wire nuts upward and push the wiring into the
outlet box. Figures 12 and Figures 13 illustrate the wiring
connections for optional wall control (available at your
Hampton Bay Retailer, the wire color out of wall control
may vary, see wall control's installation manual for correct
wire connections)
NOTE
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
OTHER PERSONAL INJURY. MOUNT FAN ONLY ON AN
OUTLET BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK.
DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED
CONTROL DEVICE.

SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 13
Diagram indicates optional light kit wiring.
Light
Fan
WHITE
BLUE
BLACK WHITE
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 12
Diagram indicates optional light kit wiring.
Light Switch
WHITE
BLUE
BLACK WHITE
Finishing the Installation
1. Tuck connections neatly into ceiling outlet box.
2.
Remove one screw from the mounting bracket and
loosen the other screw around 1/4″.
3. Align the canopy up to ceiling and over the loose
screw. Place the canopy into key hole and rotate
canopy clockwise. (Figure 14)
4. Secure the canopy by using previous removed
screw and loosened screws.
5. Place the canopy cover to the canopy and rotate
canopy cover clockwise until it is locked into right
position.(Figure 14)
MAKE SURE TAB AT BOTTOM OF HANGER
BRACKET IS PROPERLY SEATED IN GROOVE OF HANGER
BALL BEFORE
ATTACHING CANOPY TO BRACKET. FAILURE
TO PROPERLY SEAT TAB IN GROOVE COULD CAUSE
DAMAGE TO ELECTRICAL WIRING.
WARNING
Figure 14
6
Outlet box
Mounting bracket
Canopy
Screw
Canopy
cover
Lead Wires
Ball/Downrod
Assembly

7
The following procedure should correct most
fan wobble issues. Check after each step.
1. Check that all blades and blade holder
screws are secure.
2. Most fan wobble problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling above
the tip of one of the blades. Measure this
distance as shown in Figure 17. Rotate the fan
unt il the n ex t b lade is posi ti on ed for
measurement. Repeat for each blade. The
distance should be equal within 1/8".
If all blade levels are not equal, you can
adjust the blade level with the following
procedure.
3. Use the enclosed Blade Balancing Kit if the
blade wobble is still noticeable. (Please refer
to the introduction provide in the blade
balancing kit, which is individually packed.)
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side)
blades can redistribute the weight and
possibly result in smoother operation.
Touching
ceiling
Figure 17
Figure 16
A t t a c h i n g t h e F a n
Blades
1. A ttach the blades to the blade holder
using three screws and paper washer as
shown in Figure 15. Start a screw into the
blade holder, do not tighten. Repeat for
the 2 remaining screws and washers.
2. Tighten each screw securely starting
with the center screw. Make sure the blade
is straight.
3.
4. F asten the blade assemblies to motor
housing by tightening two previous
removed screws from the motor housing.
(Figure 16)
Remove the plastic blocks before
installing the blade holder to the bottom
motor housing, discard the plastic blocks
but keep the screws. (Figure 16).
Blade holder
Blade
Screws
Figure 15
paper
Washer
Motor housing
Blade holder
Screw

8
5. Remove the rubber washer, metal washer,
metal nut, metal cap and finial from the light
kit assembly. Place glass shade over the light
kit stem, secure with the rubber washer,
metal washer, metal nut, metal cap and finial
previously removed. Do not over tighten.
(Figure 19)
6. Restore power and your light kit is ready
for operations.
Installing the Light Kit
CAUTION To Reduce The Risk Of Electric
Shock, Disconnect The Electrical Supply
Circuit To The Fan Before Installing Light
Kit.
REMEMBER The fan blades must already
be attached to the fan.
Your fan and light kit though pre-wired have
been disassembled at the factory to ease in
shipping. Please follow these steps to
complete the installation of your fan and
light. TO REDUCE THE RISK OF FIRE
D O N O T E X C E E D M A X I M U M
WATTAGE RATING.
1. Remove 3 screws on the switch box cover.
(Figure 18)
2. While holding the light kit assembly under
your fan, snap together the wire connection
plugs. (Figure 18)
3. Carefully push all wires back into the
switch box, then install the light kit assembly
onto the switch box with the 3 screws previously
removed. Be sure to tighten all screws. (Figure
18)
4. Install 2*13W CFL (included).. (Figure 19)
Figure 18
Switch box
CFL
Glass shade Metal Nut
Finial
Metal Cap
Rubber Washer
Metal Washer
Figure 19
Housing
Screw
Wire connection
plugs
Switch box
cover
Light kit
Switch box
MAKE SURE TO LEAVE ENOUGH SPACE
BETWEEN THE FAN PULL CHAIN AND
THE BULBS TO THE CHAIN DOESN’T RUB
AGAINST ANY OF THE BULBS. LIGHT
BULBS HAVE NO WARRANTY, CAN BE
P U R C H A S E D A T L O C A L H O M E
IMPROVEMENT STORE OR FROM OUR
SERVICE CENTER.
NOTE:

9
NOTE
WAIT FOR FAN TO STOP BEFORE CHANGING
THE SETTING OF THE SLIDE SWITCH.
Figure 20
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans, etc.
The Reverse switch is located on the switch
box. Slide the switch down for warm weather
operation. Slide the switch up for cool weather
operation.
Warm weather - (Counter-Clockwise
direction) A downward air flow creates a
cooling effect.(Fig. 21) This allows you to
set your air conditioner on a higher setting
without affecting your comfort.
Cool weather - (Clockwise direction) An
upward airflow moves warm air off the
ceiling area. (Fig. 22) This allows you to set
your heating unit on a lower setting without
affecting your comfort.
cover
Figure 21
Figure 22
1.Disassemble the switch box cover from
the light kit by loosening the screws
(Keep the screws for future use).
2.Attach the extra plug to the switch box
cover.
3.Install the switch box cover to the switch
box with the screws previously loosened
and tighten securely.
Fan without Light Kit

WARNING
1.
2.
3.
4.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
Fan will not start
Fan sounds noisy
Care of Your Fa n Troubleshooting
PROBLEM SOLUTION
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain
its new appearance over the years. Do not use
water when cleaning. Use only a soft brush or
lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish
to the wood blades for additional protection
and enhanced beauty. Cover small scratches
with a light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball
bearings.1.2.3.4.
Here are some suggestions to help you
maintain your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan and switch wire
connections in the switch housing.
Check to make sure the dip switches from the transmitter and
receiver are set to the same frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the
motor hub is tight.
Make sure wire nut connections are not rattling against each
other or the interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated
with a new fan disappear during this time.
If using ceiling fan light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
Make sure there is a short distance from the ceiling to the
canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads
are used between mounting bracket and outlet box.
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPY ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
10
For any additional information on your
Hampton Bay Ceiling Fan, please write to:
751 Port America Place,
Suite 850 Grapevine,
TX 76051-8301
Summerwind International, LLC.

Specifications
FAN SIZ E SPEED VOLT S AMPS WATT S RPM CF M N.W.G.W.C.F.
LOW
MED
HIGH
These are approximate measures. They do not include Amps and Wattage used by the light kit.
11
120
52
Distributed by
Your Other Warehouse,
LLC 12100 Little Cayman
Dr. Baton Rouge, LA 70809
0.218
0.398
0.523 62.2
32.6
10.2 62
118
165 4787
3437
1852
7.86kgs
17.33lbs
9.27kgs
20.44lbs
2.08

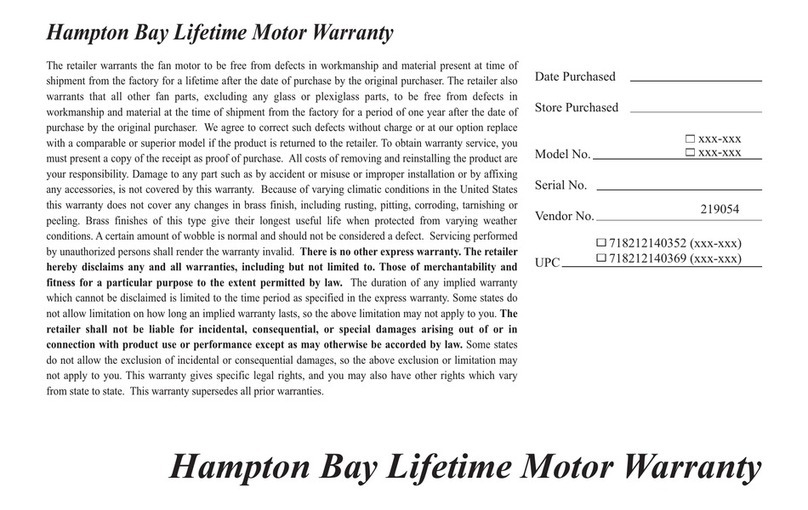

Lifetime Limited Warranty
(lifetime warranty on motor)
Attach receipt here for easy
location
The Hampton Bay warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a period of lifetime after the date of purchase by the
original purchaser. Hampton Bay also warrants that all other fan parts, excluding any glass or
acrylic blades, to be free from defects in workmanship and material at the time of shipment from the
factory for a period of one year after the date of purchase by the original purchaser. We agree to
correct such defects without charge or at our option replace with a comparable or superior model if
the product is returned to Hampton Bay. To obtain warranty service, you must present a copy of the
receipt as proof of purchase. All costs of removing and reinstalling the product are your
responsibility. Damage to any part such as by accident or misuse or improper installation or by
affixing any accessories, is not covered by this warranty. Because of varying climatic conditions
this warranty does not cover any changes in brass finish, including rusting, pitting, corroding,
tarnishing or peeling. Brass finishes of this type give their longest useful life when protected from
varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no
other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not
limited to. Those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period
as specified in the express warranty. Some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for
incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specific legal rights, and you may also have other rights which vary from state
to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as
part of a claim on the warranty must be paid by the customer.
You must present a copy of the original
purchase receipt to obtain warranty
service.
For any additional information on your
Hampton Bay Ceiling Fan, please write to:
Summerwind International, LLC.
751 Port America Place,
Suite 850 Grapevine,
TX 76051-8301
12
