HAMPTON BAY Cherokee 565 332 User manual

Cherokee

Safety Rules - Read and Save These Instructions
WARNING
WARNING
To reduce the risk of electric shock, insure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
WARNING: To reduce the risk of electrical shock or fire, do not
use this fan with any solid-state fan speed control device. It will
permanently damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the
screws provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 pounds. Use only
UL Listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7 feet clearance from
the trailing edge of the blades to the floor.
Avoid placing objects in path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades.
A dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
1.
2.
3.
4.
5.
6.
7.
8.
9.
After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box and
ungrounded conductor on the other side of the outlet box.
All set screws must be checked and retightened where necessary
before installation.
10.
11.
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN
INSTALLING THE BRACKETS, BALANCING THE BLADES OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –
BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET
BOX.
1

56 Cherokee
Ceiling Fan by Hampton Bay
Date Purchased
Store Purchased
ETL
Model No.
Serial No.
Vendor No.
UPC
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Y our Fan . . . . . . . . . . . . . . 2
Installing Y our Fan . . . . . . . . . . . . . . . 3
Installing the Light Kit. . . . . . . . . . . . . 8
Care of Y our Fan . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . 11
Warranty Information . . . . . . . . . . . . 12
82598
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
845952000223
565 332

2
1
2
10
3
9
4
6
5
10. Light kit (1)
11. CFL (2)
12. Glass shade (1)
13. Transmitter (1)
14. Receiver (1)
1.
2. Hanger bracket (1)
3. Canopy (1)
4. Canopy cover (1)
5. Downrod assembly (1)
6. Coupling cover (1)
7. Fan motor assembly ( 1 )
8. Switch box cover (1)
9. Blade holders ( 5 )
Fan blades (5)
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-262-7511
15. Loose parts bag containing:
a . Blade attachment hardware (16 screws
and rubber washers)
b. Set of blade holder hardware (1 screw)
c. Balancing kit (1)

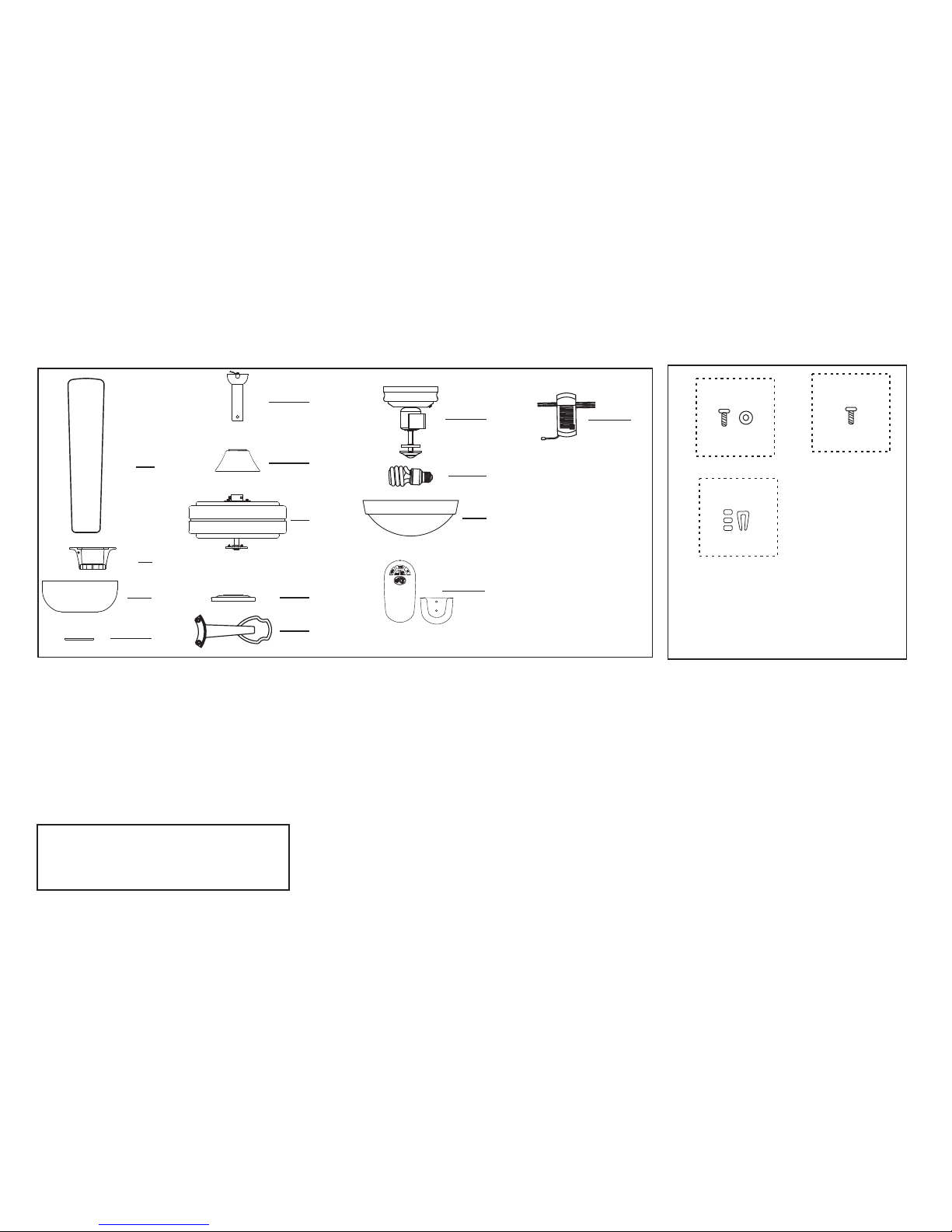

Unpack your fan and check the contents. You should have the following items:
15
b
a
c
11
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
8
712
13
14

Installing Your Fan
WARNING
Outlet Box
Outlet Box
Outlet Box
Figure 2
Figure 1
Ceiling
Mounting
Plate
Provide Strong
Support
Recessed
Outlet Box
Figure 3
Figure 4
Tools Required
Mounting Options
Phillips screwdriver, straight slot
screwdriver, step ladder and wire cutters.
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 35 lbs). Do
not use plastic outlet boxes.
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPT-
AB L E F OR FA N S U P P O RT AN D U SE T HE
MOUNTING SCREWS PROVIDED WITH THE
OULET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE MAY
NOT BE ACCEPTABLE FOR FAN SUPPORT AND
MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Figures 1~3 are examples of different ways to
mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. The
maximum angle allowable is 18°. If the
canopy touches downrod, remove the
decorative canopy bottom cover and turn the
canopy 180° before attaching the canopy to
the mounting plate.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at any Home Depot store).
3

4
Motor Collar
Hitch Pin
Lead Wires
Ball/downrod
Assembly
Ceiling
Canopy
Lock Pin
Couping cover
Tighten
Screws
Firmly
Canopy cover
Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
1.
3. Remove hanger ball from downrod assembly
by loosening set screw, removing the cross pin,
and sliding ball off rod. (Figure 7)
4. Carefully feed fan wires up through the
downrod. (Figure 8) Thread the rod into the
coupling. Next, line up holes and replace lock
pin and hitch pin. Tighten set screws.
5. Slip coupling cover, canopy cover and
canopy onto downrod. (Figure 9) Carefully
reinstall hanger ball onto downrod, make sure
that cross pin is in correct position, set screws
are tighten and wires are not twisted.
Secure the hanger bracket to the ceiling
outlet box with the screws and washers
provided with your outlet box. (Figure 5)
2. Remove the hitch pin and lock pin from
the downrod assembly. Loosen the two set
screws from the motor assembly. (Figure
6)
6. Now lift motor assembly into position and place
hanger ball into hanger bracket. Rotate until the
check groove
should not rotate
if this is done correctly.
drops into the registration slot and
seats firmly. (Figure 10) Downrod
Figure 6
Downrod
Supply
wires
Figure 8 Figure 10
Registration
slot
Figure 5
Cross pin
Hanger
ball
Downrod
Figure 7
Outlet box
Hanger bracket
Hitch
pin Lock
pin
Set
screws
Figure 9

5
Figure 12
Receiver
Mounting
bracket
ON
Figure 11

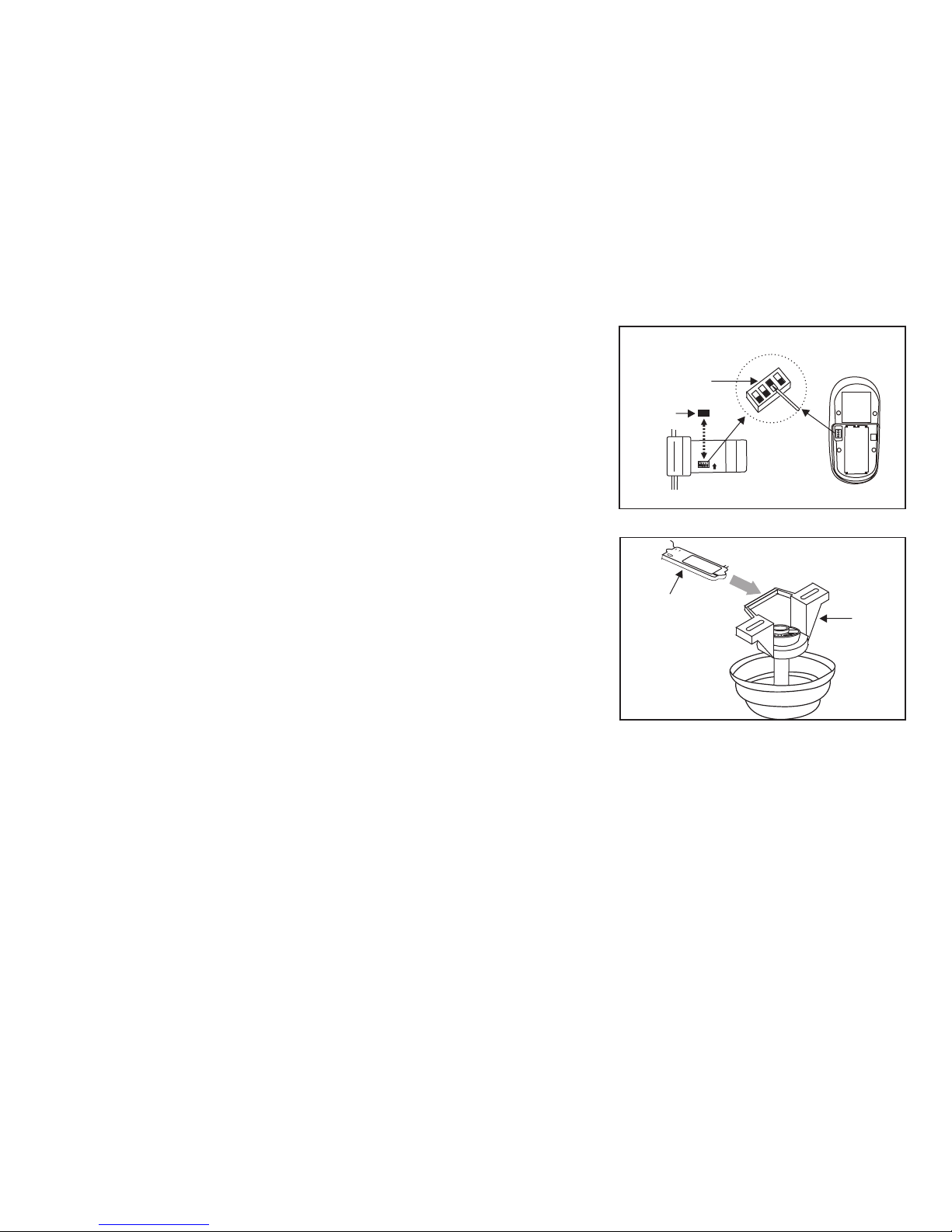

Code switch
Rubber
cover
Making the Electrical
Connections
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at the
main fuse box before wiring.
NOTE: This remote control unit is equipped
with 16 code combinations to prevent
possible interference from or to other
remote units. The frequency switches on
your receiver and transmitter have been
preset at the factory. Please recheck to
make sure the switches on transmitter and
receiver are set to the same position, any
combination of settings will operate the fan
as long as the transmitter and receiver are
set to the same position. (Figure 11)
1. Insert the receiver into the mounting
bracket with the flat side of the receiver
facing the ceiling. (Figure 12)
2 . M o t o r t o R e c e i v e r E l e c t r i c a l
Connections: Connect the black wire
from the fan to black wire marked "TO
MOTOR L".
Connect the white wire from the fan to
thewhite wire marked "TO MOTOR N" from
the receiver. Connect the blue wire from
the fan to the blue wire marked "For Light"
f r o m t he r e c e i ve r. S ec ur e t he w i r e
connections with the plastic wire nuts
provided. (Figure 13)
3. Receiver to House Supply Wires
Electrical Connections: Connect the black
(hot) wire from the ceiling to the black wire
marked "AC in L" from the receiver.
Connect the white (neutral) wire from the
ceiling to the white wire marked "AC in N"
f r o m t h e R e ce iv er. S e cu re t h e w ir e
connections with the plastic wire nuts
provided. (Figure 13)
4 . If your outlet box has a ground wire
( g r e e n o r b a r e c o p p e r ) c o n n e c t i t
to the fan ground wires; otherwise connect
the hanging bracket ground wire to the
m o u nti n g b ra cke t . S ecu r ed th e w ir e
connection with a plastic nut provided.
After connecting the wires spread them
apart so that the green and white wires are
on one side of the outlet box and black and
blue wires are on the other side.
Carefully tuck the wire connections up
into the outlet box. (Figure 13)

6
Finishing the Installation
1. Tuck connections neatly into ceiling outlet box.
2. Remove one screw from the hanger bracket and
loosen the other screw approximately 1/4″.
3.A lign the canopy up to ceiling and over the
loosened screw. Place the canopy into key hole and
rotate canopy clockwise. (Figure 14)
4. Secure the canopy by using previous removed
screw.
5. Place the canopy over the canopy and rotate
canopy cover clockwise until locked into right
position.(Figure 14)
MAKE SURE TAB AT BOTTOM OF HANGER
BRACKET IS PROPERLY SEATED IN GROOVE OF
HANGER BALL BEFORE
ATTACHING CANOPY TO BRACKET. FAILURE
TO PROPERLY SEAT TAB IN GROOVE COULD CAUSE
DAMAGE TO ELECTRICAL WIRING.
Figure 14
Outlet box
Mounting
bracket
Canopy
Screw
Canopy
cover
Ball Cover
Screw
WARNING
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
WHITE
WHITE
BLACK
BLACK
BLACK
BLUE
BLUE
GREEN
Figure 13
ON

7
The following procedure should correct most
fan wobble issues. Check after each step.
1. Check that all blades and blade bracket
screws are secure.
2. Most fan wobble problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling above
the tip of one of the blades. Measure this
distance as shown in Figure 17. Rotate the fan
until th e ne xt blade is po sitioned for
measurement. Repeat for each blade. The
distance should be equal within 1/8".
If all blade levels are not equal, you can
adjust the blade level with the following
procedure.
3. Use the enclosed Blade Balancing Kit if the
blade wobble is still noticeable. (Please refer
to the introduction provide in the blade
balancing kit, which is individually packed.)
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side)
blades can redistribute the weight and
possibly result in smoother operation.
Touching
ceiling
Figure 17
Figure 16
Motor housing
Blade Bracket
Screw
A t t a c h i n g t h e F a n
Blades
1.A ttach the blades to the blade brackets
using three screws and fiber washer as
shown in Figure 15. Start a screw into the
blade bracket, do not tighten. Repeat for
the 2 remaining screws and washers.
2. Tighten each screw securely starting
with the center screw. Make sure the blade
is straight.
3. Remove the screws from the bottom
motor housing before fastening the blade
assemblies to the bottom motor housing.
4. Fasten the blade assemblies to motor
housing by tightening two previous
removed screws from the motor housing.
(Figure 16)
Blade
bracket
Blade
Screws
Figure 15
Fiber
Washer

8
5. Carefully push all wires back into the
switch box, then install the light kit
assembly onto the switch box cover with the
3 screws previously removed. Be sure to
tighten all screws. (Figure 19)
Install 2×13W CFL (included).
7. Remove the rubber washer, metal nut,
metal cap and finial from the light kit
assembly. Place glass shade over the light kit
stem, secure with the rubber washer, metal
nut , m e t a l c a p a n d f i n ia l p r e vi o u s ly
removed. Do not over tighten.
6. .
(Figure 20)
8. Restore power and your light kit is ready
for operations.
housing
screw
Figure 18
housing
screw
connection
plug
light kit
switch box
CFL

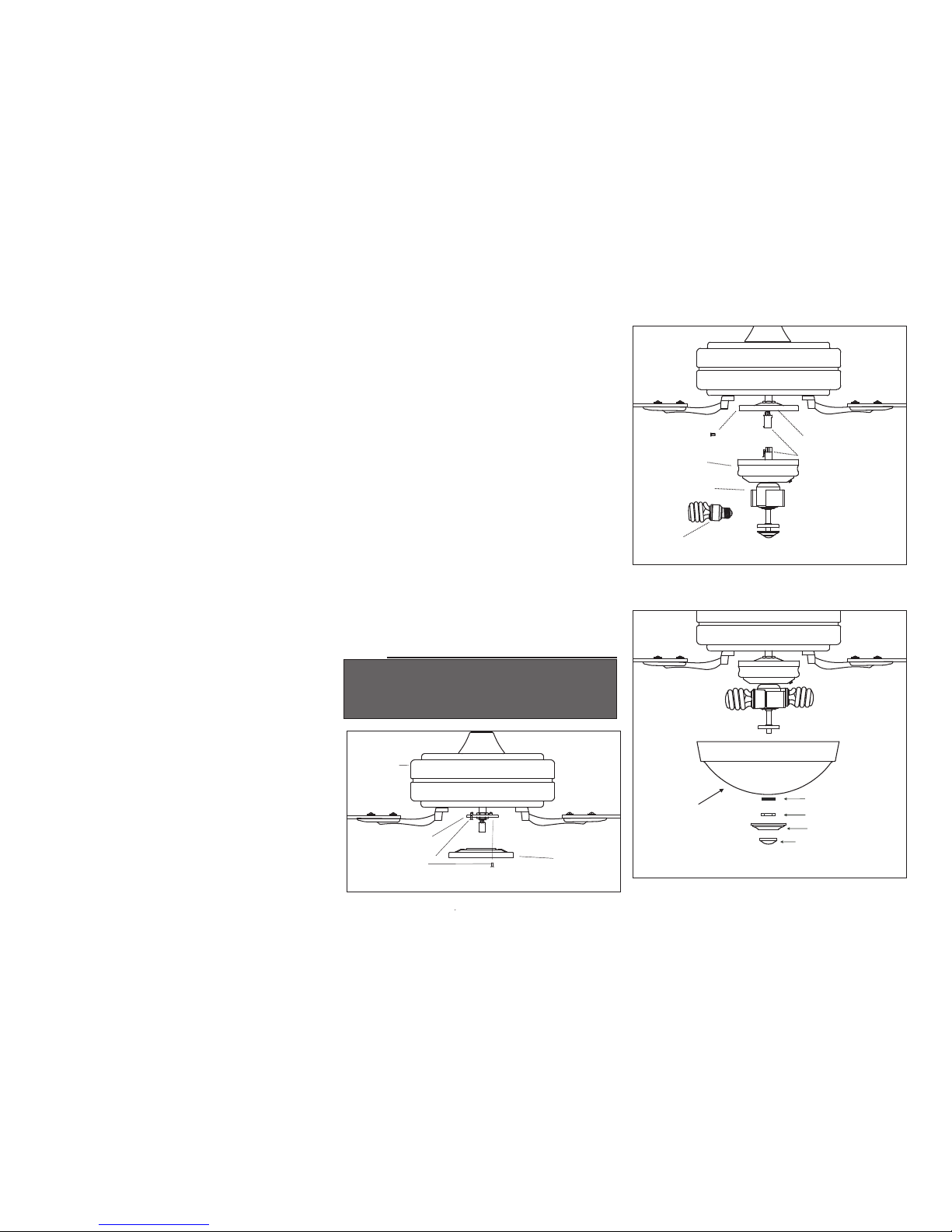

Figure 19
Mounting
ring Switch
cover
Switch box cover
Figure 20
Finial
Metal Cap
Metal Nut
Rubber Washer
Glass shade
LIGHT BULB HAVE NO WARRANTY, CAN BE
P U R C H A S E D AT L O C A L L I GH T B UL B
SPECIALTY STORE OR FROM OUR SERVICE
CENTER.
NOTE
Installing the Light Kit
CAUTION To Reduce The Risk Of Electric
Shock, Disconnect The Electrical Supply
Circuit To The Fan Before Installing Light
Kit.
REMEMBER The fan blades must already
be attached to the fan.
Your fan and light kit though pre-wired have
been disassembled at the factory to ease in
shipping. Please follow these steps to
complete the installation of your fan and
light. TO REDUCE THE RISK OF FIRE
D O N O T E X C E E D M A X I M U M
WATTAGE RATING.
1. Remove 1 of 3 screws on the mounting ring
and loosen other 2 screws. (Do not remove)
2. Tuck connections neatly into light kit.
Place the key holes on the switch cover over
the 2 screws previously loosened from the
mounting ring, turn switch cover until it locks
in place at the narrow section of the key holes.
Secure by tightening the 2 screws previously
loosened and the one previously removed.
(Figure 18 )
3. Remove one of 3 screws on compartment box.
(Figure 19)
4. While holding the light kit assembly under
your fan, snap together the wire connection
plugs. (Figure 19)

NOTE
WAIT FOR FAN TO STOP BEFORE CHANGING
THE SETTING OF THE SLIDE SWITCH.
Figure 22
Speed settings for warm or cool weather depend on
factors such as the room size, ceiling height,
number of fans, etc.
The Reverse switch is located on the top of motor
housing. Slide the switch to the Left for warm
weather operation. Slide the switch to the Right for
cool weather operation.
Warm weather - (Counter-Clockwise direction) A
downward air flow creates a cooling effect.(Fig. 22)
This allows you to set your air conditioner on a
higher setting without affecting your comfort.
Cool weather - (Clockwise direction) An upward
airflow moves warm air off the ceiling area. (Fig.
23) This allows you to set your heating unit on a
lower setting without affecting your comfort.
9
Restore power to ceiling fan and test
for proper operation.
1. " LOW, MED, HI" buttons:
These three buttons are used to set the fan
speed as follows:
LOW= Low speed MED= Medium speed
HI= High speed
2. "OFF" button:
This button turns the fan off.
3. The "LIGHT" button turns the light ON or
OFF . Press and release the button to turn
the light ON or OFF.
No te# 1: Thi s fa n in c lud es co mpa ct
fluorescent energy saving bulbs AKA:
CFL’s. These energy saving bulbs
cannot be dimmed and only operate
on/off.
Note#2: If the bulbs are changed from
Figure 21
Installing the
battery:
Install 9 volt battery (not included), to
prevent damage to transmitter, remove
the battery if not used for long periods.
Figure 23
Figure 24
CFL to an incandescent standard light
bulb then the transmitter can also
operate as a dimming unit for the light
source. Simply turn off light source,
replace CFL bulbs (all of them) and
then turn back on light source to get
this feature. Again, the dimming
f ea t ur e i s o n l y av a i l a b l e w he n
incandescent bulbs are used.
NOTE
CFL BULB AND INCANDESCENT BULB CAN
NOT MIX-INSTALL, OR CFL WILL BE
DAMAGED.
Note#3: Dimming function detective
procedure is: When turn on the light,
there will have 2 seconds for detection
and brightness will start from 50% to
100%
If using CFL, the bightness will stay in 100%;
If using incendescent bulb, the brightness will
be back to the previous status before previous
turn-off status.

WARNING
1.
2.
3.
4.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
1.
Fan will not start
Fan sounds noisy
Lights shut off and
will not come back
on.
Care of Your Fan Troubleshooting
PROBLEM SOLUTION
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain
its new appearance over the years. Do not use
water when cleaning. Use only a soft brush or
lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish
to the wood blades for additional protection
and enhanced beauty. Cover small scratches
with a light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball
bearings.1.2.3.4.
Here are some suggestions to help you
maintain your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan and switch wire
connections in the switch housing.
Check to make sure the dip switches from the transmitter and
receiver are set to the same frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the
motor hub is tight.
Make sure wire nut connections are not rattling against each
other or the interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises associated
with a new fan disappear during this time.
If using ceiling fan light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
Make sure there is a short distance from the ceiling to the
canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads
are used between mounting bracket and outlet box.
This unit is equipped with a wattage limiting device. Lamping
in excess of 190 watts will disable your ceiling fan's light kit. To
reset your light kit you must turn the power off and relamp,
keeping the wattage under 190 watts. Restore power to your
ceiling fan and continue normal operation.
Do not connect the fan with a wall mounted variable speed
control(s).
Make sure the dip switches are set correctly.
Remote control 1.
2.
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPY ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
10
For any additional information on your
Hampton Bay Ceiling Fan, please write to:
CALL TOLL FREE 1-877-262-7511
751 Port America Place,
Suite 850Grapevine,
TX 76051-8301

Specifications
FAN SIZE SPEED VOLT S AMPS WATT S RPM CF M N.W.G.W.C.F.
LOW
MED
HIGH
These are approximate measures. They do not include Amps and Wattage used by the light kit.
11
120
Distributed by
56
(1,42 m)
0.32
0.51
0.62 73
38
12
170
115
60
5450
3650
1800
8.6kgs
18.92lbs
9.8kgs
21.56lbs
1.8’

Lifetime Limited Warranty
(lifetime warranty on motor)
Attach receipt here for easy
location
The Hampton Bay warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a period of lifetime after the date of purchase by the
original purchaser. Hampton Bay also warrants that all other fan parts, excluding any glass or
acrylic blades, to be free from defects in workmanship and material at the time of shipment from the
factory for a period of one year after the date of purchase by the original purchaser. We agree to
correct such defects without charge or at our option replace with a comparable or superior model if
the product is returned to Hampton Bay. To obtain warranty service, you must present a copy of the
receipt as proof of purchase. All costs of removing and reinstalling the product are your
responsibility. Damage to any part such as by accident or misuse or improper installation or by
affixing any accessories, is not covered by this warranty. Because of varying climatic conditions
this warranty does not cover any changes in brass finish, including rusting, pitting, corroding,
tarnishing or peeling. Brass finishes of this type give their longest useful life when protected from
varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no
other express warranty. Hampton Bay hereby disclaims any and all warranties, including but not
limited to. Those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period
as specified in the express warranty. Some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for
incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not apply to you.
This warranty gives specific legal rights, and you may also have other rights which vary from state
to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as
part of a claim on the warranty must be paid by the customer.
You must present a copy of the original
purchase receipt to obtain warranty
service.
For any additional information on your
Hampton Bay Ceiling Fan, please write to:
Ceiling Fan & Service Department
THE HAMPTON BAY FAN &
LIGHTING CO.
P. O. Box 395
Norco, CA 92860
12
