HAMPTON BAY Moonlight User manual

The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass parts, to be free from defects in workmanship and material at the time of shipment
from the factory for a period of one year after the date of purchase by the original purchaser.
We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned to the retailer. To obtain warranty service, you must
present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the
product are your responsibility. Damage to any part such as by accident or misuse or improper
installation or by affixing any accessories, is not covered by this warranty. Because of varying
climatic conditions in the United States this warranty does not cover any changes in brass
finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type
give their longest useful life when protected from varying weather conditions. A certain
amount of wobble is normal and should not be considered a defect. Servicing performed by
unauthorized persons shall render the warranty invalid. There is no other express warranty.
The retailer hereby disclaims any and all warranties, including but not limited to. Those of
merchantability and fitness for a particular purpose to the extent permitted by law. The
duration of any implied warranty which cannot be disclaimed is limited to the time period as
specified in the express warranty. Some states do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable
for incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion or limitation may
not apply to you. This warranty gives specific legal rights, and you may also have other rights
which vary from state to state. This warranty supersedes all prior warranties.
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
656-414
14826
792145353065
Lifetime Motor Warranty
Lifetime Motor Warranty

Table of Contents
Safety Rules..................................................................................................................................................................................
Unpacking Your Fan ...................................................................................................................................................................
Installing Your Fan ......................................................................................................................................................................
Installing the Light Kit.................................................................................................................................................................
Operating Your Transmitter.........................................................................................................................................................
Care of Your Fan.......................................................................................................................................................................
Troubleshooting .........................................................................................................................................................................
Specifications .............................................................................................................................................................................
1.
2.
3.
8.
9.
10.
11.
12.

1. Safety Rules
1. To reduce the risk of electric shock, insure electricity has been turned
off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may
need to be replaced, consult a qualified electrician if in doubt.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE
FOR FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only CUL
Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
7. Do not operate the reverse switch while the fan blades are in motion. The
fan must be turned off and the blades stopped before reversing the blades
direction.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The wires
should be spread apart with the grounded conductor and the equipment-
grounding conductor on one side of the outlet box.
12. Electrical diagrams are for reference only. Light kits that are not packed
with the fan must be CUL Listed and marked suitable for use with the
model fan you are installing. Switches must be CUL General Use
Switches. Refer to the Instructions packaged with the light kits and
switches for proper assembly.
NOTE
READ AND SAVE ALL INSTRUCTIONS!
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.

Unpack your fan and check the contents. You should have the following items:
Unpacking Your Fan 2.
8. Glass shade
9. Receiver with 6 wire nuts
10. Transmitter+holder+2 mounting screws
+ 2 plastic plugs
11. 100W halogen bulb
12. Balancing kit
1.. Fan blades (4)
2. Canopy assembly
3. Ball/downrod assembly
4. Coupling cover
5. Fan motor assembly
6. Mounting plate
7. Light kit
13. Loose parts bag containing:
a. Electrical hardware
Screws (2 PCs.)
Lock washers (2 PCs.)
Metal washers (2 PCs.)
3 plastic wire connecting nuts (3 PCs.)
b. Blade attachment hardware
(13 screws, 13 fiber washers)
12
11
5
6
7
8
9
10
2
3
4
1
13
ab
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-902-5588.
Rev.
OFF
L

Tools Required
Phillips screwdriver, straight slot screwdriver,
step ladder, and wire cutters.
Mounting Options
If there isn't an existing UL listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off
circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must
be able to fully support the moving weight of the
fan (at least 50 lbs). Do not use plastic outlet
boxes.

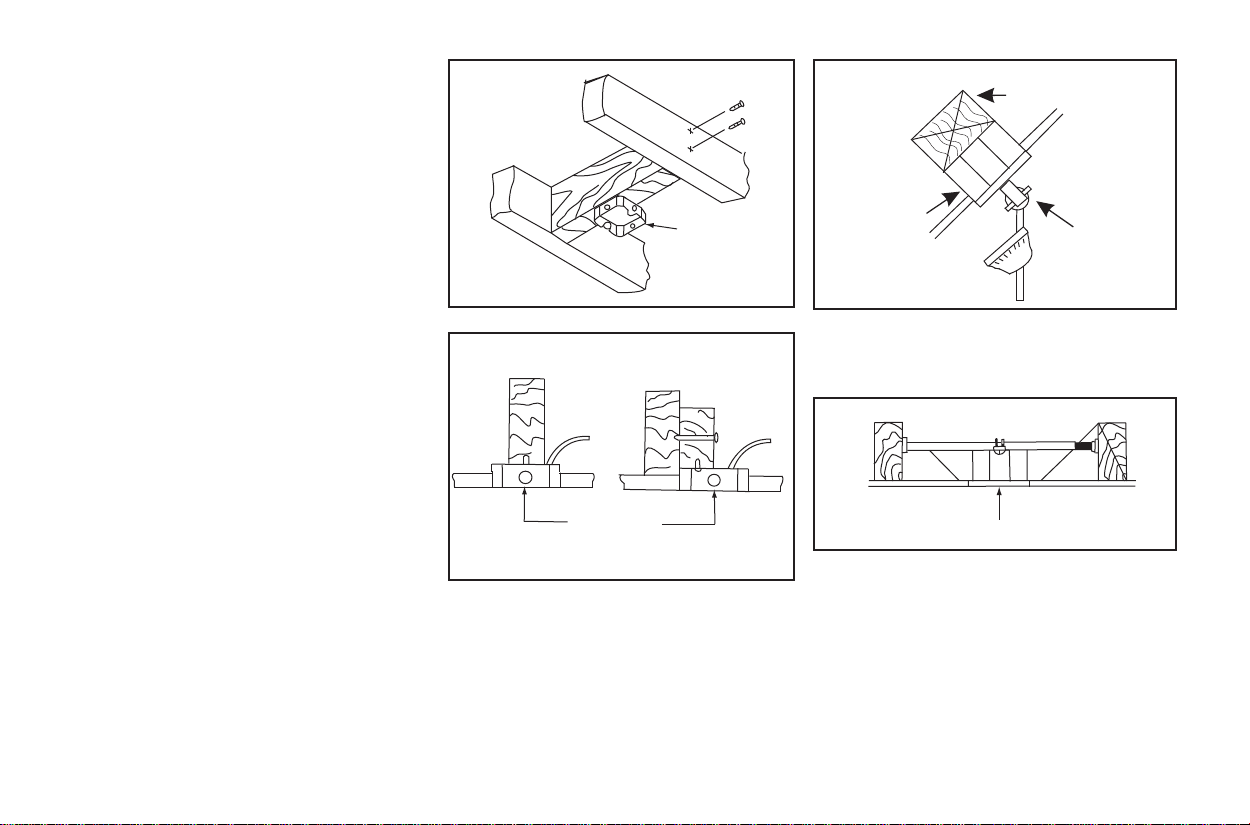

Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
3. Installing Your Fan
Outlet box
Outlet box
Figure 1
Figure 2
Outlet box
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at your Hampton Bay Retailer).
Note: You may need a longer downrod to
maintain proper blade clearance when installing
on a steep, sloped ceiling.
Figure 4
Figure 3
Angled ceiling
maximum
18° angle
Provide strong
support
Recessed
outlet box Hanger
opening must
be facing up-side

Attaching the Fan Blades
NOTE: Before installing the fan, you need to attach the blades onto the motor.
1. There are 6 screws holding the top fan housing on the motor. Remove these 6 screws and
push the top fan housing upward. (fig. 5)
2. Insert the blade through the slot on the motor housing. Align holes and fasten the blade to the
motor with provided screws. (fig. 6)
3. Repeat this procedure for remaining blades.
WARNING: Make sure all screws are tightened securely.
4. After all the blades are securely fastened to the motor, push the top housing down on the
motor and fasten the top fan housing with 6 screws. (fig. 6)
4.
Figure 5
Figure 6
Top housing
Screws
Top housing
Motor housing
Screws
Screws
Blade
Slot
Washers

5.
Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Remove the decorative canopy bottom
cover from the canopy by turning the cover
counter clockwise.(Fig. 7)
Step 2. Remove the hanger bracket from the
canopy by loosening the two screws on the
bottom of the hanging bracket a half turn from
the screw head and turning the canopy counter
clockwise.(Fig. 7)
Step 3. Secure the hanger bracket to the ceiling
outlet box with the screws and washers provided
with your outlet box.
Step 4. Pass the 120-volt supply wires through
the center hole in the ceiling hanger bracket.
(Fig. 8)
Step 5. Remove the hanger pin, lock pin and set
screws from the top of the motor assembly.
NOTE: If a longer downrod is needed, take out
the screw located in the hanger ball, lower the
hanger ball and remove the pin, remove all 3
pieces from the downrod and assemble them
onto the new longer downrod before proceeding
step 7. (The longer downrod is available at any
Home Depot store)
Step 6. Route wires exiting from the top of the
fan motor through the collar cover, canopy
cover, canopy and then through the ball /
downrod. (Fig. 9)
Step 7. Align the holes at the bottom of the
downrod with the holes in the collar on top of the
motor housing (Fig. 9). Carefully insert the hanger
pin through the holes in the collar and downrod.
Be careful not to jam the pin against the wiring
inside the downrod. Insert the locking pin through
the hole near the end of the hanger pin until it
snaps into its locked position, as noted in the
circle inset of Fig. 9.
Step 8. Tighten two set screws on top of the fan
motor firmly (Fig. 9)
Step 9. Place the downrod ball into the hanger
bracket socket. Rotate the downrod ball until the
groove of the downrod ball lines up with the hook
of the hanger bracket. (This will help balance the
fan.)
Figure 8
Figure 9
Figure 7
WARNING
FAILURE TO PROPERLY INSTALL
LOCKING PIN AS NOTED IN STEP 7
COULD RESULT IN FAN LOOSENING
AND POSSIBLY FALLING.
Hanger
bracket
Ceiling
canopy
Canopy
cover
Screws
Tab
Mounting screws
(supplied with
electrical box)
CUL Listed
electrical box
Hanger
bracket
120V Wires
Washers
Ball/downrod
assembly
Canopy
Downrod
Motor wires
Locking
pin
Canopy cover
Hanger pin
Collar cover
Set screws

6.
Installation of Safety
Support
An additional safety support is provided to
prevent the fan from falling. Secure the safety
cable to the ceiling joist with screw and washer.
(Fig. 10)
Safety Cable
Figure 10
Hanger
bracket
Outlet box
Make the Electrical
Connections
WARNING: To avoid possible electrical shock,
be sure electricity is turned off at the main fuse
box before wiring.

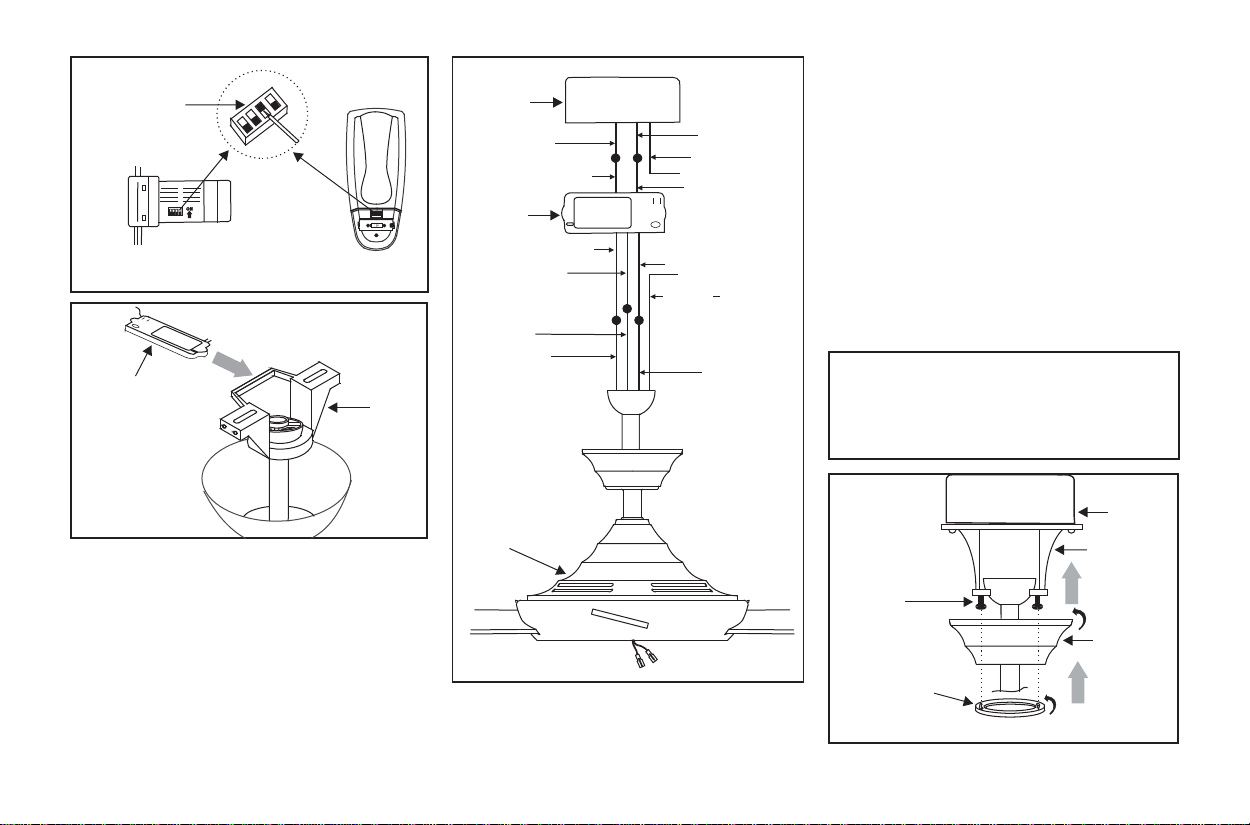

NOTE: This remote control unit is equipped
with 16 code combinations to prevent possible
interference from or to other remote units. The
frequency switches on your receiver and
transmitter have been preset at the factory.
Please recheck to make sure the switches on the
transmitter and the receiver are set to the same
position, any combination of settings will
operate the fan as long as the transmitter and
receiver are set to the same position.(Fig. 11)
Step 1. (Fig. 12) Insert the receiver into the
mounting bracket with the flat side of the
receiver facing the ceiling.
Step 2. (Fig. 13) Motor to Receiver Electrical
Connections: Connect the black wire from the
fan to black wire marked "TO MOTOR L".
Connect the white wire from the fan to the
white wire marked "TO MOTOR N" from the
receiver. Connect the blue wire from the fan to
the blue wire marked "For Light" from the
receiver. Secure the wire connections with the
plastic wire nuts provided.
Step 3. (Fig. 13) Receiver to House Supply
Wires Electrical Connections: Connect the
black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver.
Connect the white(neutral) wire from the
ceiling to the white wire marked "AC in N"
from the Receiver. Secure the wire connections
with the plastic wire nuts provided.
Step 4. (Fig. 13) If your outlet box has a ground
wire (green or bare copper) connect it to the fan
ground wires; otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided.
After connecting the wires spread them apart
so that the green and white wires are on one
side of the outlet box and black and blue wires
are on the other side. Carefully tuck the wire
connections up into the outlet box.
Note: Fan must be installed at a maximum
distance of 20 feet from the transmitting unit for
proper signal transmission between the
transmitting unit and the fan's receiving unit.

7.
Figure 12
Receiver
Hanger
bracket
Figure 11
Frequency
switch
Figure 13
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green) (Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue ("for light")
Blue (light)
Black (motor)
Fan
WARNING
Make sure the notch on the hanging bracket
properly sits in the groove in the hanger ball
before attaching the canopy to the bracket by
turning the housing until it drops into place.
Outlet box
Canopy
cover
Canopy
Hanger
bracket
Figure 14
Screws
Finishing the Installation
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to ceiling and over
the 2 screws on the hanger bracket. Rotate
canopy clockwise. Next, while holding the
canopy with one hand, slide the canopy cover
over the screws and rotate clockwise until tight.
Note: adjust the canopy screws as necessary
until the canopy and canopy cover are snug.
(Fig. 14)

Figure 15
Installing the Mounting
Plate
Step 1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened
from the mounting ring, turn mounting plate
until it locks in place at the narrow section of
the key holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 15)
REMEMBER: To disconnect the power. The fan
blades must be already attached to the fan.
Step 1. Remove 1 of the 3 screws from the
mounting plate and keep it for future use.
Loosen the other 2 screws. (Do not remove)
Step 2. Raise and hold the light kit close to the
mounting plate and proceed to do the wire
connections. Connect the white wire connectors
from the light kit and fan, follow the same
procedure with the black wire connectors. (Fig. 16)
Step 3. Tuck connections neatly into mounting
plate, Place the key holes on the light kit over the
2 screws previously loosened from the mounting
plate, turn light kit until it locks in place at the
narrow section of the key holes. Secure by
tightening the 2 screws previously loosened and
the one previously removed. (Fig. 16)
Step 4.
Install 1x100W halogen bulb (included).
(Fig. 16)
Step 5.
Raise glass shade up against bottom of
fan housing and secure it to the fan by turning
the glass shade clockwise until snug. DO NOT
OVERTIGHTEN.
(Fig. 16)
Screws
Mounting plate Mounting ring

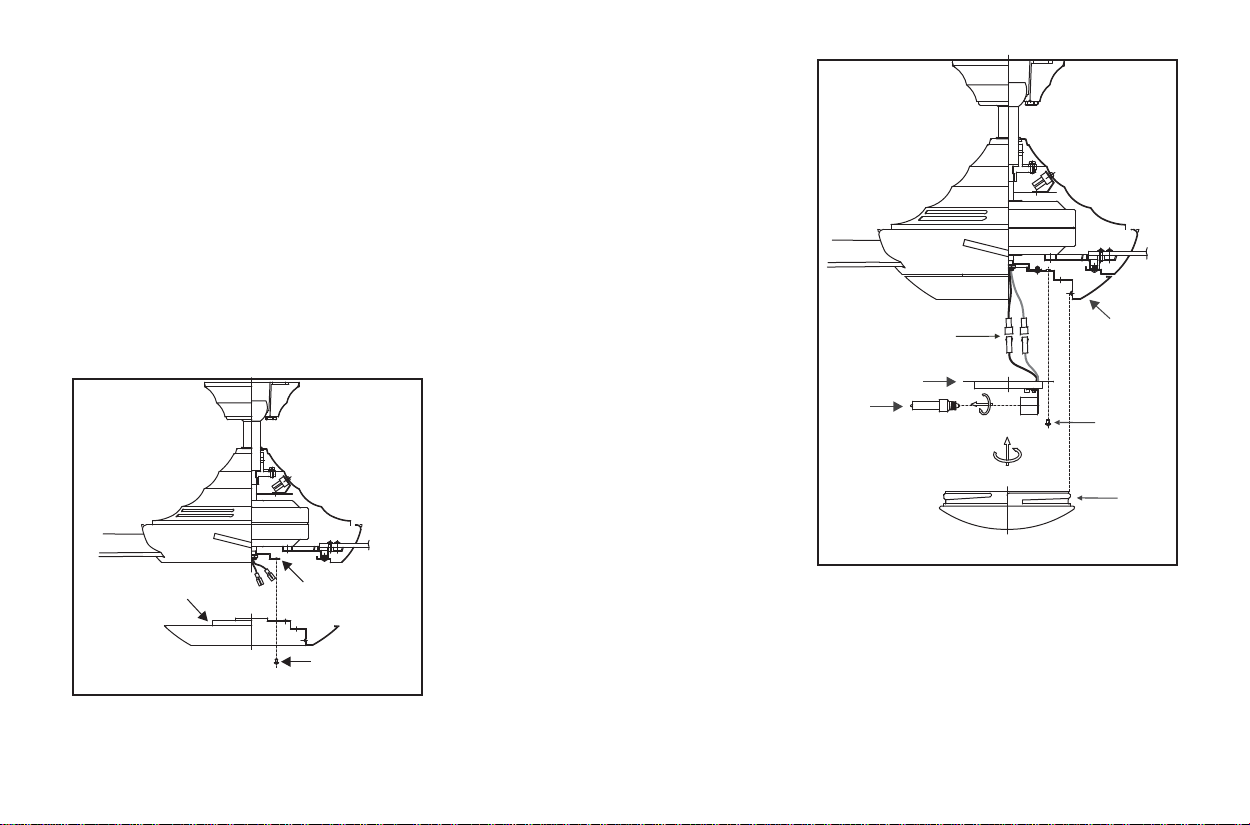

Installing the Light Kit 8.
Figure 16
Connection plugs
Screws
Glass
shade
Bulb
Light kit
Mounting plate

Restore power to the ceiling fan and test for proper
operation.
1. "HI, MED, LOW" buttons:
These three buttons are used to set the fan speed
as follows:
LOW=Low speed MED= Medium speed
HI=High speed
2. "OFF" button:
This button turns the fan off.
3.The " " button turns the light ON or OFF and
also controls the brightness setting. Press and
release the button to turn the light ON or OFF.
Press and hold the button to set the desired
brightness. The light key has an auto-resume, it
will stay at the same brightness as the last time it
was turned off.
9. OperatingYour Transmitter
Installing the battery:
Install 12V MN21/A23 battery (not included),
to prevent damage to transmitter, remove the
battery if not used for long periods.
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, etc.
The Reverse switch is located on the top of
motor housing. Slide the switch to the Left for
warm weather operation. Slide the switch to the
Right for cool weather operation.
NOTE: Wait for fan to stop before changing the
setting of the slide switch.

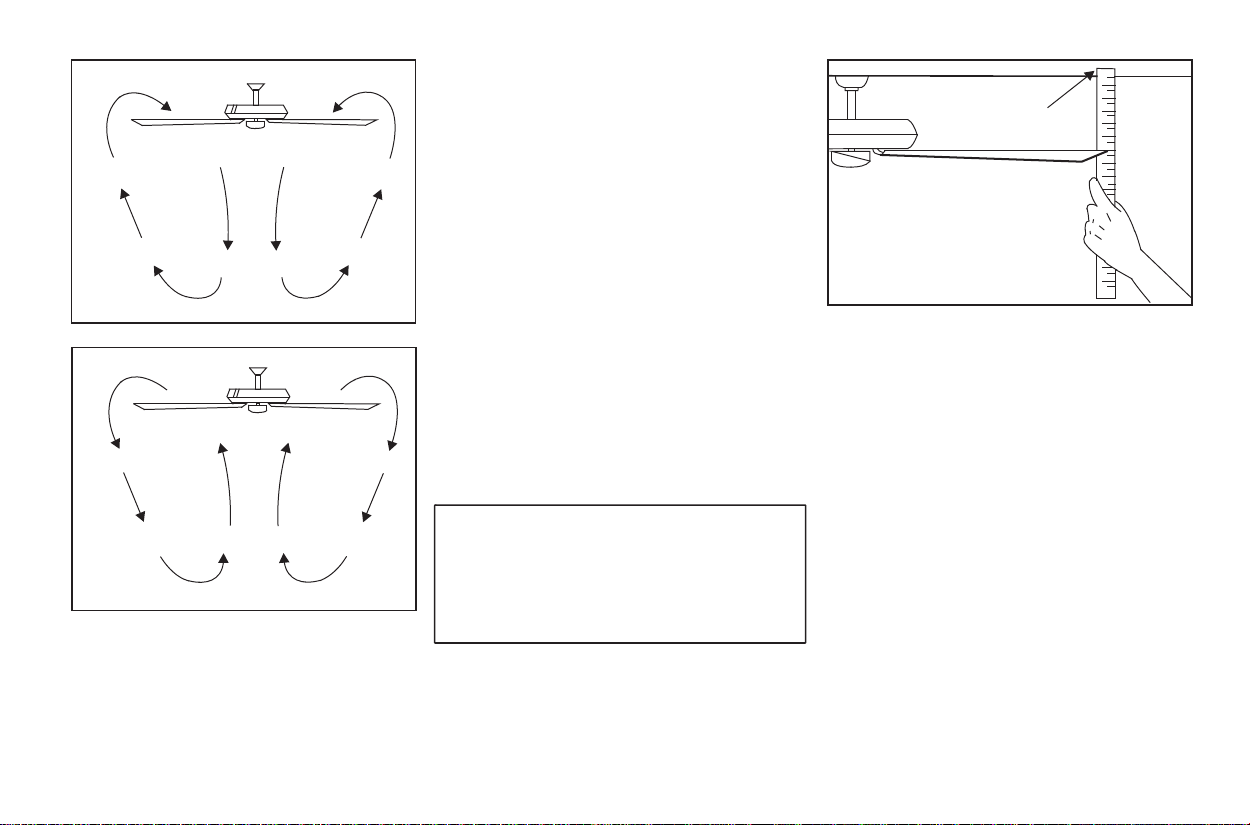

Warm weather - (Counter-Clockwise direction)
A downward airflow creates a cooling effect.
(Fig. 19) This allows you to set your air
conditioner on a higher setting without affecting
your comfort.
Cool weather - (Clockwise direction) An upward
airflow moves warm air off the ceiling area. (Fig.
20) This allows you to set your heating unit on a
lower setting without affecting your comfort.
Figure 17
Figure 18

Care of Your Fan 10.
Figure 19
Figure 20
Here are some suggestions to help you maintain
your fan
1.Because of the fan's natural movement, some
connections may become loose. Check the support
connections, brackets, and blade attachments twice a
year. Make sure they are secure. (It is not necessary
to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its
new appearance over the years. Use only a soft
brush or lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to minimize
discoloration or tarnishing. Do not use water when
cleaning. This could damage the motor, or the wood,
or possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a light
application of shoe polish.
4. There is no need to oil your fan. The motor has
permanently lubricated bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX BEFORE YOU
ATTEMPT ANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS".
Toucher le
plafond
Figure 21

11. Troubleshooting
Problem Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that the light bulb is also
secure.
6. Do not connect the fan with a wall mounted variable speed control (s)
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure this distance.(Fig. 21) Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and
possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARM WHILE
INSTALLING, BALANCING THE BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS
BETWEEN ROTATING FAN BLADES.
1. Do not connect the fan with a wall mounted variable speed control(s).
2. Make sure the dip switches are set correctly.
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction:

Specifications 12.
Fan Size
Speed Volts
Amps Watts RPM CFM N.W. G.W. C.F.
52"
(1.32 m)
Low
Medium
High
120
120
120
These are approximate measures. They do not include Amps and Wattage used by the light kit.
Distributed by:
Home Depot of Canada Inc.
900-1 Concorde Gate
Toronto, Ontario
M3C 4H9
8.83 kgs
(19.44 lbs) 10.3 kgs (22.69 lbs) 2.75'
0.32
0.48
0.52
15
42
63
62
123
160
1997.37
3933.43
5277.06
