HAMPTON BAY Torrington User manual

Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varyingclimatic conditions inthe United States this warranty does not
cover any changesin brass finish, including rusting, pitting, corroding, tarnishing orpeeling.
Brass finishes of this type give their longest useful life when protectedfrom varying weather
conditions. A certain amount of wobble is normal and should not be considered a defect.
Servicing performed by unauthorized persons shallrender the warranty invalid. There is no
other express warranty. The retailer hereby disclaims any and all warranties,
including but not limited to. Those of merchantability and fitness for a particular
purpose to the extent permitted by law. The duration of any implied warranty which
cannot be disclaimedis limited to the time period as specified inthe express warranty. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance except
as may otherwise be accorded by law. Some states do not allow theexclusion of incidental
or consequential damages, so the above exclusion or limitation may not apply to you. This
warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all priorwarranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
529-752
219032
792145351306

Safety Rules.....................................................................................................................................
Unpacking Your Fan ........................................................................................................................
Installing Your Fan ...........................................................................................................................

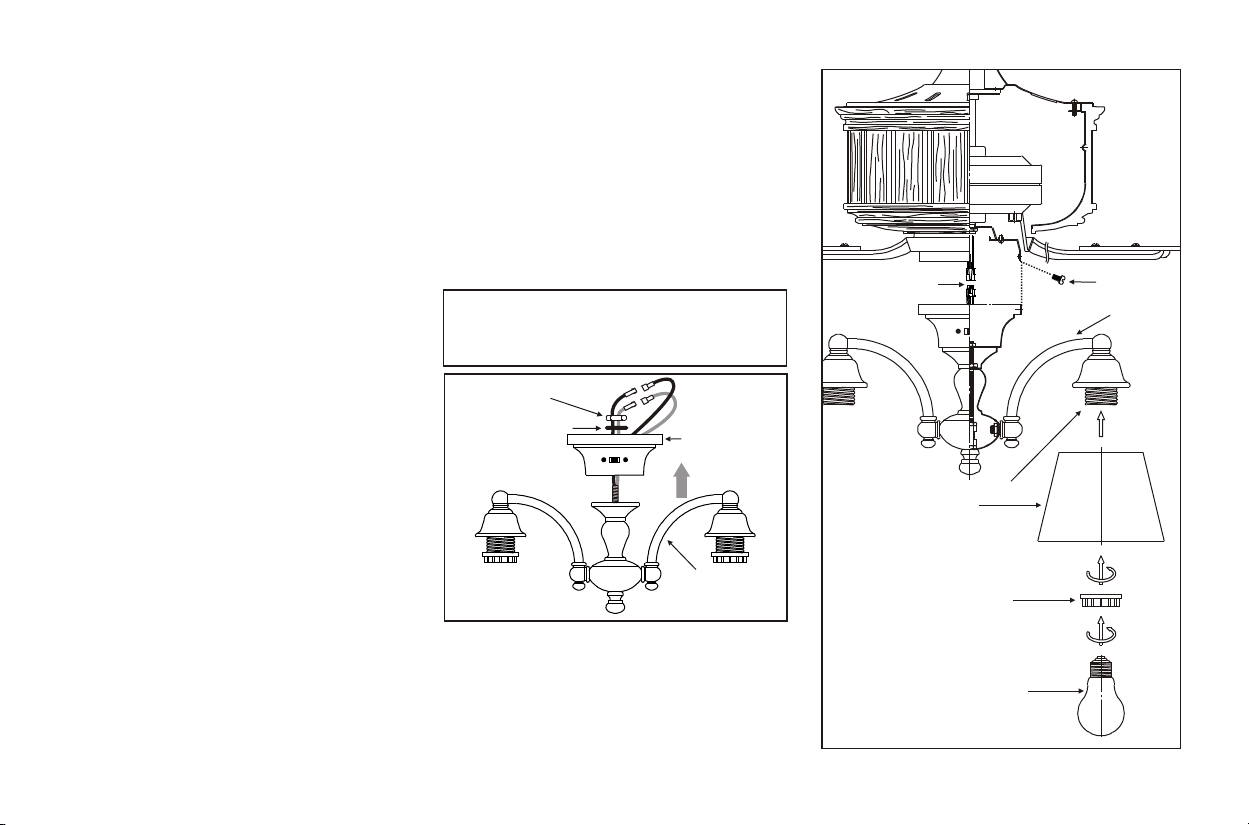

Installing the Light Kit....................................................................................................................
Your .............................................................................................................
Care of Your Fan ............................................................................................................................
Troubleshooting ............................................................................................................................
Specifications ...............................................................................................................................

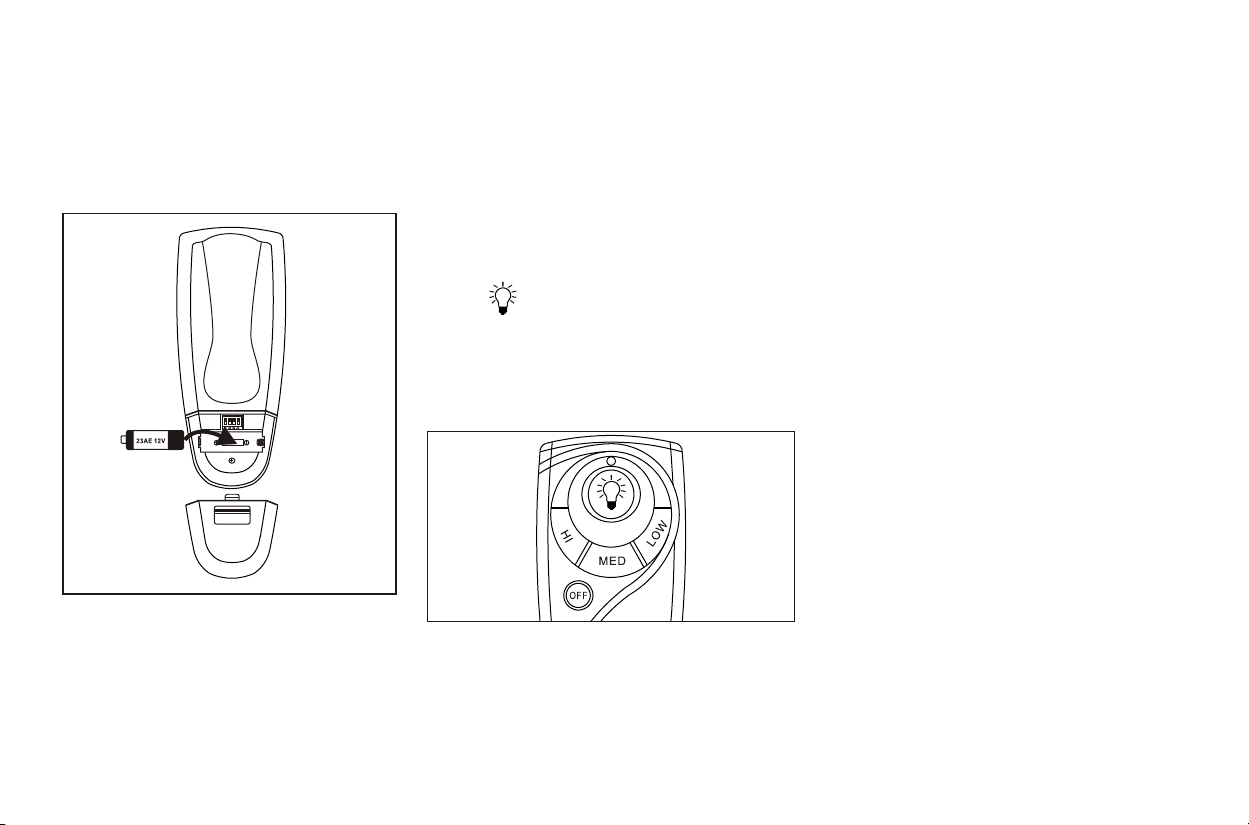

Operating Transmitter
1.
2.
3.
9.
10.
11.
12.
13.
Table of Contents

1. Safety Rules
1. To reduce the risk of electric shock, insure electricity has been turned
off at the circuit breakeror fuse boxbefore beginning.
2. Allwiring must bein accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan withany solid-state fanspeed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may
need to bereplaced, consult aqualified electrician ifin doubt.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when workingaround or cleaningthe fan.
10. Do not use water or detergents when cleaningthe fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor onone side ofthe outlet box.
12. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for use
with the model fan you are installing. Switches must be UL General
Use Switches. Refer to the Instructions packaged with the light kits
and switches forproper assembly.
WARNING
TO REDUCETHE RISK OFFIRE, ELECTRIC SHOCKOR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKEDACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only UL
Listed outlet boxesmarked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge ofthe blades tothe floor.
7. Do not operate the reverse switch while the fan blades are in motion.
The fan must be turned off and the blades stopped before reversing the
blades direction.
WARNING
TO REDUCETHE RISK OFPERSONAL INJURY, DO NOTBEND THE
BLADE ARMS(ALSO REFERRED TO AS BRACKETS) DURING
ASSEMBLYOR AFTERINSTALLATION. DO NOTINSERT OBJECTS IN
THE PATHOF THE BLADES.
NOTE
READ AND SAVE ALLINSTRUCTIONS!

Unpack your fanand check the contents. You should havethe following items;
.
1. Fan blades (5)
2. Canopy assembly
3.
4. Decorative ring
5. Coupling cover
6. Fan motor assembly
7. Blade arms(5)
8. Mounting plate
Ball/downrod assembly (1)
& extra downrod(1)
9. Switch housing
10. Light kit
11. Glass shades
12. 6
13.
14.
16 Balancing kit
(4)
0 Watt medium base bulbs (4)
Receiver with 6wire nuts
Transmitter+holder+2 mounting screws
+ 2 plastic plugs
15. Extra plasticplug
1
2
3
6
4
58
9
10
12
11
13
14
16
15
7
17. Loose partsbag containing:
a. Blade attachmenthardware
b. Mounting hardware
( 3 plasticwire connectors)
(16 screws)
ab
17
WARNING
DO NOT INSTALL ORUSE FAN
IF ANYPARTIS DAMAGED OR MISSING.
CALL TOLLFREE 1-877-902-5588 Unpacking Your Fan 2.

3. Installing Your Fan
Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustablewrench, step ladder,
and wire cutters.
Mounting Options
If there isn't an existing ULlisted mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and buildingmaterials. The outlet
box and its support must be able to fully
support the moving weight of the fan (at
least 50 lbs).Do not useplastic outlet boxes.

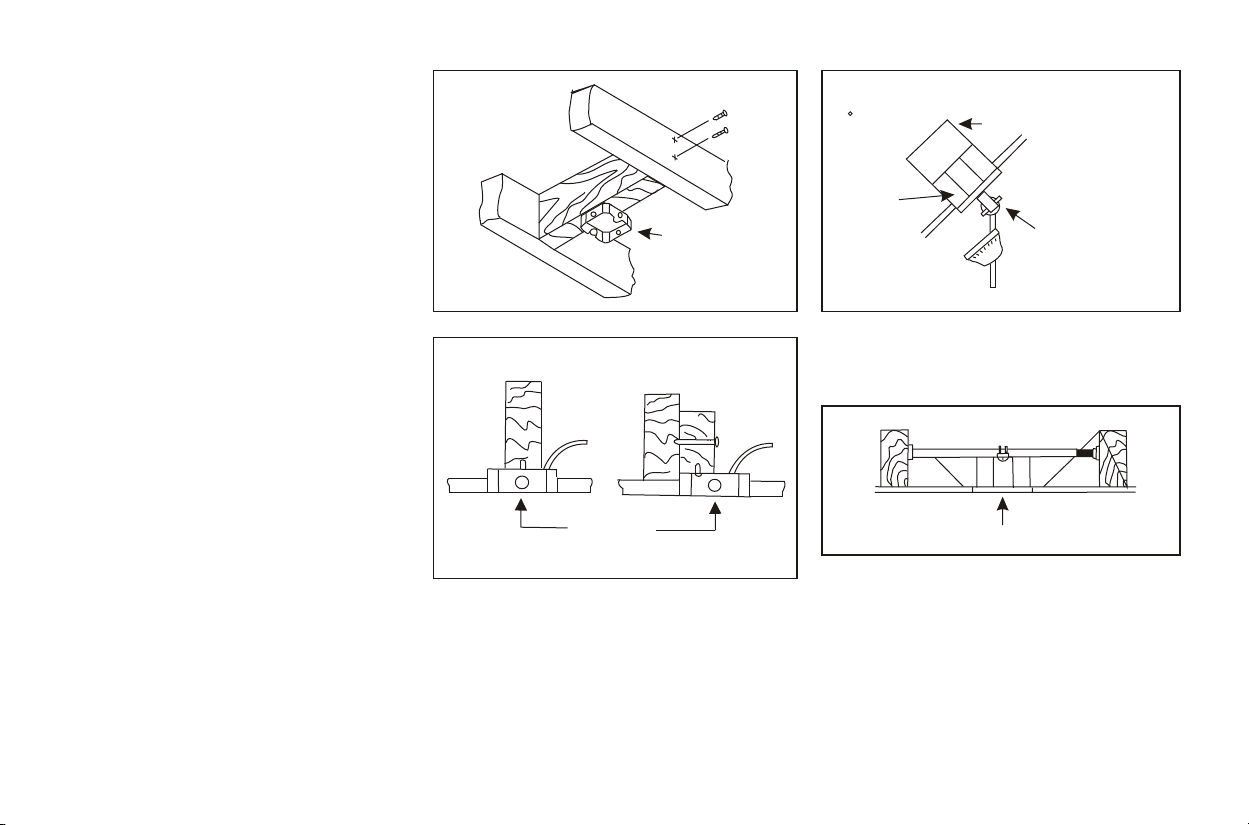

Figures 1,2 and 3 are examples of different
ways to mountthe outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on asteep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at yourHampton Bay Retailer).
Outlet box
Outlet box
Provide strong
support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Outlet box
Figure 1 Figure 3
Figure 2
Figure 4
Angled ceiling
maximum
24 angle

4.
Hanging the Fan
REMEMBER to turn off the power. Follow
the steps belowto hang yourfan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise.(Fig.5)
Step 2. Remove the hanger bracket from the
canopy by loosening the two screws on the
bottom of the hanging bracket
from the screw head and turning the canopy
counter clockwise.(Fig, 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling hanger
bracket as shownin Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided withyour outlet box.
Step 5. Remove the hanger pin, lock pin and
set screws from the top of the motor
assembly.
Step 6. Route wires exiting from the top of
the fan motor through the collar cover,
d canopy cover, canopy and
then through theball / downrod.(Fig. 7)
Step 7. Align the holes at the bottom of the
downrod with theholes in the collar on topof
the motor housing (Fig.7). Carefully insert
the hanger pinthrough the holesin the collar
a half turn
ecorative ring,
WARNING
FAILURETO PROPERLY INSTALL LOCKINGPIN
AS NOTED INSTEP 7 COULD RESULT IN FAN
LOOSENING ANDPOSSIBLYFALLING.
Step 8. Tighten two set screws on top of the fan
motor firmly (Figure 7)
Step 9. Tighten the screw on the ecorative ring,
be sure to secure the decorative ring to downrod
tightly. (Fig. 8)
Step 10. Place the downrod ball into the hanger
bracket socket.
d
Mounting
screws
(supplied with
electrical box)
Hook
Hanger
bracket
UL Listed
electrial
box
Figure 6 120V Wires
Washers
Pin in
locked
position
Motor collar
Motor wires
Ball/downrod
assembly
Ceiling
canopy
Decorative
ring
Screw
Tighten
screws
firmly
Hanger pin
Locking pin Collar cover
Canopy
cover
Figure 7
Figure 5
Hanger
bracket
Ceiling
canopy
Canopy
cover
and downrod. Be careful not to jam the pin
against the wiring inside the downrod. Insert
the locking pin through the hole near the end
of the hanger pin until it snaps into its locked
position, as notedin the circleinset of Fig. 7.

5.
Changing the Downrod (Optional)
NOTE: Your fan comes with a 12" downrod
attached to the hanger ball. In addition, a 4-1/2"
downrod has been provided to be used in case the
ceiling is lower. Instead of, perform the following
steps for correct installation:
1. Remove the hanger ball from downrod by
loosening the setscrew at the top of the
downrod which holds the hanger ball to the
downrod.
2. Slide the hanger ball down the downrod and
remove the support pin.
3. Insert the support pin in the holes at the top of
the 4-1/2" downrod and slide the hanger ball up
the 4-1/2" downrod. Make sure the support pin
is properly seated in the grooves in the top of
the hanger ball.
4. Tighten the setscrews firmly.
Make the Electrical
Connections
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at the
main fuse boxbefore wiring.
NOTE: This remote control unit is
equipped with 16 code combinations to
prevent possible interference from or to
other remote units. The frequency switches
on your receiver and transmitter have been
preset at the factory. Please recheck to
make sure the switches on the transmitter
and the receiver are set to the same
position, any combination of settings will
operate the fan as long as the transmitter
and receiver are set to the same position.
(Figure 8)
Step 1. (Figure 9) Insert the receiver into
the mounting bracket with the flat side of
the receiver facingthe ceiling.
Step 2. (Figure 10) Motor to Receiver
Electrical Connections: Connect the black
wire from thefan to black wire marked "TO
MOTOR L". Connect the white wire from
the fan to the white wire marked "TO
MOTOR N" from the receiver. Connect the
blue wire from the fan to the blue wire
marked "For Light" from the receiver.
Secure the wire connections with the plastic
wire nuts provided.
Step 3. (Figure 10) Receiver to House Supply
Wires Electrical Connections: Connect the
black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver.
Connect the white(neutral) wire from the
ceiling to the white wire marked "AC in N"
from the Receiver. Secure the wire
connections with the plastic wire nuts
provided.
Step 4. (Figure 10) If your outlet box has a
ground wire (green or bare copper) connect it
to the fanground wires; otherwiseconnect the
hanging bracket ground wire to the mounting
bracket. Secure the wire connection with a
plastic nut provided. After connecting the
wires spread them apart so that the green
and white wires are on one side of the outlet
box and blackand blue wires are on the other
side. Carefully tuck the wire connections up
into the outletbox.
Note: Fan must be installed at a maximum
distance of 20 feet from the transmitting unit
for proper signal transmission between the
transmitting unit andthe fan's receivingunit.

Figure 9
Receiver
Hanger
bracket
Figure 8
ONON
Code switch
6.
SUPPLYCIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
WHITE
WHITE
BLACK
BLACK
BLACK
BLUE
BLUE
GREEN
Figure 10
WHITE
WHITE
BLUE
BLACK
ONON
Finishing the
Installation
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to ceiling and over
the 2 screws on the hanger bracket. Rotate
canopy clockwise. Next, while holding the
canopy with one hand, slide the canopy cover
over the screws and rotate clockwise until tight.
Note: adjust the canopy screws as necessary
until the canopy and canopy cover are snug.
(Fig. 11)
WARNING
Make sure thenotch on thehanging
bracket properly sitsin the groovein the
hanger ball beforeattaching the canopyto
the bracket byturning the housinguntil it
drops into place.
Figure 11
Outlet box
Hanger
bracket
Canopy
Canopy
cover
Screws

7.
All blades are grouped by weight. Because
natural woods very in density, the fan may
wobble even though the blades are weighed
equally.
The following procedure should correct
most fan wobbling problems. Check after
each step.
1. Check that all blade and blade arm
screws are secure.
2. Most fan wobbling problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
this distance as shown in Figure 14. Rotate
the fan until the next blade is positioned for
measurement. Repeat for each blade. The
distance should be equal within
1/8".
deviation
3. Use the enclosed Blade Balancing Kit if
the blade wobbleis still noticeable.
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side)
blades can redistribute the weight and
possibly result insmoother operation.
Rubber
washer
Blade
arm
Figure 12
Blade
Screws
Attaching the Fan
Blades
Step 1 Attach blades to blade arms using three
screws and rubber washers as shown in Figure
12. Start a screw into the arm, do not tighten.
Repeat for the2 remaining screws and washers.
Step 2 Tighten each screw securely starting
with the center screw. Make sure the blade is
straight.
Step 3 Fasten the blade arms to the motor by
inserting the tab from the blade arms to the slot
in the bottom motor housing, then tighten the
two screws and washers already installed in the
blade arms (Figure13).
Step 4 Install an optional light kit if you wish.
Follow the instructionsincluded with the kit.
Figure 13
Motor
Blade arm
Slot
Tab

8.
Touching
ceiling
Figure 14
WARNING
TO REDUCE THERISK OF PERSONALINJURY,
DO NOT BENDTHE BLADE HOLDERS
WHILE INSTALLING,BALANCING THE
BLADES, OR CLEANINGTHE FAN. DO NOT
INSERT FOREIGNOBJECTS BETWEEN
ROTATING FANBLADES.
Installing the Mounting
Plate
Step 1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened
from the mounting ring, turn mounting plate
until it locks in place at the narrow section of
the key holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 15)
Mounting plate
Mounting ring
Screws
Figure 15

Screws
Lock ring
Bulbs
Light kit
assembly
Glass shade
Glass holder
Wire connection
plugs
NOTE: Before starting installation,
disconnect the power by turningoff the circuit
breaker or removing the fuseat fuse box.
Turning power off using the fan switch is
not sufficient to preventelectric shock.
1. Attach the light kit to the switch housing by
feeding the light kit wires(black and white)
through the hole of switchhousing and then
screw it onto the switch housing by nut &
lock washer. Be sure it is tight enough to
prevent light kit from vibrating loose. (Fig.
16)
2. Locate two single white and blue wires in
the switch housing labeled FOR LIGHT.
3. Make the polarized plug connections:
- White to white
- Blue to black
4.
5. Carefully push all wires back into the
switch housing, then install the light kit
assembly onto the mounting plate with 4
screws provided. Be sure to tighten all
screws. (Fig. 17)
While holding the light kit assembly under
your fan, snap together the wire connection
plugs .
6. Remove the lock ring from the socket by
turning the lock ring counter-clockwise
Until it unlocks. Insert the glass into the
glass holder and turn the lock ring
clockwise to tighten the glass. Repeat
for the remainingglass. (Fig. 17)
7. With the power off, insert the light bulbs
(included) into thelight kit sockets. Max.
60 watts.
8. Restore power and your light kit is ready
for operation.
Figure 17
Switch housing
Light kit
Nut
Lock washer
Figure 16
Installing the Light Kit9.
NOTE: Light bulbs have no warranty,
can be purchased at local light bulb
specialty store orfrom our servicecenter.

Operating Your Transmitter 10.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, numberof fans, etc.
The Reverse switch is located on the switch
housing. Slide the switch to the Left for
warm weather operation. Slide the switch to
the Right forcool weather operation.
NOTE: Wait for fan to stop before changing
the setting ofthe slide switch.

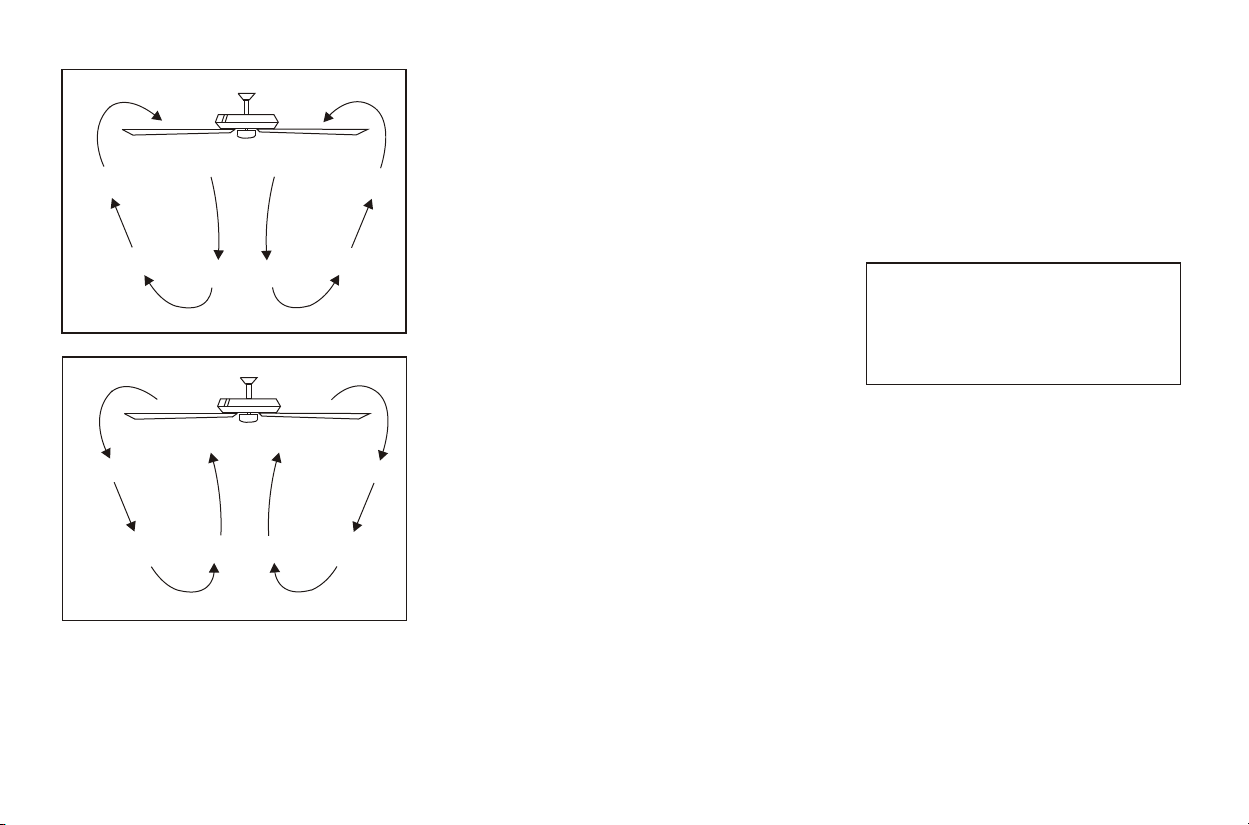

Warm weather - (Forward) A downward
air flow creates a cooling effect as shown in
Figure 20. This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Figure 21. This allows you to set your
heating unit on a lower setting without
affecting your comfort.
Restore power to the ceiling fan and test
for proper operation.
1. "HI, MED, LOW"buttons:
These three buttons are used to set the fan
speed as follows:
LOW=Low speed MED= Medium speed
HI=High speed
2. "OFF" button:
This button turnsthe fan off.
3.The " " button turns the light ON or OFF
and also controls the brightness setting.
Press and release the button to turn the light
ON or OFF. Press and hold the button to set
the desired brightness. The light key has an
auto-resume, it will stay at the same
brightness as thelast time itwas turned off.
Figure19
Figure 18
Installing the battery:
Install 12V MN21/A23 battery (not
included), to prevent damage to
transmitter, remove the battery if not used
for long periods.

Here are some suggestions to help you maintain
your fan
1.Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
2. Clean your fan periodically to help maintain its
new appearance over the years. Use only a soft
brush or lint-free cloth to avoid scratching the
finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not use
water when cleaning. This could damage the motor,
or the wood,or possibly causean electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades for
additional protection and enhanced
beauty. Cover small scratches with a
light application ofshoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
bearings.
IMPORTANT
MAKE SURE THEPOWER IS OFFAT THE
ELECTRICAL PANEL BOX BEFOREYOU
ATTEMPTANY REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS"
11. Care of Your Fan
Figure 20
Figure 21

Problem
Fan will notstart.
Fan sounds noisy.
Remote control
malfunction:
Solution
1.Check circuit fusesor breakers.
2. Check linewire connections tothe fan and switch wire connectionsin the switchhousing.
CAUTION: Make suremain power isoff.
3. Check tomake sure thedip switches from the transmitter andreceiver are setto the samefrequency.
1. Make sureall motor housingscrews are snug.
2. Make surethe screws thatattach the fan blade bracket tothe motor hubis tight.
3. Make surewire nut connectionsare not rubbing against each otheror the interiorwall of theswitch housing.
CAUTION: Make suremain power isoff.
4. Allowa 24-hour "breaking-in"period. Most noise associated with anew fan disappearduring this time.
5. If usingan optional lightkit, make sure the screws securingthe glassware aretight. Check that light bulb
is also secure.
6.
7. Make surethe upper canopyis a short distance from theceiling. It should not touch the ceiling.
the
Do not connectthe fan witha wall mountedvariable speed control (s)
1. Do notconnect the fanwith a wall mounted variable speed control (s)
2. Make surethe dip switchesare set correctly.
Troubleshooting 12.

These are approximatemeasures. They do not include Amps andWattageused by the light kit.
RPM CFM N.W. G.W.
C.F.
52"
120 3.04'Xx
kgs
Xx
kgs
Xxx Xx Xx Xxxx
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
13. Specifications
Distributed by
Your Other Warehouse, LLC
12100 Little Cayman Dr.
Baton Rouge, LA 70809
2006 Homer TLC, Inc. All Rights Reserved
Hampton Bay is a registered trademark of Homer TLC, Inc.
C
