HAMPTON BAY Rapallo 110-083 User manual

Rapallo
52 in Ceiling Fan
Owner’s Manual
Rapallo
Ventilador de Techo de 1,32 m
Manual del Propietario
110 083

52” Rapallo
Ceiling Fan by Hampton Bay
Date Purchased
Store Purchased
UL Model No.
Serial No.
Vendor No.
UPC
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your Fan . . . . . . . . . . . . . . 2
Installing Your Fan . . . . . . . . . . . . . . . 3
Installing the Light Kit. . . . . . . . . . . . .8
Operating Your Fan . . . . . . . . . . . . . . . 9
Care of Your Fan . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . 11
Warranty Information . . . . . . . . . . . . 12
110-083
792145352822
11289

Safety Rules - Read and Save These Instructions
1
To reduce the risk of electric shock, insure electricity has been turned off
at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
WARNING: To reduce the risk of electrical shock or fire, do not use this
fan with any solid-state fan speed control device. It will permanently
damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the screws
provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 pounds, Use only UL
Listed outlet boxes marked “FOR FAN SUPPORT.”
The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
Avoid placing objects in path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and ungrounded conductor on the
other side of the outlet box.
All set screws must be checked and retightened where necessary before
installation.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
WARNING
WARNING
TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN
INSTALLING THE BRACKETS, BALANCING THE BLADES OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –
BETWEEN ROTATING FAN BLADES.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE OUTLET
BOX.

2
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
AB
C
1
2 5
9
10
11
6
7
8
3
4
Set of blades (3)
Mounting bracket
Fan motor assembly
Motor housing
Blade arms (3)
1.
2.
3.
4.
5.
Mounting plate
Light kit assembly
Glass shade
Pull chain and fobs (2)
13 Watt compact fluorescent bulbs (2)
Extra plastic plug
6.
7.
8.
9.
10.
11.
Blade Attachment Hardware
(10 Screws with Fiber Washers)
Electrical Hardware
(3 Plastic Wire Nuts)
Balance Kit
A.
B.
C.
WARNING
DO NOT INSTALL OR USE FAN IF ANY
PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-898-1881.

3
Figure 2
Figures 1 and 2 are examples of different ways to
mount the outlet box.
Outlet Box
Figure 1
Outlet Box
Installing Your Fan
If there isn't an existing UL listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 35 lbs). Do not use plastic outlet boxes.
Tools Required
Mounting Options
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPT-
ABLE FOR FAN SUPPORT AND USE THE
MOUNTING SCREWS PROVIDED WITH THE
OULET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE
MAY NOT BE ACCEPTABLE FOR FAN SUPPORT
AND MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 3 (available at any
Home Depot retailer).
Figure 3
Outlet Box
Phillips screwdriver, straight slot screwdriver,
adjustable wrench, step ladder, and wire cutters.

4
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
Hanging the Fan
Making the Electrical
Connections
Attach the mounting bracket to the outlet box
with two screws and washers provided with the
outlet box. Make sure the bracket is tight and
secured (Fig. 4).
Lift fan into position by hanging the motor
assembly onto the hook from the ceiling
mounting bracket allowing it to hang freely
(Fig. 5).
1.
2.
Figure 5
Motor
Figure 4
Outlet Box
Mounting Bracket
Connect the ground conductor of the 120V
supply (this may be a bare wire or a wire with
green colored insulation) to the green ground
lead(s) of the fan (Figure 6).
Connect the fan motor white wire to the supply
white (neutral) wire using a wire nut. (Figure
6)
Connect the fan motor black wire to the supply
black (hot) wire using a wire nut (Figure 6).
Connect the blue wire for light kit to the black
household supply wire.
Turn wire nut connections upward, spreading
them apart so the green (ground) will be on one
side of the outlet box and the white, black and
blue wire will be on the other side, and push
carefully up into the outlet box.
1.
2.
3.
4.
5.
REMEMBER to disconnect the power.
If you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
Follow the steps below to connect the fan to your
household wiring. Use the wire nuts supplied with
your fan. Secure the wire nuts with electrical tape.
Make sure there are no loose strands or
connections.
WARNING
CHECK TO SEE THAT ALL CONNECTIONS ARE
TIGHT, INCLUDING GROUND, AND THAT NO
BARE WIRE IS VISIBLE AT THE WIRE NUTS.
EXCEPT FOR THE GROUND WIRE.
WARNING
ELECTRICAL DIAGRAMS ARE FOR REFER-
ENCE ONLY. OPTIONAL USE OF ANY LIGHT
KIT SHELL BE UL LISTED AND MARKED
SUITABLE FOR USE WITH THIS FAN.

5
Figure 6
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green Ground
Lead
Ground to
Fan
BLACK
WHITE
WHITE
BLACK
BLUE
GREEN
Figure 7
Figure 8
Move fan into position over the four mounting
studs and secure with the provided washers and
nuts (Fig. 7).
Raise the motor housing up against the
mounting bracket, the four supports inside the
housing should be placed against the four studs
on mounting bracket, twist the housing
clockwise until snug (Fig. 8).
1.
2.
Finishing the Fan
Installation
Washers
Nuts
Mounting
Studs
Motor
Housing
Studs

6

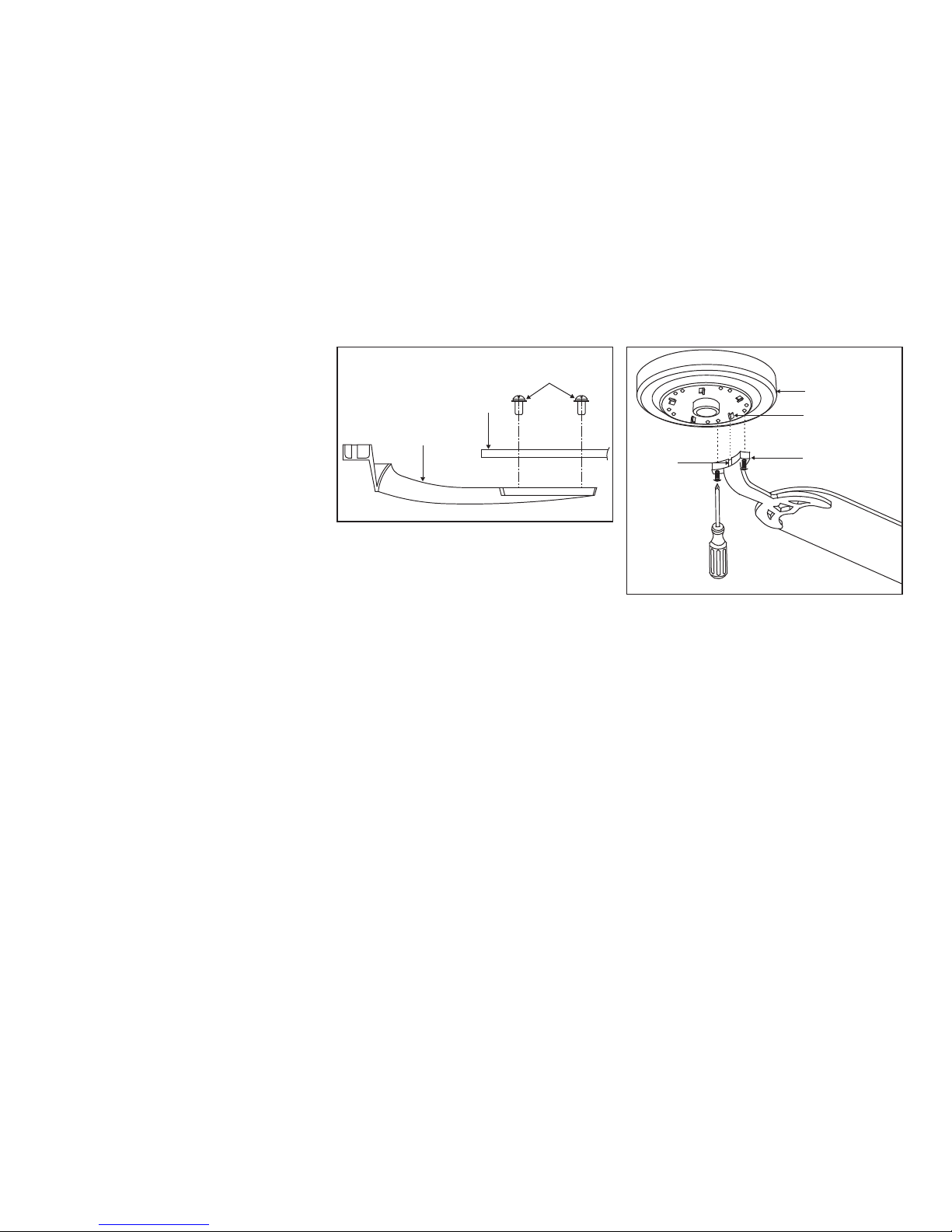

Attaching the Fan Blades
Attach blades to blade arms using three screws
with fiber washers. (Fig. 9) Start a screw into
the blade arm, do not tighten. Repeat for the 2
remaining screws and washers.
Tighten each screw securely starting with the
center screw. Make sure the blade is straight.
Repeat steps for the remaining blades.
Fasten the blade assemblies to the motor
housing by lining up the slots of the blade arms
with the tabs on the motor housing, then
tighten the two screws and washers already
installed in the blade arms. (Fig. 10)
1.
2.
3. Figure 9
Blades
Blade Arms
Screws with
Fiber Washers
Figure 10
Motor
Blade arm
Slot
Tab

7
Blade Balancing
Check that all blade and blade bracket screws
are secure.
Most fan wobble problems are caused when
blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of
one of the blades. Measure from a point on the
center of each blade to the point on the ceiling.
Measure this distance as shown in Figure 11.
Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade.
Measurements deviation should be within 1/8˝.
Run the fan for 10 Minutes.
Use the enclsed Blade Balancing Kit if the
blade wobble is still noticeable.
1.
2.
3.
The following procedure should correct most fan
wobble. Check after each step.
Figure 11
Touching Ceiling
Attaching the Mounting
Plate
Remove the 1 of 3 screws from the mounting
ring and loosen the other 2 screws. (Do not
remove)
Place the key holes on the mounting plate over
the 2 screws previously loosened from the
mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed (Fig. 12).
1.
2.
Figure 12
Mounting Plate Mounting Ring
Screws

8
Fan without Light Kit
(Optional)
Disassemble the switch housing from the light
kit, you can keep the light kit for future use.
Attach the plastic plug to the switch housing.
(Fig. 14)
Holding the switch housing under your fan,
snap the wire connection plugs together .
Install the switch housing to the mounting
plate with screws provided. (Fig. 14)
1.
2.
3.
4.

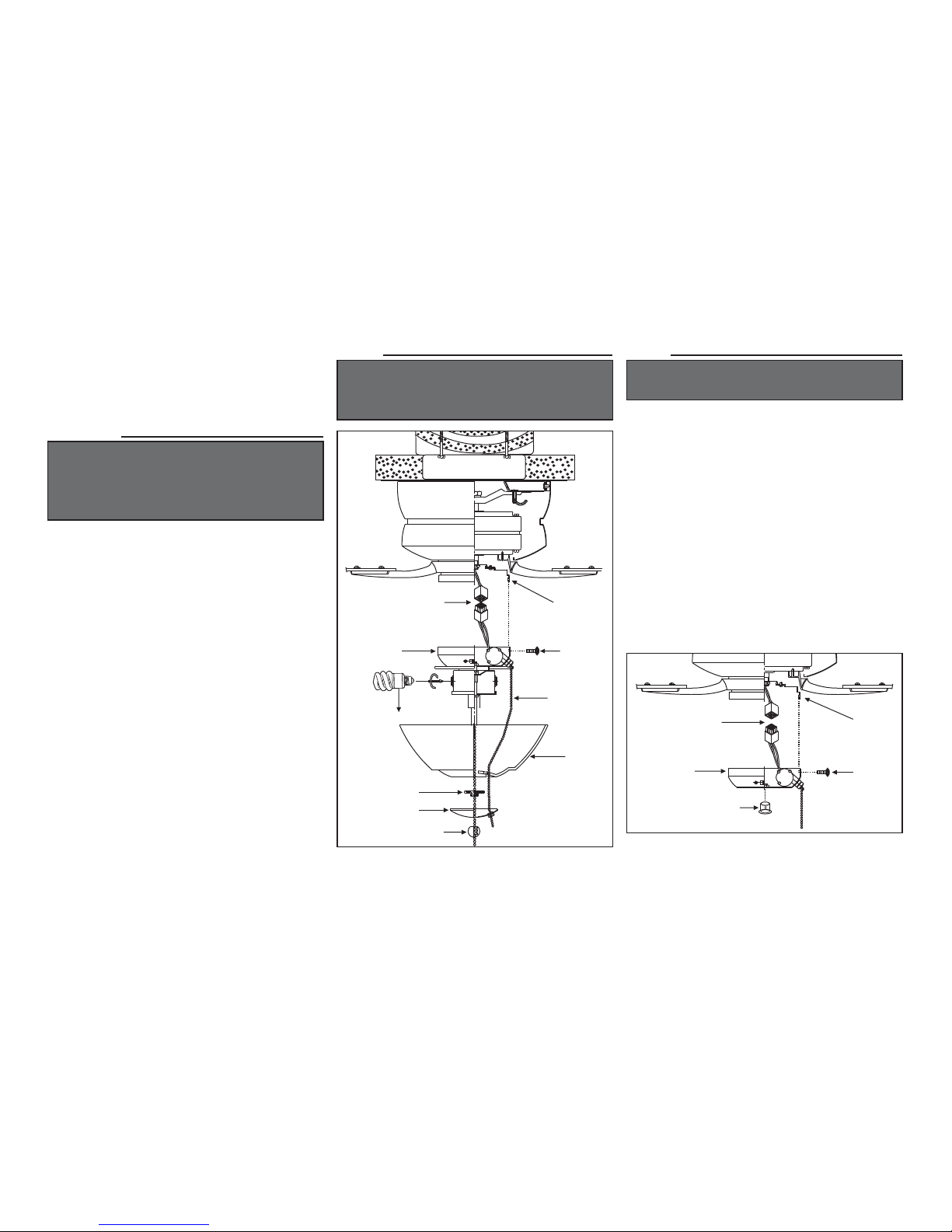

While holding the light kit assembly under
your fan, snap the wire connection plugs
together (Fig. 13).
Carefully push all wires back into the switch
housing, then install the light kit assembly onto
the mounting plate with 3 screws provided. Be
sure to tighten all screws. (Fig. 13)
Install 2 x 13 watts compact fluorescent bulbs
(included) into the light kit sockets. NOTE:
CFL bulbs are NOT dimmable.
Remove the metal nut, glass cap and decorative
nut from the light kit. Place glass shade over
the light kit stem, secure with the metal nut
(rubber side on the top), glass cap and decora-
tive nut. Do not overtighten (Fig. 13).
Insert the 2 pull chain through the eyelet in the
shade and cap. Secure the glass cap and
decorative nut provided (Fig. 13).
Restore power and your light kit is ready for
operation.
1.
2.
3.
4.
5.
6.
Figure 13
Figure 14
NOTE
LIGHT BULBS HAVE NO WARRANTY; CAN BE
PURCHASED AT ANY HOME DEPOT STORE.
NOTE
MAKE SURE TO LEAVE ENOUGH SPACE
BETWEEN THE FAN PULL CHAIN AND THE
BULBS SO THE CHAIN DOESN'T RUB AGAINST
ANY OF THE BULBS.
CAUTION
BEFORE STARTING INSTALLATION, DISCONNECT
THE POWER BY TURNING OFF THE CIRCUIT
BREAKER OR REMOVING THE FUSE AT FUSE
BOX. TURNING POWER OFF USING THE FAN
SWITCH IS NOT SUFFICIENT TO PREVENT
ELECTRIC SHOCK.
Screws
Pull Chain
Glass
Shade
Bulbs
Light Kit
Assembly
Glass Cap
Metal Nut
Decorative Nut
Mounting Plate
Wire Connection
Plugs
Screws
Switch
Housing
Mounting Plate
Wire Connection
Plugs
Plastic Plug
Installing the
Light Kit

9
Operating Your Fan
Turn on the power and check the operation of your
fan. There are two pull chains available in your
fan:
1. 3-speed pull chain- it controls the fan speed as
follows: 1 pull- High, 2 pulls- Medium, 3 pulls-
Low, and 4 pulls- Off.
Speed settings for warm or cool weather depend
on factors such as the room size, ceiling height,
number of fans, and so on.
2. Light kit pull chain- it controls the light kit in
"ON" or "OFF".
The slide switch controls directions: forward
(switch left) or reverse (switch right).
NOTE
WAIT FOR FAN TO STOP BEFORE REVERSING
THE DIRECTION OF THE BLADE ROTATION.
Figure 15
Figure 16
Warm weather - (Counter-Clockwise direction)
A downward air flow creates a cooling effect as
shown in Figure 15. This allows you to set your air
conditioner on a higher setting without affecting
your comfort.
Cool weather - (Clockwise direction) An upward
air flow moves warm air off the ceiling are as
shown in Figure 16. This allows you to set your
heating unit on a lower setting without affecting
your comfort.

10
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL
PANEL BOX BEFORE YOU ATTEMPY ANY REPAIRS.
REFER TO THE SECTION, “MAKING ELECTRICAL
CONNECTIONS”.
Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
Clean your fan periodically to help maintain its
new appearance over the years. Do not use
water when cleaning. Use only a soft brush or
lint-free cloth to avoid scratching the finish.
The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not
use water when cleaning. This could damage
the motor, or the wood, or possibly cause an
electrical shock.
You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball bearings.
1.
2.
3.
4.
Here are some suggestions to help you maintain
your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan and switch wire
connections in the switch housing.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade bracket to the
motor hub is tight.
Make sure wire nut connections are not rattling against each
other or the interior wall of the switch housing.
Allow a 24-hour "breaking-in" period. Most noises
associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the screws securing
the glassware are tight. Check that the light bulb is also
secure.
Make sure there is a short distance from the ceiling to the
canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator
pads are used between mounting bracket and outlet box.
1.
2.
1.
2.
3.
4.
5.
6.
7.
Fan will not start
Fan sounds noisy
Care of Your Fan Troubleshooting
PROBLEM SOLUTION

11
Specifications
FAN SIZE SPEED VOLTS AMPS WATTS RPM CFM N.W. G.W. C.F.
52” 120 7.3 kgs
(16.6 Ibs)
8.2 kgs
(18.1 Ibs) 1.49’
LOW
MED.
HIGH
0.21
0.37
0.47
14
36
56
70
125
165
1507
3207
4144
These are approximate measures. They do not include Amps and Wattage used by the light kit .

12
The Hampton Bay warrants the fan motor to be free from defects in workmanship and material present at time
of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser.
Hampton Bay also warrants that all other fan parts, excluding any glass or acrylic blades, to be free from
defects in workmanship and material at the time of shipment from the factory for a period of one year after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option
replace with a comparable or superior model if the product is returned to Hampton Bay. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the
product are your responsibility. Damage to any part such as by accident or misuse or improper installation or
by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this
warranty does not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling.
Brass finishes of this type give their longest useful life when protected from varying weather conditions. A
certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by
unauthorized persons shall render the warranty invalid. There is no other express warranty. Hampton Bay
hereby disclaims any and all warranties, including but not limited to. Those of merchantability and fitness for
a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be
disclaimed is limited to the time period as specified in the express warranty. Some states do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer
shall not be liable for incidental, consequential, or special damages arising out of or in connection with product
use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty
gives specific legal rights, and you may also have other rights which vary from state to state. This warranty
supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty must
be paid by the customer.
Lifetime Limited Warranty
(lifetime warranty on motor)
You must present a copy of the original
purchase receipt to obtain warranty
service.
Ceiling Fan Parts & Service Department
16040 North 59th Avenue
Glendale, AZ 85306-2350
Attach receipt here for easy
location
