HAMPTON BAY 133-715 User manual

Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varying climatic conditions in the United States this warranty does
not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or
peeling. Brass finishes of this type give their longest useful life when protected from
varying weather conditions. A certain amount of wobble is normal and should not be
considered a defect. Servicing performed by unauthorized persons shall render the warranty
invalid. There is no other express warranty. The retailer hereby disclaims any and all
warranties, including but not limited to. Those of merchantability and fitness for a
particular purpose to the extent permitted by law. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specified in the express
warranty. Some states do not allow limitation on how long an implied warranty lasts, so the
above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion or limitation may
not apply to you. This warranty gives specific legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties.
Lifetime Limited Warranty
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
133-715
11289
792145350279

Safety Rules........................................................................................................................................
Unpacking Your Fan .............................................................................................................................
Installing Your Fan ...............................................................................................................................
Installing the Light Kit.........................................................................................................................
Your ............................................................................................................................
Care of Your Fan ................................................................................................................................
Troubleshooting ................................................................................................................................
Specifications ...................................................................................................................................
Operating Fan
1.
2.
3.
10.
11.
13.
14.
15.
Table of Contents

1. To reduce the risk of electric shock, insure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should
be performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do
not use this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount to outlet box marked "Acceptable for
Fan Support of 22.7 kg (50 lbs.) Or Less" and use mounting
screws provided with the outlet box. Most outlet boxes
commonly used for the support of light fixtures are not
acceptable for fan support and may need to be replaced. Due
to the complexity of the installation of this fan, a qualified
licensed electrician is strongly recommended.
7. Avoid placing objects in the path of the blades.
8. Reverse the fan while the motor is on any speeds.
9. To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into outlet
box. The wires should be spread apart with the grounded
conductor and the equipment-grounding conductor on one
side of the outlet box.
12. Electrical diagrams are reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable
for use with the model fan you are installing. Switches must
be UL General Use Switches. Refer to the Instructions
packaged with the light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of
50 pounds. Use only UL Listed outlet boxes marked FOR
FAN SUPPORT.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY
OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THEPATH OF
THE BLADES.
NOTE
READ AND SAVE ALL INSTRUCTIONS!

Unpacking Your Fan
Unpack your fan and check the contents. You should have the following
1.
3.
4. Decorative top coupling
5.
Set of blades (5)
2. Canopy assembly
Ball/downrod assembly
cover
Decorative scroll
6. Decorative bottom coupling cover
7. Fan motor assembly
8. Set of blades arms (5)
9. Top glass shade
10. Light plate
Bottom glass shade
candelabra b
13. 60 Watt intermediate base bulb
14. Transmitter+holder+2 mounting screws
15. Balancing kit
11.
12. 15W ulbs (4)
16. Loose parts bag containing:
a. Blade attachment hardware
b. Mounting hardware
( 3 plastic wire connectors)
c
(16 screws, 16 fiber washers )
. Decorative scroll mounting hardware
( 9 screws)
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 877-898-1881
a
c
b
16
1
2
3
4
5
7
6
15
12
13
14
9
8
10
11

3. Installing Your Fan
Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustable wrench, step
ladder, and wire cutters.
Mounting Options
Heavy duty ceiling fan rated outlet box is
required (at least 50 lbs). Do not use
regular outlet box (metal or plastic).
Figure 1,2 and 3 are examples of
different ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling.
Heavy duty fan brace
Provide strong support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Figure 3
Figure 2
Heavy duty
outlet box for fan
Heavy duty
outlet box for fan
Figure 1
Angled ceiling
maximum
25 angle

4.
Installing the Decorative
Scroll Assembly
For packaging purpose, the decorative
scroll is packed disassembled, proceed
the following steps for proper decorative
scroll assembly:
Step 1 Secure the decorative scroll to the
coupling with two screws provided, repeat
the procedure with the remaining
decorative scrolls. (Figure 4)
Step. 2 Remove the screw from the
bottom of coupling, installing the
decorative coupling bottom cover onto the
coupling and securing with the screw
provided. (Figure 4)
Installing the Downrod
Step 1. Remove the hanger pin, locking
pin and set screws from the coupling that
located on the top of decorative scroll.
Step 2. Route the wires and safety cable
exiting from the decorative scroll through
the upper coupling cover, canopy cover.
Route the wires and safety cable through
the canopy and then through the
ball/downrod assembly (Figure 5).
Disassembling the canopy kit before
proceeding Step 2, see "Hanging the fan"
step 1, 2 and 3.
Step 3 Align the holes at the bottom of the
downrod with the holes in the coupling on
the top of the decorative scroll ( Figure 5 ).
Carefully insert the hanger pin through
the holes in the coupling and downrod, be
careful not to jam the pin against the
wiring inside the downrod. Insert the
locking pin through the hole in locked
position. Figure 5.
WARNING
FAILURE TO PROPERLY INSTALL
LOCKING PIN AS NOTED IN STEP 3
COULD RESULT IN FAN LOOSENING
AND POSSIBLY FALLING.
Figure 4
Screws
Screws
Decorative
scroll
Decorative
coupling
bottom
cover
Coupling
Figure 5
Canopy cover
Wires & Cable
Ball/downrod
assembly Ceiling
canopy
Locking pin
Tighten screws
firmly
Top coupling
cover
Secured pin
Coupling
Step 4 tighten two set screws firmly on the
coupling located at top of the decorative
scroll. Slip the upper coupling cover onto
the coupling, The decorative scroll
assembly is now completed.

5.
Attaching the Fan
Motor Assembly
Step 1. Hold the fan motor assembly
under the decorative scroll assembly for
installation. (Figure 6)
Step 2. Remove the screws and secured
pin from the decorative scroll assembly,
place the decorative scroll in the top
plate of motor assembly, align the screw
holes at the bottom of decorative scroll
with holes in the top plate of fan motor
assembly and then secure with the two
screws and secured pin provided (Figure
6), Repeat the procedure for the
remaining decorative scrolls.
NOTE: Make sure the three rods are
evenly set on the plate of the motor
assembly.
Step 3. Snap together the wire
connection plug from decorative scroll
assembly and fan motor assembly.
(Figure 6)
Step 4. Remove the nut and washers
from the top plate of motor assembly and
then place the looped end of the safety
cable from the decorative scroll between
the two washers and secure with nut
provided. (Figure 6)
Figure 6
Secured pin
Locking pin
Screws and washers
Decorative
scroll
Connector Washer
Nut
Safety cable

6.
Figure 7
Figure 9
Hanger
bracket Safety cable
Screws provided
by the outlet box
Hook
UL Listed
electrial
box
Figure 8
AC Wires
Washers
Hanger
bracket
Ceiling
mounting
plate
Ceiling
canopy
Canopy
cover
Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Remove the decorative canopy bottom
cover from the canopy by turning the cover counter
clockwise. (Fig.7)
Step 2. Remove the hanger bracket from the
canopy by loosening the two screws on the bottom
of the hanging bracket a half turn from the screw
head and turning the canopy counter clockwise.
(Figure 7)
Step 3. Install the hanger bracket to the outlet box;
be sure to align the holes in the hanger bracket
with the post holes in the outlet box and secure
with screws and washers provided by the outlet box.
Step 4. Hanging the assembled fan onto the
mounting bracket, place the downrod ball into the
mounting bracket. Rotate fan until the slot of the
downrod ball locks into the tab of the mounting
bracket. (Figure 9)
Step 5. Secure the safety cable to the building
structure as shown in Fig. 9
Step 6. Connecting the wires (see making the
electrical connections)
Posts in the
outlet box

7.
Making the Electrical
Connections
Remember to disconnect the power.
Follow the stepsbelow to connect thefan to your
household wiring. Use the wire connecting nuts
supplied with your fan. Secure the connectors
with electrical tape. Make sure there are no
loose strands or connections.
Step 1 Connect the fan supply (black) wire to
the black household supply wire as shown in
Figure 10.
Step 2. Connect the neutral fan (white) wire to
the white neutral householdwire.
Step 3 Connect the fan ground wire (green) to
the household ground wire.
Step 4 After connecting the wires, spread them
apart so that the green and white wires are on
one side of theoutlet box and theblack wires are
on the other side.
Step 5 Turn the connecting nuts upward and
push the wiring intothe outlet box.
SUPPLYCIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
GREEN
Figure 10
Finishing the
Installation
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to ceiling and
over the 2 screws on hanger bracket. Rotate
canopy clockwise, next, while holding the
canopy with one hand, slide the canopy
cover over the screws and rotate clockwise
until tight. Note: adjust the canopy screws
as necessary until the canopy and canopy
cover are snug. (Fig. 11)
Figure 11
Outlet box
Hanger
bracket
Canopy
Canopy
cover
Screws
WARNING
Make sure the notch on the hanging
bracket properly sits in the groove in the
hanger ball before attaching the canopy to
the bracket by turning the housing until it
drops into place.

8.
Attaching the Top Glass
Housing
Remember to disconnect the power.
Step 1. Install the light bulbs (15W,
120VAC candelabra base included). Figure
12.
Step 2. Remove 1 of the 4 screws from the
glass housing and keep it for future use.
Loosen the other 3 screws. (Do not remove).
Hold up the top glass housing to ceiling fan
assembly. Get through the three screws on
glass housing into the three key holes in
the motor assembly plate, twist clockwise
to set glass housing firmly with motor fan
assembly. Secure by tightening the 3
screws previously loosened and the one
previously removed.
Figure 12
Top glass
housing
Screws
Motor
15W light bulbs
Step 3 Fasten the blade arms to the
motor by inserting the tab from the
blade arms to the slot in the bottom
motor housing, then tighten the two
screws and washers already installed
in the blade arms. (Figure 14)
Attaching the Fan
Blades
Step 1 Attach blades to blade arms using
three screws and fiber washers as shown
in Figure 13. Start a screw into the arm,
do not tighten. Repeat for the 2 remaining
screws and washers.
Step 2 Tighten each screw securely
starting with the center screw. Make sure
the blade is straight.
Fiber
washers
Figure 13
Blade
Screws
Blade bracket
Motor
Blade arm
Slot
Tab
Figure 14

3. Use the enclosed Blade Balancing Kit if
the blade wobble is still noticeable.
4. If the blade wobble is still noticeable,
interchanging two adjacent (side by side)
blades can redistribute the weight and
possibly result in smoother operation.
WARNING
TO REDUCE THE RISK OF PERSONALINJURY,
DO NOT BEND THE BLADE HOLDERS
WHILE INSTALLING, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS BETWEEN ROTATING
FAN BLADES.
Touching
ceiling
Figure 15
All blades are grouped by weight. Because
natural woods very in density, the fan may
wobble even though the blades are weight
matched.
The following procedure should correct most
fan wobble. Check after each step.
1. Check that all blade and blade bracket
screws are secure.
2. Most fan wobble problems are caused
when blade levels are unequal. Check this
level by selecting a point on the ceiling
above the tip of one of the blades. Measure
this distance as shown in Figure 15. Rotate
the fan until the next blade is positioned for
measurement. Repeat for each blade. The
distance should be equal within 1/8".
9.

Installing the Light Kit 10.
REMEMBER to disconnect the power. The
fan blades must already be attached to the
fan.
Your fan and light kit though pre-wired
have been disassembled at the factory to
ease in shipping. Please follow these
steps to complete the installation of your
fan and light. TO REDUCE THE RISK OF
FIRE DO NOT EXCEED MAXIMUM
WATTAGE RATING.
Step 1. Remove 1 of 4 screws from the
mounting ring and keep it for future use.
Loosen the other 3 screws. (Do not remove)
Step 2. Connect the white wire connector
from the light kit and fan, follow the same
procedure with the black wire connectors.
(Figure 16 )
Step 3. Place the key holes on the light
plate over the 3 screws previously
loosened from the mounting ring, turn
light plate until it locks in place at the
narrow section of the key holes. Secure by
tightening the 3 screws previously
loosened and the one previously removed.
(Figure 16 )

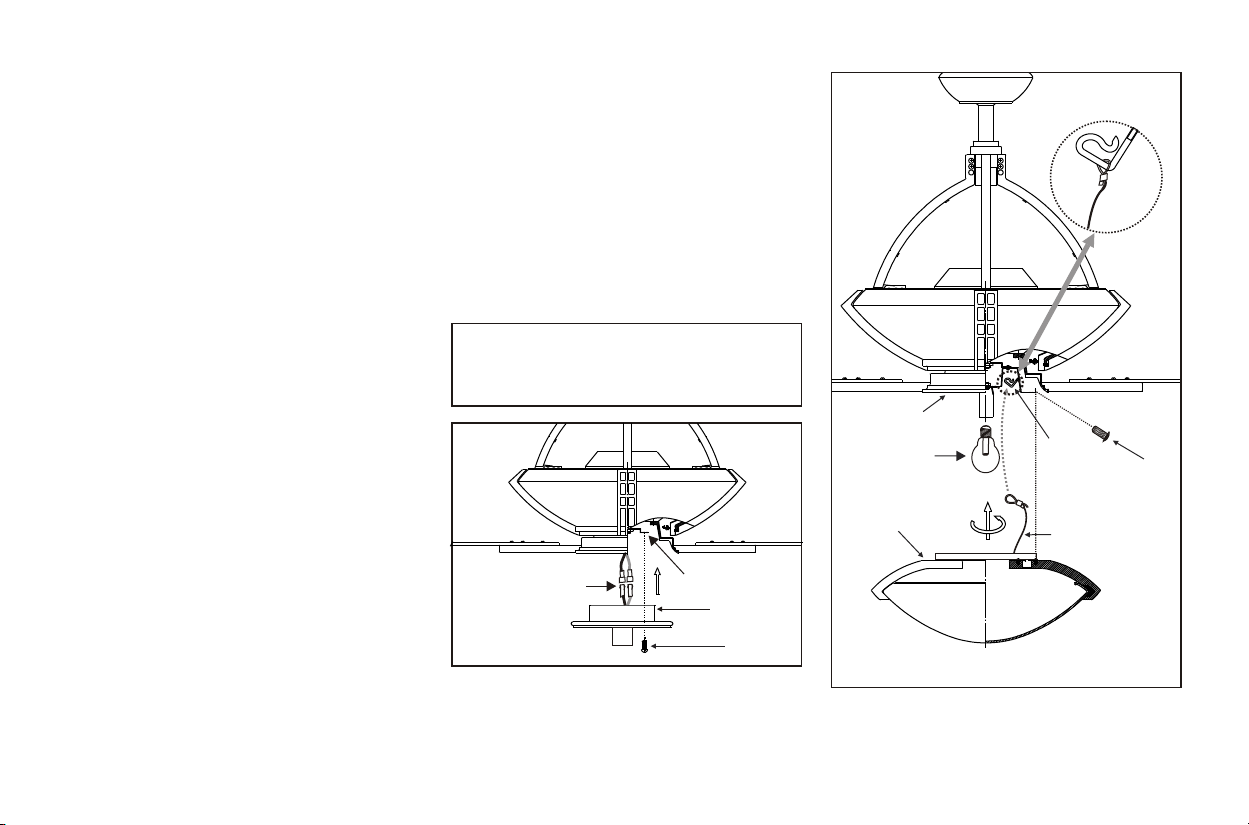

Bottom glass
shade
Bulb Screws
Hook
Safety cable
Light plate
Figure 17
Figure 16
Screws
Light plate
Mounting ring
Connection plugs
Step 4. Install 60W
bulb (included). (Figure 17 )
Step 5. Raise the glass shade up against
the light plate, place looped end of the
safety cable over the hook located on the
light plate. Install the glass shade onto
the light plate with 4 screws provided.
Be sure to tighten all screws. (Fig. 17).
Step 6. restore power and your light kit is
ready for operation
intermediate base
light
NOTE: Light bulbs have no warranty,
can be purchased at local light bulb
specialty store or from our service center.

INTERIOR BULB REPLACEMENT
REMEMBER to turn off the power
Step 1.Remove the 2 screws from the
light cover from the top decorative
housing as shown in Figure 18.
Step 2.Replace the defective bulb (15W,
120V AC CANDELABRA base).
Step 3. Place the light cover back to the
top decorative housing and secure the
screws in position.
1.The receiver frequency selector is
located on the top of the motor assembly
plate as show in Fig. 19.
2.The transmitter frequency selector is
located in the battery compartment as
show in Fig.20. Each frequency selector
has 4 switches, you may use any number
of possible combinations but you must
set each switch in the transmitter to
match the same switch in the receiver.
11. Operating Your Fan
Figure 19Figure 18
Screws
Bulbs
Light cover
Motor
housing
Code
switch
Figure 20
Code switch

Operating Your Transmitter
Restore power to ceiling fan and test for
proper operation.
1. "LO. MED, HI" buttons:
These three buttons are used to set the fan
speed as follows:
LO=Low speed MED= Medium speed
HI=High speed
2. "OFF" button:
This button turns the fan off.
3. The "U/L" button turns the upper light ON or
OFF and also controls the brightness setting.
The "D/L" button turns the bottom light ON
or OFF and also controls the brightness
setting. Press and release the button to turn
the light ON or OFF. Press and hold the
button to set the desired brightness. The
light button has an auto-resume, it will stay
at the same brightness as the last time it
was turned off.
4. The "REV" button is used to set the fan
forward or reverse, press the button
forward (for warm weather) or reverse
(for cool weather):
Speed settings for warm or cold weather
depend on factors such as room size,
ceiling height and number of fans, etc.
NOTE: To operate the reverse function on
this fan, press the reverse button while
the fan is running.
Warm weather - (Forward) A downward
air flow creates a cooling effect as shown
in Figure 22. This allows you to set your
air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Reverse) An upward
airflow moves warm air off the ceiling
area as shown in Figure 23. This allows
you to set your heating unit on a lower
setting without affecting your comfort.
Figure 22
Figure 23
Figure 21
LO
MED
HI
OFF
REV
12.
U/L
D/L

Here are some suggestions to help
you maintain your fan
1.Because of the fan's natural
movement, some connections may
become loose. Check the support
connections, brackets, and blade
attachments twice a year. Make
sure they are secure. (It is not
necessary to remove fan from
ceiling.)
2. Clean your fan periodically to
help maintain its new appearance
over the years. Use only a soft
brush or lint-free cloth to avoid
scratching the finish. The plating is
sealed with a lacquer to minimize
discoloration or tarnishing. Do not
use water when cleaning. This
could damage the motor, or the
wood, or possibly cause an
electrical shock.
3. You can apply a light coat of
furniture polish to the wood blades
for additional protection and
enhanced beauty. Cover small
scratches with a light application of
shoe polish.
4. There is no need to oil your fan.
The motor has permanently
lubricated bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT
THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT ANY
REPAIRS. REFER TO THE
SECTION "MAKING ELECTRICAL
CONNECTIONS"
13. Care of Your Fan
Installing the battery:
Install 9 volt battery (not included), to
prevent damage to transmitter, remove
the battery if not used for long periods.
9Volt
Battery
Figure 24

Troubleshooting 14.
Problem
Fan will not start.
Fan sounds noisy.
Remote control
malfunction:
Solution
1.Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch
housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this
time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that light
bulb is also secure.
6.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
Do not connect the fan with wall mounted variable speed control (s)
1. Do not connect the fan with wall mounted variable speed control (s)
2. Make sure the dip switches are set correctly.

These are approximate measures. They do not include Amps and Wattage used by the light kit.
Distributed by Home Depot U.S.A., Inc.
2455 Paces Ferry Rd. N.W. Atlanta, Georgia 30339
2004 Homer TLC, Inc. All Rights Reserved
Hampton Bay is a registered trademark of Homer TLC, Inc.
RPM CFM N.W. G.W.
C.F.
60"
120 5.21'19.4 kgs
(42.68lbs)
21.5 kgs
(47.3lbs)
0.30
0.50
0.70
15
40
88
50
95
140
1200
3850
6500
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
C
15. Specifications
