HAMPTON BAY Vasner 529-751 User manual

Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material present at time
of shipment from the factory for a lifetime after the date of purchase by the original purchaser. The
retailer also warrants that all other fan parts, excluding any glass or plexiglass blades, to be free from
defects in workmanship and material at the time of shipment from the factory for a period of one year
after the date of purchase by the original purchaser. We agree to correct such defects without charge or
at our option replace with a comparable or superior model if the product is returned to the retailer. To
obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of
removing and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this warranty.
Because of varying climatic conditions in the United States this warranty does not cover any changes
in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type
give their longest useful life when protected from varying weather conditions. A certain amount of
wobble is normal and should not be considered a defect. Servicing performed by unauthorized persons
shall render the warranty invalid. There is no other express warranty. The retailer hereby
disclaims any and all warranties, including but not limited to. Those of merchantability and
fitness for a particular purpose to the extent permitted by law. The duration of any implied
warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may
not apply to you. The retailer shall not be liable for incidental, consequential, or special damages
arising out of or in connection with product use or performance except as may otherwise be
accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so
the above exclusion or limitation may not apply to you. This warranty gives specific legal rights, and
you may also have other rights which vary from state to state. This warranty supersedes all prior
warranties.
Lifetime Limited Warranty
529-751
219032
792145353294

Table of Contents
Safety Rules......................................................................................................................................
Unpacking Your Fan.......................................................................................................................
Installing Your Fan..........................................................................................................................
Installing the Light Kit....................................................................................................................
Operating Your Transmitter..........................................................................................................
Care of Your Fan...........................................................................................................................
Troubleshooting..............................................................................................................................
Specifications..................................................................................................................................
1
2
3
8
9
10
11
12

1. To reduce the risk of electric shock, insure electricity has been turned
off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use
this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may
need to be replaced, consult a qualified electrician if in doubt.
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only UL
Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
7. Reverse the fan while the motor is on any speeds.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A
dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After marking electrical connections, spliced conductors should be
turned upward and pushed carefully up into outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
12. Electrical diagrams are reference only. Light kit that are not packed
with the fan must be UL Listed and marked suitable for use with the
model fan you are installing. Switches must be UL General Use
Switches. Refer to the Instructions packaged with the light kits and
switches for proper assembly.
1. Safety Rules
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.
NOTE
READ AND SAVE ALL INSTRUCTIONS!
ATTENTION
Under the Energy Policy Act of 2005, federal regulations require
all ceiling fans with light kits manufactured or imported after
January 1, 2009, to limit the total wattage consumed by the light
kit to 190 watts. Therefore, this product is equipped with a 190W
limiting device. If lamping exceeds 190 watts, the light kit will
shut off automatically until the proper wattage of bulbs are
installed. Reset the light kit by turning it off, replacing the bulbs
with the correct wattage, and then turning the light kit back on.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE
FOR FAN SUPPORT.

1. Juego de aspas (3)
2. Canopy assembly
3. Ball/downrod assembly (1) & extra
downrod (1)
4. Coupling cover
5. Fan motor assembly
6. Mounting plate
7. Light plate
8. Glass shade
9. 100 Watt halogen bulb (1)
10. Receiver with 6 wire nuts
11. Transmitter + holder + 2 mounting
screws + 2 plastic plugs
12. Balancing kit
13. Loose parts bag containing:
a. Blade attachment hardware
(10 screws, 10 fiber washers).
b. Mounting hardware
(3 plastic wire connectors).
13
WARNING
D O N OT INSTALL OR US E FANIF AN Y
PA RT IS DA MAGED OR MISS ING.CALL
TOLL FREE 1-877-902-5588
Unpack your fan and check the contents. You should have the following items:
Unpacking Your Fan 2.
12
10
b
a
11
2
4
9
8
5
1
6
7
3

Tools Required
Phillips screwdriver, straight slot screwdriver,
adjustable wrench, step ladder, and wire
cutters.
Mounting Options
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs).
Do not use plastic outlet boxes.
Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
3. Installing Your Fan
Figure 1
Figure 2
Figure 4
Figure 3
To hang your fan where there is an existing
fixture but no ceiling joist, you may need an
installation hanger bar as shown in Figure 4
(available at your Hampton Bay Retailer).
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling.
Outlet box
Outlet box
Provide strong support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Outlet box
Angled ceiling
maximum
24°angle

Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Remove the decorative canopy bottom
cover from the canopy by turning the cover
counter clockwise.(Fig. 5)
Step 2. Remove the hanger bracket from the
canopy by loosening the two screws on the bottom
of the hanging bracket a half turn from the screw
head and turning the canopy counter clockwise.
(Fig. 5)
Step 3. Secure the hanger bracket to the ceiling
outlet box with the screws and washers provided
with your outlet box.
Step 4. Pass the 120-volt supply wires through the
center hole in the ceiling hanger bracket as shown
in Fig. 6.
Step 5. Remove the hanger pin, locking pin and
set screws from the top of the motor assembly.
Step 6. Route wires exiting from the top of the fan
motor through the collar cover, canopy cover,
canopy and then through the ball / downrod. (Fig.
7)
Step 7. Align the holes at the bottom of the
downrod with the holes in the collar on top of the
motor housing (Fig.7). Carefully insert the hanger
pin through the holes in the collar and downrod.
Be careful not to jam the pin against the wiring
inside the downrod. Insert the locking pin through
the hole near the end of the hanger pin until it
snaps into its locked position, as noted in the
circle inset of Fig. 7.
Step 8. Tighten two set screws on top of the fan
motor firmly (Figure 7)
Step 9. Place the downrod ball into the hanger
bracket socket.
WARNING
FAILURE TO PROPERLY INSTALL LOCKING
PIN AS NOTED IN STEP 7 COULD RESULT IN
FAN LOOSENING AND POSSIBLY FALLING.
4.
CAUTION
REMOVE 5 RUBBER PACKING MOUNTS AND
DISCARD BEFORE INSTALLATION. Mounting screws
(supplied with
electrical box)
Hook
Ceiling mounting
plate
UL Listed
electrical
box
120V Wires
Washers
Figure 6
Pin in locked position
Motor collar
Motor wires
Ball/downrod
assembly
Ceiling canopy
Tighten screws
firmly
Figure 7
Hanger pin
Locking pin Collar cover
Canopy cover
Figure 5
Ceiling
mounting
plate
Ceiling
canopy
Canopy
cover

Make the Electrical
Connections
WARNING: To avoid possible electrical shock,
be sure electricity is turned off at the main fuse
box before wiring.
NOTE: This remote control unit is equipped with
16 code combinations to prevent possible
interference from or to other remote units. The
frequency switches on your receiver and
transmitter have been preset at the factory. Please
recheck to make sure the switches on the
transmitter and the receiver are set to the same
position, any combination of settings will operate
the fan as long as the transmitter and receiver are
set to the same position. (Figure 8)
Step 1. (Fig. 9)Instale el receptor en la abrazadera
de montar, el lado plano debe quedar hacia arriva.
Step 2. (Figure 10) Motor to Receiver Electrical
Connections: Connect the black wire from the fan
to black wire marked "TO MOTOR L". Connect
the white wire from the fan to the white wire
marked "TO MOTOR N" from the receiver.
Connect the blue wire from the fan to the blue
wire marked "For Light" from the receiver. Secure
the wire connections with the plastic wire nuts
provided.
Step 3. (Fig. 10) Receiver to House Supply Wires
Electrical Connections: Connect the black (hot)
wire from the ceiling to the black wire marked
"AC in L" from the receiver. Connect the white
(neutral) wire from the ceiling to the white wire
marked "AC in N" from the Receiver. Secure the
wire connections with the plastic wire nuts
provided.
Step 4. (Fig. 10) If your outlet box has a ground
wire (green or bare copper) connect it To the fan
ground wires; otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided. After connecting the wires spread them
apart so that the green and white wires are on one
side of the outlet box and black and blue wires are
on the other side. Carefully tuck the wire
connections up into the outlet box.
Note: Fan must be installed at a maximum
distance of 20 feet from the transmitting unit
for proper signal transmission between the
transmitting unit and the fan's receiving unit.
5.
CAUTION: Do not use with wall light
dimmer switch
Changing The Downrod
(Optional)
NOTE: Your fan comes with a 4" downrod
attached to the hanger ball. In addition you have
been provided with a 6" downrod to use if desired.
If you choose to use the 6" downrod, perform the
following steps:
1. Remove the hanger ball from the 4" downrod
by loosening the set screw at the top of the
downrod which holds the hanger ball to the
downrod.
2. Slide the hanger ball down the downrod and
remove the support pin.
3. Insert the support pin in the holes at the top of
the 6" downrod and slide the hanger ball up
the 6" downrod. Make sure the support pin is
properly seated in the grooves in the top of the
hanger ball.
4. Tighten the set screw firmly.

6.
Figure 11
Figure 9
Receiver
Hanger bracket
Figure 8
Code switch
Figure 10
SUPPLY CIRCUIT
BLACK
BLACK
BLACK
BLACK
BLACK
BLUE
BLUE
BLUE
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
GREEN
ON
Finishing the Installation
Step 1. Tuck connections neatly into ceiling outlet
box.
Step 2. Slide the canopy up to ceiling and over
the 2 screws on hanger bracket. Rotate canopy
clockwise. Next, while holding the canopy with
one hand, slide the canopy cover over the screws
and rotate clockwise until tight. NOTE: adjust
the canopy screws as necessary until the canopy
and canopy cover are snug. (Fig. 11)
WARNING
MAKE SURE THE NOTCH ON THE HANGING
BRACKET PROPERLY SITS IN THE GROOVE IN
THE HANGER BALL BEFORE ATTACHING THE
CANOPY TO THE BRACKET BY TURNING THE
HOUSING UNTIL IT DROPS INTO PLACE.
Outlet box
Hanger bracket
Canopy
Canopy cover
Screws

Installing the Mounting
Plate
Step 1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws. (Do
not remove)
Step 2. Place the key holes on the mounting plate
over the 2 screws previously loosened from the
mounting ring, turn mounting plate until it locks
in place at the narrow section of the key holes.
Secure by tightening the 2 screws previously
loosened and the one previously removed. (Fig.
13)
7.
Attaching the Fan Blades
Insert the blade through the slots in the bottom
band. Align the holes from the blade to the holes
from the motor and secure in place with screws
provided. (Figure 12)
Figure 12
Fiber washer
Screws
Blade
Slot
Figure 13
Moounting plate
Mounting ring
Screws

Installing the Light Kit 8.
NOTE:Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box. Turning power
off using the fan switch is not sufficient to
prevent electric shock.
1. While holding the light plate under your fan,
make the polarized plug connections:
- White to white
- Blue to black
2. Install the light plate onto the mounting plate
with 3 screws provided. Be sure to tighten all
screws. (Fig. 14)
3. Install 100W halogen bulb (included).
4. Raise glass shade up against bottom of fan
housing and secure it to fan by turning glass
clockwise until snug. Do not overtighten.
(Fig. 15)
5. Restore power and your light kit is ready for
operation.
6. If the light kit does not work, turn off the
electricity and lower either canopy or
decorative housing on your ceiling fan to
make sure the blue wire is connected to the
black household wire.
NOTE: Light bulbs have no warranty, can be
purchased at local light bulb specialty store or
from our service center.
Figure 14
Figure 15
Bulb
Glass shade
Light plate
Mounting plate
Light plate
Screws
Wire connection

4. The " " button is used to set the fan forward
or reverse, press the button forward (for warm
weather) or reverse (for cool weather):
Speed settings for warm or cold weather depend
on factors such as room size, ceiling height and
number of fans, etc.
NOTE: To operate the reverse function on this
fan, press the reverse button while the fan is
running.

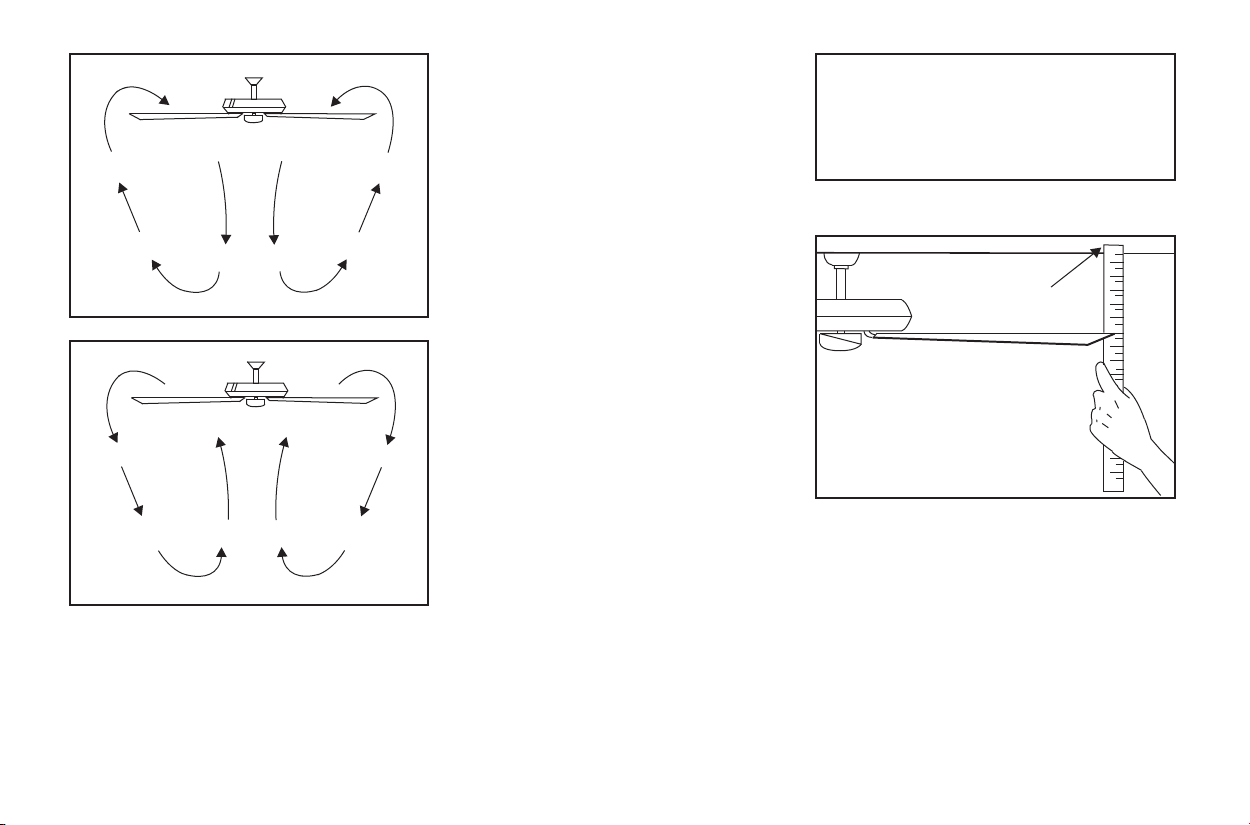

Warm weather - (Counter-Clockwise direction)
A downward air flow creates a cooling effect as
shown in Figure 18. This allows you to set your
air conditioner on a higher setting without
affecting your comfort.
Cool weather - (Clockwise direction) An
upward airflow moves warm air off the ceiling
area as shown in Figure 19. This allows you to
set your heating unit on a lower setting without
affecting your comfort.
Restore power to the ceiling fan and test for
proper operation.
1. "HI, MED, LOW" buttons: These three buttons
are used to set the fan speed as follows:
HI= High speed
MED= Medium speed
LOW= Low speed
2. "OFF" button: This button turns the fan off.
3. The " " button turns the light ON or OFF
and also controls the brightness setting. Press
and release the button to turn the light ON or
OFF. Press and hold the button to set the
desired brightness. The light key has an
auto-resume, it will stay at the same brightness
as the last time it was turned off.
Figure 17
9. Operating Your Transmitter
Installing the battery:
Install 12V MN21/A23 battery (not included), to
prevent damage to transmitter, remove the battery
if not used for long periods.
Figure 16

Care of Your Fan 10.
Here are some suggestions to help you maintain
your fan.
1. Because of the fan's natural movement, some
connections may become loose. Check the
support connections, brackets, and blade
attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from
ceiling.)
2. Clean your fan periodically to help maintain its
new appearance over the years. Use only a soft
brush or lint-free cloth to avoid scratching the
finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not use
water when cleaning. This could damage the
motor, or the wood, or possibly cause an electrical
shock.
3. You can apply a light coat of furniture polish to
the wood blades for additional protection and
enhanced beauty. Cover small scratches with a
light application of shoe polish.
4. There is no need to oil your fan. The motor
has permanently lubricated bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE
ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT ANY REPAIRS.
REFER TO THE SECTION
"MAKING ELECTRICAL CONNECTIONS"
Touching ceilling
Figure 20
Figure 19
Figure 18

11. Troubleshooting
Problem
Fan will not start.
Fan sounds noisy.
Lights shut off and
will not come back
on.
Fan wobble.
Remote control
malfunction:
Solution
1.Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that light bulb is also secure.
6. Do not connect the fan with wall mounted variable speed control (s)
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. This unit is equipped with a wattage limiting device. Lamping in excess of 190 watts will disable your ceiling fan's light kit. To
reset your light kit you must turn the power off and re lamp, keeping the wattage under 190 watts. Restore power to your ceiling
fan and continue normal operation.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above
the tip of one of the blades. Measure this distance. (Fig. 20) Rotate the fan until the next blade is positioned for measurement.
Repeat for each blade. The distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and possibly
result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARM WHILE INSTALLING,
BALANCING THE BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING
FAN BLADES.
1. Do not connect the fan with wall mounted variable speed control (s)
2. Make sure the dip switch are set correctly.

Specifications 12.
52"
(132 cm)
Fan Size Speed Volts Amps Watts RPM CFM N.W. G.W. C.F.
120
120
120
Low
Medium
High
These are approximate measures. They do not include Amps and Wattage used by the light kit.
Distributed by
Your Other Warehouse, LLC
12100 Little Cayman Dr.
Baton Rouge, LA 70809
2800
3700
5100
90
120
155
20
32
47
0.36
0.41
0.42
2.25'
9.5 kgs
(20.96 lbs)
10.7 kgs
(23.60 lbs)
