HAMPTON BAY Babiberre User manual

Hampton Bay®
Transitional Collection
Babiberre
36" Ceiling Fan
Owner’s Manual
Babiberre
Ventilador de Techo de 36"
Manual del Propietario

116-663
792145352013
Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
Hampton Bay Lifetime Limited Warranty
The retailer warrants the fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a lifetime after the date of purchase by the
original purchaser. The retailer also warrants that all other fan parts, excluding any glass or
plexiglass blades, to be free from defects in workmanship and material at the time of
shipment from the factory for a period of one year after the date of purchase by the original
purchaser. We agree to correct such defects without charge or at our option replace with a
comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Damage to any part such as by accident
or misuse or improper installation or by affixing any accessories, is not covered by this
warranty. Because of varying climatic conditions in the United States this warranty does
not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or
peeling. Brass finishes of this type give their longest useful life when protected from
varying weather conditions. A certain amount of wobble is normal and should not be
considered a defect. Servicing performed by unauthorized persons shall render the warranty
invalid. There is no other express warranty. The retailer hereby disclaims any and all
warranties, including but not limited to. Those of merchantability and fitness for a
particular purpose to the extent permitted by law. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specified in the express
warranty. Some states do not allow limitation on how long an implied warranty lasts, so the
above limitation may not apply to you. The retailer shall not be liable for incidental,
consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion or limitation may
not apply to you. This warranty gives specific legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties.
Lifetime Limited Warranty
11289

Table of Contents
Safety Rules........................................................................................................................................
Unpacking Your Fan .............................................................................................................................
Installing Your Fan ...............................................................................................................................
...............................................................................................................................
Care of Your Fan .................................................................................................................................
Troubleshooting ..................................................................................................................................
Specifications ...................................................................................................................................
Operating Your Fan
1.
2.
3.
7.
8.
9.
10.

1. Safety Rules
1.To reduce the risk of electric shock, insure electricity has been
turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not
use this fan with any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal injury, use only the two
steel screws (and lock washers) provided with the outlet box for
mounting to the outlet box. Most outlet boxes commonly used for
the support of lighting fixtures are not acceptable for fan support
and may need to be replaced, consult a qualified electrician if in
doubt.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the outlet
box.
12. Electrical diagrams are for reference only. Light kits that are not
packed with the fan must be UL Listed and marked suitable for
use with the model fan you are installing. Switches must be UL
General Use Switches. Refer to the Instructions packaged with
the light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK OR PERSONAL
INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR
FAN SUPPORT.
5. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 50 pounds. Use
only UL Listed outlet boxes marked FOR FAN SUPPORT.
6. The fan must be mounted with a minimum of 7 feet clearance
from the trailing edge of the blades to the floor.
7. Do not operate the reverse switch while the fan blades are in
motion. The fan must be turned off and the blades stopped before
reversing the blades direction.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY
OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH OF
THE BLADES.
NOTE
READ AND SAVE ALL INSTRUCTIONS!

Unpack your fan and check the contents. You should have the following items;
.
1. Fan blades (5)
2. Canopy assembly
3.
4. Coupling cover
Ball/downrod assembly
5. Fan motor assembly
6. Blade arms (5)
7.
8. Balancing kit
Pull chain and fob
1
2
3
5
4
8
7
6
9. Loose parts bag containing:
a. Blade attachment hardware
()
b. Mounting hardware
( 3 plastic wire connectors)
16 screws
ab
9
WARNING
DO NOT INSTALL OR USE FAN
IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-898-1881 Unpacking Your Fan 2.

Tools Required
Phillips screwdriver, straight slot
screwdriver, adjustable wrench, step
ladder, and wire cutters.
Mounting Options
If there isn't an existing UL listed
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and building materials. The
outlet box and its support must be able
to fully support the moving weight of the
fan (at least 50 lbs). Do not use plastic
outlet boxes.
Figures 1,2 and 3 are examples of
different ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need
an installation hanger bar.(Fig.3)
(available at any Home Depot store).
Outlet box
Outlet box
Outletbox
Figure 1
Figure 2
Figure 4
3. Installing Your Fan
Provide strong support
Recessed
outlet box
Mounting bracket
opening must be
toward the top
Figure 3
Angled ceiling
maximum
18 angle

4.
WARNING
FAILURE TOPROPERLY INSTALL LOCKING PIN AS
NOTED IN STEP 7 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
Step 8. Tighten two set screws on top of the
fan motor firmly (Fig. 7)
Step 9. Place the downrod ball into the
hanger bracket socket. Rotate the downrod
ball until the groove of the downrod ball
lines up with the hook of the hanger bracket.
(This will help balance the fan.)
Step 7. Align the holes at the bottom of the
downrod with the holes in the collar on top
of the motor housing (Fig.7). Carefully
insert the hanger pin through the holes in
the collar and downrod. Be careful not to
jam the pin against the wiring inside the
downrod. Insert the locking pin through the
hole near the end of the hanger pin until it
snaps into its locked position, as noted in
the circle inset of Fig. 7. Mounting
screws
(supplied with
electrical box)
Hook
UL Listed
electrial
box
Figure 6 120V Wires
Washers
Figure 7
Hanger
bracket
Motor wires
Ball/downrod
assembly
Hanger pin Locking
pin
Collar cover
Downrod
Canopy
Canopy cover
Set screws
Figure 5
Ceiling
canopy
Canopy
cover
Hanger
bracket
Hanging the Fan
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning
the cover counter clockwise.(Fig. 5)
Step 2. Remove the hanger bracket from
the canopy by loosening the two screws on
the bottom of the hanging bracket
from the screw head and turning the
canopy counter clockwise.(Fig. 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling
hanger bracket.(Fig. 6)
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 5. Remove the hanger pin, lock pin
and set screws from the top of the motor
assembly.
NOTE:
Step 6. Route wires exiting from the top of
the fan motor through the collar cover,
canopy cover, canopy and then through
the ball / downrod. (Fig. 7)
a half
turn
If a longer downrod is needed, take
out the screw located in the hanger ball,
lower the hanger ball and remove the pin,
remove all 3 pieces from the downrod and
assemble them onto the new longer
downrod before proceeding step 6. (The
longer downrod is available at any Home
Depot store)

5.5.
Making the Electrical
Connections
Remember to disconnect the power.
Follow the steps below to connect the fan to
your household wiring. Use the wire
connecting nuts supplied with your fan.
Secure the connectors with electrical tape.
Make sure there are no loose strands or
connections.
Step 1 Connect the fan supply (black) wire
and light supply (blue) wire to the black
household supply wire.(Fig. 8)
Step 2. Connect the neutral fan (white) wire
to the white neutral household wire.
Step 3 Connect the fan ground wire (green)
to the household ground wire.
Step 4 After connecting the wires, spread
them apart so that the green and white wires
are on one side of the outlet box and the
black and the blue wires are on the other side.
Step 5 Turn the connecting nuts upward and
push the wiring into the outlet box.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
OTHER PERSONAL INJURY. MOUNT FAN ONLY ON AN
OUTLET BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO
NOT USE THIS FAN WITH ANY SOLID-STATE SPEED
VARIABLE CONTROL DEVICE.

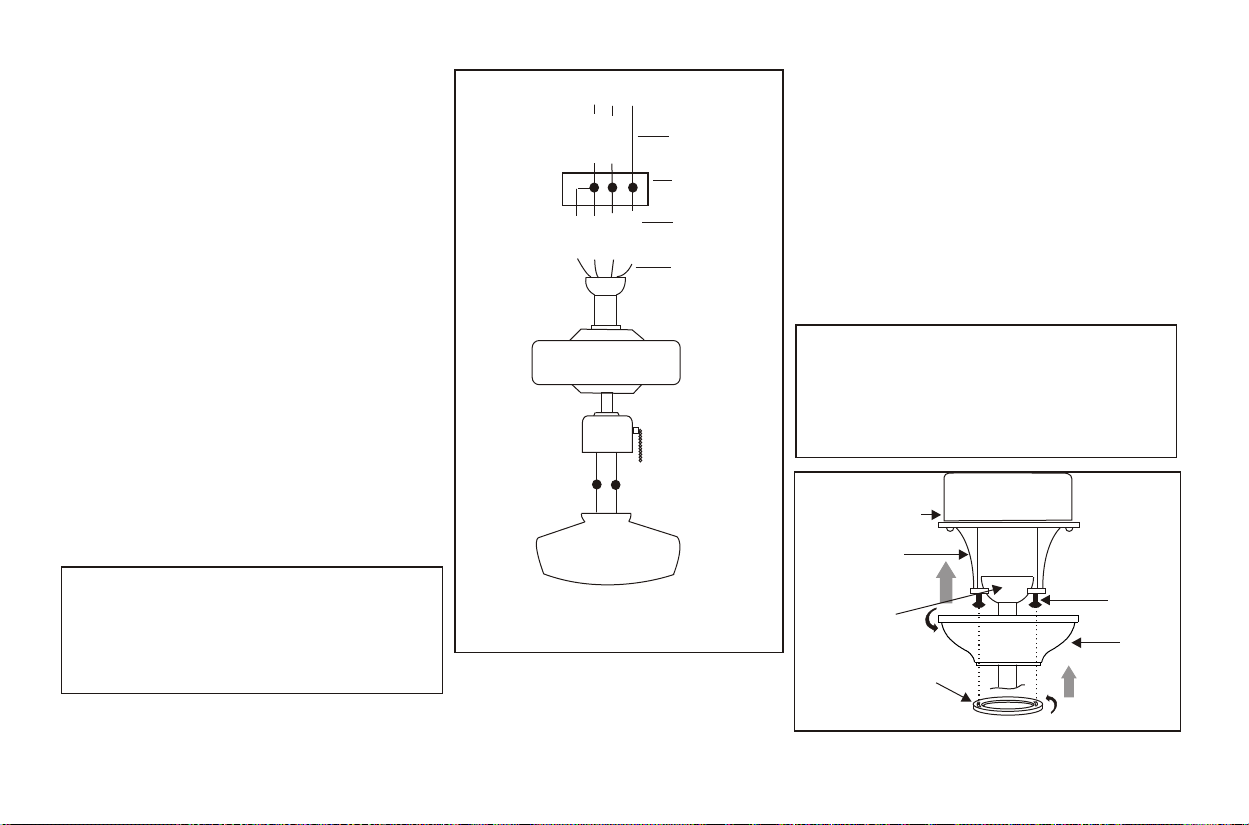

SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITEWHITE
BLACK
BLUE
GREEN
WHITE
BLUE
BLACK WHITE
Figure 8
Diagram indicates optional light kit wiring.
Figure 9
Outlet box
Hanger
bracket
Canopy
Canopy
cover
Screws
Finishing the Installation
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to ceiling and over
the 2 screws on the hanger bracket. Rotate
canopy clockwise. Next, while holding the
canopy with one hand, slide the canopy cover
over the screws and rotate clockwise until
tight. Note: adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig. 9)
WARNING
Make sure the hook on the hanging bracket
properly sits in the groove in the hanger
ball before attaching the canopy to the
bracket by turning the housing until it
drops into place.
Hanger
ball

6.
Rubber packing
mounts
Screws
Rubber
washer
Blade
arm
Figure 11
Figure 10
Blade
Screws
Figure 12
Motor
Blade arm
Slot
Tab

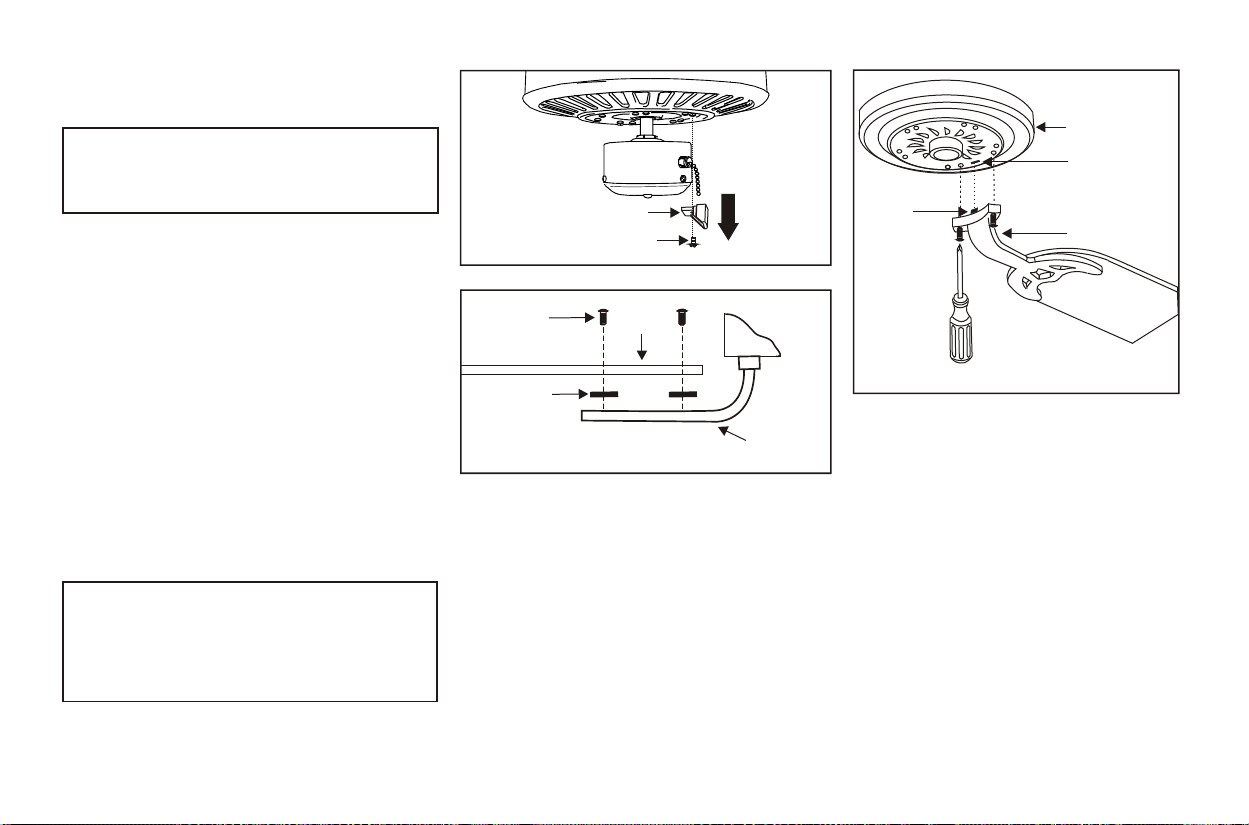

Attaching the Fan Blades
Step 1 Attach blades to blade arms using
three screws and rubber washers.
Start a screw into the arm, do not
tighten. Repeat for the 2 remaining screws
and washers.
Step 2 Tighten each screw securely starting
with the center screw. Make sure the blade is
straight.
(Fig. 11)
blade
Repeat steps for the remaining
blades.
Step 3 Fasten the blade arms to the motor by
inserting the tab from the blade arms to the
slot in the bottom motor housing, then tighten
the two screws and washers already installed
in the blade arms. (Fig. 12)
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE ARMS WHILE
INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NO INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
CAUTION: Remove 5 rubber packing
mounts from fan motor assembly and
discard before installation. (Fig. 10)

NOTE
WAIT FOR FAN TO STOP BEFORE
CHANGING THE SETTING OF THE
SLIDE SWITCH.
Turn on the power and check the operation
of your fan. There are two pull chains
available in your fan:
1. 3-speed pull chain- it controls the fan
speed as follows: 1 pull- High, 2 pulls-
Medium, 3 pulls- Low, and 4 pulls- Off.
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans, and so on.
The slide switch controls directions: forward
(switch down) or reverse (switch up).

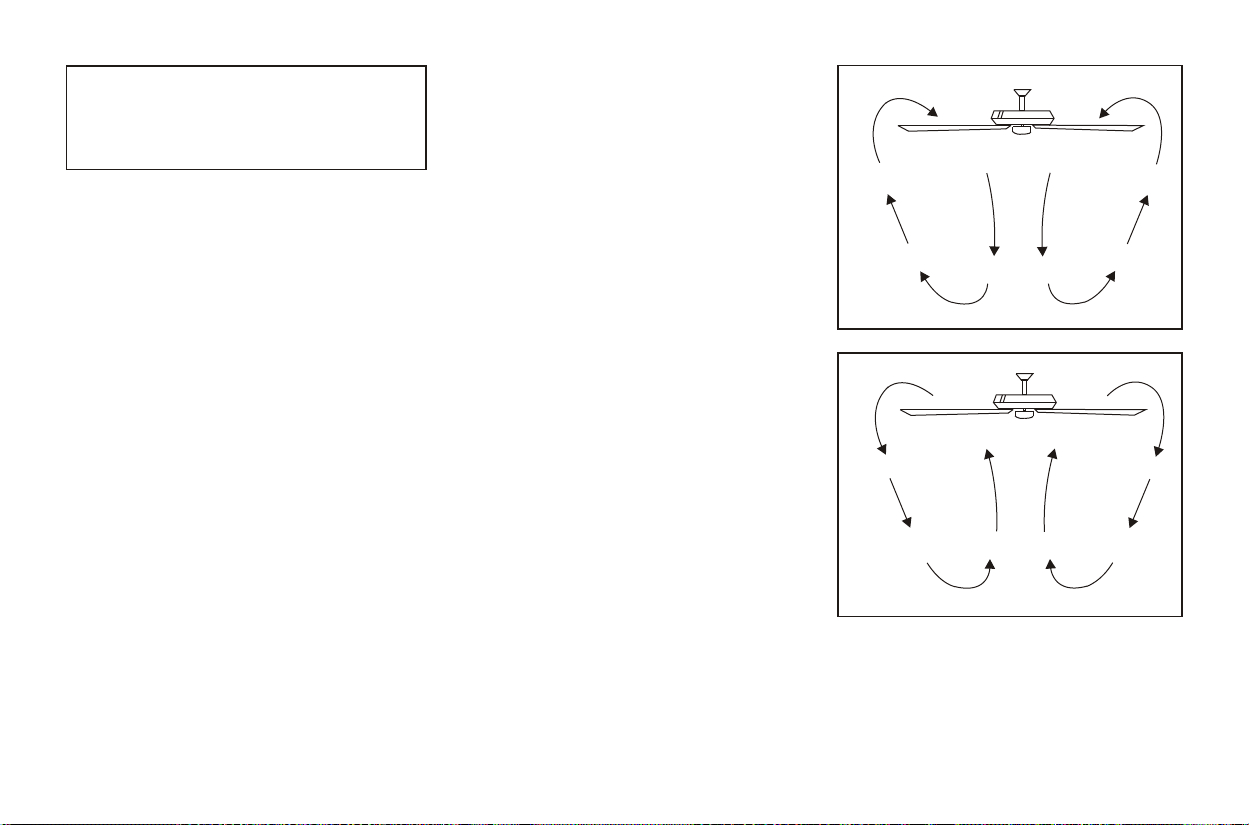

Warm weather - (Counter-Clockwise direction)
A downward airflow creates a cooling
effect.(Fig. 13) This allows you to set your air
conditioner on a higher setting without
affecting your comfort.
Cool weather-(Clockwise direction) An upward
airflow moves warm air off the ceiling
area.(Fig. 14) This allows you to set your
heating unit on a lower setting without
affecting your comfort.
Figure 13
Figure 14
7. Operating Your Fan

Care of Your Fan 8.
Here are some suggestions to help you
maintain your fan
1.Because of the fan's natural movement,
some connections may become loose.
Check the support connections, brackets,
and blade attachments twice a year. Make
sure they are secure. (It is not necessary to
remove fan from ceiling.)
2. Clean your fan periodically to help
maintain its new appearance over the years.
Use only a soft brush or lint-free cloth to
avoid scratching the finish. The plating is
sealed with a lacquer to minimize
discoloration or tarnishing. Do not use water
when cleaning. This could damage the motor,
or the wood, or possibly cause an electrical
shock.
3. You can apply a light coat of
furniture polish to the wood blades for
additional protection and enhanced
beauty. Cover small scratches with a
light application of shoe polish.
4. There is no need to oil your fan.
The motor has permanently lubricated
bearings.
IMPORTANT
MAKE SURE THE POWER IS OFF AT
THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPT ANY
REPAIRS. REFER TO THE SECTION
"MAKING ELECTRICAL
CONNECTIONS"
Figure 15
Touching
ceiling

9. Troubleshooting
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch
housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that the light
bulb is also secure.
6. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have installed this
type of control, choose and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.

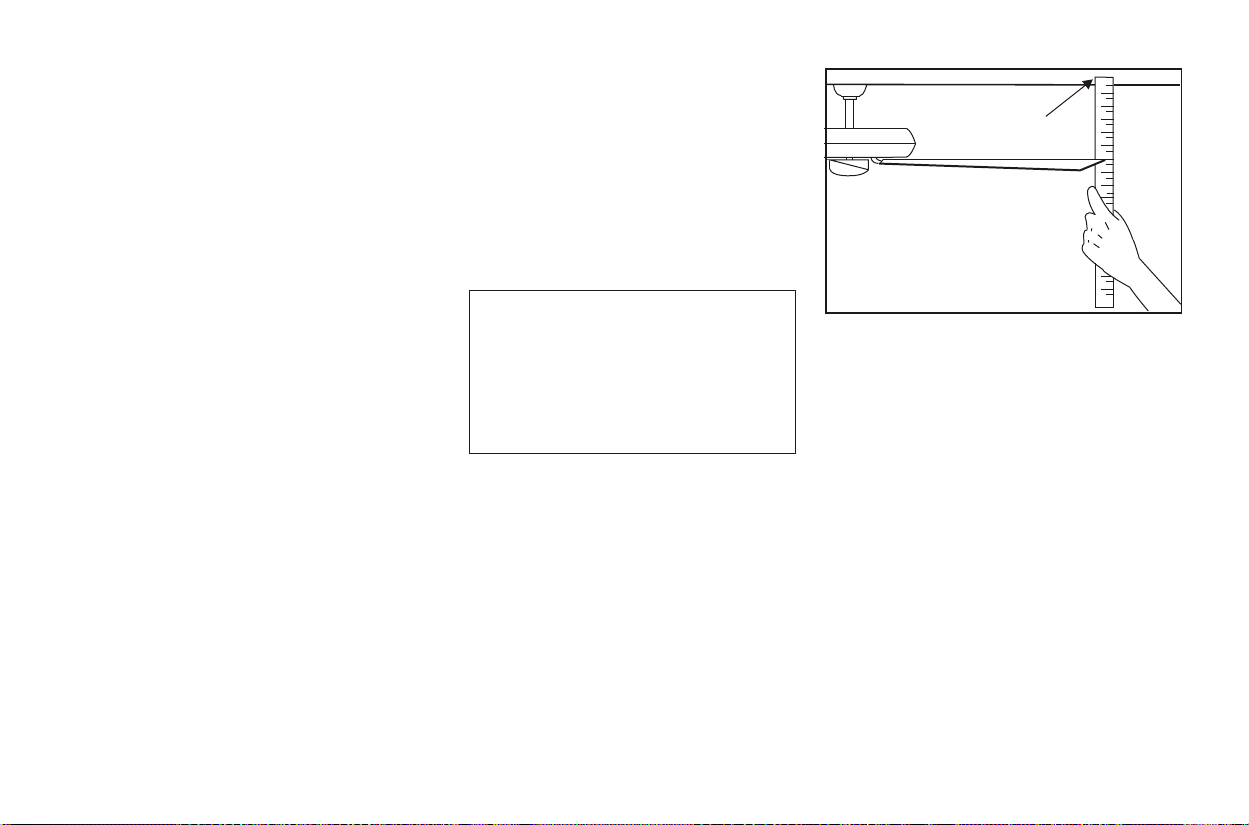

2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a
point on the ceiling above the tip of one of the blades. Measure this distance.(Fig. 15) Rotate the fan until
the next blade is positioned for measurement. Repeat for each blade. The distance deviation should be
equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute
the weight and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARM WHILE INSTALLING, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

3.1'15.6
kgs
17.45
kgs
Specifications 10.
These are approximate measures. They do not include Amps and Wattage used by the light kit.
RPM CFM N.W. G.W.
C.F.
36"
120
120
120
Fan Size Speed Volts Amps Watts
Low
Medium
High
Distributed by Home Depot U.S.A., Inc.
2455 Paces Ferry Rd. N.W.
Atlanta, Georgia 30339
0.47
0.66
0.75
27
57
87
56
91
118
2800
4550
6380
