HAMPTON BAY FHWS80004A User manual

Item #1001 390 690
Model #FHWS80004A
36 IN SQUARE LPG FIRE TABLE WITH WICKER BASE
THANK YOU
ycreate quality products
designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA

TABLE OF CONTENTS
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only (outside, non-enclosed
area). Do Not Use For Cooking.
Installation and service must be performed by
a qualified installer, service agency, or the gas
supplier.
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or other
flammable vapors or liquids in the vicinity of
this or any other appliance.
2. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
DANGER
Do NOT leave this appliance unattended while
it is in operation.
WARNING
FOR YOUR SAFETY:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
Read the installation, operation and
maintenance instructions thoroughly before
installing or servicing this equipment.
CARBON MONOXIDE HAZARD
• This appliance can produce carbon monoxide which has no odor.
• Using it in an enclosed space can kill you.
• Never use this appliance in an enclosed space such as a camper,
tent, car or home.
DANGER
DANGER
If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area
immediately.
4. After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions could result
in fire or explosion, which could cause property
damage, personal injury, or death.
WARNING
FOR YOUR SAFETY:
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
NOT try lighting any appliance.
Do NOT touch any electrical switch; do
NOT use any phone in your building.
Immediately call your gas supplier from a
neighbor’s phone.
’s instructions.
If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed
by a qualified installer, service agency or
gas supplier.
INSTALLER: Leave this manual with the
appliance. CONSUMER: Retain this manual
for future reference.
If you are assembling this unit for someone
else, give this manual to him or her to read
and save for future reference .
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
2
This appliance complies with “ANSI Z21.97-2017-/CSA 2.41-2017, Outdoor Decorative Gas Appliances.”
Table of Contents
Important Safety Information. . . . . . . . . . . . . . . . . . . . .3
Table of Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Propane (LP) Dangers and Warnings. . . . . . . . . . . . . .5

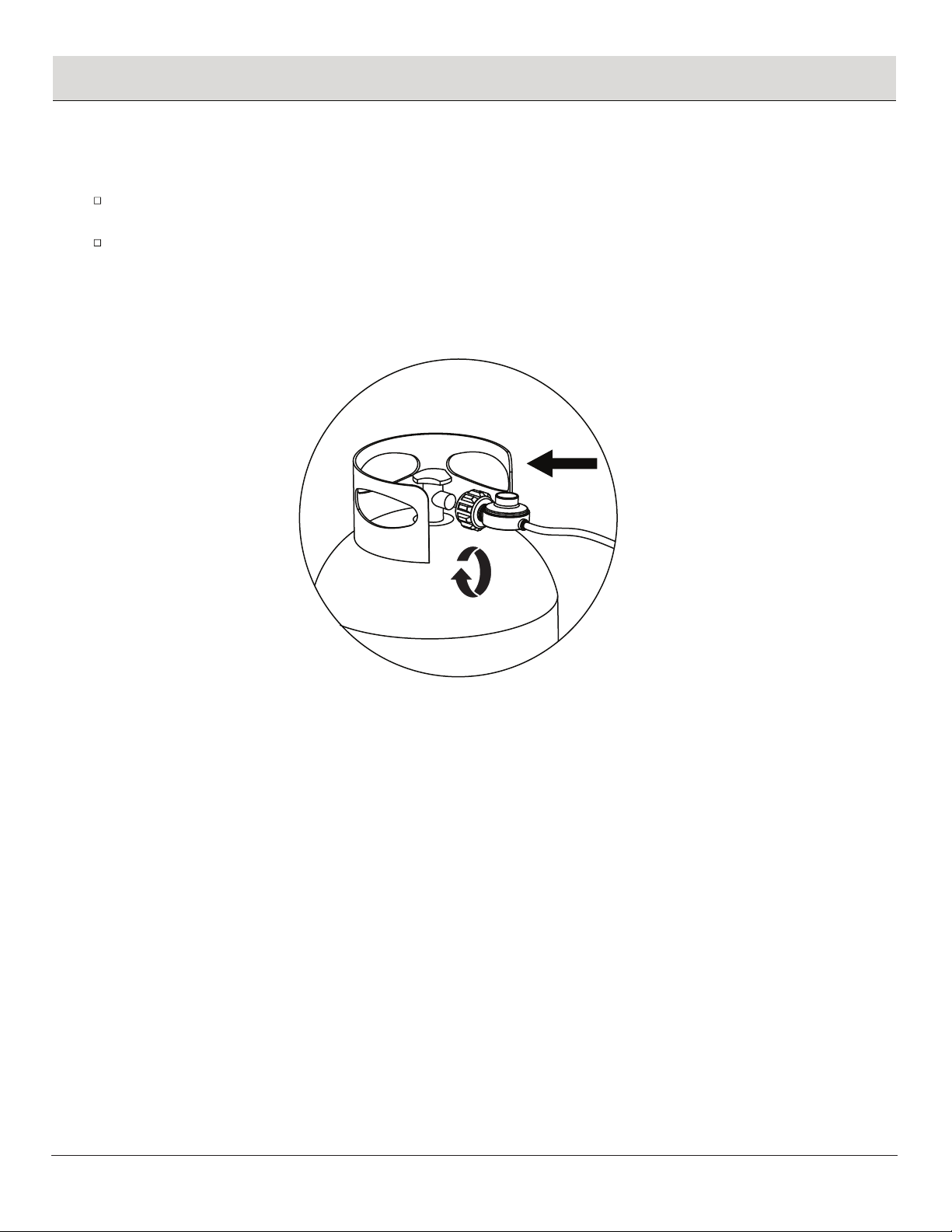

Hose & Regulator Assembly and Replacement. . . . . .6

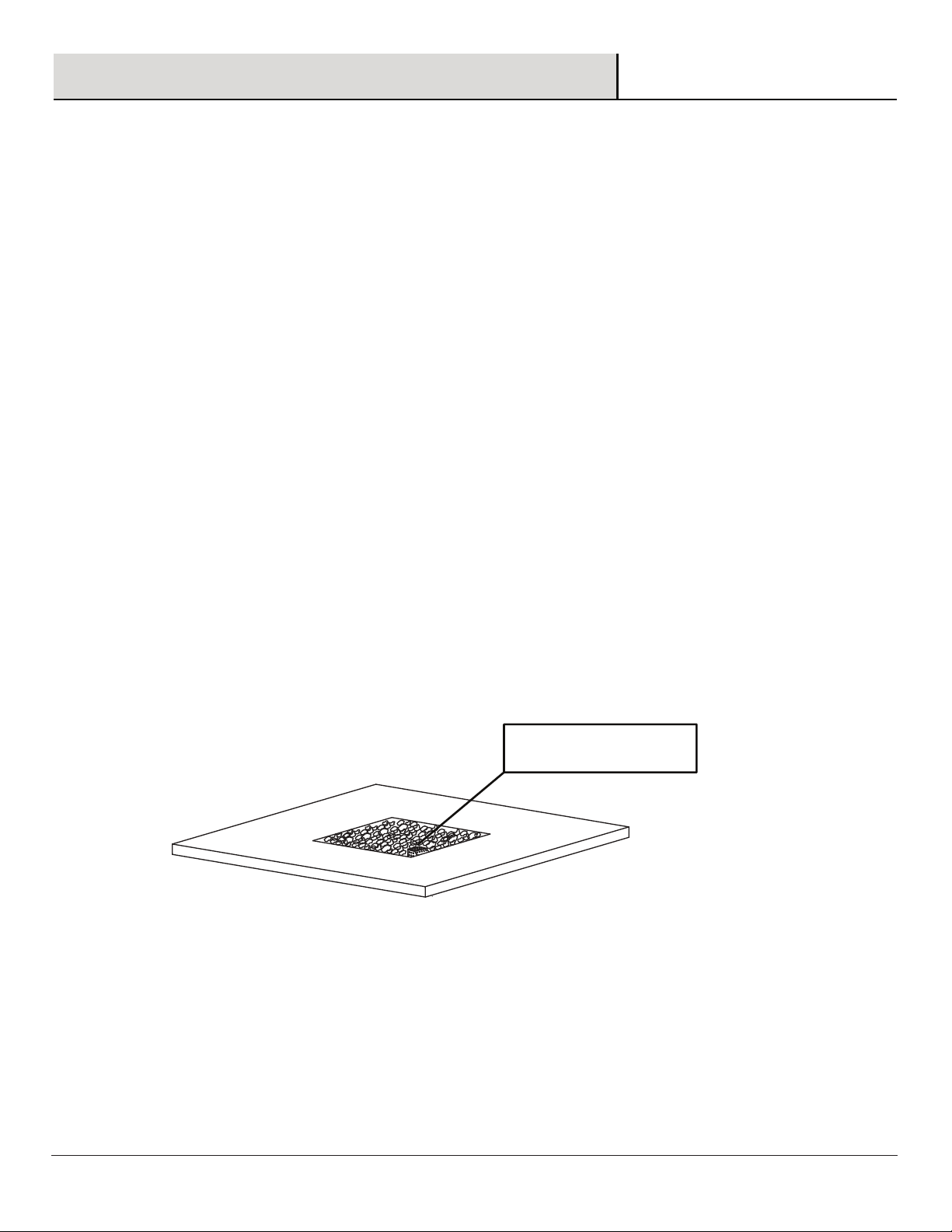

Lava Rocks Warning. . . . . . . . . . . . . . . . . . . . . . . . . . .6
Planning Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . .7

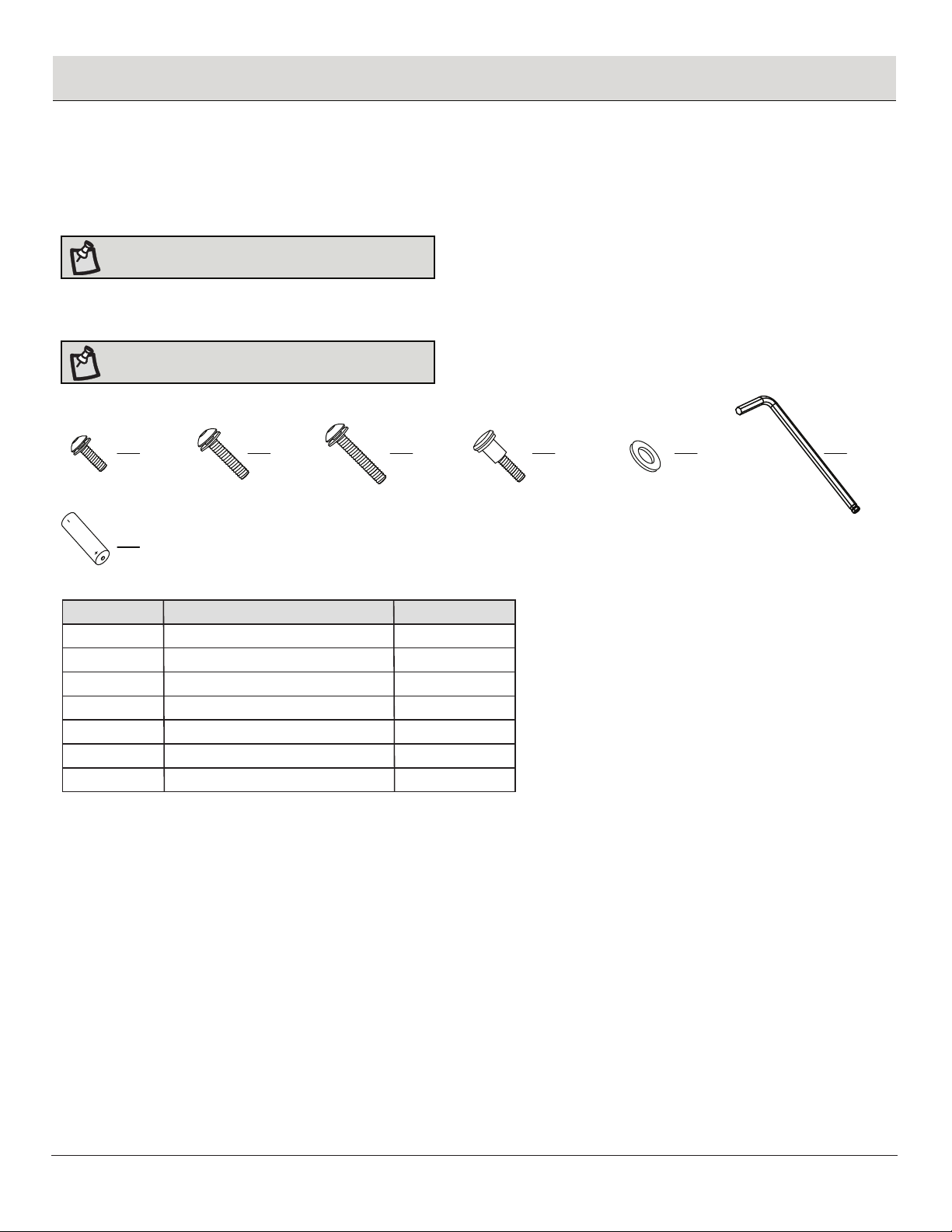

Hardware Included. . . . . . . . . . . . . . . . . . . . . . . . . . .7
Packaging Contents. . . . . . . . . . . . . . . . . . . . . . . . . . 8
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pre-Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operations . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . 16
Care and Maintenance. . . . . . . . . . . . . . . . . . . . . . . .25
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
c

3
IMPORTANT SAFETY INFORMATION
WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY
IMPORTANT SAFETY INFORMATION
WARNING
Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion
causing damage to property.
IMPORTANT NOTICE
Read and understand all warnings and precautions prior to assembly and use of your gas fire table. Improper installation, adjustment,
alteration, service or maintenance can cause injury or property damage.
The installation of this unit must adhere to local codes or either the National Fuel Gas Code, ANSI Z223. 1/NFPA54, or CAN/CGA-B149.1
Natural Gas and Propane Installation Code.
Minimum Clearance from Unit to Combustible Materials:
61’’ (155.4 cm) from the top; 48’’ (121.9 cm) from all sides and back. Do not locate this fire table under any overhead enclosure.
IF YOU SMELL GAS
• Shut off gas supply to the fire table.
• Extinguish any open flame.
• Do not try lighting any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbour’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
• Keep these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her to read
and keep for future reference.
• This gas fire table must be used ONLY outdoors in a well-ventilated space and shall NOT be used inside a building, garage, or
any other enclosed area.
• DO NOT use this outdoor gas fire table for indoor heating. TOXIC carbon monoxide fumes can accumulate and cause asphyxiation.
• NEVER LEAVE this gas fire table unattended when in use.
• This unit is to be used with propane gas only! (sold separately)
• Do not attach a remote gas supply to this unit.
• Only use propane gas for this unit.
• Converting this unit to natural gas is dangerous. This conversion kit shall be installed by a qualified service agency in accordance with
the manufacturer's instructions and all applicable codes and requirements of the Authority having jurisdiction. The maximum inlet natural
gas pressure for this outdoor fire table is 10 1/2" W.C.; the minimum inlet natural gas for this outdoor fire table is 3 1/2" W.C.

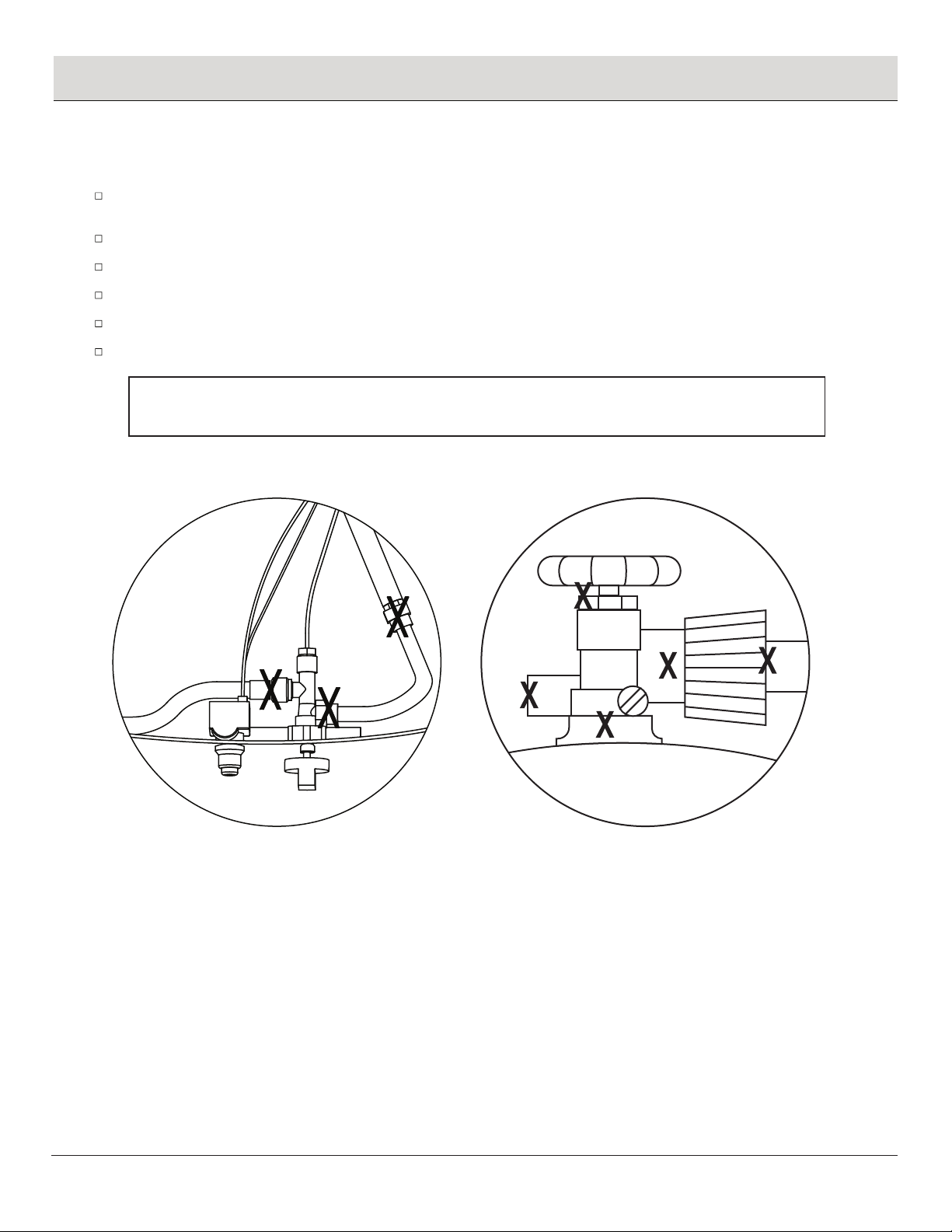

• Do not use a flame to check for gas leaks.
• Do not store or use gasoline or other flammable vapours and liquids within 25’ (7.62 m) of this or any other appliance.
• Do not store any combustible materials in the base enclosure.
Children and adults should be alerted to the hazards of high surface temperatures and be kept at a safe distance while fire table is in
use. This outdoor fire table is not to be operated by children. Young children should be closely supervised when in the vicinity of this
outdoor fire table. Do not hang or place clothing or other flammable materials on or near the gas fire table. Any guard or protective
device removed for servicing the appliance shall be replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually
by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment,
burners and circulating air passageways of the appliance are kept clean.
HOMEDEPT.CA
Please contact 1-855-HD-HAMPTON for further assistance.

4
• The use of alcohol, prescription or non-prescription drugs may impair an individual’s ability to properly assemble or
safely operate this outdoor fire table.
• DO NOT use in an explosive atmosphere. Keep gas fire table area a clear and free from combustible materials, such as gasoline.
• This outdoor fire table is not to be installed or used in or on recreational vehicles and/or boats.
• Always use in accordance with all applicable local, provincial and national codes. Contact your local fire department for
details on outdoor burning.
• Use the same precautions you would with any open fire when using this outdoor fire table.
• DO NOT burn solid fuels such as: wood, charcoal briquettes, lump charcoal, manufactured logs, driftwood, trash, leaves, paper,
cardboard, plywood, or painted, stained or pressure-treated wood in this outdoor fire table.
• DO NOT paint or colour any part of this heating unit.
• DO NOT use this outdoor fire table until it is COMPLETELY assembled and all parts are securely fastened and tightened.
• DO NOT store another LP gas tank within 10’ (3.05 m) of this outdoor fire table while it is in operation.
• DO NOT use this outdoor fire table near automobiles, trucks, vans or recreational vehicles.
• DO NOT use this outdoor fire table under any overhead structure or near any unprotected combustible constructions.
• Avoid using near or under overhanging trees and shrubs.
• Always use this outdoor fire table on a hard, level, non-combustible surface such as concrete, rock or stone. An asphalt or
blacktop surface may not be acceptable for this purpose.
• DO NOT use this outdoor fire table if any part has been under water. Immediately call a qualified service technician to inspect the
fire table and to replace any part or control system and any gas control which has been under water.
• DO NOT set the protective cover over theunit until it is turned off and completely cooled down.
• DO NOT use in windy conditions.
• Keep all electrical cords away from a hot outdoor fire table.
• Certain areas of this outdoor fire table when in use will become too hot to touch. Do not touch hot surfaces until the unit has
cooled unless you are wearing protective gear such as insulated pot holders or heat-resistant gloves or mittens to avoid burns.
• DO NOT attempt to move or store this outdoor fire table until all parts are cool.
• DO NOT lean over this outdoor fire table when lighting or when in use.
• Use only the regulator and hose assembly provided. The replacement regulator and hose assembly shall be that specified
by the manufacturer.
• DO NOT attempt to disconnect the gas regulator from the tank or any gas fitting while the outdoor fire table is in use.
• Always shut off the supply at the tank valve and disconnect regulator from the tank when the fire table is not in use.
• DO NOT sit on the fire table when the unit is in operation.
• DO NOT throw anything onto the fire when the unit is in operation.
• Lava rocks are very hot; please keep children or pets at a safe distance.
• It is essential to keep the outdoor fire table valve compartment, burners, and circulating air passages clean. Inspect outdoor
fire table before each use.
• Check for leaks after not using the unit for long periods of time.
• Prior to each fire table operation, check the hose for evidence of excessive abrasion or wear by looking through the visual check
hole. If the hose is damaged, cracked or cut, it must be replacedbefore using the gas fire table. The hose assembly can only be
replaced with a hose assembly specified by the manufacturer. Please call the service center at 1-855-HD-HAMPTON.
• Before each use, remove the lava rocks. Examine the burner and its components. If dirty, clean with a soft brush and soapy water
solution. Also examine the area around the burner. Any dirt or foreign material, such as spider webs or nests in this area should be
removed. If it is evident that the burner is damaged, the fire table must not be used. The burner assembly can not be replaced. Please
contact the service center at 1-855-HD-HAMPTON for technical support.
• Place the hose out of the pathways where people may trip over it (if using external tank). Do not place the hose in areas where it
may be subjected to accidental damage.
IMPORTANT SAFETY INFORMATION

5
IMPORTANT SAFETY INFORMATION
PROPANE (LP) DANGERS AND WARNINGS
ATTENTION: Any alteration of the outdoor fire table that is not specifically directed in the operations manual will
void manufacturer warranty.
LP GAS
LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics before using any LP gas product.
Propane Characteristics:
• Flammable, explosive under pressure, heavier than air and settles in pools in low areas.
• In its natural state, propane has no odour. For your safety, an odourant has been added.
• Contact with propane could burn your skin.
• Propane is extremely flammable and hazardous if handled improperly.
LP GAS WARNINGS:
• Cylinders must be stored outdoors in a well-ventilated area out of reach of children.
• Disconnected cylinders must have threaded valve plugs tightly installed and must not be stored in a building, garage or
any other enclosed area.
• Never use a propane cylinder with a damaged body, valve, collar or footing.
• Dented or rusted propane cylinders may be hazardous and should be checked by your propane gas supplier.
• Be sure to use only one 20 lb (9.1 kg) LP gas cylinder with a Type 1 valve with this appliance as required by the American
National Standards Institute (ANSI) and the Canadian Standards Steering Committee.
• Only tanks marked “propane” may be used.
• The installation of this unit must adhere to local codes or either the National Fuel Gas Code, ANSI Z223. 1/NFPA54, or
CAN/CGA-B149.1, Natural Gas and Propane Installation Code.
• LP gas tank must be arranged for vapour withdrawal.
• The LP gas tank must have a listed overfilling prevention device (OPD) and a QCCI Type I (CGA810) LP gas tank connection.
• The LP gas tank must have a tank collar to protect the tank valve.
• Never use an LP gas tank with a damaged body, valve, collar, or footing. Dented or rusted LP gas tanks may be hazardous.
• The LP gas tank should not be dropped or handled roughly.
• Tanks must be stored outdoors out of the reach of children. Do NOT store in a building, garage, or any other enclosed area.
• Never store your LP gas tank where temperatures can reach over 125°F (52°C).
• Do not store the LP gas cylinder in direct sunlight or near a source of heat or combustion.
• Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the gas pressure to increase, which may open the
relief valve and allow gas to escape.

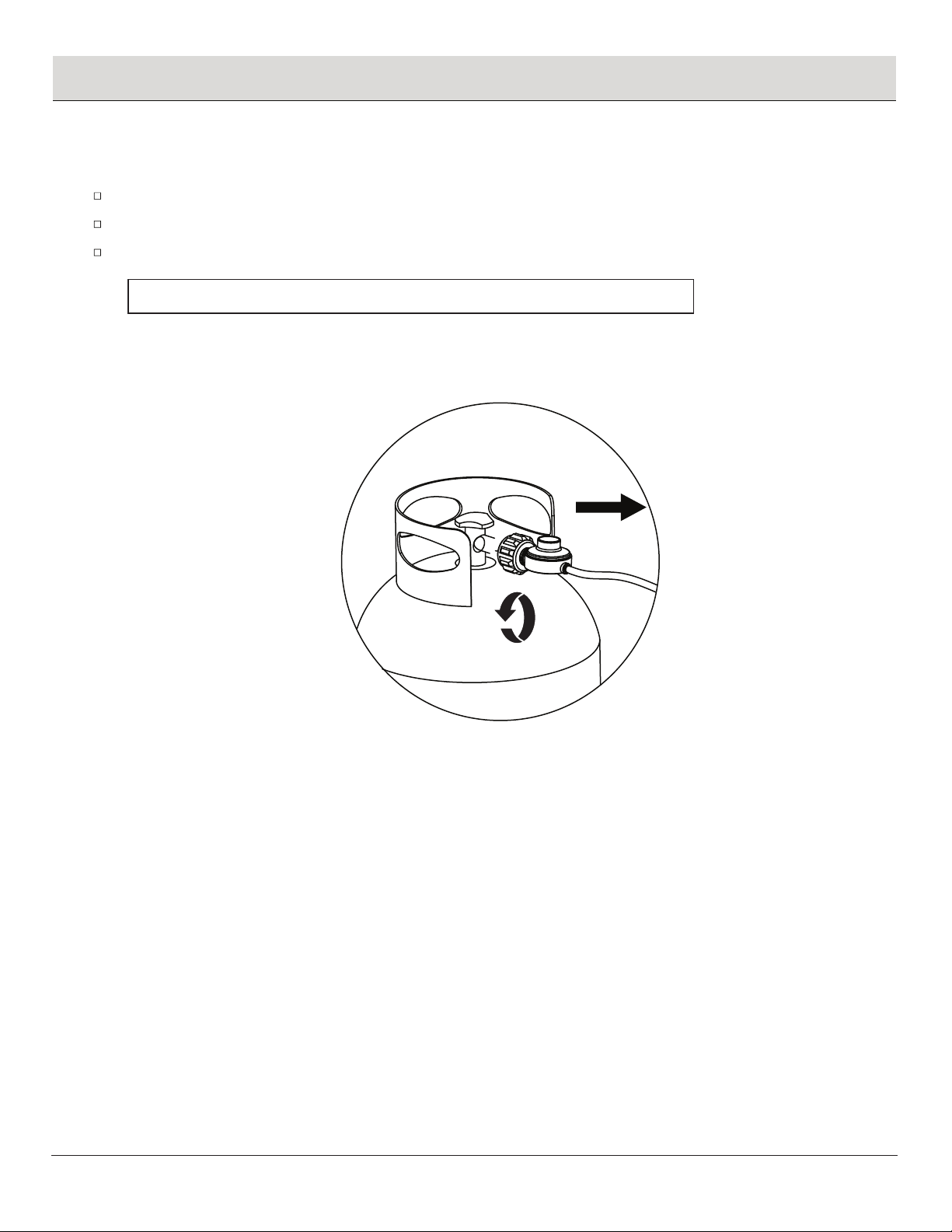

• Place dust cap on valve outlet whenever the LP gas tank is not in use. Only install the recommended type of dust cap on the
LP gas tank and the LP gas tank valve. Other types of caps or plugs may result in leakage of propane.
a. Do not store a spare LP gas cylinder under or near this appliance.
b. Never fill the LP gas cylinder beyond 80% full.
c. If the information in (a) and (b) is not followed exactly, a fire causing death or serious injury may occur.
• LP gas cylinders should be filled only by a certified LP gas dealer.
• The pressure regulator is set for 11" W.C. (2.74 kPa).
• The maximum inlet propane gas pressure for this outdoor fire table is 250 PSI; the minimun inlet propane gas pressure for this
outdoor fire table is 25 PSI.
• The maximum inlet natural gas pressure for this outdoor re table is 10.5 inch w.c.
• The minimum inlet natural gas pressure for this outdoor re table is 3.5 inch w.c.
• Never attempt to attach this appliance to the self-contained LP gas system of a camper trailer, motor home or house.
• Always use the pressure regulator and hose assembly provided with the appliance to connect to a LP gas cylinder. Never connect
to an unregulated LP gas supply. For technical support contact the service centre at 1-855-HD-HAMPTON.
• Hand turn the manual gas control valve. Never use tools. If the valve will not turn by hand, do not try to repair it. Call a certified
gas technician. The use of force or any self-attempted repair may result in a fire or explosion.
When connecting your gas cylinder:
Before connecting, be sure that there is no debris caught in the head of the gas cylinder, head of the regulator valve or in the ports.
Connect regulator valve and hand-tighten firmly. Disconnect the propane cylinder from the regulator valve when the fire table is
not in use. DO NOT obstruct the flow of combus-tion air and ventilation air to the burner.
HOMEDEPT.CA
Please contact 1-855-HD-HAMPTON for further assistance.

6
IMPORTANT SAFETY INFORMATION
DO NOT PLACE ANY
MEDIA ON SCREEN
HOSE & REGULATOR ASSEMBLY AND REPLACEMENT
1. This fire table comes equipped with a standard LP gas hose and regulator including the appliance side connection for a CGA
No 791 Cylinder Connection Device. The LP gas hose and regulator supplied with this fire table must be used. Only a hose and
regulator specified by manufacturer can be used for replacement.
a. The CGA No 791 connection incorporates a magnetic flow limiting device that acts to limit the flow of gas if a leak is
detected between the regulator and the burner valve.
b. If the burner valve is open prior to the LP gas cylinder service valve being opened, the connection will interpret this
free flow of gas to be a leak.
c. The connection safety feature will reduce gas flow from the regulator to the appliance to a minimal level.
d. Be sure that the burner control valve is closed prior to opening the LP gas cylinder service valve to ensure that the
connection flow limiting device is not triggered mistakenly.
e. If the connection flow limiting device is triggered mistakenly, close the LP gas cylinder service valve and the burner
valve, wait 10 seconds to allow the device to reset, open the cylinder service valve, then open the burner valve and light
the fire table as per lighting instructions.
2. Be sure to protect the hose from any hot surfaces. Serious danger may result if the hose contacts any hot surface.
3. Regular maintenance of the hose and regulator:
a. Inspect the hose before each use of the fire table. If the hose shows signs of cracks, abrasions, cuts or damage of any
kind, do not operate the appliance. Fix or replace the hose as required before using the appliance. For assistance with
repair or replacement of the hose, call the service centre at 1-855-HD-HAMPTON. Use only replacement parts from the
manufacturer.
b. Inspect the seal inside the CGA No 791 service valve on the LP gas cylinder when replacing the cylinder or at least once
per year. If there is any indication of damage, have the seal replaced by a certified gas dealer before operating
the appliance.
4. Do not use tools to tighten the CGA No 791 connection nut onto the LP gas cylinder service valve. Hand tighten only.
5. Be careful to not cross the threads on the connection when tightening the CGA No 791 connection onto the LP gas cylinder
service valve.
6. “Leak Test” should always be performed after attaching the connection to the LP gas cylinder service valve. See “Checking
for Leaks” section of this manual in Step 6, page 21.
7. Connection instructions are on pages 17-18 (Steps 2–3 in Operation section).
LAVA ROCKS WARNING:
1. Lava rocks may have sharp edges. Wear safety glasses and gloves when handling.
2. If changing or substituting the lava rocks with other media, use lava rocks/pumice stones/glass shards/glass beads available
from your local authorized dealer/distributor.
3. Pour the lava rocks evenly into the burner area (with the exception of the screen—if applicable). The lava rocks should be 1/2 to
1" (1.2 to 2.5 cm) above the burner.
4. IMPORTANT: Do not exceed a height of 1" (2.5 cm) above the burner when placing lava rocks or other media. Ensure no media
covers the igniter screen. Store any excess lava rocks in a safe location.
5. Keep away from the unit for the first 20 minutes after igniting your unit for the first time, as lava rocks/pum-ice stones/glass
beads could pop out and cause injury. Should any rocks pop out, discard them.
6. Always ensure that lava rocks/pumice stones/glass shards/glass beads are completely dry before use. Failure to do so will
cause them to crack or pop.

7
AA BB CC DD EE
BB
CC
M6X25 Combination bolt
M6X40 Combination bolt
4+1
4+1
DD φ8.8X8XM6X12 Countersunk bolt 1+1
EE Plastic Washer 2+1
FF Hex wrench 1
GG AAA Battery 1
Part Description Quantity
AA M6X15 Combination bolt 10+1
Pre-Assembly
Read all instructions before assembly.
To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.
PLANNING ASSEMBLY
NOTE: More than one person may be required to
assemble this product.
NOTE: Hardware not shown to actual size.
HARDWARE INCLUDED
FF
GG
HOMEDEPT.CA
Please contact 1-855-HD-HAMPTON for further assistance.

8
ABurner lid 1
BTable top 1
CLeft Side Panel 1
DDoor 1
ERight Side Panel 1
FBack Panel 1
GTank Support 1
MManual Electric Igniter 1
NControl Knob 1
0Regulator/Hose 1
Part Description Quantity
Pre-Assembly (continued)
PACKAGE CONTENTS
A
B
C
D
E
F
G
H
I
J
KL
MN
O
HLimit Tube 1
ILava Rocks 1
JSquare Burner Bowl 1
KBurner Ring 1
LPilot Housing 1
Part Description Quantity

Assembly

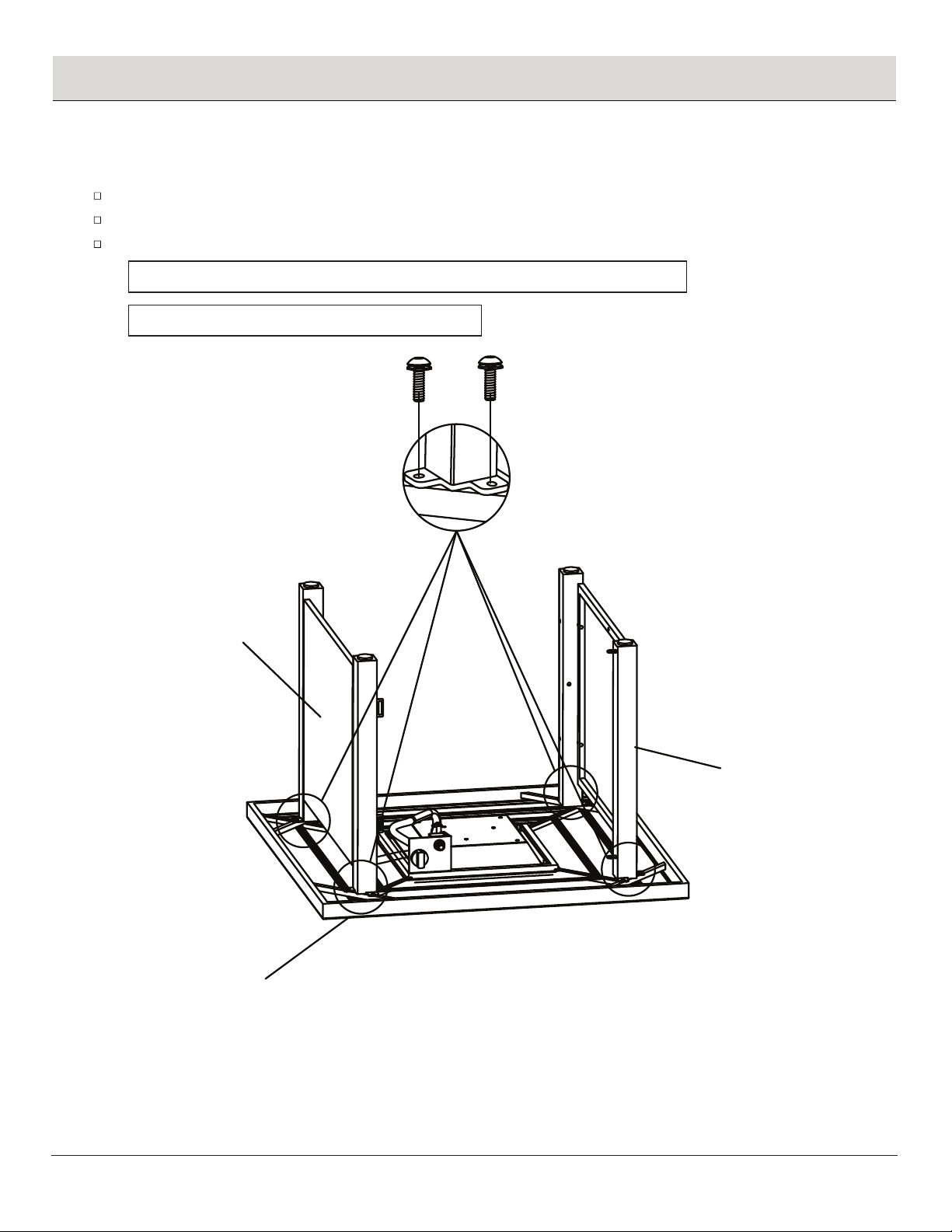

1CONNECTING THE SIDE PANELS
Place the table top (B) upside down on a soft surface.
Attach the right side panel (E) and left side panel (C) to the table top (B) using M6X15 combination bolts (AA).
Do not tighten the bolts at this step.
NOTE: Pay attention to the direction of control knob, it must place as below direction shown.
9
AA AA
B
C
E
NOTE: loosely tighten all the bolts using hex wrench (FF).
HOMEDEPT.CA
Please contact 1-855-HD-HAMPTON for further assistance.

Assembly (continued)

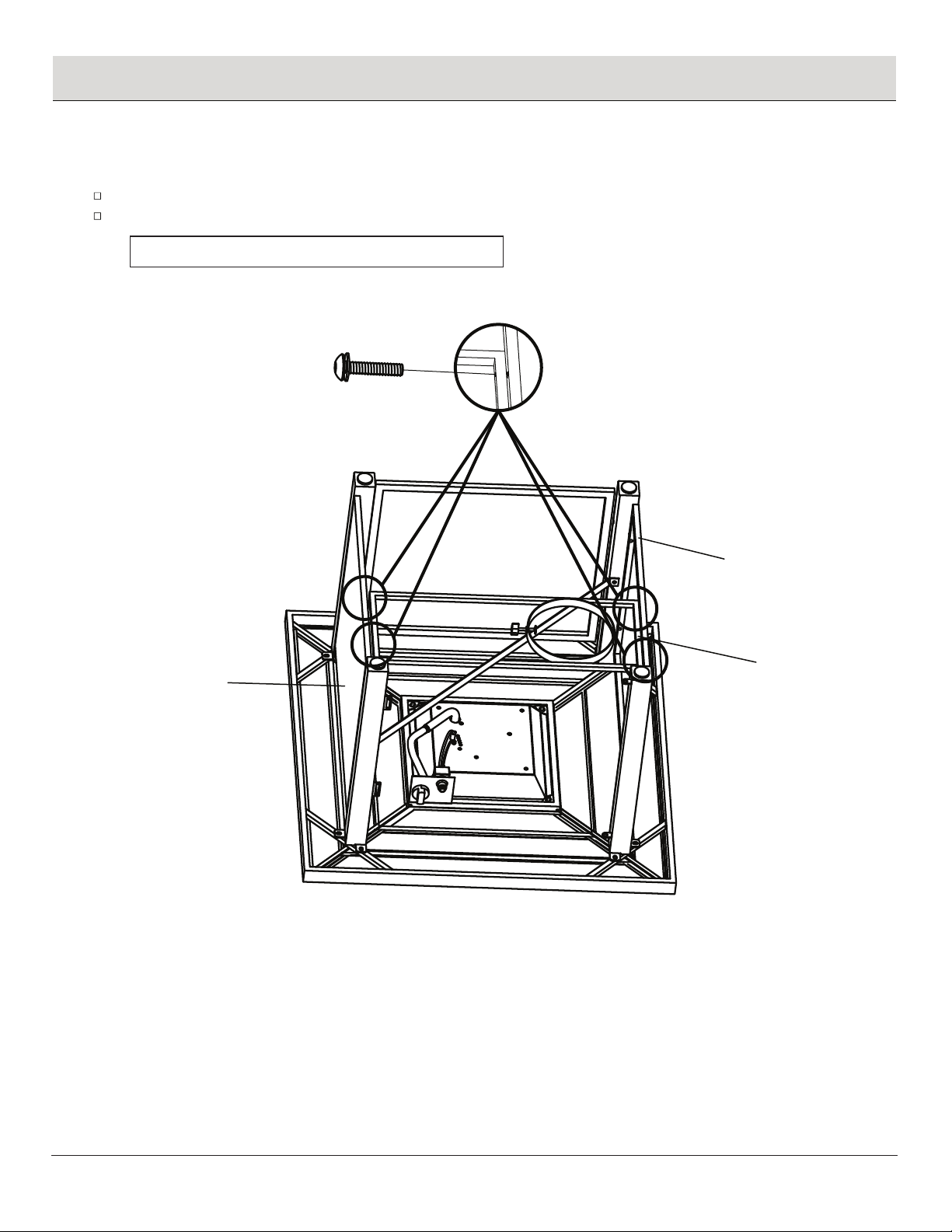

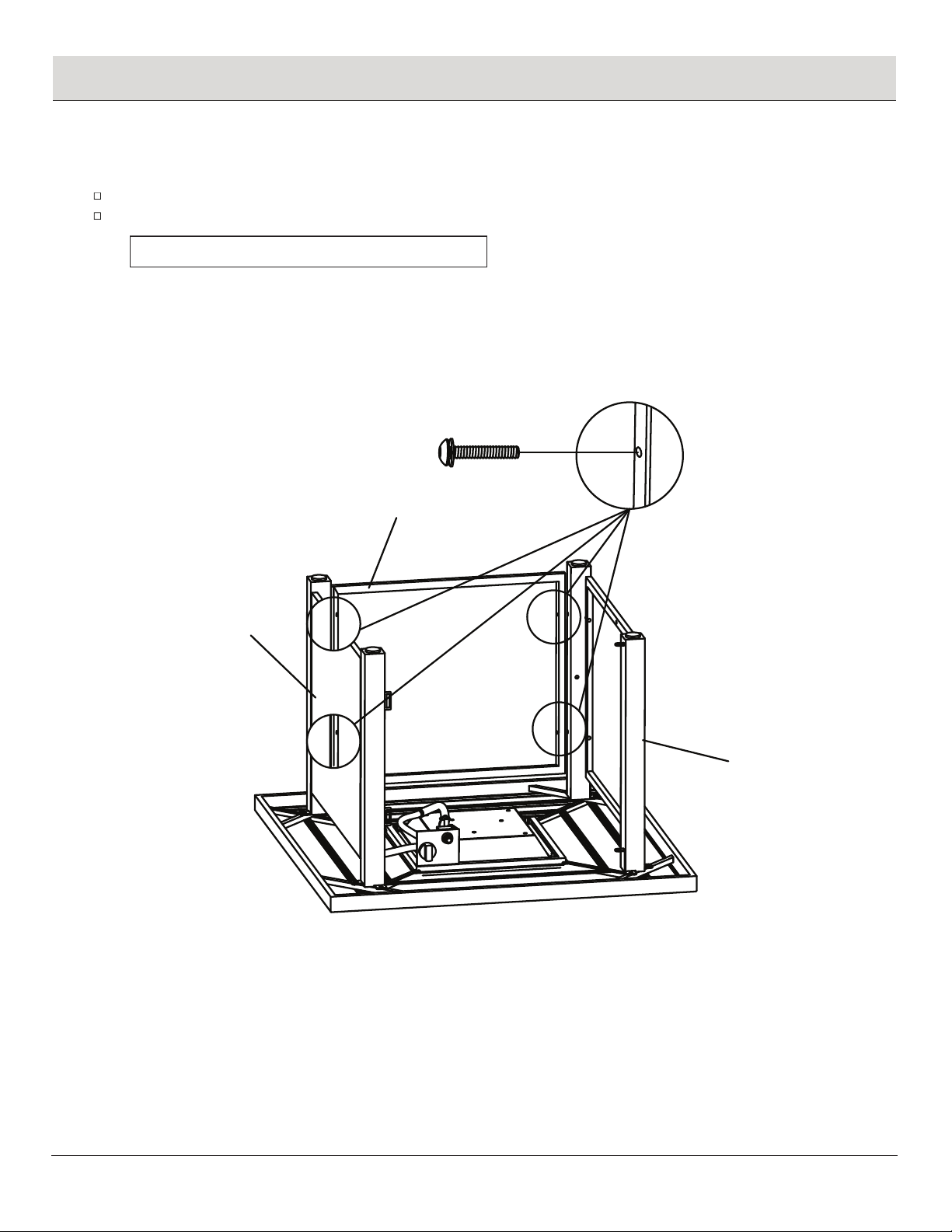

2CONNECTING THE BACK PANEL
Attach the back panel (F) to the table top (B) using M6X40 combination bolts (CC).
Do not tighten the bolts at this step.
10
C
E
CC
F
NOTE: loosely tighten all the bolts using hex wrench (FF).

Assembly (continued)

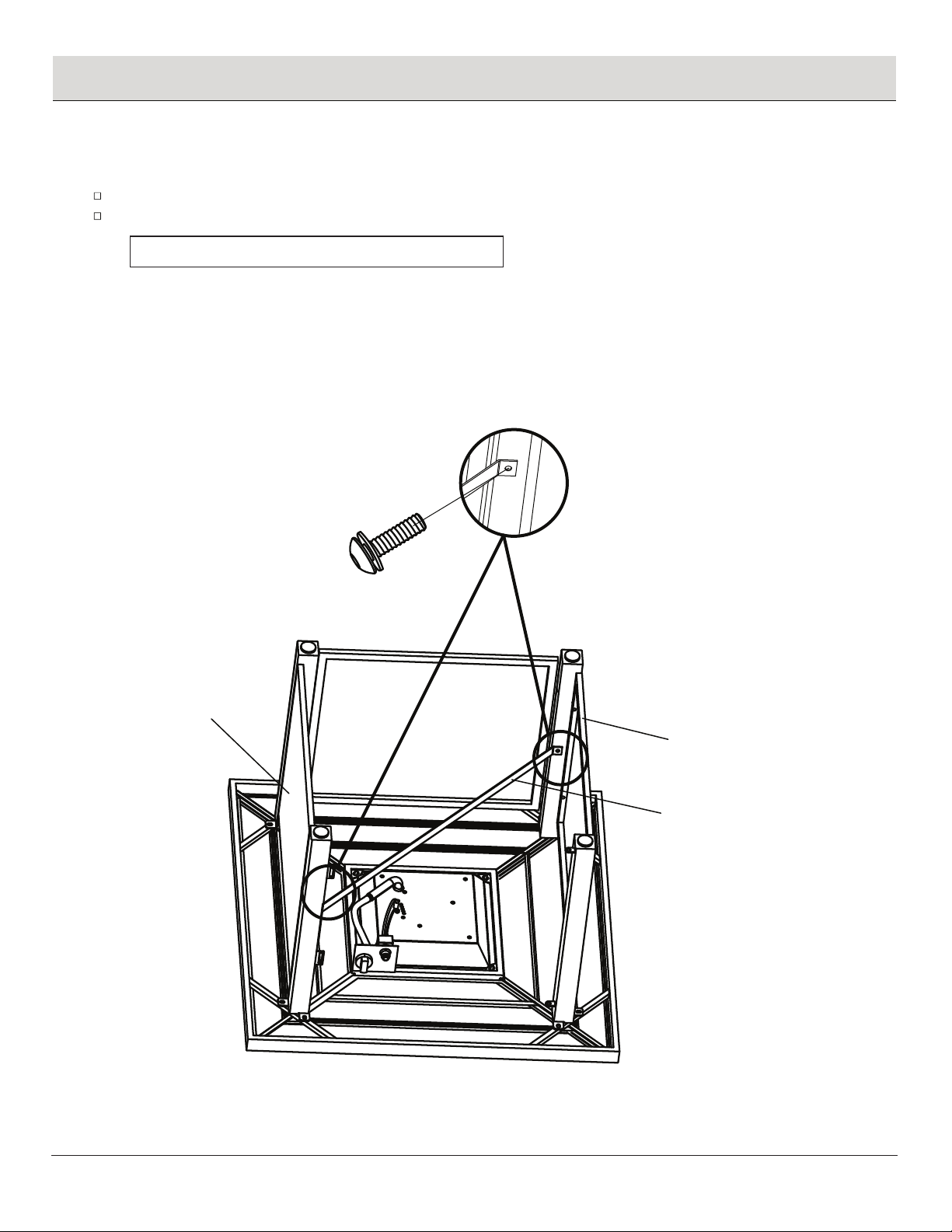

3CONNECTING THE LIMIT TUBE
Attach the limit tube (H) to the left side panel and right side panel (C&E) using M6X15 combination bolts (AA).
Do not tighten the bolts at this step.
11
AA
H
C
E
NOTE: loosely tighten all the bolts using hex wrench (FF).
HOMEDEPT.CA
Please contact 1-855-HD-HAMPTON for further assistance.

Assembly (continued)
4CONNECTING THE TANK SUPPORT
Attach the tank support (G) to the left side panel and right side panel (C&E) using M6X25 combination bolts (BB).
12
BB
G
E
C
Do not tighten the bolts at this step.
NOTE: loosely tighten all the bolts using hex wrench (FF).

Assembly (continued)
5CONNECTING THE DOOR
Insert the door (D) to the left side panel (C) using an M6X12 countersunk bolt (DD) and plastic washers (EE), as
shown below.
13
EE
DD
EE
D
C
Do not tighten the bolts at this step.
NOTE: loosely tighten all the bolts using hex wrench (FF).
HOMEDEPT.CA
Please contact 1-855-HD-HAMPTON for further assistance.

Assembly (continued)
6CHECK THE TABLE AND PLACE THE LAVA ROCKS
Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (FF).
14
I
B
Place the lava rocks (I) into the square burner bowl (J).
Turn the assembled re table right side up and ensure that all connections are secure.
CAUTION: To ensure proper function, the screen on the pilot housing should be free of lava rocks.

Assembly (continued)

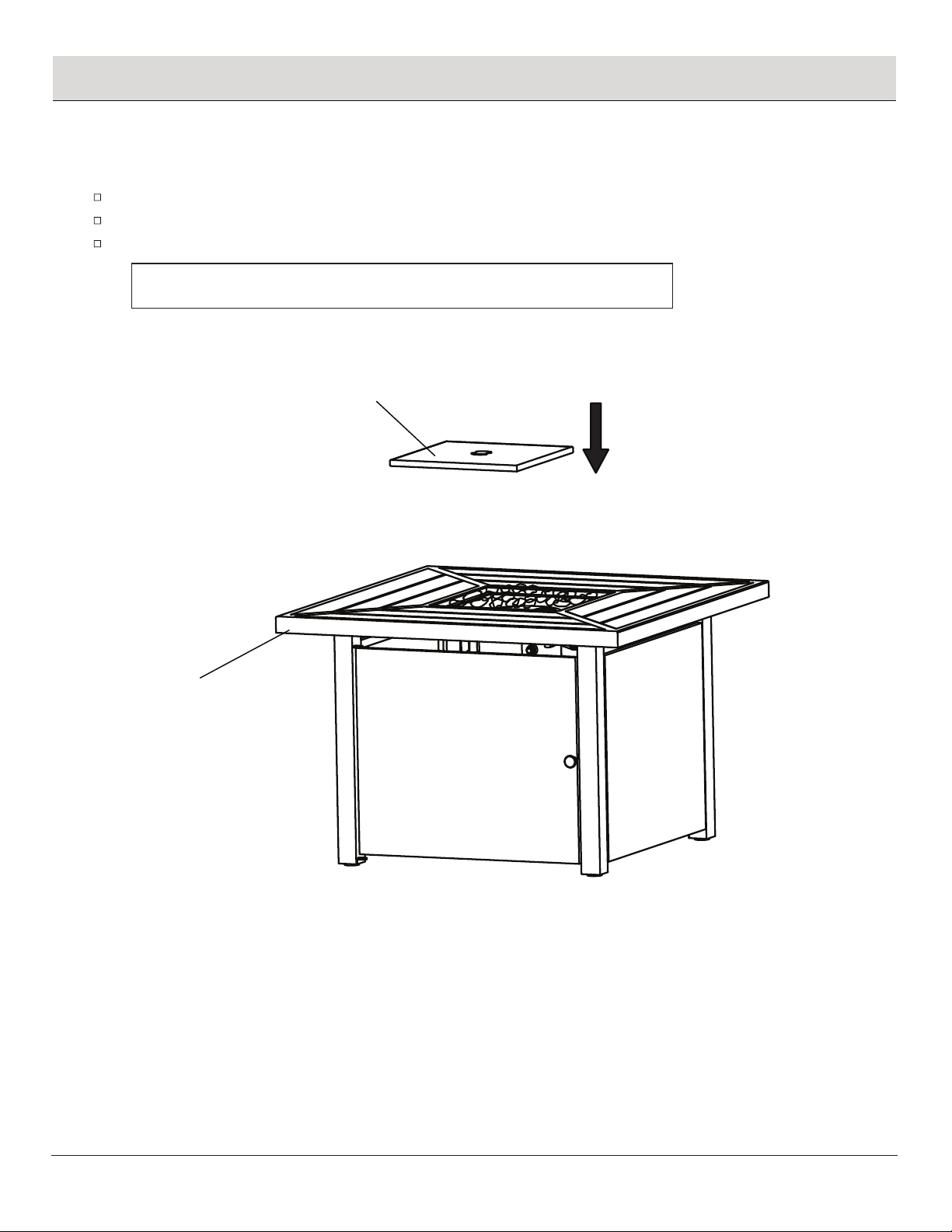

7PLACE THE BURNER LID
Place the burner lid (A) over the square burner bowl (J).
Make sure to remove the burner lid before lighting.
Do not place the lid back onto burner bowl until it has cooled down.
15
A
B
FOR YOUR SAFETY: Surfaces of re table can remain extremely hot for a period after use.
Allow 45 minutes to cool down before touching or moving the re table.
HOMEDEPT.CA
Please contact 1-855-HD-HAMPTON for further assistance.

16
Operation
1INSERT THE BATERRY AND CONTROL KNOB
Insert the AAA battery (GG) and control knob (N) into the electric igniter (M) and twist the button cover on to igniter
housing. Do not over tighten.
GG
CAUTION: Do not put batteries into the re or trash. Please treat batteries as hazardous waste and recycle properly.

17
2INSTALLING LP GAS TANK
To operate, you will need one precision-lled standard grill LP gas tank with external valve threads.
Loosen LP gas tank retainer bolt by turning counter-clockwise.
Please precision-lled LP gas tank upright into hole in outdoor re table base so the tank value is facing the gas line connection.
Secure tank by turning LP gas tank retainer bolt clockwise until tight.
Operation (continued)
CAUTION: LP gas tank must be properly disconnected and removed prior to moving this outdoor re table. Make
sure LP gas tank valve is closed.
HOMEDEPT.CA
Please contact 1-855-HD-HAMPTON for further assistance.

18
3CONNECTING LP GAS TANK
Connect the regulator/hose assembly to tank by turning knob clockwise until it stops.
Before connecting, be sure there is no debris caught in the head of the LP gas tank, head of the regulator valve or
in the head of the burner ports.
Operation (continued)

19
4DISCONNECTING LP GAS TANK
Operation (continued)
Before disconnecting make sure the LP gas tank valve is “CLOSED”.
Disconnect regulator/hose assembly from LP gas by turning knob conter-clockwise until it is loose.
Place the protective cap cover on the LP gas tank and store it outdoors in a well-ventilated area out of direct sunlight.
NOTE: LP gas tank must be properly disconnected and removed prior to moving this re table.
HOMEDEPT.CA
Please contact 1-855-HD-HAMPTON for further assistance.

20
5CHECKING FOR LEAKS AND BURNER CONNECTIONS
Before using this outdoor re table, make sure you have read, understand and are following all information provided in
the “important safety information” section on page 2 to 6.
Failure to follow those instructions can serious, injury or property cause death, damage.
Make sure the regulator/hose and valve connections are securely fastened to the burner and the tank.
Visually check the connection between the burner/venturi tube and orice.
Make sure the burner/venturi tube ts over the orice.
Please refer to diagram for proper installation Figures 1 and 2.
Operation (continued)
CAUTION: Failure to inspect this connection or follow these instructions could cause a re or an explosion which
can cause death serious bodily injury or damage to property.
Figure 2Figure 1
