Hanasis POS300 User manual

User Guide
POS300

Getting started
Do not block the ports(holes), Vents, etc, of the system
and do not insert objects.
Damage to a component within the system may cause
electric shock or fire.
Do not touch the system plug or power cord with wet
hands. There is a danger of electric shock.
Do not exceed the standard capacity(Voltage/current) of a
multiplug or power outlet extension when using it for the
product. There is a danger of electric shock or fire hazard.
Do not unplug the power cord by pulling the cable only.
If the cord is damaged, it may cause electric shock.
BeforeYou Start
■Thank you for purchasinga product of HANASIS.
This device complies with part 15 of the FCC Rules. (Class A digital device)
Some equipment nomenclature and abbreviations used here may differ from that contained in other HANASIS publications.
The changes or modifications not expressly approved by the party responsible for compliance could void the user‟s authority
to operate the equipment.
The contents of this User Guide is subject to change without prior notice.
HANASIS Co., Ltd. Owns the copyright of this User Guide.
No part of this User Guide may be reproduced or transmitted in any from or by any means, electronic or mechanical, without the consent of
HANASIS Co., Ltd.
Connect the power cord to the AC adaptor firmly.
Use only the AC adaptor supplied with the product.
Otherwise, there is a danger of fire due to an incomplete
contact.
Do not use the system in a humid location such as a
bathroom or sauna.
Please use the system within the recommended tempe
rature and humidity range(10~32˚C, 20~80% RH).
Avoid direct sunlight when the system is in an air-tight
location such as inside a vehicle.
There is a danger of a fire hazard. The system may
overheat and also present opportunity to thieves.
☞
☞
☞
☞☞
☞
☞
Safety Precautions
For your security and to prevent damage, please read the following safety instructions carefully. F
ailing to follow instructions marked with this symbol may cause personal injury and even fatality.

Specificationsand Optional
CPU and OS supported
CPU
OS Supported
Graphics chipset
Display
Display and Touch screen
Touch screen type
Power Supply Unit
Intel® Celeron ® J1900 2.0GHz (Quad Core)
Microsoft® PosReady7 / Win 10 IoT Ent
LTSB / Linux
System on Chip
15" TFT LCD (1024 x 768, 4 : 3,
250 cd/m2)
5-wire Resistive Touch
Power Adaptor External adaptor DC12V 5A (60W)
Input AC 100~240V/50~60Hz, DC 12V/5A
Introductions
Memory
Hard Disk Drive
Memory Device
I/O Port
2GB DDR3 SoDIMM ( up to 4GB )
SATA-III 500GB ↑, SSD 64GB ↑
Serial
VGA
USB
LAN
Audio
P/S2
3ea
D-SUB x 1ea
USB 2.0 x 5ea
10/100/1000Mbit x 1ea
Line-Out, Mic-In
Keyboard x 1ea
Dimension
Environment & Mechanical
Weight
VESA Mounting
Fanless Operation
350 x 68 x 320 (mm)
4.3Kg(F type)
VESA(75mm) Compliance
Yes
Optional
Magnetic Stripe Reader
Wireless Lan
Wall Mounting
Speaker
ISO Track2 / Track 1&2 / Track 1&2&3
802.11n, 150Mbps↑ (Internal USB Module)
Tilt type, Fixed type
Built-in Speaker 1W

Overview
Introductions
▷I/O Port Layout
COM2
LAN
VGA
COM1
COM3
MSR
Power Button
VESA Mount
I/O port (Internal)
USB(1Port)
HDD LED
Speaker
LAN
USB USB
LINE-OUT
MIC-IN PS/2 (KBD)
OUT(12V)
IN(12V)
POWER

Using the system
Connecting DC Power Supply Cable
Connect the power cord to the AC adaptor firmly.
Use only the AC adaptor supplied with the product.
Otherwise, there is a danger of fire due to an incomplete contact.
Do not touch the system plug or power cord with wet hands.
①Connect the Adaptor Cable from the System.
①
DC Power port

Turning the System On and Off
Turning the system On
①Press Power button to turn the system on.
Turning the system Off
①Save all your data before clicking on shut down.
②Click Start >Turn Off Computer to shutdown the system.
Since the procedures to turn the system off may differ depe
nding on the installed operating system, please turn the syst
em off according to the procedures for the purchased opera
ting system.
Save all your data before clicking on Shut down.
Using the system
Power Button
Since the procedures to turn the system off may differ d
epending on the installed operating system, please turn
the system off according to the procedures for the purc
hased operating system.

①Click Start>All Programs>eGalaxTouch>Configure Utility
②Click the 'Tools' tab and „4Points Calibration‟
③When the Calibration window appears, touch the
point represented by the “+”.
④The “+” is displayed from the bottom left to the
top left of the screen sequentially.
⑤The touch screen input points are calibrated.
Using the system
Touch Screen Calibration
When you use the touch screen for the first time or the pointer does not pre
cisely match your touch, calibrate the touch screen in the „eGalaxTouch‟. The
calibration process for the touch screen may differ depending on the operati
ng system and may not be available in some operating systems. The followin
g descriptions assume the Windows POSReady2009 operating system.
Do not apply a severe impact to the touch screen or press the screen with a
sharp object such as a ball-point pen.
This may damage the touch screen.

Settings
BIOS Setup
The BIOS setup enables you to configure your system hardware according to
your needs. Use the BIOS setup to define a boot password, change the boot
ing priority, or add a new device.
①Turn on the system.
②When the booting screen image appears, press the
<DEL> key to enter the BIOS Setup.
③After a moment, the BIOS setup screenappears.
(The items in the BIOS setup may differ depending on
the product.)
Main This is a description about the basic specification of the system
Advanced Using this menu, you can configure the major chipsetsand additional fun
ctions.
Boot This menu enables you to configureperipherals and booting related settin
gs
such as the boot priority.
Security Used to configure security functions, including passwords.
Chipset This menu controls the advanced features of the onboard Northbridge
and Southbridge..
Power Use this menu to specify your settings for power management.
Exit Used to exit the Setup either saving the changes or not.

Settings

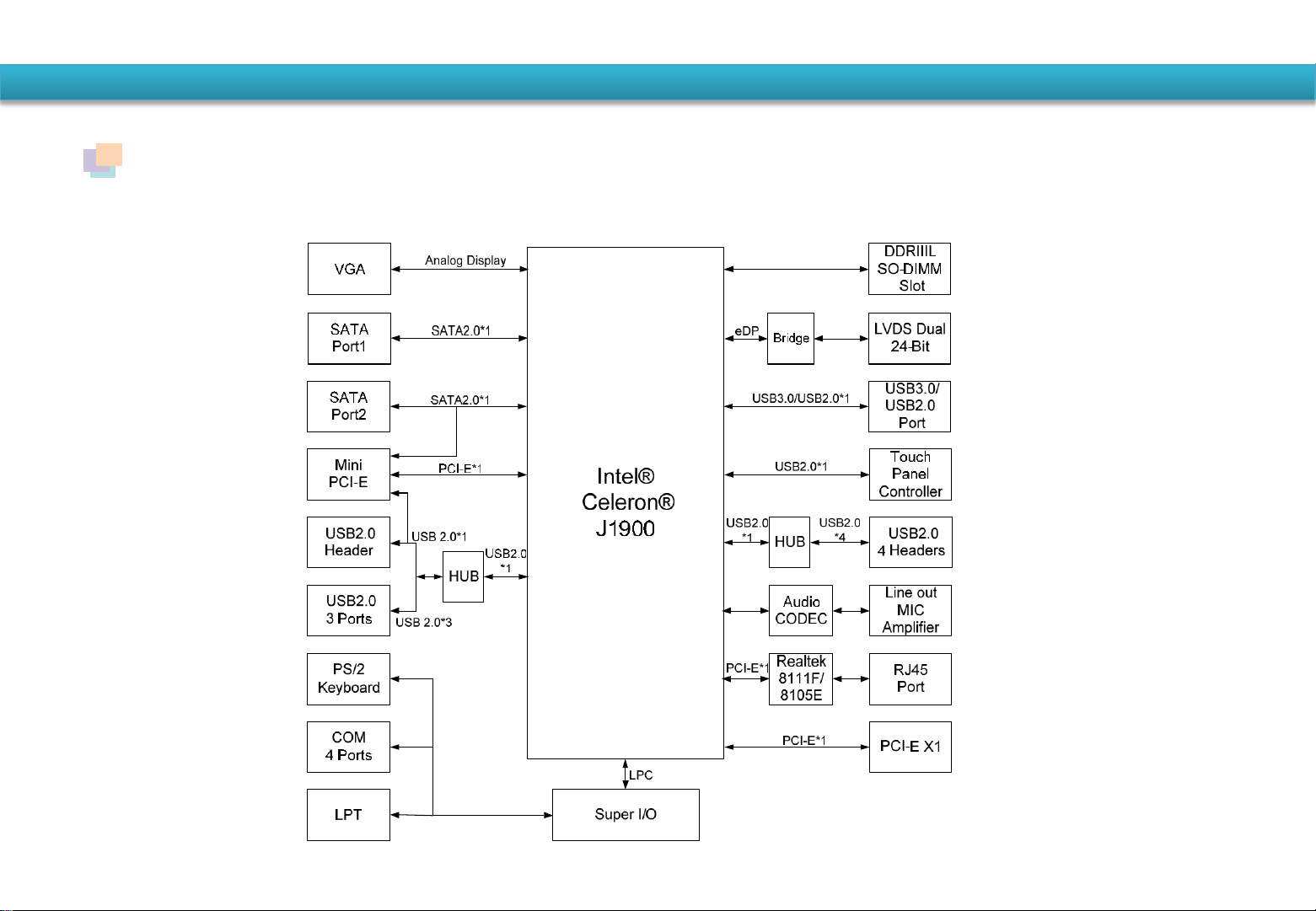

SystemBlock Diagram

■Recovery Solution (Optional)
①Turn on the system and follow the on-screen instructions:
Press <F11> when the “F11 to WinClon ...”
message appears on the screen within 2 to 4 seconds
(PC POST process).
②When WinClon appears on the screen, press <F10> key on your
keyboard or use your mouse to select “Backup”.
③After entering the password, press the <OK> button to continue backup. (Password: pos) Location of backup image
●Backup
Back up your current Window user environment into restore field.
It is much easier to operate if you know where the data is being backed up.
F11 to Recovery Zone....
Keyboard and mouse must be connected
pos
Password
OK
(Recovery program may vary depending on model)
F11 to Recovery Zone....

F11 to Recovery Zone....
※ "Recover to Initial State” will restore to the factory default settings.
※ "Recover to Recent State” will restore to the most recent backup of Windows.
1.Turn on the system and follow the on-screen instructions: Press <F11> when the “F11 to WinClon ...” message
appears on the screen within 2 to 4 seconds (PC POST process).
2. When WinClon appears on the screen, press <F2> or <F3> key on your keyboard or use your mouse to select
“Recover to Recent State” or “Recover to Initial State”.
3. After entering the password, press the <OK> button to continue restore. (Password: pos)
●Restore
You can still recover quickly even if you are not able to boot from the OS.
Keyboard and mouse must be connected.
When you recover the Hard Disk, all the data in the system will be deleted.
Please save all important data in external storage before you start recovery.
pos
Password
OK
