Hannlomax HX- 320CD User manual

CD/MP3 Boombox with Radio and USB
Model : HX- 320CD
INSTRUCTION MANUAL
Note: Please read and follow these instructions before using your unit
1 Read these instructions Keep these instructions Heed all warnings Follow all instructions
2 Do not use this apparatus near water
3 Clean only with dry cloth
4 Do not block any ventilation openings Install in accordance with the manufacturer’s instructions
5 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat
6 Do not defeat the safety purpose of the polarized or grounding-type plug A polarized plug has two blades with one wider than the other A
grounding type plug has two blades and a third grounding prong The wide blade or the third prong are provided for your safety If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet
7 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from
the apparatus
8 Only use attachments/accessories specified by the manufacturer
9 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over
10 Unplug this apparatus during lightning storms or when unused for long periods of time
11 Refer all servicing to qualified service personnel Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped
12 Grounding or Polarization – This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider
than the other) This plug will fit into the power outlet only one way This is a safety feature If you are unable to insert the plug fully into the
outlet, try reversing the plug If the plug should still fail to fit, contact your electrician to replace your obsolete outlet Do not defeat the
safety purpose of the polarized plug
13 Alternate Warnings – This product is equipped with a three-wire ground-type plug, a plug having a third (grounding) pin This plug will only
into a grounding-type power outlet This is a safety feature If you are unable to insert the plug into the outlet, contact your electrician to
replace your obsolete outlet Do not defeat the safety purpose of the grounding-type plug
14 Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it
from overheating, and these openings must not be blocked or covered The openings should never be blocked by placing the product on
a bed, sofa, rug, or other similar surface This product should not be placed in a built-in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s instructions have been adhered to
15 The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable
16 回: CLASS II apparatus with double insulation, and no protective earth provided
17 Caution Marking and rating plate was located at bottom enclosure of the apparatus
18 To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture
19 The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on
apparatus
20 The mains plug is used as disconnect device The mains plug of apparatus should not be obstructed OR should be easily accessed
during intended use To be completely disconnect the power input, the mains plug or apparatus shall be disconnected from the mains
21 Battery shall not be exposed to excessive heat such as sunshine, fire or the like
22 Excessive sound pressure from earphones and headphone can cause hearing loss
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules These
limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications
However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna
– Increase the separation between the equipment and receiver
– Connect the equipment into an outlet on a circuit different from that to which the receiver is needed
– Consult the dealer or an experienced radio/TV technician for help
-1-
This device complies with part 15 of the FCC Rules Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation

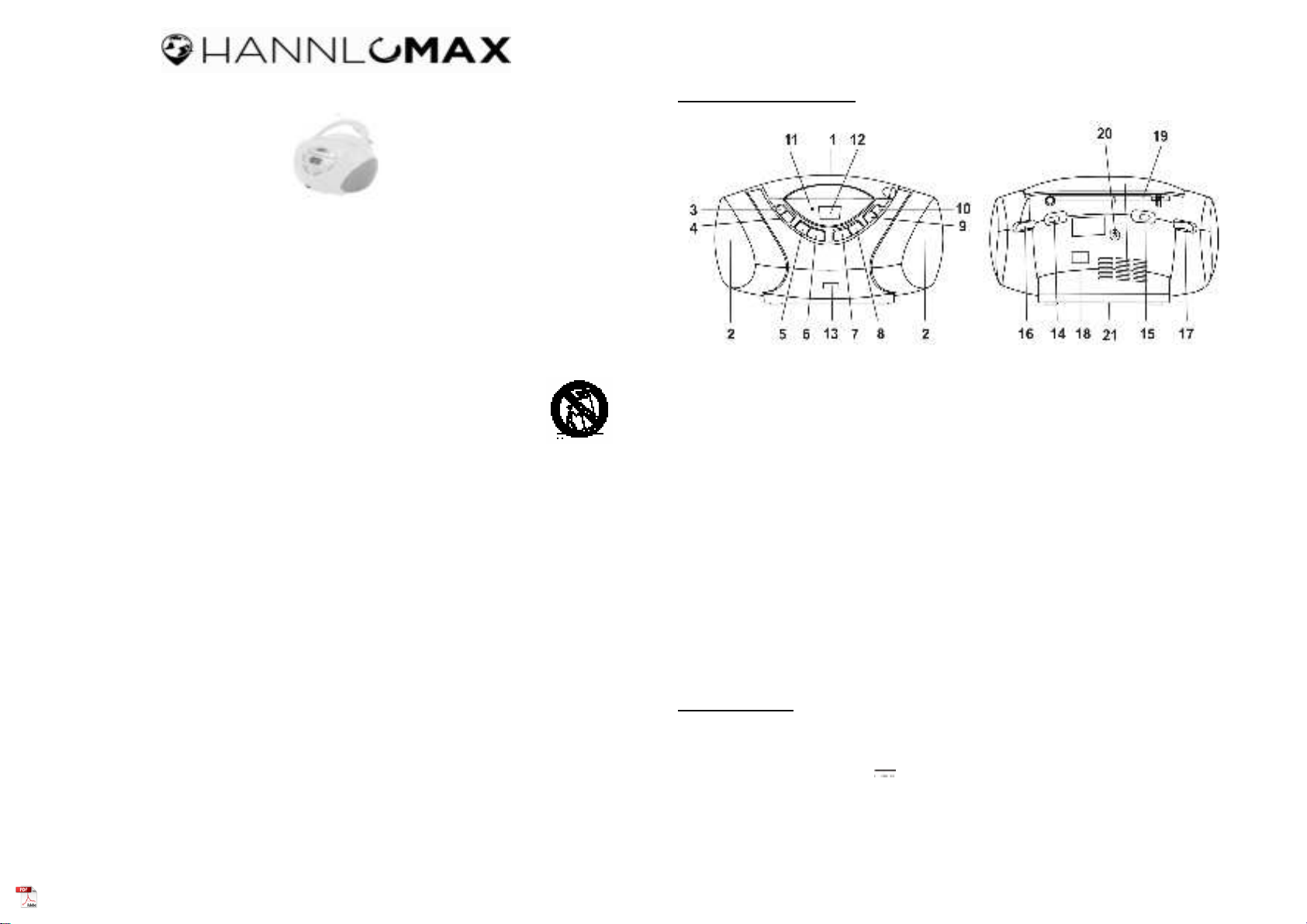

LOCATION OF CONTROLS
1 CD Compa tment 12 LCD Display
2 Speake s 13 USB Slot
3 FOLDER UP Button 14 BAND Switch
4 CD/USB Button 15 FUNCTION Switch
5 MODE Button 16 TUNING Cont ol
6 PROGRAM Button 17 VOLUME Cont ol
7 SKIP DOWN Button 18 AC Socket
8 SKIP UP Button 19 FM Antenna
9 STOP Button 20 Aux-In Jack
10 PLAY/PAUSE Button 21 Batte y Compa tment
11 Powe Indicato
SPECIFICATIONS
Frequency Range: AM 530 - 1710 KHz
FM 87 5 - 108 MHz
Power Supply: AC 120V ~ 60Hz
DC 9V (UM-2 x 6)
Specifications are subject to change without further notice
- 2 -

AC OPERATION
Before operation, please make sure that the VOLTAGE selector on the unit is set to the voltage of
your local area Unravel the AC power cord, insert one end into the AC socket on the set, and the
other end into a standard AC outlet
ATTENTION
1 Do not plug or unplug the power cable while you have wet hands
2 When not to use this unit for a long time, disconnect the power cable from the wall outlet
3 When disconnecting the power cord from the wall outlet, do not pull on the cord in order to avoid
shock risks caused by damaged cable
BATTERY OPERATION
Disconnect the AC cord set completely Open the battery compartment door and insert 6 pieces
UM-2 "C" size batteries into the battery compartment with the correct battery polarity shown
RADIO OPERATION
1 Slide the FUNCTION SWITCH to RADIO position
2 Slide the BAND SWITCH to AM or FM position
3 Turn the TUNING CONTROL to your desired radio station
4 Adjust the sound level by rotating the VOLUME CONTROL
ANTENNA
For best reception, fully extend the FM Antenna to receive FM stations For AM reception, the unit
has a built-in antenna, turn the whole unit for best reception
CD/MP3/USB OPERATION
Playing Audio CDs/MP3 disc
1 Set the FUNCTION SWITCH to CD/USB position
2 Press the CD/USB button to select CD mode, CD icon will appear on the LCD display
3 Insert a CD disc in the CD compartment and close the CD door, the unit will start reading the
disc, it will show the total number of tracks of the entire disc after reading
4 Press the PLAY/PAUSE button to start playing the disc
5 During playing, press the PLAY/PAUSE button to temporarily pause playing To resume, press
the PLAY/PAUSE button again
6 For MP3 discs (which has got folders), press the FOLDER UP button to select the folder you
want to listen
Playing MP3 files with USB
1 Set the FUNCTION SWITCH to CD/USB position
2 Press the CD/USB button to select the USB mode, USB will appear on the LCD display
3 Plug your USB device into the USB port on the unit, the unit will start reading the files in the USB
device, it will show the total number of tracks of the device after reading
4 Press the PLAY/PAUSE button to start playing the MP3 files
5 Press the FOLDER UP button to select the folder you want to listen
6 During playing, press the PLAY/PAUSE button to temporarily pause playing To resume, press
the PLAY/PAUSE button again
-3-
Skip Mode
1 During play or pause mode, press the SKIP UP button to go to the next track
2 For MP3 files with folders, when the end of the folder is reached, press the SKIP UP button will
go to the first track of the next folder
3 During play or pause mode, press the SKIP DOWN button to go back to the beginning of the
track
4 During play mode, press the SKIP DOWN button twice will go back to the previous track
5 For MP3 files with folders, when reaching the beginning of the folder, press the SKIP DOWN
button will go to the last track of the previous folder
P og amming
In case of Playing Audio CD
The programming should be done during STOP mode
1 Press the PROGRAM button, the LCD display will show P01 and flash
2 Use the SKIP UP or SKIP DOWN button to select the desired track
3 Press the PROGRAM button again to store the selected track in the memory, the LCD display
will show P02 and flash continuously
4 Repeat steps 2 to 3 to store more tracks in the memory You can store up to 20 tracks in the
memory
5 Press the PLAY/PAUSE button to start playing the disc in the programmed order
6 To stop playing, press the STOP button
7 To cancel the programming list, press the STOP button and open the CD compartment door or
select a different function OFF/AUX or RADIO
In case of Playing MP3
All procedure is same as Audio CD But if you have directory in your disc, you can select
folder/album and track both
MP3/AUX IN CONNECTION
1 Insert one side of the audio cable (requires 3 5mm stereo plug, not supplied) into the line-out
jack or phones jack on your MP3 player and the other side to the aux-in jack on the unit
2 Turn on the unit and slide the FUNCTION SWITCH to OFF/AUX position
3 Turn on your MP3 player and follow the playback instruction
4 To stop this function, simply turned off your MP3 player
Note:
Because of non-standardized format definition/production of MP3 format, playback quality &
performance are not guaranteed
Manufacturer is not responsible for the playability of MP3 in any case due to recording conditions
such as PC performance, writing software, media ability and etc
