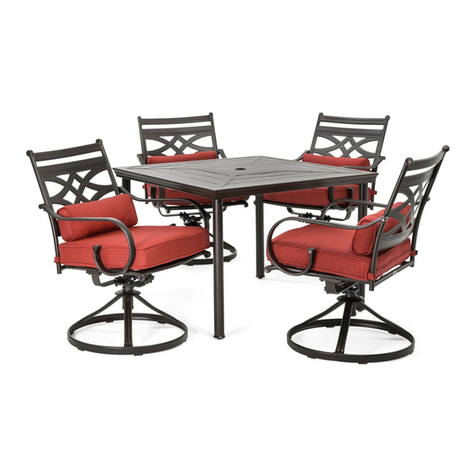

Hanover GRM00696G User manual

GRM00696G
11
Outdoor Furniture
IMPORTANT
If you have any problems with this product (missing or damaged parts, assembly issues, etc.),
PLEASE DO NOT RETURN TO THE RETAILER/STORE
where you purchased the product.
Please call our Toll-Free Customer Service Hotline at: 1-866-988-3300
Between 8:00 AM and 5:00 PM Pacific Standard Time, Monday through Friday
To expedite any future warranty claims, please retain the instruction sheet, warranty card
and receipt for future use.
Care and Maintenance
Store furniture in an upright position. Be careful not to allow water to build up in frames, as this will cause
corrosion and freeze damage in cold climates. Wash all frames with a solution of mild soap and water.
Rinse with clean water and dry with a soft absorbent cloth towel. Frames can be treated with a liquid wax
for maximum protection against UV rays and/or salty, damp air. If your set includes cushions, slings, and/or
an umbrella, they may be cleaned by hand with a solution of soap and water with a clean water rinse.
(Never machine wash cushions, slings or umbrella covers as this will result in shrinkage or damage). After
cleaning cushions, tip on end and allow to drip dry. (Never use a commercial or home dryer to tumble dry
fabric goods). Do not use bleach or solvents to clean any product! This will void the warranty.

GRM00696G
12
Outdoor Furniture
1-Year Limited Warranty Program
For a period of one (1) year after date of purchase, the Manufacturer will either repair or replace defective components in accordance with this
Limited Warranty. This warranty is between the Manufacturer and the original purchaser and is valid only when accompanied by the original
purchaser’s sales receipt showing original date of purchase and location of purchase. Replacements under this warranty revert back to the
date of original purchase for future warranty.
The Manufacturer or its authorized dealer can accept or reject warranty claims based on its findings. This warranty applies in normal
residential use only and is not intended for commercial use. The Manufacturer can make substitutions as required of materials, components,
and sub-components of comparable value and utility. This warranty is limited to product repair or replacement (to be determined solely by the
Manufacturer). Warranty return is limited to only the single affected component.
This limited warranty covers only manufacturing defects and does not cover normal wear and tear, damage due to acts of nature (such as, but
not limited to freezing or high winds), abuse or misuse, including chemical damage from suntan oil or other chemicals, exposure to extreme
heat or cold, abrasion or excessive weight. This product is intended to be used in standard installations only. This warranty is void if the
product is not used for its intended purpose. The Manufacturer disclaims liability for any aspect of installation and any inconvenience caused
by a defective part of a component.
Certain items are not covered by this warranty. These include, but are not limited to the following:
1. Components subjected to abuse, including abuse intended to simulate failure.
2. Damages caused by retailer, shipper or installation crew (such as scratches, dents, tears, chips, etc.).
3. Any part that merely exhibits normal wear yet functions essentially as new, including chips, scratches or stretching of materials and
stitching.
4. Tears, punctures, scratches or any damage caused by improper installation or use.
5. Damage to frames/welds resulting from improper assembly or exposure to water and/or sub-freezing temperatures is not covered.
General frame rusting is not covered.
6. Fading and/or discoloration of fabrics/cushions/straps/wicker resulting from exposure to the elements, chemicals, oils, fluids or any
other cause are not covered.
7. Umbrella bases are not covered under any circumstances.
8. Items sold “as is” or floor models.
To make a claim, call the toll-free number below. Please have available a copy of the original sales receipt along with a brief description of the
problem. Please also provide your email address and daytime telephone or cell phone number. All items may be charged actual freight costs
plus $15 for handling. Repairs or replacement will be made at the Manufacturer’s option. Sales and use taxes, plus shipping and handling
charges are the responsibility of the consumer.
THIS IS THE ENTIRE EXCLUSIVE EXPRESS LIMITED LIABILITY. THE MANUFACTURER NEITHER MAKES NOR IS RESPONSIBLE FOR ANY OTHER WARRANTIES,
EITHER EXPRESS OR IMPLIED, INCLUDING THOSE OF RETAILING DEALERS. THIS EXCLUSIVE REMEDY IS LIMITED TO RECEIPT OF A CREDIT IN CONNECTION WITH
THE REPAIR OR REPLACEMENT OF ANY PRODUCT OR COMPONENT DEEMED TO BE DEFECTIVE UNDER THE TERMS AND CONDITIONS AS STATED IN THIS
WARRANTY. NEITHER THE PRODUCT MANUFACTURER NOR ITS AGENTS SHALL BE LIABLE IN ANY CASE FOR INCIDENTAL, INDIRECT, SPECIAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY OR NEGLIGENCE EVEN IF IT
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. EXCEPT AS OTHERWISE MAY BE REQUIRED BY LAW, THERE ARE NO OTHER EXPRESS OR IMPLIED
WARRANTIES OTHER THAN THE WARRANTY DESCRIBED HEREIN, AND ALL OTHER WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED.
Contact Customer Service at 1-866-988-3300

Assembly Instructions
GRM00696G
Aluminum and Steel Gazebo with Netting
Questions, problems, or missing parts?
Before returning to the store, call Customer Service.
1-866-988-3300
8 a.m. -5 p.m., PST Monday - Friday
Retain this manual for future use.

GRM00696G
1
Parts & Tools
PART
QTY
PICTURE & DESCRIPTION
PART
QTY
PICTURE & DESCRIPTION
A
4
Post leg
V
28+2
M6*15 mm screw
B
4
Inclined tube 1
V1
8+1
M6*20 mm screw
B1
4
Inclined tube 2
V2
8+1
M6*30 mm screw
C1
2
Inclined tube 3
V3
24+2
M6*45 mm screw
C2
2
Inclined tube 4
V4
8+1
Nut
D1
2
Right long beam
W
2
Inner allen wrench
D2
2
Left long beam
X
1
Allen wrench
D3
2
Right short beam
Y
8
Ground spike
D4
2
Left short beam
E1
4
Long rail beam
E2
4
Short rail beam
F
4
Decorative plate
G
1
Top kit

GRM00696G
2
H
1
Connector kit
J
1
Decorative kit
K
4
Midlle kit
L
4
U-shape kit
M
8
Connector part
N
1
Small canopy
O
1
Large canopy
P
44
Q-shape split ring
Q
4
Leg base cover
WARNING: To avoid damage of this production,
please use either the carton or another soft
surface such as carpet as a working surface to
prevent product damage during assembly.
Need for assembly:
R
4
Leg base
S
16
Rail beam washer
T
4
Net
U
1
Hook
WARNING: Please keep children out of the assembly area before assembly.
WARNING: Do not leave the gazebo where there is a risk of high wind, as possible damage will occur to
the structure.
WARNING: Keep all flame and heat sources away from the fabric.
CAUTION: Do not climb on the top of the gazebo. Falling off the gazebo can result in serious injury, possibly
even death.

GRM00696G
3
Gazebo Assembly
Step 1:
Attach the U-shape kit (L) to post leg (A)
using M6*15mm screw (V).
Insert post leg (A) into the leg base cover
(Q) as shown.
Attach the leg base (R) to the post leg (A)
using M6*15mm screw (V).
Push the leg base cover (Q) to the bottom.
Step 2:
On bottom side, attach the right long
beam (D1) and the connector part (M) to
the decorative plate (F) using M6*15mm
screw (V) as shown.
On top side, attach the Right long beam
(D1) and the connector part (M) and
middle kit (K) to the decorative plate (F)
using M6*20mm screw (V1) as shown.
Attach the left long beam (D2) to the
connector part (M) using M6*20mm screw
on the above side.

GRM00696G
4
Attach the left long beam (D2) to the
connector part (M) using M6*15mm screw
on the bottom side.
Step 3:
Connect right short beam (D3) and left
short beam (D4) according to step 2.
Step 4:

GRM00696G
5
Attach the beams (D1&D2) to the post leg
(A) using M6*15mm screw (V) and
M6*45mm screw (V3) as shown.
Step 5:
Attach the beams (D3&D4) to post leg (A)
using M6*15mm screw (V) and M6*45mm
screw (V3) as shown.

GRM00696G
6
Step 6:
Connect the frame as shown and tighten
the screws.
Step 7:
Insert inclined tube 1 (B), inclined tube 3
(C1), and inclined tube 4 (C2) into top kit
(G) in the order of (B), (C1), (B), (C2), (B),
(C1), (B), (C2).
Insert the inclined tube 2 (B1) into the
inclined tube 1 (B) as shown.

GRM00696G
7
Step 8:
Attach the inclined tube 2 (B1) to the U-
shape kit using M6*30mm screw (V2) and
nut (V4).
Attach the inclined tube 3 (C1) and
inclined tube 4 (C2) to the middle kit using
M6*30mm screw (V2) and nut (V4).
Step 9:
Attach the connector kit (H) and the hook
(U) to the top kit (G) by screwing
clockwise.

GRM00696G
8
Step 10:
Put the large canopy (O) on the frame as
shown.
Step 11:
Put the small canopy (N) on top and

GRM00696G
9
tighten as shown.
Attach the decorative kit on top by
screwing clockwise.
Step 12:
Tighten the large canopy (O) as shown.
Step 13:

GRM00696G
10
Attach the long rail beam (E1) and short rail beam
(E2) to the post leg (A) using M6*45mm screw (V3)
and rail beam washer(S).
Attach the long rail beam (E1) and short rail beam
(E2) to the decorative plate using M6*45mm screw
(V3) and rail beam washer(S).
Step 14:
Attach the net (T) to rail beams (E1&E2) using Q-
shape split ring (P).
Tighten the gazebo to the ground using ground
spike (Y) .
