Hans Grohe Croma 280 Air 1jet EcoSmart 26221007 User manual

ZH 用户手册/组装说明 2
EN Instructions for use / assembly instructions 3
Croma 220
EcoSmart
26465007
Croma 280 Air 1jet
EcoSmart
26221007

2
中文
安全技巧
装配时为避免挤压和切割受伤，必须戴上手
套。
不得让儿童和肢体、精神和/或意识有障碍的成
人在不受监管的情况下使用淋浴系统。受酒精
或毒品影响的人员不得使用淋浴系统。
必须避免让身体敏感部位（如眼睛）接触到莲
蓬头喷水。必须保持莲蓬头与人头之间有足够
的距离。
淋浴系统只允许作为洗浴、卫生和洁身之用。
安装提示
• 安装前必须检查产品是否受到运输损害。安装
后将不认可运输损害或表面损伤。
• 管道和阀门必须根据通用标准进行安装、冲洗
和检查。
• 请遵守当地国家现行的安装规定。
• 必须装上花洒所附带的滤柱式过滤网，以过滤管
道里的杂质污物。杂质污物会影响花洒的功能
和/或损坏花洒的功能部件，由此而产生的产品
损坏不属于汉斯格雅的保修范围。
备用零件(参见第页10)
符号说明
请勿使用含有乙酸的硅！
操作(参见第页4)
请在使用喷头后略微倾斜，排空其中
水分。
大小(参见第页5)
流量示意图(参见第页5)
清洗(参见第页6)
技术参数
工作压强： 最大0,6MPa
推荐工作压强：
26221007: 0,2-0,4MPa
26465007: 0,1-0,4MPa
(1MPa=10bar=147PSI)
热水温度： 最大60°C
热力消毒: 最大70°C/4分钟
该产品专为饮用水设计！
安装参见第页4

3
English
Safety Notes
Gloves should be worn during installation to prevent
crushing and cutting injuries.
Children as well as adults with physical, mental and/
or sensoric impairments must not use this product
without proper supervision. Persons under the influ-
ence of alcohol or drugs are prohibited from using
this product.
Do not allow the streams of the shower touch sensi-
tive body parts (such as your eyes). An adequate
distance must be kept between the shower and you.
The shower system may only be used for bathing,
hygienic and body cleaning purposes.
Installation Instructions
• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The pipes and the fixture must be installed, flushed
and tested as per the applicable standards.
• The plumbing codes applicable in the respective
countries must be oberserved.
• The filter insert must be use to protect the shower
against incoming dirt by pipework. Incoming dirt leads
to defects or/and can damage parts of the shower;
such caused faults voids all liability and guarantee
claims.
Spare parts (see page 10)
Symbol description
Do not use silicone containing acetic acid!
Operation (see page 4)
To empty the overhead shower after use,
hold it in a slightly inclined position.
Dimensions (see page 5)
Flow diagram (see page 5)
Cleaning (see page 6)
Technical Data
Operating pressure: max. 0,6 MPa
Recommended operating pressure:
26221007: 0,2 - 0,4 MPa
26465007: 0,1 - 0,4 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 60°C
Thermal disinfection: max. 70°C / 4 min
The product is exclusively designed for drinking water!
Assembly see page 4

4
SW 17 mm
(10 Nm)
SW 2 mm
(1 Nm)
1 2

5
bar
4,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
5,0
0,45
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
0,50
5,50,55
6,00,60
036912151821242730
MPa
00,1 0,2 0,3 0,4 0,5
Q = l/min
Q = l/sec
280Ø
217Ø
13
59
2 6
°
2 6
°
G1/2
Croma 280 Air 1jet EcoSmart
26221007
Croma 280 Air 1jet EcoSmart
26221007
Croma 220 EcoSmart
26465007
Croma 220 EcoSmart
26465007
bar
4,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
5,0
0,45
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
0,50
5,50,55
6,00,60
036912 15 18 21 24 27 30
MPa
00,1 0,2 0,3 0,4 0,5
Q = l/min
Q = l/sec

6
表面损坏的部件必须更换，否则会有受伤
的危险。
不按规定进行清洁而造成的任何损坏不在本公司产
品保修范围之内。
QuickClean
有了QuickClean，手工清洁功能，要去掉喷头上的
水垢，只需简单地搓除即可。
担保
Hansgrohe向用户保证，该产品无制造缺陷。如果
自购买之日起五年内出现缺陷，Hansgrohe将免费
排除。保证条件和详情见www.hansgrohe-int.com/
guarantee。在提出保修的权利时请联系您的合同
方。本保证不涉及有关国家法律规定的消费权
汉斯格雅产品的清洁建议
现代的卫浴龙头、厨房龙头、花洒、配件、盥洗
台、浴盆和加热器采用的制造材料非常迥异，以适
应产品外形设计和使用功能的市场需求。
为了避免产品损坏和由此引发的投诉及争议，必须
在使用和清洁产品时遵循有关规程。
在保养汉斯格雅产品时，原则上必须注意：
• 只能使用那些有明确注明是适用于本产品的清
洁剂。
• 不允许使用含有盐酸、蚁酸、氯漂或醋酸的清
洁剂，因为这些清洁剂会给产品表面造成严重的
损伤。
• 含磷酸的清洁剂必须在特定条件下使用。
• 不允许将两种以上清洁剂混合使用。
• 不允许使用具有研磨作用的清洁工具和设备，如
不适合的清洁粉末、海绵垫或超细麦克布。
• 必须严格遵守清洁剂生产厂商的使用说明。
• 严格遵守清洁剂的用量和作用时间，决不允许清
洁剂的作用时间长于规定值。
• 定期的清洁以预防水垢。
• 不允许将清洁剂直接喷射到汉斯格雅产品上，因
为喷雾会进入汉斯格雅产品的开口部分和缝隙中
而造成损害。首先将清洁剂喷在软布上，再用软
布进行清洁。
• 清洁之后必须用足够的清水冲洗，以彻底去除残
留的吸附物（清洁剂）。
• 不允许使用蒸汽清洗机，高温会损害产品。
重要说明
肥皂，洗发水、沐浴液、染发剂、香水、刮胡水、
指甲油的残留也会对产品造成损伤。
此处：使用后要小心地用清水将剩余物冲洗干净。
同样在产品下方不得存放洗涤剂和化学药品，例如
不可放在用于洗脸盆的梳洗柜中否则挥发气体将
损坏产品。
在已经损伤的表面继续使用清洁剂会给表面造成更
大的损伤。
中文
QUICK
CLEAN

7
Components with damaged surfaces
must be exchanged, otherwise there
could be an injury danger.
Damage caused by improper treatment will not be
covered by our guarantee.

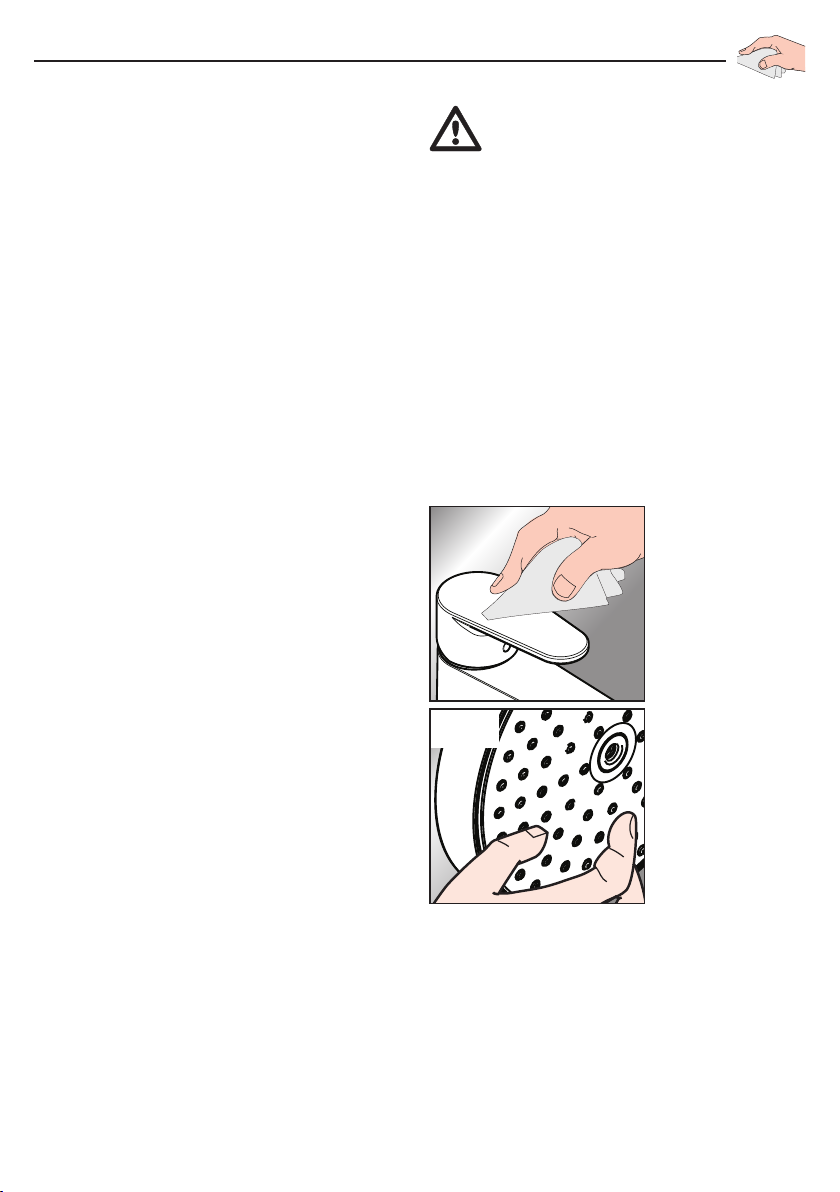

QuickClean
The QuickClean cleaning function only needs a small
manual rub over to remove the lime scale from the spray
channels.
Warranty
Hansgrohe guarantees to the consumer that this product is free
of production faults. If evertheless any defect is detected within
5 years from date of purchase, Hansgrohe will remedy this
defect free of charge. You will find the conditions and details
of this guarantee at www.hansgrohe-int.com/guarantee.
Please contact your contracting party to claim your rights
under this guarantee. This guarantee does not affect the
customer‘s rights under the respective national legislation.
Cleaning Recommendation for
Hansgrohe Products
Today, modern sanitary and kitchen tapware, showers,
accessories, washstands, tubs and radiators consist of
very different materials to comply with the needs of the
market with regard to design and functionality.
To avoid damage and reclamations, it is necessary to
consider certain criteria when cleaning.
With regard to caring for the
Hansgrohe products, the following
must in principle be heeded:
• Only use cleaning material which is explicitly provided
for this type of application.
• Never use cleaning materials, which contain
hydrochloric acid, formic acid, chlorine pale lye or
acetic acid, as they cause considerable damage.
• Phosphorus acidic cleaners are only conditionally applicable.
• Mixing cleaning agents is not permitted, generally.
• Never use cleaning materials or appliances with an
abrasive effect, such as unsuitable cleaning powders,
sponge pads or micro fibre cloths.
• The instructions of the cleaning agent manufacturers
have to be followed absolutely.
• Cleaning has to be carried out with a specified cleaner
dosage, contact time, object-related and adapted to the needs.
• The building up of calcifications has to be removed by
cleaning regulary.
• When using spray cleaners, spray the cleaning solution onto
a soft cloth or sponge, never directly onto the Hansgrohe
products, as the atomised spray could enter openings and
gaps in the Hansgrohe products and cause damage.
• After cleaning rinse thoroughly with clean water to
remove any cleaner residue.
• The use of steam cleaners is not permitted. The high
temperatures can damage the products.
Important
Residues of toiletries such as liquid soaps, shampoos and
shower gels, hair dyes, perfumes, aftershave and nail
varnish can also cause damage.
Here too: Carefully rinse with water after use to remove residues.
Likewise, do not store any cleaning agents or chemicals
under the products, for example in a vanity unit, as the
vapours may damage the products.
The damage of already damaged surfaces will
deteriorate under the effect of the cleansers.
English
QUICK
CLEAN

8
SW 2 mm
SW 17 mm
SW 17 mm
(10 Nm)
1 2
3 4
5 6

9
SW 2 mm
(1 Nm)
1 2
43
> 1 min
SW 4 mm
SW 4 mm
(2 Nm)
7 8

10
94246000 94246000
95659000 95659000
97536000 97536000
97606000 97606000
98419000
(7x2)
98419000
(7x2)
97958000 97958000
98942000 98942000
98941000 98941000
95795000
(EcoSmart)
95795000
(EcoSmart)
Croma 280 Air 1jet EcoSmart
26221007
(M4x6) (M4x6)
Croma 220 EcoSmart
26465007
