Hans Grohe II Installation guide

Showerpanel I
Showerpanel II
Installation Instructions / Warranty

2
Showerpanel I
Showerpanel II
Showerpanel I Showerpanel II
handshower & bodyjets handshower, bodyjets, tub spout
Metro E 06572000 06573000
Solaris E 06549XX0 06550XX0
Stratos E 06564XX0 06565XX0
Technical information Données techniques
Recommended water pressure Pression d’eau recommandée 45 - 72.5 psi
Max. water pressure Pression d’eau maximum 147 psi
Recommended hot water temp. Température recommandée d'eau
chaude 120� - 140� F*
Max. hot water temp Température maximum d'eau
chaude 158�F*
Flow rate of handshower Débit de douchette 2.5 gpm
Flow rate of each bodyspray Débit de chaque jet mural <1.0 gpm
Flow rate of thermostatic mixing
valve Débit maximum du mitigeur ther- mostatique 8 gpm @ 45 psi 10 gpm @ 65 psi
*Please know and follow all applicable local plumbing codes when setting the temperature on the water heater.
* Vous devez connaître et respecter tous les codes de plomberie locaux applicables pour le réglage de la température
du chauffe-eau.

3
Installation considerations
English
Check package contents
Before beginning installation, check the contents of this package. Make sure that all parts
are present and in good condition. If any part is missing or damaged, please contact
Hansgrohe Customer Service before proceeding.
Tools required
The following tools are suggested for installing the showerpanel:
Tape measure
Level
Grease pencil or other marking device
Drill with 6 mm bit suitable for wall
surface
10 mm nut driver
10, 11 and 19 mm wrenches
•
•
•
•
•
•
3 mm Allen wrench
Philips screwdriver
Waterproof sealant
Mallet (to install anchors)
Teflon tape
•
•
•
•
•
Français – voir p. 17
For best results, Hansgrohe recom-
mends that this unit be installed by a
licensed, professional plumber.
Please read over these instructions
thoroughly before beginning installa-
tion. Make sure that you have all tools
and supplies needed to complete the
installation.
This product is listed by IAPMO and is
approved for use in Massachusetts.
•
•
•
Protection against backflow provided
by check valve in the handshower
outlet.
The high temperature limit stop on the
thermostatic mixing valve may be reset
to comply with local plumbing codes*
-- see page 13.
•
•
*In Massachusetts, the maximum output temperature
cannot exceed 112°F.

4

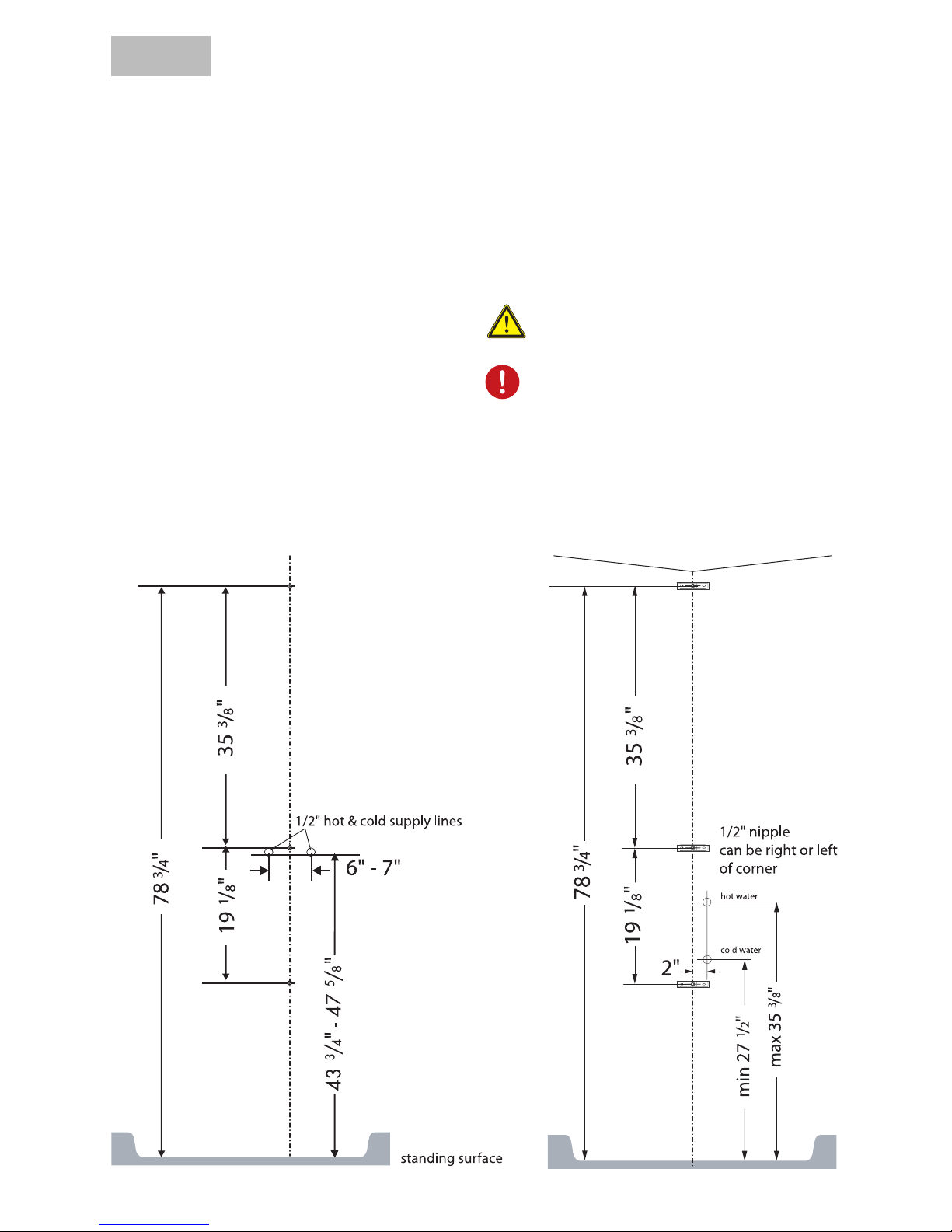

Rough-in
Installation on a flat wall Installation in 90° corner
Seal the wall around the
nipples with waterproof
sealant.
Failure to seal the wall
can lead to possible water
damage.
English
This unit can be installed on a flat wall or
in a 90° corner. Instructions for installa-
tion on a flat wall begin on page 5. Go
to page 8 if the panel is to be installed in
a corner.
Ensure that you have a minimum
83" ceiling height from the stand-
ing surface.
Stub out 1/2" NPT male nipples for the
hot and cold water supplies at the loca-
tions shown on the appropriate rough-in
diagram. The nipples should extend 5/8"
outside the surface of the finished wall.
Install the wall surface and make the wall
watertight before installing the panel. The
panel hangs on the finished wall.

5
Installation � flat wall
Wrap the threads on the nipples with Teflon tape.
Install the elbows so that the outlets face upwards.
Measure up the wall 78 ¾", making sure that the line is
plumb. Mark the position for the top screw hole.
From the position of the top screw hole, measure down
35 3/8”. Mark the position for the center screw hole.
From the center screw hole, measure down 19 1/8".
Mark the position for the bottom screw hole.
Use a 6 mm bit to drill the three screw holes.
Install the set screws in the top and bottom holes.
Use a 10 mm nut driver to attach a nut to the top set
screw.
Slide the panel over the top and bottom set screws.
Tighten the nut on the top set screw.
Install and tighten the nut on the bottom set screw.
Install one recessed head screw and the large washer
on the center hole. Tighten the screw.
Seal the wall around the anchors
with waterproof sealant.
Failure to seal the wall can lead to
possible water damage.
English

6
Use the compression nuts and ferrules to connect
the supply hoses on the panel to the supply
elbows.
Use two wrenches, as shown, to prevent the sup-
ply hoses from twisting.
Attach the seals to the side covers.
Install the side covers.
The pins on the covers must go into the grooves on
the sides of the panel.
English

7

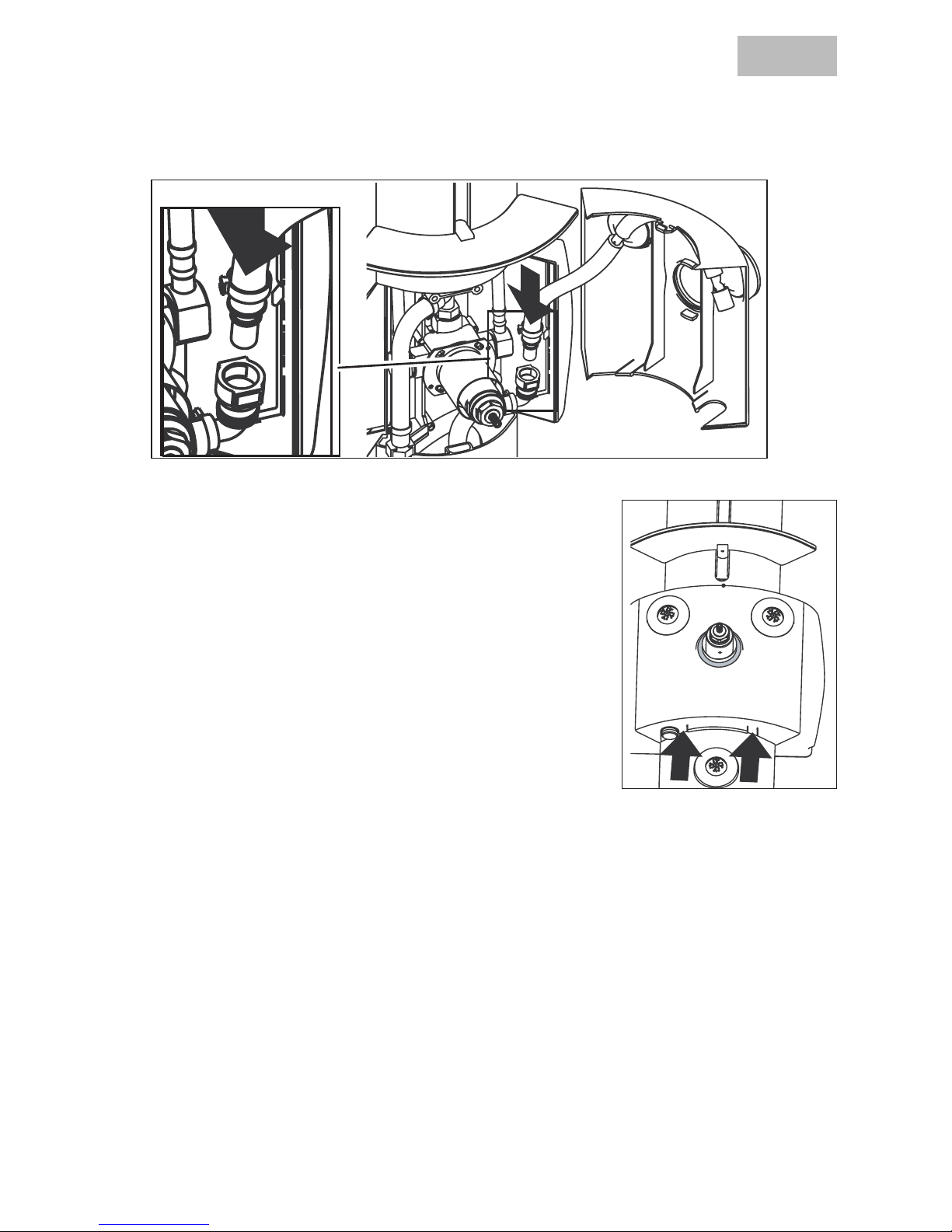

Push the bodyjet supply hose on the valve cover into the fitting on the panel.
Install the valve cover on the panel.
The pins on the cover must connect to the slots on the panel.
Turn to page 11 to continue the installation.
English

8
Installation in 90° corner
Wrap the threads on the nipples with Teflon tape.
Install the elbows so that the outlets face upwards.
In the corner, measure up the wall 78 ¾", making
sure that the line is plumb. Mark the position for the
top mounting bracket.
From the position of the top screw hole, measure
down 35 3/8". Mark the position for the center
mounting bracket.
From the center screw hole, measure down 19 1/8".
Mark the position for the bottom mounting bracket.
Use the mounting brackets as templates to mark the
positions of the screw holes. Drill the holes with a 6
mm bit.
Install the corner sealing gasket to the grooves on
the panel.
Seal the wall around the anchors
with waterproof sealant.
Failure to seal the wall can lead to
possible water damage.
Install the mounting brackets to the walls using five of
the recessed head screws.
English

9
While a helper holds the panel, attach the supply
hoses to the elbows with the compression fittings.
Use two wrenches, as shown in the diagram, to
prevent the supply hoses from twisting.
Tighten the hex head cap screw on the top
mounting bracket.
Install and tighten the hex head cap screw on the
bottom mounting bracket through the hole in the
panel and tighten.
Install the hex head cap screw and large washer
on the center mounting bracket through the hole
in the panel and tighten.
English

10

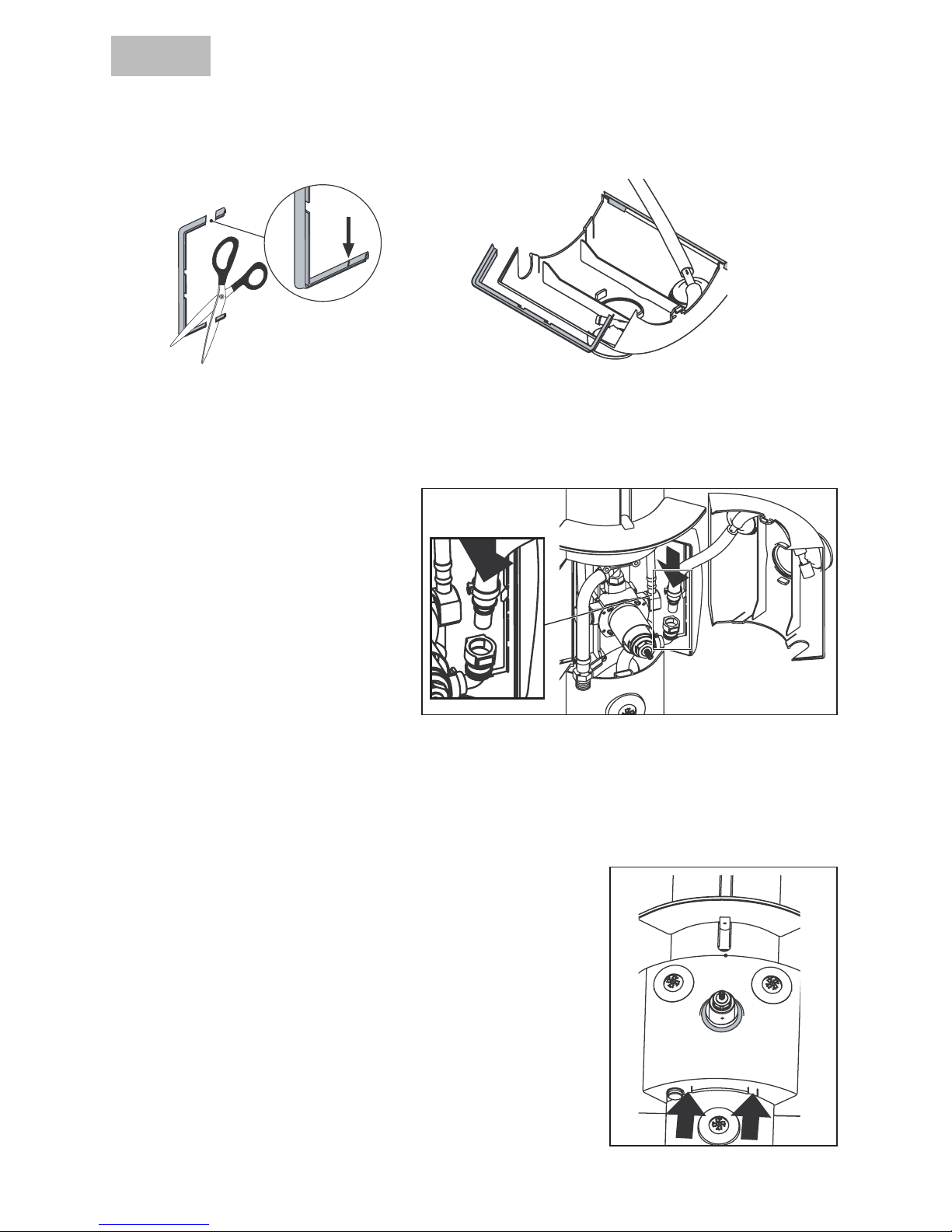

Clip the side cover seals as shown in the diagram. Attach the side cover seals to the valve
cover.
Push the bodyjet supply hose on the
valve cover into the fitting on the
panel.
Install the valve cover on the panel. The pins on the cover
must connect to the slots on the panel.
Turn to page 11 to continue the installation.
English

11
Install the handle
Push the handle over the valve stem. Tighten the handle
screw using a 3 mm Allen wrench.
The handle screw must engage the slot milled into the
cartridge.
Install the handshower
Place a black rubber washer one end of the hose. Connect
this end to the handshower outlet on the panel.
Place the screen washer in the other end of the hose.
Connect it to the handshower.
Place the handshower in the handshower holder.
Adjust the slider
Use a 2.5 mm Allen wrench to adjust the tension on the
slider.
Turn the screw clockwise to make the slider easier to move.
Turn the screw counter-clockwise to make the slider harder
to move.
English

12

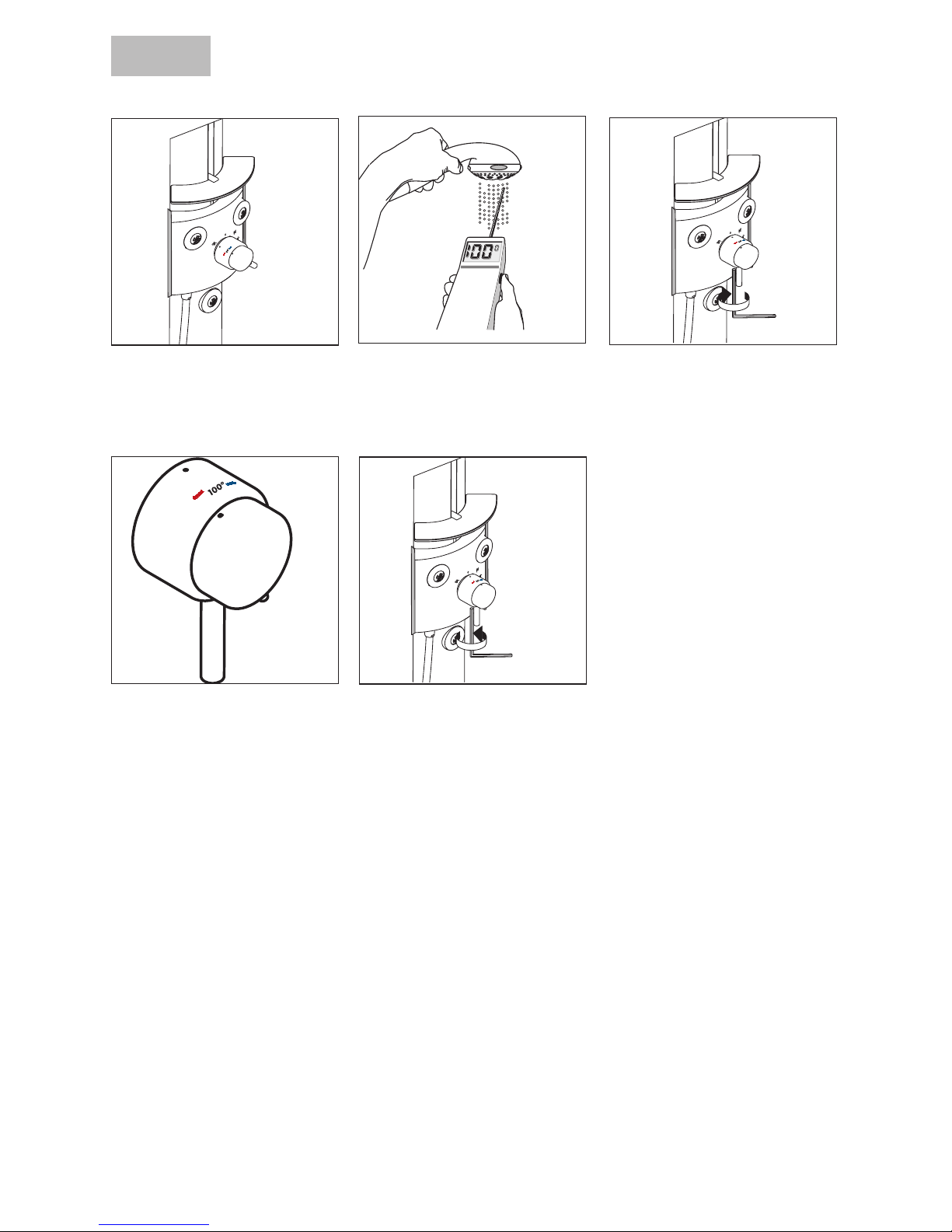

Justify the handle
Turn the temperature control
knob so that the indicator is
next to the 100º marking.
Install the handle. Tighten
the screw.
Turn the water on to the
handshower. Turn the temperature control
knob until the output water is
100ºF. Turn the water off.
Remove the handle.
English

13

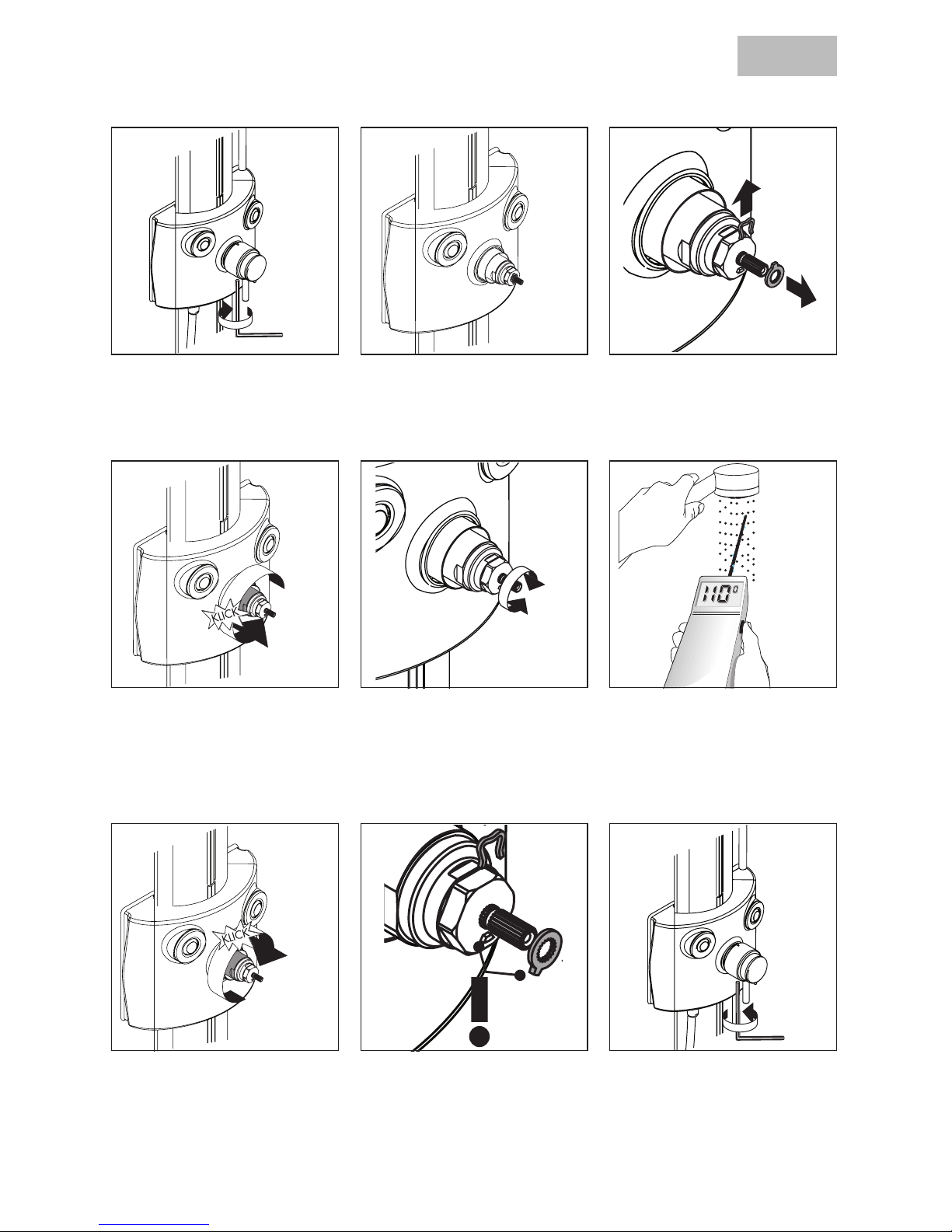

Set the high temperature limit stop (optional)
Loosen the handle screw us-
ing a 3mm Allen wrench. Remove the handle. Remove the clip and the stop ring from the stem.
Grasp the cartridge stop unit
and turn it counter-clockwise
to turn on the handshower.
Turn the stem until the output water is the desired maximum
high temperature (usually about 110°F*).
Turn the stop unit clockwise
to turn the water off.
Install the stop ring so that the
tooth is against the stop on the
top of the cartridge. Replace
the clip.
Install the handle. Tighten
the screw.
*In Massachusetts, the maximum output temperature cannot exceed 112°F.
English

14

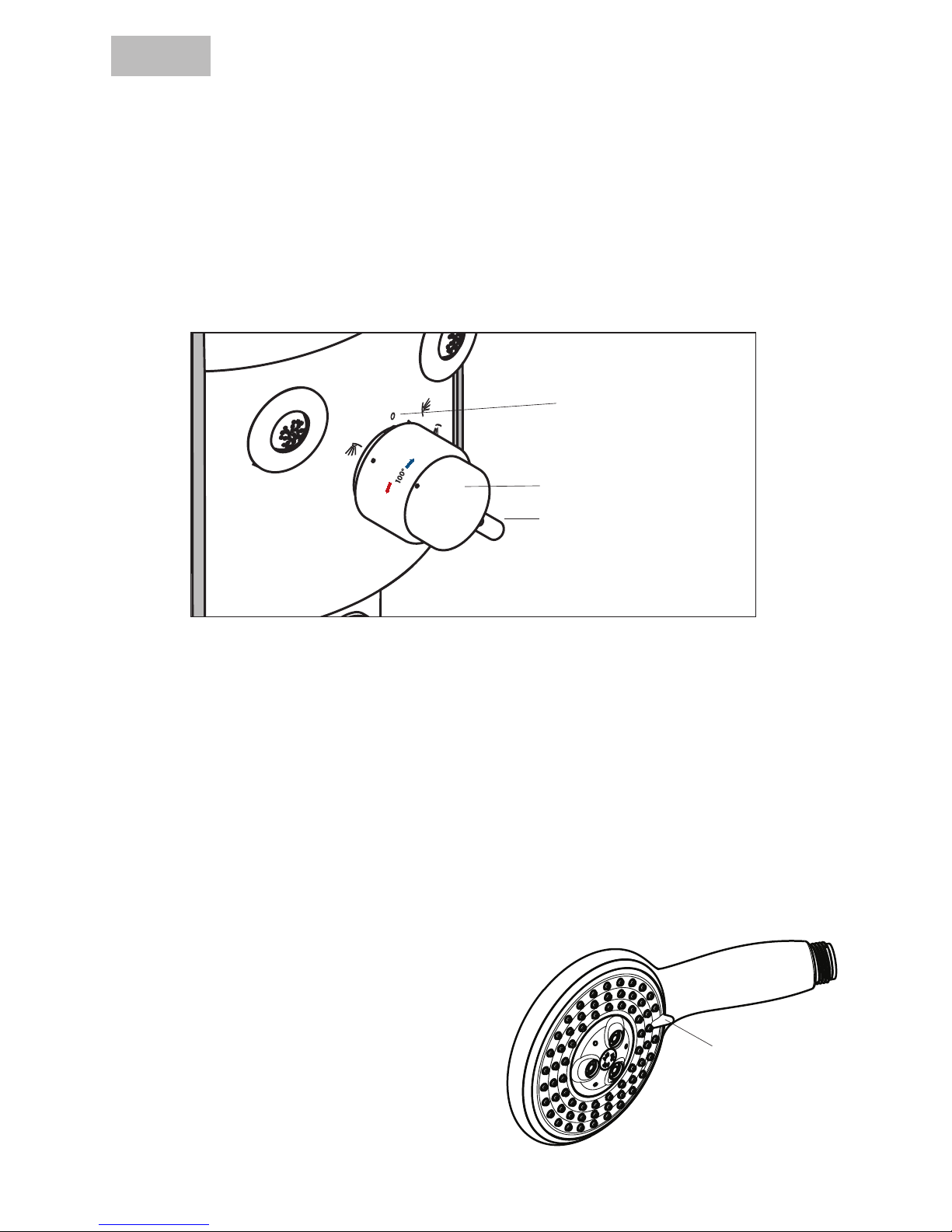

Using the handshower
The handshower has 3 spray modes --
Rain AIR, Whirl AIR, and Balance AIR.
Push the function lever until the desired
spray mode is achieved.
User instructions - Showerpanel I
User instructions - Showerpanel II
English
Turn the temperature control knob clock-
wise to make the water cooler, coun-
ter-clockwise to make it warmer. The
knob will stop at the 100°F position. If
water hotter than 100°F is desired, push
in on the knob, and continue turning it
counter-clockwise.
From the “off” position, turn the di-
verter handle counter-clockwise for the
handshower.
Turn the diverter handle clockwise for
the bodysprays. Turn the handle further
clockwise for the handshower and the
bodysprays simultaneously.
Turn the temperature control knob clock-
wise to make the water cooler, coun-
ter-clockwise to make it warmer. The
knob will stop at the 100°F position. If
water hotter than 100°F is desired, push
in on the knob, and continue turning it
counter-clockwise.
From the “off” position, turn the diverter
handle counter-clockwise for the tub spout.
Turn the diverter handle clockwise for the
handshower, then for the handshower and
bodysprays simultaneously, and finally for
the bodysprays.
temperature control knob
diverter handle
off position
function lever

15

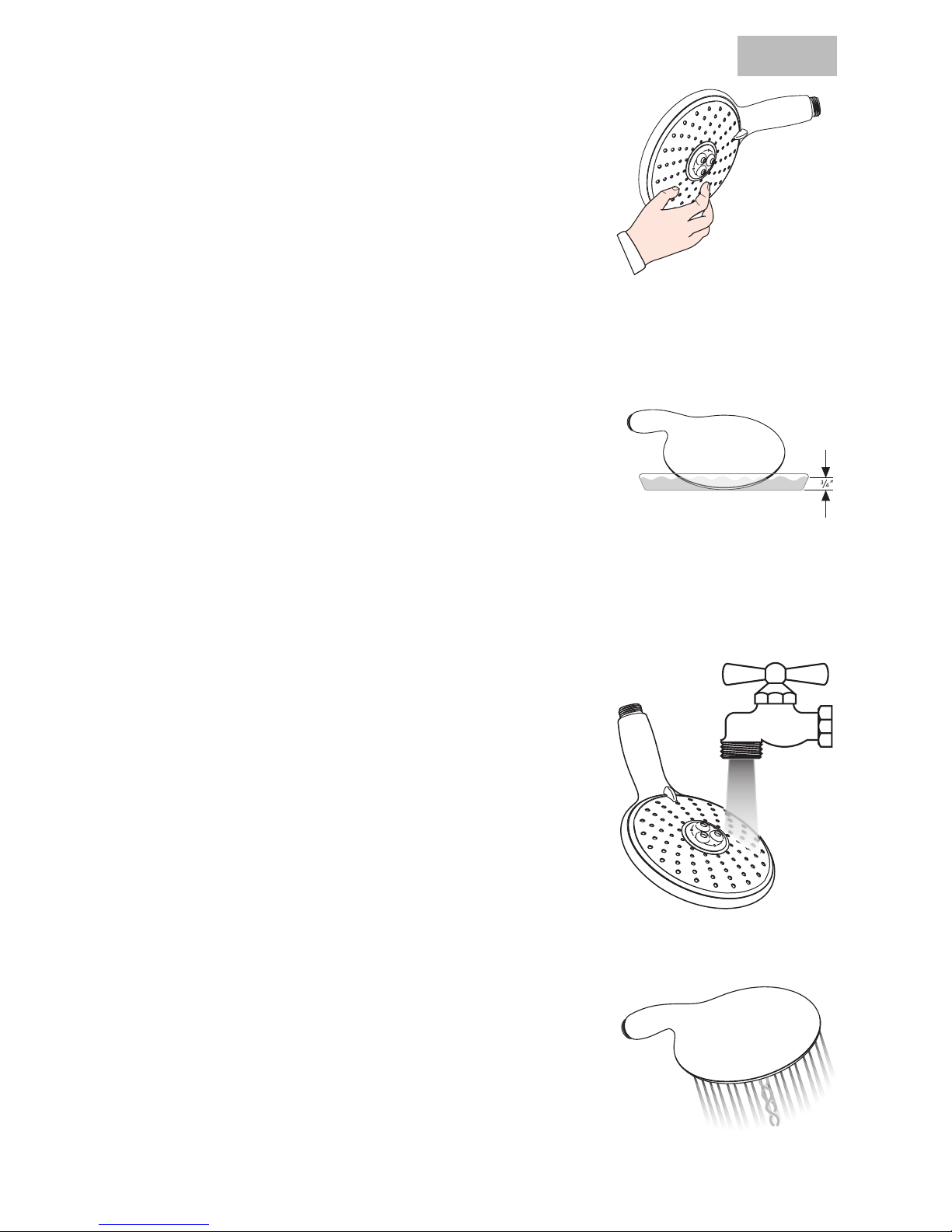

Scale removal
The Raindance Air 3-jet handshower incorporates the Quick
Clean™ cleaning system. If scale deposits are noticed in the
spray channels, turn the water on lightly and rub the spray
channels with a finger or a sponge.
If scale deposits are noticed on the spray face, pour about
3/4” of a commercial scale remover, such as Lime-Away™ or
CLR™ ,into a shallow dish. Dilute the remover according to the
label instructions.
Soak only the spray face in the solution for the amount of time
specified on the label.
Install the handshower.
Flush the handshower with clear water for at least one
minute.
Rinse the handshower with clear water.
English

16
If the water pressure decreases as the water is made
warmer, clean the cartridge filters.
Turn the water off at the main.
Remove the handle.
Hold the cartridge stop unit steady with a 36 mm
wrench.
Clean the cartridge filters
Clean the filters under running water. Use a soft tooth-
brush to remove stubborn deposits.
Lightly lubricate the cartridge o-rings with white
plumbers grease.
Install the thermostat cartridge.
Justify and install the handle.
Check valve maintenance
The check valve should be removed and
inspected yearly.
If the check valve is damaged, replace it.
Hold the stop unit steady while
removing or installing the thermo-
stat cartridge.
Failure to do so may result in
damage to the stop unit.
Use a 24 mm wrench to unscrew the thermostatic
cartridge from the stop unit.
English
check valve
filters

17
Vérification du contenu de l’emballage
Épargnez du temps et évitez les problèmes. Vérifiez le contenu de cet emballage avant de
commencer l’installation. Assurez-vous qu’aucune pièce ne manque et qu’elles sont toutes
en bon état. S’il manque une pièce ou si une pièce est endommagée, veuillez contacter le
Service à la clientèle Hansgrohe avant de commencer l’installation.
À prendre en considération pour l’installation
Outils requis
Nous recommandons d’utiliser les outils suivants pour installer la colonne de douche :
Ruban à mesurer
Niveau
Crayon gras ou autre instrument de
marquage
Perceuse avec une mèche de 6 mm
convenant à la surface du mur
Tournevis à douille de 10 mm
Clés de 10, 11 et 19 mm
•
•
•
•
•
•
Clé hexagonale de 3 mm
Tournevis Phillips
Agent d’étanchéité
Maillet (pour installer les chevilles)
Ruban de plomberie Téflon
•
•
•
•
•
Français
Pour de meilleurs résultats, Hansgrohe
recommande que ce produit soit
installé par un plombier professionnel
licencié.
Veuillez lire attentivement ces instruc-
tions avant de procéder à l’installation.
Assurez-vous de disposer de tous les
outils et du matériel nécessaires pour
l’installation.
•
•
Homologué par IAPMO.
Le clapet anti-retour de la sortie de
douchette protège contre les retours
d'eau.
La butée limite d'eau chaude de la
cartouche du mitigeur thermostatique
peur être reprogrammée pour satisfaire
aux codes de plomberie locaux -- voir
page 27.
•
•
•

18
Pièce intérieure
Installation – mur plat Installation dans un coin à
angle de 90°
Scellez le mur autour du
mamelon à l’aide d’un agent
d’étanchéité.
Si le mur n’est pas scellé, l’eau
pourrait éventuellement causer
des dommages.
Cet article peut être installé sur un mur à
plat ou dans un coin à angle de 90°. Les
instructions d’installation sur un mur plat
commencent à la page 19. Passez à la
page 22 si vous installez la colonne de
douche dans un coin.
Assurez-vous d’avoir une hauteur
de 83 po minimum (2,11 m), de
la surface du plancher jusqu’au
plafond.
Pour les conduites d’alimentation en eau
chaude et froide, faites sortir les mamelons
mâles NPT de ½ po aux emplacements
indiqués sur le schéma de pièce intéri-
eure approprié. Les mamelons devraient
dépasser de 5/8 po (1,6 cm) de la surface
du mur fini.
Installez la surface de mur et assurez-vous
de son étanchéité avant d’installer la col-
onne. La colonne se suspend au mur fini.
Français

19
Installation – mur plat
Enveloppez les filets des mamelons de conduite avec
du ruban de plomberie Téflon.
Installez les coudes (compris) de façon à ce que les
orifices de sortie soient dirigés vers le haut.
Mesurez le mur de bas en haut sur une longueur de
78 ¾ po en vous assurant que la ligne est droite, de
niveau. Marquez la position du trou de la vis du haut.
À partir du trou de la vis du haut, mesurez une lon-
gueur de 35 3/8 po vers le bas. Marquez la position
du trou pour la vis du centre.
À partir du trou de la vis du centre, mesurez 19 1/8
po vers le bas. Marquez la position du trou pour la
vis du bas.
Utilisez une mèche de 6 mm convenant à la surface du
mur. Percez les trois trous de vis.
Installez les chevilles.
Serrez l’écrou sur la vis de pression du haut.
Installez et serrez l’écrou sur la vis de pression du
bas.
Installez une vis à tête fraisée et la grande rondelle
dans le trou du centre. Serrez la vis.
Scellez le mur autour des
chevilles à l’aide d’un agent
d’étanchéité.
Si le mur n’est pas scellé, l’eau
pourrait éventuellement causer
des dommages.
Installez les vis de pression dans les trous du haut et
du bas.
Utilisez un tournevis à douille de 10 mm pour fixer un
écrou à la vis de pression du haut.
Faites glisser la colonne sur les vis de pression du haut
et du bas.
Français

20
Utilisez les écrous à compression et les
bagues d’extrémité pour relier les tuyaux
d’alimentation de la colonne aux coudes
d’alimentation.
Utilisez deux clés, tel qu’illustré, pour éviter
que les tuyaux d’alimentation ne s’entortillent.
Fixez les joints aux plaques latérales.
Installez les plaques latérales. Les tiges des plaques
doivent s’insérer dans les rainures sur les côtés de la
colonne.
Français
