Hanwha Techwin Wisenet SPD-152 User manual

NETWORK VIDEO DECODER
Quick Guide
SPD-152

2
Features
This product monitors the video and sound of the network camera.
The PC provides an environment where this product can be set up.
● Provides new UI 2.0
● Play Layout Sequence
● Supports thermal imaging camera/PTZ linked camera
● Supports a range of 4K camera resolutions
● Outputs a 4K high definition image using HDMI
● Supports dual monitor output (expand, duplicate)
● Supports ONVIF Profile S standard and RTP / RTSP protocols
● Simultaneous play of 64 channels
● Live monitoring of the network camera
● Installation Wizard Function (Recorder, Web Viewer)
Package Contents
Please unwrap the product, and place the product on a flat place or in the place to be installed.
Please check the following contents are included in addition to the main unit.
Decoder Mouse Quick Guide
Multi-adapter Terminal block M4 L20 stud (forVESA hole, 4 ea)
M4 L8 screw (for multi-adapter, 4 ea) M3 L6 screw (for decoder base hole, 2 ea)
Installation
Please take note of the followings before using this product.
● Do not use the product outdoor.
● Do not spill water or liquid in the connection part of the product.
● Do not impose the system to excessive shock or force.
● Do not pull out the power plug forcefully.
● Do not disassemble the product on your own.
● Do not exceed the rated input/output range.
● Use a certified power cord only.
● For the product with an input ground, use a grounded power plug.
Mounting the Multi Adapter
You can mount a decoder on the monitor’s VESA holes or a pole using a multi-adapter.
The multi-adapter supports the following VESA standards.
100 x 100 mm (outside)
75 x 75 mm (inside)
Mounting on the Monitor's VESA Holes
1. Fix the multi-adapter to the monitor by using four M4 L8 screws.
■
Confirm the monitor on which you intend to mount the multi-adapter meets theVESA standards.
English
CAUTION
● RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDINGTO THE INSTRUCTIONS.
● Do not ingest battery, Chemical Burn Hazard.
● This product contains a coin / button cell battery. If the coin / button
cell battery is swallowed, it can cause severe internal burns in just 2
hours and can lead to death.
● Keep new and used batteries away from children. If the battery
compartment does not close securely, stop using the product and
keep it away from children. If you think batteries might have been
swallowed or placed inside any part or the body, seek immediate
medical attention.
ATTENTION
● ILY A RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UNE
BATTERIE DETYPE INCORRECT.METTRE AU REBUT LES BATTERIES
USAGÉES CONFORMÉMENT AUX INSTRUCTIONS.
● Ne pas ingérer la pile, risque de brûlure chimique.
● Ce produit contient une pile de type bouton/pièce de monnaie. Si la pile
de type bouton/pièce de monnaie est avalée, elle peut causer de graves
brûlures internes en seulement 2 heures et peut entraîner la mort.
● Gardez les piles neuves et usagées hors de portée des enfants. Si le
compartiment de la pile ne se ferme pas correctement, cessez d’utiliser
le produit et gardez-le d’atteinte des enfants. Si vous suspectez que des
piles ont été avalées ou insérées dans une partie du corps, consultez un
médecin sans tarder.

3
2. Fasten two M3 L6 screws to the base of the decoder.
3. Make sure the screws on the base of the decoder go into the threaded holes of the multi-adapter.
■
Mount the decoder with the connecting terminal facing down.
4. Press the decoder toward the monitor and then slide it down to fix it.
■
Press the decoder until the metal spring of the multi-adapter is exposed and fix the decoder.
Disconnecting the Multi-adapter
Lift the decoder while pressing the multi-adapter's metal spring.
Mounting with Stud Screws
If it is not possible to mount the decoder on the monitor because the monitor’s VESA holes are too close to the
monitor's connecting terminal or stand, you can use stud screws to mount the decoder.
Fasten four M4 L20 stud screws in the VESA holes on the back of the monitor, and mount the multi-adapter.
M4 L20 stud screw

4
Mounting on a Pole
1. Mount the multi-adapter on the pole using a strap.
Strap for poles
2. Fasten two M3 L6 screws on the base of the decoder and mount the decoder to the multi-adapter.
■
The strap for poles (SBP-100S) is sold separately.
Connecting to an External Device
NETWORK
1
2
FRONT
USB
VIDEO
DC 12V
RESET
1 2 3 4 5 6 7
HDMI OUT HDMI OUT
NETWORK
Microphone
Camera
■
Ensure that you use only a rated power source before connecting power to the system.

5
Connecting to a Network Using a Router
If you want to add 1-3 PCs and decoders to an environment using an xDSL/Cable modem, you can use a router with
only one Internet line.
This guide is an installation guide for network beginners. Follow the instructions to set up your router, local PC, and
decoder.
Connecting the cable
NETWORK
xDSL or Cable Modem
IP Router
xDSL or Cable Modem
Windows Network Viewer
Connecting the PC and Router
■
Refer to the router’s user manual.
Connecting the Decoder and Router
Move to the <IP & Port>of the decoder <Network> Setting menu, and set the <IP address> and
<Gateway>in <Setup>.
※The <Default gateway> checked in the [cmd.exe] window of the Local PC and the <Gateway> of the
decoder must be the same.
※The first three numbers of the decoder <IP address> should match the first three of the <Default gateway>
checked in the [cmd.exe] window of the local PC.
<cmd screen>
<Decoder screen example>

6

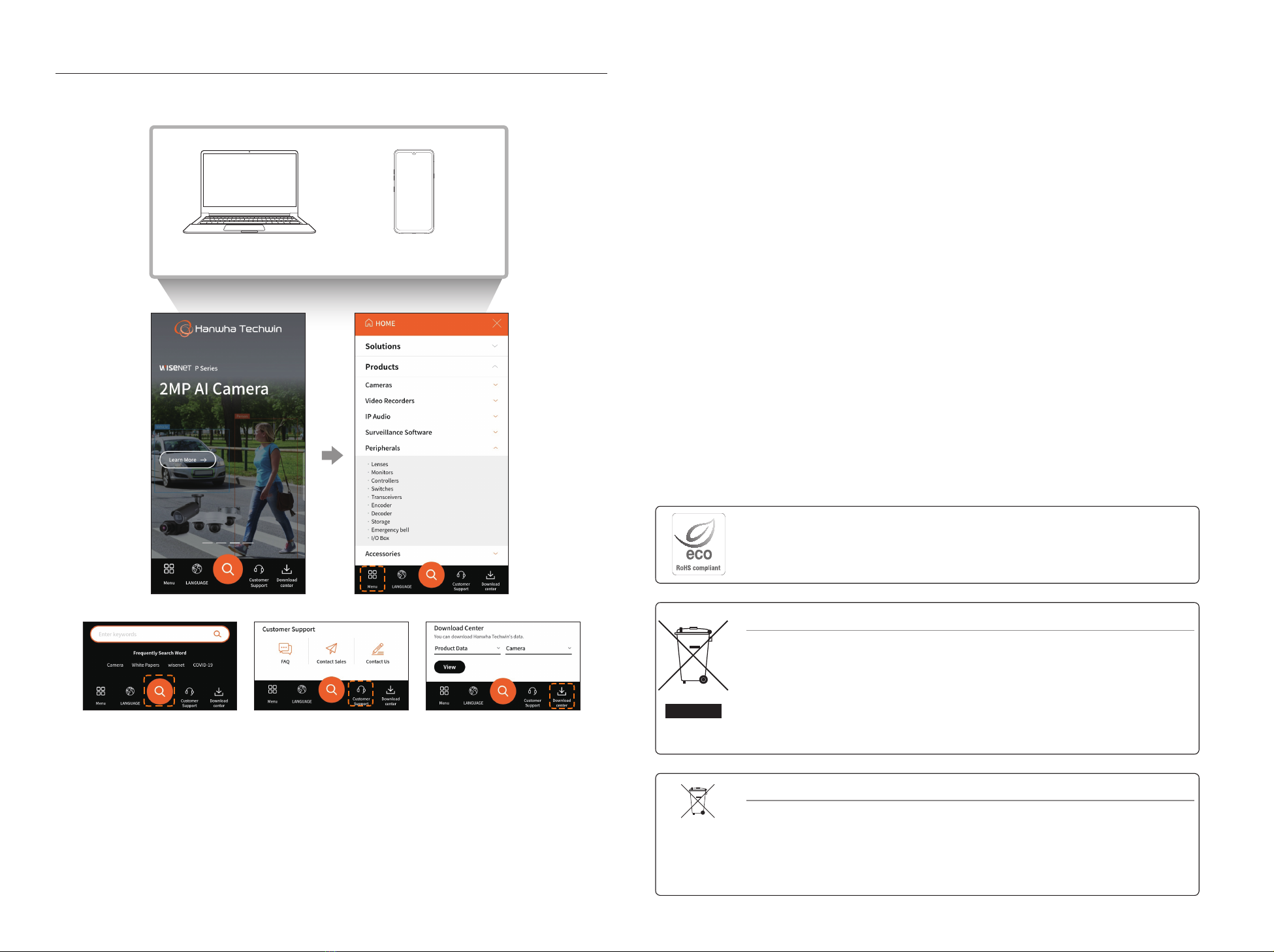

Using Product Information
You can check the product information/manual/firmware information/FAQ/HDD compatibility list on the homepage
or mobile web of your smartphone.
http://hanwha-security.com http://hanwha-security.com
