Harbor Freight Tools Kenway 58469 Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back
of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep
this manual and the receipt in a safe and dry place for future reference. 21d
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2021 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
To ol s r eq ui r ed f o r as s em bl y a nd se rvice m a y not be i nc luded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 58469
Specifications
Battery Type 3.7V / 6000mA Rechargeable Li-ion
Charger Rating 5V / 2A
Charge Time 11 hours
Connector / Transmitter 4-Way Flat / 7-Pin Round

Page 3For technical questions, please call 1-888-866-5797.Item 58469
Important Safety Information
1. Observe posted speed limits to
prevent lights from blowing off.
2. Securely attach lights to
vehicle before moving.
Loose lights are a traffic hazard.
3. Thoroughly test vehicle lights
and tow lights before use.
4. Mount lights in proper orientation.
Red lights must face backward.
Improper orientation can confuse or
distract drivers, causing a traffic hazard.
5. Turn off vehicle and set the parking
brake before installation or testing.
6. Do not use on marine trailers
(such as boat trailers). Not submersible.
7. Wear ANSI-approved impact safety
goggles and heavy-duty work gloves
during installation and use.
8. Do not modify the Towing Light Kit and
do not use the Towing Light Kit for a
purpose for which it was not intended.
9. Inspect before use; do not use if parts
are loose or damaged. Inspect wires
and connections for insulation damage
or loose wires and repair before use.
10. People with pacemakers should
consult their physician(s) before use.
Electromagnetic fields in close
proximity to heart pacemaker could
cause pacemaker interference
or pacemaker failure.
11. This product is not a toy. Keep it
out of reach of children.
12. Check light position and function
regularly when towing, especially
on rough or uneven surfaces, or
in windy conditions. The magnets
may loose their grip on the vehicle
under extreme circumstances.
13. Li-Ion BATTERY MUST BE RECYCLED
OR DISPOSED OF PROPERLY.
Do not short, incinerate or open battery.
14. The warnings, precautions, and
instructions discussed in this instruction
manual cannot cover all possible
conditions and situations that may
occur. It must be understood by the
operator that common sense and
caution are factors which cannot
be built into this product, but must
be supplied by the operator.
SAVE THESE INSTRUCTIONS.

Page 4 For technical questions, please call 1-888-866-5797. Item 58469
Setup
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this document including all text under subheadings therein
before set up or use of this product.
Towing Vehicle Installation
1. Before installing, check the battery
power of each light by pressing
the Power button. If less than two
indicator lights turn on, charge
each light fully before operation.
A full charge will take 11 hours.
2. To help avoid scratches, clean
the mounting locations and make
sure the magnetic bases are free
of debris before mounting.
3. Set the lights on the back of the
vehicle being towed so that the red
side of each light faces backwards.
4. Each light is clearly marked with
‘Driver’ and ‘Passenger,’ indicating
the side of the tow vehicle where
they should be placed. Mount lights
according to these markings.
5. Mount the tow lights high, whenever
possible. Try to maintain a distance
of 6 to 8 feet between the two
tow lights. Choose a location that
offers complete visibility to ALL
following vehicles at ALL times.
Note: Check your state’s regulations
on tail light spacing.
6. CAUTION! Have an assistant
operate the vehicle’s lights while
you carefully check that the
vehicle lights and the towing
lights all work properly.
• The tow lights should both
light when the towing vehicle’s
running lights are switched on.
• The tow lights should both light
brightly as you apply the brake.
• The tow lights should flash
brightly for left turn and right
turn, AND match tow vehicle
flashing with respect to driver
side or passenger side.
If ANY function of the vehicle
lights or towing lights does not
work, do not drive the towing
vehicle until all lights are repaired
and retested successfully.
Charging
1. Insert the end of the Charging Cable into
the charge port underneath each light.
2. Plug other end of the Charging Cable
into the USB port of the Charger.
3. Plug Charger into a 2A electrical outlet.
4. To charge the lights while inside your
vehicle, connect Charging Cable
to the Cigarette Plug Charger.
5. Connect Cigarette Plug Charger to the
vehicle’s cigarette plug, if provided.

Page 5For technical questions, please call 1-888-866-5797.Item 58469
Operation
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this document including all text under subheadings therein
before set up or use of this product.
TO PREVENT SERIOUS INJURY OR DEATH FROM DRIVING HAZARDS:
Park on level area away from traffic and set vehicle parking brake/chock
tires. Test operation of all lights before every use. Troubleshoot and repair
before using. Do not use while trailer light operation does not match
vehicle light operation, if any lights do not light up, or if any lights flicker.
Operating Instructions
1. Connect Transmitter to the four-
pin or seven-pin towing light
connector on the tow vehicle.
WARNING: Make sure the Transmitter
is secured to the body or chassis of
the tow vehicle and is not hanging
anywhere near the road surface.
2. Press the Power button at the top of
each light TWICE to turn on. Each
light will flash briefly when turned on.
3. The Towing Light Kit is now ready for
use. It will automatically illuminate
when running lamps, brake pedal or turn
signals in the towing vehicle are used.
4. Test each vehicle function before
towing, making sure that tow
lights respond properly.
5. After towing, disconnect Transmitter,
remove tow lights from towed vehicle,
clean with a moist cloth, and store in
dry location out of reach of children.
Do not drag the magnetic bases to
disconnect, as they may scratch the
body paint. Push to tilt then remove.
Battery Disposal
1. Using a hammer (sold separately),
break the light open from the
side, where the lens and housing
are welded together.
2. Remove the lens.
3. Using a screwdriver (sold
separately), disassemble the circuit
board to access the battery.
4. Remove the battery.

Page 6 For technical questions, please call 1-888-866-5797. Item 58469
Troubleshooting
Problem Possible Causes
No lights light up. 1. Vehicle’s running lights off.
2. Loose connection on tow vehicle wiring harness.
3. Batteries in lights are empty.
4. Transmitter not plugged into tow vehicle
or connection is loose.
Trailer light operation does not
match vehicle light operation.
Tow vehicle harness not wired properly
to vehicle electrical system.
A specific light does not
light up or flickers.
Light or transmitter is faulty.
All lights flicker. Transmitter is loose.
Vehicle’s fuse blows repeatedly. Short circuit somewhere in wiring or lights.
Diagnose to isolate and repair the problem.
Follow all safety precautions whenever diagnosing or servicing the lights.
Park on level area away from traffic and set vehicle parking brake/chock tires.

Page 7For technical questions, please call 1-888-866-5797.Item 58469
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST
AND INSTALLATION DIAGRAM IN THIS DOCUMENT AS A REFERENCE TOOL ONLY.
NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR
WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE
ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE
BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR
HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR
ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

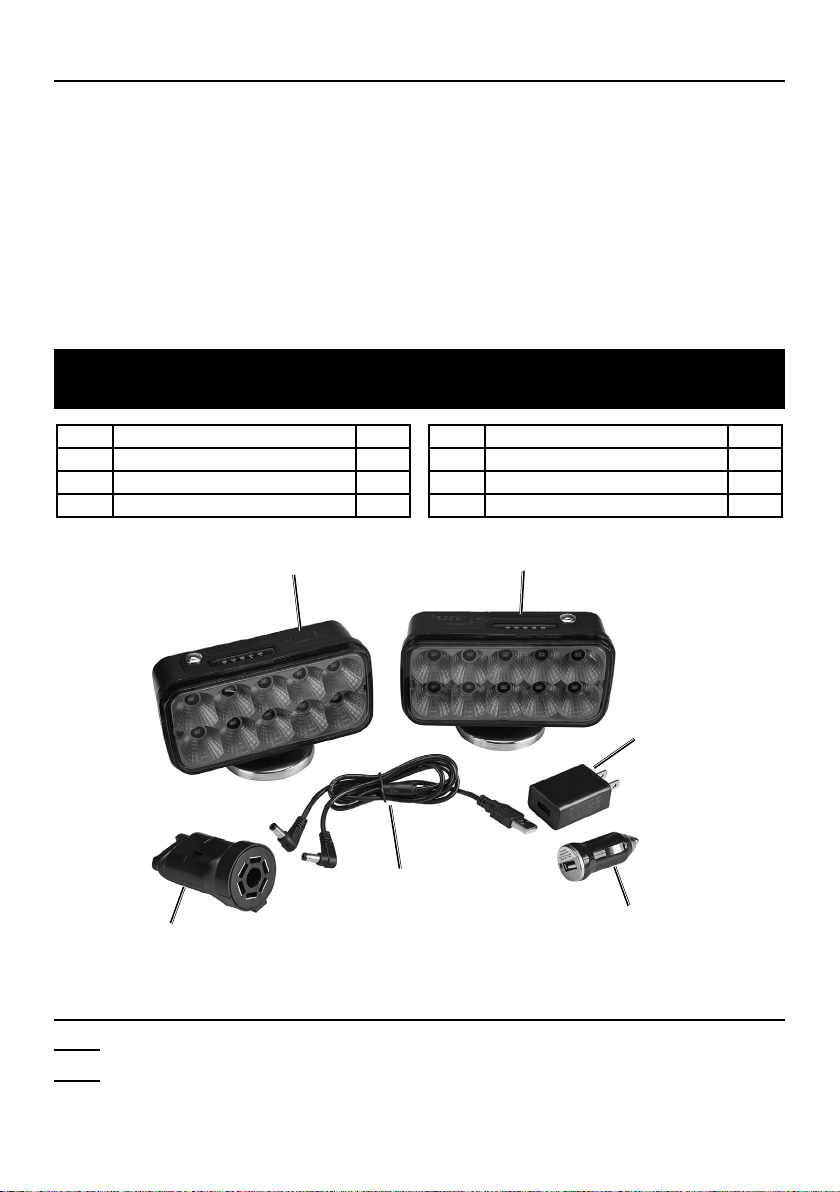

Parts List and Diagram
Part Description Qty.
1 Tow Light Driver Side 1
2 Tow Light Passenger Side 1
3 7-Pin/4-Pin Wireless Transmitter 1
Part Description Qty.
4 5V 2A Charger 1
5 USB Charging Cable 1
6 Cigarette Plug Charger 1
Record Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175439819 when ordering parts.
Light (Driver Side) Light (Passenger Side)
USB Charging
Cable
Transmitter
Cigarette Plug
Charger
Charger

Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality
and durability standards, and warrants to the original purchaser that this product is free from
defects in materials and workmanship for the period of 90 days from the date of purchase.
This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence
or accidents, repairs or alterations outside our facilities, criminal activity, improper installation,
normal wear and tear, or to lack of maintenance. We shall in no event be liable for death,
injuries to persons or property, or for incidental, contingent, special or consequential damages
arising from the use of our product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation of exclusion may not apply to you.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation
charges prepaid. Proof of purchase date and an explanation of the complaint must accompany
the merchandise. If our inspection verifies the defect, we will either repair or replace
the product at our election or we may elect to refund the purchase price if we cannot readily
and quickly provide you with a replacement. We will return repaired products at our expense,
but if we determine there is no defect, or that the defect resulted from causes not within
the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
26541 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
