Harbor Freight Tools 45114 User manual

NIGHT VISION GOGGLESNIGHT VISION GOGGLES
NIGHT VISION GOGGLESNIGHT VISION GOGGLES
NIGHT VISION GOGGLES
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
For technical questions and replacement parts, please call 1-800-444-3353
45114
®
Copyright © 2002 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any
artwork contained herein may be reproduced in any shape or form without the express written consent
of Harbor Freight Tools®.
45114.p65 6/10/03, 9:42 AM1

SKU 45114 Page 2
Specifications
Save This Manual
You will need the manual for the safety warnings and precautions, assembly
instructions, operating and maintenance procedures, parts list and diagram. Keep
your invoice with this manual. Write the invoice number on the inside of the front
cover. Keep the manual and invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING: When using this product, basic safety precautions should always
be followed to reduce the risk of personal injury and damage to equipment.
Read all instructions before using this product!
1. Keep this product away from children. This product is not a toy. Children
should not use this product unless they are under close adult supervision.
2. Store this product properly. When not in use, this product should be
stored in its carrying case in a dry location, at room termperature, away from
heating appliances and out of direct sunlight. Remove the battery when
storing this product. Always keep this product out of reach of children.
3. Use the right product for the job. There are certain applications for which
this product was designed. It will do the job better and more safely at the rate
for which it was intended. Do not modify this product and do not use this
product for a purpose for which it was not intended.
ITEM
Unit Weight
Power Supply
Battery Life/Type
Overall Dimensions
Optic Magnification
Angular Field of View
Range of Visibility
Illumination Intensity
Operating Temperature
Operating Humidity
Radiating Power of
Illuminator
DESCRIPTION
2.05 Lbs. (Goggles only)
2.45 Lbs. (Goggles & Bag)
3 Volt, CR123 Size Battery x 1
25 Hours (Goggles use only),7 Hours
(Goggles & Illuminator) / 3V CR123
4-1/16”W x 5-1/2”L x 4-1/8”H
1x
40º
100 Meters or 328 Feet
80 Lux (Max.)
-10ºC to 40ºC or 14ºF to 104ºF
80% or less
(not water proof or water resistant)
6mW
Rev 04/03
45114.p65 6/10/03, 9:42 AM2

SKU 45114 Page 3
4. Use this product in dark or night conditions only. This product is for use
under the natural light of the stars and/or moon, or in total darkness with the
Illuminator switched on. Do not use these Goggles in daylight or under bright
light conditions. The lens caps must be in place if the Goggles are in bright
or semi-bright conditions. Failure to do so may cause permanent damage to
the product. Never use Goggles to look directly into the sun.
5. Maintain this product with care. Goggles must be kept clean, dry and free
of grease at all times. Wipe external lenses with a clean, soft napkin or
cotten moistened with alcohol or ether.
6. Avoid sharp changes in temperature. If Goggles are brought from a cold
area into a warm area, keep them closed in their carrying case for one hour
to avoid condensation on the inside parts of the Goggles.
7. Check for damaged parts. Before using any product, any part that appears
damaged should be carefully checked to determine that it will operate
properly and perform its intended function. Any part that is damaged should
be properly repaired or replaced by a qualified technician.
8. Guard against electric shock. Keep this product clean and dry to protect
against electric shock.
9. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty.
10. Do not operate tool if under the influence of alcohol or drugs. Read
warning labels on prescriptions to determine if your judgment or reflexes are
impaired while taking drugs. If there is any doubt, do not operate the product.
11. Maintenance. For your safety, service and maintenance should be
performed regularly by a qualified electro-optical technician.
Warning: People with pacemakers should consult with their physician(s)
before using this product; operation of equipment in close proximity to a heart
pacemaker could cause interference or failure of the pacemaker.
Warning: The warnings, cautions, and instructions discussed in this instruc-
tion manual cannot cover all possible conditions and situations that may oc-
cur. It must be understood by the operator that common sense and caution
are factors which cannot be built into this product, but must be supplied by
the operator.
Unpacking
When unpacking, check to make sure all parts listed on Page 6 are included.
If any parts are missing or broken, please call Harbor Freight Tools at the number
on the cover of this manual.
45114.p65 6/10/03, 9:42 AM3

SKU 45114 Page 4
General Information on Night Vision Devices
This electro-optical device aids in viewing objects in near or total darkness, by
amplifying the existing light of the moon or stars. If no light is present, the illumi-
nator acts as an external light source.
When viewing an object through the Goggles, you are actually seeing an image
that is projected from the intensifier tube within the device. The objective lens
captures the external light and directs it to the front of the intensifier tube. The
battery power source then passes energy through the intensifier tube, causing
electrons to strike the phosphor screen. The image in the intensifier tube is then
magnified by the eyepiece.
Night Vision Goggles are excellent for viewing wildlife, search and rescure
operations, surveillance, boating safety, home security and camping.
Operation
All numbered parts refer to those listed in the Product Features and Assembly
Diagram on Page 6.
Installing the Battery
Unscrew the cap to the Battery Compartment [6]. Insert one 3-Volt battery.
Replace cap tightly. Never remove the lens caps in bright or semi-bright conditions.
1. Before taking your Goggles out into a dark environment, check that they are
working properly. Depress the Power Switch [5] green button, and hold for 2-3
seconds. You should see a green glow when you look through the Eyepieces
[3]. Do not remove lens caps until you are in a dark or near-dark environment.
Note: The small red LED above each eyepiece indicates power is on.
2. In a near dark environment, remove the lens caps from the Objective Lenses
[1] and depress the Power Switch, holding it continuously while viewing. If you
are in an environment with almost no external light, press the Illuminator
Switch [7] red button, to activate the Illuminator [2]. Note: the sliding switch
above the Illuminator tube is low/high illuminator output.
3. Turn the Eyepieces and the Objective Lenses to bring objects into focus. The
Illuminator lens turns in and out to vary the width of the beam.
4. When you have finished using the Goggles, turn off the Illuminator Switch and
release the Power Switch. Note: Make sure you turn off the Illuminator Switch,
as it will drain the battery quickly,
5. Replace lens caps immediately.
6. If the Night Vision Goggles fail to work properly, they should be taken to an
optical service technician for repair; do not try to service the unit yourself.
Rev 04/03
45114.p65 6/10/03, 9:42 AM4

SKU 45114 Page 5

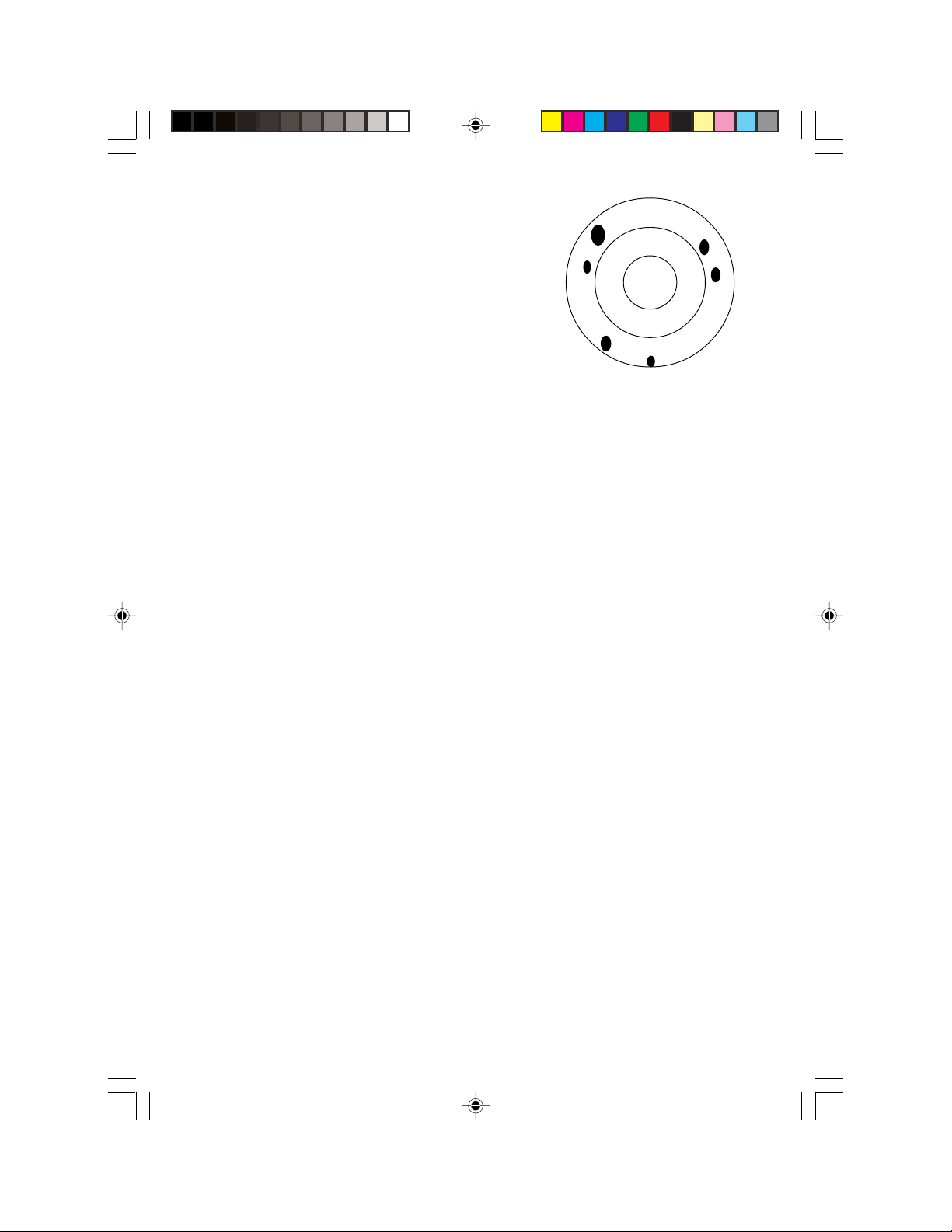

Tube Screen Appearance
Light and dark spots caused by the image con-
verter tube may be visible in the field of view as
shown at right. These are normal and not consid-
ered imperfections by Image Intensifier Standards.
Most of the distortion will occur in the peripheral
area, not in the center.
Troubleshooting
1. The screen does not glow green when the Power Switch is held in the
On position: Check the battery. Make sure it is charged and properly
installed.
2. The image fades or disappears completely: If you are in complete
darkness and have not already done so, turn on the Illuminator. You also
may have pointed the Goggles at an intense light source, in which case the
Goggles may have shut down to protect the intensifier tube. Turn the Power
Switch Off, and wait five minutes before turning it back On again.
3. Unable to properly focus: Try adjusting the focus on both the Eyepieces
and the Objective Lenses. You may also try cleaning the Lens with
professional cleaning supplies.
Maintenance
1. Always clean Lenses with professional supplies or dry, compressed air.
Never wipe dust or dirt off of the Lenses.
2. Clean the Body [4] with a dry, soft cloth.
3. Store Goggles in a dry, well ventillated location. Never store near a heater,
air conditioner, or direct sunlight. Store Goggles out of children’s reach.
4. Remove battery when not in use.
45114.p65 6/10/03, 9:42 AM5

SKU 45114 Page 6
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER
NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO
THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE
PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE
PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS
OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
DESCRIPTION
Objective Lens
Illuminator
Eyepieces
Body
Power Switch
Battery Compartment
Illuminator Switch
ITEM
1
2
3
4
5
6
7

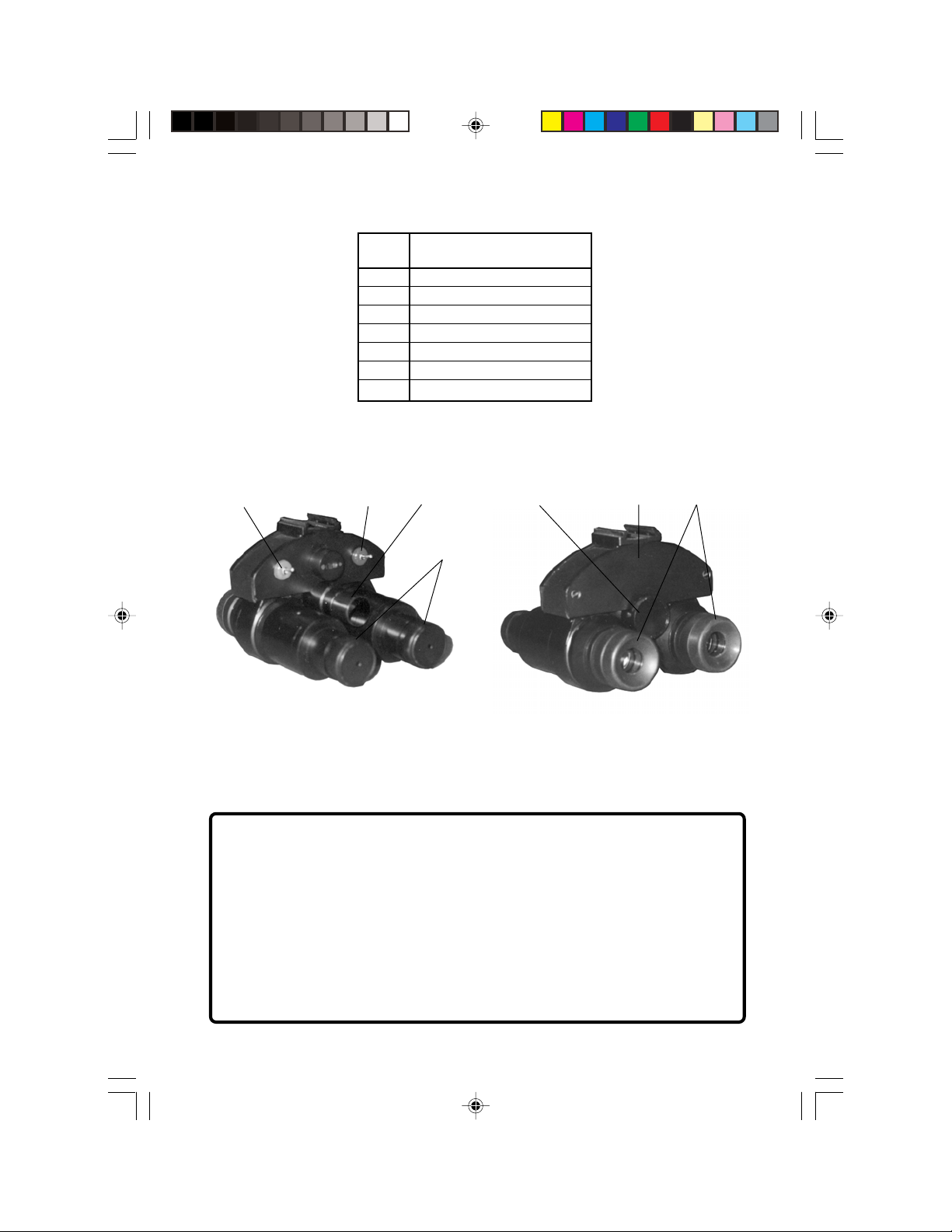

Product Features
Assembly Drawing
NOTE: Parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
Front Back
1
42 35 67
