Harbor Freight Tools CENTRAL PNEUMATIC 40050 User manual

AIR BRAD NAILER KITAIR BRAD NAILER KIT
AIR BRAD NAILER KITAIR BRAD NAILER KIT
AIR BRAD NAILER KIT
18 GAUGE18 GAUGE
18 GAUGE18 GAUGE
18 GAUGE
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit ourWeb site at http://www.harborfreight.com
Copyright©2002, 2004 by Harbor Freight Tools®. All rights reserved. No
portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353.
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
40050
40051
MODELS
REV 08/04
Brought to You by www.snapwhole.com

SKU 40050 & 40051 Page 2For technical questions, please call 1-800-444-3353.

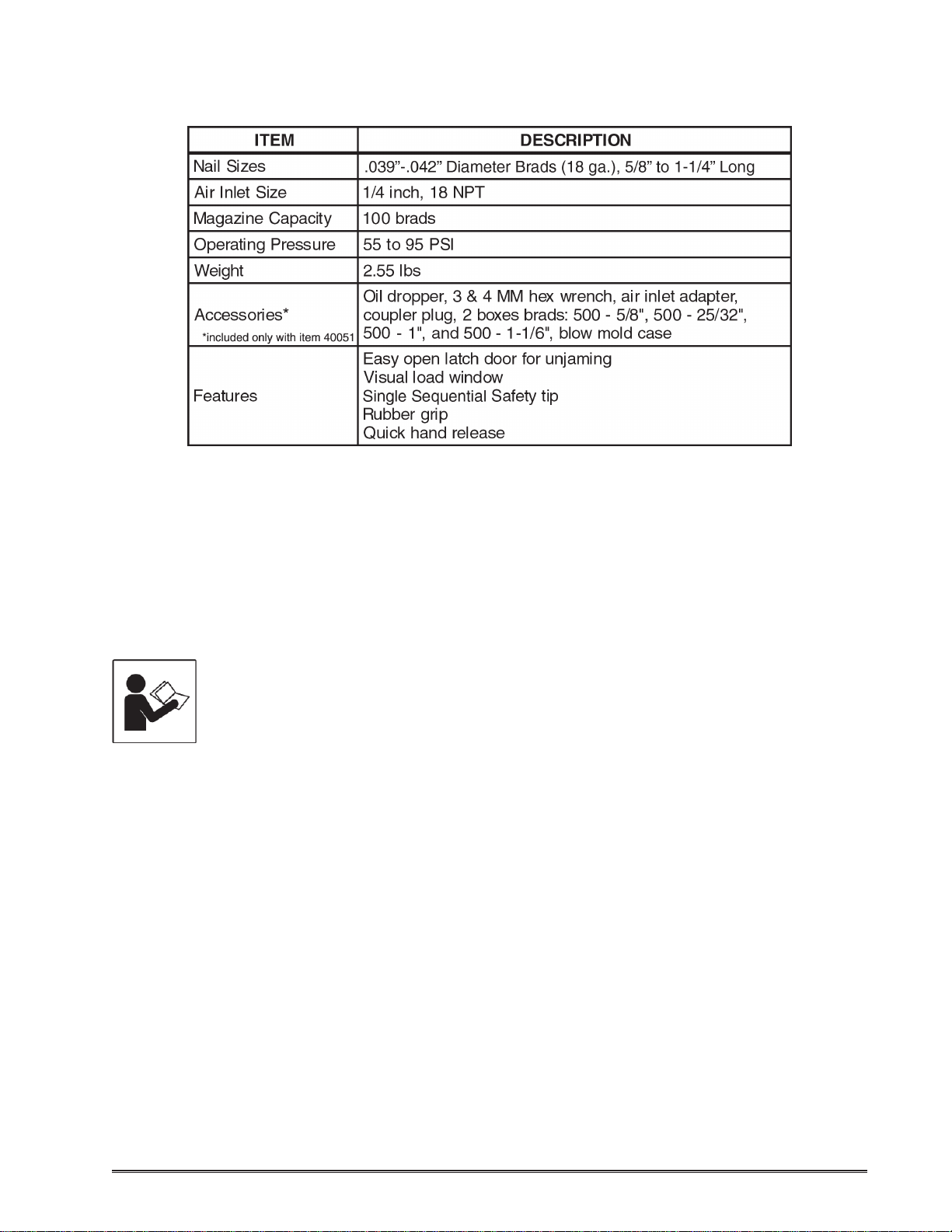

Specifications
SaveThis Manual
You will need the manual for the safety warnings and precautions, assembly instructions,
operating and maintenance procedures, parts list and diagram. Keep your invoice with this
manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.
Safety Warnings and Precautions
WARNING: When using tool, basic safety precautions should always be
followed to reduce the risk of personal injury and damage to equipment.
Read all instructions before using this tool!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in damp or wet
locations. Donot exposetorain. Keepworkarea welllit. Do notuse electricallypowered
tools in the presence of flammable gases or liquids.
3. Keep children away. Children must never be allowed in the work area. Do not let them
handle machines, tools, extension cords, or air hoses.
4. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit
rust. Always lock up tools and keep out of reach of children.
5. Use the right tool for the job. Do not attempt to force a small tool or attachment to do
the work of a larger industrial tool. There are certain applications for which this tool was
designed. It will do the job better and more safely at the rate for which it was intended.
Donot modifythis tooland donot usethis toolforapurpose for which it wasnotintended.
6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in moving
parts. Protective, electrically non-conductive clothes and non-skid footwear are
recommended when working. Wear restrictive hair covering to contain long hair.
REV 08/04
Brought to You by www.snapwhole.com

SKU 40050 & 40051 Page 3For technical questions, please call 1-800-444-3353.
7. Do not overreach. Keep proper footing and balance at all times. Do not reach over or
across running machines or air hoses.
8. Use eye and ear protection. AlwayswearANSI approved impactsafety goggles
and appropriate hearing protection. Wear a full face shield if you are producing
metal filings or wood chips. Wear an ANSI approved dust mask or respirator
whenworkingaround metal, wood, and chemical dusts and mists. Other people
in the work area must also wear ANSI approved impact safety goggles.
9. Maintain tools with care. Keep tools clean for better and safer performance. Follow
instructions for lubricating and changing accessories. Inspect tool cords and air hoses
periodically and,if damaged,havethem repairedbyanauthorizedtechnician.Thehandle
must be kept clean, dry, and free from oil and grease at all times. Do not operate a tool
if any portion of the tool’s operating controls are inoperable, disconnected, altered or not
working properly.
10. Disconnect Air Hose and release any built-up air pressure. Neverservicethe Nailer,
clear jams, or disassemble with the air hose attached. Always release any built-up air
even after disconnecting hose. Disconnect the Nailer when not in use.
11. Remove adjusting keys and wrenches. Check that keys and adjusting wrenches are
removed from the tool or machine work surface before attaching to an air source.
12. Avoid unintentional starting. Be sure the trigger is in the Off position when not in use
and before plugging in.Do not carry any tool with your finger on the trigger, whether it is
attachedto anair sourceor not. Do not point thetool towardsyourselfor anyonewhether
it contains fasteners or not.
13. Stay alert. Watch what you are doing, use common sense. Do not operate any tool
when you are tired.
14. Check for damaged parts. Before using any tool, any part that appears damaged
should be carefully checked to determine that it will operate properly and perform its
intended function.Check for alignment and binding of moving parts;any broken parts or
mounting fixtures; and any other condition that may affect proper operation. Any part
that is damaged should be properly repaired or replaced by a qualified technician. Do
not use the tool if the trigger does not operate properly.
15. Guard against electric shock. Prevent body contact with grounded surfaces such as
pipes, radiators, ranges, and refrigerator enclosures.
16. Replacement parts and accessories. This product is to be repaired and serviced only
by a qualified technician. When this product is serviced, only identical replacement
parts should be used.Use of any other parts will void the warranty.Only use accessories
intended for use with this tool. Approved accessories are available from Harbor Freight
Tools.
17. Do not operate tool if under the influence of alcohol or drugs.Read warning labels
if taking prescription medicine to determine if your judgement or reflexes are impaired
while taking drugs. If there is any doubt, do not operate the tool.
18. Use proper size and type extension cord. If an extension cord is required, it must be
of the proper size and type to supply the correct current to the compressor without
Brought to You by www.snapwhole.com

SKU 40050 & 40051 Page 4For technical questions, please call 1-800-444-3353.
heating up. Otherwise, the extension cord could melt and catch fire, or cause electrical
damage to the tool.Check your air compressor’s manual for the appropriate size cord. It
isalso possiblethat the use of an extension cord may cause yourcircuitbreakerto trip or
your panel fuse to break. If this happens, either use the compressor without an exten-
sion cord or find a larger amperage circuit to use.
19. Maintenance. Themaintenanceoutlinedinthemaintenancesectionshould be performed
regularly. For your safety, this product should be serviced or repaired regularly only by a
qualified technician.
20. Compressed air only. Never use combustible gas as a power source.
21. Do not load nails with the trigger or safety depressed. Unintentional firing
may occur. Do not load nails when the air hose is connected to the tool. Always
assume that the tool contains fasteners.
22. Disconnect air supply before loading Nailer. Before reloading (or making any
adjustments to) the Nailer make sure that the compressed air is disconnected.
23. Fire fasteners into an appropriate work surface only. Donot attempt to fire fasteners
into surfaces too hard to penetrate. Do not drive fasteners on top of other fasteners, or
at too steep of an angle. Fasteners can ricochet causing personal injury. Never fire the
Nailer into the air, or point it toward yourself or another person. Always wear ANSI
approved safety goggles during use, maintenance, and reloading.
24. Do not fire fasteners too close to the edge of a workpiece. They may split the
workpiece and fly free, causing personal injury.
25. Take caution as some woods contain preservatives such as copper chromium
arsenate (CCA) which can be toxic. When stapling or nailing these materials extra
care should be taken to avoid inhalation and minimize skin contact.
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities, contain chemicals known [to the State of California] to
cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement or other masonry products
• Arsenic and chromium from chemically treated lumber
(California Health & Safety Code 25249.5, et seq. )
26. Stay within air pressure capacity.Never operate the Nailer above 95 PSI.
27. Hold tool away from head and body. Duringoperationthe Nailer maykickbackcausing
injury.
28. Transport Nailer safely. Always disconnect air supply when moving the tool in the
workplace. Carry the tool by the handle and avoid contact with the trigger.
29. Avoid working alone. If an accident happens, an assistant can bring help.
Note: Performance of the compressor (if powered by line voltage) may vary depending on
variations in local line voltage.Extension cord usage may also affect tool performance.
Brought to You by www.snapwhole.com

SKU 40050 & 40051 Page 5For technical questions, please call 1-800-444-3353.
Warning:The warnings, cautions,and instructions discussed in this instruction manual
cannotcover all possible conditions and situations that mayoccur.Itmust be understood
by the operator that common sense and caution are factors which cannot be built into
this product, but must be supplied by the operator.
Hex Wrenches
Oil Dropper
Air Brad Nailer
4 - Boxes of Brads
Unpacking
When unpacking, check to make sure the following parts are included.If any parts are
missing or broken, please call Harbor FreightTools at the number on the cover of this manual
as soon as possible.
Operation

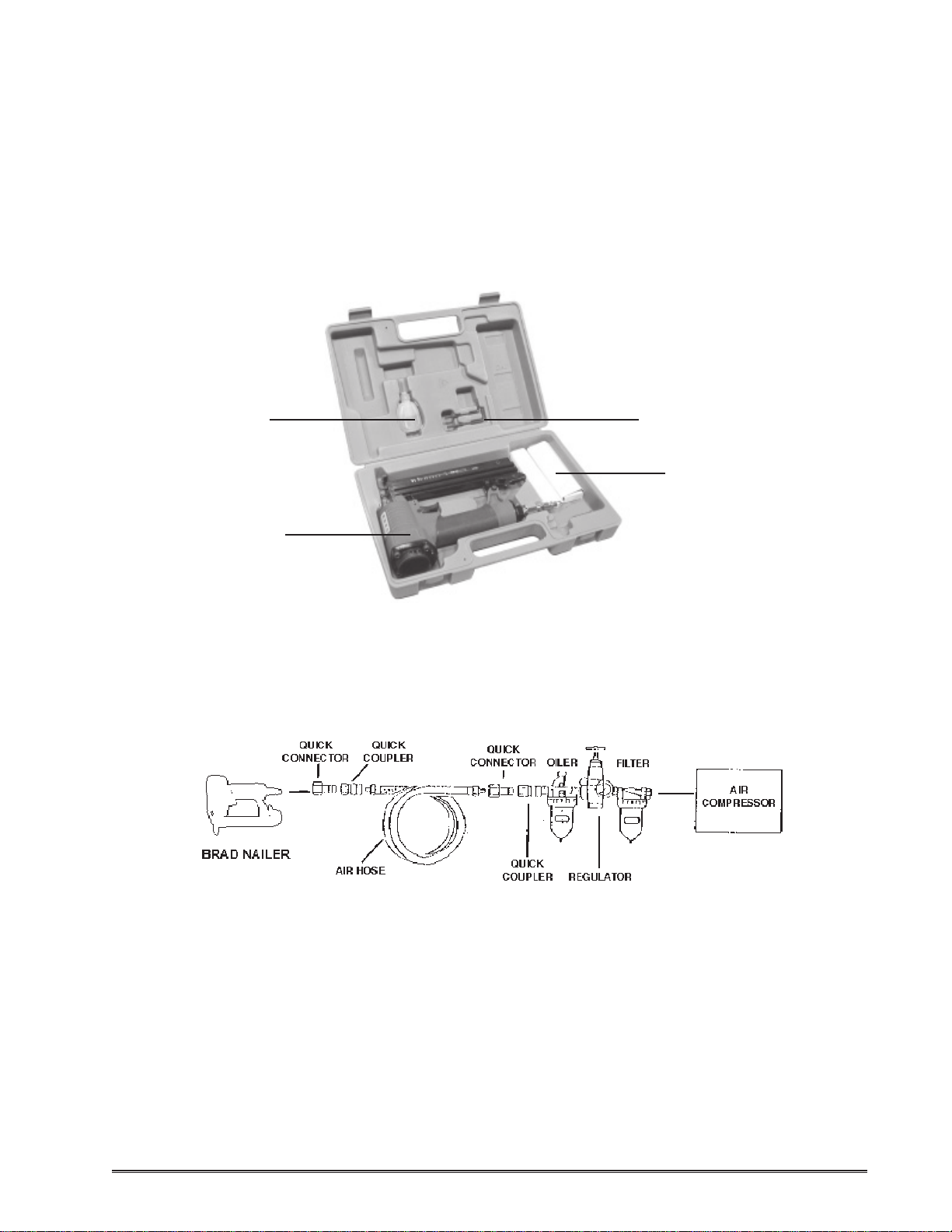

For best service, youshould incorporatean oiler,regulator,and inline filter,as shownin
the diagram below. Hoses, couplers, oilers, regulators, and filters are all available at Harbor
FreightTools.
Note: To connect this tool, we recommend you use the included quick coupler/adapter. For
smoother operation and to extend the life-span of the tool, put 3-5 drops of pneumatic
tool oil in the 1/4” NPT Air Plug (72) before each use.
Testing the Single Sequential SafetyTrip Mechanism
Warning: Even though the nailer should be empty during this procedure,ALWAYS point
the nailer at a piece of scrap wood when testing.
1. Make sure the tool is disconnected from the power supply.
2. Completely empty the magazine of nails. REV 08/04
Brought to You by www.snapwhole.com

SKU 40050 & 40051 Page 6For technical questions, please call 1-800-444-3353.
3. The Nailer should not fire if the nose is not depressed against the workpiece.
4. Check that the Trigger (37) and the Safety (42) or “nose” move freely, without sticking -
see the illustration at the bottom of this page.
5. Connect the air supply to the tool at the 1/4” NPT Air Plug (72) set at the recommended
55-95 PSI, and set not to go over the maximum 95 PSI.
6. Test the tool by depressing the Safety (42) against the workpiece without pulling the
Trigger (37). The tool must not cycle (fire). If it cycles (fires), stop immediately and
have it repaired by a qualified service technician.
7. Hold the tool away or off of the workpiece. The Safety (42) of the tool should return to its
original position. Squeeze theTrigger (37). The tool should not cycle (fire). If it cycles
(fires), stop immediately and have it repaired by a qualified service technician.
8. Depress the Safety (42) against the workpiece and squeeze the Trigger (37). The tool
must cycle (fire) once only. Release the trigger and squeeze it again. The tool must
cycle (fire) once only. With theTrigger held, carefully lift the nailer and press it against
the workpiece again. The tool must not cycle (fire). If it fails to act in the manner
explained in bold, have it repaired by a qualified service technician.
Operation (continued)
Loading Brad Nails
ALWAYS WEAR ANSI APPROVED IMPACT SAFETY GOGGLES WHEN
RELOADING OR DOING ANY OTHER MAINTENANCE ON THIS TOOL. Other
people in the work area must also wear ANSI approved impact safety goggles.
Warning! Make sure the Nailer is not attached to the air hose whenever loading the
tool.

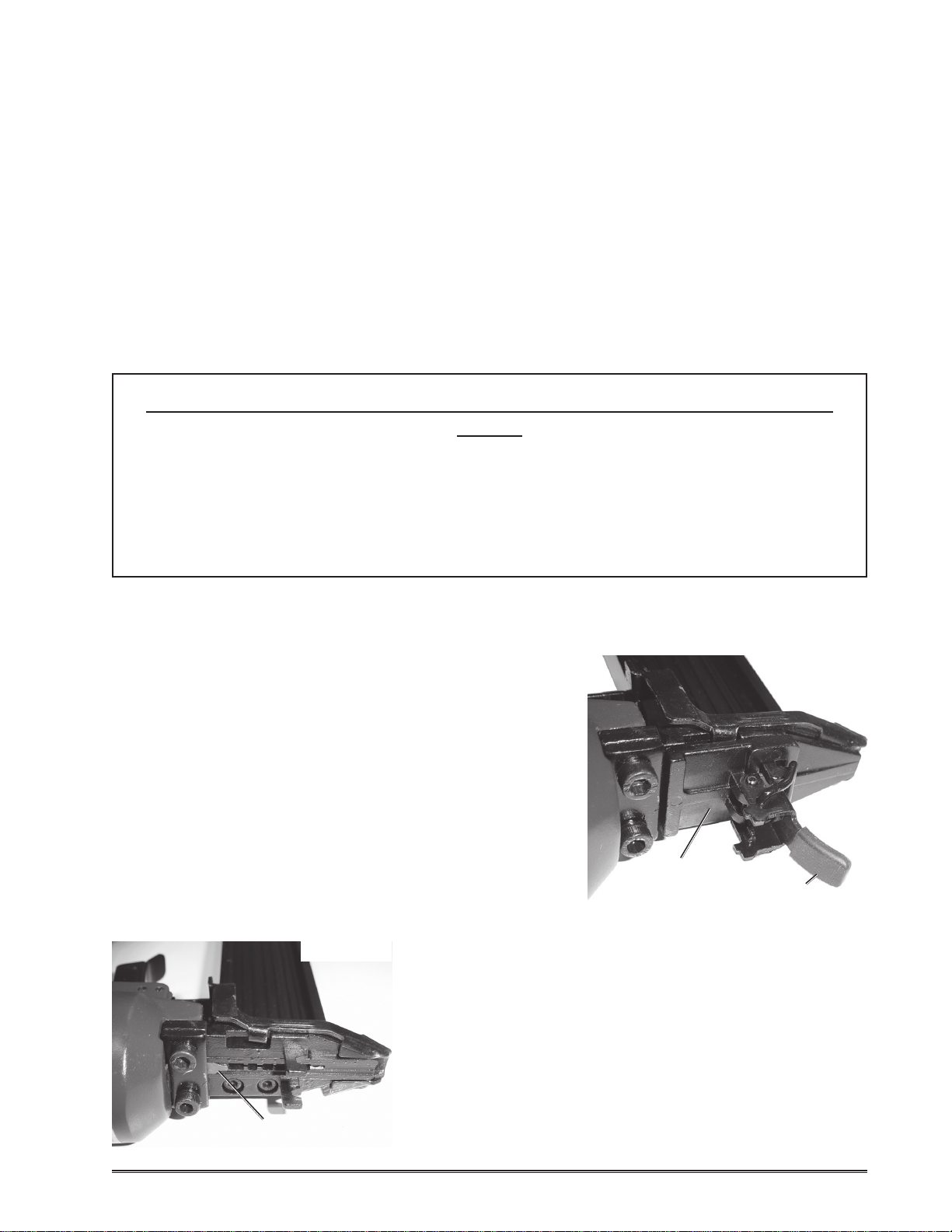

1. Depress the Latch (67) to release the Inner Magazine (58) and pull the magazine out
fully. See the illustration, below.
2. Place a full clip of the specified type and size brad nails on the Outer Magazine.Refer to
the Specifications on page 2 for brad nail sizes.
3. Push the Inner Magazine (58) back over the Outer Magazine (51) and secure it with the Latch
(67).
Driver Guide
Cover (45)
Air Plug (72)
Latch (67)
Outer Magazine
(51)
Clip of Brads
Trigger (37)
Inner Magazine (58)
Body (24)
Brought to You by www.snapwhole.com

SKU 40050 & 40051 Page 7For technical questions, please call 1-800-444-3353.
Operation (continued)
Operating the Nailer
1. Attach the Nailer to the air supply at the 1/4” NPT Air Plug (72). Start your compressor
and check the pressure making sure it is set at the recommended 55-95 PSI and not to
go over the maximum 95 PSI.
2. To fire, place the nose of the Nailer on the workpiece. The Nailer should not fire if the
nose is not depressed. Once depressed, gently and briefly squeeze the Trigger (37)
once. Do not fire repeatedly. Nails could bounce off of one another, damaging the
work piece or causing PERSONAL INJURY.
Anytime any maintenance or repairs are done (including clearing jams),
FIRST:
1. Disconnect the Nailer from the air hose.
2. Empty the Outer Magazine (51) completely.
3. Attempt to fire the Nailer into a piece of scrap wood to ensure that it is disconnected
and is incapable of firing any brads.
1. Disconnect tool from air hose, empty the Outer
Magazine (51) of nails, release any built-up air
pressure, and leave the magazine open, as
explained above.
2. While doing this step and the next, hold the Nailer
pointed away from you and any other people or
fragile objects. Pull the Quick Release Lever (42)
forward to the position shown in Figure 1. Remove
the Driver Guide Cover (45).
FIGURE 2
Driver (18)
3. Removethe jammednail. Pliers may benecessary
to remove a stuck nail.
4. Inspect the Driver (18) for bends or breakage - see
Figure 2 . If it is damaged, do not use the tool until
it is repaired by a qualified technician.
Clearing Jams
FIGURE 1
Driver Guide
Cover (45) Quick Release
Lever (42)
Brought to You by www.snapwhole.com

SKU 40050 & 40051 Page 8For technical questions, please call 1-800-444-3353.
Maintenance
1. Inspect the Air Nailer frequently and lubricate periodically with Pneumatic tool oil, then
wipe dry.
Do not use detergent oil or additives as these lubricants will cause accelerated wear to
the internal seals.
2. Inspecttheair supplyfilter,if present,beforeeach useand cleanor replaceas necessary.
Dirt and waterin the air supply are major causesof pneumatic tool wear.Use afilter/oiler
for better performance and longer tool life.The filter must have adequate flow capacity
for the specific application.
3. Store the unit in a clean and dry location.
4. Allmaintenance,service,or repairsnot listed in this manual are onlytobeattempted
by a qualified technician.
Anytime any maintenance or repairs are done, FIRST:
1. Disconnect the Nailer from the air hose.
2. Empty the Outer Magazine (51) completely.
3. Attempt to fire the Nailer into a piece of scrap wood to ensure that it is disconnected
and is incapable of firing any brads.
4. Always leave the Inner Magazine (58) open during maintenance. The Magazine
is spring-loaded and may cause parts or a nail to fly out of the Nailer.
5. Lightlyoil theDriver(18). ReplacetheDriverGuide
Cover (45) and latch the Quick Release Spring
(48) under both hooks, making sure it is securely
in place and the Quick Release Lever (42) is
pressed down - see Figure 3 .
6. Reload the Nailer.
7. Reconnect the Nailer to the air hose.
8. Press the Safety (42) of the Nailer against an
appropriate piece of scrap wood.
9. Test fire the Nailer several times, checking for
proper operation.
10. Disconnect the Nailer, remove the nails and store it in a location out of children’s reach.
Clearing Jams (continued)

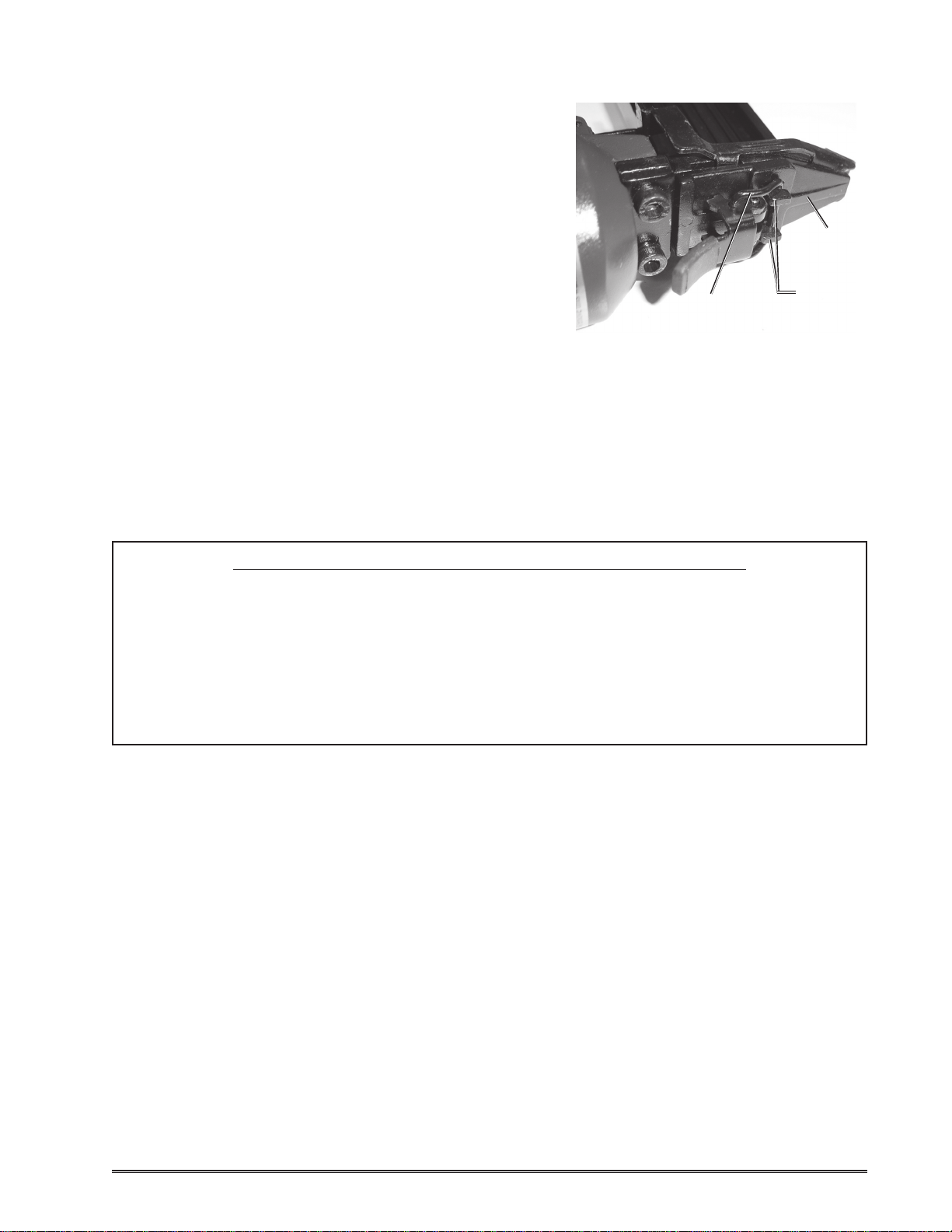

FIGURE 3
Driver Guide
Cover (45)
hooks
-part of
Driver Guide (46)
Quick Release
Spring (48)
Brought to You by www.snapwhole.com

SKU 40050 & 40051 Page 9For technical questions, please call 1-800-444-3353.
Parts List
traPnoitpircseDtraPnoitpircseD
1rotcelfeDtsuahxE73reggirT
2gniR-O83niPreniateR
3tloB.xeH93ediuGytefaS
4paCdaeH04niPgnirpS
5laeS14gnirpS
6gniniLlanretnI24ytefaS
7gniR-O34tloB.xeH
8gnirpSnoisserpmoC44recapS
9teksaG54revoCediuGrevirD
01gniR-O64niPgnirpS
11notsiPevlaVdaeH74reveLesaeleRkciuQ
21gniR-O84esaeleRkciuQgnirpS
31gniR-O94ediuGrevirD
41ralloC05tloBxeH
51gniR-O15enizagaMretuO
61notsiP25tinUrehsuP
71niP35redloHgnirpS
81revirD45gnirpSrehsuP
91gniR-O55raBleetS
02gniRgniniL65niPgnirpS
12gniR-O75elacSyalpsiDwodniW
22rednilyC85enizagaMrennI
32repmuB95revoCliaT
42ydoB06tloBxeH
52elzzoN16tloBxeH
62laeS26tloBxeH
72reppU,ydoBevlaVreggirT36regnaHliaT
82gnirpSnoisserpmoC46tuNkcoL
92gniR-O56niPreniateR
03regnulPevlaVreggirT66gnirpS
13gniR-O76hctaL
23rewoL,ydoBevlaVreggirT86tloBxeH
33gnirpSnoisserpmoC96pirGdnaH
43etalPreggirT07gnir-O
53niPgnirpS17paCdnE
63gniR-E27gulPriA
Brought to You by www.snapwhole.com

SKU 40050 & 40051 Page 10For technical questions, please call 1-800-444-3353.
Assembly Drawing
NOTE: Some parts are listed and shown for illustration purposes only and are not available individually as
replacement parts.
PLEASE READTHE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDEDTHE PARTS DIAGRAM INTHIS
MANUAL AS A REFERENCETOOL ONLY. NEITHERTHE MANUFACTURER NOR DISTRIBUTOR MAKES
ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALI-
FIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OFTHE PRODUCT. IN FACT,THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTI-
FIED AND LICENSEDTECHNICIANS AND NOT BYTHE BUYER.THE BUYER ASSUMES ALL RISK AND
LIABILITY ARISING OUT OF HIS OR HER REPAIRSTOTHE ORIGINAL PRODUCT OR REPLACEMENT
PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS
Brought to You by www.snapwhole.com
