ASSEMBLY & OPERATING INSTRUCTIONS
®
3
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web Site at www.harborfreight.com
90155
FERTILIZER SPREADER

THANK YOU for choosing a HARBOR FREIGHT TOOLS product. For future reference, please
complete the owner’s record below:
Model______________ Serial No._____________ Purchase
Date_______________
SAVE THE RECEIPT, WARRANTY AND THESE INSTRUCTIONS. It is important that you read the
entire manual to become familiar with the unit BEFORE you begin assembly.
Technical Specifications
Capacity: 3 Gallon (.47 Cubic Feet)
Spread Size: 15”
Wheel Diameter: 8-1/4” x 1-7/8” Wide
Handle Length: 37” L x 3/4” diameter
Tub Dimensions: 18-1/4” L x 8-1/2” W x 7-7/8” H
Slots: 31 slots to spread fertilizer
Weight: 5.3 LBS
Safety Warnings and Precautions
WARNING: When using product, basic safety precautions should always be followed to
reduce the risk of personal injury and damage to equipment.
Read all instructions before using this product!
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use machines or power tools in damp or wet
locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically powered
tools in the presence of flammable gases or liquids.
3. Keep children away. Children must never be allowed in the work area. Do not let them
handle machines, tools, or extension cords.
4. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit rust.
Always lock up tools and keep out of reach of children. Fertilizer and garden chemicals should
always be stored in a location out of reach of children.
5. Do not force tool. It will do the job better and more safely at the rate for which it was intended.
Do not use inappropriate attachments in an attempt to exceed the tool capacity.
6. Use the right tool for the job. Do not attempt to force a small tool or attachment to do the
work of a larger industrial tool. There are certain applications for which this tool was designed.
Do not modify this tool and do not use this tool for a purpose for which it was not intended.
7. Dress properly. Do not wear loose clothing or jewelry as they can be caught in moving parts.
Protective, electrically non-conductive clothes and non-skid footwear are recommended when
working. Wear restrictive hair covering to contain long hair.
8. Use eye and ear protection. Always wear ANSI approved impact safety goggles. Wear an
ANSI approved dust mask or respirator when working around chemical dusts and mists.
#90155 Page 2

9. Do not overreach. Keep proper footing and balance at all times. Do not reach over or across
running machines.
10. Maintain tools with care. Keep tools sharp and clean for better and safer performance. Follow
instructions for lubricating and changing accessories. The handles must be kept clean, dry, and
free from oil and grease at all times.
11. Check for damaged parts. Before using any tool, any part that appears damaged should be
carefully checked to determine that it will operate properly and perform its intended function.
Check for alignment and binding of moving parts; any broken parts or mounting fixtures; and
any other condition that may affect proper operation. Any part that is damaged should be
properly repaired or replaced by a qualified technician.
12. Stay alert. Watch what you are doing, use common sense. Do not operate any tool when you
are tired.
13. Replacement parts and accessories. When servicing, use only identical replacement parts.
Use of any other parts will void the warranty. Only use accessories intended for use with this
tool. Approved accessories are available from Harbor Freight Tools.
14. Do not operate tool if under the influence of alcohol or drugs. Read warning labels on
prescriptions to determine if your judgment or reflexes are impaired while taking drugs. If there
is any doubt, do not operate the tool.
Warning: The warnings, cautions, and instructions discussed in this instruction manual cannot
cover all possible conditions and situations that may occur. It must be understood by
the operator that common sense and caution are factors which cannot be built into
this product, but must be supplied by the operator.
Assembly
Your Fertilizer Spreader will require complete assembly prior to use. It is important that you read
the entire manual to become familiar with the product BEFORE you use the Spreader. Before
assembling the Spreader be sure that you have all parts described in the Parts List and Assemby
Diagram located on the last page of this manual.
Step 1) Attach the Spreader Frame (#2) to the Handle (#8) by inserting a Bolt down
through the Spreader Frame, and through the Handle (#8). Slide on Washer and
thread on Nut. Repeat for second hole-see Figure 1 on the following page.
Step 2) Attach the Wheels to the Spreader Frame by inserting the Axle (#4) through the
Spreader Frame (#2) as shown in the Assembly Diagram. Slide on the Wheel (#3).
Lock the Wheel (#3) in place by pushing on the Plastic Cap (#10). Repeat for the
second Wheel (#3).
Step 3) Slide the Plastic Grip (#9) onto the top of the Handle (#8)-see Figure 3.
#90155 Page 3

Step 4 Attach the Pulling Cable (#11) by setting one end into the hole in the steel bar
located near the Stand (#6). Run the Pulling Cable (#11) through the eyelet and up
toward the Outlet Adjuster (#7). Secure this end of the Pulling Cable (#11) to the
Outlet Adjuster by inserting the end into the hole in the Outlet Adjuster Bar as shown
in Figures 1 and 2.

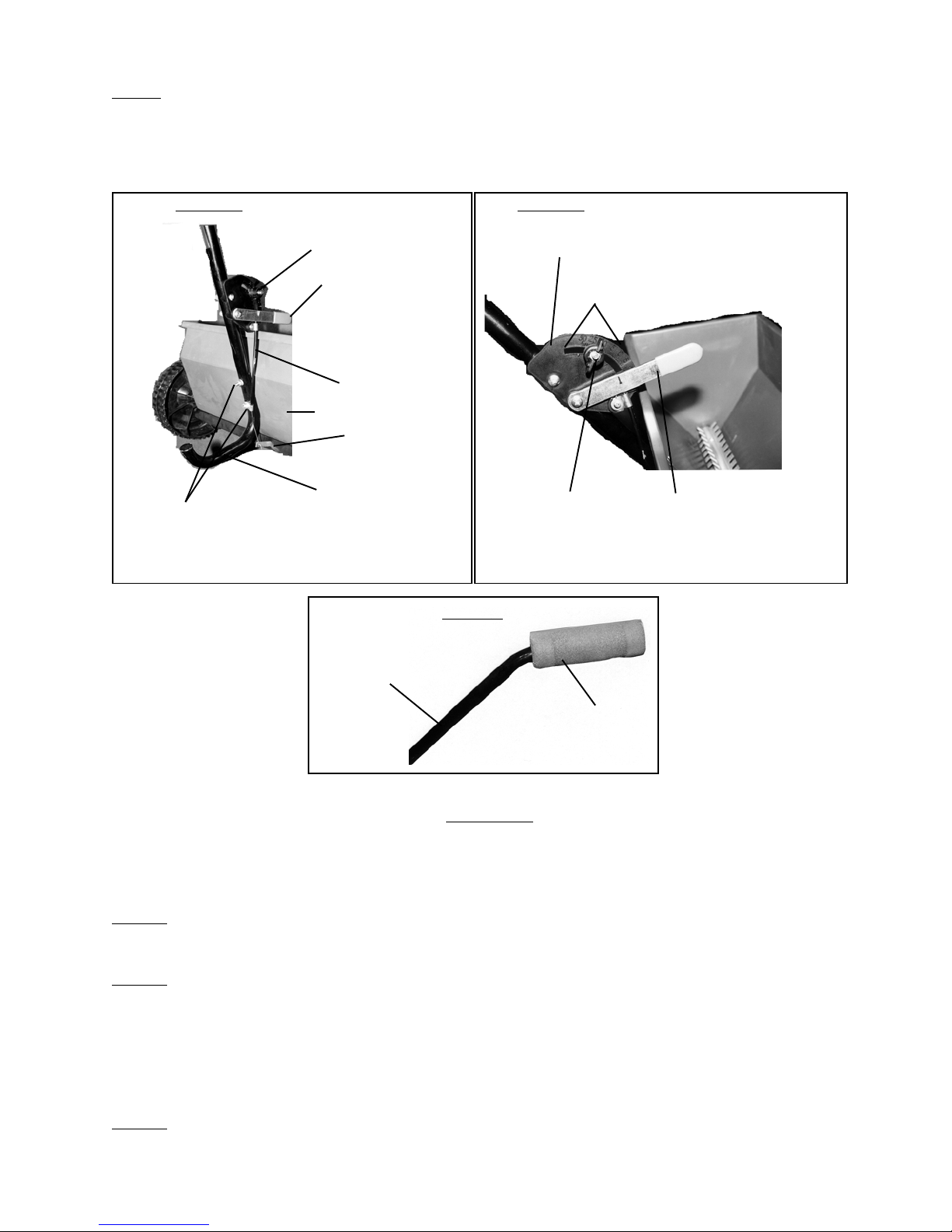

Figure 1 Figure 2
Outlet Adjuster (#7)
Outlet Adjuster
Bar
Pulling Cable (#11)
steel bar
Stand (#6)
Outlet Adjuster (#7)
Outlet Adjuster Bar
Nut and Washer
Spreader Frame (#2)
Figure 3
Plastic Grip (#9)
Handle (#8)
Operation
When operating your Fertilizer Spreader, it may be helpful to refer to each of the operational Figures
as well as to the Parts List and Assembly Diagram located on the last page of this manual.
Step 1) Determine the setting necessary for the fertilizer or product to be spread. Consult
the fertilizer instructions to see if a certain setting is recommended.
Step 2) Move the handle on the Outlet Adjuster to the appropriate setting. The Outlet
Adjustor has markings ranging from 30 to 0, depending on the amount of fertilizer to
be spread-see Figure 2. Setting the Outlet Adjuster to “0” will close the slots and
stop the fertilizer from spreading. The Outlet Adjuster also has a locking Wing Nut to
maintain your setting. Loosen the Wing Nut and set it at the desired mark, then
tighten it into place.
Step 3) Fill the Spreader Frame (#2) with the desired product. Push the Fertilizer Spreader
over the lawn or garden and it will release fertilizer as it moves.
#90155 Page 4
0 to 30
Wing Nut
Range From

9
10

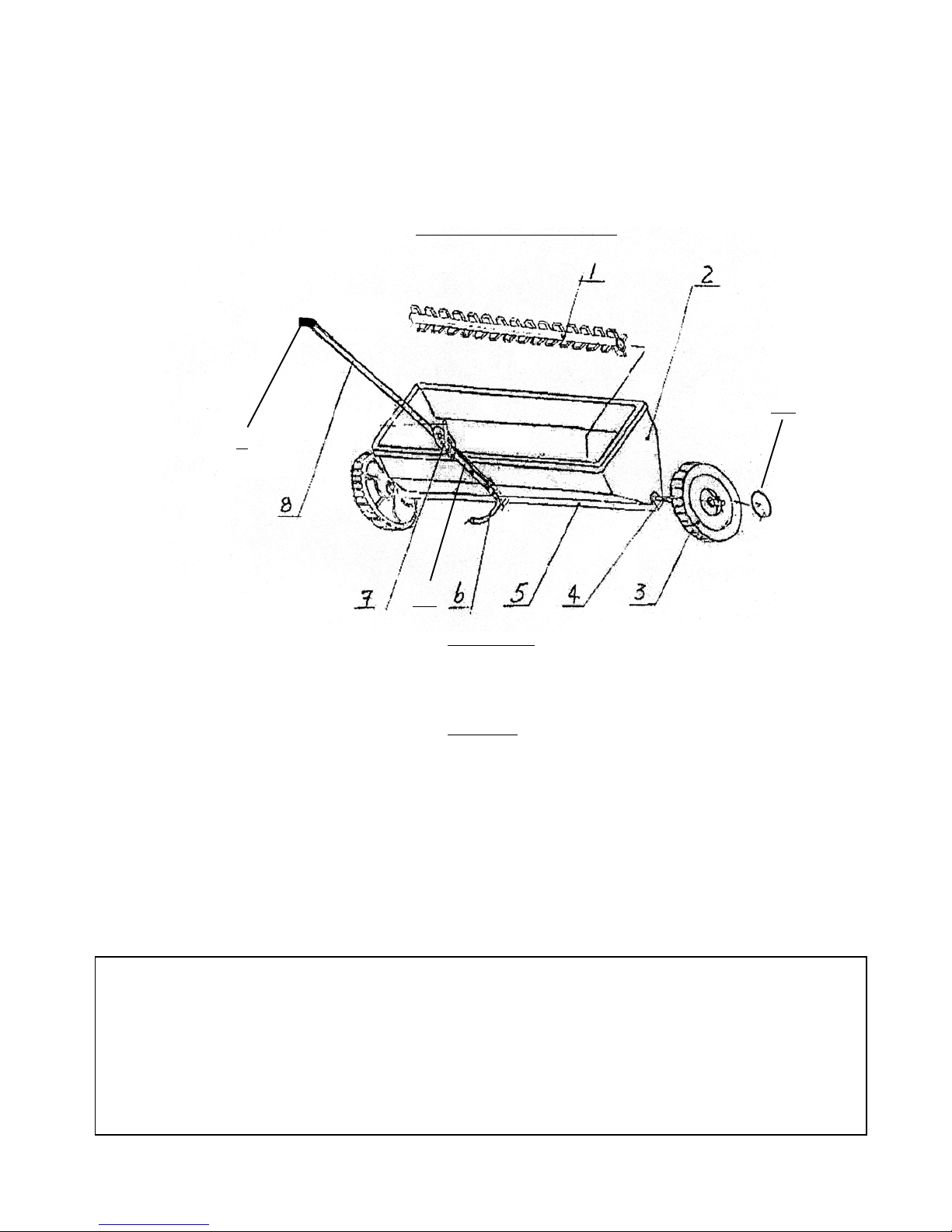

Assembly/Parts Diagram
Unpacking
When unpacking your Fertilizer Spreader, check to make sure the following parts are included. If
any parts are missing or broken, please call HARBOR FREIGHT TOOLS at 1-800-444-3353.
Parts List
Part # Description Quantity Part # Description Quantity
1 Feeding Bar 1 6 Stand 1
2 Spreader Frame 1 7 Outlet Adjuster 1
3 Wheel 2 8 Handle 1
4 Axle 1 9 Plastic Grip 1
5 Outlet Door 1 10 Plastic Cap 2
11 Pulling Cable 1
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE
TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY
KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED
TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER
REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER
INSTALLATION OF REPLACEMENT PARTS THERETO.
#90155 Page 5
11
Once the assembly is complete, test the product. Does it roll easily and track properly?
Test the Outlet Adjuster. When the Outlet Adjuster is adjusted, does the Feeding Bar (#1) adjust
also? When you are satisfied that the assembly is complete and that the Fertilizer Spreader works
properly, the product is ready for use.
