STREAMING SACD PLAYER/DAC QUICK START GUIDE
N05101

1
N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
TABLE OF CONTENTS
TABLE OF CONTENTS
Overview 2
Installation 3
Unpacking, Placement and Ventilation 3
Power Requirements, Operating States 3
Connections 4
Rear Panel Overviews 4
External Component Connections 4
Control 6
Front-Panel Overview 6
Remote Control Overview 8
Remote Control Operation 9
Control 10
Troubleshooting 14
Specifications 16

2N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
OVERVIEW
INTRODUCING THE MARK LEVINSON NO5101
Congratulations on your purchase of the Mark Levinson
N
0
5101
Network Streaming SACD player and DAC.
The
N
0
5101 pairs decades of superlative audio engineering with
the latest advancements to deliver unmatched performance
and value. With a bold new industrial design, PrecisionLinkII
DAC, and multiple control options, the
N
0
5101 delivers luxurious
fidelity with premium features and flexibility. The Mark Levinson
N
0
5101 is proudly designed, engineered, and precision-crafted
in the USA.
Super Audio CD Playback
The N
0
5101 features precision transport and playback of all
major file formats including SACD, CD-A, CD-R and CDRW.
It supports FLAC, WAV, AIFF, OGG, MP3, AAC and WMA. The
Mark Levinson PrecisionLink II DAC and PurePath analog
circuitry ensure that DSD content is flawlessly converted and
presented through the
N
0
5101 's analog outputs.
Network Streaming
The N
0
5101 can stream from NAS drives connected to the
same network as the
N
0
5101 , as well as receive streaming
audio from DLNA and UPnP devices connected to the network.
USB Drive Playback
The N
0
5101 can navigate and playback audio files from a USB
flash drive connected to the USB type-A input.
DAC
The N
0
5101 features outstanding digital audio capability with
the Mark Levinson PrecisionLink II DAC. The latest generation
ESS PRO Sabre 32-bit D/A converter with jitter elimination
circuitry and a fully balanced, discrete current-to-voltage
converter form the heart of the digital audio processing
stage. With one coaxial and one optical S/PDIF digital input,
the
N
0
5101 serves as a premium stand-alone DAC for digital
sources.
In addition the N05101 has one coaxial and one optical S/PDIF
digital output which will pass a PCM stereo signal through
to a device such as a Mark Levinson N05802 or N05805
integrated amp.
Control
System integration and communication ports include IP
(Ethernet), RS-232, IR input, and 12V trigger input. A newly
designed, aluminum IR remote is included with the N05101.

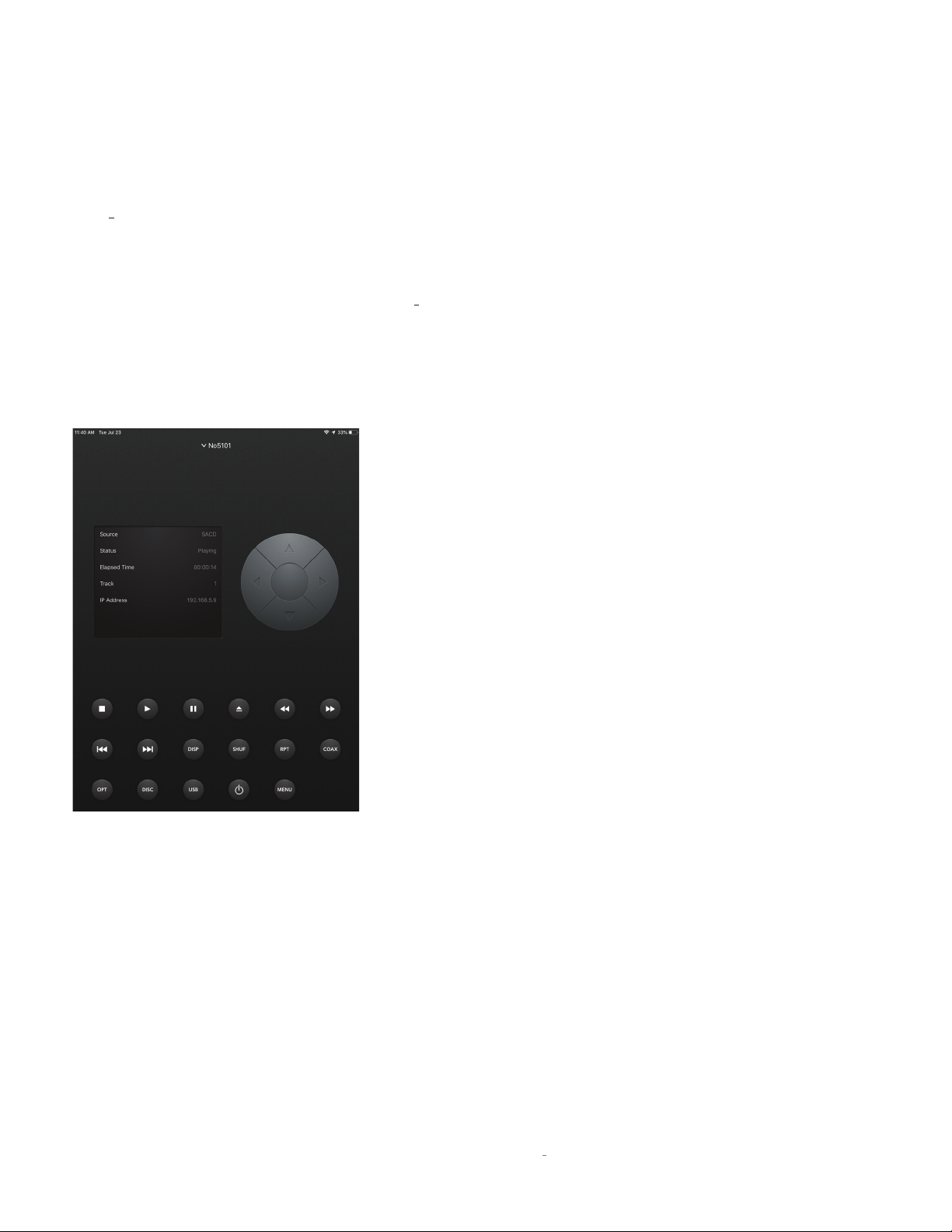

In addition it can be controlled from a phone or tablet with the
Mark Levinson 5Kontrol mobile application.
Industrial Design
Robust materials, lavish finishes and bold geometry are
celebrated attributes of Mark Levinson designs. One-inch
thick solid aluminum front panels are bead-blasted, black-
anodized, and machine contoured to flow seamlessly into the
sleek glass display, which itself is recessed into a bead-blasted
and clear-anodized aluminum bezel. Meticulous artistry is
evident in the fine details including debossed top cover vents,
screen printing behind the glass panel and aluminum buttons
– all resting on matching custom aluminum feet.
For the most up to date manual, firmware and supporting
material, please visit www.marklevinson.com
OVERVIEW

3
N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
INSTALLATION
INSTALLATION
UNPACKING
When unpacking your N05101:
• Save all packing materials in case you need to ship your
N
0
5101 in the future.
• Inspect your N
0
5101 for signs of damage during shipment.
If you discover damage, contact your authorized Mark
Levinson® dealer for assistance in making appropriate
claims.
• Locate and remove the accessories from the shipping carton.
Make sure that all of the items listed below are included. If
any are missing, contact your authorized Mark Levinson
dealer.
•1 x IEC power cord (terminated according to the region
to which the unit is shipped)
•1 x Remote control plus 2 x AAA batteries
•1 x Quick start guide
•1 x Safety information sheet
•1 x Hex tool for remote
•1 x WiFi antenna
Please register your N05101 within 15 days of your purchase.
Register online at www.marklevinson.com. Retain your
original, dated sales receipt as proof of warranty coverage.
PLACEMENT AND VENTILATION
• To ensure proper ventilation, DO NOT install the N
0
5101 on
top of an amplifier or other heat source.
• Ensure that you install the
N
0
5101 on a flat and level surface.
• Select a dry, well-ventilated location that is out of direct
sunlight.
• DO NOT expose the
N
0
5101 to high temperatures, humidity,
steam, smoke, dampness, or excessive dust.
• DO NOT place the
N
0
5101 in an enclosed space such as
a bookcase or closed cabinet unless there is adequate
ventilation. The
N
0
5101 is designed to run warm during
normal operation.
• DO NOT place any other component or item on top of the
N05101 as this may obstruct airflow, causing the player to
run hot.
• Make sure the remote-control receiver on the front panel
display is unobstructed, otherwise this will impair the use of
the remote-control.
POWER REQUIREMENTS
Connection to an AC voltage other than that for which the
N
0
5101 is intended can create a safety and fire hazard and may
damage the unit. If you have any questions about the voltage
requirements for your
N
0
5101 or about the line voltage in your
area, contact your authorized Mark Levinson dealer before
plugging the
N
0
5101 into an AC power outlet.
WARNING! MAKE SURE all components in the audio system
are properly grounded. DO NOT defeat the safety purpose of
polarized or grounding-type plugs with “ground-lifter” or
“cheater” adapters. Doing so may cause a dangerous voltage
to build up between components, which may result in personal
injuries and/or product damage.
Unplug the
N
0
5101 from the AC wall outlet during lightning
storms and extended periods of non-use.
CAUTION: Before moving the unit, make sure it is powered off
by removing the power cord from the AC power outlet and the
unit’s rear panel.

4N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
Analog Audio Output Connectors: These balanced XLR and
single ended RCA jacks provide a line-level left-channel and
right-channel signal that can be used to send the selected
input to a pre-amplifier or integrated amplifier.
NOTE: The analog outputs must be used to listen to the
SACD layer of a Super Audio Compact Disc.
Balanced
Output Connector
(Male XLR)
Pin
3
Pin
2
Pin
1
Balanced connector pin assignments:
Pin 1: Signal ground
Pin 2: Signal + (non-inverting)
Pin 3: Signal – (inverting)
Digital Audio Inputs: The N
0
5101 has a coaxial and an optical
S/PDIF digital audio input allowing the
N
0
5101 to function as a
stand alone DAC.
Digital Audio Outputs: The digital audio outputs (optical or
coaxial) provide a PCM (Pulse-Code Modulation) stereo signal
to the digital input of your device, such as a Mark Levinson
N
0
5805 or N
0
5802 integrated amplifier. DSD (Direct Stream
Digital) formatted audio will not be routed to the digital outputs
due to copy protection requirements.
S/PDIF: Supports PCM sources up to 24bit /192k.
USB Port: This USB Type-A connector allows PCM audio
playback from USB flash drives and can also be used for
software updates.
CONNECTIONS
CONNECTIONS

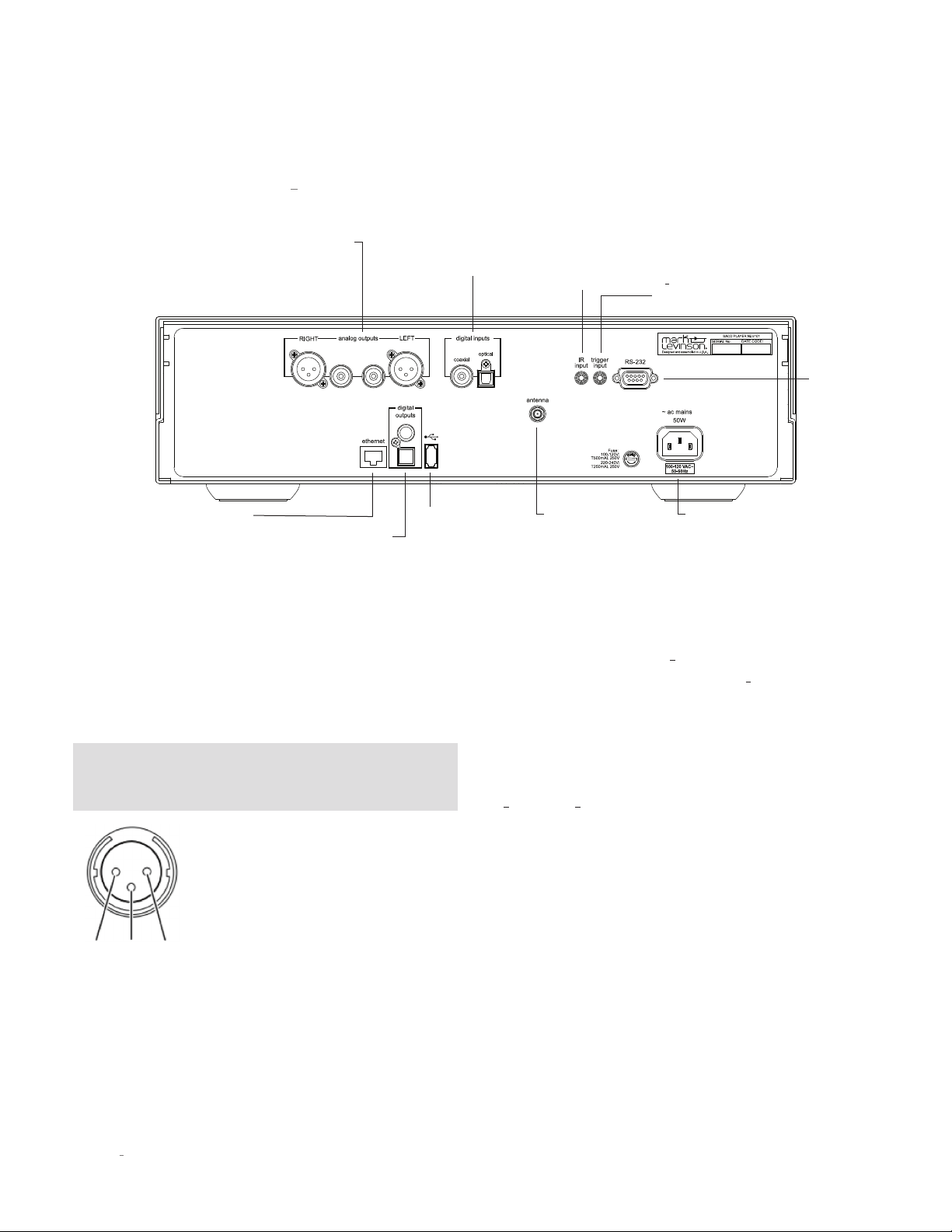

REAR-PANEL OVERVIEW NO5101
EXTERNAL COMPONENT CONNECTIONS
Analog Outputs
Connect to the audio input of a
pre amplifier or integrated amplifier
(must be used for SACD listening)
Digital Inputs
Connect to a
digital audio source
IR Input
Connect to an
external remote
controller
12v Trigger Input
Connect to the trigger out of a
compatible device, to allow the
N05101 to be switched in and out
of standby
RS232 (DB9F)
Connect to a
third party home
automation system
Ethernet (RJ45)
Connect to a network router
USB
Connect to a USB
flash memory
device containing
audio files
Wi-Fi Antenna
Connect the
supplied Wi-Fi
antenna
IEC Main AC Power Socket
Connect the supplied power
cable to an AC outlet
Digital Audio Out
Connect to the digital
inputs of a pre amplifier
or integrated amplifier

5
N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
CONNECTIONS

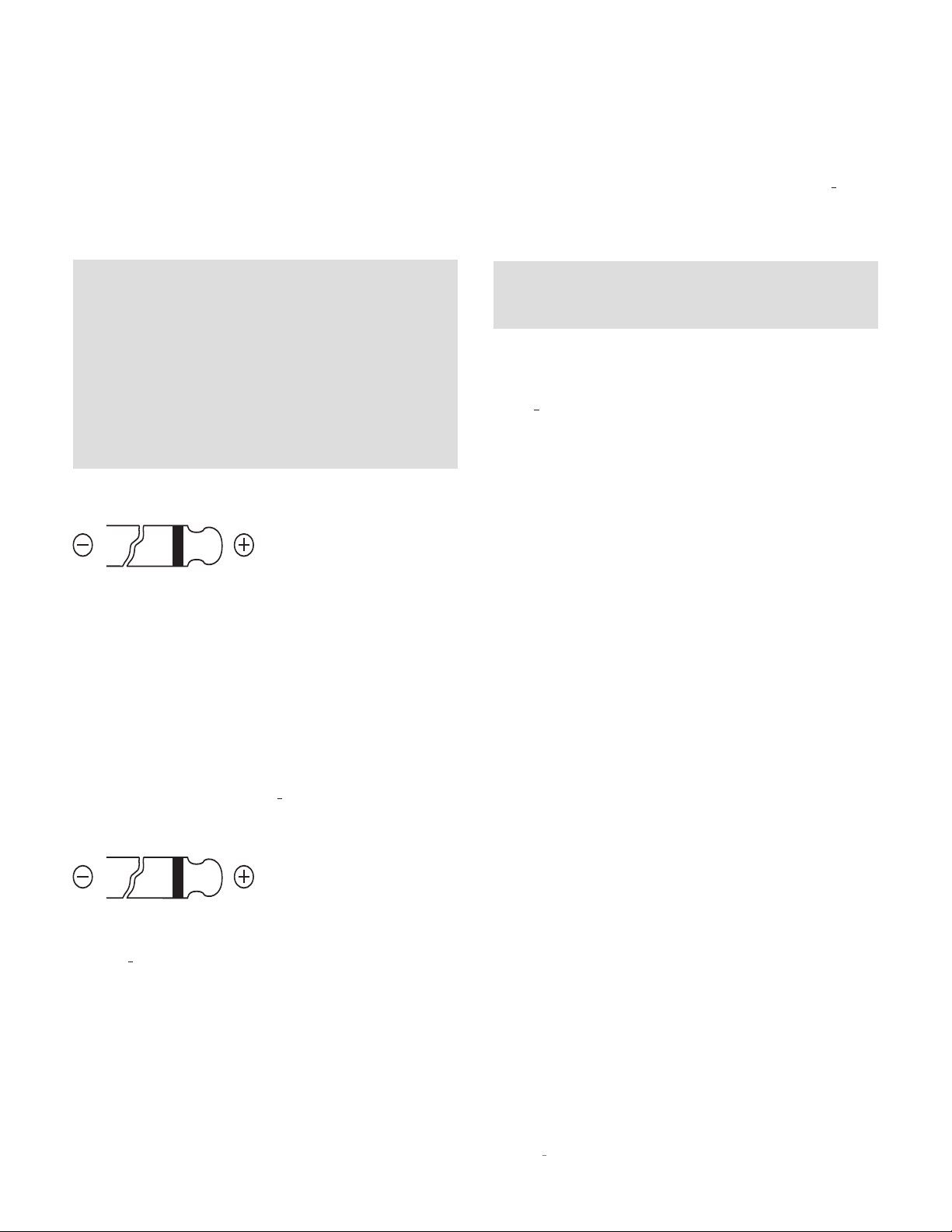

IR Input Connector: This connector accepts IR (infrared)
control signals (RC5). See www.marklevinson.com for IR
code data.
NOTE:
• The remote control input requires a mono 3.5mm jack,
with the tip active and the sleeve grounded.
• The remote control signals must be in modulated RC5
format (at 36kHz), with a voltage level of between 5V
and 12V.
• The tip is the modulated signal, while the sleeve is the
ground.
Sleeve
Tip
RS232 Port: This DB9F connector provides serial control
through a standard RS232 protocol. See www.marklevinson.
com for RS232 code protocol.
Trigger Input Connector: This 3.5mm tip/sleeve connector
can be connected to the trigger output of another system
component or control system that supplies a trigger voltage.
Whenever the units detects a voltage between 5V and 12V
DC at this connection it will turn ON. When the trigger signal
at this connection ceases the
N
0
5101 will enter the Standby
mode. (See illustration below.)
AC Mains Connector: This connector provides AC power
to the
N
0
5101 when the supplied power cord is connected
from it to an AC electrical outlet. This should be the LAST
connection you make in the hookup process.
We recommend that you unplug the unit from the AC wall outlet
during lightning storms and extended periods of non-use.
Network: Ethernet cable can be used to connect the N
0
5101 to
a router or switch on your home network, enabling playback
of audio stored on your computer or NAS device.
NOTE: Connecting an Ethernet cable will disable the
wireless function.
Wireless connection is also available, and may be configured
through the settings menu.
The
N
0
5101 can also be controlled by a home automation
system, using external commands.
Please visit www.marklevinson.com for further information.

6N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
CONTROL
Standby Button And LED: Press this button to put the N
0
5101
into and out of the Standby mode. The LED illuminates steady
RED when the unit is On. When the unit is in the standby state,
the LED flashes slowly.
IR Receiver: The IR receiver receives commands from the
included remote control when the rear-panel IR input is not
being used.
Front Panel Display: This 32-character alphanumeric display
provides information about the
N
0
5101 ’s operating status. The
top row will display non selectable information. The bottom row
will display selectable menu items.
Transport Controls: Use to play and navigate CD and Media
tracks.

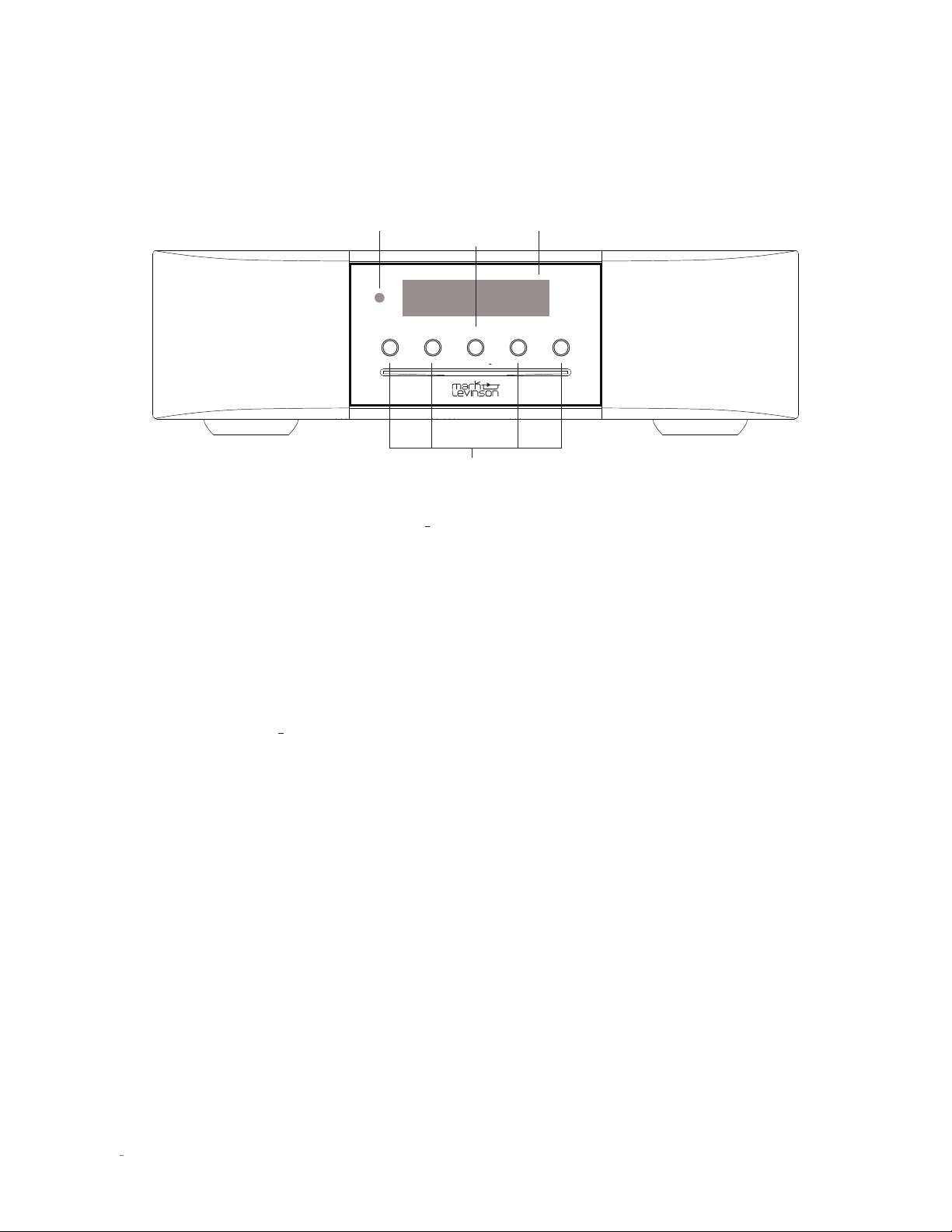

FRONT-PANEL OVERVIEW
SACD PLAYER NO 5101
next standby stop/ejectprevious play/pause
CONTROL
IR Receiver Standby Button
and LED
Transport Controls
Front Panel Display

7
N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
CONTROL
OPERATION
The N
0
5101 was designed in a modern elegant style for
ergonomic simplicity. It is designed to be used with the remote
control, the Mark Levinson 5Kontrol app, or a third party control
system for all but the most basic functions. This section explains
how to play audio discs, network content, audio files stored on
USB media and audio from external digital sources. Note that
it may be necessary to configure your player correctly for your
system before optimum – or any – playback can be achieved.
Player configuration is described in the “Settings Menu” on
page 10.
Switching On
Switch the unit on by pressing the Standby button on the
front panel. The LED illuminates steady RED when the unit
is On. When the unit is in the standby state, the LED flashes
slowly. Use the Standby button on the remote control to
toggle in and out of standby. If power is lost the unit will
retain its standby state.
Playing a Disc
Gently insert the disk into the slot loader. When the
Disc
Autoplay
setting is set to ON (the default setting), playback
starts automatically after it has loaded. For discs that do not
play automatically, press play/pause on the front panel or
▲
/II
on the remote control.
Transport Control
The following front panel controls are available during audio
playback:
STOP/EJECT: Press the ■/▲ button to stop playback. Press
the ■/▲ button again to eject the disc.
PLAY/PAUSE: Press the
▲
/II button to pause playback. To
resume playback, press the
▲
/II button again.
SKIP: To skip tracks, press
▲
I or I ▲ . When skipping back, the
first button press takes you to the beginning of the current
track. Pressing the button again takes you to the start of the
previous track.
Playing From a Network
Make sure the
N
0
5101 is connected to your local network (see
connecting to a network on page 10). Press the Home button on
the remote control. Use the ▲▼ to select
Media Browser . The
N
0
5101 will search for connected media. Once connected media
is discovered, the user will be presented with a list of devices
available for browsing. Navigate the available libraries using
the navigation keys on your remote.
Network music playback may also be controlled from your
computer, phone or mobile device using your UPnP control
application.
Pressing Enter on a bottom row “highlighted” audio file will
access the file for playback. Playback will continue through all
subsequent tracks in the playback directory.
Playing From USB
Connect your USB device to the USB jack to the rear of the
N
0
5101 . After the device has been recognized select USB from
the home screen, then press Enter.
Navigate directories using the keys on the remote and begin
playback of a highlighted audio file by pressing Enter or
▲
.
Playback will continue through all subsequent tracks in the
playback directory. If audio is organized into folders, use the
▲
and
▲
to scroll folder names and the ▲▼ to scroll tracks within
the folder. Pressing Enter on a bottom row “highlighted” audio
file will access the file for playback. Playback will continue
through all subsequent tracks in the folder.

8N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE

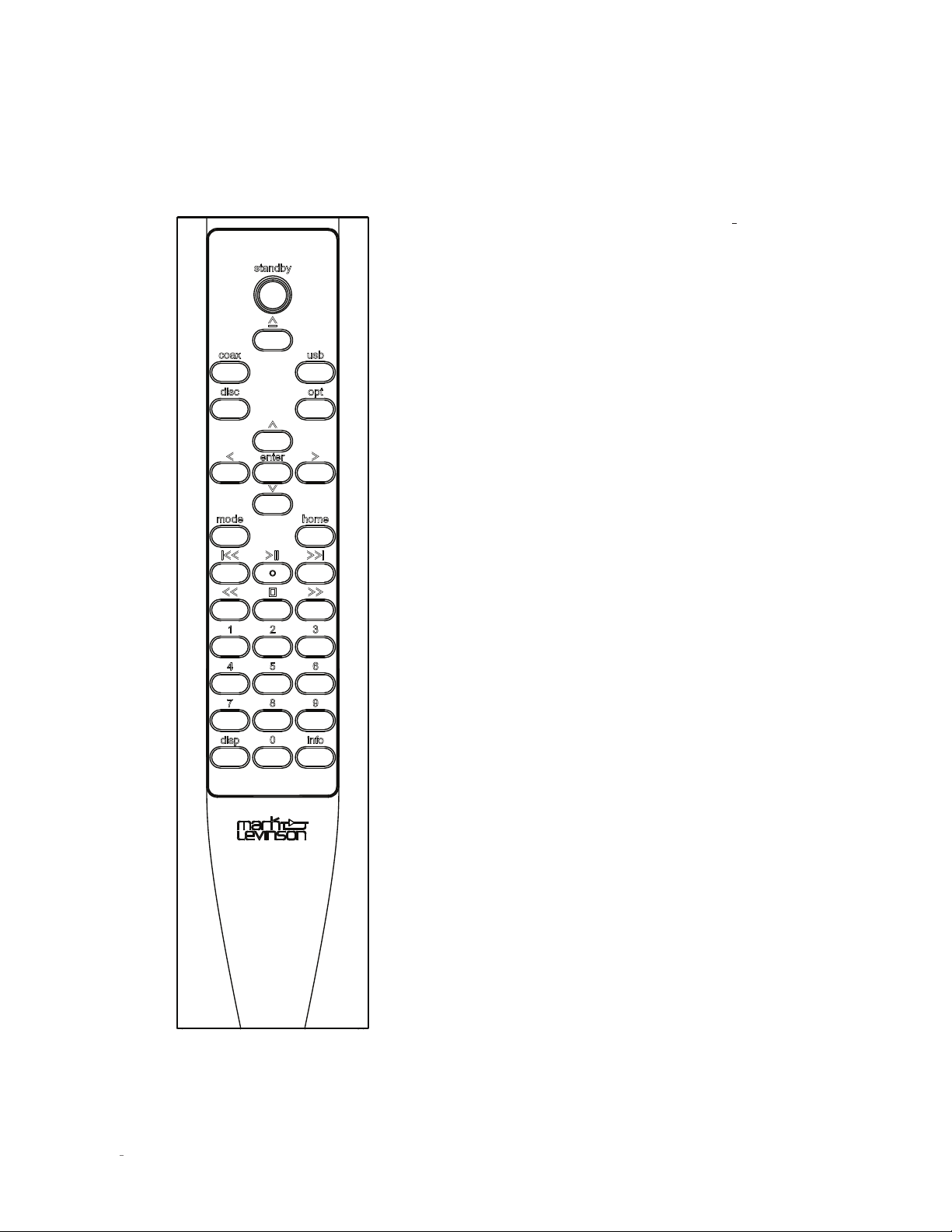

REMOTE CONTROL OVERVIEW
Standby: Press this button to put the N
0
5101 into and out of the
standby mode.
Eject: Press this button to eject the disc.
Coax: Press this button to select the coaxial RCA digital input
as the source.
USB: Press this button select a connected USB flash drive as
a source.
Disc: Press this button to select the disc as the playback source.
Opt: Press this button to select the optical (TOSLINK) digital
input as the source.
Enter: Press enter to select the highlighted menu option in
lower field.
▲
: Use this to navigate menu up.
▲
: Use this to navigate menu left (forward).
▲
: Use this to navigate menu right (back).
▼
: Use this to navigate menu down.
Mode: Cycle though playback modes (random, repeat one,
repeat all).
Home: Use this to go to the top of the menu.
Play/Pause: Play or pause selected track.
Numeric Keypad: Select track number.
Disp: Use this to access display settings.
Info: Use this to access info menu.
CONTROL

9
N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
CONTROL
REMOTE CONTROL OPERATION

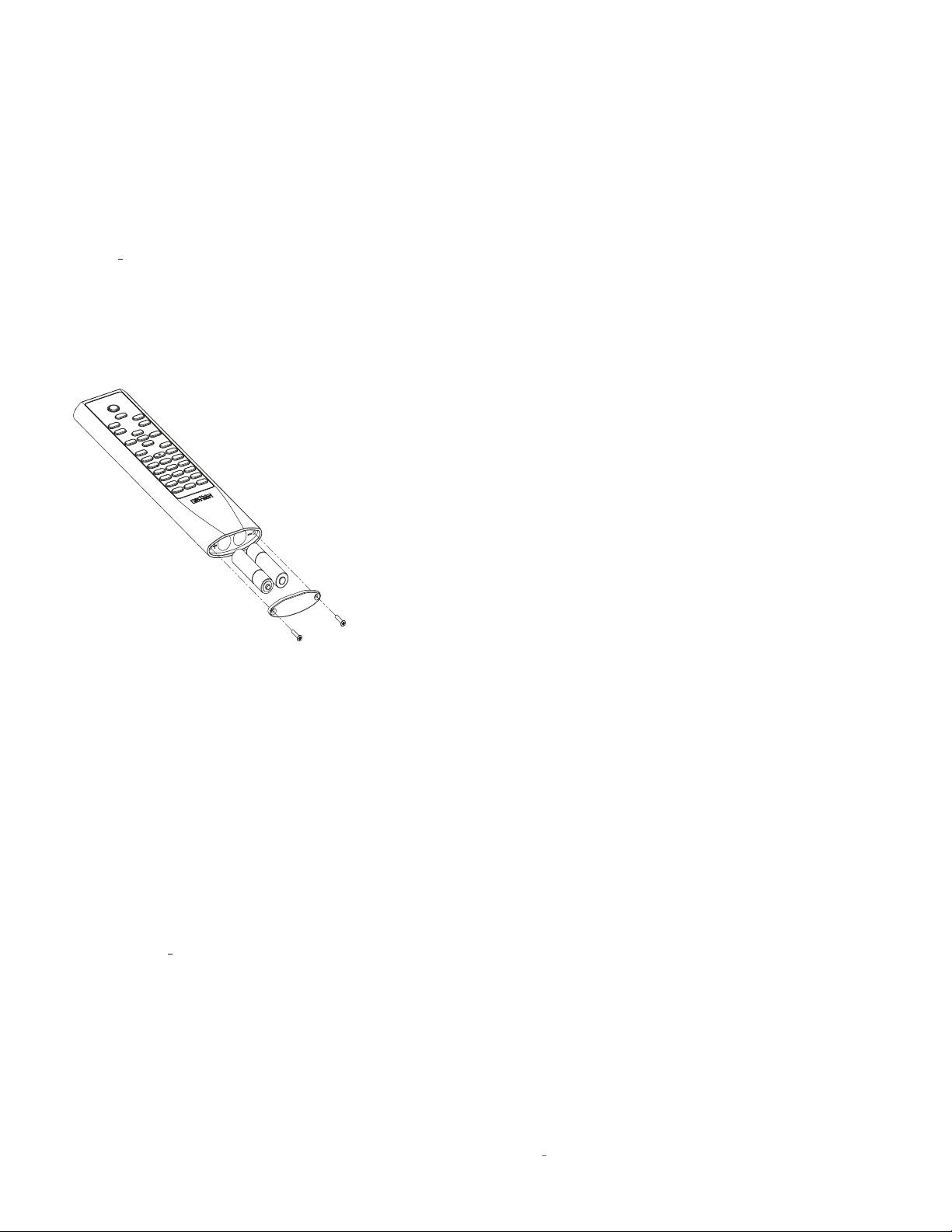

Battery Installation
Your
N
0
5101 remote control comes with two AAA alkaline
batteries. To install the batteries, use the included hex tool to
remove the battery cover, insert the batteries and replace the
battery cover and hex screws. Be sure to observe proper battery
polarity.
Using the Remote Control
When using the remote control, aim it toward the unit’s front
panel IR receiver. Make sure that no objects, such as furniture,
blocks the remote’s line of sight to the receiver. Bright lights,
fluorescent lights, and plasma video displays may interfere with
the function of the remote.
• The remote has a range of about 17 feet (5m), depending on
the lighting conditions.
• You can use the remote at an angle of up to 45° on either side
of the unit.
• Placing the
N
0
5101 behind tinted glass will reduce the remote
control’s effective range.
If the remote control operates intermittently, replace both
batteries with new ones.
Supported File Types
The following file formats are supported, over disc, USB and
network:
FLAC Up to 24 bit/192kHz
WAV Up to 24 bit/192kHz
AAC Up to 24 bit/96kHz
AIFF Up to 24 bit/192kHz
OGG Up to 24 bit/192kHz
MP3 Up to 320kbps/48kHz
WMA Up to 192kbps/48kHz

10 N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
CONTROL
The N
0
5101 is highly flexible and allows a variety of means of
setup and control including front panel buttons, IR remote as
well as IP (Ethernet) and RS-232 for integration with 3rd party
control systems. In addition it can be controlled from a phone
or tablet with the
Mark Levinson 5Kontrol mobile application.
The
Settings menu allows you to configure all aspects of your
N
0
5101 . This section will go through the menu items and explain
their function.
For more details visit www.marklevinson.com.
Entering the settings menu
To access the Settings menu, press the Home button to go
to the home screen. Press ▲to scroll to the
Settings menu
item and press Enter. The top line on the display should read
Settings menu.
Navigating the menus
The menus can be navigated by using the cursor (arrow) keys on
the remote control.
1. Use the ▲and ▼ keys to navigate up and down the current
menu.
2. With the main section you require displayed, press Enter
to select it.
3. Use the ▲and ▼keys to navigate up and down the options.
4. Pressing
▲
selects a setting: use the ▲and ▼keys to
change the setting.
5. Press Enter to confirm the setting. Go back to step 4 to
adjust any other settings in the current section.
6. Press
▲ to return to the previous screen if you want to
select another section to adjust.
Network Setup
This item allows the user to configure the unit to join an existing
network via Ethernet or WiFi. This is required for network audio
playback and OTA software updates. It is recommended that you
use the "Auto" method for the easiest set up.
For WiFi auto set up:
1. Select
WiFi under the Select Interface menu.
2. Press Enter.
1. Select
Scan under the Wireless menu.
2. Press Enter and the unit will scan for available networks.
3. Use ▼ key to scroll and find the network of choice.
4. Press Enter to select the network. You will be prompted
to Enter Password.
5. Use navigation controls to enter the network password:
▲and ▼ to scroll though characters.
▲
and ▲ to move to the next/previous character.
6. Press Enter when password is complete.
7. For Ethernet select
Ethernet under the Select Interface
menu. Press Enter, and then Enter again. Follow the
prompts.
For Ethernet auto set up:
1. Make sure a router with DHCP is connected.
2. Select
Ethernet under the Select Interface menu.
3. Press the Enter key. The display should read
DHCP On
(Auto)
.
4. Press the Enter key again, and the display should read:
Connecting. Please Wait .
5. Once connected, the display should read:
Connected .
6.
Press Enter.
CONTROL

11
N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
CONTROL
NOTE: Manual set up is not recommended but is
available for advanced users should the need arise.
For WiFi manual set up:
1. Select
WiFi under the Select Interface menu.
2. Press Enter.
3. Use ▲▼ key to select
Manual Input .
4. Enter the SSID using ▲▼
▲
and press Enter.
5. Using the ▲▼ buttons, review the menu options then
select which security protocol your wireless network is
using and press Enter.
6. If you picked an option other than NONE, it should prompt
you for a password. Use ▲▼
▲
and Enter to select the
characters and enter the full password.
7. Press Enter.
For Ethernet manual set up:
1. Use ▼to select
DHCP Off (Manual).
2. Press Enter.
3. Use Numeric Keys and
▲
to enter the IP Address .
Press Enter.
4. Use Numeric Keys and
▲
to enter the Subnet Address .
Press Enter.
5. Use Numeric Keys and
▲
to enter the Gateway Address .
Press Enter.
6. Use Numeric Keys and
▲
to enter the DNS1 Address .
Press Enter.
7. Use Numeric Keys and
▲
to enter the DNS2 Address .
Press Enter.
Network Standby
Thi
s item determines whether network features are available
when the N05101 is in standby mode. Selecting
Active will
maintain the network connection (required for IP control).
Selecting
Standby will allow the network hardware to be
powered down in order to reduce power consumption. It is
recommend that this is set to
Active for optimum control and
performance.
Network Audio
Allows the user to enable or disable the UPnP rendering
capability of the player. Setting this option to
OFF will disable
network audio.
DMR Device Name
This is the name that will show up on your network when
searching for your device from the Mark Levinson 5Kontrol app
or other third party app.
Default Layer
Allows the selection of
SACD or CD to be the default media
layer that is played back. Turning this to
CD will disable
playback of the DSD layer of an SACD disc, and route the PCM
signal to the digital outputs.
Disc Auto Play
This controls whether an optical disc will play automatically
after it is inserted. When set to
ON , optical discs will play
automatically.
When set to
OFF , the user must press Play to start the disc.
Load Defaults
This allows the user to load the default settings and write
over all of the saved settings. There is a protective prompt
that allows the user to cancel. Press the ▲to be prompted
OK . Press Enter to execute the command. Press ▼ to go back
to cancel prompt. DO NOT interrupt power during loading
process.
Auto Standby
This allows user to specify the period of inactivity after which
the unit will automatically enter standby. The options are:
5 Minutes , 10 Minutes , 15 Minutes , 20 Minutes and OFF .

12 N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
CONTROL
PCM Filter
This setting lets you set the filter characteristic for PCM
digital content such as the digital output from a CD player.
We recommend trying several of these filters with the types
of music you typically listen to and choose the one you prefer.
There are no right or wrong choices.
The available filters are:
•
Fast Minimum Phase
• Slow Minimum Phase
• Apodiz Fast
• Hybrid Fast Minimum Phase
• Brickwall
• Fast Linear
• Slow Linear
“Fast” filters provide steeper roll-off at high frequencies and
therefore do a better job of attenuating unwanted high frequency
“aliased” signals. However, they exhibit more ringing on signal
transients.
“Slow” filters exhibit less ringing on transients, but they do a
poorer job of attenuating unwanted high frequency signals.
“Linear Phase” filters exhibit symmetric pre- and post-ringing,
i.e., they ring before and after the transient signal.
“Minimum Phase” filters exhibit only post-ringing, which some
listeners feel sounds more natural, but they typically ring for
longer than linear phase filters.
The “Hybrid” filter blends some linear phase and some
minimum phase characteristics to achieve good high
frequency attenuation with reduced pre-ringing.
The “Apodizing” filter blends linear phase characteristics with
techniques to reduce pre and post-ringing.
The “Brick Wall” filter is optimized purely for attenuating
unwanted high frequency aliased signals.
DAC SACD Filter
Select the frequency the low pass filter is applied to SACD
playback:
47kHz , 50kHz , 60kHz , or 70kHz .
PLL Bandwidth
Normal is the default setting and is appropriate for almost
all sources. Select
Wide only if you experience noise or signal
dropouts (most likely from high jitter sources such as cable TV
set-top boxes).
Digital Output
This allows the user to limit the sample frequency of the digital
output to
48kHz Max , 96kHz Max or set to No Downsampling
(full source bandwidth).
System Info
This is a read only menu, use ▲▼ to scroll through:
•
Software Version
• WiFi MAC Address
• Wired MAC Address
• IP Address

13
N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
Using the Mark Levinson 5Kontrol Application
The
N
0
5101 and other 5000 series products can be controlled
by the Mark Levinson 5Kontrol mobile application once loaded
onto a mobile device. The app mirrors the function of the
remote control but controls the device over IP. The mobile
device must be connected to the same network as the
N
0
5101
and the
Network Standby setting must be set to Active to
maintain the network connection as described on page 10.
For more information please visit www.marklevinson.com.
CONTROL

14 N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
TROUBLESHOOTING
NO POWER
Examine the power cord to ensure that it is connected to both the AC mains connector and a working, un-switched electrical outlet.
Examine the electrical circuit breaker to ensure that power is being supplied to the electrical outlet to which the N05101 is connected.
Make sure the N05101 is not in Standby mode. The front-panel standby LED illuminates fully and continually when the N05101 is On.
The LED flashes slowly when the N05101 is in Standby mode.
REMOTE CONTROL DOES NOT OPERATE
Eliminate obstructions between the remote control IR transmitter and the IR receiver on the N05101 front-panel display.
Check the menu to make sure the front panel IR was not disabled.
Make sure the rear-panel IR input connector is not being used.
Make sure the remote control is positioned within 17 feet (5m) and within a 45-degree angle of the N05101 front panel.
Make sure the IR receiver on the N05101 front-panel display is not exposed to intense sunlight, halogen light, or fluorescent light.
This can cause IR reception to become unreliable.
Replace the remote control batteries.
NO SIGNAL AT THE LINE OUTPUTS
Make sure all associated components are connected to working electrical outlets and powered On.
Make sure the source device connected to the selected N05101 input is producing an output signal.
NO SOUND WHEN PLAYING AN SACD
Make sure you are monitoring the Analog outputs from the N05101 when listening to SACDs.
The digital outputs are for PCM sources only. DSD (Direct Stream Digital) audio is not routed to the Coaxial or TOSLINK outputs due to copy
protection requirements.
AUDIO HAS A HUMMING SOUND
Disconnect components one at a time to isolate the problem.
Once you have identified the problematic component, make sure it is properly grounded and connected
to the same electrical circuit as the N05101.
FRONT-PANEL DISPLAY NOT WORKING
Press any remote or front panel button to restore the display from the off mode.
TROUBLESHOOTING

15
N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
TROUBLESHOOTING
NO CONNECTIVITY VIA ETHERNET
Verify that an Ethernet cable is correctly connected between the router, switch or hub and the N05101.
Verify the age of the router, switch or hub. If the router, switch or hub is more than three years old,
there may be a communication issue with the N05101.
Power cycle the unit and use a newer router, switch or hub between the network and the N05101.
IF ALL ELSE FAILS…
Power cycle the N05101 by unplugging the power cord, waiting at least 10 seconds and reconnecting the power cord.
Restore factory-default settings.
Contact your authorized Mark Levinson dealer.
Contact Mark Levinson Customer Service at 888-691-4171 or www.marklevinson.com.

16 N05101 STREAMING SACD PLAYER/DAC /QUICK START GUIDE
SPECIFICATIONS
SPECIFICATIONS
GENERAL
Output Voltage: 3.0V RMS single-ended at full scale (0dBFS)
6.0V RMS balanced at full scale (0dBFS)
Total Harmonic Distortion + Noise: <0.004%, 20Hz to 20kHz, single-ended, 3V RMS output (44.1kHz/16 bit signal)
<0.003%, 20Hz to 20kHz, balanced, 6V RMS output (44.1kHz/16 bit signal)
<0.003%, 20Hz to 20kHz, single-ended, 3V RMS output (192kHz/24 bit signal)
<0.002%, 20Hz to 20kHz, balanced, 6V RMS output (192kHz/24 bit signal)
Signal-To-Noise Ratio: >94dB single-ended (wideband, unweighted, referred to 3V RMS output)
>106dB balanced (wideband, unweighted, referred to 6V RMS output)
Power Consumption: Standby: <0.4W
Power on: 32W
Digital Audio Connectors: 1 optical digital input (Toslink)
1 coaxial digital S/PDIF input (RCA)
1 optical digital output (Toslink)
1 coaxial digital S/PDIF output (RCA)
Output Connectors: 1 pair single-ended line-level outputs (RCA)
1 pair balanced line-level outputs (XLR)
Control And Network Connectors: 1 RS-232 port (DB9 connector)
1 IR input (1/8"/3.5mm phone jack)
1 12V DC trigger input (1/8"/3.5mm phone jack)
1 Ethernet port (RJ-45 connector)
1 USB-A connector
1 Wi-Fi antenna connector (SMA receptacle)
Wireless Format: 2.4GHz, 802.11b/g/n
Supported File Types: FLAC, WAV, AIFF, OGG up to 24 bit/192kHz
DSF, DFF up to 5.6MHz (DSD128/DSD 2X)
AAC up to 24 bit/96kHz
MP3 up to 320kbps/48kHz
WMA up to 192kbps/48kHz
Dimensions/Weight (Unit): Height: 4.97"/126mm; Height without feet: 4.50"/114mm; Width: 17.25"/438mm; Depth: 18.36"/466mm;
Weight: 25.5 lb/11.5kg
Dimensions/Weight (With Packaging): Height: 11"/279mm; Width: 27"/686mm; Depth: 24"/610mm;
Weight: 35.7 lb/16.2kg

HARMAN International Industries, Incorporated
8500 Balboa Boulevard
Northridge, CA 91329 USA
© 2019 HARMAN International Industries, Incorporated. All rights reserved.
Mark Levinson is a registered trademark of HARMAN International Industries, Incorporated.
Other company and product names may be trademarks of the respective companies with which they
are associated.
This document should not be construed as a commitment on the part of HARMAN International
Industries, Incorporated. The information it contains, as well as the features, specifications and
appearance of the product, is subject to change without notice. HARMAN International Industries,
Incorporated, assumes no responsibility for errors that may appear within this document
For customer service and product shipment information, refer to our Website: www.marklevinson.com
Part No. 070-00001 rev. A.1 www.marklevinson.com
