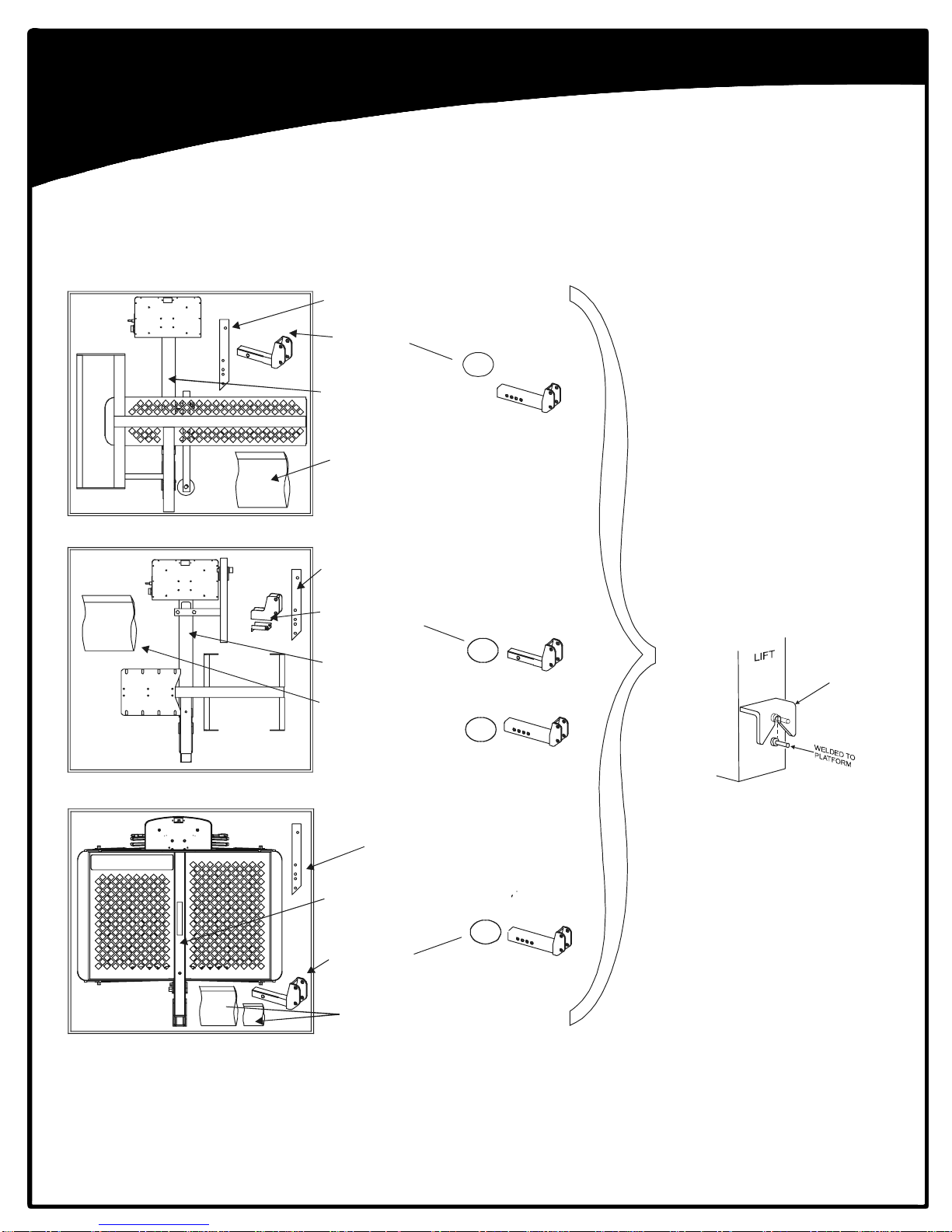

Harmar Mobility LiftAL030 Installation instructions

AL010 Micro Scooter Lift AL050 Micro Power Chair Lift
AL030 Power Tote for
Manual Wheelchairs

CLASS 2
Hitch Adapter
HITCH POST
AL010 - Micro Scooter Lift
LIFT BODY
HARDWARE
PACK
CLASS 2
Hitch Adapter OR CLASS 3
OPTIONAL
HITCH POST
AL030 - Manual Wheelchair Lift
AL050 - Micro Power Chair Lift
LIFT BODY
LIFT BODY
HITCH ADAPTER
and Stabilizer
HARDWARE PACK
HARDWARE
PACK
U-Bolt
HARDWARE
PACK
OR
OR
CLASS 3
CLASS 3
OR CLASS 2
OPTIONAL
OPTIONAL
OPTIONAL
HITCH POST
PLATFORM
KEEPER
NOTE: The Platform will not be
allowed to unfold until the platform
has been lowered at least 1 inch.
&
Unpackaging the Lift
Check the contents of the box against the package check list to be sure that all parts are
included with the lift that are required for proper installation. If any parts are missing or if any damage is
noted, immediately contact your Harmar Dealer. DO NOT attempt to install or use the lift with any missing
or damaged parts.
Models AL010and AL050 are packaged with a standard Class 2 hitch adapter. Model AL030 is packaged with a stan-
dard Class 1 flat bar style hitch adapter and stabilizer. If a different model hitch adapter or a Swing Away option is
required, separate parts must be ordered.

Vehicle Wiring Instructions
BLACKWIRE
BLACKWIRE
OR
Side mount Top mount
Unwind the harness and lay it flat on the ground. One end of
the harness has a black plug; this runs to the back of the
vehicle.
BEGIN ROUTING THE HARNESS AT THE VEHICLE BATTERY.
Connect the black wire to the negative terminal of the battery.
Do not connect the positive terminal yet.
Run wiring harness under, or if possible, through the vehicle,
using cable ties provided to secure the harness to the vehicle.
Position the harness away from the fuel tank, exhaust sys-
tem, brake and fuel lines and any possible pinch points.
Harness should be positioned where it will not come in con-
tact with any road debris.
The harness may be too long for the vehicle. DO NOT CUT
OR SHORTEN THE HARNESS. Use cable ties provided to coil
excess wire and secure it to the vehicle frame.Rear plug
should be secured even to the vehicle’s trailer hitch.
Connect the red wire to the positive battery
terminal.
Wire in a standard 4-contact female flat trailer
connector to the vehicle’s taililights. This will
provide power for the motor cover light.
TRAILER PLUG
ON LIFT HARNESS MOTOR COVER
LIGHT
Ground for light is
provided by main
2 prong power
connector
BROWN WIRE
REDWIRE
REDWIRE
OR
COIL
EXCESS
WIRE
HERE
REDWIRE
REDWIRE
OR
Side mount Top mount
XCESS
WIRE
HERE
To back
of vehicle
To vehicle's
battery
RE
Harness requires direct connection to
vehicle battery. Do not connect harness
to a secondary power source.
Coil
Excess Wire
Here

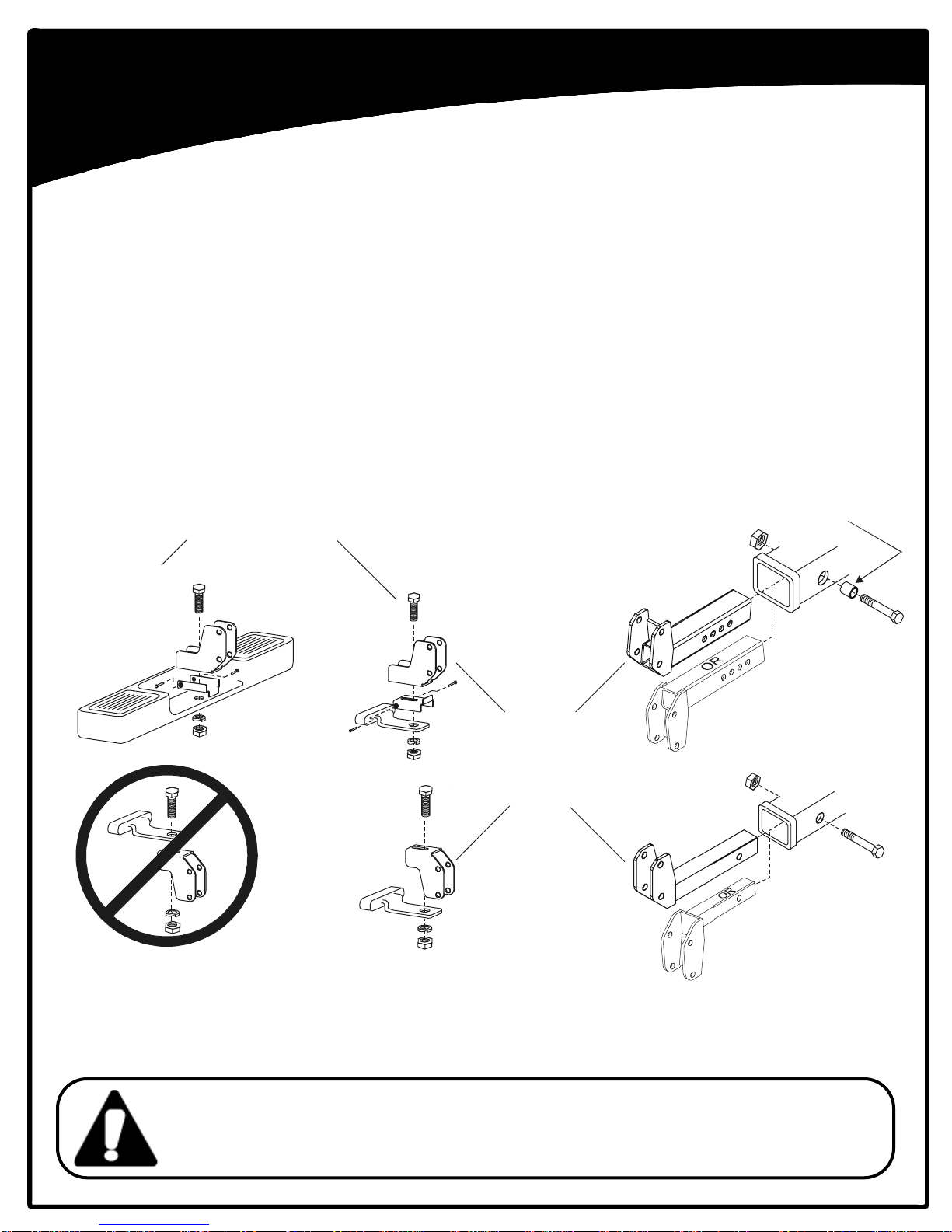

Hitch Adapters
Bumper Mount
( Be sure to comply with
vehicle's bumper rating )
CLASS 1
( Flat Bar Style )
CLASS 2
( 1.25 x 1.25 Solid Bar )
Omit stabilizer
CLASS 3
( 2 x 2 TUBE )
Refer to Section 4 or 5
for proper orientation
( right side up or upside down )
Determines lift's height from
the ground
PINCH BOLT
SLEEVE
FOR AL030 ONLY
( CLASS 1 )
Before installing an outside lift on your vehicle the vehicle must be equipped with the correct hitch. If
you are unsure whether your vehicle has, or can accept a hitch, contact your local hitch installer or
visit www.hitch-web.com for vehicle hitch compatibility information.
Please note, your lift comes equipped with a license plate hold light. To power this light vehicle must
have a standard 4-contact trailer light harness. Contact your local hitch installer for more information.
Trailer light wiring is designed to power license plate light ONLY. Attempting to run your lift
from ANY secondary power sorce may cause your lift to operate poorly and could potentially
cause damadge to the motor. All Harmar lifts must be wired directly to the vehicle battery.
Hitch recievers MUST be installed so that it sits parellel to the ground. An improperly
installed hitch can affect the operation of your lift. Some vehicles will require supen-
sion to be supplemented. Contact your local hitch installer or refer to your vehicle’s
owners manual for further guidance.
The following pages will help
you to determine correct
hitch adapter positioning.

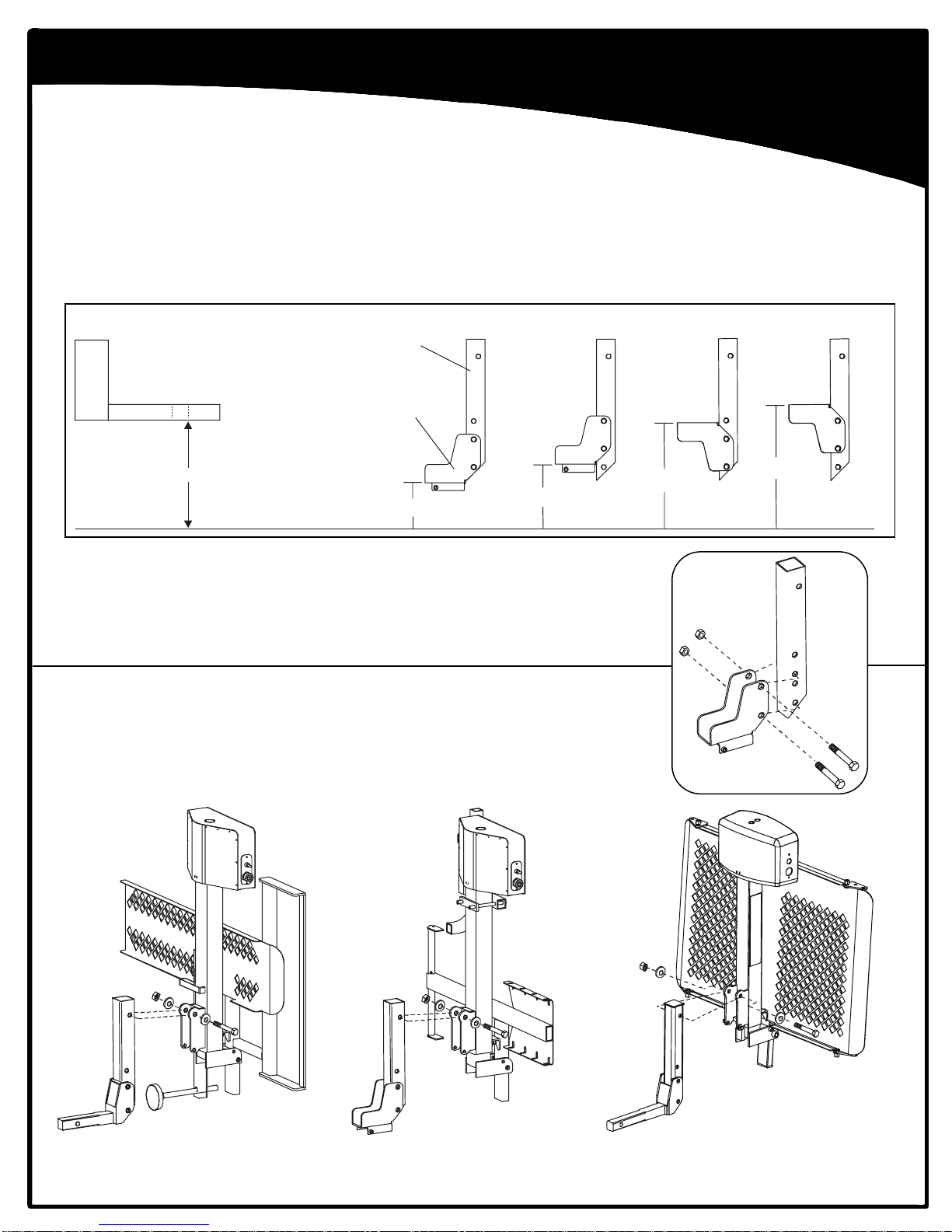

Installing the Lift
Measure from Hitch Bar to ground
5-13" 13-15" 15-17" 17-19"
OMIT
STABILIZER
OMIT
STABILIZER
HITCH
POST
HITCH
ADAPTER
To prepare your lift for installation you muct connect the lift to the Hitch Post
and Hitch Adapter provided. Proper positioning is determined by the height of the vehicle hitch.
1. Measure the distance from the bottom of the hitch reciever on the vehicle to the ground.
2. Refer to Figure 1 below to determine correct placement of the hitch adapter.
3. Connect hitch post to lift.
Figure 1
Once you have determined correct configuration, connect the Hitch
Post to the Hitch Adapter following the diagram to the right using
hardware supplied (1/2 - 13 x 3- 1/2” HHCS and lock nuts).
Position the folded lift to the rear of the vehicle with the motor box
folded away from the vehicle. With assistance, carefully lift the unit
up to the Hitch Post and attach it using the 1/2” bolt, washers and
lock nut provided.

Installing the Lift With Swing Away Option
Measure from Hitch Bar to ground
4-12" 12-14" 14-16" 16-17"
Class I Hitch Adapter may NOT be used
when installing a Swing Away.
To prepare your lift for installation with a Swing Away you muct connect the lift to the Swing Away
and Hitch Adapter provided. Proper positioning is determined by the height of the vehicle hitch.
1. Measure the distance from the bottom of the hitch reciever on the vehicle to the ground.
2. Refer to Figure 1 below to determine correct placement of the hitch adapter.
3. Connect hitch post to lift.
Once you have determined correct configuration, connect the
Swing Away to the Hitch Adapter following the diagram to the
right using hardware supplied (1/2 - 13 x 3-1/2” HHCS and
lock nuts).
Position the folded lift to the rear of the vehicle with the motor
box folded away from the vehicle. With assistance, carefully
lift the unit up to the Swing Away and attach it using the 1/2”
bolt, washers and lock nut provided.
Figure 1
*Drawing depicts Class III application. Class II installation is identical.

Swing Away Operation
The Swing Away is an optional accessory that allows for full access to
vehicle trunk, lift gate or tailgates. A swing away may be added to an
existing lift at any time.
Opening the Swing Away
1. Remove the safety pin
CAUTION! Never operate the swing away with a chair or scooter still on the lift. This will
result in damage to the swing away, lift and potentially cause damage to the vehicle and
scooter or power chair. Always ensure that vehicle is on level grown before operating
swing away. Failure to do so could result in injury or damadge to the lift or vehicle.
2. Pull out on the red handle while
pushing away on the lift.
1. Close swing away as you would
a vehicle door, taking care to
stand clear of latching mechanism.
2. Install safety pin. 3. Verify red knob has fully retracted.
Closing the Swing Away

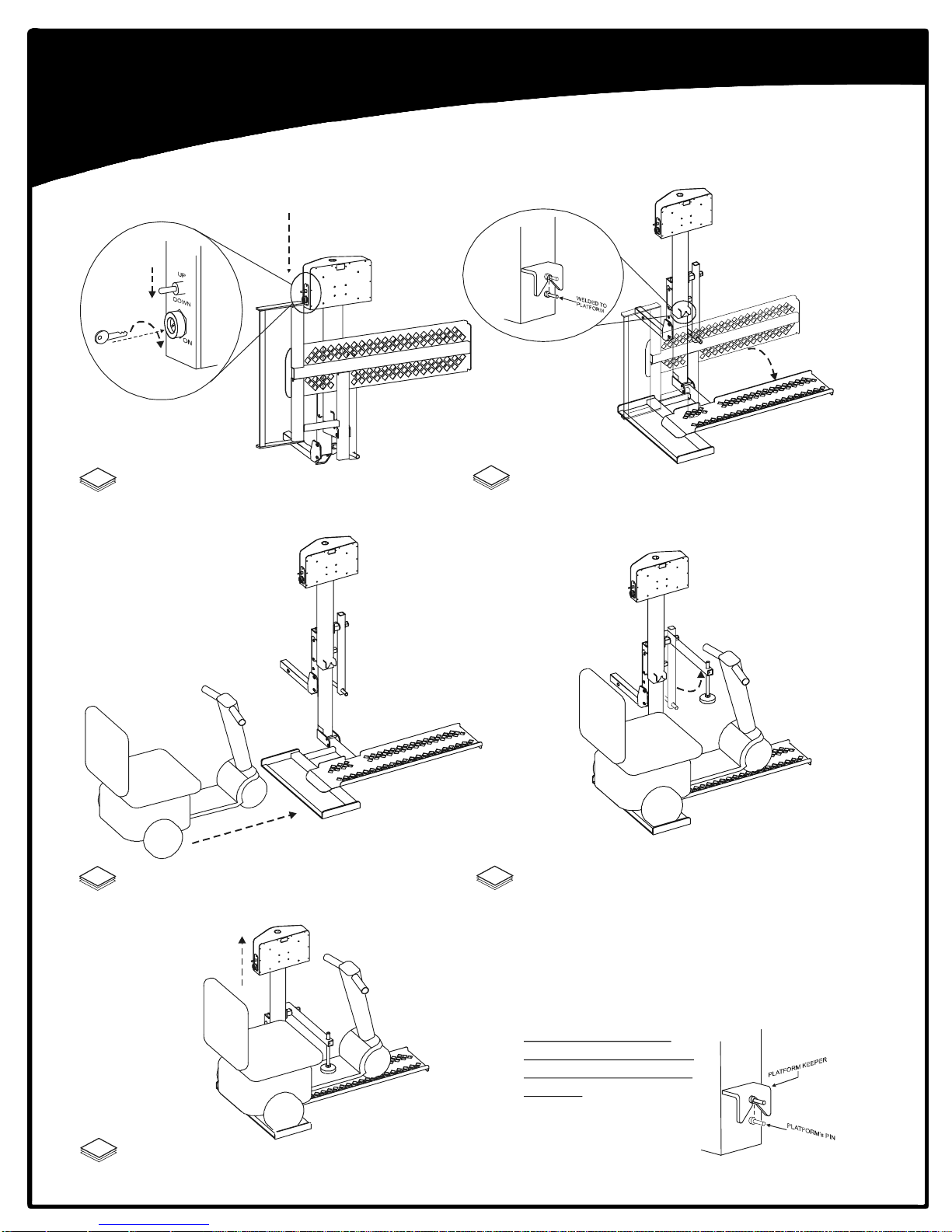

AL010 Lift Operation
"PLATFORM KEEPER"
Insert Key and switch to "ON" position
Press down on Toggle switch momentarily. Once platform has been lowered at least an
inch, unfold the platform. Continue lowering
to the ground.
Drive scooter onto platform as shown. Raise hold down arm.
Raise platform until hold down foot depresses
scooter's deck or until lift's motor ratchets.
12
34
5
To remove the scooter and prepare the lift
for unloaded travel, follow above steps in
reverse order and reverse the direction
of the arrows.
. Verify that the
platform keeper has
engaged the platform's
pin.
Lift should be raised
with the platform folded
and until the lift's motor
ratchets

Safety and Maintenence
Keep hands feet and other objects clear of platform as it lowers to the ground.
Always verify that scooter is securely held down to the lift before attempting to transport.
On some scooters it may be necessary to temporarily move the steering tiller forward to clear the
hold down arm as it lowers into the locked position
Scooters equipped with pneumatic (air-inflated) tires must have properly
inflated tires at all times. Improper tire inflation may change the height of the deck, thereby
changing the hold-down force required.
Use caution when driving over speed bumps, potholes, railroad tracks or other sudden road changes.
Failure to drive carefully and slowly over such obstacles can result in damage to your lift, vehicle or
scooter.
Use care when entering steep driveways. Enter and exit at an angle to avoid dragging lift on the
ground.
Always confirm that lift platform has been fully raised before transporting scooter or unoccupied lift.
Failure to do so can result in serious damage to you lift or vehicle.
Manual Override Feature
This lift is equipped with a Manual Override feature for use if the vehicle or the lift should ever lose power.
Harmar recommends the manual override be used only by Harmar Mobility Authorized Dealers and qualified
mechanics such as roadside assistance technicians.
To ensure safety the lift must be unplugged and the key turned to the off position before manual backup is
engaged. To engage manual backup remove the cap from the top of motor box cover and, using a 3/8"
socket, turn the wrench clockwise to raise the lift or counter clockwise to lower the lift.
CAUTION: TO AVOID THE RISK OF SERIOUS INJURY, NEVER
ATTEMPT TO OPERATE THE MANUAL OVERRIDE WHILE THE LIFT IS
PLUGGED IN TO THE VEHICLE.

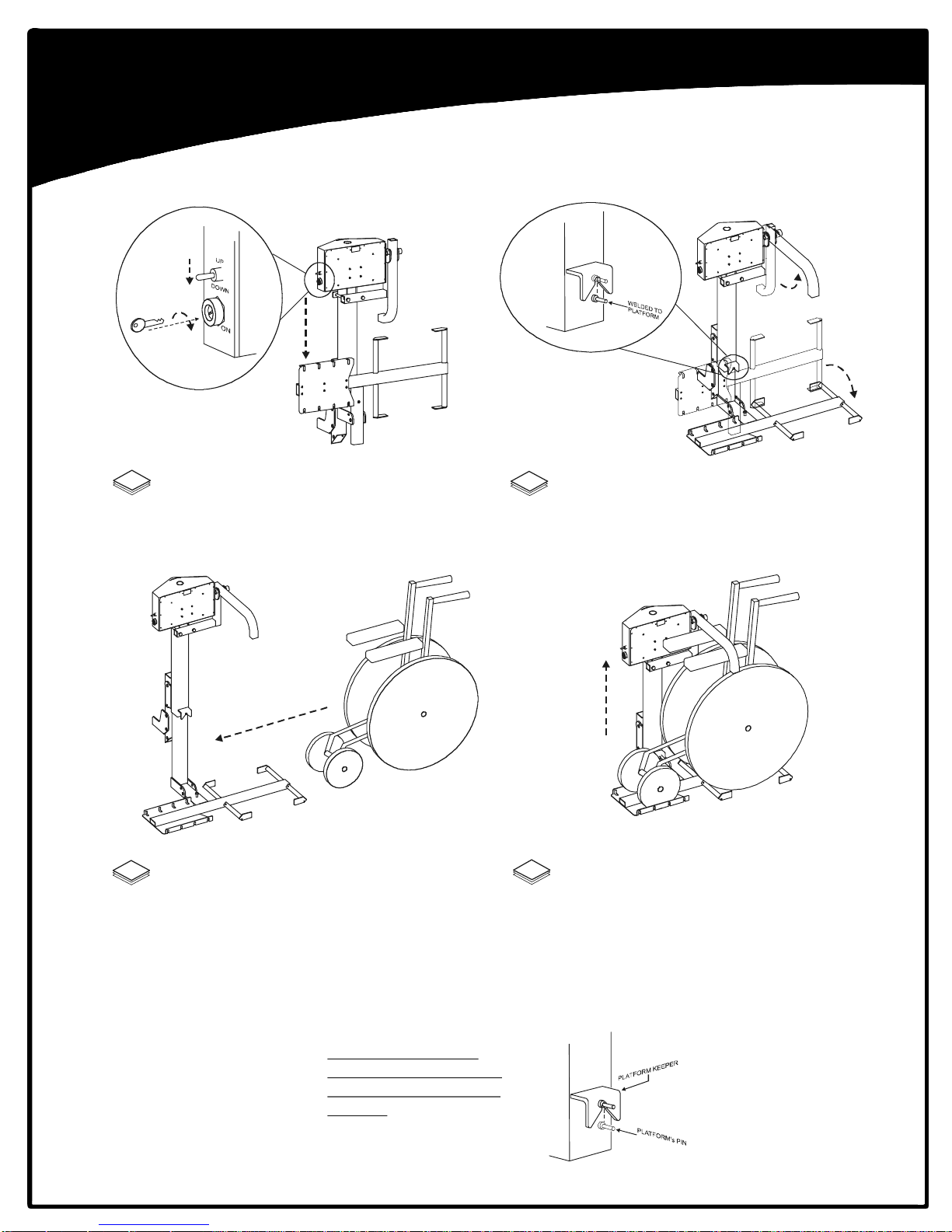

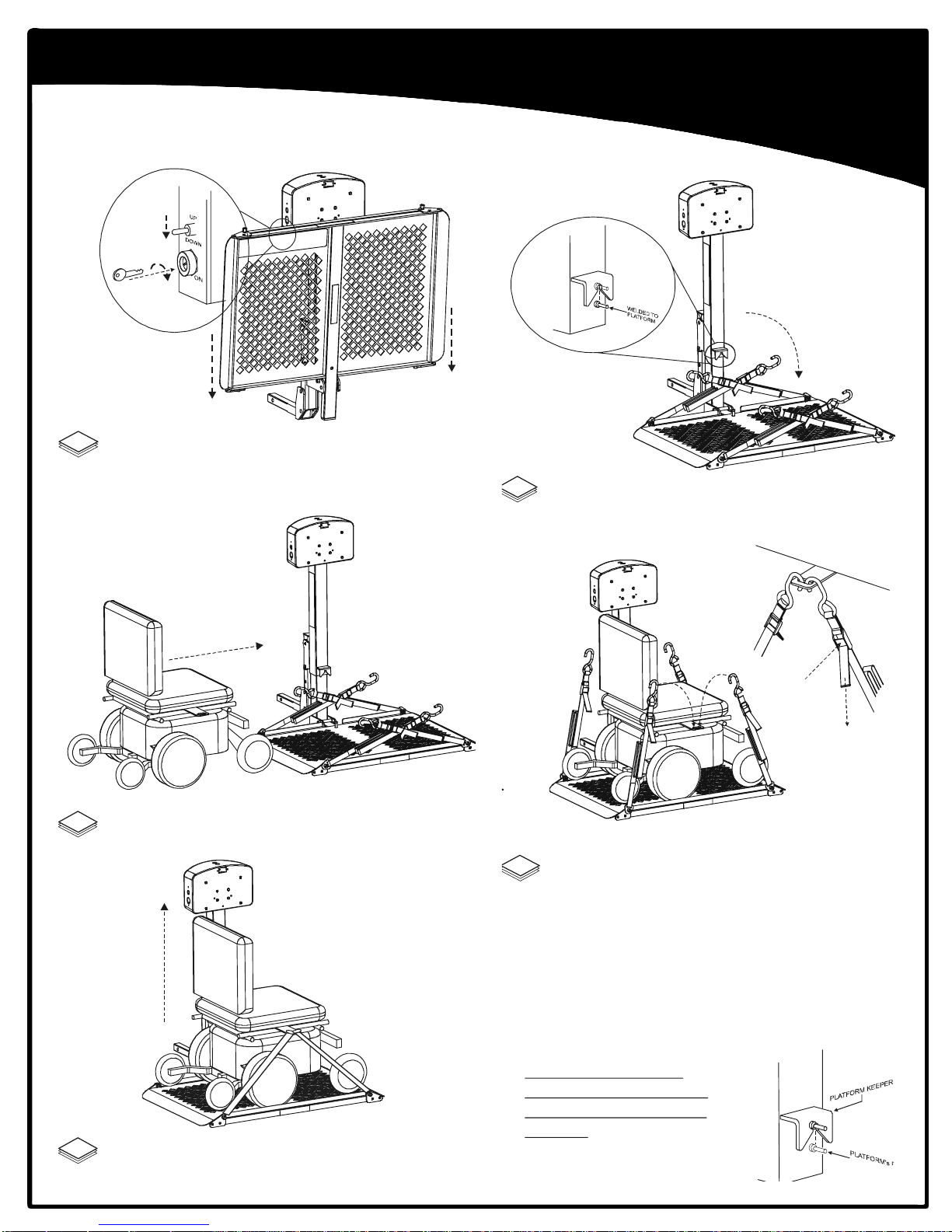

AL030 Lift Operation
"PLATFORM KEEPER"
NOTE: The Platform will not be
allowed to unfold until the platform
has been lowered at least an inch.
Insert Key and switch to "ON" position
Press down on Toggle switch momentarily.
1Once platform has been lowered at least an
inch, unfold the platform. Continue lowering
to the ground. Raise hold down arm.
2
Roll folded chair onto platform as shown.
3Raise the lift until hold down arm has
contacted wheelchair's arm rests.
Remove key if desired.
4
To remove the chair and prepare the lift
for unloaded travel, follow above steps in
reverse order and reverse the direction
of the arrows.
. Verify that the
platform keeper has
engaged the platform's
pin.
Lift should be raised
with the platform folded
and until the lift's motor
ratchets

Keep hands feet and other objects clear of platform as it lowers to the ground.
Always verify that wheelchair is securely held down to the lift before attempting to transport.
Wheelchairs equipped with pneumatic (air-inflated) tires must have properly
inflated tires at all times. Improper tire inflation may change the hold-down force required.
Use caution when driving over speed bumps, potholes, railroad tracks or other sudden road changes.
Failure to drive carefully and slowly over such obstacles can result in damage to your lift, vehicle or
chair.
Use care when entering steep driveways. Enter and exit at an angle to avoid dragging lift on the
ground.
Always confirm that lift platform has been fully raised before transporting wheelchair or unoccupied
lift. Failure to do so can result in serious damage to you lift or vehicle.
Manual Override Feature
This lift is equipped with a Manual Override feature for use if the vehicle or the lift should ever lose power.
Harmar recommends the manual override be used only by Harmar Mobility Authorized Dealers and qualified
mechanics such as roadside assistance technicians.
To ensure safety the lift must be unplugged and the key turned to the off position before manual backup is
engaged. To engage manual backup remove the cap from the top of motor box cover and, using a 3/8"
socket, turn the wrench clockwise to raise the lift or counter clockwise to lower the lift.
CAUTION: TO AVOID THE RISK OF SERIOUS INJURY, NEVER
ATTEMPT TO OPERATE THE MANUAL OVERRIDE WHILE THE LIFT IS
PLUGGED IN TO THE VEHICLE.
AL030 Safety and Maintenance

AL050 Power Chair Preperation
There are 2 options on how to attach the strap hooks to the chairthat are included with the lift.
Anchor Plate: The Anchor Plate is a bar that is 20” long and 2 1/2” wide with 2 holes in each end. This plate
will work with any chair that has a center seat post that attaches to the bottom of the seat. Attach the Anchor Plate
by the following steps.
1. Remove the seat from the chair and turn it over.
2. Loosen the screws that attach the plate tothe bottom of the seat. Allow enough room to slide the Anchor Plate
between the seat and the seat plate.
3. Attach the Anchor Plate in the center of the seat plate with the holes on each end extending evenly on each
side of the seat.
4. Retighten the screws that hold the seat plate to the bottom of the seat.
5. Replace the seat on the chair.
The Anchor Plate should extend about 1-1/2” out from the side of the seat cushion. This will allow the user to attach
the strap hooks to the Anchor Plate to secure the chair to the lift.
Anchor U-Bolts: The U-Bolts are included to be used with Power Chairs that do not have a center seat post.
On this type of chair, the seat is normally attached to a tubular frame. Attach the U-Bolts, one on each side, to the
frame as shown below. Make sure that the loop extends to the outside of the chair to allow the strap hooks to be
attached by the end user.
Each type of chair will differ slightly and the placement of the U-bolts
will differ between different models and manufacturers. Place the Anchor
U-Bolts towards the center of the seat if possible. Because of the different
types of seats, you may be forced to attach the Anchor U-Bolts more towards
the front or rear of the seat, but we recommend attachemnt as close as
possible to the center of the seat

AL050 Lift Operation
Raise platform with toggle switch, until
motor's ratchet sound is heard.
5
1Insert Key and switch to "ON" position
Press down on Toggle switch momentarily.
Drive chair onto platform as shown.
3
To remove the chair and prepare the lift
for unloaded travel, follow above steps in
reverse order and reverse the direction
of the arrows.
. Verify that the
platform keeper has
engaged the platform's
Lift should be raised
with the platform folded
and until the lift's motor
ratchets
Once platform has been lowered at least an
inch, unfold the platform. Continue lowering
to the ground.
2
"PLATFORM KEEPER"
NOTE: The Platform will not be
allowed to unfold until the platform
has been lowered at least an inch.
PULL to
TIGHTEN
PUSH to
RELEASE
Strap the chair down using the 4 straps
located on each corner of the platform.
4
pin.

AL050 Safety and Maintenance
Keep hands feet and other objects clear of platform as it lowers to the ground.
Always verify that power chair is securely held down to the lift before attempting to transport.
Use caution when driving over speed bumps, potholes, railroad tracks or other sudden road changes.
Failure to drive carefully and slowly over such obstacles can result in damage to your lift, vehicle or
chair.
Use care when entering steep driveways. Enter and exit at an angle to avoid dragging lift on the
ground.
Always confirm that lift platform has been fully raised before transporting power chair or
unoccupied lift. Failure to do so can result in serious damage to you lift or vehicle.
Manual Override Feature
This lift is equipped with a Manual Override feature for use if the vehicle or the lift should ever lose power.
Harmar recommends the manual override be used only by Harmar Mobility Authorized Dealers and qualified
mechanics such as roadside assistance technicians.
To ensure safety the lift must be unplugged and the key turned to the off position before manual backup is
engaged. To engage manual backup remove the cap from the top of motor box cover and, using a 3/8"
socket, turn the wrench clockwise to raise the lift or counter clockwise to lower the lift.
CAUTION: TO AVOID THE RISK OF SERIOUS INJURY, NEVER
ATTEMPT TO OPERATE THE MANUAL OVERRIDE WHILE THE LIFT IS
PLUGGED IN TO THE VEHICLE.

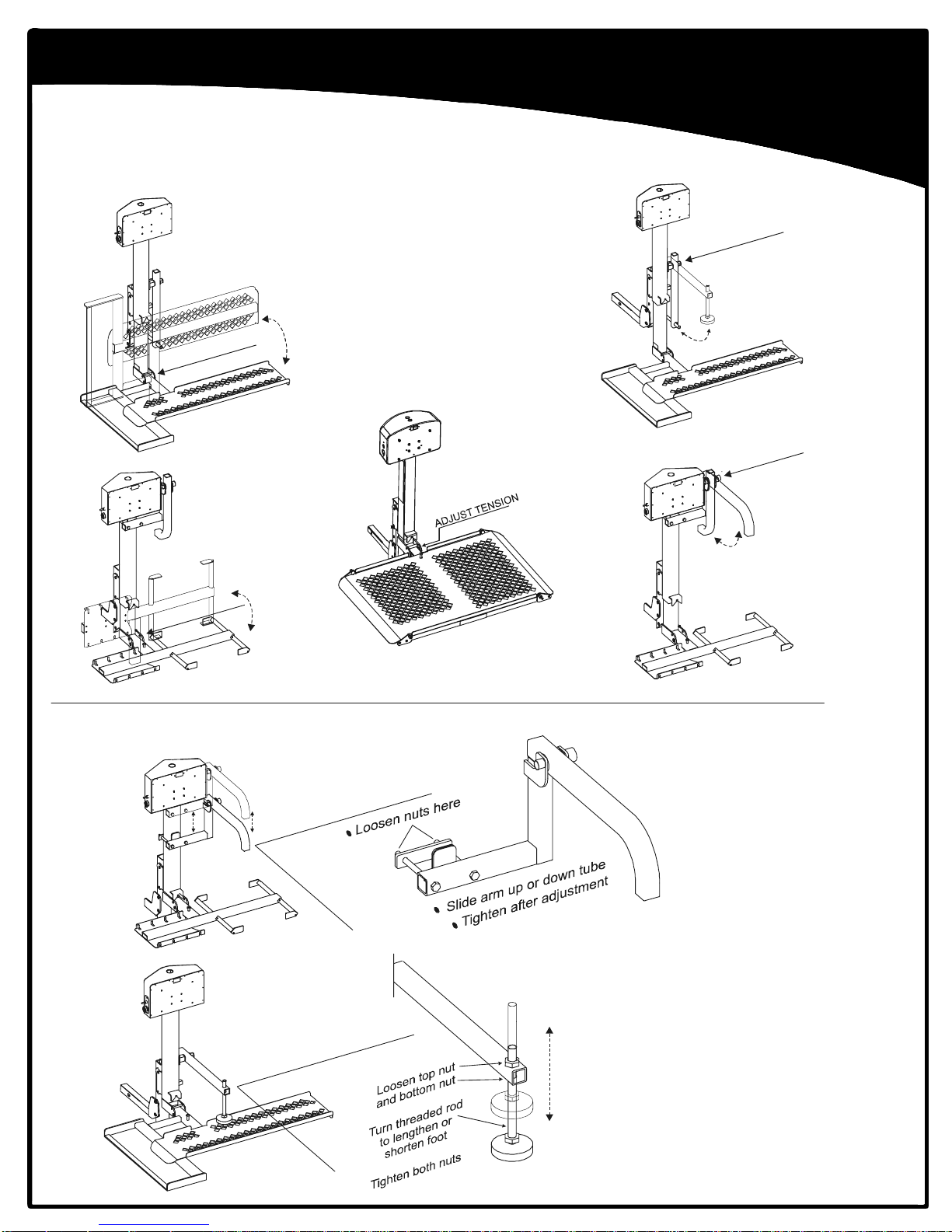

AL010, AL030 and AL050 Lift Adjustments
ADJUSTTENSION
LIFT SHOULD HOLD
WHEELCHAIR FIRMLY
WITH THE PLATFORM
FULLY RAISED
( RAISED UNTIL
MOTOR RATCHETING
IS HEARD )
LIFT SHOULD HOLD
SCOOTER FIRMLY
WITH THE PLATFORM
FULLY RAISED
( RAISED UNTIL MOTOR
RATCHETING IS HEARD )
The hinge points are equipped
with tensioning washers. The
amount of force required to move
these parts is determined by the
tension of these washers.
To adjust, simply loosen or tighten
the bolt and nut located by arrows.
The tension is set at the factory and
should need no adjustment.
This is noted for reference only.
AL010 and AL030 HOLD DOWN ARM ADJUSTMENT
ADJUSTTENSION
ADJUSTTENSION
ADJUSTTENSION

AL010 Micro MP
ITEM # DESCRIPTION PART #
1 SWITCH PLATE ALA12055
2 TOGGLE SWITCH ALA12010
3 KEY SWITCH ALA12015
4 MOTOR COVER ALA12050
5 ACTUATOR ALA10010
6 OUTER TUBE - AL010 ALA0103
7 HOLD DOWN ARM - AL010 ALA010017
8 HOLD DOWN FOOT ALA18020
9 INNER TUBE AL010 / AL030 ALA0300
10 HITCH POST ALA129
11 CLASS 2 HITCH ADAPTER AL126
12 CLASS 3 HITCH ADAPTER ALA123
13 PLATFORM - AL010 ALA0112
1
13
12
11 10
9
8
7
6
5
4
3
2
+
KEYSWITCH
ACTUATOR
12V
POLE REVERSING
SWITCH
BATTERY
TRAILER PLUG MOTOR COVER
LIGHT
CIRCUIT
BREAKER
VEHICLE HARNESS
OR

AL030 Power Tote
16
15
14
+
KEYSWITCH
ACTUATOR
12V
POLE REVERSING
SWITCH
BATTERY
TRAILER PLUG MOTOR COVER
LIGHT
CIRCUIT
BREAKER
VEHICLE HARNESS
ITEM # DESCRIPTION PART #
1 SWITCH PLATE ALA12055
2 TOGGLE SWITCH ALA12010
3 KEY SWITCH ALA12015
4 MOTOR COVER ALA12050
5 ACTUATOR ALA10010
6 OUTER TUBE - AL030 ALA0303
7 HOLD DOWN ARM - AL030 ALA0305
8 HOLD DOWN ARM MOUNT ALA0307
9 HOLD DOWN ARM BACK PLATE ALA03020
10 INNER TUBE AL010 / AL030 ALA0300
11 HITCH POST ALA129
12 CLASS 1 HITCH ADAPTER ALA01090
13 CLASS 1 STABILIZER ALA01097
14 CLASS 2 HITCH ADAPTER AL126
15 CLASS 3 HITCH ADAPTER ALA123
16 PLATFORM - AL030 ALA0312
OR
OR
12
3
4
5
6
7
8
9
10
11
12
13

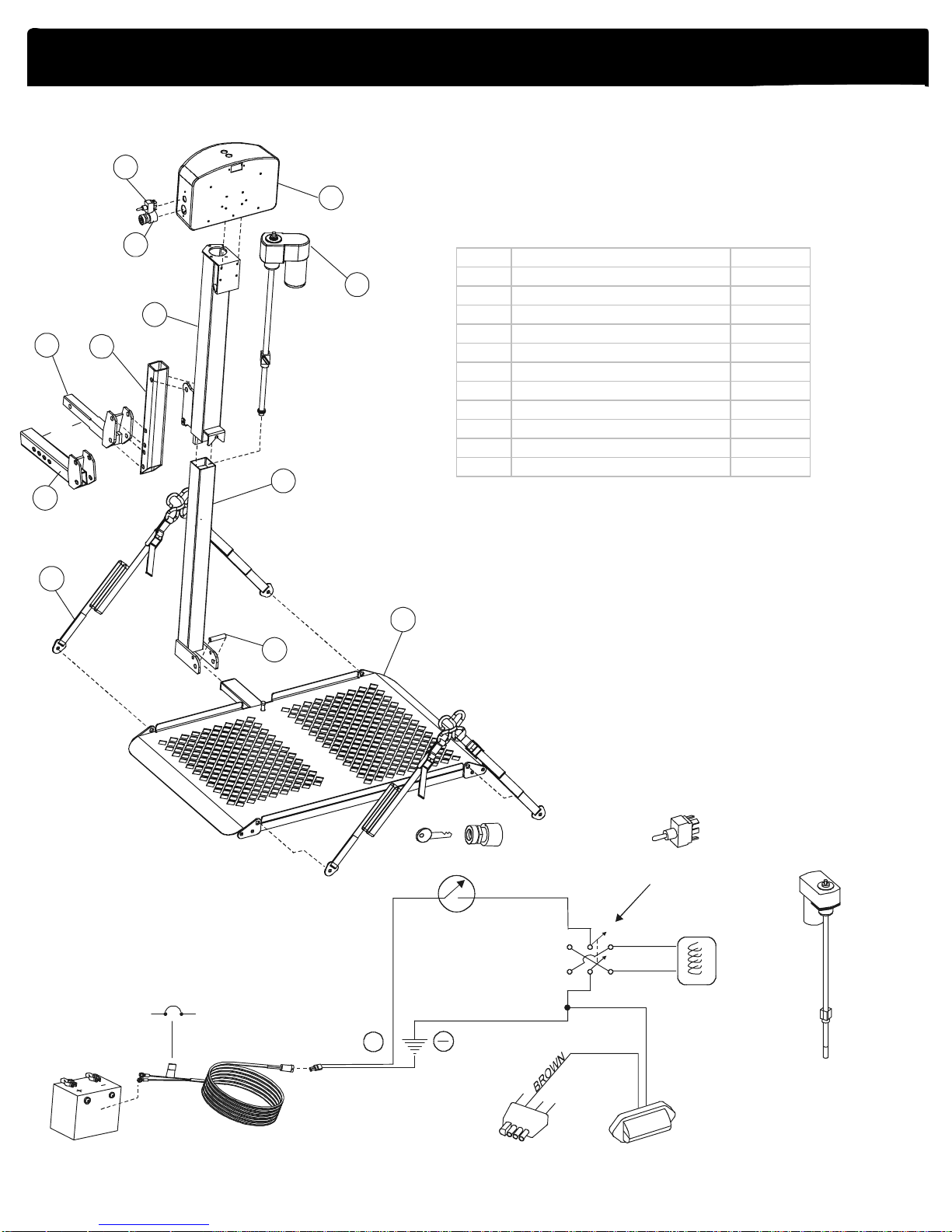

AL050 Micro Power Chair Lift
+
KEYSWITCH
ACTUATOR
12V
POLE REVERSING
SWITCH
BATTERY
TRAILER PLUG MOTOR COVER
LIGHT
CIRCUIT
BREAKER
VEHICLE HARNESS
1 TOGGLE SWITCH ALA12010
2 KEY SWITCH ALA12015
3 MOTOR COVER ALA12050
4 ACTUATOR ALA10010
5 OUTER TUBE ALA0303
6 INNER TUBE ALA0300
7 HITCH POST ALA129
8 CLASS 2 HITCH ADAPTER AL126
9 CLASS 3 HITCH ADAPTER ALA123
10 PLATFORM - AL050 ALA0312
11 STRAP ASSY ALA69073
12 PLATFORM ANGLE TUBE H05010
AL050 - MICRO POWER CHAIR LIFT
1
2
5
7
8
6
3
4
9
11
10
12
OR

Teoubleshooting Guide
Problem
Possible Cause
Suggestions
Lift does not operate
Lift operates slowly
Electrical Connections
Verify that battery connections are
clean with good contact. Inspect full
length of wiring harness.
Test the electrical connection by
powering lift through a fully charged
shop battery using a secondary
harness.
Circuit Breaker
Circuit breaker resets itself
automatically, to test for a malfunction
check for power at the lift with a test
lamp.
Intermittent power to lift
Electrical Connections
See item #1 top of page
Hold-down will not stay
upright or is difficult to
move.
Lift platform is difficult to
move.
Improper adjustment at
pivot points
Tighten or loosen bolts until hold-down
arm or platform operates smoothly,
with some resistance.
There is a ratcheting sound
when the lift goes all the
way up or all the way down.
N/A
This is normal, indicating that the
clutch is activating when the lift
reaches lowest or highest position.
There is excessive wire left
over after connecting
harness to vehicle.
Coil excess wire under
vehicle and secure
with cable ties
provided.
Extra wire is provided for applications
with a swing away. Do not cut harness
in case a swing away is added at a
later time.
The license plate light does
not work.
Electrical connection
Light should be connected to a 4-
prong trailer plug. If no plug exists the
light may be wired directly to the
vehicle lights or license plate light
The lift does not reach the
ground when completely
lowered.
Lift bottoms out while
entering driveways or going
over bumps.
Hitch adapter
positioning or incorrect
hitch adapter.
Check the connection of the hitch
adapter to the hitch post. Normal
range of operation is 5-19 inches,
measured from the bottom of the hitch
to the ground. Higher vehicles require
special hitch adapters, which can be
obtained from a Harmar Mobility
Authorized Dealer. Lift should be
installed at the highest adjustment
point possible.
Keys to the lift have been
lost or stolen.
Contact your Harmar Mobility
Authorized Dealer for replacement
keys.

AL050 Mocro Power Chair Lift
