HAUL MASTER 60708 Assembly instructions

Page 2 For technical questions, please call 1-800-444-3353. Item 60708
Table of Contents
Safety ......................................................... 2
Specifications ............................................. 4
Installation .................................................. 6
Operation.................................................... 7
Maintenance............................................... 8

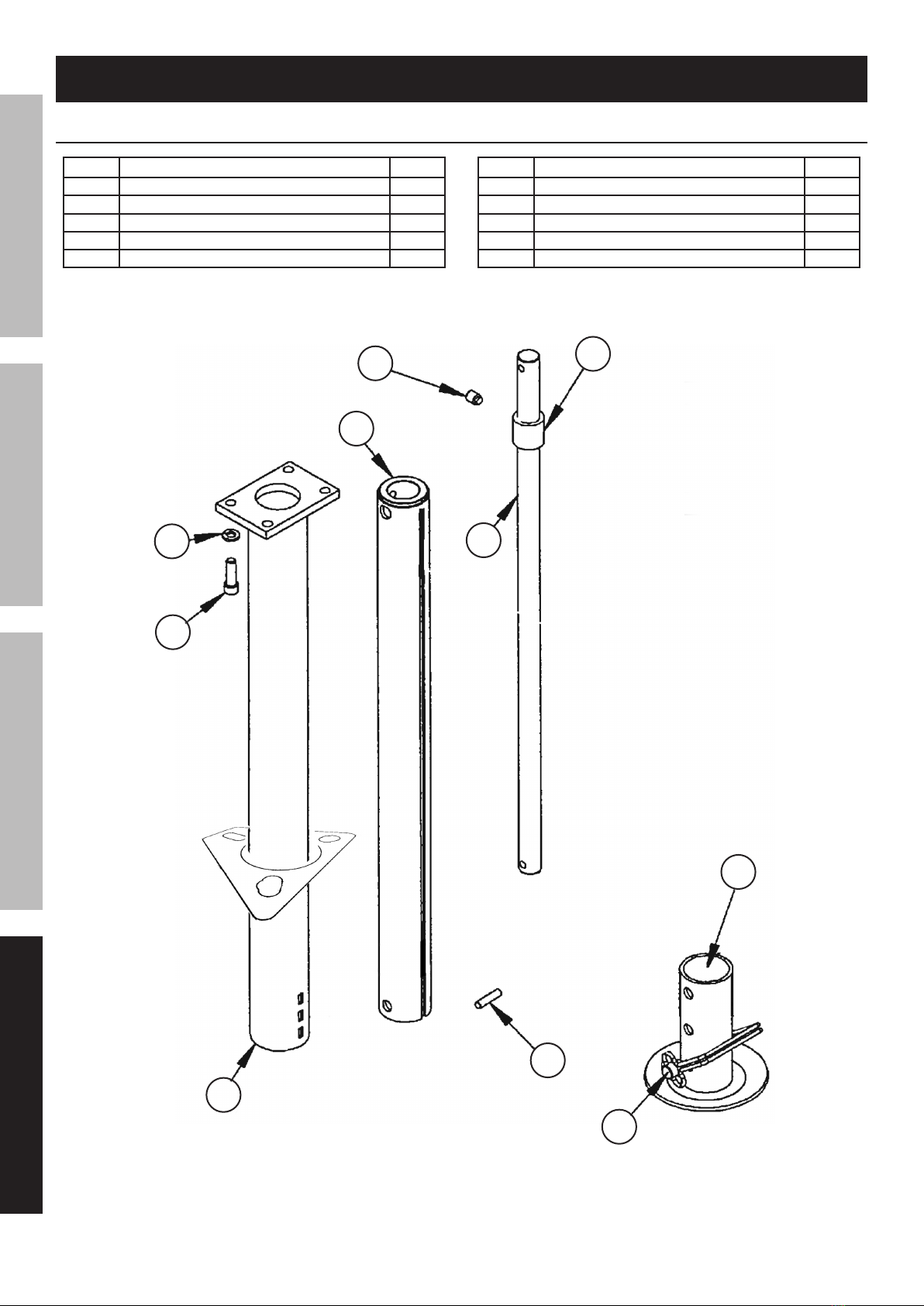

Parts List and Assembly Diagram.............. 10
Warranty .................................................... 12
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in serious injury.
Save all warnings and instructions for future reference.
Basic Safety Information
Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a tool. Do
not use a tool while you are tired or under
the influence of drugs, alcohol or medication.
A moment of inattention while operating tools
may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Safety equipment such
as non-skid safety shoes or a hard hat used for
appropriate conditions will reduce personal injuries.
Service
Have your tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the tool is maintained.
SAFETY OPERATION MAINTENANCEINSTALLATION

Page 3For technical questions, please call 1-800-444-3353.Item 60708
Specific Safety Warnings
1. Do not exceed rated capacity.
2. Do not use Crank while power lift is in use.
3. Use on flat, level, hard surface
capable of supporting load.
4. Wear ANSI-approved safety goggles during use.
5. Prevent trailer wheels from moving using
wheel chocks while raising or lowering.
6. Before towing, fully raise Trailer Jack.
7. Keep out from under jack and tongue when applying
and releasing load or when jack is supporting load.
8. Inspect before use. Do not use if
parts are loose or damaged.
9. Use in accordance with the Department
of Transportation (DOT) regulations.
10. Maintain labels and nameplates on the tool.
These carry important safety information. If
unreadable or missing, contact Harbor
Freight Tools for a replacement.
11. Apply force to jack vertically only. Side
forces will compromise the jack.
12. Do not use blocks for additional ground clearance.
13. Do not climb aboard any vehicle supported by jack.
14. This product is not a toy. Keep it
out of reach of children.
15. Follow all state regulations for towing when
using Trailer Jack, including using safety
chains securely attached to the towing vehicle
when the trailer is hooked to the vehicle.
16. Check ground clearance carefully after
installing. If your trailer does not provide
enough ground clearance for the jack, remove
the jack entirely before towing trailer.
17. Do not use for aircraft purposes.
18. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Electrical Warnings
1. Incorporate properly rated fuse into
power input line to prevent fire.
2. Electrically insulate and waterproof
all wiring connections.
3. If connecting to trailer lighting circuit,
do not exceed its rating.
SAVE THESE INSTRUCTIONS.
SAFETYOPERATIONMAINTENANCE INSTALLATION

Page 4 For technical questions, please call 1-800-444-3353. Item 60708
Functional Description
Specifications
Weight Capacity 3,500 lb.
Motor 12VDC
Travel Length 19-5/8"
Lift Range 8-3/8"– 28"
Application For use with A-frame trailers
Hardware (sold
separately)
3 bolts 3/8" D x 1" L
(grade 5 or better), 3 lock
nuts, 6 star washers
SAFETY OPERATION MAINTENANCEINSTALLATION

Page 5For technical questions, please call 1-800-444-3353.Item 60708

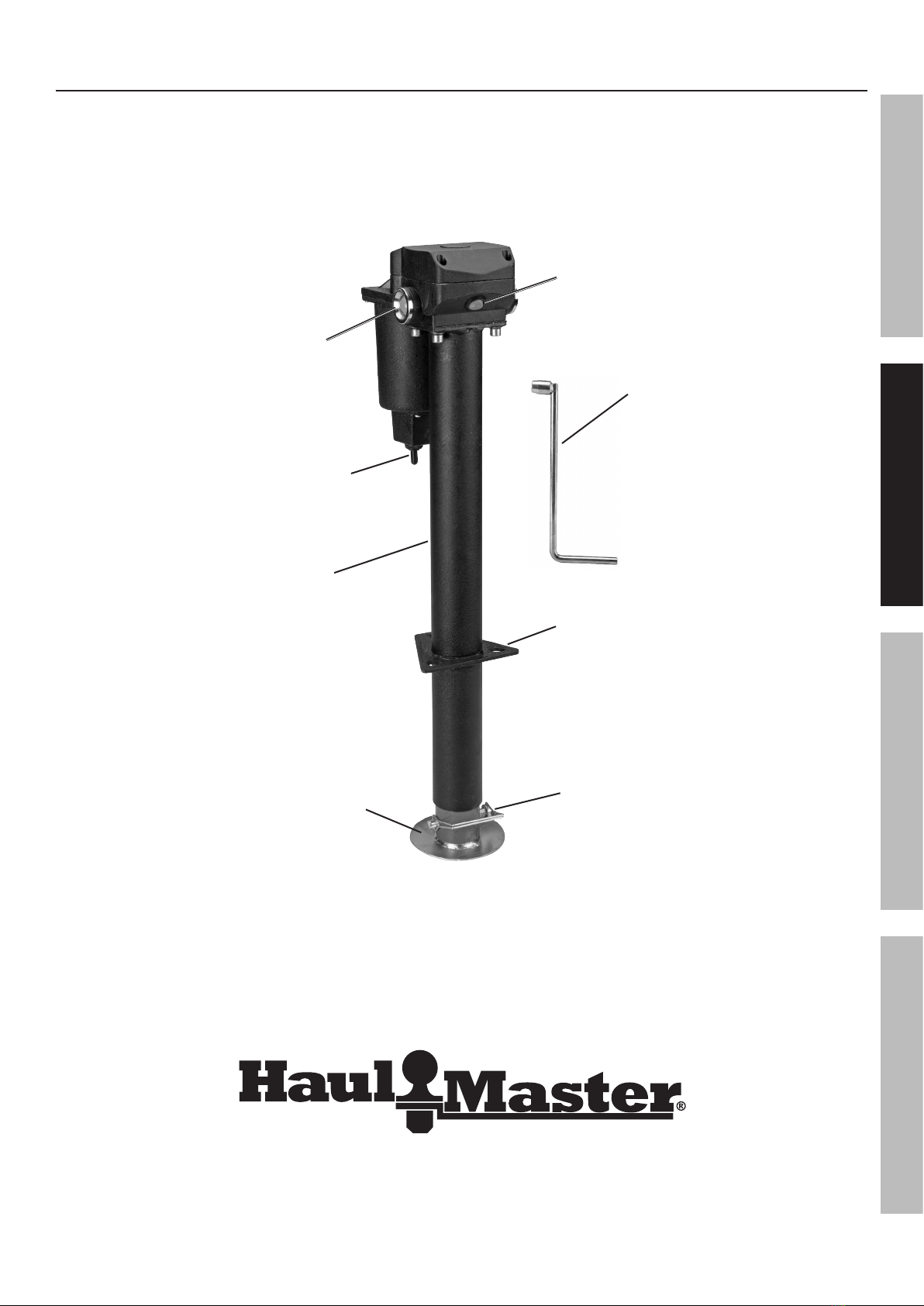

Components
Light Switch
Crank
Light
Power Switch
Mounting Plate
Outer Tube
Footpad
Lock Pin
SAFETYOPERATIONMAINTENANCE INSTALLATION

Page 6 For technical questions, please call 1-800-444-3353. Item 60708
Installation Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Note: For additional information regarding the parts listed in the following pages, refer to Parts List and Assembly
Diagram on page 10.
Mounting
This Electric Jack is designed to replace an existing
manual-only trailer jack. Check that the Outer
Tube (1A) of the Electric Jack will fit into the existing
jack location and that the Mounting Plate holes align
with the bolt locations on your trailer. Only a qualified
technician should modify the trailer if needed.
1. Block the wheels and support the trailer A-Frame
securely using jack stands (sold separately).
2. Disconnect the trailer battery
ground cable, if equipped.
3. Remove the existing jack.
4. Remove the Lock Pin (9A) and slide out
the Footpad (10A) from the Jack.
5. To ensure proper grounding, remove paint from
around one bolt hole on the Jack, and remove
paint from around the matching bolt hole on the
trailer tongue. If the paint layer is thick, add a flat
washer (sold separately) between the jack and the
trailer to provide good contact. Exposed metal can
be painted after assembly to inhibit corrosion.
6. Insert the bottom section of the Outer Tube (1A) into
the A-Frame jack opening so that the Motor Housing
is toward the front of the trailer and the Mounting
Plate holes line up with the bolt holes in the trailer.
Align bolt holes
Rotate
so Motor
faces
forward
Insert Jack into trailer opening
7. Secure the Mounting Plate to the A-Frame using
nuts, bolts and washers (all sold separately) as
listed under Hardware in the Specifications chart
on page 4. Slide a star washer onto each bolt,
then insert them from the top side and attach a star
washer and lock nut from the underside of the frame.
Tighten mounting hardware firmly to 15 – 20 ft. lb.
Use a torque wrench to confirm tightness.
8. Replace the Footpad and insert the Lock Pin.
Wiring
The Jack needs to be properly wired for use. Have
a qualified technician perform the wiring if you
are not familiar with the following procedures.
1. If wiring to the trailer’s electrical system,
disconnect the trailer battery ground cable.
Connect the black wire lead from the Jack to
the positive (+) battery terminal and include
an ON/OFF switch and fuse (sold separately)
in the wiring so you can turn off power to the
unit. Reconnect the battery ground cable.
Note: If connecting to the trailer’s electrical
system, do not exceed its rating.
2. If wiring to the vehicle battery, route a 10-gauge wire
(sold separately) from the positive (+) terminal of a
12VDC battery to a location near the Jack. Attach the
female side of a quick connect (sold separately) to
the end of the wire and the male side to the positive
Jack wire. Plug the quick connect sections together.
SAFETY OPERATION MAINTENANCEINSTALLATION

Page 7For technical questions, please call 1-800-444-3353.Item 60708
Operation Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Mounting The Trailer to the Towing Vehicle
1. Before mounting, chock the trailer wheels
to prevent the trailer from rolling.
2. If using the Jack with electric power:
a. If wired to the vehicle battery, plug the Jack wire
into the quick connect. If wired to the trailer’s
electrical system, turn on the ON/OFF switch.
b. If needed, turn on the lights using
the Light Switch.
Note: The lights will only work when
the Jack wiring is powered.
c. Check that the Power Switch Cover (26)
is secured over the Power Switch (23).
d. Pull the Power Switch away from the Jack to raise
the trailer to the level of the towing vehicle’s hitch.
Release the Power Switch to stop the Jack.
CAUTION: Release the Power Switch when the
motor slows, or switches off, to prevent damage
to the motor. Wait 15 seconds for the motor
to reset before operating the Jack again.
3. If using the Jack manually:
a. Disconnect power to the Jack.
b. Remove the Level Gauge (24) on the top of
the Jack to access the Drive Collar (11).
c. Insert the Crank (30) onto the Drive Collar.
d. Rotate the Crank counterclockwise to raise the
trailer to the level of the towing vehicle’s hitch.
4. With the assistance of a spotter,
back the vehicle to the trailer.
5. Mount the trailer onto the towing vehicle’s hitch.
6. Push the Power Switch toward the Jack
(electric) or turn the Crank clockwise (manual)
to retract the Jack slightly, lowering the trailer and
transferring its weight onto the towing vehicle.
7. Once trailer is fully engaged, continue to
retract Jack up to the “STOP” label on the
Inner Tube (2A). Trailer Jack must always
be fully retracted when towing the trailer.
8. Attach the safety chain (sold separately).
Dismounting The Trailer from the Towing Vehicle
1. Before dismounting, chock the trailer wheels
to prevent the trailer from rolling.
2. If using the Jack with electric power:
a. If wired to the vehicle battery, plug the Jack wire
into the quick connect. If wired to the trailer’s
electrical system, turn on the ON/OFF switch.
b. If needed, turn on the lights using
the Light Switch.
Note: The lights will only work when
the Jack wiring is powered.
c. Check that the Power Switch Cover (26)
is secured over the Power Switch (23).
d. To extend the Jack and raise the trailer,
pull the Power Switch away from the Jack.
Release the Power Switch to stop the Jack.
3. If using the Jack manually:
a. Disconnect power to the Jack.
b. Remove the Level Gauge (24) on the top of
the Jack to access the Drive Collar (11).
c. Insert the Crank (30) onto the Drive Collar.
d. Rotate the Crank counterclockwise to
extend the Jack and raise the trailer.
4. Continue to extend just enough for the Trailer
Jack to take the weight of the trailer. This will
make it easier to disengage the trailer hitch.
5. Disengage the electrical connections, the
trailer hitch, and any safety chains or other
connections between the vehicle and the trailer.
6. You may need to extend the Jack further
to clear the trailer hitch. When the vehicle
is completely clear, and it is safe to do so,
drive the vehicle away from the trailer.
CAUTION: Have a spotter watch this operation
to be sure the trailer is clear of the vehicle.
7. When finished raising or lowering the trailer:
a. If using with electric power,
disconnect power to the Jack.
b. If using the Jack manually, remove the
Crank and replace the Level Gauge. Store
the Crank in a safe place for future use.
SAFETYOPERATIONMAINTENANCE INSTALLATION

Page 8 For technical questions, please call 1-800-444-3353. Item 60708
User-Maintenance Instructions
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY:
Remove Jack from trailer before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration occurs,
have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the tool. Check for:
• loose hardware
• misalignment or binding of moving parts
• cracked or broken parts
• any other condition that may
affect its safe operation
2. AFTER USE, wipe external surfaces
of the tool with clean cloth.
3. Annually, have the Gears, Jack Screw and
Bronze Nut lubricated by a qualified technician.
SAFETY OPERATION MAINTENANCEINSTALLATION

Page 9For technical questions, please call 1-800-444-3353.Item 60708
ttt
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
SAFETYOPERATIONMAINTENANCE INSTALLATION

Page 10 For technical questions, please call 1-800-444-3353. Item 60708
Parts List and Diagram
Lower Stem Parts List and Assembly Diagram
Part Description Qty
1A Outer Tube 1
2A Inner Tube 1
3A Bronze Nut 1
4A Jack Screw 1
5A Pin 1
Part Description Qty
6A Set Screw 3/8" 1
7A Lock Washer 5/16" 4
8A Cap Screw 5/16" 4
9A Lock Pin 3/8" 1
10A Footpad 1
3A
6A
4A
8A
9A
7A
2A
1A
5A
10A
SAFETY OPERATION MAINTENANCEINSTALLATION

Page 11For technical questions, please call 1-800-444-3353.Item 60708
ttt
Motor Parts List and Assembly Diagram
Part Description Qty
1 Main Housing 1
2 Thrust Washer 1
3 Bushing 1
4 Bushing 1
5 Spur Gear 1
6 Pin 1
7 Pinion Gear 1
8 Main Gear 1
9 Light 2
10 Housing Cover 1
11 Drive Collar 1
12 Washer 2
13 Thrust Bearing 1
14 Pin 1
15 Pin 1
Part Description Qty
16 Lock Washer 1/4" 1
17 Cap Bolt 1/4" 1
18 Screw #8-32 8
19 Motor Housing 1
20 Power Switch Housing 1
21 Screw #5-40 4
22 Motor 1
23 Power Switch 1
24 Level Gauge 1
25 Grommet 1
26 Power Switch Cover 1
27 Circuit Breaker 1
28 Screw 2
29 Light Switch 1
30 Crank 1
SAFETYOPERATIONMAINTENANCE INSTALLATION

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
