Model 7610
Eye/Face Wash
INSTALLATION, OPERATION
&
MAINTENANCE INSTRUCTIONS
No. 2080067(17)
LIMITED WARRANTY
HAWS warrants that this specific product is guaranteed against defective material or poor
workmanship for a period of one year from date of shipment. HAWS liability under this
warranty shall be discharged by furnishing without charge F.O.B. HAWS Factory any
goods, or part thereof, which shall appear to the Company upon inspection to be of
defective material or not of first class workmanship, provided that claim is made in writing
to Haws within a reasonable period after receipt of the product. Where claims for defects
are made, the defective part or parts shall be delivered to the Company, prepaid, for
inspection. HAWS will not be liable for the cost of repairs, alterations or replacements, or
for any expense connected therewith made by the owner or his agents, except upon
written authority from HAWS, Sparks, Nevada. HAWS will not be liable for any damages
caused by defective materials or poor workmanship, except for replacements, as provided
above. Buyer agrees that Haws has made no other warranties either expressed or implied
in addition to those above stated, except that of title with respect to any of the products or
equipment sold hereunder and that HAWS shall not be liable for general, special, or
consequential damages claimed to arise under the contract of sale.
The emergency equipment manufactured by HAWS is warranted to function if installation
and maintenance instructions provided are adhered to. The units also must be used for the
purpose for which they were intended. This product is intended to supplement first-aid
treatment. Due to widely varying conditions, Haws cannot guarantee that the use of this
emergency equipment will prevent serious injury or the aggravation of existing or prior
injuries.
NO OTHER WARRANTIES EXPRESSED OR IMPLIED ARE AUTHORIZED, PROVIDED
OR GIVEN BY HAWS.
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT: 1-800-766-5612
FOR CUSTOMER SERVICE: 1-888-640-4297

06/17 Model 7610 Page 2 of 7
LOCATION OF UNIT: The Model 7610 Eye/Face wash should be installed in close
proximity to potential accident areas. It should be clearly identified, free from
obstructions and easy to access.
SUPPLY LINE: The minimum recommended line size is 1/2" IPS with 30-90 psi (2-6
ATM) pressure. Where sediment or mineral content is a problem, an inlet filter is
recommended.
PLUMBING CONNECTIONS: Inlet supply is 1/2" O.D. slip joint.
INSTALLATION INSTRUCTIONS
NOTES: Instructions apply to both models unless otherwise specified.
Refer to installation drawings to clarify installation procedure.
This product is shipped assembled for use as a 7610 Deck Mounted Eyewash. To
convert to 7610 Wall Mounted Eyewash, follow steps 1 and 2 below and refer to
diagrams on page 6 of 6. Otherwise, skip to Step 3.
STEP 1: Position arm in “Deck Mount Off Position” as shown in Step 1 on page 6 of 6.
STEP 2: Note depth of set screw (referenced during reassembly). Loosen set screw
from cap with 3/32” hex wrench. Rotate eyewash arm 90 degrees clockwise
while making sure to not rotate the spool. Ensure that set screw is aligned
with indent before tightening the set screw in the new arm position. Make sure
the set screw is tight and at its original depth. If the set screw is too shallow,
this is an indication that it has not properly engaged its indent and the
eyewash will not function properly. Ensure correct arm orientation before
proceeding with installation instructions outlined below. See Page 6 of 6 for
reference drawings.
STEP 3: Remove the 1.25 O.D. flange nut and washer from valve body.
STEP 4: After making sure that the surfaces around the drilled hole are clean and
free of grease, slide valve through drilled hole.
STEP 5: Reinstall the 1.25” O.D. flange nut and washer. Connect slip joint
connection to complete installation.
STEP 6: Assemble eye/face wash assembly to arm, orient tab on assembly away
from user.

06/17 Model 7610 Page 3 of 7
TROUBLESHOOTING
PROBLEM
REPAIR CHECKLIST
1.
No flow.
1.
Check the main shut-off valve.
2.
Insufficient water flow.
2.
a.
Verify minimum 30 psi (2 ATM)
flowing supply line pressure.
b.
Probable clogging of flow control due
to inadequate line flushing. Unscrew
eye/face wash head and remove the
four screws to disassemble head.
Clean flow control and reassemble
head.
3.
Eyewash stream does not meet
desired eye level.
3.
a.
Possible blocked flow control, see
above solution.
b.
Possible non-leveled eyewash
assembly.
For more information about Haws products, see our website: www.hawsco.com
© 2017 Haws®Corporation – All Rights Reserved
HAWS® and other trademarks usedin these materials are the exclusive property of Haws Corporation.

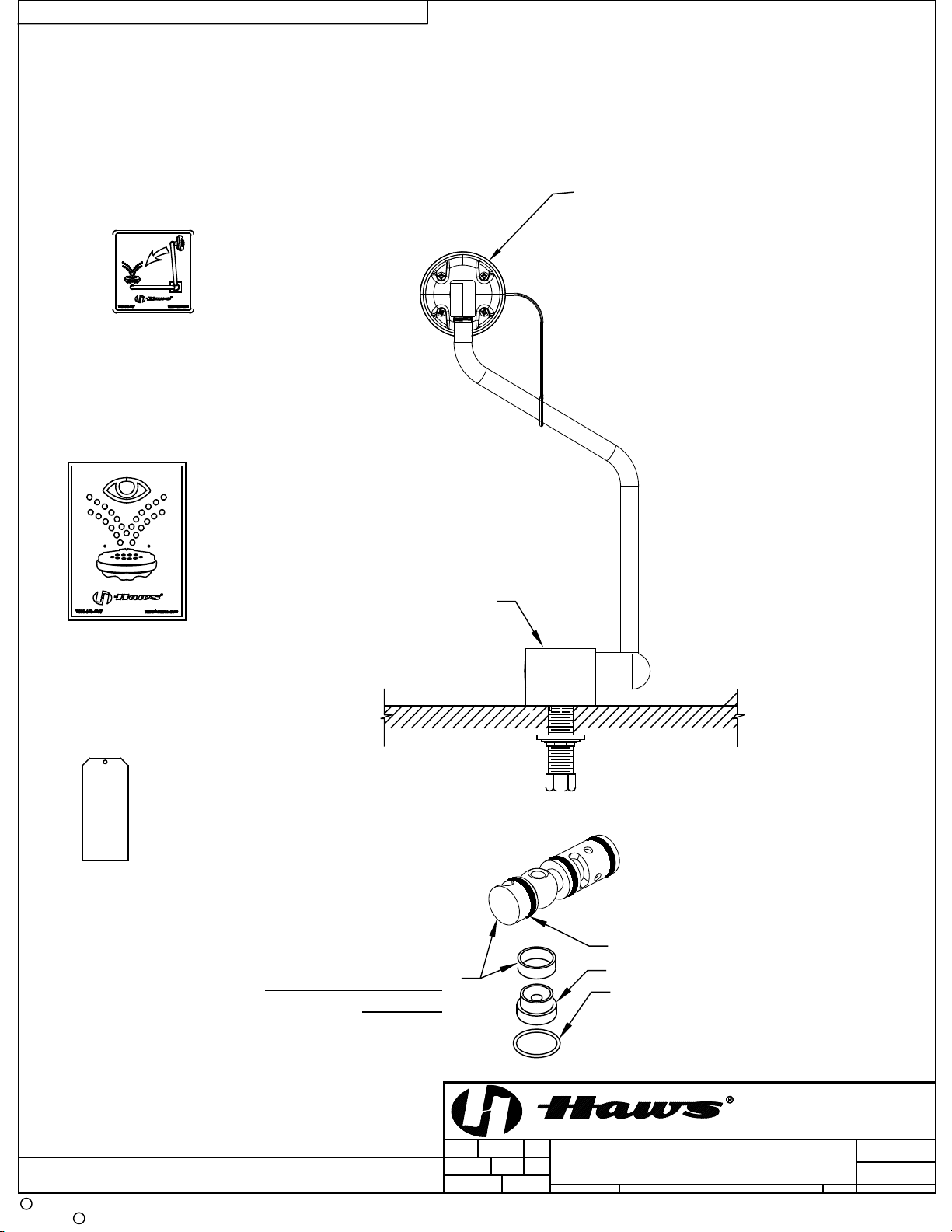

PARTS BREAKDOWN
SP65PD
EYE/FACE WASH HEAD
VRK7650
REPAIR KIT
(SEE BELOW)
O-RING (SMALL)
7650 SEAT
O-RING (LARGE)
SPOOL AND SLEEVE
ARE NOT INCLUDED
WITH KIT
VRK7650 REPAIR KIT
INCLUDES:
QTY. 1
QTY. 1
QTY. 3
PULLDOWN EYE/FACE
WASH LABEL
P/N 0003163821
SP170
TEST TAG
SP175
EYEWASH
SIGN
APPROVED
DRAWN
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BYECN NO.
PAGE
DATE
DATE
ECN:
REVISED PER
CHKD
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.
STH
10/29/96
17
0002080067
7610
PULLDOWN EYE/FACE WASH
1:1
11
FV 07/08/17
FV
4 of 7
PARTS BREAKDOWN
5196
2017
JP

51mm
MIN.
CLEARANCE
6"
152mm
3 1/4"
Ø3/32"
2.4mm
(REF.)
SINK
PIN
3-1/4"
83mm
83mm
3-3/4"
95mm
16-7/8"
429mm
7"
178mm
1/2" O.D.
SUPPLY (COLD)
16-1/2"
419mm
LOCKNUT
2-3/8"
60mm
2" WALL
Ø 7/8"
22mm
FRONT OF SINK
ROLL
3
5
(SEE SHEET 2 FOR 7610 WALL MOUNTED CONFIGURATION)

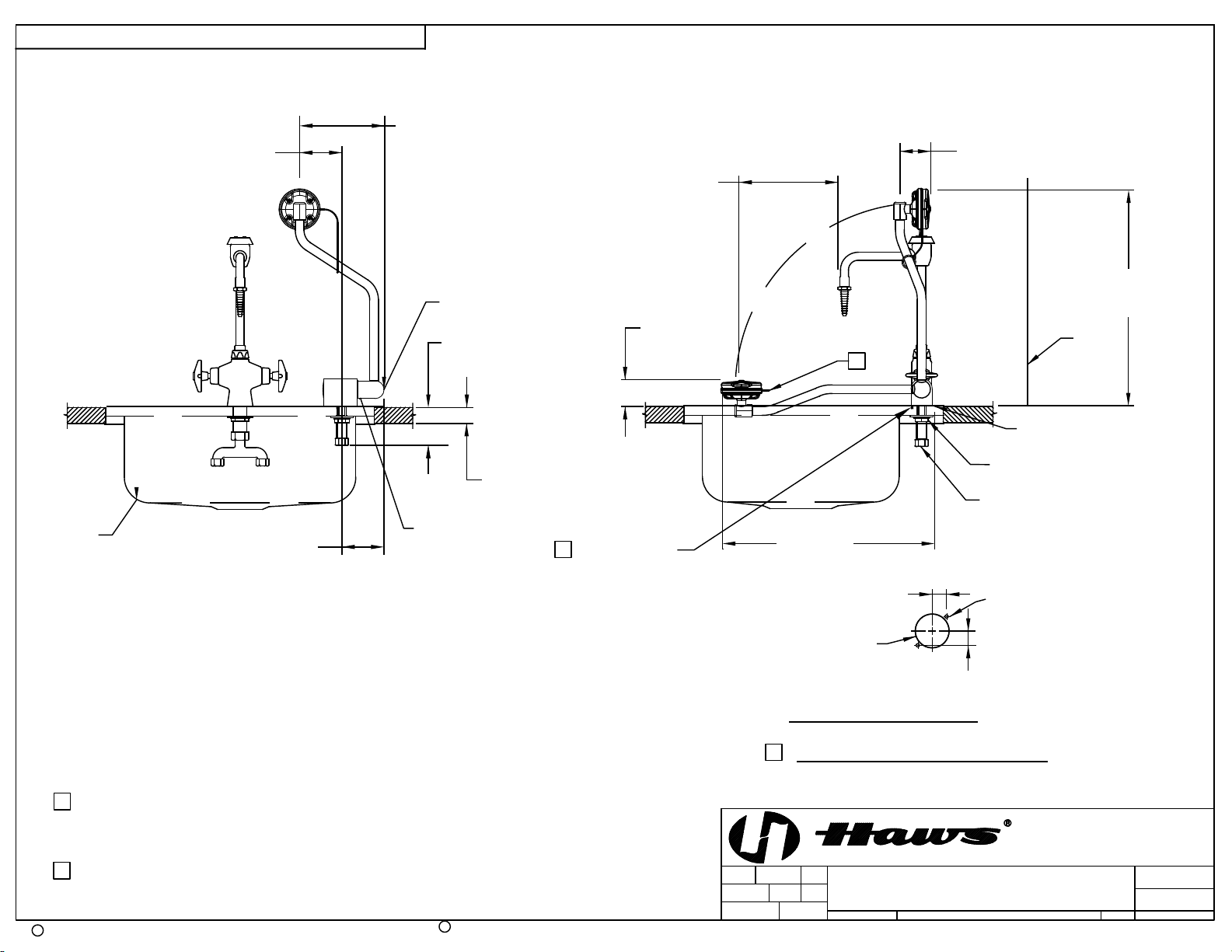

7610 DECK MOUNTED CONFIGURATION
NOTES:
3
CAP
OFF
POSITION
ON
POSITION
38mm
1-1/2" MAX.
MOUNTING HOLE DETAIL
SET
SCREW
SEAL BASE WITH
SILICONE CAULK
1. WHEN INSTALLING THIS UNIT, LOCAL, STATE, OR FEDERAL CODES SHOULD BE
ADHERED TO FOR INSTALLATION DIMENSIONS (LOCATIONS), WASTE AND SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
2. THE ANSI Z358.1-2009 STANDARD SPECIFIES EYEWASH NOZZLE HEIGHTS TO BE
83.8cm (33 IN.) TO 114.3cm (45 IN.) ABOVE THE FLOOR AND 15.3cm (6 IN.) MINIMUM
FROM WALL OR NEAREST OBSTRUCTION.
3 DRILL ONE Ø7/8" [22mm] HOLE AND TWO Ø5/32" HOLES WHERE UNIT IS TO BE
INSTALLED. REFER TO MOUNTING HOLE DETAIL.
4. THESE DIMENSIONS MAY VARY ±1/2" [6.4mm].
5 ASSEMBLE EYE/FACE WASH TO ARM, ORIENT TAB ON ASSEMBLY AWAY FROM USER.
APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
JF
10/96
17
0002080067.D
7610
PULLDOWN EYE/FACE WASH
1:1
13
FV 07/08/17
2066
FV
5 of 7
INSTALLATION
5196
2017
JP
2X 0.53"
13.5mm 2X Ø 5/32"
3.18mm
2X 0.53"
13.5mm
(SEE SHEET 3 FOR 7610 DECK MOUNTED DETAIL)

NOTES:
3-3/4"
95mm
7"
178mm
1/2" O.D.
SUPPLY
(COLD)
WALL
3
5
7610 WALL MOUNTED CONFIGURATION
1-1/2" MAX.
38mm
33" TO 45"
83.8cm TO 114.3cm
16-1/2"
419mm
OFF
POSITION
ON
POSITION
STEP 1
STEP 2
WALL MOUNT
DECK MOUNT
OFF POSITION
OFF POSITION
BASE
(SEE SHEET 1 FOR 7610 DECK MOUNTED CONFIGURATION)
SET
SCREW EYEWASH
CONTROL
VALVE
SEAL BASE WITH
SILICONE CAULK
NOTE DEPTH OF SET SCREW PRIOR TO LOOSENING.
LOOSEN SET SCREW AND ROTATE EYEWASH ARM 90
DEGREES CLOCKWISE (AS SHOWN) WHILE MAKING
SURE TO NOT ROTATE THE SPOOL. RETIGHTEN SET
SCREW IN NEW POSITION. ENSURE SET SCREW IS
PROPERLY SEATED IN THE INDENT. MAKE SURE THE
SET SCREW IS TIGHT AND AT ITS ORIGINAL DEPTH.
ENSURE CORRECT ARM ORIENTATION BEFORE
MOUNTING TO WALL. REFERENCE DRAWINGS AT RIGHT.
BASE
SET
SCREW
SPOOL
UNIT IS SHIPPED IN DECK MOUNT CONFIGURATION. TO
CONVERT TO WALL MOUNT CONFIGURATION, POSITION
ARM IN "DECK MOUNT OFF POSITION" AS ABOVE.
1"
25.4mm
CAP
16-7/8"
429mm
1/2"
12.7mm
MOUNTING HOLE DETAIL
SET
SCREW
3-1/4"
83mm
OFF POSITION
DECK MOUNT
FLOOR
LINE
FLOOR
LINE
CONVERT TO
WALL MOUNT CONFIGURATION
1. WHEN INSTALLING THIS UNIT, LOCAL, STATE, OR FEDERAL CODES SHOULD BE
ADHERED TO FOR INSTALLATION DIMENSIONS (LOCATIONS), WASTE AND SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
2. THE ANSI Z358.1-2009 STANDARD SPECIFIES EYEWASH NOZZLE HEIGHTS TO BE
83.8cm (33 IN.) TO 114.3cm (45 IN.) ABOVE THE FLOOR AND 15.3cm (6 IN.) MINIMUM
FROM WALL OR NEAREST OBSTRUCTION.
3 DRILL ONE Ø7/8" [22mm] HOLE AND TWO Ø5/32" HOLES WHERE UNIT IS TO BE
INSTALLED. REFER TO MOUNTING HOLE DETAIL.
4. THESE DIMENSIONS MAY VARY ±1/2" [6.4mm].
5 ASSEMBLE EYE/FACE WASH TO ARM, ORIENT TAB ON ASSEMBLY AWAY FROM USER.
APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
JF
10/96
17
0002080067.D
7610
PULLDOWN EYE/FACE WASH
1:1
23
FV 07/08/17
2066
FV
6 of 7
INSTALLATION
5196
2017
JP
Ø 7/8"
22mm
2X 0.53"
13.5mm 2X Ø 5/32"
3.18mm
2X 0.53"
13.5mm
(SEE SHEET 3 FOR 7610 DECK MOUNTED DETAIL)

NOTES:
3

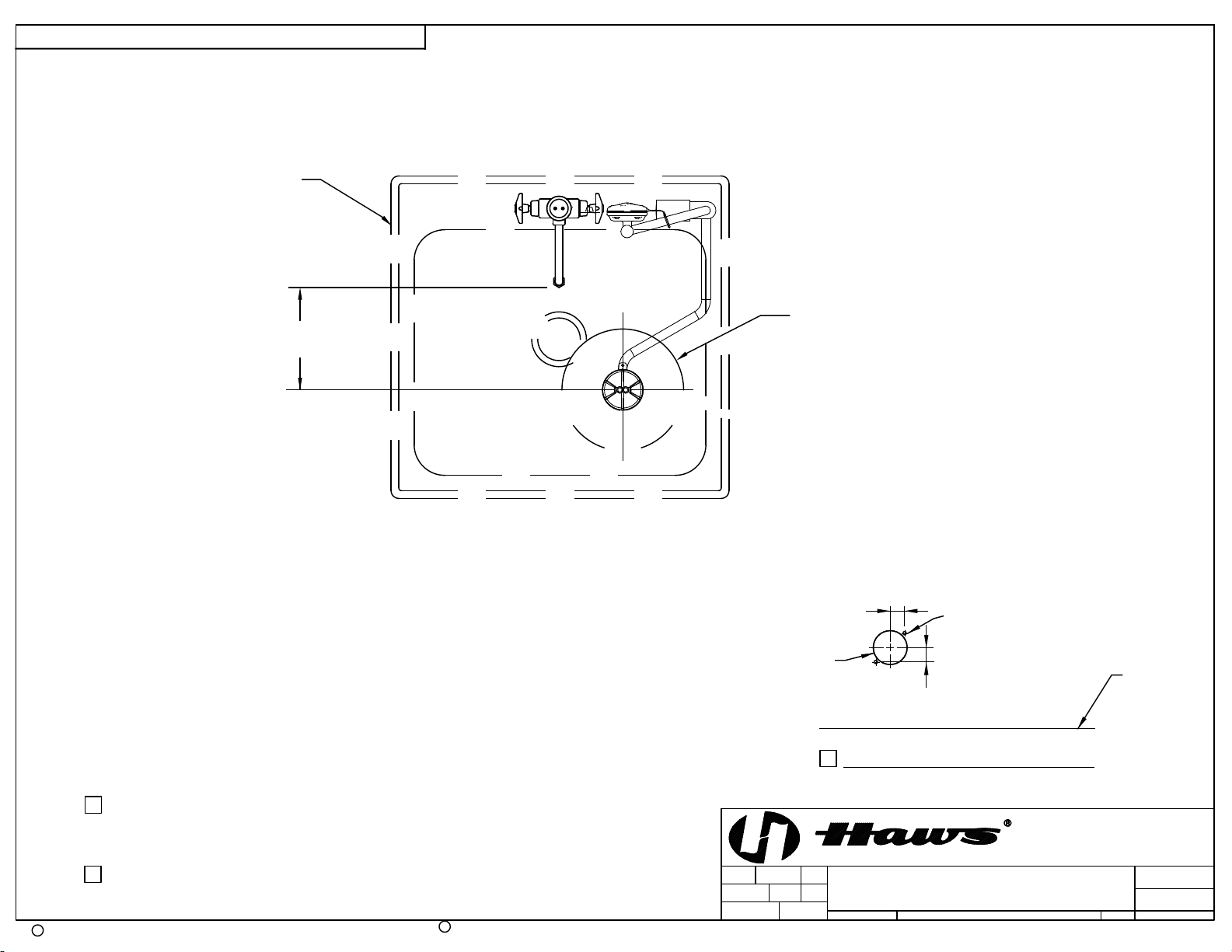

7610 DECK MOUNTED CONFIGURATION
(SEE SHEET 1 FOR 7610 DECK MOUNTED CONFIGURATION)
MOUNTING HOLE DETAIL
FLOOR
LINE
1. WHEN INSTALLING THIS UNIT, LOCAL, STATE, OR FEDERAL CODES SHOULD BE
ADHERED TO FOR INSTALLATION DIMENSIONS (LOCATIONS), WASTE AND SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
2. THE ANSI Z358.1-2009 STANDARD SPECIFIES EYEWASH NOZZLE HEIGHTS TO BE
83.8cm (33 IN.) TO 114.3cm (45 IN.) ABOVE THE FLOOR AND 15.3cm (6 IN.) MINIMUM
FROM WALL OR NEAREST OBSTRUCTION.
3 DRILL ONE Ø7/8" [22mm] HOLE AND TWO Ø5/32" HOLES WHERE UNIT IS TO BE
INSTALLED. REFER TO MOUNTING HOLE DETAIL.
4. THESE DIMENSIONS MAY VARY ±1/2" [6.4mm].
5 ASSEMBLE EYE/FACE WASH TO ARM, ORIENT TAB ON ASSEMBLY AWAY FROM USER.
APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
CC
07/07/16
17
0002080067.D
7610
PULLDOWN EYE/FACE WASH
1:1
33
FV 07/08/17
5113
FV
7 of 7
INSTALLATION
5196
2017
JP
Ø 7/8"
22mm
2X 0.53"
13.5mm 2X Ø 5/32"
3.18mm
2X 0.53"
13.5mm
OFF
SINK
(REFERENCE)
5"
127mm
MIN.CLEARANCE
RADIUSFOR
FACEWASHSTREAMS
6"(152mm)MIN.
CLEARANCE
ON
(SEE SHEET 2 FOR 7610 WALL MOUNTED CONFIGURATION)
DECK MOUNT DETAIL
