Haws 1920 Guide

12/18 Model 1920/1920HPS/1920W Page 1 of 10
1455 Kleppe Lane Sparks, NV 89431-6467 [phone] Fax [phone]
E-mail: [email protected] website: www.hawsco.com
No. 0510000490 (5)
Model 1920/1920HPS/1920W
Bottle Filler
INSTALLATION, OPERATION
&
MAINTENANCE INSTRUCTIONS
LIMITED WARRANTY
HAWS warrants that this specific product is guaranteed against defective material or
poor workmanship for a period of one year from date of shipment. HAWS liability
under this warranty shall be discharged by furnishing without charge F.O.B. HAWS
Factory any goods, or part thereof, which shall appear to the Company upon
inspection to be of defective material or not of first class workmanship, provided that
claim is made in writing to Haws within a reasonable period after receipt of the
product. Where claims for defects are made, the defective part or parts shall be
delivered to the Company, prepaid, for inspection. HAWS will not be liable for the
cost of repairs, alterations or replacements, or for any expense connected therewith
made by the owner or his agents, except upon written authority from HAWS,
Sparks, Nevada. HAWS will not be liable for any damages caused by defective
materials or poor workmanship, except for replacements, as provided above. Buyer
agrees that HAWS shall not be liable for general, special, or consequential damages
claimed to arise under the contract of sale. The drinking fountain manufactured by
HAWS is warranted to function if installation and maintenance instructions provided
are adhered to. The units also must be used for the purpose for which they were
intended.
NO OTHER WARRANTIES EXPRESSED OR IMPLIED ARE AUTHORIZED,
PROVIDED OR GIVEN BY HAWS.
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT: 1-800-766-5612
FOR CUSTOMER SERVICE: 1-888-640-4297

12/18 Model 1920/1920HPS/1920W Page 2 of 10
REQUIRED TOOLS: Tubing cutter, 3/32” and 5/32” hex key set, adjustable wrench or
socket.
LOCATION OF UNIT: The Model 1920/1920HPS/1920W bottle filler water dispenser can be
installed in various applications. Possible installations include indoor over an existing drinking
fountain, outdoor over an existing fountain, or a standalone wall-mounted bottle filler. When
installing this unit, local, state or federal codes should be adhered to.
SUPPLY LINE: The minimum recommended line size is 3/8"O.D. copper or plastic tubing
with 30-90 psi (2-6 ATM) pressure. Where sediment or mineral content is a problem, an inlet
filter is recommended.
PLUMBING CONNECTIONS: Inlet is 3/8“O.D. push-in type fitting.
MAINTENANCE: Periodically clean the strainer. Refer to 5874 Series Valve Manual for more
information.
INSTALLATION PROCEDURE
GENERAL NOTES:
1. For all plastic push-in type fitting connections, only connect NSF-61 copper or
plastic tubing. Stainless steel or glass tubing is not recommended. The
following assembly instructions must be followed to ensure a watertight
connection:
a. Cut tubing square and clean.
b. Mark from end of tube the length of insertion (See table below).
c. Push tube into the fitting until it bottoms out.
d. To remove, depress collet and pull tubing out.
Tube Sizes O.D.
Tolerance Insertion Depth
1/4” ±.005” 11/16”
3/8” ±.005” 3/4”
1/2” ±.005” 7/8”
CLEANING INSTRUCTIONS FOR HI-POLISHED STAINLESS PRODUCTS:
Haws’ recommended cleaning procedure for hi-polished stainless products is as follows:
Use a mild detergent or soap and water for removing stains and fingerprints or use a clean cloth
with window cleaner.
BOTTLE FILLER BRACKET:
If installing the bottle filler in new construction, use Model 6700 or 6700.4L Mounting Plate.
Follow the installation instructions supplied with the 6700 or 6700.4L for mounting dimensions.
Reference Pages 5-10 of this document for 1920/1920HPS/1920W button heights when
mounted over different Haws drinking fountains. (Note: Mounting Hardware only supplied with
6700 Series Mounting Plates and not the Bottle Filler Water Dispensers).
If installing as a retrofit in old construction, it is recommended to use Model 6700 or 6700.4L
Mounting Plate behind the finished wall. If that is not possible, it is recommended to install wood
stud cross-braces behind the wall and mount the 1920/1920HPS/1920W directly to the wood
support. If that is not possible, Model 6700R Retrofit Plate may be used. Follow the installation
instructions supplied with the 6700R. (Note: Mounting Hardware only supplied with 6700 Series
Mounting Plates and not the Bottle Filler Water Dispensers).

12/18 Model 1920/1920HPS/1920W Page 3 of 10
If installing as a stand-alone bottle filler, use the mounting hole location diagram on Page 5 and
bolt the 1920/1920HPS/1920W securely to the wall. (Note: Mounting Hardware not supplied
with Bottle Filler Water Dispensers).
TROUBLESHOOTING
PROBLEM REPAIR CHECKLIST
1. Insufficient water flow. 1a. Check that any inlet screwdriver stop valve
(not supplied) is wide open. Turn
counte
r
clockwise.
b. Verify minimum 30 psi flowing supply
pressure.
c. Clean strainer. See 5874 Series Valve
Manual.
d.
e.
Adjust valve to increase flow. Use front
adjust screw or see 5874 Series Valve
Manual.
Make sure nozzle is free of debris.
2. Excessive water flow. 2a. Adjust valve to decrease flow. Use front
adjust screw or see 5874 Series Valve
Manual.
3. Water flow is crooked or
splatters. 3a.
b.
c.
Make sure nozzle is free of debris.
Verify that bottle filler is installed level and
straight.
Adjust valve to decrease flow. Use front
adjust screw or see 5874 Series Valve
Manual.
For more information about Haws products, see our website: www.hawsco.com
© 2018 Haws®Corporation – All Rights Reserved
HAWS® and other trademarks usedin these materials are the exclusive property of Haws Corporation.

PARTS BREAKDOWN
APPROVED
DRAWN
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BYECN NO.
PAGE
DATE
DATE
ECN:
REVISED PER
CHKD
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [e-mail]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.
MJ
06/08/16
5
0510000490
1920/1920HPS/1920W
1:14
11
IR 02/07/19
5081
VWC
4 OF 10

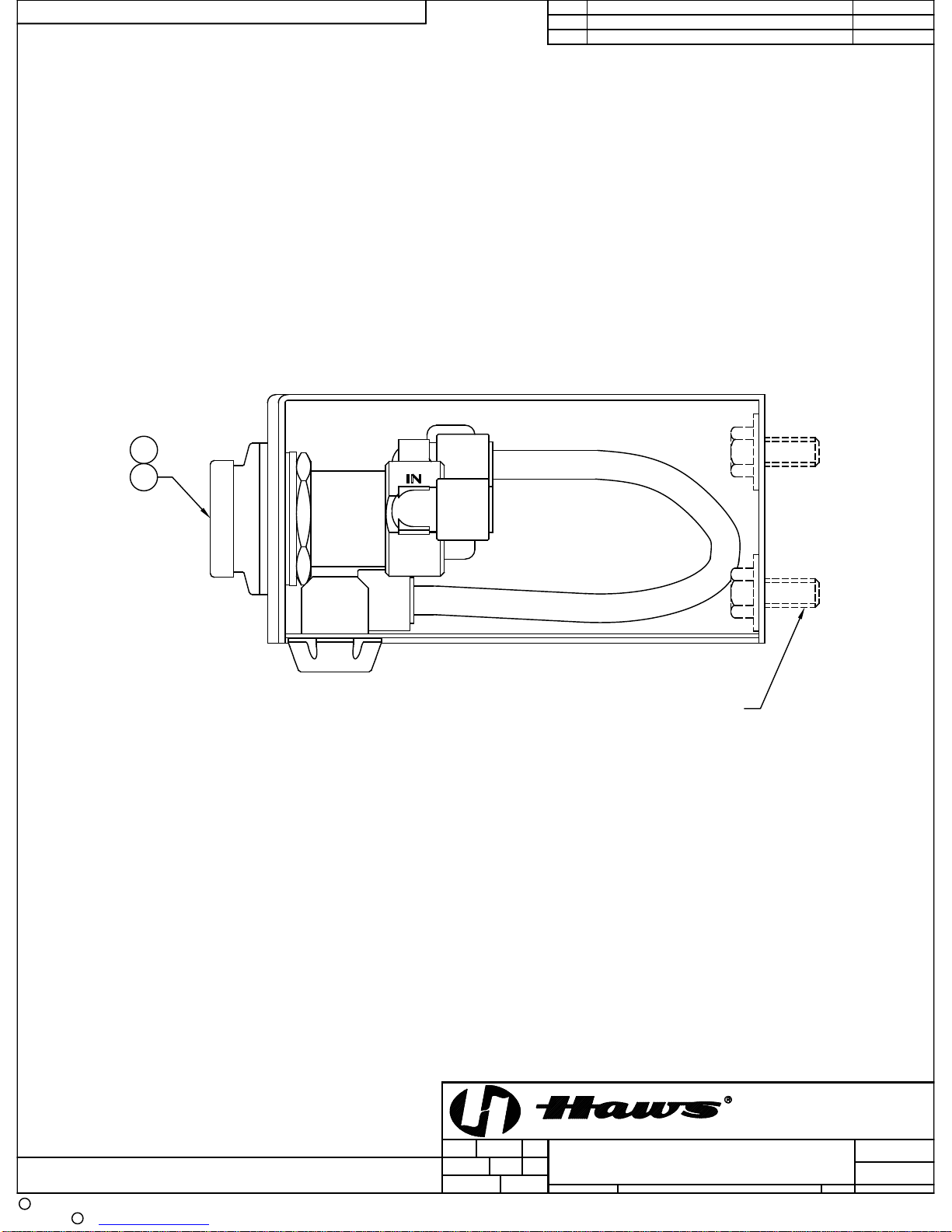

PARTS BREAKDOWN
5385
2019
FV
2
1
2VALVE REPAIR KIT HF VRK5874HF
ITEM DESCRIPTION PART NO.
PUSH BUTTON ASSY PBA6
1
3/8"-16 UNC MOUNTING HARDWARE
NOT SUPPLIED

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
DS
05/25/16
5
0510000490.D
MODEL 1920/1920HPS/1920W
N/A
16
IR 02/07/19
5081
VWC
5 of 10
INSTALLATION
5385
2019
FV
1920 MOUNTING HOLE LOCATIONS
NOTES:
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
1-1/8"
29mm
1-7/8"
48mm
Ø7/16"
Ø11mm 3"
76mm
5/8"
17mm
4X
3-5/8"
92mm 3-1/4"
82mm
7-1/4"
184mm
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACKPANELS
5-1/4"
133mm

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
MJ
01/30/17
5
0510000490.D
MODEL 1920/1920HPS/1920W
N/A
26
IR 02/07/19
5081
VWC
6 of 10
INSTALLATION
5385
2019
FV

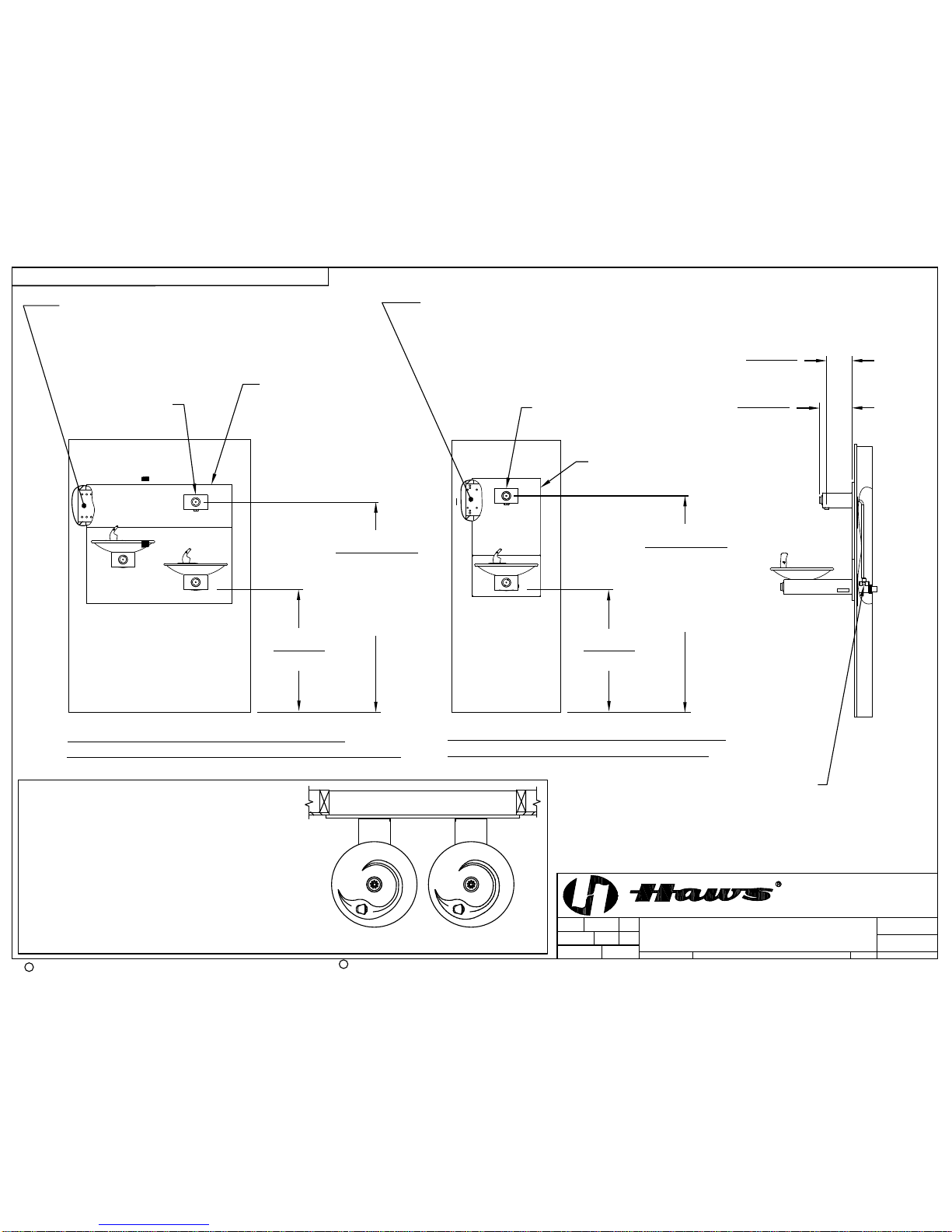

INSTALLATION ABOVE HAWS 1001, 1001HPS,
1001HPSMS, 1001MS, H1001.8, H1001.8HPS
INSTALLATION ABOVE HAWS 1011, 1011HPS,
1011HPSMS, 1011MS, H1011.8, H1011.8HO, H1011.8HPS
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
1920/1920HPS
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
6700.4L MOUNTING PLATE
(BEHIND FINISH WALL)
BP32/BP32HPS
(47-1/2")
(1206mm)
BUTTON
HEIGHT
(27")
(686mm)
FOR ADA
COMPLIANCE
(27")
(686mm)
(46-1/4")
(1175mm)
BUTTON
HEIGHT
FOR ADA
COMPLIANCE
7-1/4"
184mm
5-5/8"
143mm
BP15/BP15HPS
1920/1920HPS
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACKPANELS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
(IF FOUNTAIN
HIGH/LOW SIDES
ARE REVERSED
USE BP32R)

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
MJ
01/30/17
5
0510000490.D
MODEL 1920/1920HPS/1920W
N/A
36
IR 02/07/19
5081
VWC
7 of 10
INSTALLATION
5385
2019
FV
1920

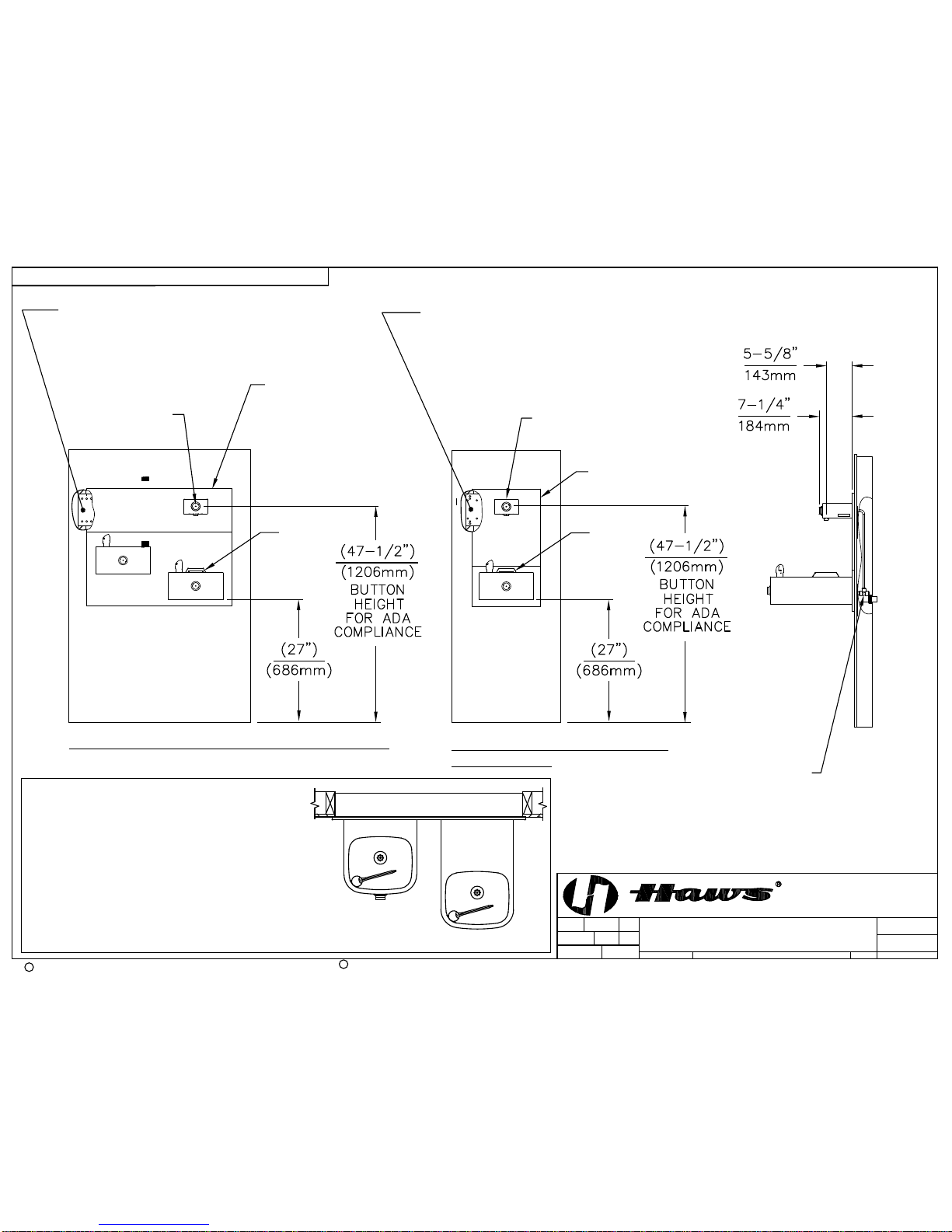

INSTALLATION ABOVE HAWS 1109,
1109.14, H1109.8
INSTALLATION ABOVE HAWS 1119, 1119.14, H1119.8
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES, BACKPANELS
& DRIP TRAY
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
1920
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
BP32
BP15
6469 6469
6700.4L MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
(IF FOUNTAIN
HIGH/LOW SIDES
ARE REVERSED
USE BP32R)

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
MJ
01/30/17
5
0510000490.D
MODEL 1920/1920HPS/1920W
N/A
46
IR 02/07/19
5081
VWC
8 of 10
INSTALLATION
5385
2019
FV
1920
INSTALLATION ABOVE HAWS 1107L, H1107.8
INSTALLATION ABOVE HAWS 1117L, H1117.8
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
1920
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
BP32
BP15
6700.4L MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACKPANELS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
(IF FOUNTAIN
HIGH/LOW SIDES
ARE REVERSED
USE BP32R)

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
MJ
02/13/17
5
0510000490.D
MODEL 1920/1920HPS/1920W
N/A
56
IR 02/07/19
5081
VWC
9 of 10
INSTALLATION
5385
2019
FV
1920W
INSTALLATION ABOVE HAWS 1311
INSTALLATION ABOVE HAWS 1501
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
1920W BP32W
6700.4L MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
6700R RETROFIT PLATE
(ON TOP OF FINISH WALL)
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
SEE SEPERATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACKPANELS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
(IF FOUNTAIN
HIGH/LOW SIDES
ARE REVERSED
USE BP32RW)
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
BOLT 1920 ONTO EXISTING WALL
(MOUNTING HARDWARE ONLY SUPPLIED
WITH 6700 SERIES MOUNTING PLATES)

APPROVED:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
JP
09/14/17
5
0510000490.D
MODEL 1920/1920HPS/1920W
N/A
55
IR 02/07/19
5220
VWC
10 of 10
INSTALLATION
5385
2019
FV
1920
INSTALLATION ABOVE HAWS 1047
3/8" O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
SEE SEPERATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACKPANELS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD
BE ADHERED TO FOR INSTALLATION
LOCATIONS, WASTE & SUPPLY
REQUIREMENTS OTHER THAN SHOWN.
6700 MOUNTING PLATE
(BEHIND FINISH WALL)
- OR -
BOLT 1920 ONTO EXISTING WALL
(MOUNTING HARDWARE ONLY SUPPLIED
WITH 6700 SERIES MOUNTING PLATES)
