Haws H1011.8HPSHO-1920HPSHO User manual

model H1011.8HPSHO-1920HPSHO
FEATURES & BENEFITS
REQUIRED MODELS
H1011.8HPSHO / MTGFR.LG /
HCR8 / 1920HPSHO / BP32HPS
Order these items to make up the Model
H1011.8HPSHO-1920HPSHO fountain with stainless steel
back panel and grille, bottle filler with stainless steel back
plate, and remote chiller shown above.
OPTIONS
1455 Kleppe Lane :: Sparks, NV 89431 :: p. 775.359.4712 :: f. 775.359.7424 :: e. [email protected] :: www.hawsco.com :: 20 July, 2022
DISCLAIMER: Continued product improvements make specifications subject to change without notice. Check www.hawsco.com for the latest product information and updates.
SPECIFICATIONS
Model H1011.8HPSHO-1920HPSHO vandal-resistant wall-mounted
ADA combination motion activated/push button water cooler
and bottle filler shall include dual 18-gauge Type 304 polished
Stainless Steel basins with integral swirl design, 14 gauge Type 304
polished Stainless Steel wall brackets and bottle filler bracket,
100% lead-free waterways, touchless sensor operated solenoid
valves with 30-second obstruction time-out on the bottle filler and
on one side of the fountain, and push-button operated stainless-
steel valve with front-accessible cartridge and flow adjustment on
the other, polished chrome-plated brass vandal resistant bubbler
heads with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar
flow bottle filler, chrome-plated brass vandal-resistant waste
strainers, vandal-resistant bottom plates, stainless steel satin finish
back panels and louvered intrusion-proof grill, high and low
fountain mounting levels, and 1-1/4” O.D. (3.2 cm) waste pipes.
The R-134a refrigeration system is hermetically sealed and delivers
a minimum of 8 gph (30.3 L) of water at 50° F (10° C), 115 Volts,
60Hz, rated watts: 370, full load amps: 5. Haws electric water
coolers comply with ARI Standard 1010 and ANSI A117.1, and are
listed by Underwriter Laboratories to U.S. and Canadian
standards. Manufactured to be lead-free by all known definitions
including NSF/ ANSI/CAN 61-Section 9, NSF/ANSI/ CAN 372,
California Proposition 65, and the Federal Safe Drinking Water Act.
Product is compliant to California Health and Safety Code 116875
(AB 1953-2006), and NSF/ ANSI/CAN 61: Q ≤ 1.
Mounting Plate: Model 6700, in-wall mounting plate for
model 1920HPS.
Mounting Plate: Model 6700R, on-wall mounting plate
for model 1920HPS.
Water Filter: Model 6426, 12" x 2" (30.5 x 5.1 cm), in-line
lead removal element that reduces lead from incoming
water supply.
CONSTRUCTION
Rugged ADA accessible 18 gauge Type 304
Stainless Steel swirl design bowls, 14 gauge Type 304
Stainless Steel brackets and bottle filler, and
vandal-resistant bottom plates provides a long lasting
unit with added peace of mind.
BOTTLE FILLER
Vandal-resistant, 14-gauge Type 304 stainless steel
bottle filler housing with touchless operation and
1 gpm (3.78 L) laminar flow
FOUNTAIN VALVES
Fountain incorporates touchless sensor operated
stainless steel solenoid valves controlled by a
transformer on the bottle filler and on one side of the
fountain, and a push-button activated valve which
offers the only all stainless-steel valve body that is
machined out of solid bar stock and is fully serviceable
through the front of the push button assembly
offering access to the water control cartridge and
integral water supply strainer on the other.
BUBBLER HEADS
Polished chrome-plated brass bubbler heads with
integral laminar flow prevents splashing while providing
asuperior flow pattern. The integral 11/16" dia. basin
shank and stainless anti-rotational roll pin add
vandal resistant strength. Shielded, angled stream
opening provides a steady source of drinking water
at .45 gpm.
MOUNTING
Heavy-duty 16-gauge galvanized steel mounting
frame with welded-in heavy-duty 10 gauge mounting
plate with pre-punched mounting holes. Further
convenience is given to the chiller with the integral
fold-out shelf.
FOR INDOOR USE ONLY
VANDAL-RESISTANT
The bubbler heads, push button, round bowls, drain
strainers and bottom plates are locked in place,
discouraging unwanted vandal tampering.
ADA Vandal-Resistant Chilled Motion-Activated/Push Button Fountain w/Bottle Filler

SUPPLY STOP &
3/8" O.D. TUBING
(NOT SUPPLIED)
1-1/4" IPS TRAPS (NOT SUPPLIED)
WASTE BENDS
33-11/16"
SUPPLY
856mm
FOUNTAIN

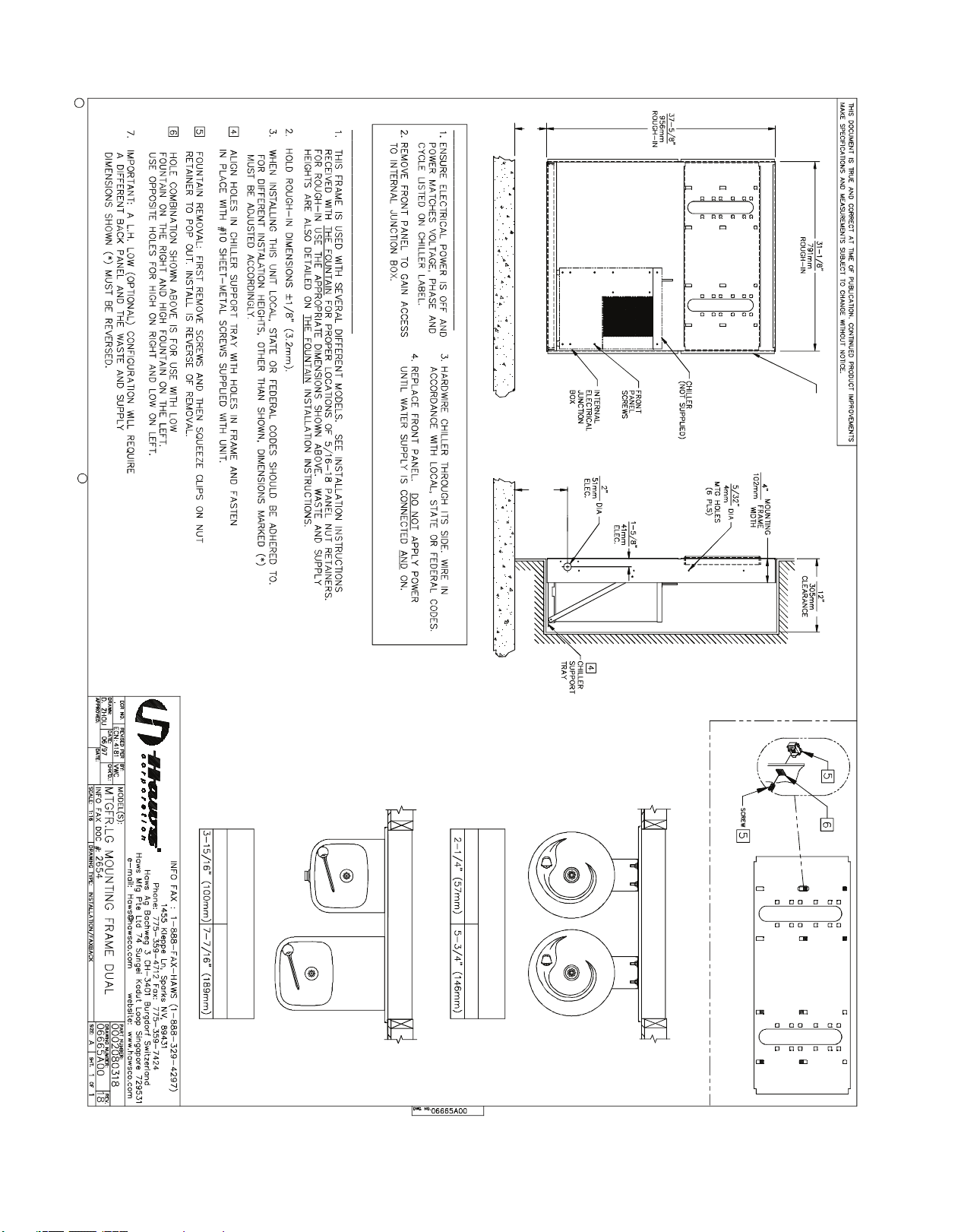

1. HOLD ROUGH-IN DIMENSIONS ±1/8" (3.2mm).
2. WHEN INSTALLING THIS UNIT, LOCAL, STATE, OR FEDERAL CODES SHOULD
BE ADHERED T0. FOR INSTALLATION DIMENSIONS (LOCATIONS), WASTE AND SUPPLY REQUIREMENTS OTHER THAN SHOWN, DIMENSIONS MARKED (*) MUST BE ADJUSTED ACCORDINGLY.
3 ALIGN HOLES IN CHILLER SUPPORT TRAY WITH HOLES IN FRAME
AND FASTEN WITH #10 SHEETMETAL SCREWS.
4 REFER TO 5874 SERIES OPERATION AND MAINTENANCE MANUAL FOR
PUSH BUTTON AND VALVE INSTALLATION/MAINTENANCE INSTRUCTIONS.
5 REFER TO MTGFR.LG INSTALLATION DRAWING FOR ROUGH-IN DIMENSIONS.
6 INSERT 5/16"-18 PANEL INSERTS FROM OPPOSITE SIDE AT LOCATIONS
SHOWN BY DARKENED HOLES. HOLE COMBINATIONS SHOWN ARE FOR USE
WITH LOW FOUNTAIN ON THE RIGHT AND HI FOUNTAIN ON THE LEFT. USE OPPOSITE HOLES FOR HI ON RIGHT AND LOW ON LEFT.
7 HOLE COMBINATION SHOWN BELOW IS FOR USE WITH LOW
FOUNTAIN ON THE RIGHT AND HIGH FOUNTAIN ON THE LEFT. USE OPPOSITE HOLES FOR HIGH ON RIGHT AND LOW ON LEFT.
8 TO CHANGE FOUNTAIN MTG. SCREW LOCATIONS: FIRST REMOVE
SCREWS AND THEN SQUEEZE CLIPS ON NUT RETAINER TO POP OUT. SNAP INTO NEW POSITIONS AND RE-ASSEMBLE SCREWS.
9. IMPORTANT: A L.H. LOW (OPTIONAL) CONFIGURATION WILL REQUIRE
A DIFFERENT BACK PANEL AND THE WASTE AND SUPPLY DIMENSIONS SHOWN (*) MUST BE REVERSED.
10 REFER TO 1RKHO.H & 2RKHO.H OPERATION AND MAINTENANCE
INSTRUCTIONS FOR TRANSFORMER AND SENSOR SETUP.
*
LOCATE AND INSTALL

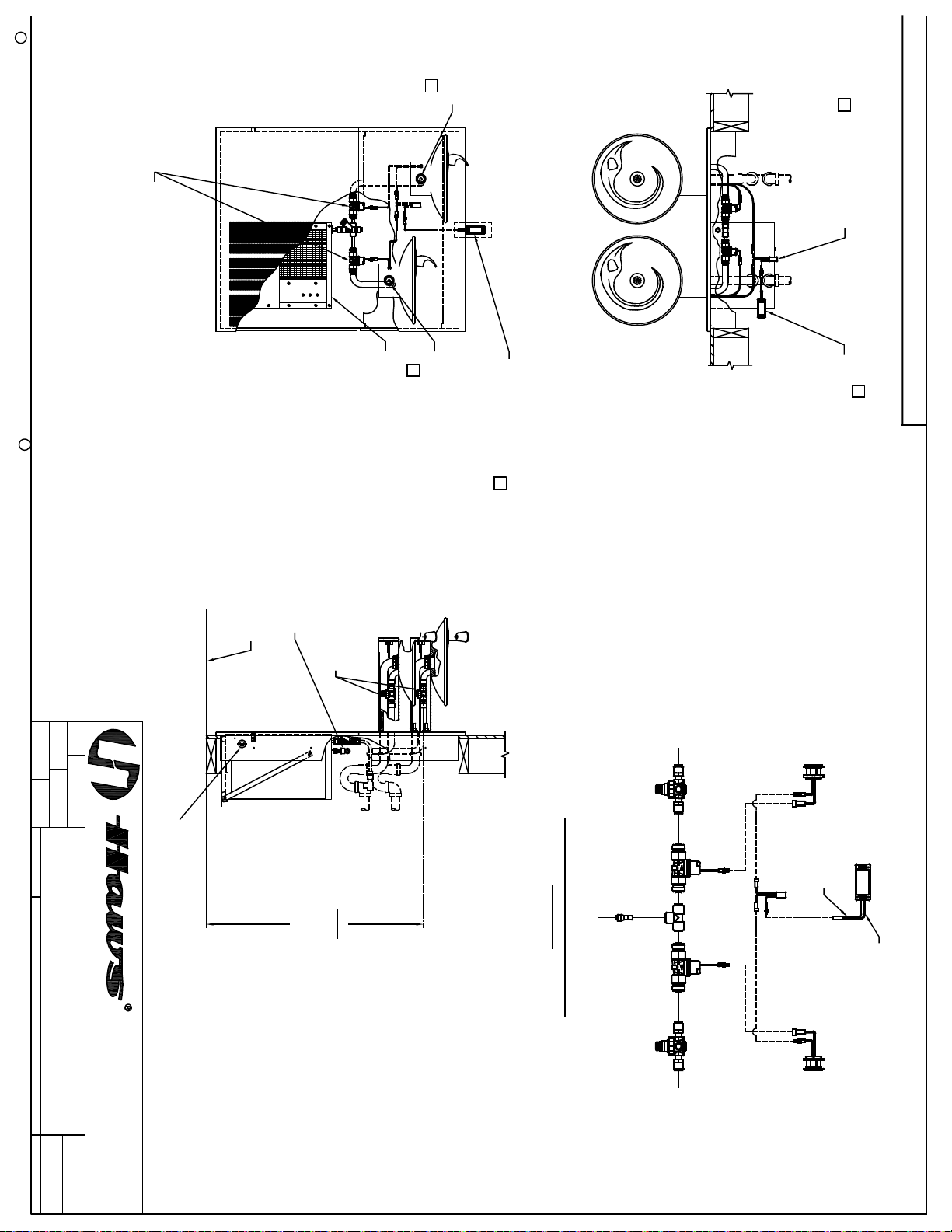

SENSOR
EYE
HCR8
ELECTRICAL TRANSFORMER
MOUNTING
(SUPPLIED)
(38mm)
(1-1/2")
CLIP
(SUPPLIED)
GRILLE
PANEL
(SUPPLIED)
BACK
Ø
2X
31 1/8"
5/8"
16mm
4
2X
791mm ROUGH-IN
813mm
32"
14-1/8"
359mm
WASTE
9VDC SOLENOID VALVE
57mm
2 1/4"
686mm864mm
34 5/32"
*
LINE
*
27"
FLOOR
CHILLER SUPPORT TRAY
5
5
3
ELECTRICAL
ACCESS
28-11/16"
729mm
FOUNTAIN
*
5
SUPPLY
101.6mm
MOUNTING FRAME
(SUPPLIED)
WASTE BEND
1-1/4" O.D.
MTGFR.LG
991mm
956mm
37 5/8"
ROUGH-IN
*
*
997mm
39-1/4"
39 5/32"*
812mm
32" *
13mm
1/2"
76mm
3"
FOUNTAIN
27-7/8"
708mm
835mm
32-7/8"
FOUNTAIN
WASTE
*
(NOT SUPPLIED)
MOUNTING
CLEARANCE
WIDTH
473mm
18-5/8"
4" FRAME
305mm
12"
FACE WALL
BACK
PANEL
FLANGE
FRAME
406mm
16"
BOWL MOUNTING PATTERN DETAIL
68
SCREW 8
7
NOTES:
2X SHEET METAL
2X MOUNTING CLIP INSIDE OF FRAME
(SUPPLIED)
SCREW
FRAME
MOUNTING
SCREW
(SUPPLIED)
2X MACHINE
*GRILL
(SUPPLIED)
FRAME FLANGE BUTTS AGAINST MUST BE INSTALLED SO THAT IMPORTANT: MOUNTING FRAME FINISHED WALL FACE.
REGULATOR
APPROVED: DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
RTM
07/97
28
0002080250.D
H1011.8HO/H1011.8HO2
NA
12
BJM
05/13/21
.
FV
INSTALLATION
5688
2021
DP
REQUIRED -
SOLD SEPARATELY
MODEL H1011.8HO SHOWN
MODEL H1011.8HO2 ON SHEET 2
10
100-277VAC-9VDC
TRANSFORMER
AND DC CABLE
(SUPPLIED)
FROM DIRECT
CONTACT WITH WATER
WITHIN WALL
(ROUGH-IN DIMENSIONS APPLY TO BOTH MODELS WITH EXCEPTION NOTED ON SHEET 2)
MUST BE PROTECTED
10
10
CHILLER
REQUIRED -
SOLD
SEPARATELY
SENSOR
FROM CHILLER OUTLET
TO
BUBBLER
HEAD
-Vo
+Vo
AC(L)
AC(N)
BLACK WIRE
WHITE WIRE
TRANSFORMER
SENSOR WIRING / SUPPLY PLUMBING
SCHEMATIC
TO PUSH
BUTTON
FOUNTAIN
VALVE
SOLENOID
VALVE
PRESSURE
REGULATOR
CONNECT 3/8" PUSH-TO-CONNECT TEE TO
3/8" X 1/4" REDUCER THEN TO 1/4" DIAMETER
OUTLET TUBE ON HCR8 WATER CHILLER

34-1/8"
SUPPLY
856mm
FOUNTAIN
SENSOR
EYE
CHILLER
HCR8
LINE
FLOOR
*
REGULATORS
APPROVED: DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
07/22/20
28
0002080250.D
H1011.8HO/H1011.8HO2
NA
22
BJM
05/13/21
.
FV
INSTALLATION
5688
2021
DP
SENSOR
EYE
10
10
LOCATE AND INSTALL
ELECTRICAL TRANSFORMER WITHIN WALL
ELECTRICAL
ACCESS
H1011.8HO2)
(MODEL
100-277VAC-9VDC
TRANSFORMER
AND DC CABLE
(SUPPLIED)
FROM DIRECT
CONTACT WITH WATER
MUST BE PROTECTED
10
10
MODEL H1011.8HO2 SHOWN
MODEL H1011.8HO ON SHEET 1
(SEE SHEET 1 FOR APPLICABLE ROUGH-IN DIMENSIONS)
SENSOR
SOLENOID VALVE
PRESSURE REGULATOR
FROM CHILLER OUTLET
TO BUBBLER
HEAD
SENSOR WIRING / SUPPLY PLUMBING
SCHEMATIC
SENSOR
SOLENOID VALVE
PRESSURE REGULATOR
TO BUBBLER
HEAD
POWER SPLITTER
CABLE
-Vo
+Vo
AC(L)
AC(N) BLACK WIRE
WHITE WIRE
TRANSFORMER
9VDC SOLENOID VALVES
CONNECT 3/8" PUSH-TO-CONNECT TEE TO
3/8" X 1/4" REDUCER THEN TO 1/4" DIAMETER
OUTLET TUBE ON HCR8 WATER CHILLER
POWER SPLITTER CABLE
10

APPROVED: DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [email protected]OM
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
MJ
01/30/17
6
0510000490.D
1920/1920HPS
N/A
26
FV
05/14/20
5081
DP
INSTALLATION
5550
2020
FV
3/8"O.D. SUPPLY
TUBING AND 3/8" O.D.
PUSH-IN TEE SUPPLIED.
(CONNECT TO FOUNTAIN
SUPPLY LINE)
7-1/4"
184mm
5-5/8"
143mm

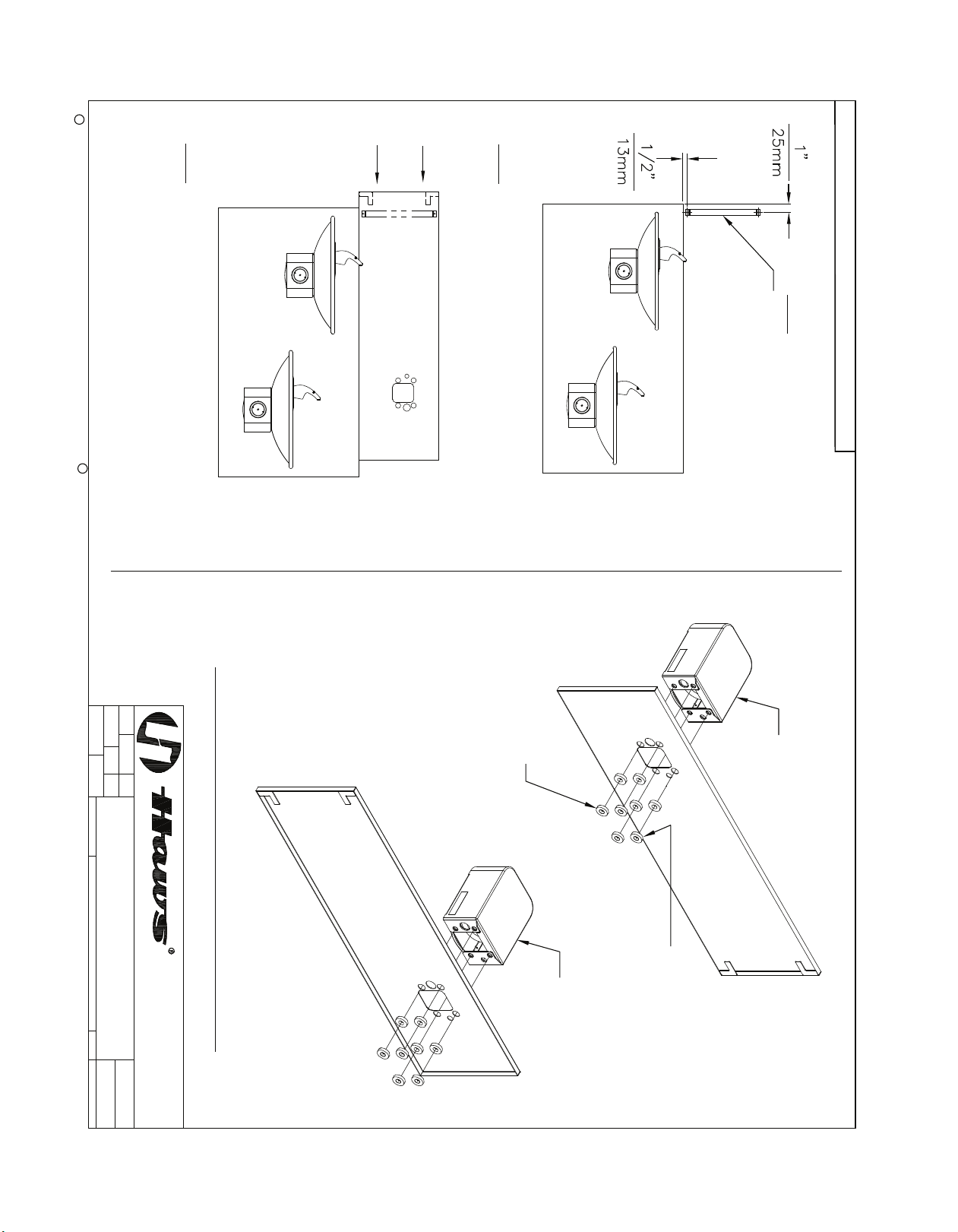

* IF YOUR FOUNTAIN IS THIS STYLE USE
THESE DIMENSIONS
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACKPANELS
1.
2. WHEN INSTALLING THIS UNIT, LOCAL,
STATE OR FEDERAL CODES SHOULD BE ADHERED TO FOR INSTALLATION LOCATIONS, WASTE & SUPPLY REQUIREMENTS OTHER THAN SHOWN.
INSTALLATION ABOVE HAWS 1011, 1011HPS, 1011HPSMS,
1011MS, H1011.8, H1011.8HO, H1011.8HPS
1920/1920HPS
(27")
(686mm)
(46-1/4")
(1175mm)
BUTTON
HEIGHT
FOR ADA
COMPLIANCE
BP32/BP32HPS
(IF FOUNTAIN HIGH/LOW SIDES ARE REVERSED USE BP32R)
6700
MOUNTING PLATE
(BEHIND
FINISH WALL)
- OR -6700R
RETROFIT PLATE(ON
TOP OFFINISH WALL)

ECN:
Haws Corporation - All Rights Reserved. HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
CR
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
[phone] FAX [phone]
E-MAIL: [e-mail]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
FV
4
0510001063.D
1920HO/1920HPSHO/1920WHO
1 6
BJM
5574
FV
5681
2021
BJM
NOTES:
1. 2. WHEN INSTALLING THIS UNIT, LOCAL, STATE OR FEDERAL CODES
SHOULD BE ADHERED TO FOR INSTALLATION LOCATIONS,
WASTE AND SUPPLY REQUIREMENTS OTHER THAN SHOWN.
1-1/8"
29mm
1-7/8"
48mm
Ø7/16"
Ø11mm
3"
76mm
5/8"
17mm
4X
3-5/8"
92mm
3-1/4"
82mm
6-3/4"
171mm
SEE SEPARATE INSTALLATION DRAWINGS
FOR MOUNTING PLATES AND BACKPANELS
5-1/4"
133mm
3 REFER TO 1RKHO.H OPERATION & MAINTENANCE INSTRUCTIONS FOR SENSOR SETUP.
3
SENSOR
EYE

H1011.8
APP
R
OVED
:
DRAWN:
PART NUMBER
SCALE: SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
DATE:
DATE:
E
CN
:
REVISED PER
CHK'D.:
H
a
ws
C
o
r
po
r
at
i
on
-
A
ll
Ri
ght
s
R
e
s
e
rv
ed.
H
A
W
S and othe
r
t
r
ade
m
a
rks
u
s
ed
i
n the
s
e
m
ate
ri
a
ls
a
r
e the e
xcl
u
siv
e p
r
ope
r
t
y
of
H
a
ws
C
o
r
po
r
at
i
on.
CR
M
O
D
E
L
(
S
)
1455
KLEPPE LA
N
E
SPA
R
KS,
N
EVA
D
A 89431
(
775
)
359
-
4712
F
AX
(
775
)
359
-
7424
E
-M
AIL:
H
A
W
S
@
H
A
W
S
C
O.
C
O
M
W
EBSI
T
E:
WWW
.
H
A
W
S
C
O.
C
O
M
TH
IS
D
O
CUM
E
NT
IS
TRU
E A
ND
C
O
RR
E
CT
A
T
T
I
M
E O
F
P
U
BLI
C
A
T
IO
N
.
C
O
NT
I
NU
E
D
P
R
O
DUCT
I
M
P
R
OVE
M
E
NT
S
M
AKE SPE
C
I
F
I
C
A
T
IO
N
S A
ND
M
EAS
UR
E
M
E
NT
S S
U
B
J
E
CT
T
O
CH
A
N
GE
W
I
TH
O
UT
N
O
T
I
C
E.
MJ
02/02/17
2
0510000493.
D
DR
A
W
I
N
G, BA
C
K PA
N
EL SPA
C
E
R
I
N
S
T
, B
F
1:1
22
F
V
02/27/17
5081
F
V
INSTALLATION
5172
2017
MJ
A
TT
A
CH
S
U
PPLIE
D
B
R
A
C
KE
T
T
O
W
ALL
U
SI
N
G
APP
R
OP
R
IA
T
E
F
AS
T
E
N
E
R
S. B
R
A
C
KE
T
IS
I
N
S
T
ALLE
D
OVE
R
TH
E
H
IG
H-
SI
D
E O
F
TH
E
DR
I
N
KI
N
G
F
O
UNT
AI
N
A
DH
ESIVE SI
D
E
N
O
T
ES:
1.
WH
E
N
I
N
S
T
ALLI
N
G
TH
IS
UN
I
T
, LO
C
AL, S
T
A
T
E O
R
F
E
D
E
R
AL
C
O
D
ES S
H
O
U
L
D
BE A
DH
E
R
E
D
T
O.
I
N
S
TALLAT
I
O
N
OVE
R
D
O
UBL
E
F
O
UNTA
I
N
S
H
O
WN
FR
O
M
R
EA
R
M
O
D
EL BP32 / BP32
H
PS
8 SPA
C
E
R
S
(
2 PE
R
M
O
UNT
I
N
G BOL
T
I
F
TH
E
M
O
UNT
I
N
G PLA
T
E
IS I
N
S
T
ALLE
D
BE
H
I
ND
TH
E
F
I
N
IS
H
E
D
W
ALL.
U
SE 1 SPA
C
E
R
PE
R
BOL
T
F
O
R
R
E
TR
O
F
I
T
S
WH
E
R
E
TH
E
M
O
UNT
I
N
G
PLA
T
E IS I
N
S
T
ALLE
D
I
N
FR
O
NT
O
F
TH
E
F
I
N
IS
H
E
D
W
ALL
)
M
O
D
EL BP32L
R
PLA
C
E
TH
E BA
C
KPLA
T
E AGAI
N
S
T
TH
E
W
ALL A
ND
SLI
D
E SI
D
E
W
AYS SO
TH
E
T
ABS
C
A
TCH
UND
E
R
TH
E B
R
A
C
KE
T
S
T
EP
1
S
T
EP 2
S
T
EP 3
I
N
S
T
ALL
TH
E BO
TT
LE
F
ILLE
R
PE
R
TH
E I
N
S
TRUCT
IO
N
S S
U
PPLIE
D
W
I
TH
TH
E
UN
I
T
M
O
D
EL 1920
M
O
D
EL 1920

H1011.8

H1011.8
CHI LLER ELECTRI CAL IN STALLAT ION
MOUNTING FRAME MUST BE
INSTALLED SO THAT LIP OF
FRAME OVERLAPS & BUTTS
UP AGAINS T FI NISHED WALL
*A (SEE FOUNTAIN STYLE)
*B
(SEE FOUNTAIN STYLE)
* IF YOUR FOUNTAIN IS THIS STYLE
USE THESE DIMENSIONS
AB
USE THESE DIMENSIONS
A B
BOWL MOUNTING PATTERN DETAIL
P age
2006
H
a
ws
C
o
r
po
r
at
i
on
-
A
ll
Ri
ght
s
R
e
s
e
rv
ed
H
A
W
S and othe
r
t
r
ade
m
a
rks
u
s
ed
i
n the
s
e
m
ate
ri
a
ls
a
r
e the e
xcl
u
siv
e p
r
ope
r
t
y
of
H
a
ws
C
o
r
po
r
at
i
on.
CR
1 of 1
MOUNTING FRAME INSTALLATION
* IF YOUR FOUNTAIN IS THIS STYLE
