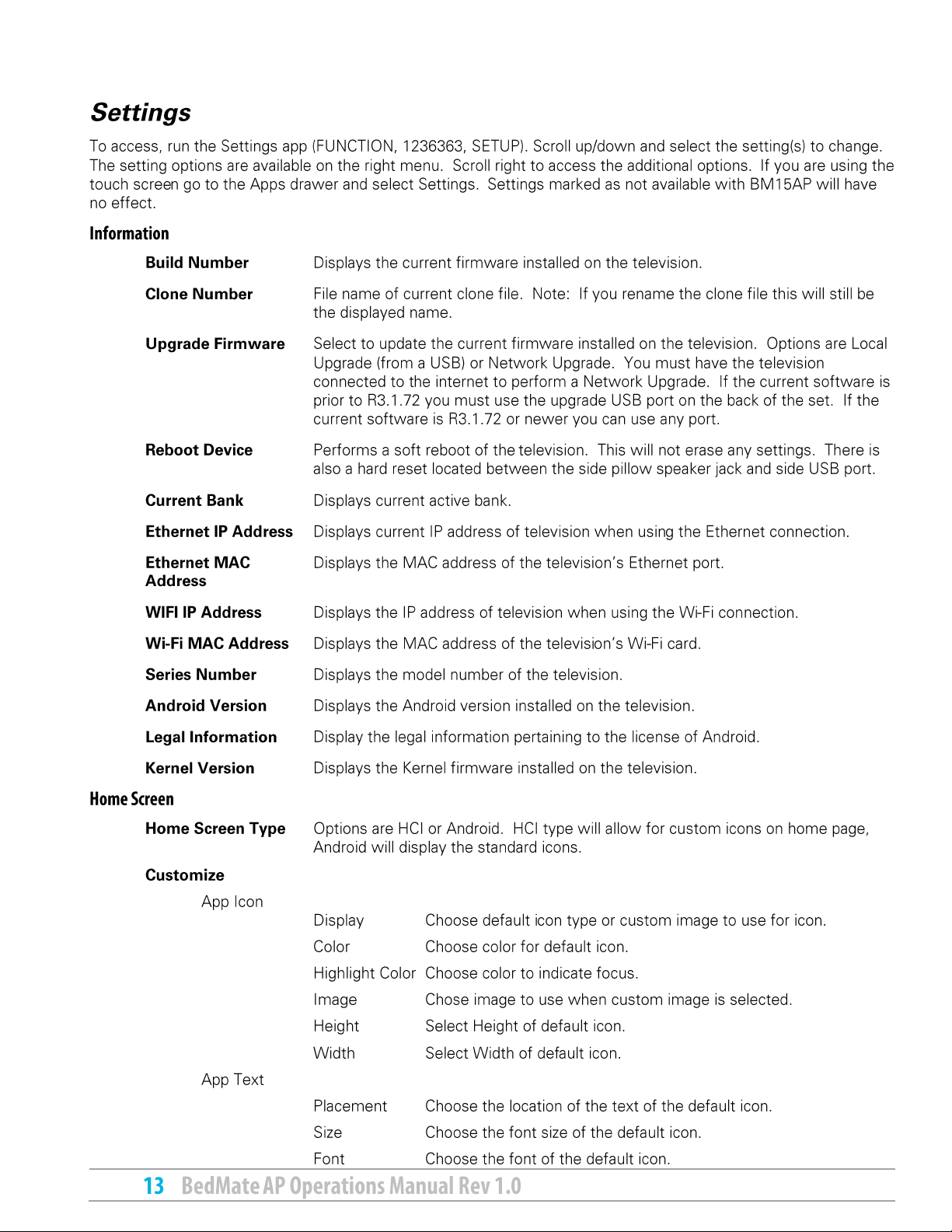

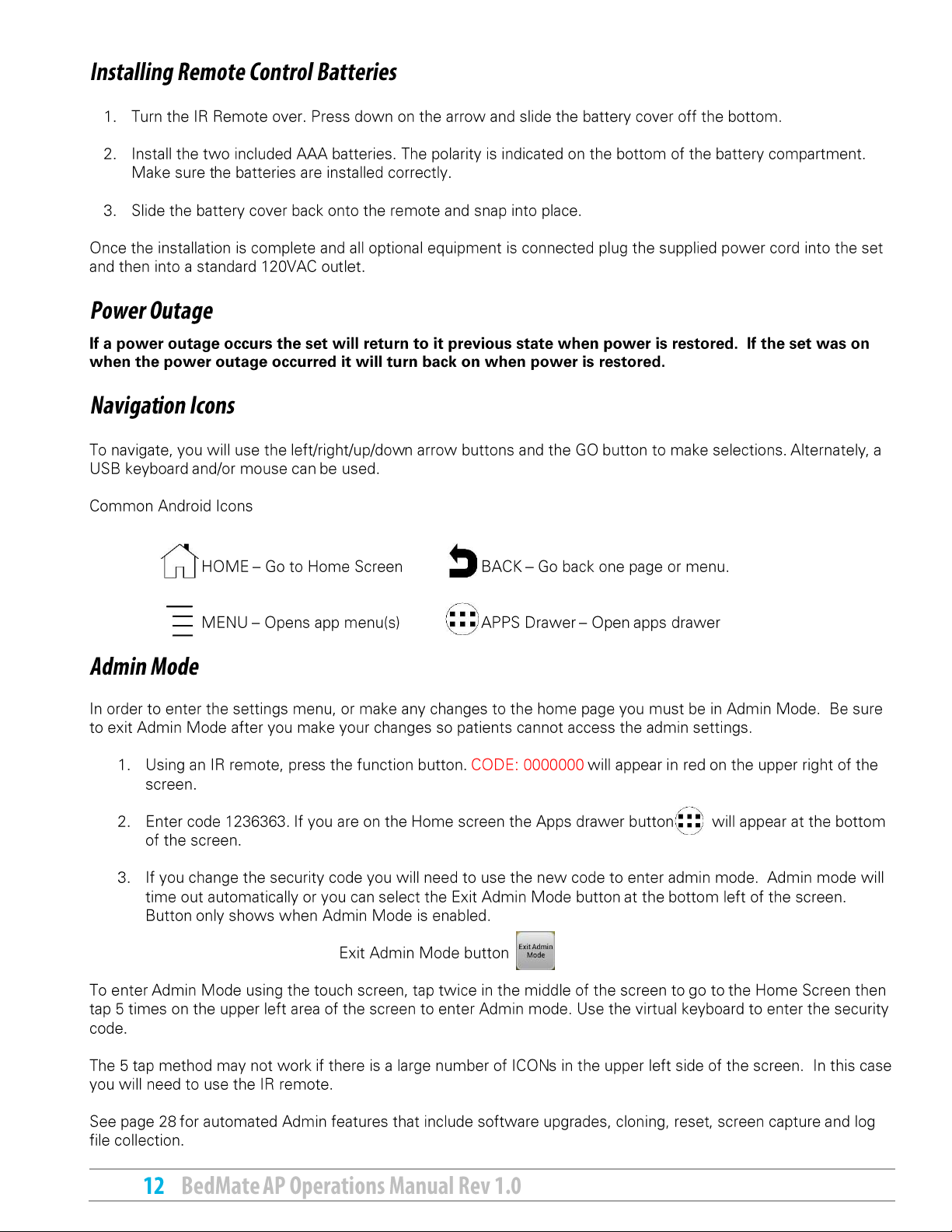

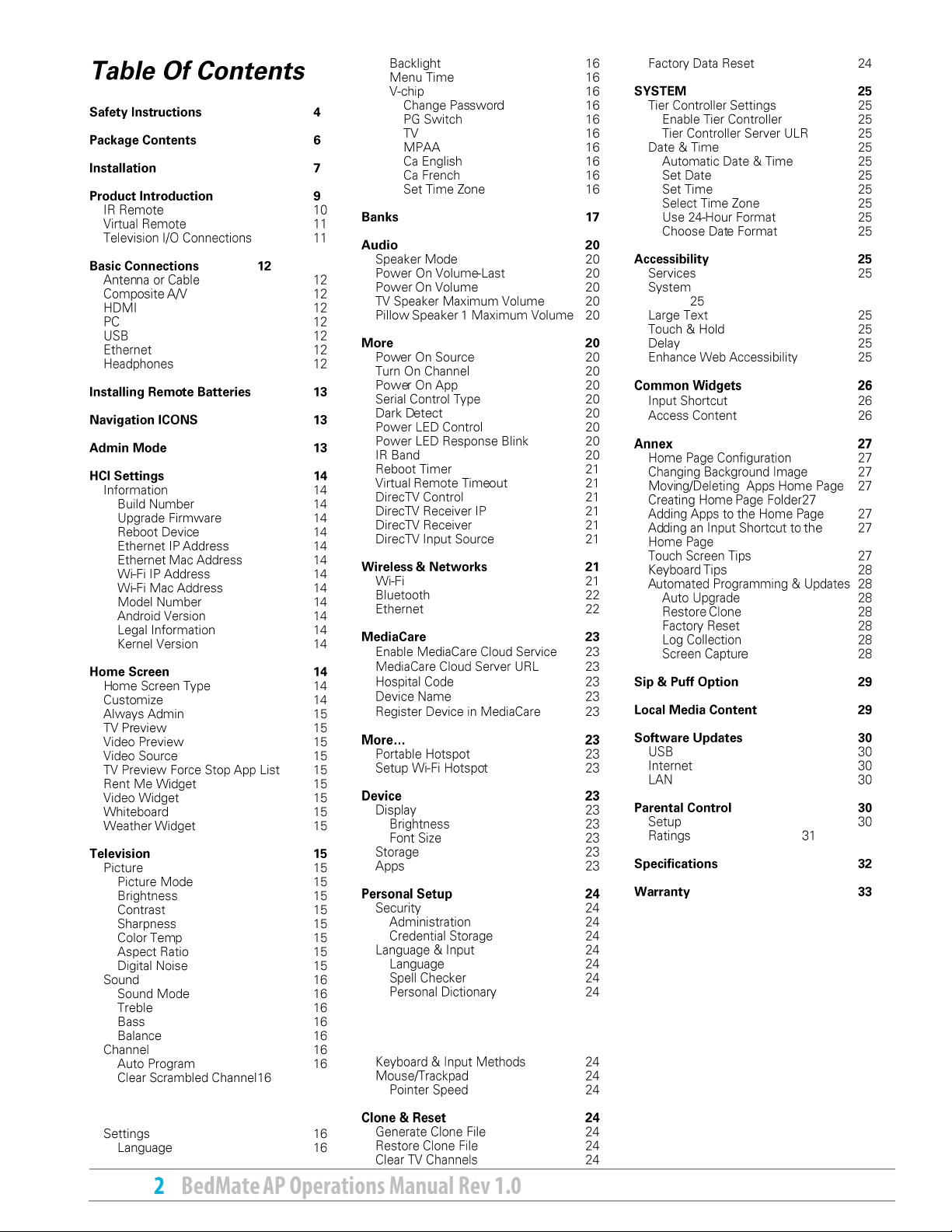

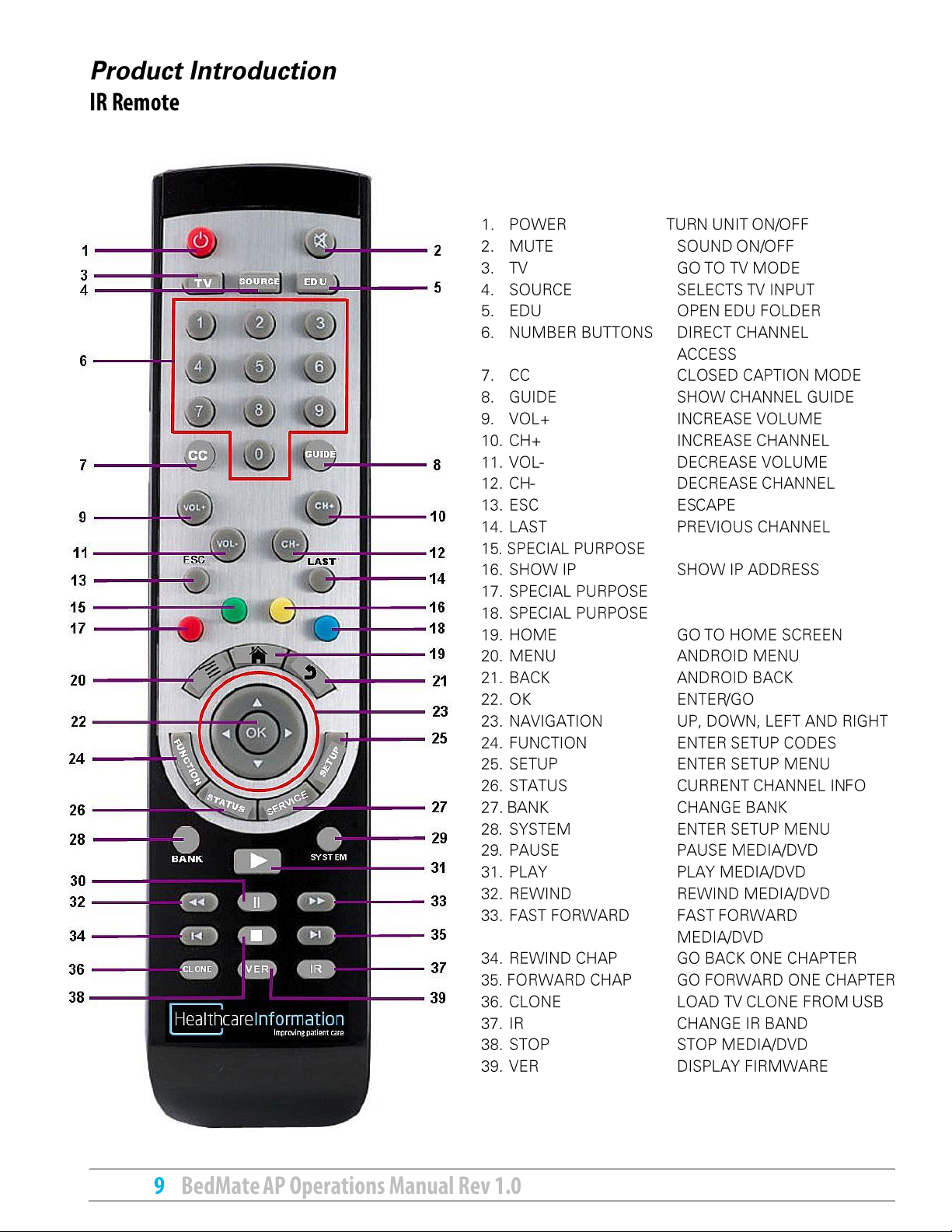

HCI BedMate AP User manual

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture and this apparatus shall not be
exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
Do not use this LCD TV Monitor near water. For example: avoid placing it near a bathtub, washbowl, kitchen sink, or laundry
tub, in a wet basement, or near a swimming pool, etc.
This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
Advertisement:
NOTE TO CABLE TV INSTALLER
This reminder is provided to call the cable TV installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). This
code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of the cable entry as practical.
REGULATORY INFORM
This equipment generates, uses and can radiate radio frequency energy, and if not installed in accordance with this instruction
manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
follow measures:
1. Increase the separation between the equipment and receiver.
CAUTION
Do not attempt to modify this product in any way without written authorization from HealthCare Information, LLC.
Unauthorized modification will void the warranty of the product.
COMPLIANCE
The party responsible for this product’s compliance is:
HealthCare Information, LLC, 113 Commerce Blvd., Loveland, OH 45140, USA. Phone [phone]

IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufactures instructions.
8) Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or third prong is provided
for your safety. If the provided plug does not fit into you outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
IMPORTANT SAFEGUARDS FOR YOU AND YOUR NEW PRODUCT
CAUTION –Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.





INSTALLATION
The BM15AP2 is designed to be used with an HCI Outreach Support Arm. Third party support arms may
also be used. Installation onto third party support arms will be similar to the HCI Outreach Support Arm.
To install the BM15AP2 onto an Outreach Arm
Do not apply power to the set until the installation is completed. Use only UL listed
Hospital Grade Power Cords.
Install this Television on an arm that has been properly mounted according to the arm and mount
manufacturer’s instructions. Make sure that the arm is locked into its retracted position. If the arm
cannot be locked into its retracted position, raise the outer arm to its highest position to install the
television.
Failure to secure the arm could result in bodily injury.
If hanging the television on a wall, make sure that the wall mount used is rated to carry the full
weight of the television. All HCI televisions utilize standard VESA mounting patterns. Follow the
directions that come with mount.
Failure to follow these steps could result in bodily injury.
1. Remove Shim and Philips screw from the stem at the top of TV.
2. Remove the side panels from the nose of the arm. There are two Allen head screws holding
each side panel in place. Use a Metric 3mm Allen wrench.
**Do not use a standard 7/64 Allen wrench, this will round the screw head.

3. Place Shim onto the nose of arm over thread of Allen screw.
If your Arm has a material thickness of 0.20” you do not need the Shim (discard).
4. Slide stem over shim and place safety plate over stem and tighten Phillips screw.
5. Connect the coax cable from the TV to the coax cable from the arm using the supplies coupler.
Slightly wrench tighten both coax connectors to the coupler just enough that you cannot undo the
connection by hand. DO NOT OVER TIGHTEN. 1/16 TO 1/8 TURN PAST FINGER TIGHT IS
ENOUGH.

6. Connect the CAT5 cable. If other cables are present connect them at this time.

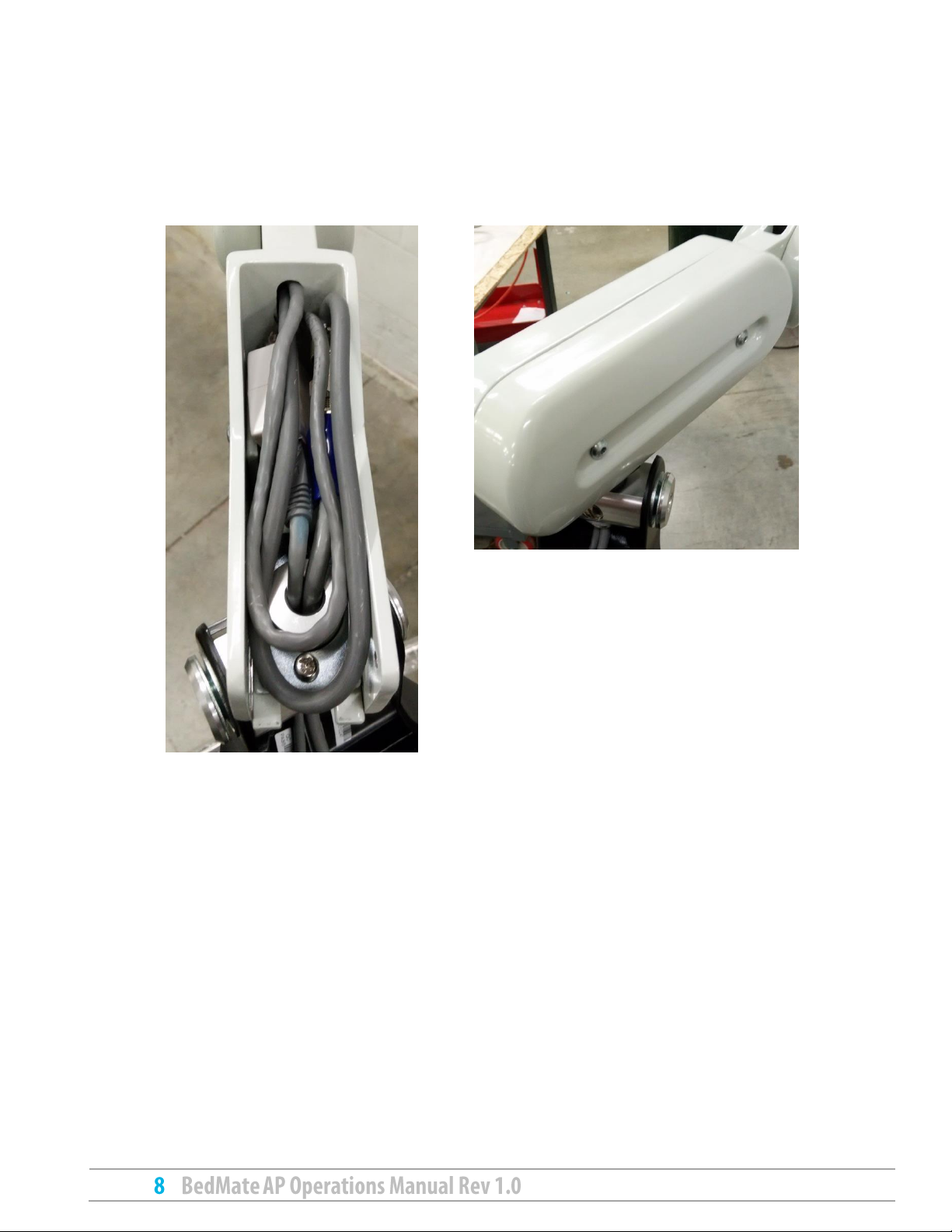

7. Arrange the cable(s) into the nose.
8. Reinstall the nose covers. Do not over tighten the nose cover screws. Use caution if using a
powered driver.
