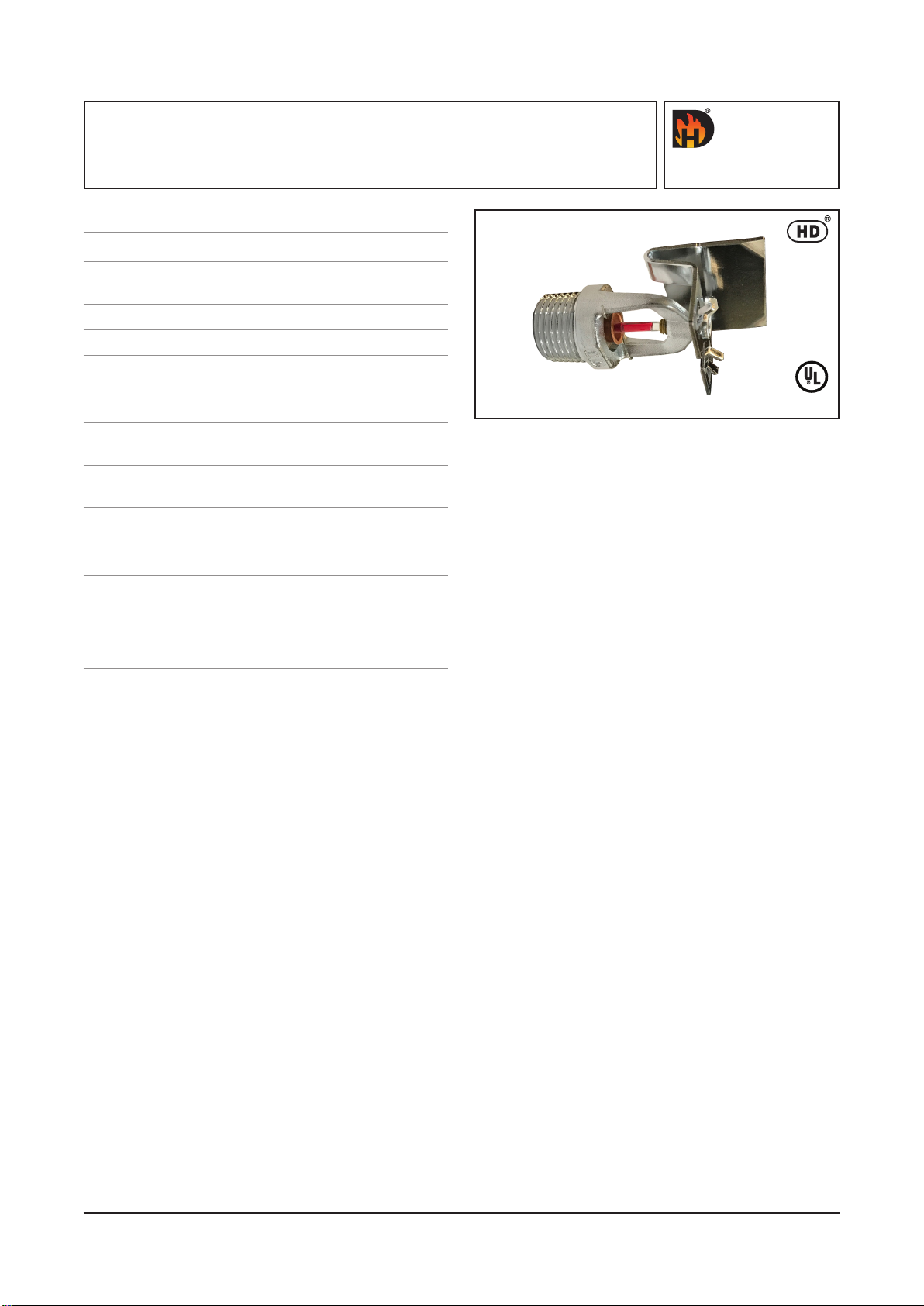

DECEMBER, 2017 HD 285PAGE 1 OF 4

HD FIRE PROTECT

PVT. LTD.

HORIZONTAL SIDEWALL SPRINKLER

EXTENDED COVERAGE & QUICK RESPONSE

TECHNICAL DATA

DESCRIPTION

Horizontal Sidewall Sprinklers (EC & QR)

HD Extended Coverage Horizontal Sidewall Sprinklers

are Quick Response with 3mm glass bulbs. These

sprinklers are designed for use in light hazard,

commercial occupation such as hotels, restaurants,

offices, etc. The horizontal sidewall sprinklers are

used in place of upright or pendent sprinklers, due to

aesthetics or the building construction where piping

across the ceiling is not desirable. They are installed

along a wall or the side beam just beneath the ceiling.

The spinkler can also be installed with two pieces of

Recessed Escutcheon. The sprinkler can cover 16 feet

wide by 24 feet long area.

SPRINKLER OPERATION

The Sprinkler operating device is state of the art heat

responsive frangible glass bulb supplied by a world

leader in this innovative technology. The glass bulb

contains fluid which expands when exposed to heat.

When rated temperature is reached, the bulb shatters

and water flows through the sprinkler and strikes

deflector, forming an uniform water spray pattern to

control or extinguish fire.

Style Horizontal Sidewall Sprinklers

Temperature

Quick Response with 3mm

Response glass bulb

Coverage Extended Coverage

K-Factor 5.6 US (80 metric)

Nominal Thread Size ½” BSPT (NPT Optional)

Max. Working 175 PSI (12 Bar)

Pressure

Factory Hydrostatic 500 PSI (35 Bar)

Test Pressure

Min. Operating 7 PSI (0.5 Bar)

Pressure

Temp. Rating 57°C (135°F) / 68°C (155°F)

79°C (175°F) / 93°C (200°F)

Approvals UL Listed

Finish Chrome Plated

Ordering Style, Temp. Rating,

Information Thread type & Finish

SIN Number HD243

LISTED

INSTALLATION

All HD Sprinklers must be installed according to NFPA

13 Standards. Deviations from these requirements

and standards or any alteration to the sprinkler itself

will void any warranty made by HD Fire. In addition,

installation must also have local government provi-

sions, codes and standards as applicable. The system

piping must be properly sized to insure the minimum

required water flow rate at the sprinkler. Check for

the proper model, style, orifice size and temperature

rating prior to installation. Install sprinklers after the

piping is in place, to avoid mechanical damage. Wet

pipe systems must be protected from freezing. Upon

completion of the installation, the system must be

tested as per recognized standards.

Escutcheon Installation

Use HD escutcheon plate to ensure proper sprinkler

distribution and coverage. To install the escutcheon

plate on recessed sprinklers, align with it and push or

thread over the sprinkler body into the upper support

piece, until the outer edge of the escutcheon meets

the mounting surface.

Installation Sequence

Step1. The unit must be installed in horizontal posi-

tion only.

Step2. Use teflon tape or soft thread sealant only to

the male-threads.

Step3. Hand tighten the sprinkler into fitting.

Step4. For Horizontal Sidewall Sprinklers, use a

standard wrench. Tighten the unit into the fit-

ting. A leak-tight joint requires only 14.7 to

19.6 N-m of torque. Once torque level reach

over 29.4 N-m it may distort the orifice seal,

resulting in leakage. For exposed piping sys-

tems, the sprinkler should be oriented so the

frame are parallel with the branch line pipe.The

word ‘Top’ on the deflector is to face towards

the ceiling.

DECEMBER, 2017 HD 285PAGE 2 OF 4

HD FIRE PROTECT

PVT. LTD.

CARE AND HANDLING

Sprinklers must be handled with due care, they must

be stored at ambient temperature for best results.

Storage as well as any onward shipment is to be made

in original packing only. Sprinklers must be visually

inspected carefully before installation. Sprinklers

visibly damaged, dropped or exposed to temperature

in excess of the maximum ambient temperature

permitted, should never be installed. Never install any

glass bulb sprinkler if the bulb is cracked or if there is

a loss of liquid from the bulb.

Sprinklers must be installed after the piping is in

place, to prevent mechanical damage.

Use Teflon tape or soft thread sealant on male thread

of the sprinkler for leak tight sprinkler joint. Use

proper wrench. Use appropriate torque. Excessive

tightening torque may distort the sprinkler inlet and

cause leakage. Sprinklers must never be painted,

plated or coated after they leave factory.

INSPECTION TESTING & MAINTENANCE

Refer to NFPA 25 for inspection, testing and

maintenance requirement or to the authority having

jurisdiction. For detail of warranty refer HD’s current

conditions of sale or contact HD Sales directly.

HD sprinkler described herein must be installed and

maintained in accordance with the latest edition of HD

technical data, latest standards of the National Fire

Protection Association (NFPA) or to the standard of

any other authorities having jurisdiction. The owner is

solely responsible for maintaining their fire protection

system and devices in proper operating condition.

Exposure to ultraviolet or direct sunlight for extended

period may cause the liquid dye in glass bulb to fade

or lose colour. Colourless or faded bulbs are not

a problem, as long as the fluid level has not been

affected. The loss of colour in the liquid will not affect

sprinkler performance, as long as the bulb is intact

and not damaged. The loss of colour may be an issue

in identifying sprinkler temperature rating, but the

temperature rating is still stamped on the sprinkler

deflector.

K5.6 Extended Coverage Horizontal Sidewall Sprinkler

Response

Rating Coverage Area

Ft x Ft Minimum

Flow GPM Minimum

Pressure psi

(kg/cm2)

Deflector-to-Ceiling

Distance Inches(mm) Sprinkler Tempera-

ture Rating oFMinimum

Spacing Ft(m)

Quick 16x16 (4.9x4.9) 26 21.6 (1.48) 4 to 12 (100 to 300) 135,155,175,200 10 (3.1)

Quick 16x18 (4.9x5.5) 29 26.8 (1.85) 4 to 12 (100 to 300) 135,155,175,200 10 (3.1)

Quick 16x20 (4.9x6.1) 32 32.7 (2.25) 4 to 12 (100 to 300) 135,155,175,200 10 (3.1)

Quick 16x22 (4.9x6.7) 36 41.3 (2.85) 4 to 6 (100 to 150) 135,155,175,200 10 (3.1)

Quick 16x22 (4.9x6.7) 42 56.3 (3.88) 8 to 12 (200 to 300) 135,155,175,200 10 (3.1)

Material Specification

Deflector Brass

Bulb Glass

Load Screw Brass

Cap Copper

Frame Brass

Seal Belleville Washer coated on both

sides with Teflon Tape

Bulb Nominal

Diameter Quick Response 3.0mm

DECEMBER, 2017 HD 285PAGE 3 OF 4

HD FIRE PROTECT

PVT. LTD.

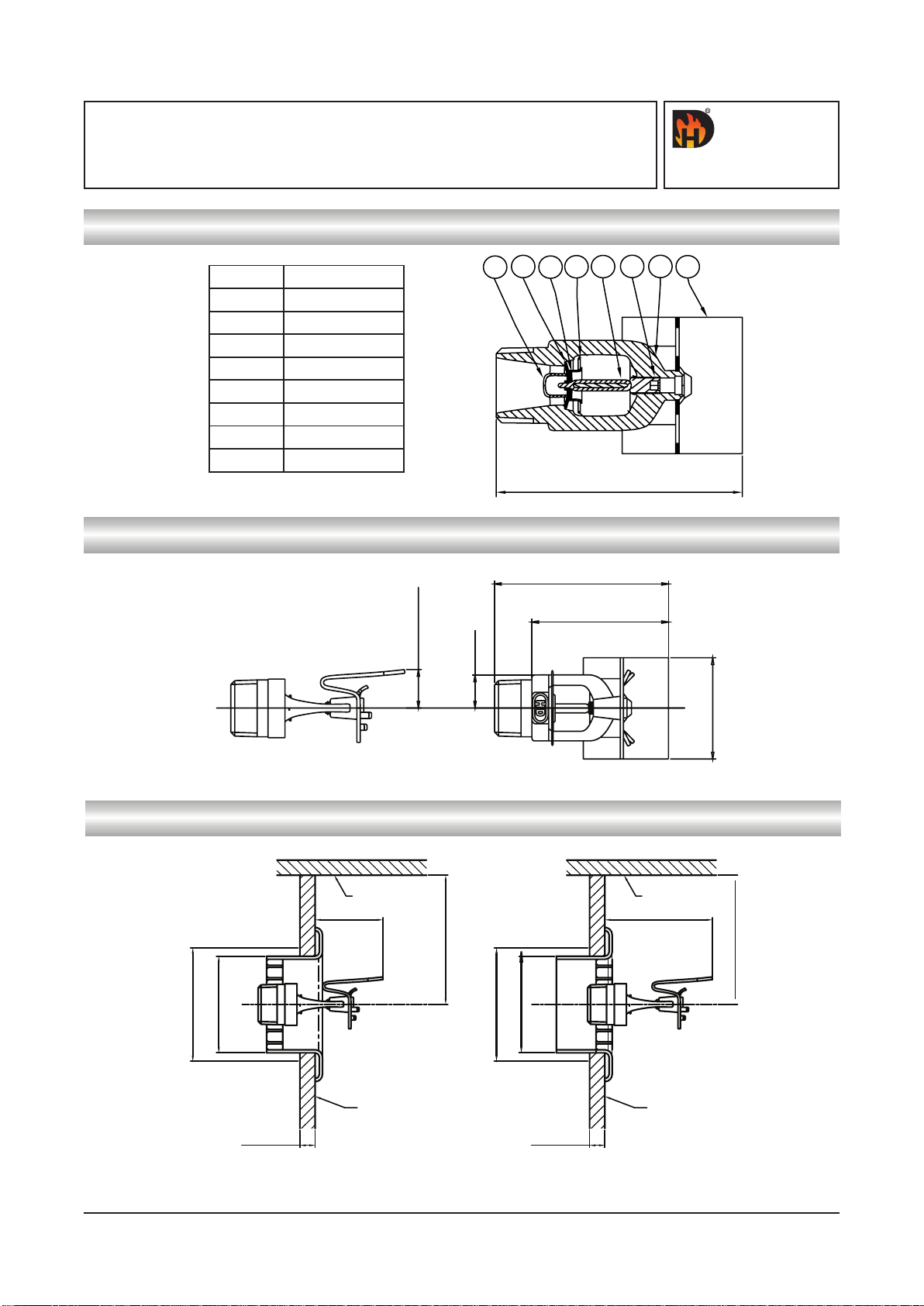

DIMENSIONS

65.7

±0.5

PART NO PART NAME

1 FRAME

2 DEFLECTOR

3CAP

4 CAP SEAT

5 LOAD SCREW

6 SEAL

7 BULB

8 SPRING

EXTENDED COVERAGE HORIZONAL SIDEWALL SPRINKLER

RECESSED EXTENDED COVERAGE HORIZONTAL SIDEWALL SPRINKLER

TYPICAL WALL

FINISHED SURFACE

100-300 mm

34.5 mm

TYPICAL WALL

FINISHED SURFACE

100-300 mm

54 mm

MAXIMUM EXTENSION

MAXIMUM RECESS

MAX. HOLE 060mm

MAX. HOLE 054mm

MAX. HOLE 060mm

MAX. HOLE 054mm

14.3 mm

38 mm

52 mm

65 mm

12.5 mm

DECEMBER, 2017 HD 285PAGE 4 OF 4

HD FIRE PROTECT

PVT. LTD.

LIMITED WARRANTY

HD FIRE PROTECT PVT. LTD. hereby referred to as HD FIRE warrants to the original purchaser of the fire protection products manufactured by HD FIRE and to any other person

to whom such equipment is transferred, that such products will be free from defect in material and workmanship under normal use and care, for two (2) years from the date of

shipment by HD FIRE. Products or Components supplied or used by HD FIRE, but manufactured by others, are warranted only to the extent of the manufacturer’s warranty.

No warranty is given for product or components which have been subject to misuse, improper installation, corrosion, unauthorized repair, alteration or un-maintained.

HD FIRE shall not be responsible for system design errors or improper installation or inaccurate or incomplete information supplied by buyer or buyer’s representatives.

HD FIRE will repair or replace defective material free of charge, which is returned to our factory, transportation charge prepaid, provided after our inspection the material is

found to have been defective at the time of initial shipment from our works. HD FIRE shall not be liable for any incidental or consequential loss, damage or expense arising directly

or indirectly from the use of the product including damages for injury to person, damages to property and penalties resulting from any products and components manufactured

by HD FIRE. HD FIRE shall not be liable for any damages or labour charges or expense in making repair or adjustment to the product. HD FIRE shall not be liable for any

damages or charges sustained in the adaptation or use of its engineering data & services. In no event shall HD Fire’s product liability exceed an amount equal to the sale price.

The foregoing warranty is exclusive and in lieu of all other warranties and representation whether expressed, implied, oral or written, including but not limited

to, any implied warranties or merchantability or fitness for a particular purpose. All such other warranties and representations are hereby cancelled.

NOTICE :

The equipment presented in this bulletin is to be installed in accordance with the latest publication standards of NFPA or other similar organisations and also with the

provision of government codes or ordinances wherever applicable.

The information provided by us is to the best of our knowledge and belief, and consist of general guidelines only. Site handling and installation control is not in our scope.

Hence we give no guarantee for result and take no liability for damages, loss or penalties whatsoever, resulting from our suggestion, information, recommendation or

damages due to our product.

Product development is a continuous programme of HD FIRE PROTECT PVT. LTD. and hence the right to modify any specification without prior notice is reserved with

the company.
