HDL MVSM35B.20 User manual

Buspro Blinds Motor
User Manual
(Applicable model: MVSM35B.20)
Version: V1.0.0
Published on Jan.18, 2020

Buspro Blinds Motor User Manual
HDL Automation Co., Ltd.
http://www.hdlchina.com i
Content
Legal Statement...............................................................................................................................I
Update History................................................................................................................................II
1Introduction................................................................................................................................1
2Buspro Software Setting............................................................................................................2
3Panel Setting.............................................................................................................................4
3.1 Open Configuration Page....................................................................................................4
3.2 Curtain Control....................................................................................................................5

Buspro Blinds Motor User Manual
HDL Automation Co., Ltd.
http://www.hdlchina.com I
Legal Statement
HDL has all the intellectual property rights to this document and contents thereof.
Reproduction or distribution for third parties are prohibited without written authorization from
HDL. Any infringement of HDL’s intellectual property rights will be investigated the legal
liability.
The contents of this document will be updated as the updates of product versions or
other reasons. Unless otherwise agreed upon, this document is to be used as a guidance
only. All the statements, information and recommendations in this document makes no
warranty expressed or implied.
HDL Automation Co., Ltd.

Buspro Blinds Motor User Manual
HDL Automation Co., Ltd.
http://www.hdlchina.com II
Update History
The form below contains the information of every update. The latest version contains all the
updates of all former versions.
No.
Version
Update Information
Date
1
V1.0.0
Initial release
Jan.18, 2020

Buspro Blinds Motor User Manual
HDL Automation Co., Ltd.
http://www.hdlchina.com 1
1 Introduction
Buspro Blinds Motor (Model: MVSM35B.20, hereinafter referred to as motor) is specially
designed for blinds, Roman blind, etc. It can open, close, percentage control and move
curtain to a small/large extent. And the switch limiting position of curtain can be set by Buspro
Setup Tool 2.
This user manual offers the information on the configuration of motor in Buspro Setup Tool 2
and Prism Pro/Multi-function Touch Panel. The following tools might be included:
➢Prism Pro/Multi-function Touch Panel (Model: HDL-MPTFL11.46)
➢Panel Power Interface (Model: HDL-MPLPI.46-A)
➢Buspro Blinds Motor (Model: MVSM35B.20)
➢A computer with Buspro Setup Tool 2
➢1-Port Programming Gate Way connected to the router
➢Dedicated Buspro Cable(s)
Note:
①Please refer to the datasheet attached to the product for the information of installation,
wiring, specifications, etc.
②The pictures in this user manual are for reference only and the actual product should
prevail.
③Panel button introduction is as shown in Figure 1-1 (The six buttons under the panel
respectively correspond to the six icons of each button page).
Figure 1-1 Panel button introduction

Buspro Blinds Motor User Manual
HDL Automation Co., Ltd.
http://www.hdlchina.com 2
2 Buspro Software Setting
①Power on motor, connect motor to the system and open Buspro Setup Tool 2 in the
computer.
②Click “Fast Search” to search for the devices connected to the system.
③Double click the “Model” or “Description” column of motor to enter configuration page, as
shown in Figure 2-1 and Figure 2-2.
Figure 2-1 Open configuration page
Figure 2-2 Motor configuration page
The setting items of motor configuration page are explained below:

Buspro Blinds Motor User Manual
HDL Automation Co., Ltd.
http://www.hdlchina.com 3
1. Motor running: to set motor running direction to “Forward” or “Backwards”.
2. Drag start enable: select this option to start up motor by dragging.
3. Sure open/off position: to configure the switch limiting position of curtain.
➢Open position: if 20% is set to open limiting position (20% of the whole track), user
can select 20% in the pull-down menu (mark ① of the page) and click “Test” button.
When motor stops running, user should click “Sure open position” button to complete
the configuration.
➢Off position: if 80% is set to close limiting position (80% of the whole track), user can
select 80% in the pull-down menu (mark ① of the page) and click “Test” button. When
the motor stops running, user should click “Sure off position” button to complete the
configuration.
4. Delete all position
5. Upward/Down small momentary: to run the curtain upward/down to a small extent.
6. Upward/Down big momentary: to run the curtain upward/down to a large extent.
7. Stop: click to stop the curtain.
8. Read: click to read the current position of the curtain.
9. Test: after open/close/percentage is selected on the right (mark ① of the page), click test
button. If the motor is configured correctly, the motor will run as expected.

Buspro Blinds Motor User Manual
HDL Automation Co., Ltd.
http://www.hdlchina.com 4
3 Panel Setting
3.1 Open Configuration Page
①Connect the panel and motor to the system and open Buspro Setup Tool 2 in the
computer.
②Click “Fast Search” to search for the devices connected to the system.
③Double click the “Model” or “Description” column of the panel to enter configuration page,
as shown in Figure 3-1 and Figure 3-2.

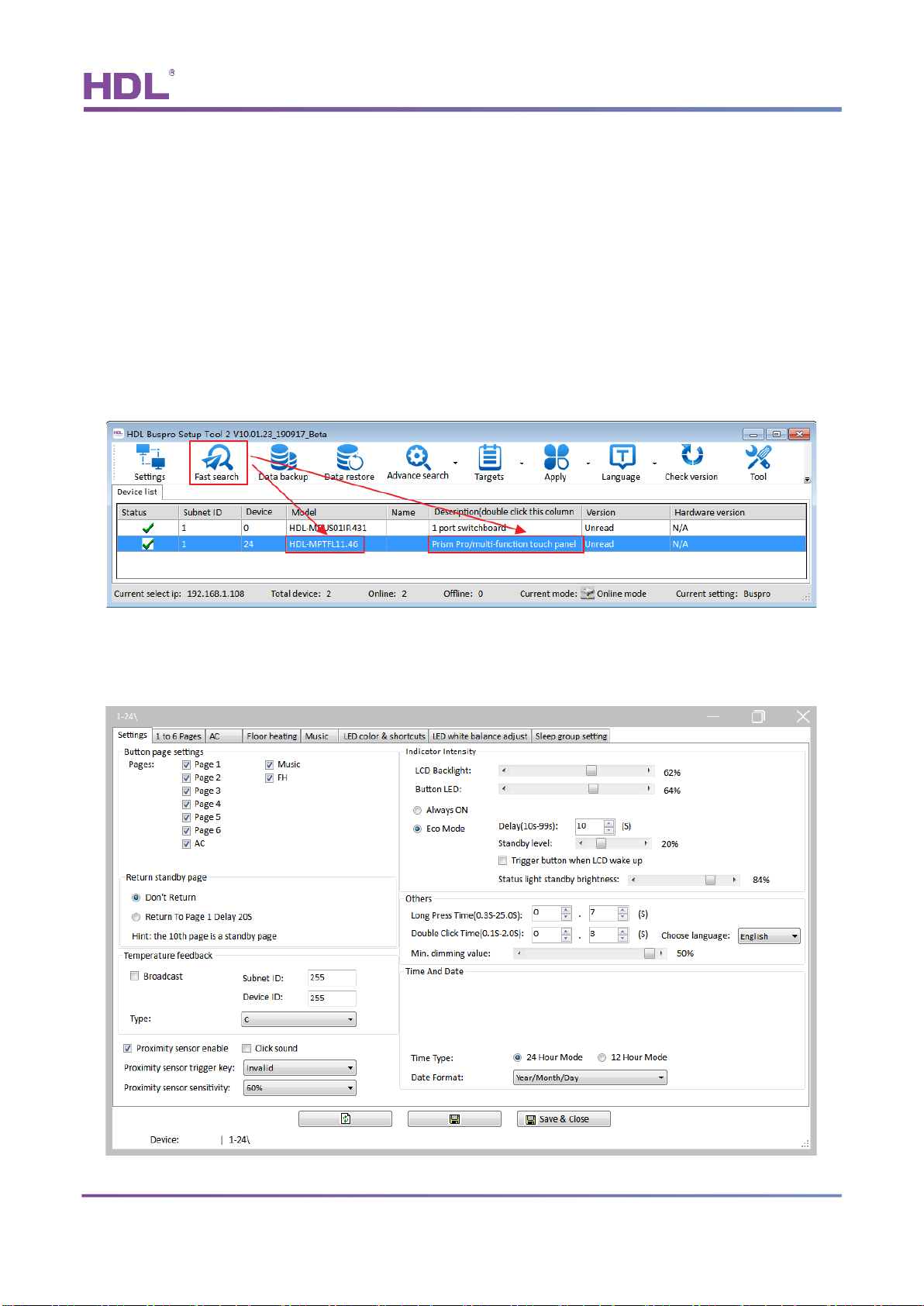

Figure 3-1 Open configuration page
Figure 3-2 Panel configuration page

Buspro Blinds Motor User Manual
HDL Automation Co., Ltd.
http://www.hdlchina.com 5
3.2 Curtain Control
As shown in Figure 3-3:
①Select “1 to 6 Pages” label in the panel configuration page and select buttons to be set
at the top (Take button 1 of page 1 as an example).
②Select button mode: the number of objects depends on button mode. For example,
“Combination ON”, “Combination OFF”, “Combination ON/OFF”, “Dbclick/Combined”,
“Short/Long Press”, “Short Press/Long Jog” and “Clock” can control up to 99 objects,
while “Single ON/OFF”, “Single ON” and “Single OFF” can only control 1 object.
③Click “Targets setting” button on the right to open the page.
④Click “Read” button.
⑤Set target parameters:
➢Subnet/Device ID: enter the corresponding subnet/device ID of motor.
➢Type: select “Curtain Switch”.
➢Param 1: enter 1.
➢Param 2: when “Open” is selected, button 1 of page 1 can open the curtain. When
“Close” or “Percentage” is selected, button 1 of page 1 can close or percentage
control the curtain.

Buspro Blinds Motor User Manual
HDL Automation Co., Ltd.
http://www.hdlchina.com 6
Figure 3-3 Targets setting page
