Introduction
The Sewell Spider is a 4-by-2 HDMI true matrix. It allows any source (Blue-Ray
player, HD DVD player, satellite receiver, game system, etc.) to be shown on
the any of the two displays simultaneously, no matter the source is HDCP or
not. Extra infrared receiver extension and IR emitter can control HDMI source
and HDMI MATRIX.
This unit has the ability of equalization and amplification to ensure HDMI
signal's transmission through long cable without quality loss.
The matrix offers solutions for digital entertainment center, HDTV retail and
show site, HDTV, STB, DVD and projector factory, noise, space and security
concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.

Contents
HDMI Matrix.....................................................................................................1
Product Overview ............................................................................................1
Features...........................................................................................................1
Package Contents ...........................................................................................3
Specifications...................................................................................................3
Panel Descriptions...........................................................................................4
Front Panel......................................................................................................4
Rear Panel.......................................................................................................4
Side Panel .......................................................................................................5
Installation........................................................................................................5
Operation.........................................................................................................6

1 | P a g e
HDMI Matrix
■Product Overview
■Features
Easy to use: install in seconds, no need for setting.
Allows up to four HDMI source devices to be independently switched to
two HDMI monitors, HDTVs, or projectors.
The two outputs could show the same or different source at the same time
no matter the source is HDCP or not.
Support high definition resolutions 1080P, 1080i, 720P and standard video
format.
Three switching modes：panel buttons, local IR, IR extension.
With extra infrared receiver extension and IR emitter extension for IR call
back function to control the HDMI source or HDMI MATRIX from remote
rooms.
HDCP compliant.
HDMI 1.4.

2 | P a g e
Warning
To reduce the risk of fire, electric shock or product damage:
1. Do not expose this apparatus
to rain, moisture, dripping or
splashing and that no objects
filled with liquids, such as vases,
shall be placed on the apparatus.
6. Clean this apparatus
only with dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in another confined space.
Ensure the unit is well ventilated.
3. To prevent risk of electric
shock or fire hazard due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other
apparatus (including amplifiers)
that produce heat.
5. Do not place sources of naked
flames, such as lighted candles,
on the unit.
7. Unplug this apparatus
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
plugs.
9. Only use attachments /
accessories specified by
the manufacturer.
10. Refer all servicing to
qualified service
personnel.

3 | P a g e
■Package Contents
①Main unit.
②5VDC Power Supply.
③1x Remote.
④2x IR_RX (IR receiver) extension cable.
⑤4x IR_TX (IR emitter) extension cable.
⑥2x IR_RX cable extender jack pair.
⑦Operating Instructions
⑧2x Mounting Ear.
■Specifications
Operating Temperature Range
-5 to +35°C(-41 to +95 °F)
Operating Humidity Range
5 to 90 % RH (no condensation)
Input Video Signal
0.5-1.0 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Signaling Rate
2.25Gbit/s
Video Format Supported
DTV/HDTV:
1080P/1080i/720P/576P/480P/576i/480i
Output Video
HDMI1.2 and HDMI 1.4
Audio Format Supported
DTS-HD、Dolby trueHD
Maximum Transmission Distance
<15m (If needed, HDMI extender is
optional)
Power Consumption
10wtts (Max.)
Dimensions
204mmL×95mmW×29mmH/8.0''L×3.7''
W×1.1''H
Mass (Main Unit)
0.45kg

4 | P a g e
■Panel Descriptions

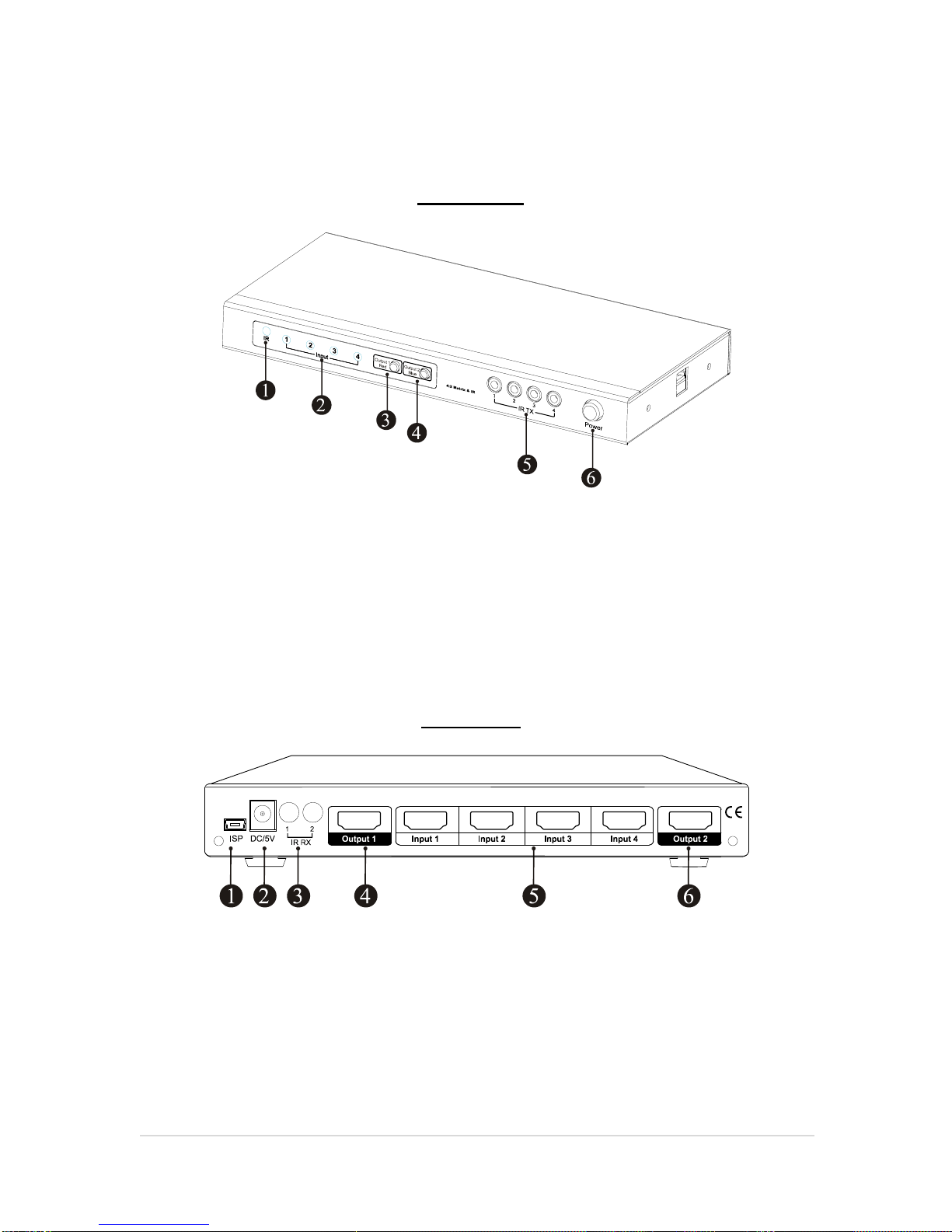

Front Panel
①IR receiver.
②Indicator of inputs (2 color LED, RED for Output1, BLUE for Output 2).
③Input select button for Output 1.
④Input select button for Output 2.
⑤IR extension transmitter sockets.
⑥Power switch.
Rear Panel
①Mini USB for firmware update.
②Power input.
③IR extension receiver sockets.
④HDMI output 1.
⑤HDMI inputs.
⑥HDMI output 2.

5 | P a g e
Side Panel

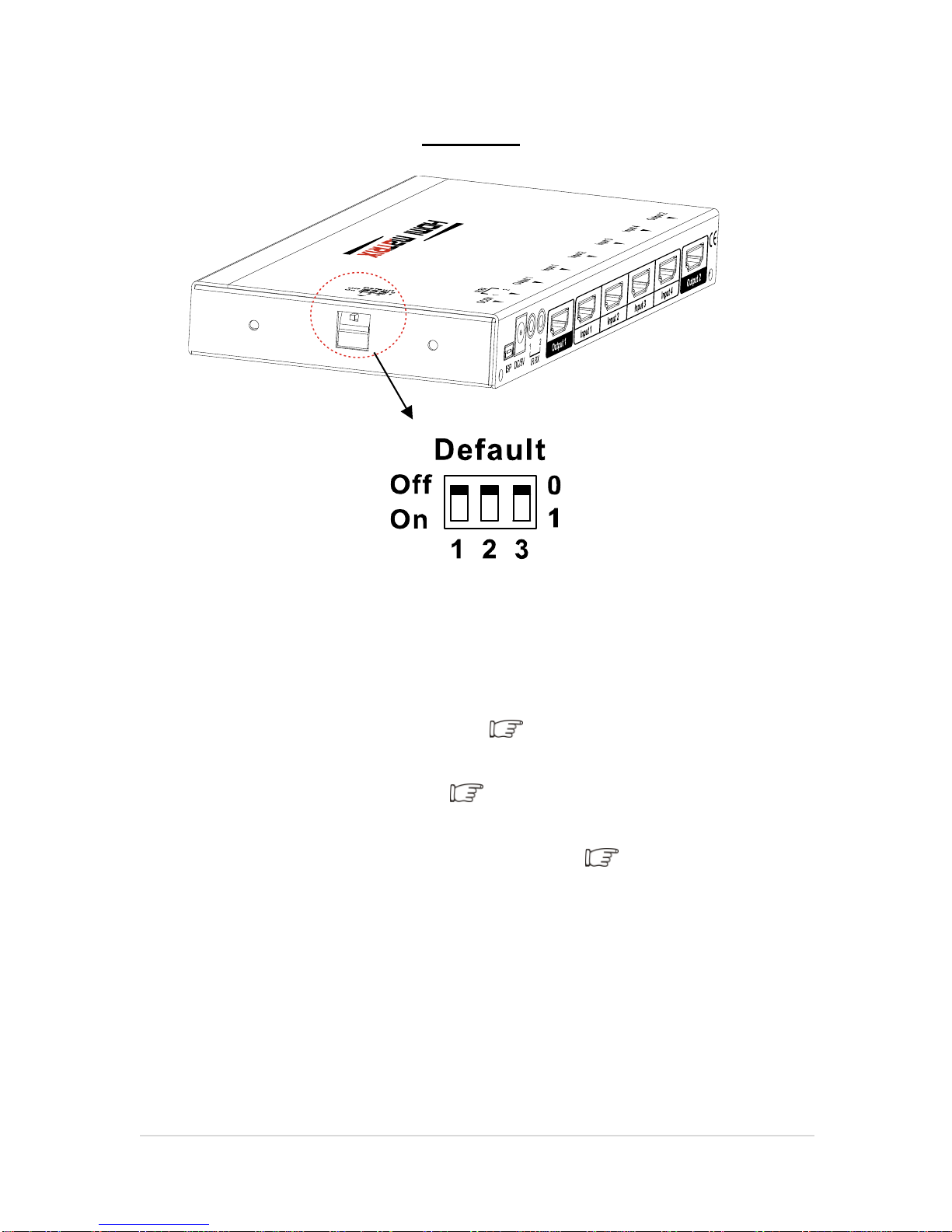

DIP switch for EDID setting.
■Installation
1) Connect the HDMI input sources ( such as HD-DVD, PS3, STB etc)
into the matrix.
2) Connect the HDMI outputs ( such as HD-LCD, HD-DLP) into the
matrix.
3) Power on the input source you want to show. ( Keep the unused input
power off, otherwise it may interfere the normal display.)
4) Connect the power supply into matrix and turn on the display you want to
watch.
5) Use remote or push the button to choose input source. Extra infrared
receiver extension and IR emitter are supplied for remote control.
6) IR call back from remote rooms to control the HDMI Matrix function.
Attention: Insert / Extract cables gently.

6 | P a g e
■Operation
1. Front panel control.
The MX0402-321 front panel to select inputs to the various outputs.
2. Local IR remote control.
User can control the HDMI route of the
matrix by using the IR remote.
There are two group key pads for two
output ports. For each output port source
selection, there are 4 number keys and two
arrow keys. Press number keys to select
specific input port. Left arrow button to
backward the input port, and right arrow to
forward input port.

7 | P a g e
3. IR extender control.
User can use the IR receiver cable to change the IR receiver position.
If controlling the matrix through the 1/8” (3.5 mm) input jack on the rear panel,
connect the IR cable directly to the matrix rear IR receiver extension sockets.
4. IR call back system to control the source device.
The matrix can not only extender the HDMI signal to HDMI receiver which is in
remote rooms, but also can pass the IR signal through the IR call back system
to the HDMI source.

8 | P a g e
The IR emitter use low power infrared diode as emitter so that it will not
interface other infrared signal. Please stick the IR emitter near to the IR window
of the STB or DVD.
5. IR receiver cable extender jacks.
When the display device is not near to the matrix, the IR_RX cable will be
to short. There are a pair of jacks to extend the IR_RX cable. Customer or
installer can use the headphone cable or 4-line telephone cable to make the
IR cable extender.

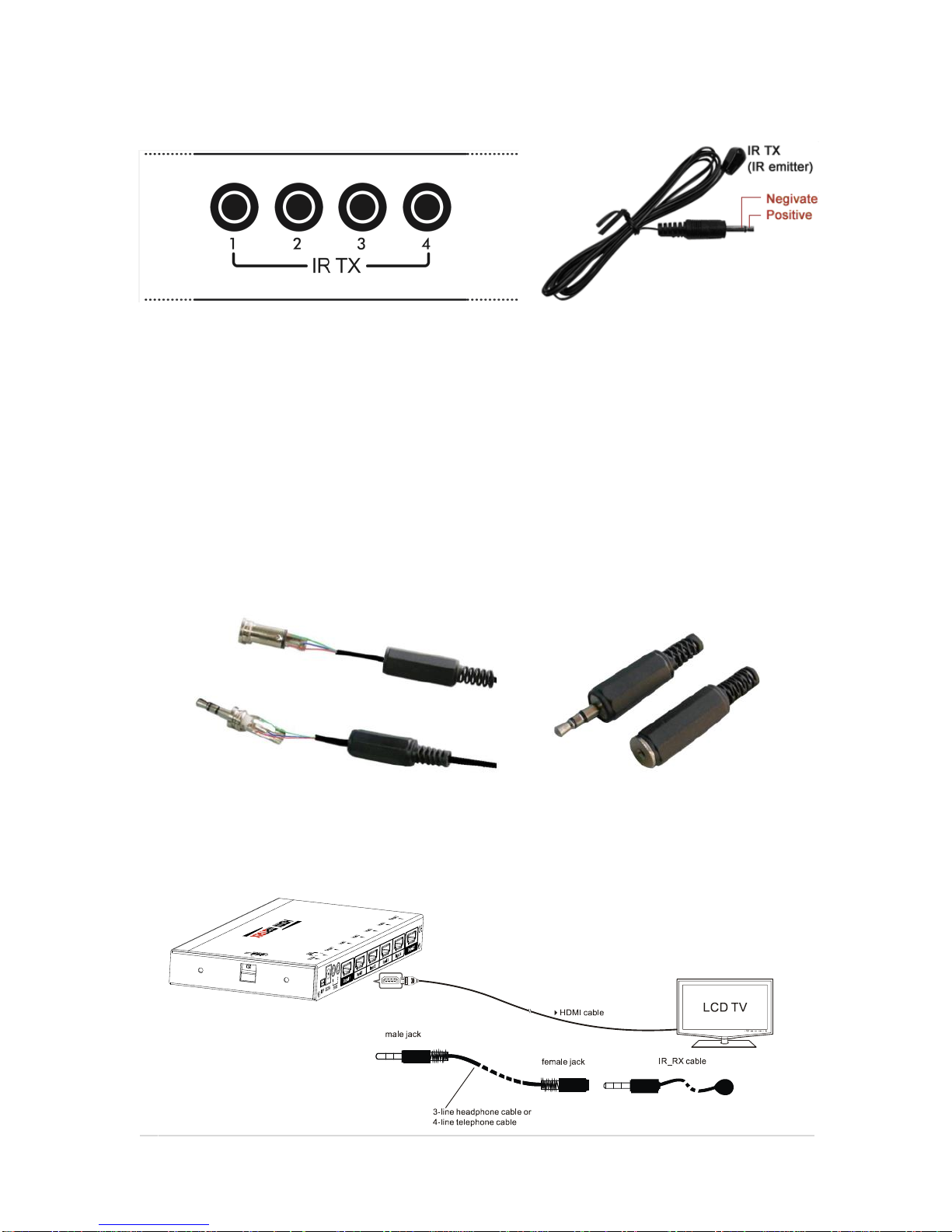

Use the male jack and female jack to extend the IR_RX cable like the picture
below.

9 | P a g e
6. DIP switch for EDID setting. (Factory default setting: DIP in ‘000’mode,
EDID are all 1080P stereo).
Position1
Position2
Position3
Function
0
0
0
Enable EDID manual mix, mix result is
compatible with all HDMI sinks that choose
the same source (Note1)
0
0
1
Enable EDID manual copy (Note2)
0
1
0
1080P stereo (Using Embedded EDID)
(Note3)
0
1
1
1080i stereo (Using Embedded EDID)
(Note4)
1
0
0
1080P 5.1 (Using Embedded EDID) (Note5)
1
0
1
1080P 7.1(Using Embedded EDID) (Note6)
Note1: The matrix will mix the EDID data of all HDMI sinks that choose
the same source. And forward this mixed EDID to the HDMI source device.
The thought of EDID mixing is to enable all the connected sink device can
have video and audio they can display or output. For example, One TV is
1080P, stereo, another is 1080i, 5.1 audio. The mixed EDID will be 1080i,
stereo audio. (Press and hold output1 and output2 button simultaneously
for 3 seconds to trigger this function)
Note2: Copy operation is carried out under the appropriate trigger buttons.
When output-2 select input-1, press and hold output2 for 3 seconds, the
matrix will copy the output-2’s edid to input-1.
Note3: The matrix will use the embedded 1080P-stereo EDID when the
DIP switch is in this mode. The EDID will be 1080P video and stereo
audio.
Note4: The matrix will use the embedded 1080i-stereo EDID when the
DIP switch is in this mode. The EDID will be 1080i video and stereo audio.

10 | P a g e
This setting can be used when the TV set is an old model that can not
support 1080P.
Note5: The matrix will use the embedded 1080P-5.1 EDID when the DIP
switch is in this mode. The EDID will be 1080P video and 5.1 audio.
Note6: The matrix will use the embedded 1080P-7.1 EDID when the DIP
switch is in this mode. The EDID will be 1080P video and 7.1 audio.
Note7: When mix or copy function failed, the LEDs will lit for about 2
seconds. When mix or copy function no error occurred, The LEDs will
flicker for three times.
Note8: All settings will be effective only after repower.
Examples for EDID setting:
A.How to reset EDID to factory default setting?
Because the default EDID is 1080P stereo. So just set DIP to ‘010’and
power on the matrix, all the EDID for input ports will be set to 1080P
stereo. After reset the EDID data, the DIP switches can be set to ‘000’or
‘001’if user need future settings.
B.How to copy the EDID of AVR which is 7.1 audio to a input port?
1. Set DIP to ‘001’.
2. Connect the AVR to one of the output port (For example, output 1).
3. Power on the matrix. Select the source of the AVR (for example input
2) to input port (For example, intput 2) which is connected to a BD
player.
4. Press and hold the output1 key more than 3 seconds, the matrix will
copy the EDID data from output 1 to input 2.

11 | P a g e

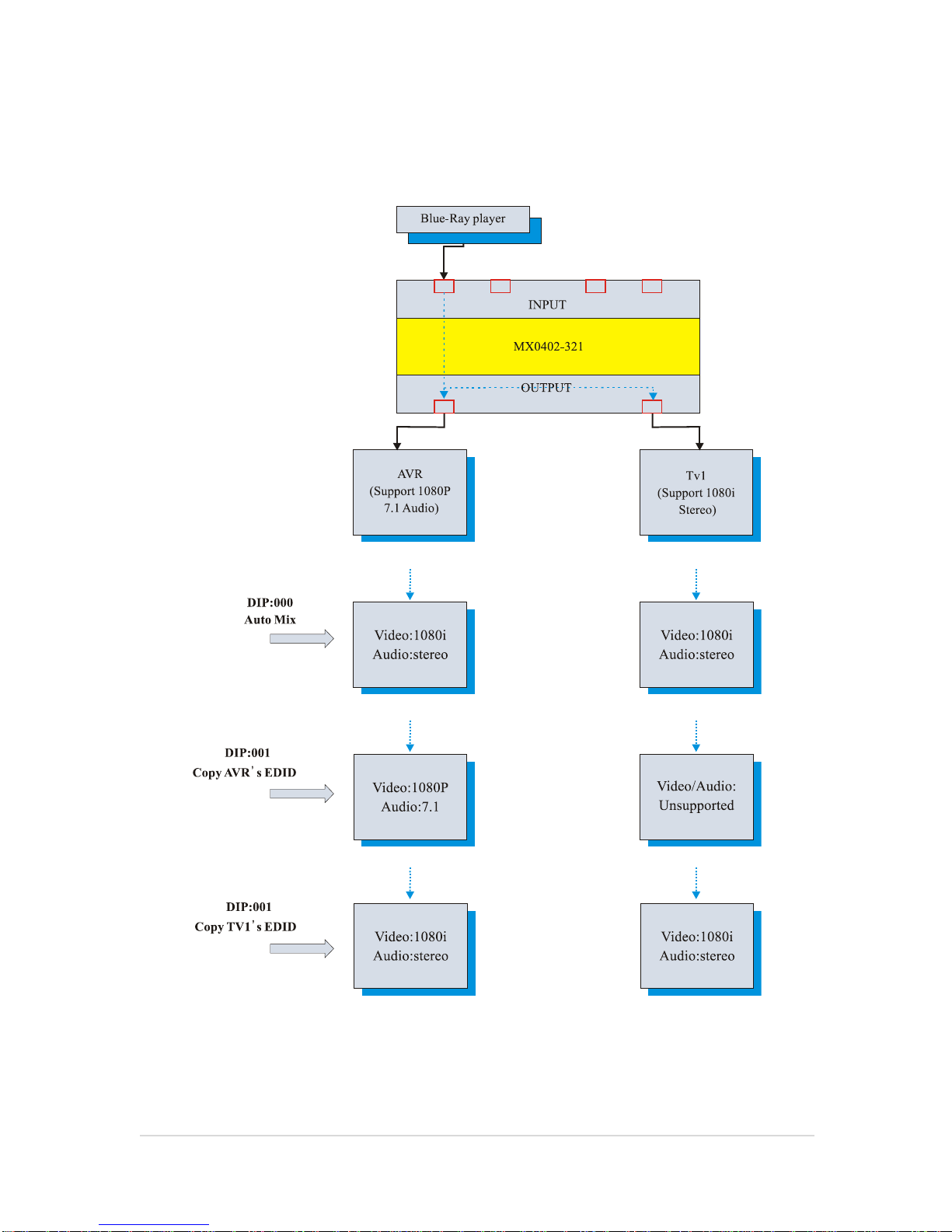

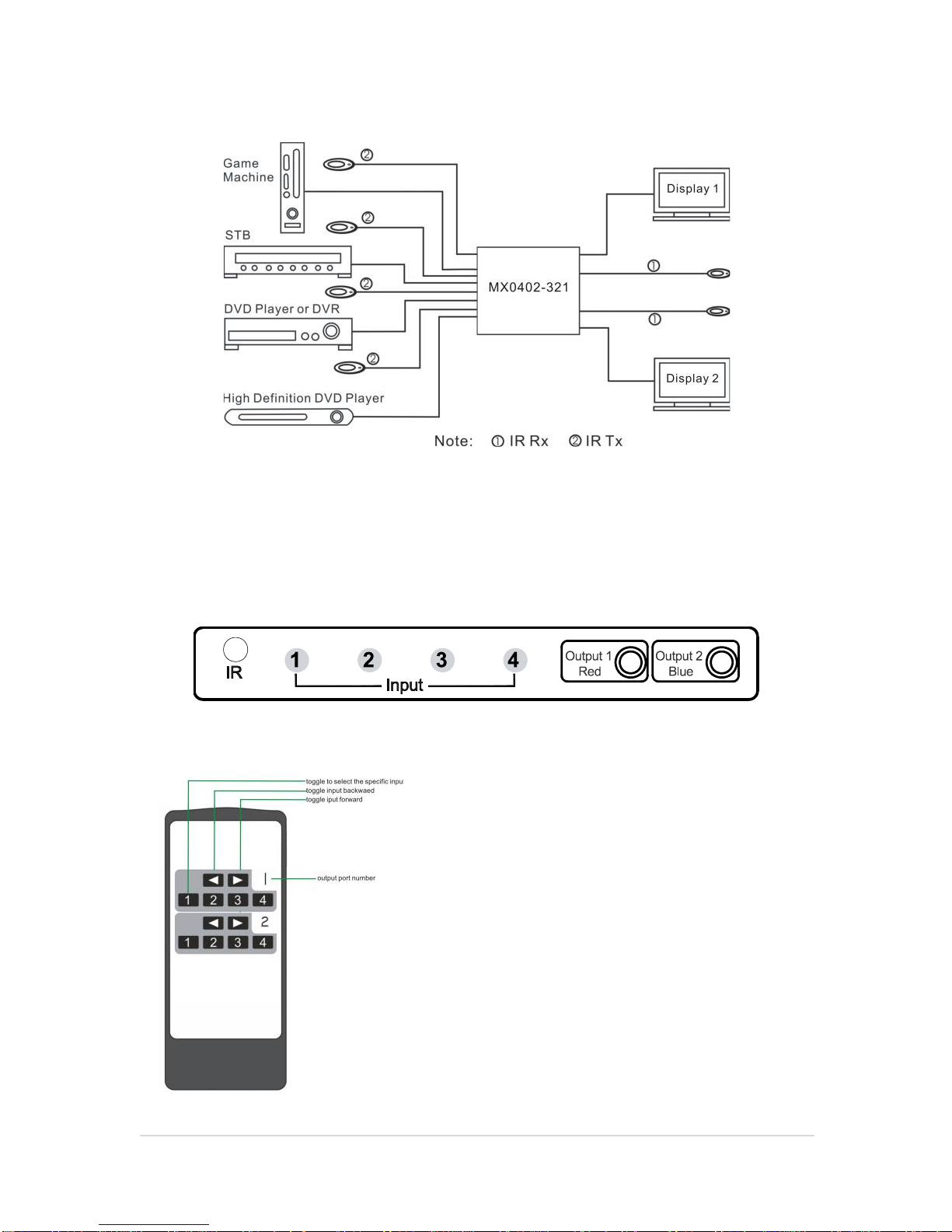

Below is the diagram for the some usage example.
