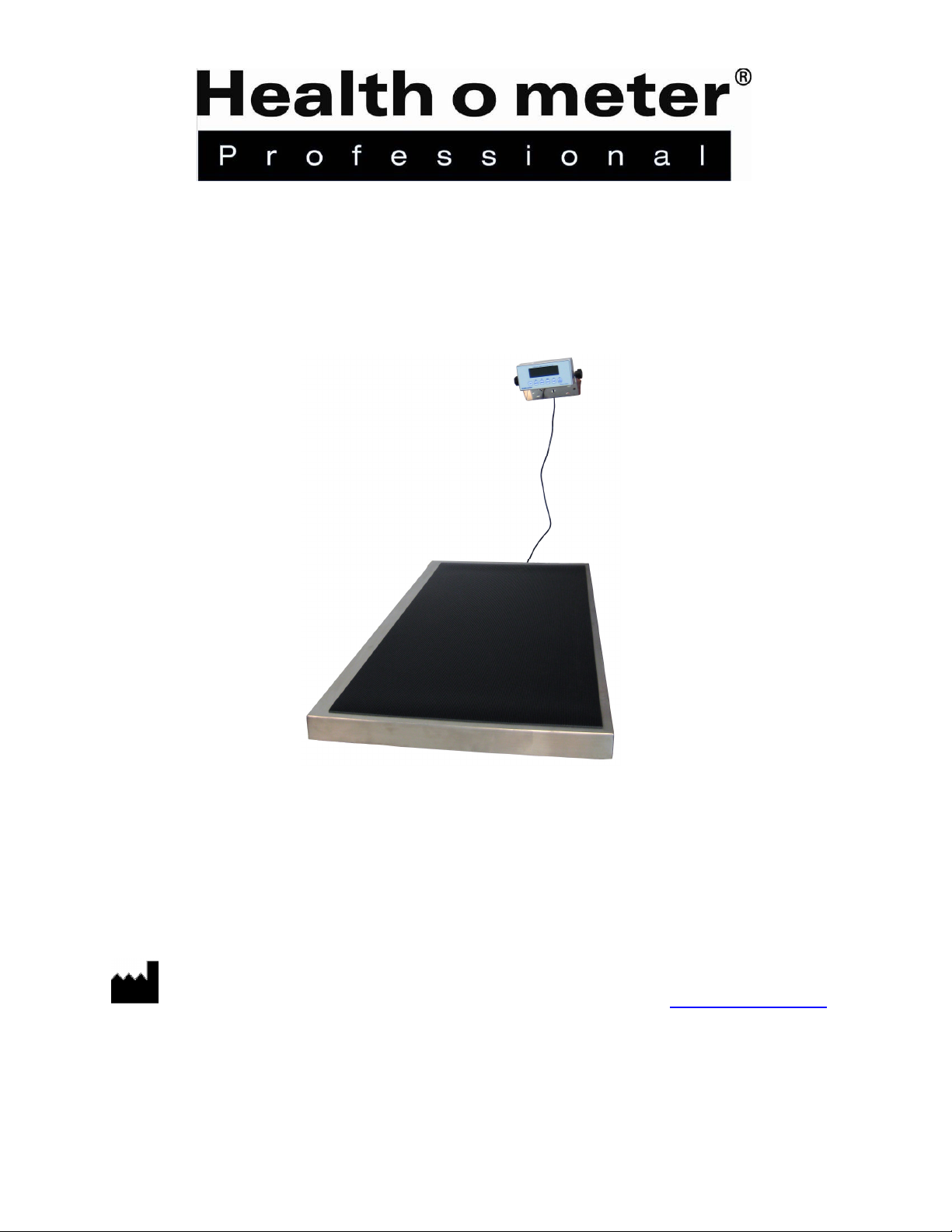

Health O Meter 2842KL User manual

1
Large Platform Digital Scale
Model 2842KL
USER INSTRUCTIONS
PELSTAR, LLC 9500 West 55
th
St. McCook, IL 60525-7110 USA www.homscales.com
© Pelstar, LLC 2016
P/N UM2842KL Rev20160105

2
Model 2842KL
Thank you for your purchase of this Health o meter
®
Professional scale. Please read this
manual carefully and keep it for easy reference or training.
TABLE OF CONTENTS
CAUTIONS AND WARNINGS................................................................................................. 3
SPECIFICATIONS .................................................................................................................... 4
CERTIFICATIONS/DISPOSAL................................................................................................ 5
ASSEMBLY INSTRUCTIONS ................................................................................................. 6
SET UP ..................................................................................................................................... 9
OPERATING INSTRUCTIONS................................................................................................ 10
MAINTENANCE ........................................................................................................................ 12
TROUBLESHOOTING ............................................................................................................. 13
CALIBRATION .......................................................................................................................... 14
WARRANTY .............................................................................................................................. 15
Note: This scale has been factory calibrated, and does not
require calibration prior to use.
Please register your scale for warranty coverage at:
www.homscales.com
For User Instructions updates and revisions please go to:
www.homscales.com

3
CAUTIONS AND WARNINGS
• To prevent injury, never leave patient unattended while on the scale.
• For accurate weighing the scale must be placed on a flat, stable surface.
• For accurate weighing, verify proper operation according to the procedure described in this
manual before each use.
• Do not use in the presence of flammable materials.
• Do not transport the scale with any weight on the platform.
• Do not exceed recommended weight limit of 600 lb / 272 kg for this scale.
• Operating at other voltages and frequencies than specified could damage the equipment.
• If the “LO BAT” indicator activates, for accurate weighing, replace the batteries or connect
the scale to an AC power source.
• If the scale becomes damaged, it should not be operated until properly serviced. All repairs
should only be performed by authorized Health o meter® Professional service personnel.
• When replacing / inserting batteries, be sure to use all new batteries.
• To prevent patient injury, the patient must be attended throughout the entire weighing
event.
• Operate this scale exclusively with the AC adapter provided by Health o meter®
Professional. Use of an unspecified adapter will void the warranty, and can pose a serious
safety hazard.
• For use with AC adapter model ADPT31.
• Prior to using this scale, inspect the AC adapter cord for cracking / fraying, or for broken /
bent plug prongs.
• Prior to using this scale, ensure that the AC adapter is plugged into an outlet with the rated
voltage appropriate for operation.
• Ensure that the AC adapter and scale do not come in contact with liquids, excessive
temperature, or excessive humidity.
• Unplug the AC adapter, and carefully store both the adapter and adapter cord before
moving the scale.

4
SPECIFICATIONS
Health o meter Professional’s Large Platform Digital Scale model 2842KL uses highly
sophisticated microprocessor technology. Each scale is designed to provide accurate,
reliable and repeatable weight measurements and features that make the weighing process
simple, fast and convenient.
•Weighing is performed by motion-sensing technology.
•The patient's weight can be displayed in pounds or in kilograms.
•The scale includes a specially designed removable rubber mat for easy cleaning.
•The unit can be operated using its AC power adapter or by 6 C-cell batteries.
SCALE SPECIFICATIONS
Capacity and
Resolution:
600 lb x 0.2 lb (270 kg x 0.1 kg)
Power
Requirements:
Adapter 120 VAC-9VDC 60Hz 200MA (ADPT31 INCLUDED),
or 6 C-cell 1.5V batteries (not included)
Environmental: Operating Temperature: 50°F to 95°F / 10°C to 35°C
Storage Temperature: 30°F to 125°F (0°C to 50°C)
Maximum Humidity: 85% RH in use or in storage
Platform
Dimensions:
22 1/4” (w) x 42” (d) x 2 1/2” (h) / 565mm (w) x 1067mm (d) x 64mm (h)

5
CERTIFICATIONS / DISPOSAL
Certification Descriptions:
Pelstar, LLC has been officially certified as a manufacturer of
Health o meter
®
Professional medical devices to be in
compliance with stringent ISO requirements. The Pelstar, LLC
quality assurance system covers the development, production,
sales and service of medical scales and measuring systems.
Scale Disposal:
Do not dispose of this device in domestic waste. This Health o meter
®
Professional scale must
be disposed of properly as electronic waste. Follow the national, regional or local regulations
which apply to you for disposal. For scale assistance or telephone support, please call Health o
meter
®
Professional Customer Service (available on normal business days) at (+1) 800-815-
6615 or ([phone].

6
ASSEMBLY INSTRUCTIONS
Before Assembly
Each 2842KL Large Platform Digital Scale is shipped disassembled in one carton. Carefully
inspect the carton for shipping damage before unpacking. If damage is found, contact your
shipper or a Health o meter
®
Professional representative immediately at 1-800-815-6615.
Claims must be filed with the shipper as soon as possible after receipt of the package. The
following information details what you will find inside the main carton as you unpack the parts for
assembly.
To prevent scratching any components, carefully remove each assembly from the carton and
unwrap the packing materials. Set the carton aside for storage. To avoid damaging the scale
parts when unpacking, do not use a box cutter, knife, scissors, or any sharp object to open the
protective inner packaging.
Parts List
Carton
(1) Base assembly
(1) Display head
(1) Display assembly bracket
(4) Base assembly feet
(1) Small white box containing AC adapter
(2) Display assembly screws and washers
(1) Rubber mat

7
ASSEMBLY INSTRUCTIONS (CONT.)
1. Place the base assembly upside
down on a flat, steady surface.
2. Screw the four feet into the base
assembly. Turn each foot
completely into the base
assembly and then back out 1 1/2
turns.
3. Carefully turn the base assembly
right side up. Adjust the feet as
necessary for a level, stable
platform. Do not drop the scale as
this may damage the load cells.
4. Place the display head into the
display bracket and screw in the
two display assembly screws. If
wall mounting the display,
complete this step after the
display assembly bracket has
been mounted to the wall.

8
ASSEMBLY INSTRUCTIONS (CONT.)

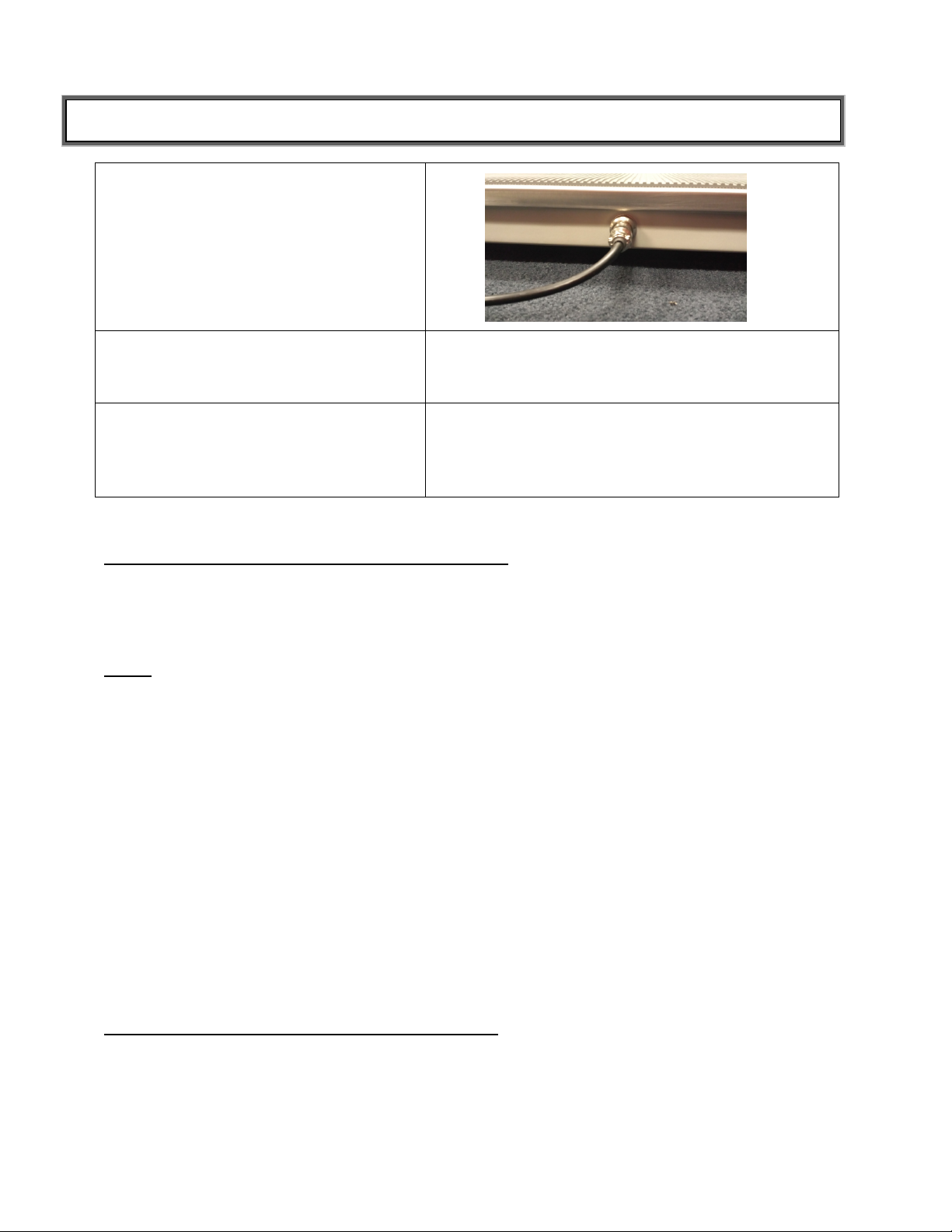

5. Plug the display cable
connector into the base cable
connector.
6. Place the rubber mat in the
center area of the base
assembly platform.
7. Place the display assembly on
a table or mount it to a wall.
See the next section for
mounting instructions.
Display Assembly Wall Mounting Instructions
Caution: When wall mounting the display assembly, ensure that the mounting
location is free of electrical lines, gas pipes, and other safety hazards. Ensure that
wall is of construction that can support the display assembly.
Note: Display assembly can be mounted to a wall up to 6 feet (1.83 m) from the base.
1. If display head is already attached to the display assembly bracket, remove the
display assembly screws at the side of the display head and set them aside.
2. Position the display assembly bracket on the wall at the desired location and mark the
mounting bracket hole locations.
3. Use suitable plastic or metal anchors for the type of wall construction and carefully
drill the appropriate sized holes.
4. Insert the anchors into the wall, and screw the two mounting screws into the anchors.
Adjust the screw head depth such that the screw heads protrude 1/8” (3.2 mm) from
the wall.
5. Position the display assembly mounting holes onto the mounting screws and pull
down on the display assembly to secure the bracket over the screws.
6. Re-attach the display head to the display assembly bracket using the two display
assembly screws.
Required Parts Not Included With This Scale
(2) # 10-12 x 1 in. Screws
(2) Mounting anchors, compatible with wall construction

9
SET UP
1. Place batteries in the battery holder (see “Replacing Batteries” below).
2. Plug the scale’s AC adapter into the display assembly and into the power source.
3. Press the ON/OFF button to turn the scale on. The display will show “start” and
then “0.0”.
4. When the self-test function is complete, the digital display should read “0.0”.
5. Place a weight [not to exceed 600 lb (270 kg)] on the scale. The digital display will
blink “
------
” until the weight calculation is complete.
6. Press the LBS/KG button to select the weight mode, either in kilograms or pounds.
7. Press the REWEIGH button; the digital display should again read the weight of
the item on the scale.
8. Remove the weight from the scale. The digital display should continue to read the
weight of the item that was on the scale.
9. Press the ZERO button; the digital display should return to zero.
10. Disconnect the power source from the scale, then turn the scale on using
ON/OFF button. The scale should automatically switch to battery power.
NOTE: If the set up procedure failed, contact Health o meter Professional Scales Customer
Service at 1-800-815-6615.
Replacing Batteries

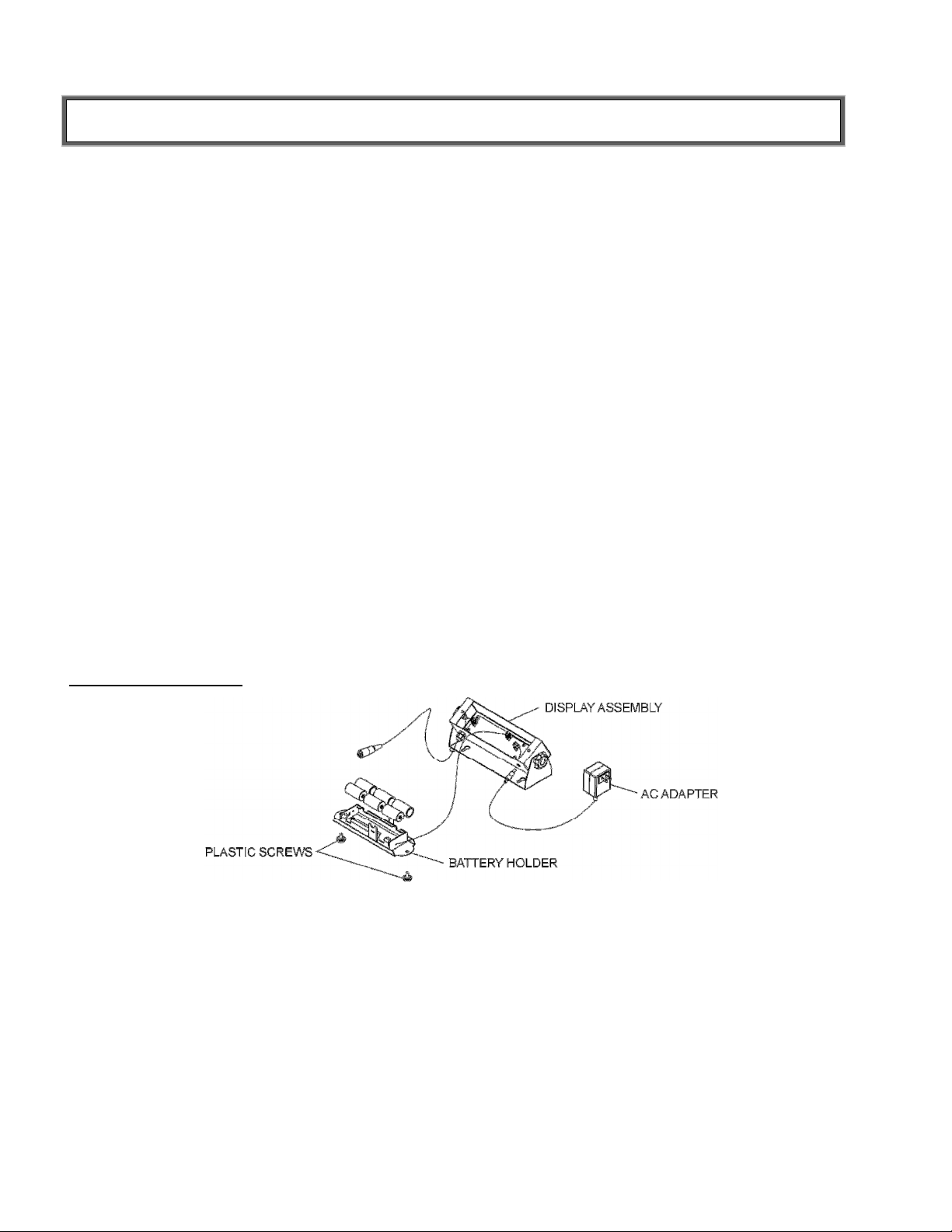

Figure 1. Replacing the Batteries
1. Disconnect the scale from the AC power source.
2. Unscrew two plastic screws and carefully remove the battery holder from the display
assembly.
3. Take the batteries from the battery holder, replace the batteries with new ones.
4. Position the battery holder into the display assembly and reinstall two plastic screws.

10
OPERATING INSTRUCTIONS
Figure 2. Control P anel
ITEM DESCRIPTION FUNCTION
1 ON/OFF button Turns scale ON and OFF.
2 REWEIGH button Allows repeated weighing of the patient without stepping
off the scale.
3 ZERO button Zeros digital display prior to weighing. Enables the
cancellation (tare) of weight of mat or other accessories
on the scale.
4 LBS/KG button Selects kilograms or pounds.
5 BAT indicator When ON, indicates scale batteries are low. The
batteries should be replaced.
6 ZERO indicator When ON, indicates the scale is stable and ready for
use.
7 Digital Display 6 Digit LCD Displays patient weight in kilograms or pounds as
shown by the “LB” or “KG” indicator on the right side of
the display. When REWEIGH button is depressed,
display will blink “
------
” until patient’s weight is
determined.
8 LB indicator When ON, indicates displaying weight in pounds.
9 KG indicator When ON, indicates displaying weight in kilograms.

11
OPERATING INSTRUCTIONS (CONT.)
1. Press the ON/OFF button to turn the scale on.
2. Wait until “0.0” appears on the digital display.
3. Place the patient on the scale. The display will blink “=====” until the weight of the
patient is determined.
4. If you wish to reweigh the patient without removing them from the scale, press the
REWEIGH button.
5. Remove the patient from the scale. The digital display will continue to read the
patient’s weight until the REWEIGH or ZERO button is pressed.
NOTE: After 2 minutes of inactivity, the scale will turn off to conserve power. To restart
the scale, press the ON/OFF button. (If it is powered by adapter, auto off function is
disabled.)
Tare Function
When using this scale, the weight of an object, such as a blanket, can be subtracted
from the total weight in order to determine the weight of the patient alone. Ensure that
the edges of the object are on the scale and not touching the floor.
1. With all weight off the scale, press the ON/OFF button to turn on the scale.
2. Wait until the “0.0” appears on the display.
3. Place the object to be tared on the platform. The display will blink “=====” until the
weight of the object is determined.
4. Do not remove the object. Then press the ZERO button.
5. Place the patient on the scale. The scale will automatically deduct the tare weight of
the object from the gross weight of the patient and item together.
6. The weight of the patient will appear on the scale.
7. When the patient and the object are removed from the scale, the display will show
“UL”.
8. To clear the tared weight, press the ZERO button.

12
MAINTENANCE
General
This section provides instructions for maintenance, cleaning, and troubleshooting for
the Large Platform Digital Scale model 2842KL. Maintenance operations other than
those described in this section should be performed by qualified service personnel
such as Biomed or Engineering.
Maintenance
Before first use and after periods of non-use, check the scale for proper
operation and function. If the scale does not operate correctly, refer to qualified
service personnel such as Biomed or Engineering.
1. Check overall appearance of the total scale for any obvious damage, wear and tear.
2. Inspect AC adapter for cord cracking or fraying or for broken or bent prongs.
Cleaning
Proper care and cleaning is essential to ensure a long life of accurate and effective
operation. Disconnect the scale from the AC power source.
1. Clean all external surfaces with a clean damp cloth or tissue. Mild soap and water
solution may be used. Dry with a clean soft cloth.
2. Do not immerse the scale base or display assembly into cleaning or other
liquid solution.
3. Do not use Isopropyl Alcohol or other solutions to clean the display surface.

13
TROUBLESHOOTING
Refer to the following instructions to check and correct any failure before contacting
service personnel. Should you have further questions, call Health o meter®
Professional Scales Customer Service at 1-800-815-6615.
SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION
Scale does not turn on 1. Dead Battery
2. Faulty electrical outlet
3. Bad power supply
1. Replace batteries
2. Use a different outlet
3.
Replace
adapter
Questionable weight
or the scale does not
zero
1. External object
interfering with the scale
2.The display did not show
“0.0” before weighing
3. Scale is not placed on a
stable surface
4. Scale is out of calibration
1. Remove interfering
object from the scale
2. Remove patient, zero
the scale and begin
weighing process again
3. Place the scale on a
stable surface and begin
weighing process again
4. Check weight with
known weight value
The display shows “OL” The load on the
scale exceeds the
capacity
Remove the excess
weight and use the scale
according to its capacity
of 600 lb / 270 kg
The display shows “UL” The scale is in under-
load condition
Make sure the rubber mat
is placed on the base. Or
press ZERO to clear a
previously tared weight.
The display shows “LO
BAT”
The batteries are low Replace batteries
according to instructions
on page

14
CALIBRATION
This scale has been factory calibrated, and does not require calibration prior to use. If
required, the scale can be calibrated. The following calibration assumes the scale is set to
pounds, and 200 lb is employed as the calibration standard.
Note: Only weights certified and traceable to national standards are to be used for
calibration procedures.
Scale Calibration
ACTION
DISPLAY SHOWS
Press and hold the REWEIGH and ZERO buttons at the same
time, while pressing the ON/OFF button to turn on the scale.
“LOAD” will briefly appear on the display, followed by “200.0
LB” indicates you can calibrate. Release all three buttons.
“LOAD” followed by
“200.0 LB”
Ensure there is no weight on the scale (except for the rubber
mat) and press the REWEIGH button. “Clear” will flash on the
display, followed by “--------”. At this time the scale is
calculating zero calibration. After zero calibration, the display
will flash “PUT” followed by “200.0 LB”.
“Clear” followed by
“-------”. Then “PUT”
followed by “200.0 LB”
Place 200 lb on the scale. Then press REWEIGH. “CAL” will
appear on the display, followed by “FAC” followed by 5 digits.
The calibration factor should be in the range between 8000
and 10000 If the number is out of that range, contact
Customer Service at 1-800-815-6615.
“CAL” followed by “FAC”
followed by “X.XXXX”.
If the calibration factor is within range, press the REWEIGH
button. “DONE” will appear on the display, followed by
“START”, followed by “0.0”. Remove the weight from the
scale.
“DONE” followed by
“START”, followed by
“0.0”.
Calibration procedure is complete.

15
WARRANTY
Limited Warranty
What does the Warranty Cover?
This Health o meter
®
Professional scale is warranted from date of purchase against defects of materials or in workmanship
for a period of two (2) years. If product fails to function properly, return the product, freight prepaid and properly packed to
Pelstar, LLC (see “To Get Warranty Service”, below, for instructions). If the manufacturer determines that a defect of
material or in workmanship exists, the customer’s sole remedy will be replacement of the product at no charge.
Replacement will be made with a new or remanufactured product or component. If the product is no longer available,
replacement may be made with a similar product of equal or greater value. All replaced parts are covered only for the
original warranty period.
Who is Covered?
The original purchaser of the product must have proof of purchase to receive warranty service. Please save your invoice or
receipt. Pelstar dealers or retail stores selling Pelstar products do not have the right to alter, or modify or in any way
change the terms and conditions of this warranty.
What is Excluded?
Your warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or
misuse of the product, use on improper voltage or current, use contrary to the operating instructions, abuse including
tampering, damage in transit, or unauthorized repair or alternations. Further, the warranty does not cover natural disasters,
such as fire, flood, hurricanes and tornadoes. This warranty gives you specific legal rights, and you may also have other
rights that vary from country to country, state to state, province to province or jurisdiction to jurisdiction.
To get Warranty Service make sure you keep your sales receipt or document showing proof of purchase. Call (+1)
800-638-3722 or ([phone] to receive a return authorization (RA) number, which must be included on the return
label. Attach your proof of purchase to your defective product along with your name, address, daytime telephone number
and description of the problem. Carefully package the product and send with shipping and insurance prepaid to:
Pelstar, LLC
Attention R/A#_____________
Return Department
9500 West 55
th
Street
McCook, IL 60525
PELSTAR, LLC
9500 West 55
th
Street • McCook, IL 60525 • USA
1-800-638-3722 or 1-708-377-0600
PLEASE REGISTER YOUR SCALE FOR WARRANTY COVERAGE AT:
www.homscales.com
Health o meter
®
is a registered trademark of Sunbeam Products, Inc. used under license.
Health o meter
®
Professional products are manufactured, designed, and owned by Pelstar, LLC.
We reserve the right to improve, enhance, or modify Health o meter
®
Professional product features or specifications
without notice.
© Pelstar, LLC 2015
P/N UM2842KL Rev20160105
