OPERATION MANUAL
www.homscales.com
PROPLUSTM ELECTRONIC SCALES
MODELS 1100KL, 2650KL AND 2700KL
Thank youfor your purchase of this product. Please read this manual carefully and
keep it handy for ready reference.
ENGLISH.............................................................................................................. 1
FRANÇAIS ........................................................................................................... 38
ESPAÑOL ............................................................................................................ 77
TABLE OF CONTENTS
ASSEMBLY INSTRUCTION .................................................................................................2
CAUTION AND WARNING....................................................................................................7
SPECIFICATIONS.................................................................................................................7
SET UP..................................................................................................................................8
OPERATION INSTRUCTIONS..............................................................................................9
MAINTENANCE.....................................................................................................................22
TROUBLESHOOTING...........................................................................................................23
CALIBRATION PATH ............................................................................................................24
EXPLODED VIEW OF DISPLAY MODULE...........................................................................25
DISPLAY MODULE PARTS LIST..........................................................................................25
1100KL EXPLODED VIEW ……………………………………………………………………......26
1100KL PARTS LIST………………………………………………………………………….........27
2650KL EXPLODED VIEW ………………………………………………………………………..28
2650KL PARTS LIST……………………………………………………………………………… .29
2700KL EXPLODED VIEW ……………………………………………………………………......30
2700KL PARTS LIST…………………………………………………………………………….....31
COMMUNICATION PROTOCOL……………………………………………………………….....32
WARRANTY ..........................................................................................................................37


ASSEMBLY INSTRUCTIONS1100KL)
Parts List:
(1) Platform Assembly
(1) Display Assembly
(4) Rubber Feet Assemblies
(1) AC Adapter
(1) LC Cable Connector
(1) Handle
(4) Ramp Holder
(1) Display Support
(4) Screws
(1) Power Cord
(2) Wheels
Tools required: Phillips head screwdriver (not included), Allen wrenches (included).
Remove each piece from the carton and unwrap packing material carefully to prevent scratching
the unit’s parts. It is recommended that assembly is performed by two people.
(refer to the Parts List on page 27 for details on parts)
Figure
FOOT ASSEMBLY
BASE ASSEMBLY
CURVED PIPE #1ASSEMBLY
CURVED PIPE #2 ASSEMBLY
CURVED PIPE #3ASSEMBLY
FRONT COVER
BACK COVER CABLE COVER
HEAD ASSEMBLY
ADAPTER
ADAPTER BRACKET

1100KL Assembly Instructions

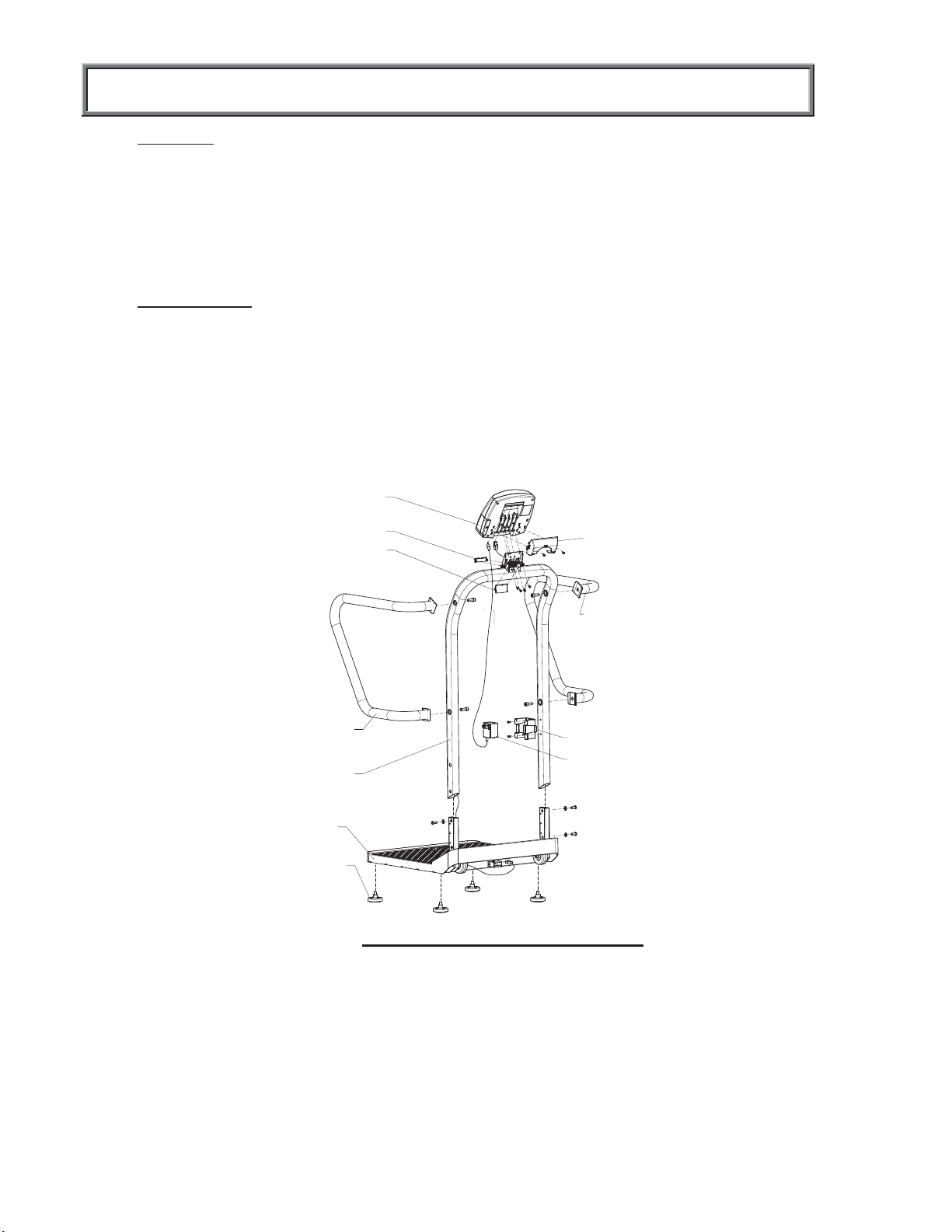

1. Remove the base of the scale from the box and screw in the 4 Feet into
the underside of the Platform.
2. Place the Platform on the floor and adjust the feet to level Platform. (DO
NOT OVERTIGHTEN).
3. Locate the load cell cable and pull it out the bottom of the center handrail.
Position the Handrail over the Platform and feed the cable through the
Handrail Support.
4. The load cell cable should pass through the Handrail Support and exit
underneath.
5. Plug the load cell cable into the base of the scale.
6. Slide the center Handrail over the Handrail Supports and insert the
Handrail bolts. (2 on each side of Handrail) DO NOT OVERTIGHTEN.
7. Using the largest Allen wrench, attach the 2 Side Handrails to the center
Handrail.
8. Connect the load cell cable to the Load Cell port on the back of the
Display Unit and slide the Display Assembly onto the display support.
Note: Route the load cell cable through the channel on the rear of the
Display Unit.
9. Insert 4 screws into the Display Support.
10. Connect the power cord to the power port.
3

4
ASSEMBLY INSTRUCTIONS(2650KL & 2700KL)
Parts List:
(1) Platform Assembly (plus 2 ramps) (1) Handle redloHpmaR)4(ylbmessAyalpsiD)1( troppuSyalpsiD)1(seilbmessAteeFrebbuR)4( swercS)4(r
etpadACA)1( droCrewoP)1(rotcennoCelbaCCL)1( (2) Wheels
Tools required: Phillips head screwdriver (not included).
Remove each piece from the carton and unwrap packing material carefully to prevent scratching
the unit’s parts. It is recommended that assembly is performed by two people.
(refer to the Parts List on page 29 & 31 for details on parts)
1. Open the scale to operational position.
2. Connect the load cell cable connector to the load cell port on the rear of the display
assembly and insert and secure the cable into the center channel in the display.
NOTE:Do not attach the Power Cord at this point.
3. Connect the load cell cable to the display unit see Figure 2.
NOTE:The load cell cable should now be secured in the channel between the display
assembly and the display support.
Figure 2
Figure 2

5
Re er e r Li ge 25r e i r

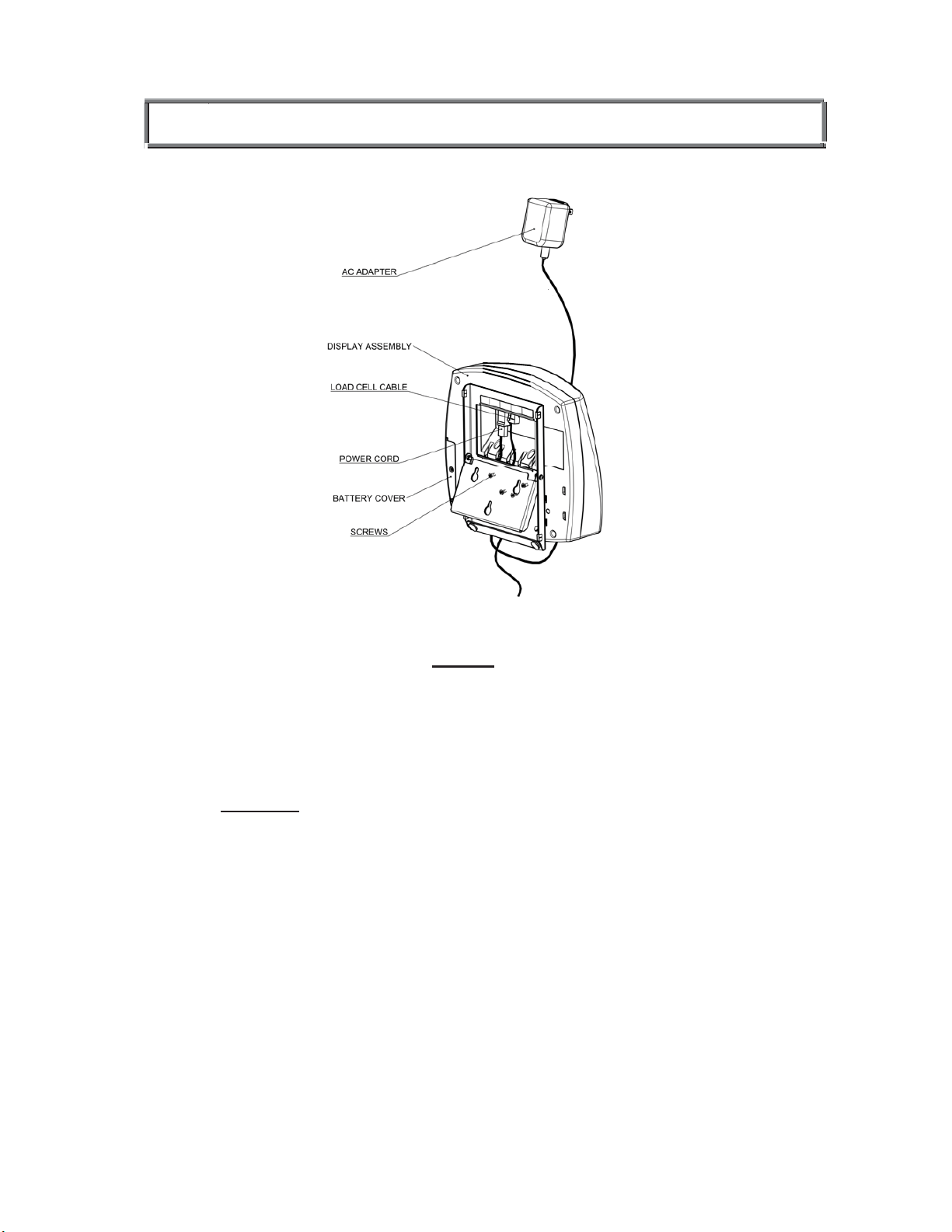

 Insert the power cord into the retaining slot. Align the rear cover tabs with the
slots on the rear of the display assembly. Secure with 4 screws.
.ently tip the scale. Screw in 4 plastic feet. Do not tighten.
.ently return the scale to the upright position.
ARNIN :Do not drop the scale on its feet. This could result in load cell damage.

7. Screw unscrew the plastic feet to level the scale.
ASSEMBLY INSTRUCTIONS (2650KL & 2700KL)
Figure 2

6
ASSEMBLY INSTRUCTIONS (2650KL & 2700KL)

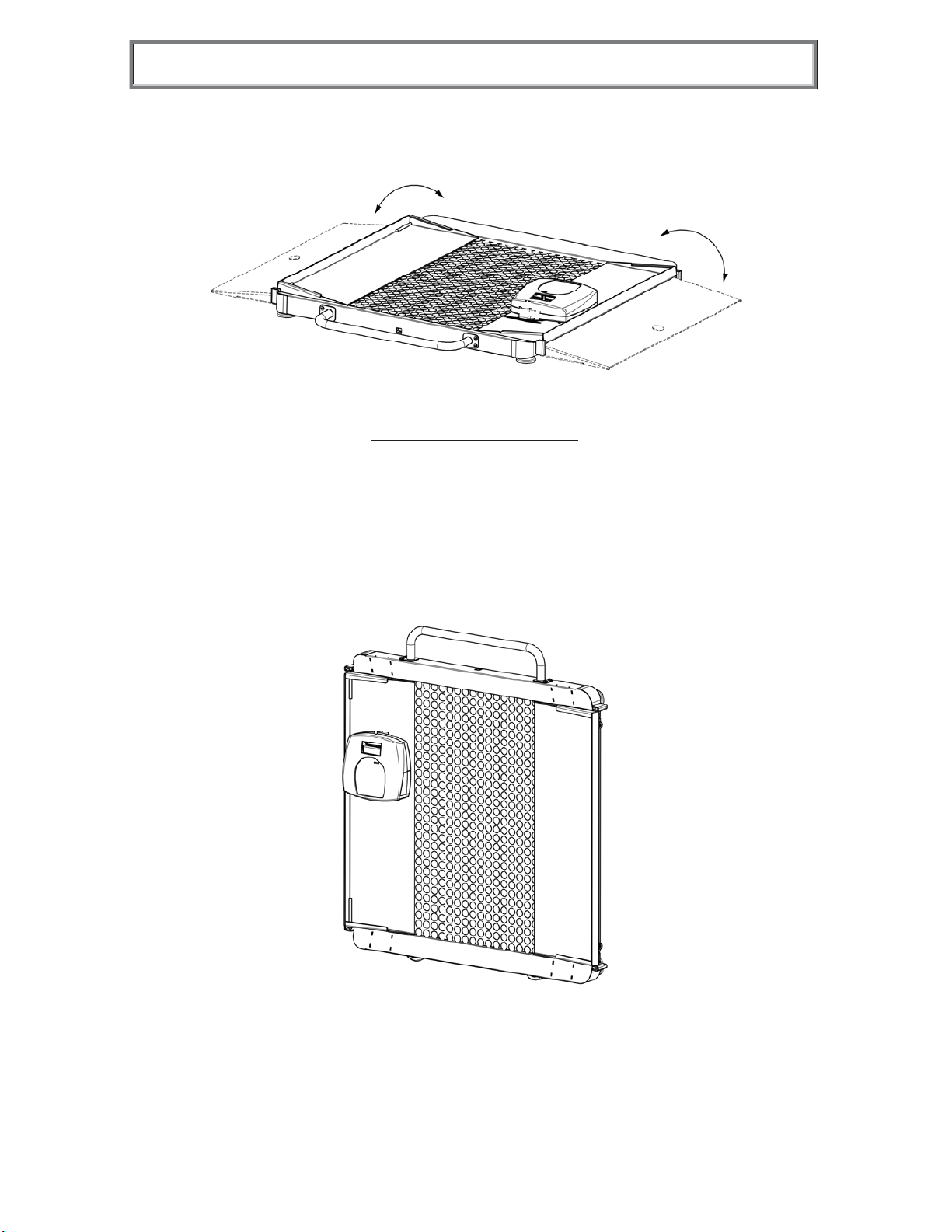

Figure 4. Folded Ramp
Figure Folding the Ra p
1. Both ramps (left and right) can fold onto the platform.
2. The indicator is mounted onto one of the folded ramps by sliding the slots in the back of
the indicator into raised pins..
3. Lift the scale platform onto its side using the handle, and it is now able to be transported
on two wheels see Figure 4.

7
CAUTION AND WARNING
To prevent in ury and damage to your scale, please follow these instructions very carefully.
x Do not transport the scale while the platform is loaded.
x For accurate weighing the scale must be placed on a flat, stable surface.
x For accurate weighing, verify proper operation according to the procedure described in this
manual before each use.
x Do not use in the presence of flammable materials.
x Operating at other voltages and frequencies than specified could damage the equipment.
x If the LOW BAT indicator activates, for accurate weighing, replace the batteries or connect
the scale to an AC power source as soon as possible.
x It is intended that this equipment be used with assistance of a health care worker.
SPECIFICATIONS
GENERAL
Health o meter’s Pro PlusTM Electronic Scales Models 1100KL, 2650KL and 2 00KL use highly
sophisticated microprocessor technology. Each precision instrument is designed to provide
accurate, reliable and repeatable weight measurements and features that make the weighing
process simple, fast and convenient.
The scale is set up to use motion sensing weighing technology, to determine the actual weight
of a moving patient. The scale may be changed to measure live weight see page 18for
instructions on changing the scale setting.
The weight can be displayed in pounds (decimals, fractions of a lb or lb o ) or in kilograms. The
1100KL features a wrap around handrail for patient comfort and safety and a 1 0 degree
swivel pivot head for reading from either side of the scale. Also included on the platform scales
are two wheels for easy mobility.
The unit can be operated using its AC adapter or by D cell batteries (not included).
SCALE SPECIFICATIONS
Capacity and Resolution
2650KL & 2700KL
1100KL
1,000 Lb x 0.2 Lb / ¼ lb / 4 oz (454 Kg x 0.1 Kg)
700 Lb x 0.2 Lb(310 Kg x 0.1 Kg) for 1100KL
Power Requirements Adaptor model ADPT31*(USA-CSA only) 120 VAC-9VDC
60Hz (INCLUDED) or 6 D cell batteries. Adaptor model
ADPT30*(IEC)120-240 VAC-9VDC 50-60Hz (NOT
INCLUDED)
Environmental Operating temperatures: 50°F to 95°F (10°C to 35°C)
Storage temperatures: 30°F to 125°F (0°C to 50°C)
Humidity: 85%

8
Physical Dimensions
Model 1100KL
Platform size
Length: 18” (46 cm)
Width: 22” (56 cm)
Height: 21/3” (6cm)
Product size and weight
Length: 291/4” (74cm)
Width: 31” (78.7 cm)
Height: 491/2” (126 cm)
Weight: 53 Lb (24 Kg)
Physical Dimensions
Model 2650KL
Platform size
Length: 36” (91.6 cm)
Width: 32 ” ( 2, cm)
Height: 2 1/2” (6.2cm)
Product size and weight
Length: 413/5” (106 cm)
Width: 561/4” (143 cm)
Height: 31/8” (8 cm)
Weight: 80.5 Lb (36.5 Kg)
Physical Dimensions
Model 2700KL
Platform size
Length: 44” (111 cm)
Width: 42” (107 cm)
Height: 21/2” (6.2cm)
Product size and weight
Length: 511/8” (130 cm)
Width: 69” (175 cm)
Height: 31/2” (9 cm)
Weight: 179 Lb (81 Kg)
SCALE SPECIFICATIONS (continued)
Use only Healthometer Professional power supply, Adaptor model ADPT31*(USA-CSA
only) 120 VAC-9VDC 60Hz (INCLUDED) or 6D cell batteries. Adaptor model
ADPT30*(IEC)120-240 VAC-9VDC 50-60Hz (NOT INCLUDED)
SET UP
This scale is shipped with the Menu Lock function enabled. The Menu Lock function disables
certain buttons on the scale’s keypad, thus preventing unauthori ed users from making
changes to your scale settings This Lock can be bypassed temporarily to allow you to
customi e your scale’s functionality. Please refer to page 12 for instructions on how to bypass
the Menu Lock.
1. Remove protective plastic film from keypad and display.
2. Place batteries in the battery holder (see Replacing Batteries ).
3. Plug the scale’s AC adapter into the power source.
4. Make sure there is no ob ect on the weighing platform
. Press the ON OFF button to turn the scale on. The display will show Health o Meter
Pro Plus and then 000Lb00o.(a)
. Place a weight not to e ceed the capacity on the scale. The display should read
WEI HIN until the weight calculation is complete and the weight is displayed.
. Press the K LB button to select the weight mode (Lb Kg).(b)
. Press the REWEI H button the scale should perform the weighing process again.
. Remove the weight from the scale, the scale will return to ero and the display will read
ERO on the left upper side of the screen along with 000Lb00o.
NOTE If the set up procedure failed, refer to the troubleshooting instructions. If the problem
is not corrected, refer to qualified service personnel.
(a) To ad ust the display backlight and or contrast, please refer to page 17.
(b) To change the display mode in pounds to fractions or decimals, please refer to page 12.
SPECIFICATIONS
1/2

SET UP
Replacing Batteries
1. Unplug the scale.
2. Remove the battery cover from the display assembly.
3. Disconnect battery holder cable connector from the scale battery connector.
4. Carefully remove the battery holder by sliding it out the display assembly.
. Replace the batteries with new ones.
. Carefully position the battery holder into the display assembly.
. Connect the battery holder cable connector to the scale battery connector.
. Attach the battery cover to the display assembly and install the screw.
We recommend the use of EVEREADY Energi er e2TM batteries
9
OPERATION INSTRUCTIONS
1. Make sure there is no ob ect on the weighing platform
2. Press the ON OFF button to turn the scale on.
3. Wait until 000Lb00oand ERO on the left side of the display appear.
4. Ask the patient to step on the scale. The display should read WEI HIN until the
weight calculation is complete and the weight is displayed.
Health o Meter
Pro Plus
. If you wish to reweigh without asking the patient to step off and to step on the scale
again, press the REWEI H button.
. Ask the patient to step off the scale.
NOTE:The scale will always default to the settings and units last used.
WARNING: If the scale will not be used for a prolonged period of time, remove batteries
ha ard.
to avoid a safety
TARE FUNCTION
When using the scale the weight of an object such as a wheelchair or shoes accompanying the
patient can be subtracted from the total weight to determine the weight of the patient alone. The
Tare function automatically performs this subtraction, avoiding the need for manual calculations.
Pro Plus scales allow tare weight to be entered automatically or manually.
WEIGHING A PATIENT
Figure 4. Replacing Batteries

10
OPERATION INSTRUCTIONS
MANUAL TARE
1. Make sure there is no object on the weighing platform.
2. Press the ON/OFF button to turn the scale on.
3. Wait until ”000LB00oz” and “ZERO” on the left side of the display appear.
4. Press the TARE button (9). The user will be prompted to enter the TARE value.
5. Use the keypad to enter the weight of the object desired to be tared (i.e. wheelchair) and press
ENTER.
6. The value entered will be displayed as a negative value.
7. Place the patient and the tared object on the scale. The scale will automatically deduct the
entered tared weight from the gross weight of the patient and tared object.
8. The weight of the patient will appear on the scale.
9. The tared value is stored in memory until changed or cleared.
10. To remove the Tare, press the TARE button (9) again. The word “TARE” will disappear from
the display and the tare value will be deleted from memory. The scale will resume normal
operation.
FOR ADDITIONAL INSTRUCTIONS ON AUTOMATICALLY OR MANUALLY ENTERING THE TARE
VALUE PLEASE REFER TO PAGE 13.
CALCULATING BMI
1. Complete steps 1 to 4 above for“Weighing a Patient”.
2. Press the BMI button (2).
3. The scale will prompt you to enter the patient’s height. Use the keypad to enter the height.
Note: When weighing in lbs., height is entered in ¼” increments. For the fractional portion of the
height, press 1 for ¼”, press 2 for ½” and 3 for ¾”. When weighing in kg the height is
entered in 1cm increments.
4. Press ENTER.
5. Display will show the patient’s BMI.
6. Press ENTER to return to normal weighing operation.
Note: The scale will not calculate a BMI for a patient 24 pounds (12 kg) or less. If a height is not
entered within 30 seconds of pressing the BMI key, the scale will return to normal
operation
5. Display will show the patient’s BMI.
Note:
operation

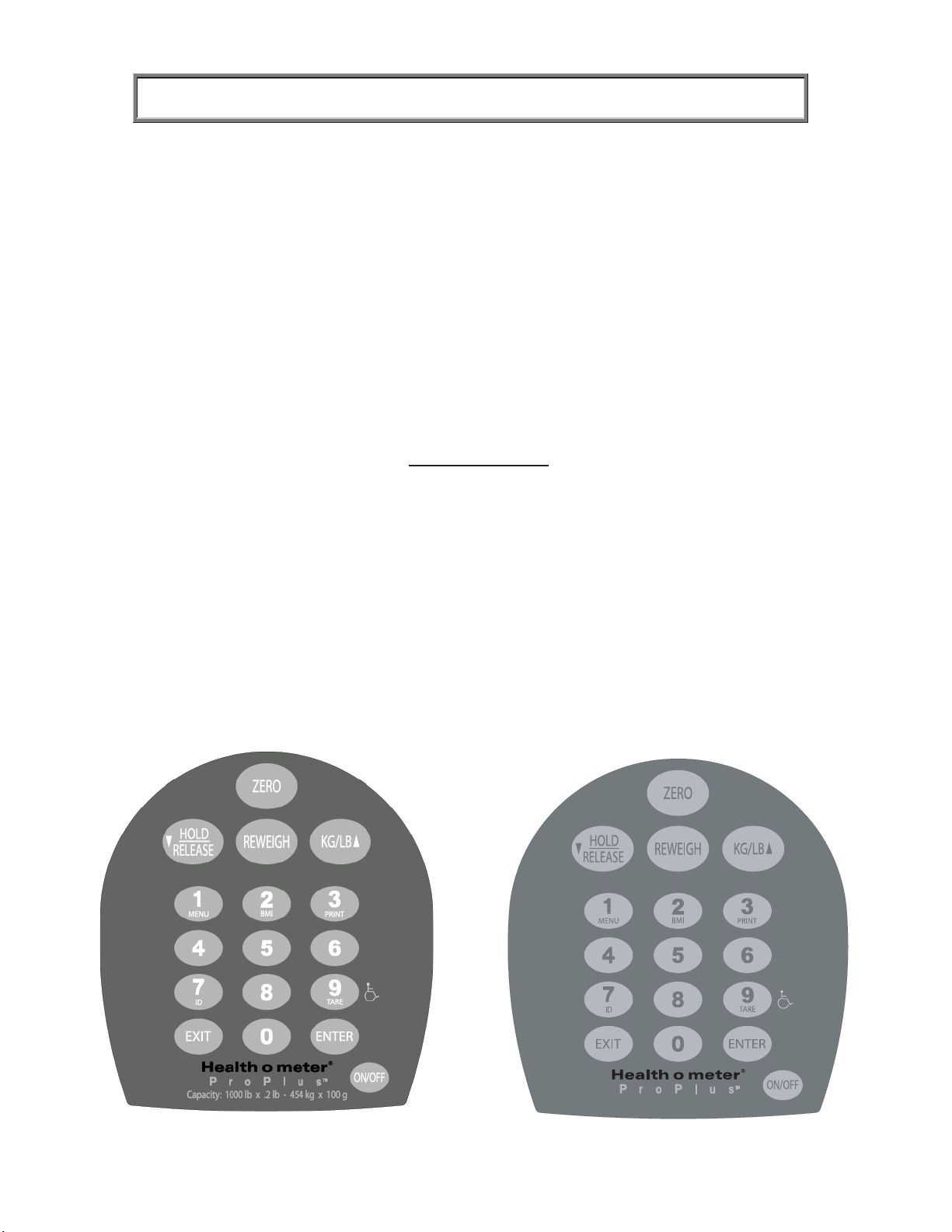

Figure . Keypad
Capacity: 700 lb x .2 lb - 310 kg x 100 g
1100KL
2650KL & 2700KL

11
ITEM DESCRIPTION FUNCTION
POWER Turns scale ON and OFF.
ZERO Zeros the scale prior to weighing.
HOLD/RELEASE Holds the value of the weighed object on the display until the button is pressed again to clear the value. Also used to
scroll down in the menu.
REWEIGH Allows repeated weighing of the patient without stepping
off the scale.
KG/LB
Toggles between kilograms or pounds. Also used to scroll
up in the menu. To activate or deactivate the KG or LB
only (Lockout) mode you must press and hold the
KG/LB button for 13 seconds. See NOTE Below.
MENU Press and hold for 5 seconds to enter the menu of the
scale.
BMI Prompts entry of data to calculate the patient’s Body Mass
Index (BMI).
PRINT Prints patient’s data (if printer is connected to the scale).
ID Prompts entry of patient’s identification number (ID). This ID will be stored with all the weighing made until it is
cleared or a different ID is stored.
TARE Prompts entry of TARE value that will be deducted from the weight on the platform. Also releases tare weight
(returns display to zero).
EXIT Reverts back one step when in the menu and data entry
modes.
ENTER Used to enter commands and values into the scale.
NOTE: The Lockout mode prevents the scale from changing between KG and LB
until it is deactivated
MENU
In the menu screen the user can set preferences and/or instruct the scale how to handle
stored data. The menu can be navigated using the up and down keys (cd) or by entering
the associated menu position number with the keypad. The menu has a “roll-over” way of
working: when the user scrolls to the bottom of the menu and presses the down button, it will
return to the top of the menu.
OPERATION INSTRUCTIONS

12
NOTE: The default mode of the scale is set so the menu option is locked out. If the menu
button is pushed before activating the menu option, “MenuLock” will show on the display. To
temporarily reactivate the use of the MENU key, press and hold the MENU key for 5 seconds.
During the menu access delay, the menu will display “MenuLock”. After 5 seconds, the
menu will show on the display and you may begin navigating through the menu.
Figure 7. Main Menu
01 WEIGHT DISPLAY MODE
(only applies to pound values, NOT the metric values)
Before making changes to this scale setting, please refer to “Menu” instructions above to
temporarily activate the Menu key.
The user can set the screen display value in either fraction of pound (¼, ½ or ¾ lb), in
pounds and ounces (resolution of 4 ounces) or in decimals (resolution of 0.2 lb). When kg is
selected as the units of use, these settings have no effect. The mode that is selected is used
through all the screens.
Figure 8. Weight Display Mode
ϧ
ϧϰ
to change Enter
OPERATION INSTRUCTIONS

13
Before making changes to this scale setting, please refer to page 12 “Menu” to temporarily
activate the Menu key.
NOTE:Due to the scale’s sensitivity, we recommend using the REWEIGH function prior to
setting the TARE weight, in order to eliminate any operator interference with the item to
be tared out.
There are two ways to manually enter a tare weight (such as the weight of a wheelchair, shoes,
etc): Press MENU (1), hold for 5 seconds and select option 02-Tare Weight or press TARE (9).
If there is no weight on the scale platform (value displayed is zero and there is no tare) and the
user presses the TARE button (9), the Tare Weight window appears and prompts the user to
enter the TARE value and to press ENTER. NOTE: The tare weight must be entered using the
following increments: 4oz, 0.2lb, ¼ lb. The value entered will display in minus (-). After the TARE
has been entered, the scale goes back to normal operation. This TARE value is stored in
memory until changed or cleared. If the tare weight is not entered in 30 seconds the scale will
revert back to normal operation, and the Menu Lock will be activated.
Important: The TARE weight cannot exceed 250lb (2650KL & 2700KL)
The TARE weight canot exceed 150lb (1100KL)
TARE display
indicates the weight
that has been tared
out (Figure shows the
display after removal of
the tared weight from
the scale’s platform)
The number that is to be changed will
flash and will move from the left to the
right after the appropriate number was
entered or by using the ckey (left)
and the dkey (right).
Figure 9. Tare Weight
Automatic Tare
The user can set a tare weight by pressing the TARE button (9) while there is a weight
on the scale platform. The display will come to zero and the word “TARE” will be
displayed to indicate there is a tare value in the memory (as displayed in Figure
above).
Removing the Tare
Additional pressing of the TARE button will delete the tare value from memory, TARE will
disappear from the display and the scale will resume normal operation.
02 TARE WEIGHT
OPERATION INSTRUCTIONS

14
03 DATA MANAGEMENT
Before making changes to this scale setting, please refer to page 12 “Menu” to temporarily
activate the Menu key.
The scale manages patient data including patient ID, weight, height, tare and BMI. The value is
stored in memory or transferred to PC. This function is performed by opening a new data file.
OPENING A NEW DATA FILE:
1. Press the ID button (7).
2. Using the keypad, type in the identification number.
3. Press ENTER.
This scale will also calculate Body Mass Index (BMI).
CALCULATING BMI:
1. Place the patient on the scale platform.
2. Press the BMI button (2).
Note:The scale will not calculate a BMI for a patient 24 pounds (12 kg) or less. If a height is not
entered within 30 seconds of pressing the BMI key, the scale will return to normal operation
The scale offers you two options to manage your information: to transfer/download the values or
to store them. The first option automatically downloads (transfers) the value to your PC. The
second option stores the value in memory. The maximum capacity of the scale is 270 files of
different data.
01 Auto Download
Automatic Download is the default option and will transfer the
value to the PC as soon as the patient steps off the scale or
when the user presses the HOLD/RELEASE button if it was
kept in “HOLD”. If no PC is connected, the value is not
transferred and not stored and will be lost after the load is
removed from the scale.
3. The scale will prompt you to enter the patient’s height. Use the keypad to enter the height.
Note: When weighing in lbs., height is entered in ¼” increments. For the fractional portion of the
height, press 1 for ¼”, press 2 for ½” and 3 for ¾”. When weighing in kg the height is
entered in 1cm increments.
4. Press ENTER.
5. Display will show the patient’s BMI.
6. Press ENTER to return to normal weighing operation.
OPERATION INSTRUCTIONS

15
02 Store in memory
The value is stored in memory
for later download to PC.
If the memory is close to
full the user will be warned
and given the option to
transfer all values to the PC
or to clear the memory of
all values.
03 Do not store data
No data will be stored
04 Transfer now
All the values stored in memory are transferred to the PC and
the scale memory is cleared of all values. If the transfer was
unsuccessful, the values are kept in memory until
successfully transferred or cleared.
05 Clear memory
If select YES, then press Enter, All the values stored in
memory will be cleared. If select NO, then it will return to the
last menu.
ϧ
ϧϰʳ
to change Enter
OPERATION INSTRUCTIONS

16
04 SCALE SETTINGS
Before making changes to this scale setting, please refer to page 12 “Menu” to
temporarily activate the Menu key.

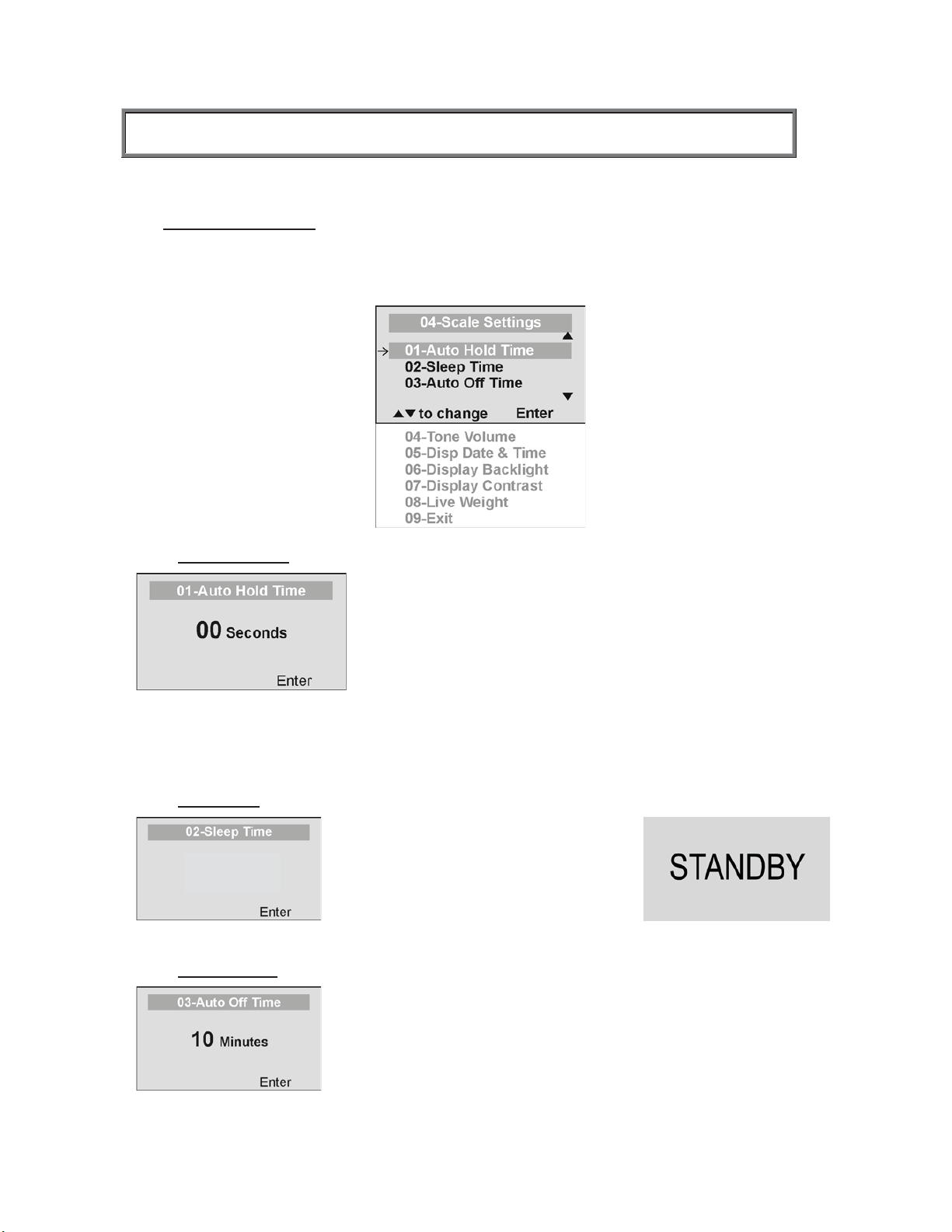

01 Auto Hold Time
The user can determine how long to display the weight
reading once it is determined, regardless of whether the
patient remains on the platform. The scale defaults to no Auto
Hold Time. The maximum setting is 20 seconds Hold Time.
02 Sleep Time
The user can set the time elapsed
before the scale goes into the sleep
mode. The default is 1 minute.
When the scale goes into sleep
mode, STANDBY is displayed on
the screen. The maximum setting is
10 minutes Sleep Time.
03 Auto Off Time
The user can determine how long the scale will operate
before turning off automatically due to inactivity. Default time
is 10 minutes. If the value is set to zero, the auto off function
is disabled. The maximum setting is 60 minutes Auto Off
Time.
01:00
OPERATION INSTRUCTIONS

17

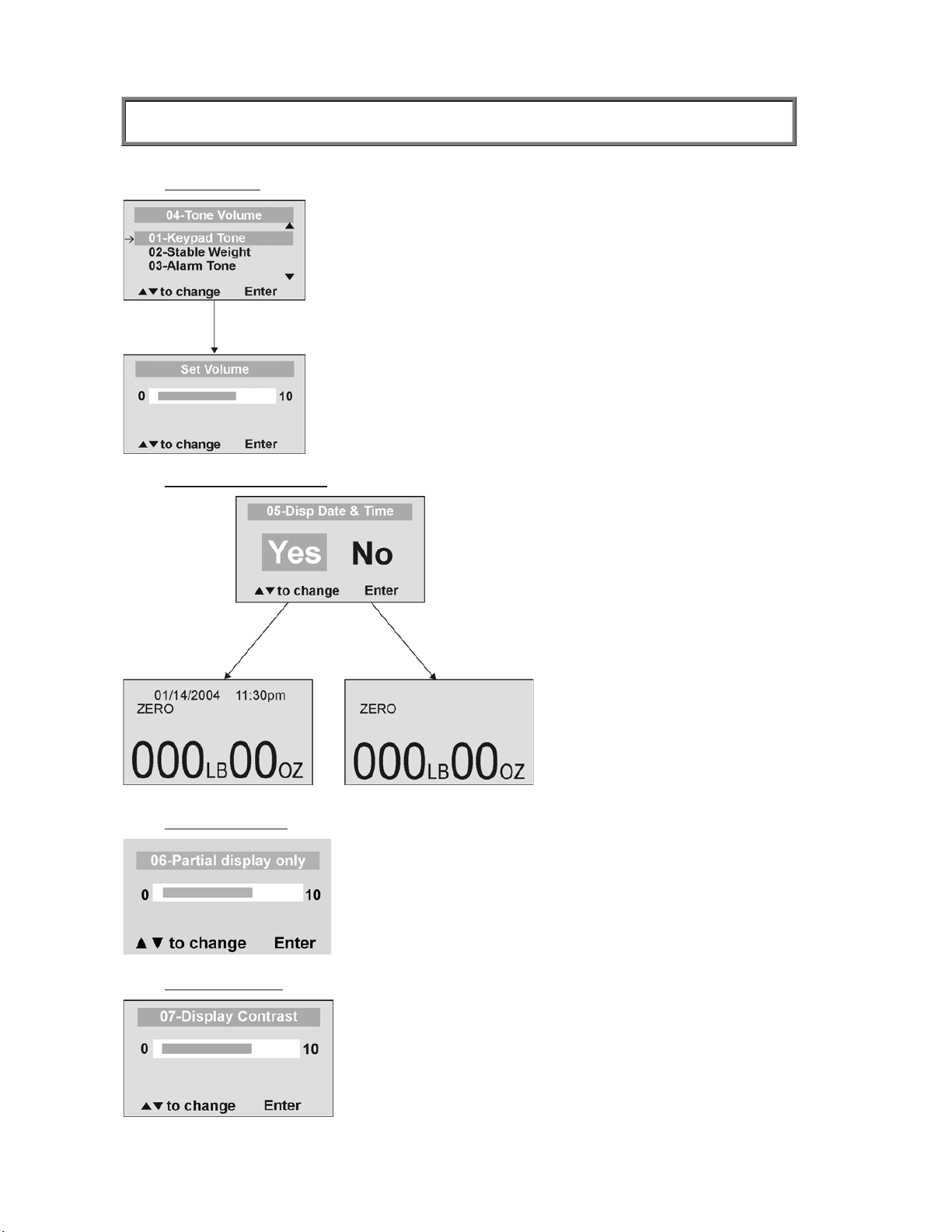

04 Tone Volume
There is an option to adjust the beeping tone of the scale.
This tone should sound when the scale has determined the
weight on the platform, when a key is pressed, after the
scale is turned on, at the end of self-test, or in the case of
fault or warning.
Use the cand dkeys on the keypad to adjust the volume.
Whenever the user presses the key to change a volume, a
beep will sound to indicate the set volume level.
05 Display Date and Time
This option will turn on or
turn off the date and time
display.
06 Display Backlight
The user can set the brightness of the backlight.
07 Display Contrast
The user can set the contrast of the LCD.
OPERATION INSTRUCTIONS

18

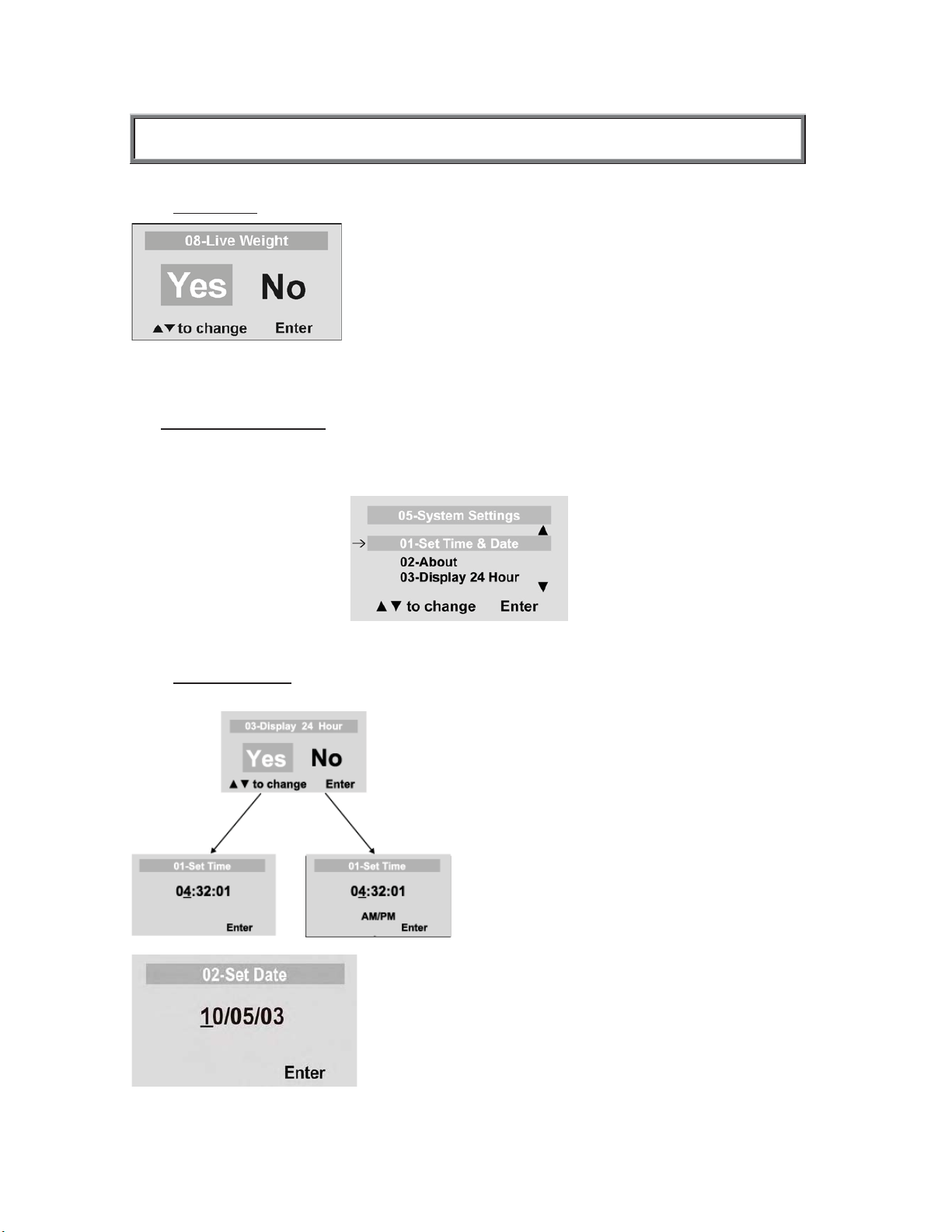

08 Live Weight
By selecting “Yes” the user can set the Live Weight mode to
deactivate the motion-sensing mode. In the Live Weight
mode the weight displayed will fluctuate with the patient’s
movement; the scale will not lock on to the weight as is the
case in the motion-sensing mode.
Press the REWEIGH button to operate the motion-sensing
mode and to determine the correct weight on the screen. To
revert back to motion-sensing mode, change the Live Weight
setting to “NO”.
05 SYSTEM SETTINGS
Before making changes to this scale setting, please refer to page 12 “Menu” to temporarily
activate the Menu key.
01 Set Time & Date
The user can set the time and date using the keypad.
To set the time move between hours, minutes
and seconds using the up and down keys cd
and enter the values on the keypad. If set
Display 24 Hours to YES, do not set AM/PM
AM/PM) If set Display 24 Hours to NO, then will
jump to the AM/PM line press the ENTER
button once.
Set the date using the up and down keys cd and enter the
values on the keypad.
OPERATION INSTRUCTIONS

19

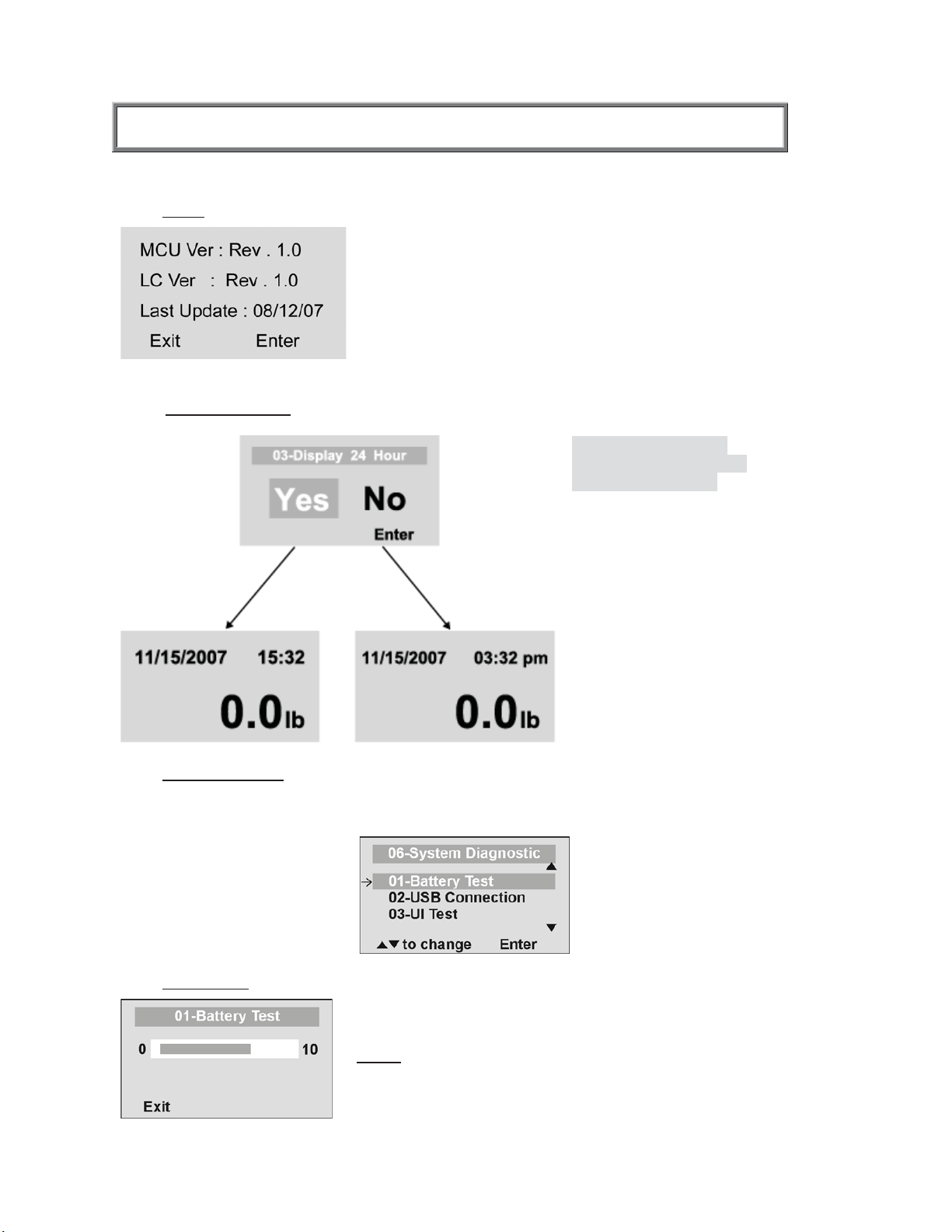

02 About
This screen displays the software version of the scale.
0
There are two options
display the time: 12 hour
(AM/PM) or 24 hour.
06 SYSTEM TEST
Before making changes to this scale setting, please refer to page 6 “Menu” to temporarily
activate the Menu key.
01 Battery Test
The scale will display the estimated amount of battery life
remaining until the batteries will have to be replaced.
NOTE:In order to complete the battery test, the scale must be
powered by batteries only. Unplug the scale from AC power
source prior to battery test.
3 Display 24 Hour
OPERATION INSTRUCTIONS
