User’s Manual
Multi Trainer
HMT-700T / 700S

1.
Specifications ............................................................. 03
A. HMT-700T
B. HMT-700S
2.
Safety Instruction ..................................................... 04
3.
Safety Rules for workout ......................................... 05
4.
Product Introduction ................................................ 06
5. Installation Location ................................................ 06
6.
Components of Multi Trainer .................................. 07
7.
Assembly and setup of Multi Trainer ..................... 09
8.
Display Console for Multi Trainer with built-in TV monitor
A. Features and Functions ................................................. 12
B. Control Board ............................................................... 13
C. TV Channel Setting ................................................................... 14
D. Operation Instructions .................................................. 15
1) Manual Workout
2) Target Workout
3) Program Workout
4) Profile Workout
9. Display Console for Multi Trainer with FND
A. Features and Functions ................................................. 19
B. Control Board ............................................................... 20
C. Operation Instructions ................................................... 21
1) Manual Workout
2) Cardio Workout
3) FAT BURN Workout
4) HR Goal Workout
5) Profile Workout
6) Target Workout
1. Without prior consent of Health-One, using or copying the
pictures and contents in this manual is not allowed.
2. Without prior notice to customer, product could be
changed for improvement purpose.
Table of Contents

A. Multi Trainer HMT-700T
B. Multi Trainer HMT-700S
with built-in HD TV monitor
with built-in FND display
1. Specifications
Specifications
Model Display Power Dimension Weight Max.
Load
Resistance
Level Program Heart Rate monitoring Option
HMT-700T ·15 inch HD TV
·OSD function 220V, 60Hz 1910 x 1030 x 1860
(WxDxHmm)
220kg
180kg 1~20
3 cardio programs,
6 profile programs,
3 target programs
POLAR
contact
type
(Option:
Telemetry)
Bluetooth
for Wireless
Headphone
218kg
HMT-700S FND Self-
Generator -
3

The following safety instructions are for correct and safe use of the Multi Trainer and should be followed for your safety and to prevent accident.

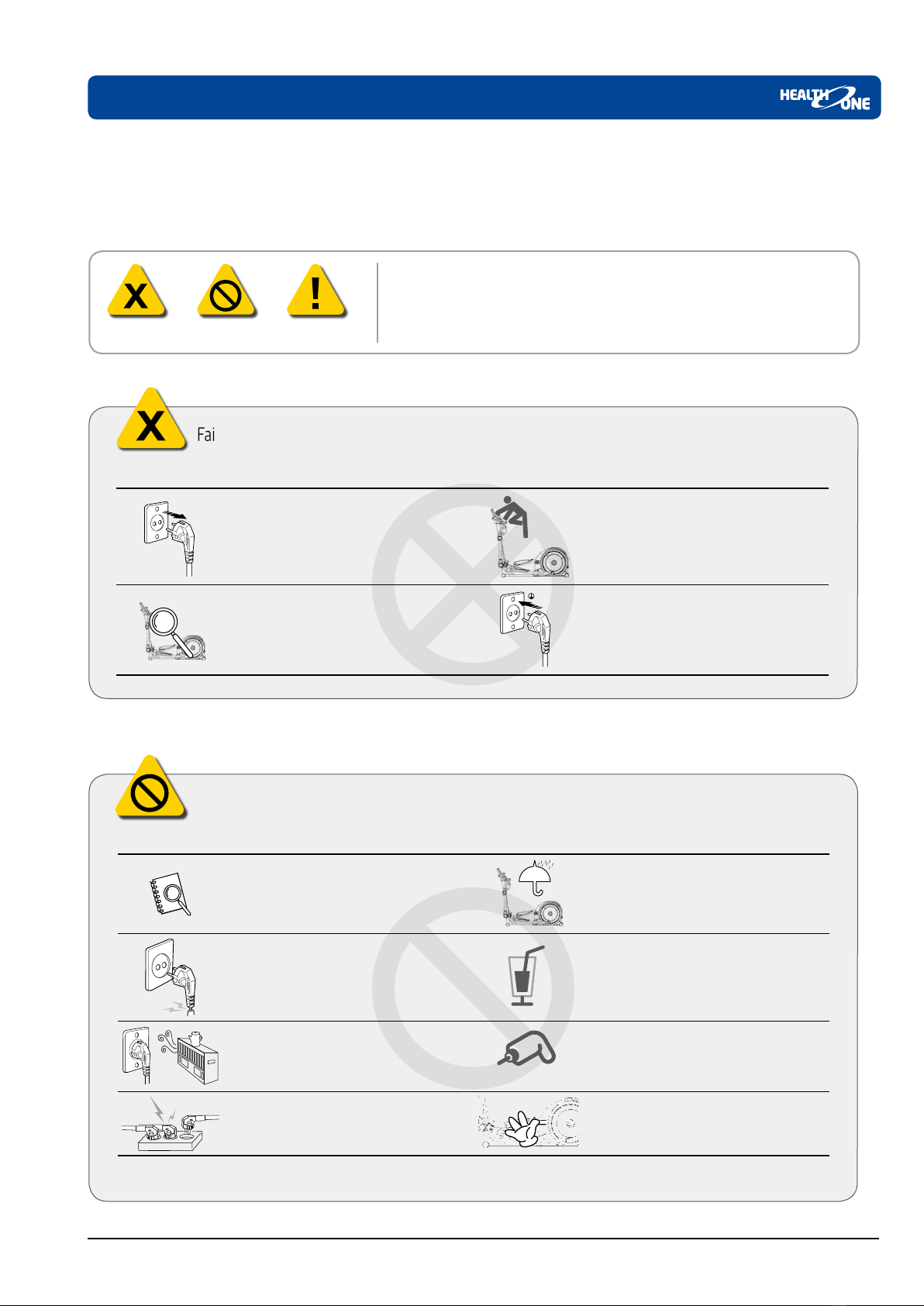

There are 3 types of safety marks PROBIHITION, WARNING, and CAUTION, according to the safety level.
This mark calls for your attention to a possible danger.
Read the accompanying instructions carefully to ensure safe use.
WARNING CAUTIONPROHIBITION
Failure to obey this prohibition can result in malfunction or safety accident.
Do not operate the elliptical in any other way
than stated in this manual.
Do not install the elliptical near water, in very dusty or
humid areas or on thick carpeting to avoid damage.
Do not use the elliptical in case that the power cord
is damaged or the elliptical does not work normally.
Do not operate the elliptical if it is doused with
water or other liquid. Stop the machine and contact
customer service immediately.
Do not leave the power cord near the fire or
excessive heat (for elliptical with TV monitor).
Do not attempt to repair or modify the elliptical
unless a qualified engineer.
Do not use a multi-socket simultaneously for other
electrical equipment to avoid fire due to overload (for
elliptical with TV monitor).
Prevent foreign matters from getting into moving
parts. Prevent clothing or any part of your body from
touching moving parts.
PROHIBITION
Failure to obey this warning can result in injury or death.
Always unplug the power cord after use of the
elliptical or before cleaning or maintenance (only for
elliptical with TV monitor) to avoid electric shock.
Stepping on the display console or on the seat may
cause damage or accident.
Check for proper assembly before first use and do
not attach any accessory not recommended by the
manufacturer as it may be hazardous.
The elliptical uses power of AC 100V to AC 240V at
50/60HZ. To reduce danger of accident when it breaks
down, connect the power plug to a ground socket as
required by the law.
WARNING
2. Safety Instruction
4

3. Safety Rules for workout
Power must be turned off and plug is removed
after use or when not in use for a long period.
For safety purpose, ensure that solid objects
should be about 1m away from the back of the
bike and 0.5m away from the side of the bike.
THINNERR
SOLVENT
Do not use any solvent, wax, thinner or other
petroleum product for cleaning. Use soft dry cloth
only.
The heart rate monitoring system is not a medical
equipment. Its figure could be different depending
on use environment.
- Just take the measured figure for workout program.
Failure to obey this caution can result in slight injury or product damage.
Failure to obey this prohibition can result in malfunction or safety accident.
LEVEL
Do not abruptly change the resistance level.
- Especially, abrupt start may cause some damage to user
body or product.
Be careful not to pinch your foot or cloth between
moving parts such as pedal spindle and crank arm.
Do not allow children under age 10, the disabled, the
elderly or unfit persons or pets to use the machine to
avoid accident unless closely guide by a guardian.
PROHIBITION
CAUTION
Failure to obey this caution can result in slight injury or product damage.
If you feel pain, difficulty in breathing or other
systems while workout, stop it immediately and
consult your doctor.
Always do workout following your workout ability.
Do not overwork.
Wear proper cloths and shoes for workout.
Consult your doctor or a specialist (trainer) before
starting workout. Especially if you have high blood
pressure, heart disease or other symptoms or if
you are over 35.
CAUTION
1m
Safety Instruction
5

· Please check if the ground surface is even and solid.
Otherwise, it may cause noise, vibration and tripping over.
· Please check if the location is indoors without humidity or dust.
Humidity or dust may cause breakdown of the elliptical.
· Please allow enough space from surrounding fixtures. For safety purpose, ensure that solid objects should be about
1m away from the back of the elliptical and 0.5m away from the side of the elliptical.
· The installation location for elliptical with TV monitor should be within 1.5m from electrical socket to plug the
elliptical cord into the socket because power cord of 1.8m is provided. And in the installation location, antenna cable
should be offered.
· Please use standard plug and socket and make sure the electrical outlet is grounded (only for elliptical with TV monitor).
· When moving, please do it by two persons to avoid any waist injury. Injected plastic parts or pedal parts could be
broken when moving. Please hold steel part of the elliptical and move it.
HEALTH-ONE Elliptical is an ideal health equipment for fitness center. This Mult Trainer with good appearance is designed
to operate smoothly, safely and stirlessly and has 15 inch LCD HD TV monitor, which will let users work out without being
tiresome.
Features
· Self-powered system low maintenance design and space-saving deliver a fast return of investment
· Built-in 15 inch LCD HD TV monitor and OSD(On Screen Display) function
· Control Board with Capacitive Soft Feeling button
· Easy control and various functions
· Smooth movement
· Rear-drive and handle arms enable sustain, smooth and engaginf exercise, regardless your fitness level.'
· Enlarged and impact-absorbing pedals provide gentle movement to reduce lower back stress.
4. Product Introduction
5. Installation Location
6

HMT-700T / 700S
Display Console Assembly Main Body Assembly Console Tube set
7
6.Components of Multi Trainer

8

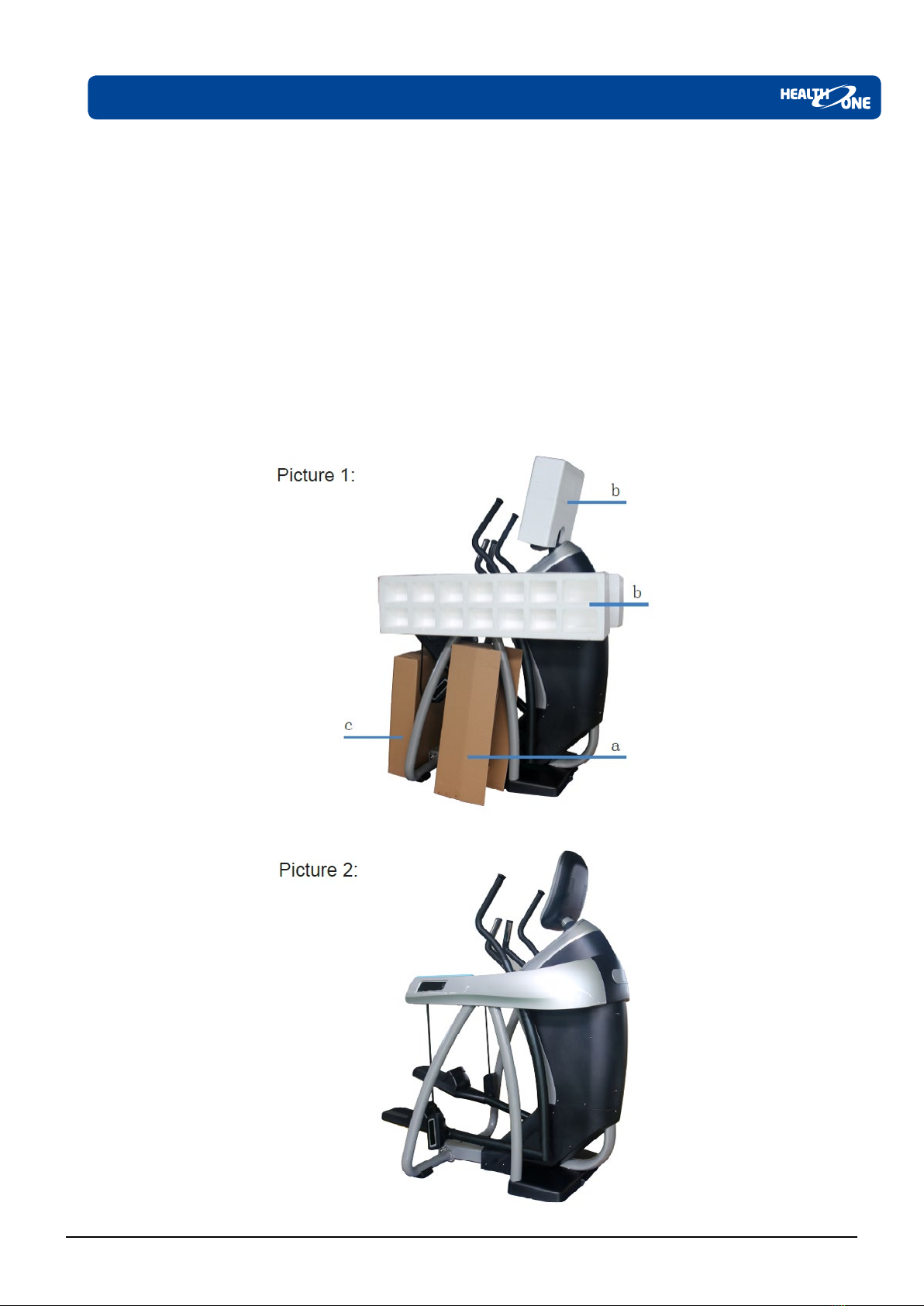

1. It requires a space which is big enough and two experienced persons.
2. Open the packing box, move cartons (a) and (c) onto floor; then remove packing
material (b) and put them on floor. Check whether all parts are there according to
packing list.(Picture 1)
3. Put the machine in the place where it will be used; put down press arms which are
attached to the two pedals and tidy the belt (Picture 2)
7. Assembly and setup of Multi Trainer

9
Assembly and setup of Elliptical
4. Fix four shields as diagram shows with 4 screws (M4*16). (Picture 3)
5. Attach pedal assembly onto pedestal with 4 screws (M12*30) and nut (M12). Check
whether central foot rests on floor; if not, adjust it. (Picture 4)
6. Recheck all connecting parts and tighten loose screws in case of slack.

10
Assembly and setup of Elliptical

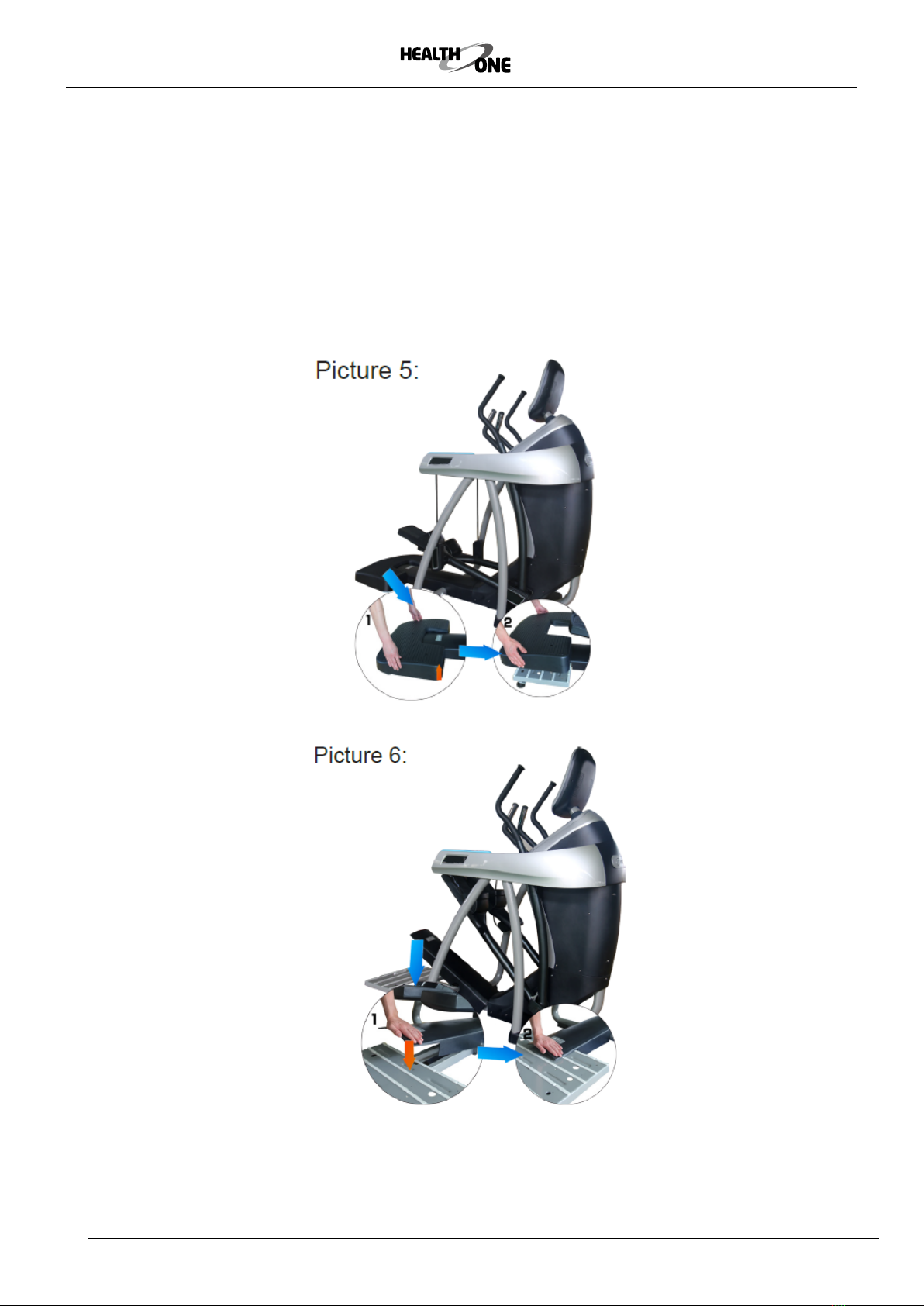

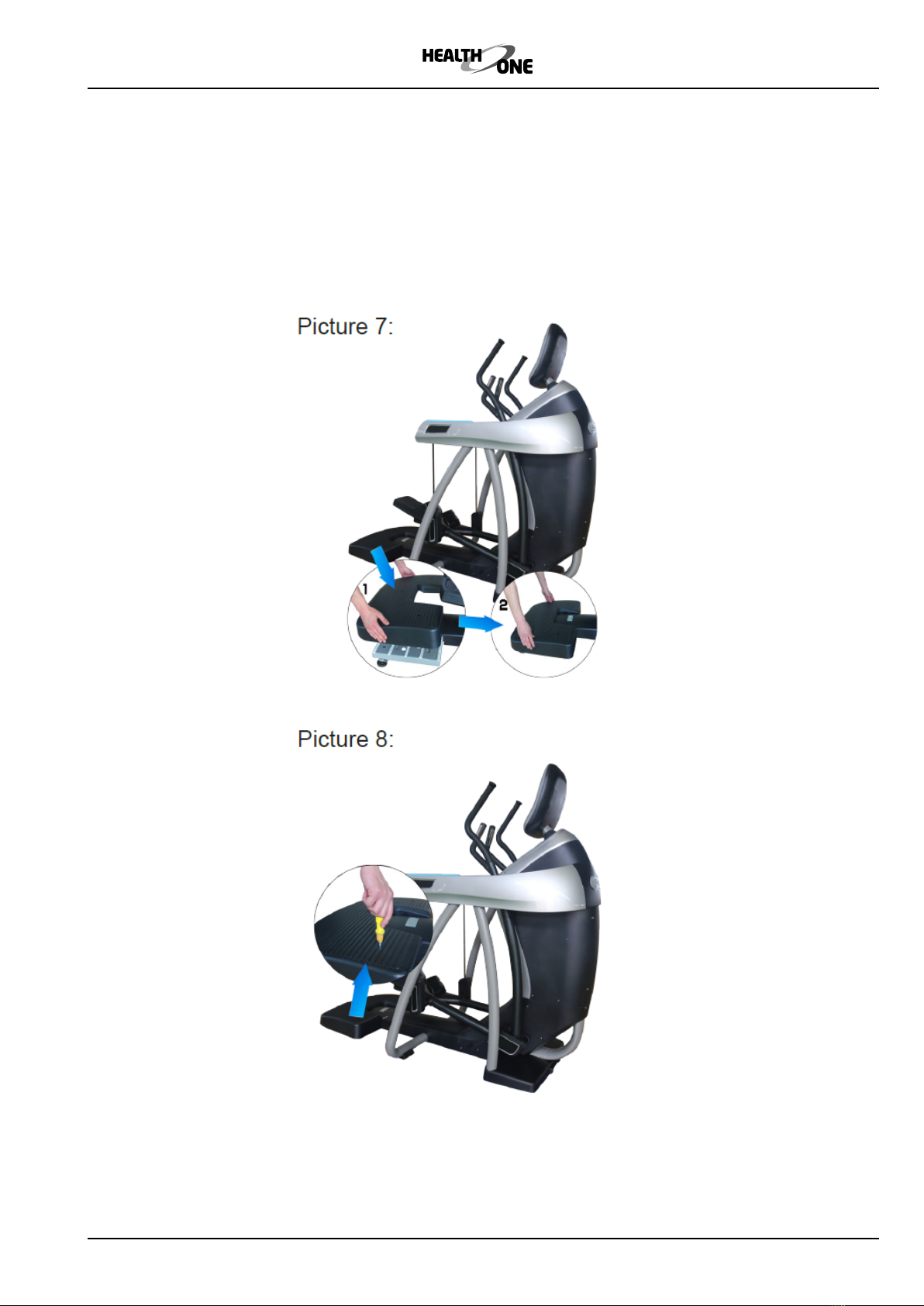

7. Dismantle pedal shield. (Picture 5)
8. Insert shield (M) as shown in the diagram: insert it into one side of the pedal and
make it slid into pedestal by pressing downward the other end of it. (Picture 6)

Assembly and setup of Elliptical
11
9. Assemble pedal shield. (Picture 7, Picture 8)
Finally, a test must be implemented by professional to assure that it’s correctly
assembled.

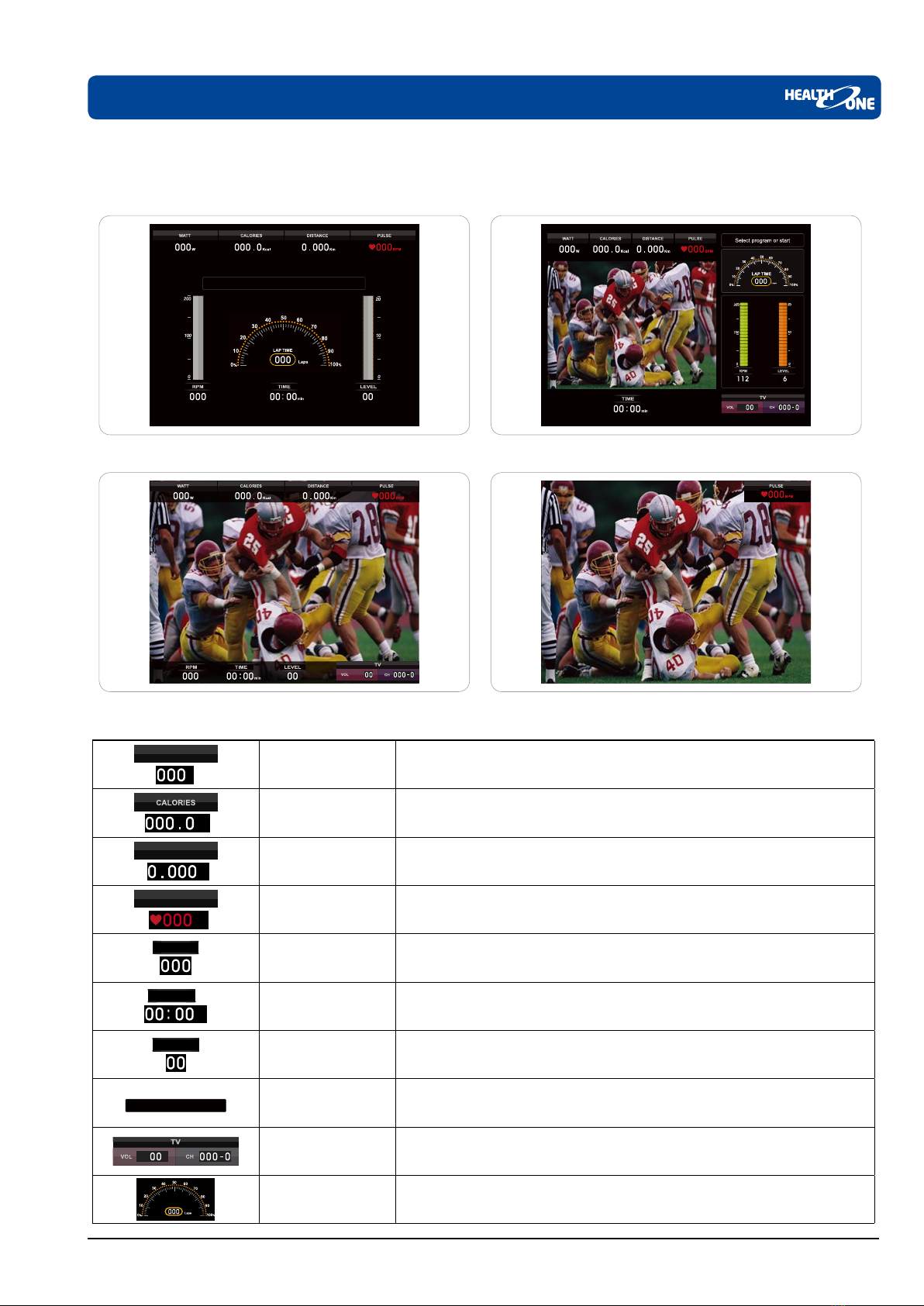

The Elliptical with built-in TV monitor has 4 screens to be selected by user.
Select program or start
A : Information
C : TV with information
B : TV & Information
D : TV without information

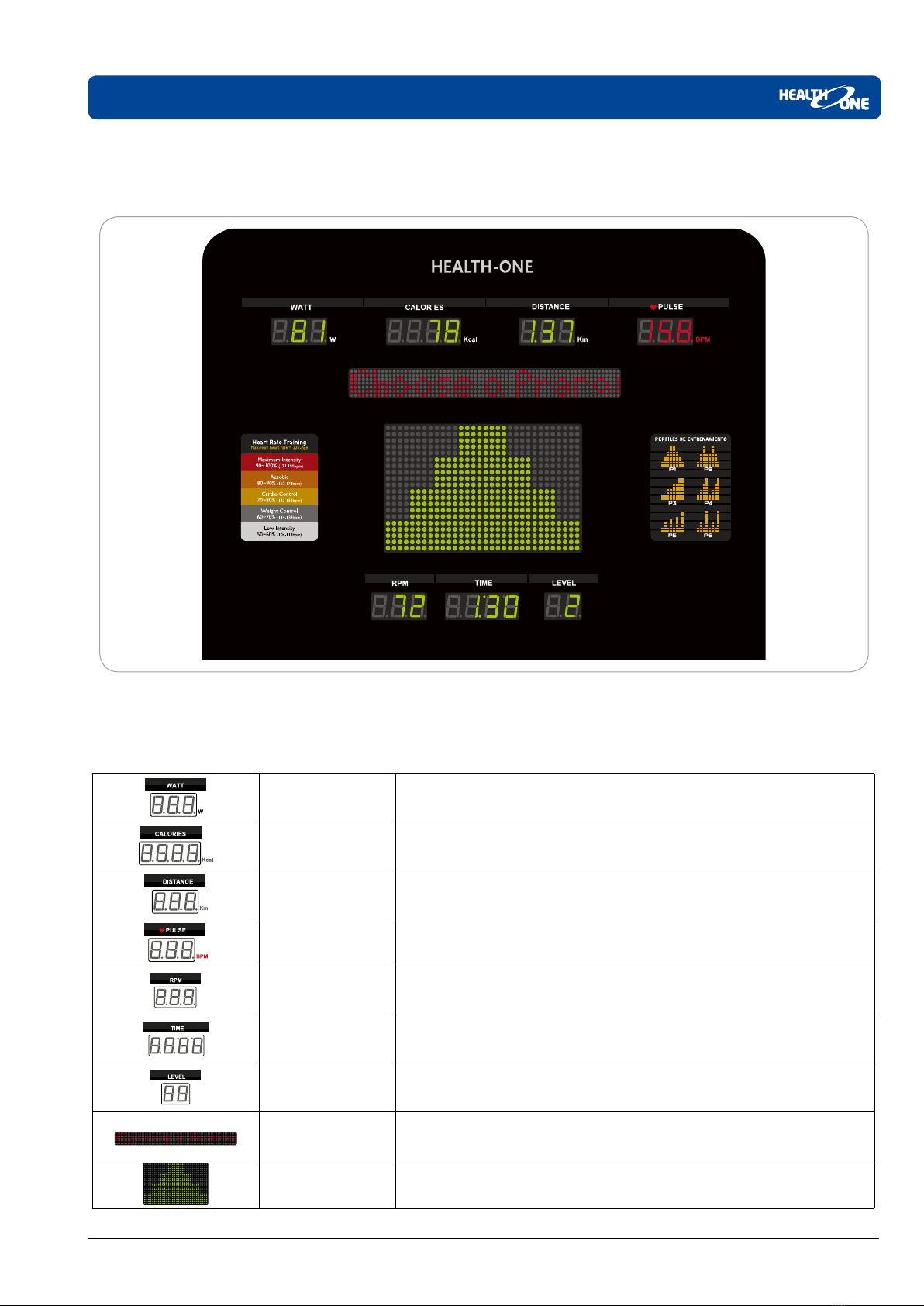

WATT
W
WATT Window shows energy consumption volume by second.
Kcal
CALORIES Window shows user’s caloric expenditure in Kcal unit.
Km
DISTANCE
Distance Window shows the total number of kilometers user has ridden thus far.
PULSE
BPM
Heart Rate Window shows user’s current rate in beats-per-minute(BPM) while the heart rate strap or
grapping the heart rate grips.
RPM
RPM Window shows the current speed at which user is pedaling in revolutions-per-minute.
min
TIME
Time Window shows the duration of user’s workout in minutes and seconds from minimum 1
minute up to maximum 99 minutes.
LEVEL
Level Window shows resistance intensity grade.
Select program or start
Message Window shows messages for users.
Screen Mode Window shows the mode which the screen is set.
Target ARC
& DIAL Window
shows accomplishment rate of the workout target in program workout.
In manual workout, one block means movement of 9.15m.
8. Display Console for elliptical with built-in TV monitor
12
PULSE

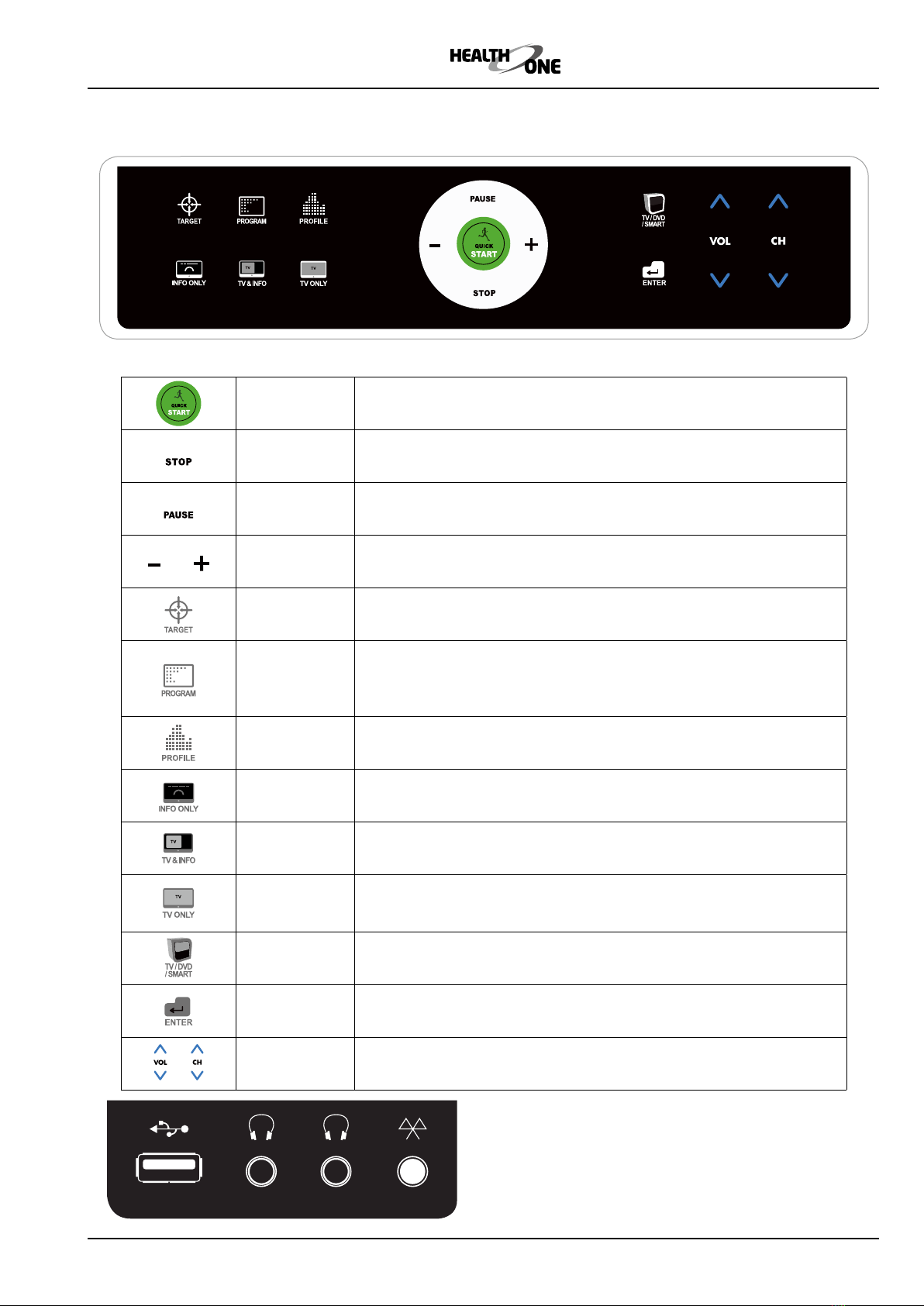

A. Features and Functions

QUICK START lets you begin your workout by simply pressing it.
Quick Start uses a default of 70Kg, a resistance Level of 1.
STOP lets you stop your workout.
PAUSE allows you to stop your workout for a short period and then continue.
+/- allows you to increase or decrease the resistance Level in 1 unit increments.
Minimum resistance level is 1 while maximum is 20.
TARGET allows you to select a workout target type (time, distance, calories).
PROGRAM
allows you to pre-program workout target, age and maximum resistance level. It
is designed to maintain your heart rate at a constant level by controlling pedaling
resistance and prompting you to pedal at a specified RPM. For this program, user
has to wear a heart rate strap.
PROFILE allows you to choose one of 6 preset profiles
and workout following the profile pattern.
INFORMATION allows to display only workout information on the screen.
TV &
INFORMATION allows to display TV and workout information on the screen.
TV
allows to display the TV on the screen.
In this mode, workout information by close caption on the TV screen displays by
rotation whenever user touches the screen.
MODE allows you to change the screen mode (TV, DVD and SMART).
ENTER allows to confirm the setting and data input.
TV VOL / CH allows user to adjust TV volume and channel.
Jack Housing
A.
USB Port : is used to charge the Bluetooth headset or other
electrical goods.
B. Earphone inlet : is used for hearing sound from the elliptical
TV monitor.
C.
Bluetooth Pairing Button : allows user to pair the Bluetooth
Transmitter in the elliptical with the Bluetooth headset receiver.
This is only for the elliptical with Bluetooth function.
13
A B B C
B. Control Board
Display Console for elliptical with built-in TV monitor

1. Go into TV setting mode
1) Move to TV mode.
2) Change to TV only mode.
3) Press and of CH simultaneously for 4 seconds.
3. Select Auto search Start
Press + btton to select auto search start.
4. Start search
Press enter to start search.
5. Compeletion
After compeleting auto search, please turn o
and on the power.
2. Select Auto tuning
Press + button to select Auto tunning.
14
2
3
4
Operation Instructions
C. TV channel setting
1

1
2
3
4

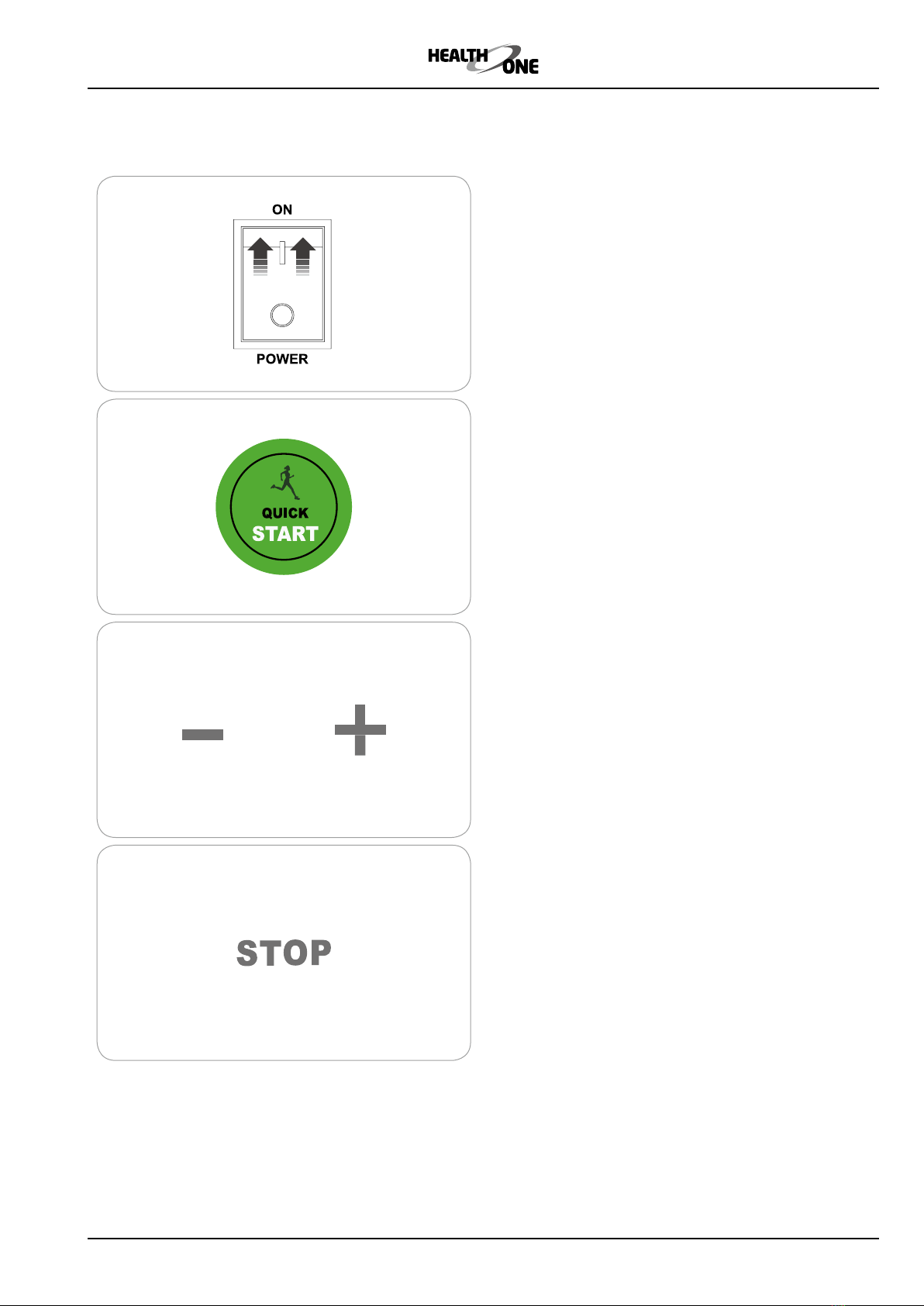

1. Turn the power ON.
4. Press the STOP button to stop your workout.
When you press the STOP button, the Message Window
shows “SUMMARY” and this message remains for 30
seconds. If you press STOP button before 30 seconds, the
SUMMARY display disappears.
2. Press the START button to begin workout at resistance level
of 1.
3. Adjust the resistance level using +/_ buttons during your
workout.
POWER ON
START
- /+
STOP
15
D. Operation Instructions
1) Manual Workout
Operation Instructions

16

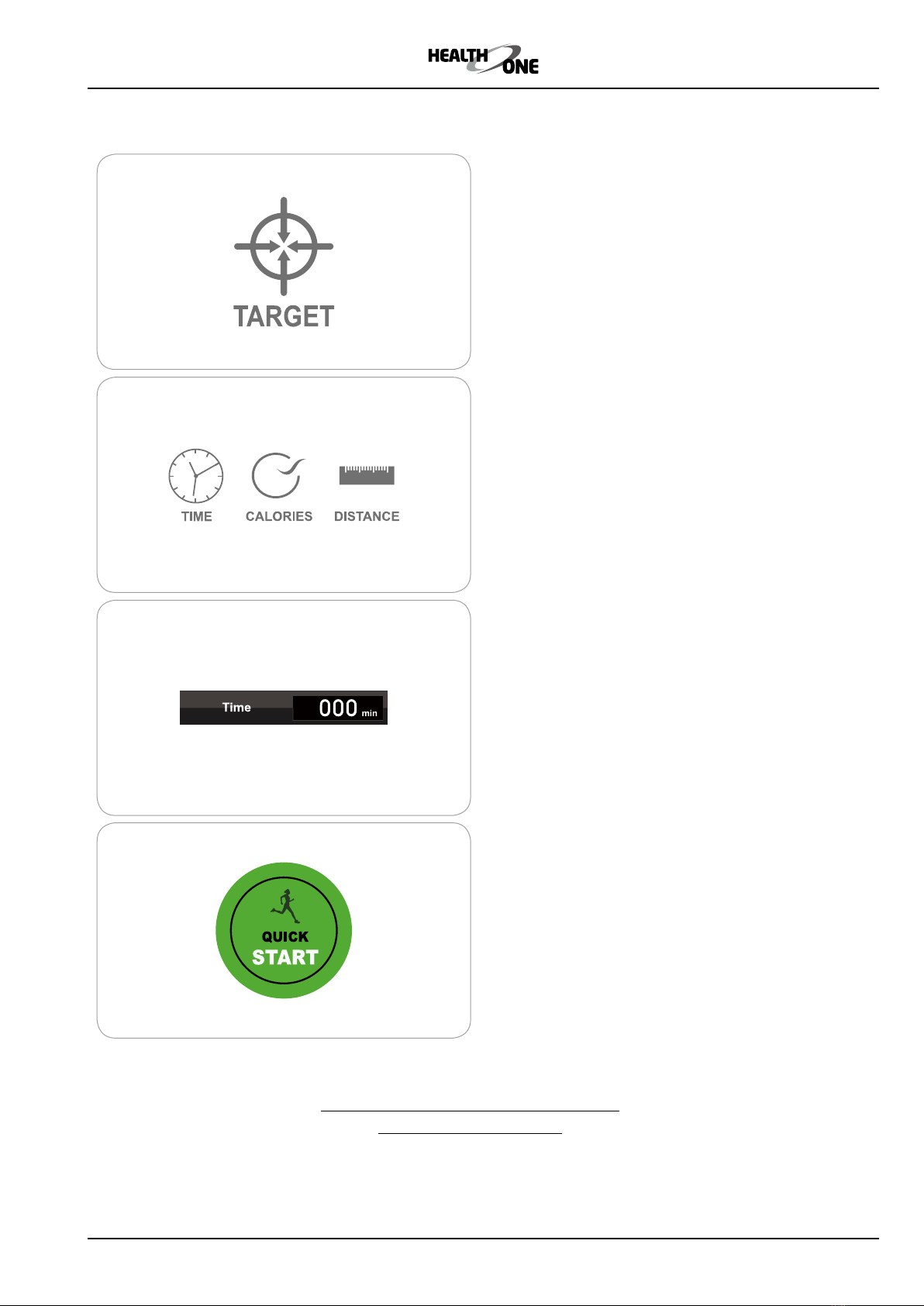

1. Press the Target Workout button to get into the Target
Workout mode.
2. Select one of the workout targets (TIME, DISTANCE, CALORIES)
using +/- buttons and press ENTER button.
After workout, you may see workout summary
on the screen for 30 sconds.
3. . Input target value.
Input target value using +/- buttons.
Default values are 30 minutes for TIME, 100Kcal for CALORIES and
10Km for DISTANCE.
4. Press the START button to begin your workout.
TARGET
WORKOUT TARGETS
TARGET VALUE
START
1
2
3
4
2) Target Workout
Operation Instructions

17
1. Press the “PROGRAM”.
If the bike does not read the heart rate signal from the heart
rate strap, “Check HR belt” is displayed on the screen and
procedure for inputting data is not allowed.
PROGRAM
1
2. Select workout program.
Select one of three workout programs, CARDIO, FAT BURN
and HR GOAL using the +/- buttons.
WORKOUT PROGRAM
2
3. Select workout target.
Select one of workout targets using +/- buttons and press
“ENTER”.
WORKOUT TARGET
3
4. Input workout target value and your age.
Input workout target value and press “ENTER”. And input
your age using +/- and press “ENTER”.
TARGET VALUE
4
5. Press the “START” to begin your workout.
START
5
3) Program Workout
Operation Instructions
The Program Workout is designed to maintain your heart rate at a constant level by controlling pedal resistance for Cardio,
Fat Burn and HR Goal workout. For this program, you have to use a heart rate strap.
After your workout, workout summary is
displayed for 30 seconds.

1. Press “PROFILE”.
3. Input time maximum level.
Input time and maximum resistance level you desire using
+/- button and press “ENTER”.
4. Press the “START” to begin your workout.
2. Select profile.
Select prole you desire using +/- buttons and press
“ENTER”.
PROFILE WORKOUT
PROFILE
TARGET VALUE
START
18
1
2
3
4
4) Profile Workout
Operation Instructions
In this workout program, user can choose one of the 6 preset profiles and workout with the following profile pattern. Monitoring
heart rate is not necessary for this workout.
After your workout, workout summary is
displayed for 30 seconds.

WATT Window shows energy consumption volume by second.
CALORIES Window shows user’s caloric expenditure in Kcal unit.
Distance Window shows the total number of kilometers user has ridden thus far.
Heart Rate Window shows user’s current rate in beats-per-minute(BPM) while the heart rate strap or
grapping the heart rate grips.
RPM Window shows the current speed at which user is pedaling in revolutions-per-minute.
Time Window shows the duration of user’s workout in minutes and seconds from minimum 1
minute up to maximum 99 minutes.
Level Window shows resistance intensity grade.
Message Window shows messages for users.
Target ARC &
DIAL Window
shows accomplishment rate of the workout target in program workout. In manual
workout, one block means movement of 100m.
9. Display Console for Elliptical with FND
19
A. Features and Functions

QUICK START lets you begin your workout by simply pressing it. Quick Start uses a default of
70Kg, a resistance Level of 1.
STOP lets you stop your workout.
PAUSE allows you to stop your workout for a short period and then continue.
- /+ allows you to increase or decrease the resistance Level in 1 unit increments.
Minimum resistance level is 1 while maximum is 20.
CARDIO is one of three workout programs (CARDIO, FAT BURN and HR GOAL) to
increase cardiovascular function.
FAT BURN is one of three workout programs (CARDIO, FAT BURN and HR GOAL) to maximize the
aerobic benefits of your workout by using the body’s fat stores for fuel.
HR GOAL is one of three workout programs (CARDIO, FAT BURN and HR GOAL) to preset your
desired heart rate and work out.
PROFILE allows you to choose one of 6 preset profiles and work out following the profile
pattern.
TIME allows user to preset workout time desired.
CALORIES allows user to preset workout calories desired.
DISTANCE allows user to preset workout distance desired.
ENTER is to confirm data input.
20
B. Control Board
Display Console for elliptical with FND
